glove box HONDA RIDGELINE 2014 1.G Owners Manual

Î
Î
Î
CONT INUED: If equipped
Your Vehicle at a Glance
3
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE
MIRROR CONTROLS
ACCESSORY POWER SOCKETS
FUEL FILL DOOR
R
ELEASE HANDLE
POWER DOOR LOCK
MASTER SWITCH (P.134)
(P.103)
(P.128)
INSTRUMENT PANEL INDICATORS
GAUGES(P.62)
(P.76)
PARKING BRAKE
RELEASE HANDLE
(P.132)
(P.139)
Vehicle with navigation system is shown. PARKING BRAKE PEDAL
(P.132)
(P.136)
CENTER CONSOLE AUXILIARY INPUT JACK AUDIO SYSTEM
(P.159) PASSENGER’S FRONT
AIRBAG
HEATING/COOLING
CONTROLS
CLIMATE CONTROL
SYSTEM
GLOVE BOX
(P.138) (P.9, P.25
)
(P.146)
(P.152)
(P.205)
(P.250)
(P.246) DRIVER’S FRONT
AIRBAG (
P.9, P.25) REARVIEW MIRROR WITH
REARVIEW CAMERA DISPLAY
(P.240)
12/09/07 16:42:47 31SJC670_010

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60
............................
Instrument Panel .61
..........
Instrument Panel Indicators . 62
.............................................
Gauges .76
..............
Multi-Inf ormation Display .82
Controls Near the Steering ...........................................
Wheel .93
........................
Multi-Control Lever .94
........................................
Headlights .95
...............
Headlight Control Dial . 95
........................................
Fog Lights .97
........
Instrument Panel Brightness . 98
.................
Hazard Warning Button . 99
..........
Steering Wheel Adjustment . 99
................................................
Keys .100
......................
Immobilizer System .101
..............................
Ignition Switch .102
....................................
Door Locks .103
............
Childproof Door Locks . 104
Auto Door Locking/ ..............................
Unlocking .104
.....................
Remote Transmitter .110
.....................
Dual-Action Tailgate .113
...............................
In-Bed Trunk
. 116
...............................................
Seats .119
..................................
Seat Heaters .126 ............................
Power Windows .128
.......................................
Moonroof .131
...............................
Parking Brake .132
...........................................
Mirrors .133
.........
Interior Convenience Items . 135
.........................
Center Console .136
.......
Console Compartments . 136
.........................
Cargo Hooks .137
.....................
Beverage Holders .137
..................................
Glove Box .138
................................
Coat Hooks .138
....................
Sunglasses Holder .138
........
Accessory Power Sockets . 139
...................................
Sun Visor .140
............................
Vanity Mirror .140
........................
AC Power Outlet .141
...............................
Interior Lights .142
.....................................
Bed Lights .144
Instruments and Controls
59
12/08/09 16:06:58 31SJC670_066

Î
Î
Î
: If equipped
Control L ocations
60
Vehicle with navigation system is shown. (P.103) POWER DOOR LOCK
MASTER SWITCH MIRROR CONTROLS
ACCESSORY POWER SOCKETS
(P.134)
(P.139)
(P.132) PARKING BRAKE
RELEASE HANDLE INSTRUMENT PANEL INDICATORS
GAUGES
(P.76) (P.62)
POWER WINDOW
SWITCHES
(P.128) PARKING BRAKE PEDAL
(P.132) (P.136) CENTER CONSOLE
HOOD RELEASE HANDLE
FUEL FILL DOOR RELEASE
HANDLE AUXILIARY INPUT JACK
(P.205) AUDIO SYSTEM
HEATING/COOLING
CONTROLS
CLIMATE CONTROL
SYSTEM
GLOVE BOX
(P.138)
(P.146)
(P.152)
(P.159)
(P.250)
(P.246) REARVIEW MIRROR WITH REARVIEW CAMERA DISPLAY
(P.240)
12/09/07 16:42:53 31SJC670_067
Inst rument s and Cont rols

These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver’s
door lock. You can keep the glove
box locked when you leave your
vehicle and the valet key at a
parking facility.
You can also keep the In-Bed Trunk
locked by using the main switch in
theglovebox(seepage ). Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The valet key does not contain a
battery. Do not try to take it apart.
118
Keys
100
VALET KEY
(LIGHT GRAY)
MASTER KEY
WITH REMOTE
TRANSMITTER
KEY
NUMBER
TAG
12/08/09 16:12:24 31SJC670_107
Inst rument s and Cont rols

There are two cargo hooks f or
plastic grocery bags at the back of
the In-Bed Trunk. They are designed
to hold light items. Heavy objects
may damage the hooks.
To protect items in the In-Bed Trunk,
you can disable its release button by
turning off the main switch in the
glove box and locking the glove box
with the master key.
Even if the main switch is in the OFF
position, you can open the In-Bed
Trunk with the master key.
When you are f inished washing the
In-Bed Trunk, dry it with a sof t cloth,
and reinstall the drain plug. Youcanwashtheinsideof the
In-Bed Trunk with a water and mild
detergent solution, and a sof t brush
or cloth.
To drain water from the In-Bed
Trunk, remove the drain plug by
turning it counterclockwise.Cargo Hooks
Washing the In-Bed T runk
In-Bed T runk Main Switch
In-Bed Trunk
118
DRAIN PLUG
MAIN SWITCH
CARGO HOOKS
12/08/09 16:14:57 31SJC670_125
Inst rument s and Cont rols

Î
Î
Interior Convenience Items
135
GLOVE BOXACCESSORY POWER
SOCKET
CENTER UPPER
POCKET
CENTER POCKET CENTER LOWER POCKET BEVERAGE HOLDERS
: On vehicle without navigation system CONSOLE COMPARTMENT
ACCESSORY
POWER SOCKETS SUN VISOR
VANITY MIRROR
BEVERAGE HOLDER
COAT HOOK
CENTER CONSOLE
SUNGLASSES
HOLDER
12/08/09 16:17:14 31SJC670_142
Inst rument s and Cont rols

The glove box light comes on when
the parking lights are on.Some larger styles of sunglasses
may not f it in the holder.
These hooks are not designed f or
large or heavy items.
To open the sunglasses holder, push
on the rear edge. Make sure the
holder is closed while you are driving.
Open the glove box by pulling up on
thehandle.Closeitwithafirmpush.
Lock or unlock the glove box with
the master key. Glove Box
Sunglasses Holder
Coat Hooks
Interior Convenience Items
138
SUNGLASSES HOLDER
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
12/08/09 16:17:38 31SJC670_145
Inst rument s and Cont rols

When the appropriate audio unit is
connected to the auxiliary input jack,
press the CD/AUX or AUX button to
select the unit.
The auxiliary input jack is on the tray
above the glove box. The system will
accept auxiliary input f rom standard
audio accessories. The Anti-thef t Identif ication Card
also lists your audio serial number. It
is best to store the card in a saf e
place at home. In addition, you
should write the audio system’s
serial number in this owner’s manual. If your vehicle’s battery is
disconnected or goes dead, the audio
system disables itself. If
this happens, you will see ‘‘ENTER
CODE’’ in the frequency display
next time you turn on the system.
Use the preset bars (icons on
models with navigation system)
to enter the five-digit code. The code
is on the Anti-theft Identification
Card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
CONT INUED
Except RT and DX models
Auxiliary Input Jack, Radio Thef t Protection
Auxiliary Input Jacks
Radio Thef t Protection
205
AUXILIARY
INPUT JACK
12/08/09 16:26:12 31SJC670_212
Features

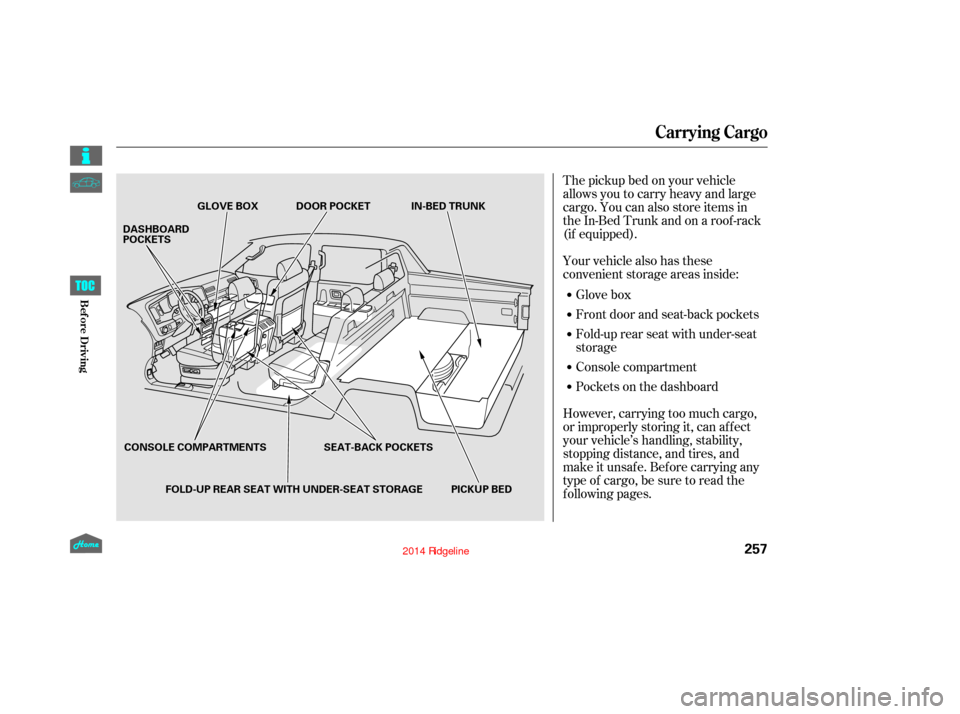

The pickup bed on your vehicle
allows you to carry heavy and large
cargo. You can also store items in
theIn-BedTrunkandonaroof-rack
(if equipped).
Your vehicle also has these
convenient storage areas inside:Glove box
Front door and seat-back pockets
Fold-up rear seat with under-seat
storage
Console compartment
Pockets on the dashboard
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages.
Carrying Cargo
257
DASHBOARD
POCKETS
PICKUP BED
SEAT-BACK POCKETS IN-BED TRUNK
GLOVE BOX DOOR POCKET
CONSOLE COMPARTMENTS FOLD-UP REAR SEAT WITH UNDER-SEAT STORAGE
12/08/09 16:33:21 31SJC670_264
Bef ore Driving

Store or secure all items that could
be thrown around and hurt
someone during a crash.Distribute cargo evenly on the
f loor in the In-Bed Trunk, placing
the heaviest items on the bottom
and as far forward as possible. Tie
down items that could be thrown
during a crash or sudden stop.
Make sure the In-Bed Trunk lid is
closed securely bef ore driving.
Be sure the total weight of the
items in the In-Bed Trunk does not
exceed 300 lbs (136 kg).
Be sure items placed on the f loor
behind the f ront seats cannot roll
underneath and interf ere with the
proper operation of the seats, the
sensors under the seats, or the
driver’s ability to operate the
pedals.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop. If youfoldtherearseatsup,tie
down items that could be thrown
about the vehicle during a crash or
sudden stop. Also, keep all cargo
below the bottom of the windows.
If it is higher, it could interf ere
with the proper operation of the
side curtain airbags.
Distribute cargo evenly on the
floor of the cargo area with the
rear seats f olded up, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 110 lbs (50 kg).
Carrying Items in the Passenger
Compartment
Carrying Cargo in the In-Bed
T runk or on a Roof Rack
Carrying Cargo
260
12/08/09 16:33:51 31SJC670_267
