HONDA RIDGELINE 2020 Owner's Manual (in English)

169
uuAdjusting the Seats uHead Restraints
Controls

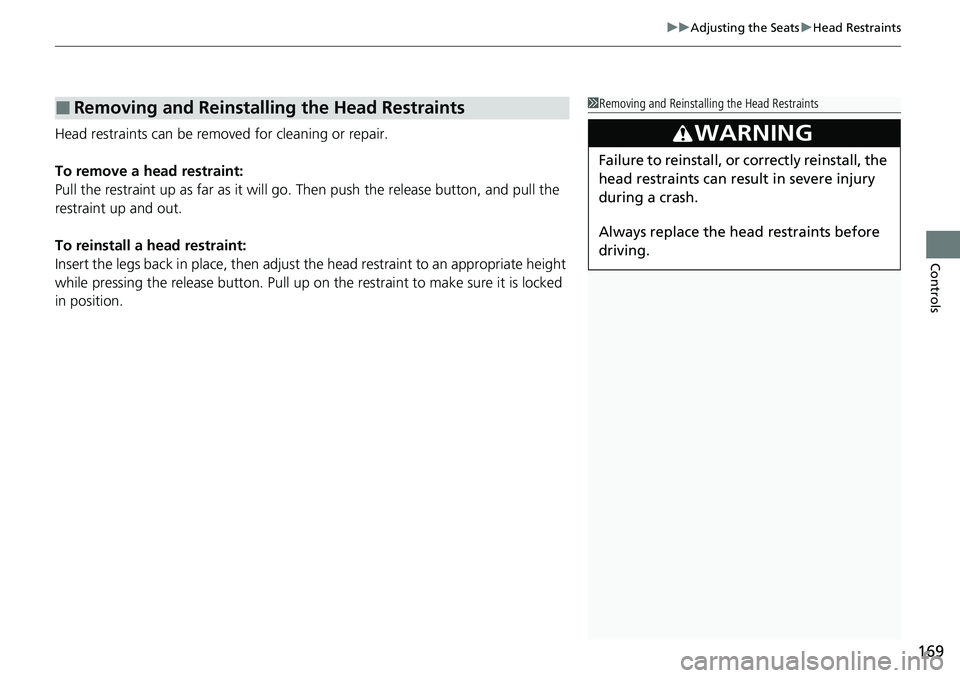

Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.

170
uuAdjusting the Seats uArmrest
Controls

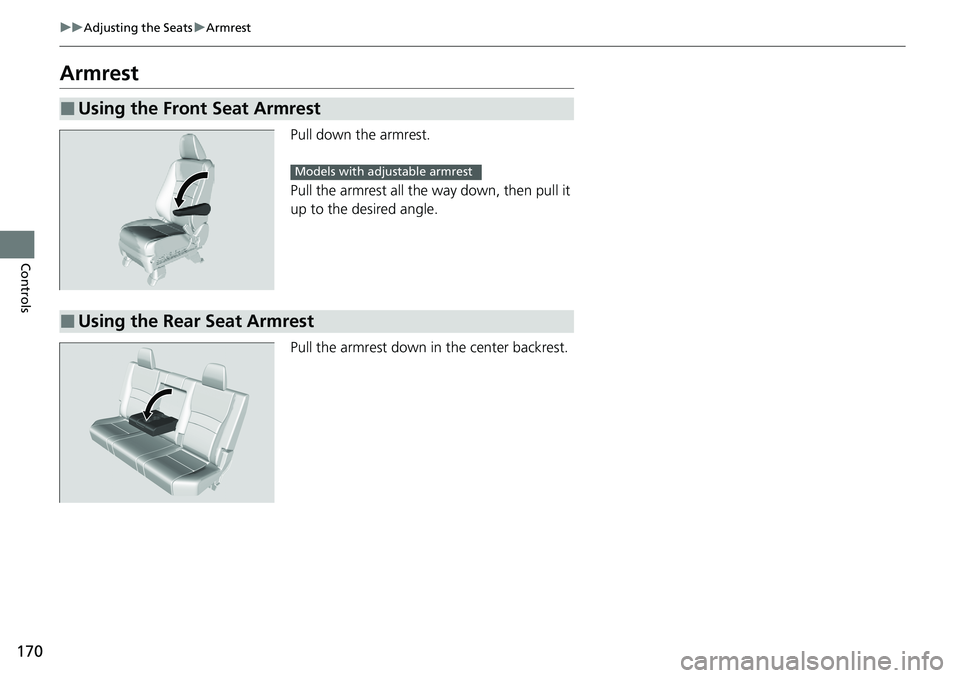

Armrest
Pull down the armrest.
Pull the armrest all the way down, then pull it
up to the desired angle.
Pull the armrest down in the center backrest.
■Using the Front Seat Armrest
Models with adjustable armrest
■Using the Rear Seat Armrest

171Continued
Controls
Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 295
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
If you leave any of the doors open in VEHICLE OFF
mode, the interior light s go off after about 15
minutes.
Door Activated Position
OFF
ON
Models without moonroof
Door Activated Position
Models with moonroof
OFFON

uuConvenience Items uInterior Lights
172
Controls

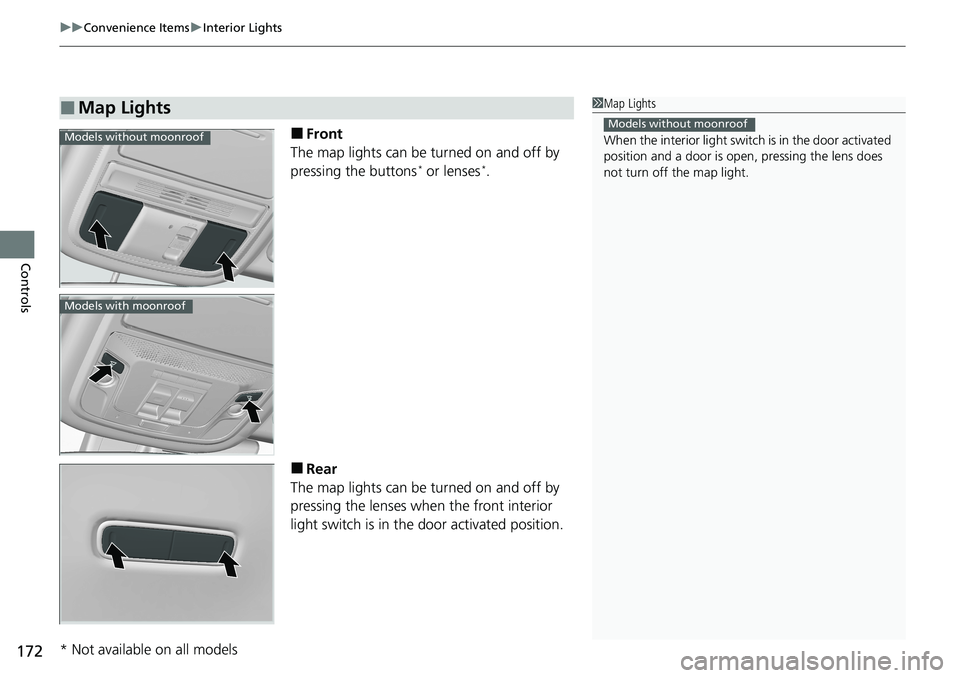

■Front
The map lights can be turned on and off by
pressing the buttons
* or lenses*.
■Rear
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.
■Map Lights1 Map Lights
When the interior light swit ch is in the door activated
position and a door is open, pressing the lens does
not turn off the map light.
Models without moonroofModels without moonroof
Models with moonroof
* Not available on all models

173
uuConvenience Items uInterior Storage Items
Continued
Controls

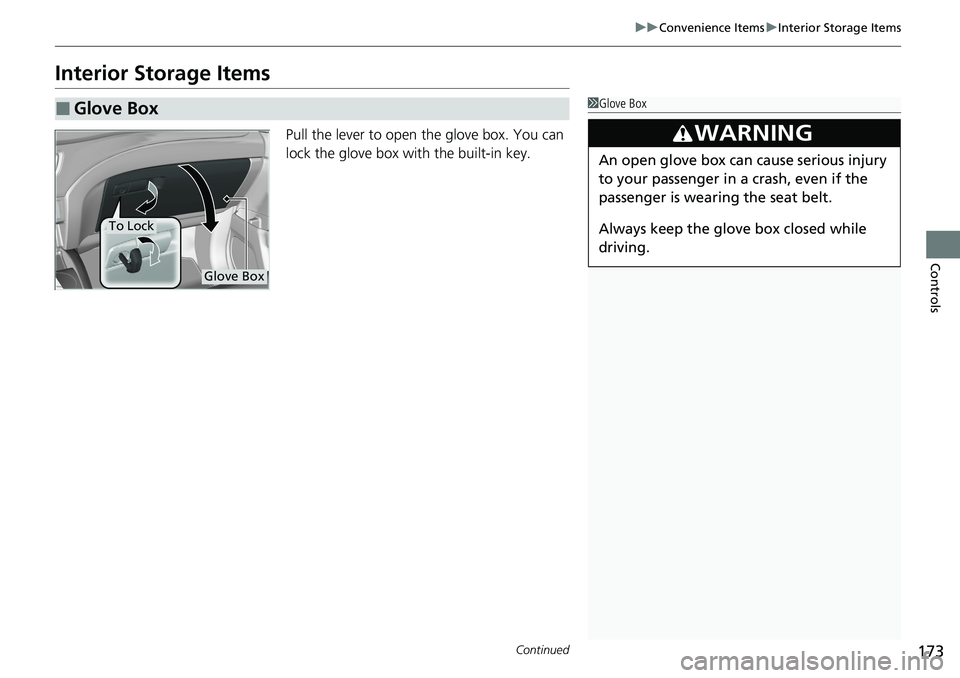

Interior Storage Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock

174
uuConvenience Items uInterior Storage Items
Controls

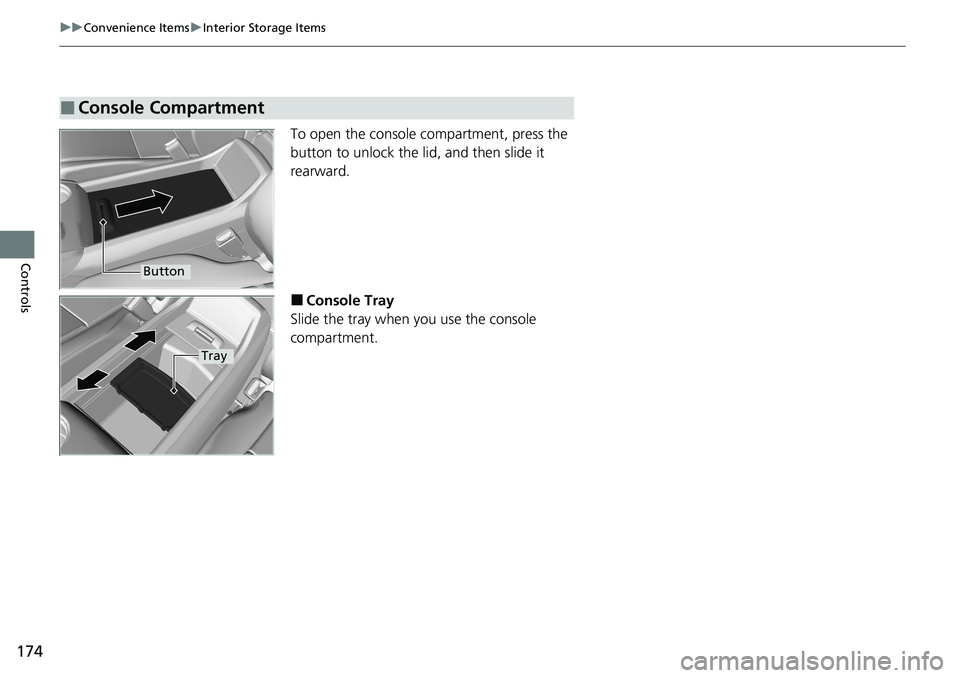

To open the console compartment, press the
button to unlock the li d, and then slide it
rearward.
■Console Tray
Slide the tray when you use the console
compartment.
■Console Compartment
Button
Tray

Continued175
uuConvenience Items uInterior Storage Items
Controls

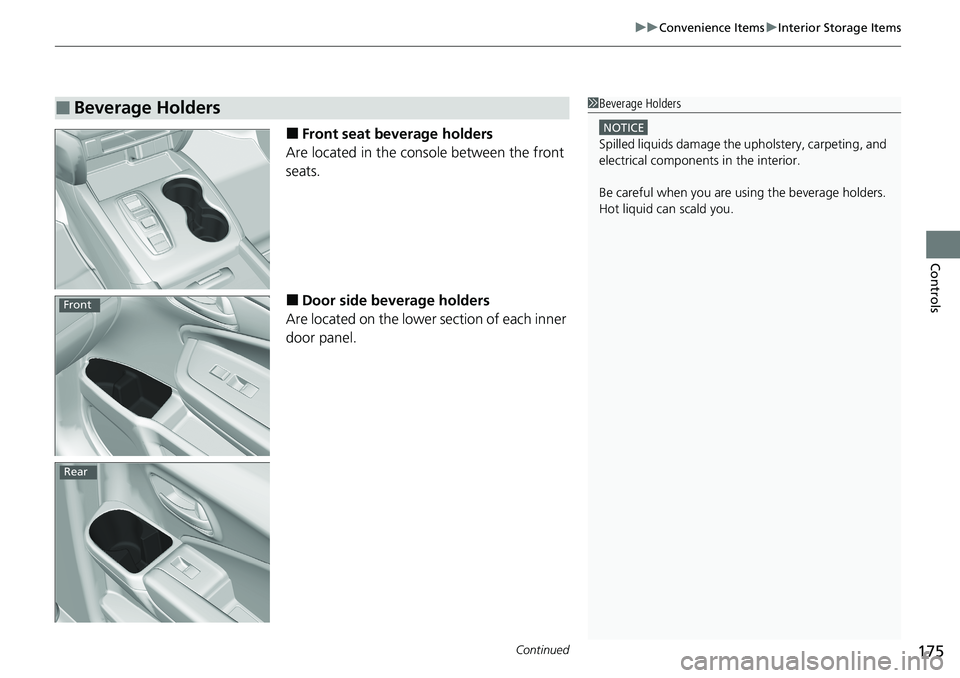

■Front seat beverage holders
Are located in the console between the front
seats.
■Door side beverage holders
Are located on the lower section of each inner
door panel.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front
Rear

uuConvenience Items uInterior Storage Items
176
Controls

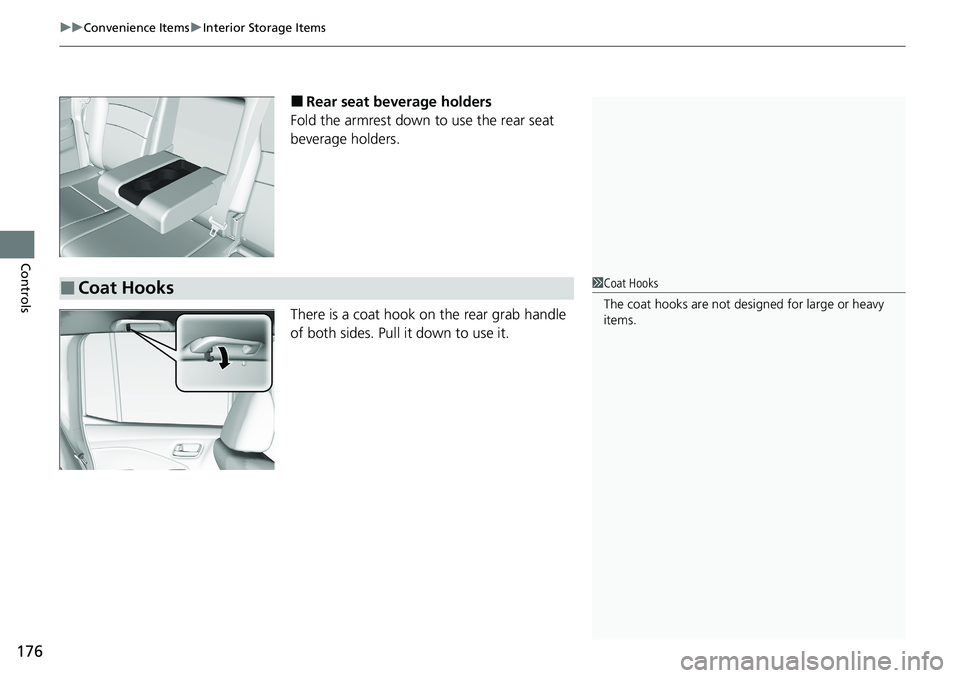

■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
■Coat Hooks1 Coat Hooks
The coat hooks are not desi gned for large or heavy
items.

177
uuConvenience Items uInterior Storage Items
Controls

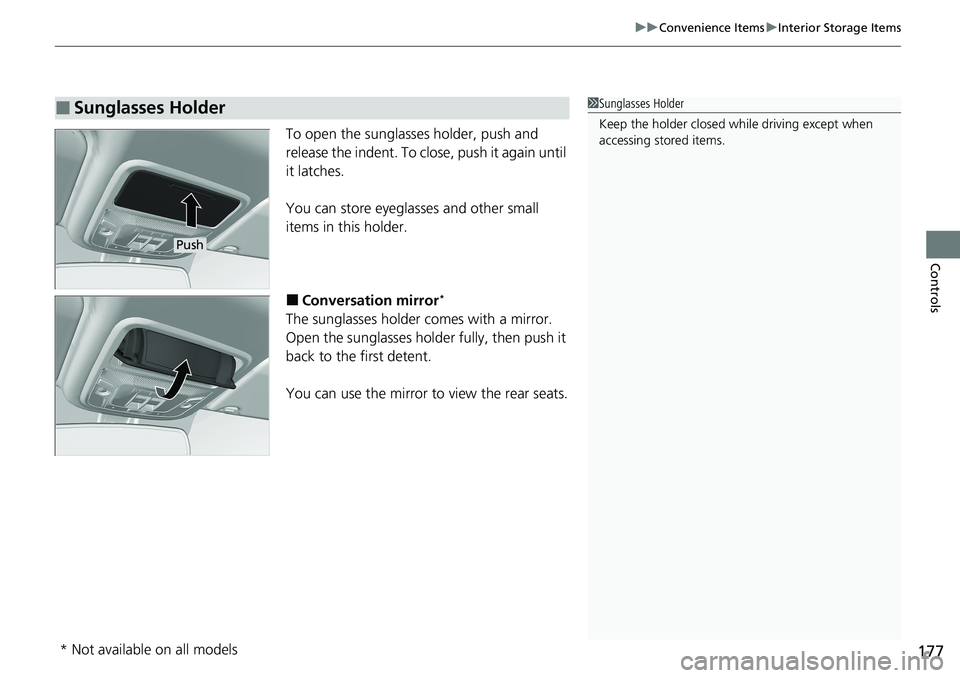

To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror*
The sunglasses holder comes with a mirror.
Open the sunglasses hold er fully, then push it
back to the first detent.
You can use the mirror to view the rear seats.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
* Not available on all models

178
uuConvenience Items uOther Interior Convenience Items
Controls
Other Interior Convenience Items
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (console
compartment)
Pull the handle and open the cover to use it.
■Accessory Power Sockets
1 Accessory Power Sockets
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated
180 watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the power socket.
