6. If your child restraint manufacturer
recommends using a top tether, and the
position you are using has a top tether anchor,
attach and tighten the top tether to the top
tether anchor. Refer to the instructions
that came with the child restraint and see
Lower Anchors and Tethers for Children
(LATCH) on page 59.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.Securing a Child Restraint in the
Right Front Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 59.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child seat in
this position if a national or local law requires that
the top tether be anchored, or if the instructions that
come with the child restraint say that the top tether
must be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 59if the child
restraint has a top tether.
71

Your vehicle has a right front passenger’s airbag.
There is a switch on the instrument panel that
you can use to turn off the right front passenger’s
airbag. SeeAirbag Off Switch on page 84for
more on this, including important safety
information.
A rear seat is a safer place to secure a
forward-facing child restraint.Never put a rear-facing child restraint in the right
front passenger’s seat unless the airbag is off.
Here is why:
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Be sure to turn off the
airbag before using a rear-facing child
restraint in the right front seat position.
Even though the airbag off switch is
designed to turn off the passenger’s
airbag, no system is fail safe, and no one
CAUTION: (Continued)
United StatesCanada
72

CAUTION: (Continued)
can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
If you secure a forward-facing child
restraint in the right front seat, always
move the front passenger seat as far back
as it will go. It is better to secure the child
restraint in a rear seat.
{CAUTION:
If the airbag readiness light ever comes
on when you have turned off the airbag, it
means that something may be wrong with
the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, do not let anyone whom the
national government has identied as a
member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in the right front
passenger’s seat) until you have your
vehicle serviced. SeeAirbag Off Switch on
page 84andAirbag Readiness Light on
page 207for more on this, including
important safety information.
73

You will be using a lap-shoulder belt to secure the
child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when
and as the instructions say.
1. Your vehicle has a right front passenger’s
airbag. SeeAirbag Off Switch on page 84.
If your child restraint is forward-facing, move
the seat as far back as it will go before
securing the restraint in this seat. SeePower
Seats on page 8. If you need to use a
rear-facing child restraint in this seat, make
sure the airbag is off once the child restraint
has been installed.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
74

5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
75

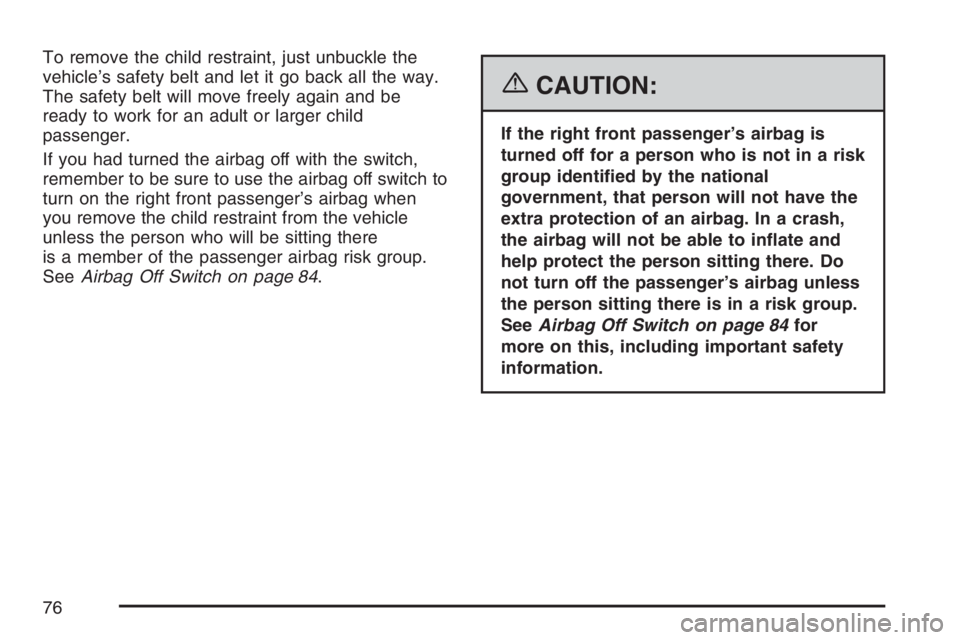

To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
If you had turned the airbag off with the switch,
remember to be sure to use the airbag off switch to
turn on the right front passenger’s airbag when
you remove the child restraint from the vehicle
unless the person who will be sitting there
is a member of the passenger airbag risk group.
SeeAirbag Off Switch on page 84.
{CAUTION:
If the right front passenger’s airbag is
turned off for a person who is not in a risk
group identied by the national
government, that person will not have the
extra protection of an airbag. In a crash,
the airbag will not be able to inate and
help protect the person sitting there. Do
not turn off the passenger’s airbag unless
the person sitting there is in a risk group.
SeeAirbag Off Switch on page 84for
more on this, including important safety
information.
76

Airbag System
Your vehicle has an airbag for the driver and an
airbag for the right front passenger.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
CAUTION: (Continued)
CAUTION: (Continued)
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts, but do not
replace them.
{CAUTION:
Airbags are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
77

{CAUTION:
Airbags inate with great force, faster
than the blink of an eye. If you are too
close to an inating airbag, as you would
be if you were leaning forward, it could
seriously injure you. Safety belts help
keep you in position before and during a
crash. Always wear your safety belt, even
with airbags. The driver should sit as far
back as possible while still maintaining
control of the vehicle.
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 46andInfants and Young Children
on page 49.
78

There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 207for more information.Where Are the Airbags?
The driver’s airbag is in the middle of the
steering wheel.
79

The right front passenger’s airbag is in the
instrument panel on the passenger’s side.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering.
80
