HUMMER H3 2010 Owners Manual

Service and Maintenance 11-7
ServiceMaintenanceIMaintenance
II
Chassis components lubrication. •
Engine cooling system inspection. •
Windshield wiper blades inspection. •
Body components lubrication. •
Restraint system components check. •
Automatic transmission fluid level check. •
Four‐wheel drive only: Transfer case fluid level check. •
Engine air cleaner filter inspection (vehicles not driven in dusty conditions). •

11-8 Service and Maintenance

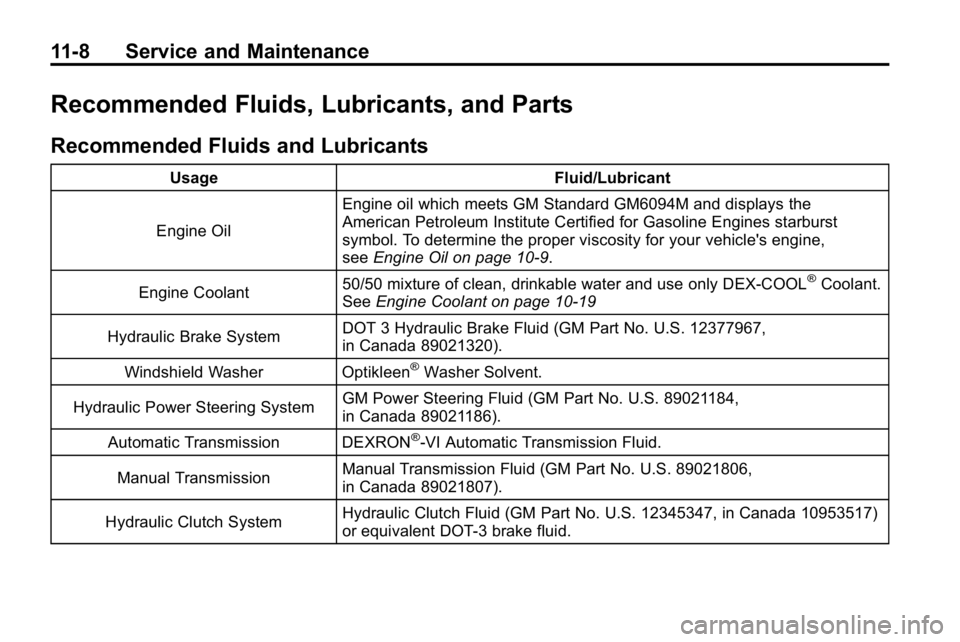

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certified for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle's engine,
see
Engine Oil on page 10‑9.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant on page 10‑19
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 12377967,
in Canada 89021320).
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic Transmission DEXRON
®‐VI Automatic Transmission Fluid.
Manual Transmission Manual Transmission Fluid (GM Part No. U.S. 89021806,
in Canada 89021807).
Hydraulic Clutch System Hydraulic Clutch Fluid (GM Part No. U.S. 12345347, in Canada 10953517)
or equivalent DOT-3 brake fluid.

Service and Maintenance 11-9

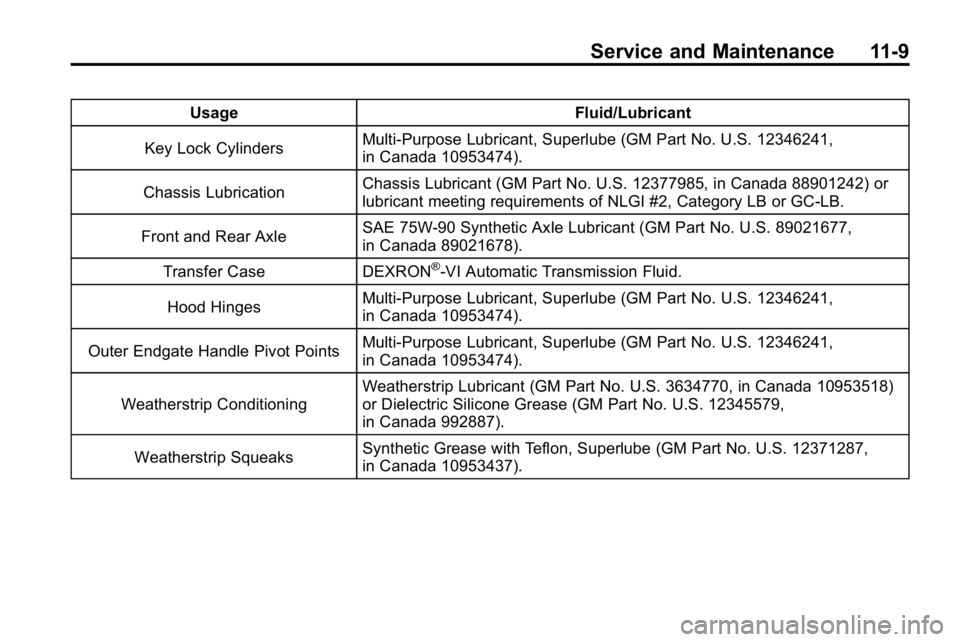

UsageFluid/Lubricant
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis Lubrication Chassis Lubricant (GM Part No. U.S. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Front and Rear Axle SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677,
in Canada 89021678).
Transfer Case DEXRON
®‐VI Automatic Transmission Fluid.
Hood Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Outer Endgate Handle Pivot Points Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. U.S. 12371287,
in Canada 10953437).

11-10 Service and Maintenance

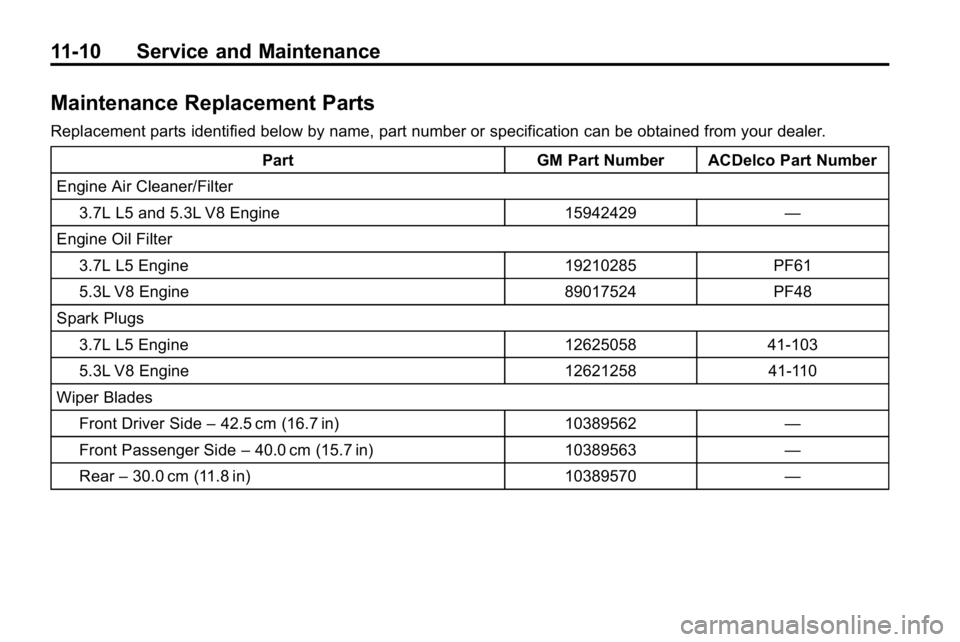

Maintenance Replacement Parts
Replacement parts identified below by name, part number or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter
3.7L L5 and 5.3L V8 Engine 15942429 —
Engine Oil Filter 3.7L L5 Engine 19210285 PF61
5.3L V8 Engine 89017524 PF48
Spark Plugs 3.7L L5 Engine 12625058 41-103
5.3L V8 Engine 12621258 41-110
Wiper Blades
Front Driver Side –42.5 cm (16.7 in) 10389562 —
Front Passenger Side –40.0 cm (15.7 in) 10389563 —
Rear –30.0 cm (11.8 in) 10389570 —

Service and Maintenance 11-11
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Service and Maintenance 11-13
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

11-14 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

12-2 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in English and metric. Please refer toRecommended Fluids and
Lubricantson page 11‑8for more information.
Capacities and Specifications
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located under the hood. See your dealer for more information.
Cooling System 3.7L L5 Engine 9.5 L 10.0 qt
5.3L V8 Engine 13.5 L 14.3 qt
Engine Oil with Filter 3.7L L5 and 5.3L V8 Engines 5.7 L 6.0 qt
Fuel Tank H3 87.1 L 23.0 gal
H3T 102.2 L 27.0 gal
