Hyundai Accent 2003 User Guide

YOUR VEHICLE AT A GLANCE
High Beam Indicator Light
Parking Brake/Low Brake Fluid Level
Warning LightDoor Ajar Warning Light
O/D OFF Indicator
(Automatic transaxle only)
B255A01A-AAT

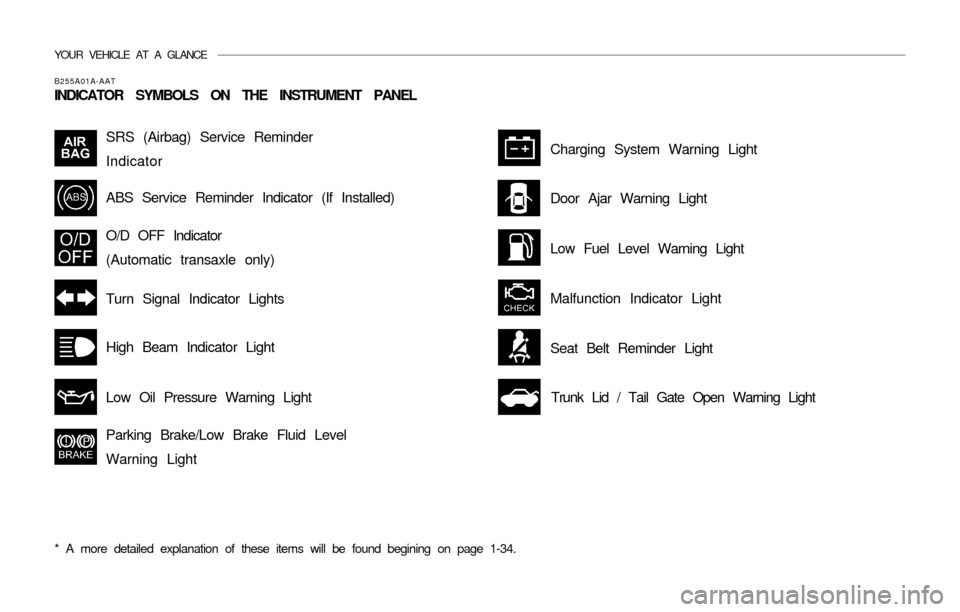

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* A more detailed explanation of these items will be found begining on page 1-34.
SRS (Airbag) Service Reminder
Indicator
ABS Service Reminder Indicator (If Installed)
Turn Signal Indicator Lights
Low Oil Pressure Warning LightCharging System Warning Light
Low Fuel Level Warning Light
Malfunction Indicator Light
Seat Belt Reminder Light
Trunk Lid / Tail Gate Open Warning Light

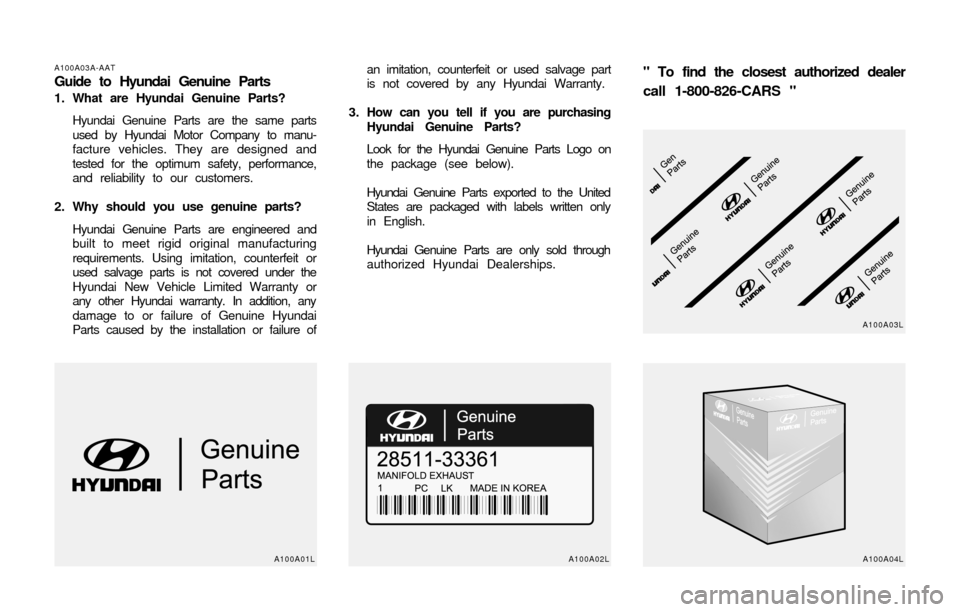

A100A03A-AATGuide to Hyundai Genuine Parts1. What are Hyundai Genuine Parts?
Hyundai Genuine Parts are the same parts
used by Hyundai Motor Company to manu-
facture vehicles. They are designed and
tested for the optimum safety, performance,
and reliability to our customers.
2. Why should you use genuine parts?
Hyundai Genuine Parts are engineered and
built to meet rigid original manufacturing
requirements. Using imitation, counterfeit or
used salvage parts is not covered under the
Hyundai New Vehicle Limited Warranty or
any other Hyundai warranty. In addition, any
damage to or failure of Genuine Hyundai
Parts caused by the installation or failure ofan imitation, counterfeit or used salvage part
is not covered by any Hyundai Warranty.
3 . How can you tell if you are purchasing
Hyundai Genuine Parts?
Look for the Hyundai Genuine Parts Logo on
the package (see below).
Hyundai Genuine Parts exported to the United
States are packaged with labels written only
in English.
Hyundai Genuine Parts are only sold through
authorized Hyundai Dealerships.
" To find the closest authorized dealer
call 1-800-826-CARS "
A100A01L A100A02L A100A04LA100A03L

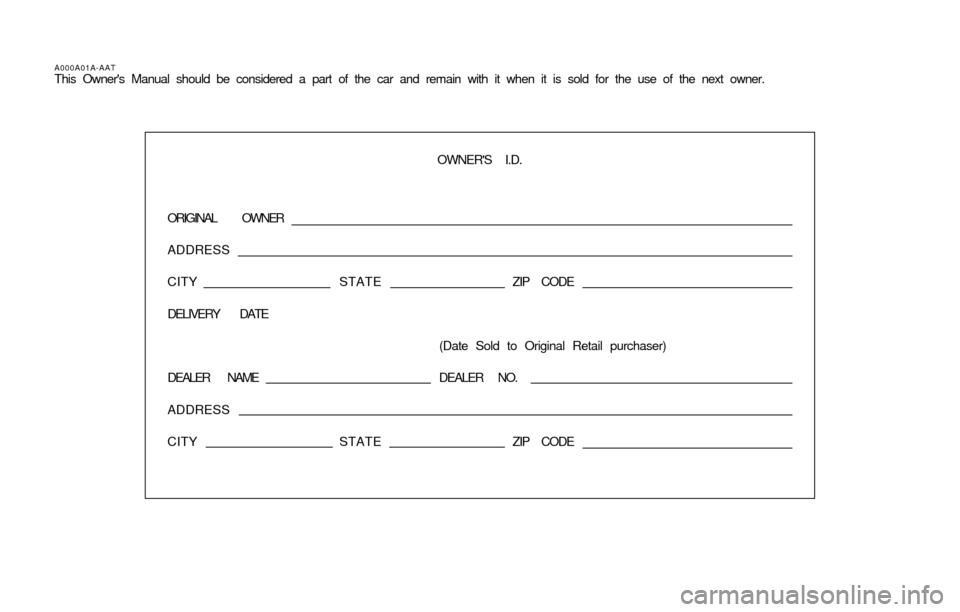

A000A01A-AATThis Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.
OWNER'S I.D.
ORIGINAL OWNER
ADDRESS
CITY STATEZIP CODE
DELIVERY DATE
(Date Sold to Original Retail purchaser)
DEALER NAMEDEALER NO.
ADDRESS
CITY STATEZIP CODE

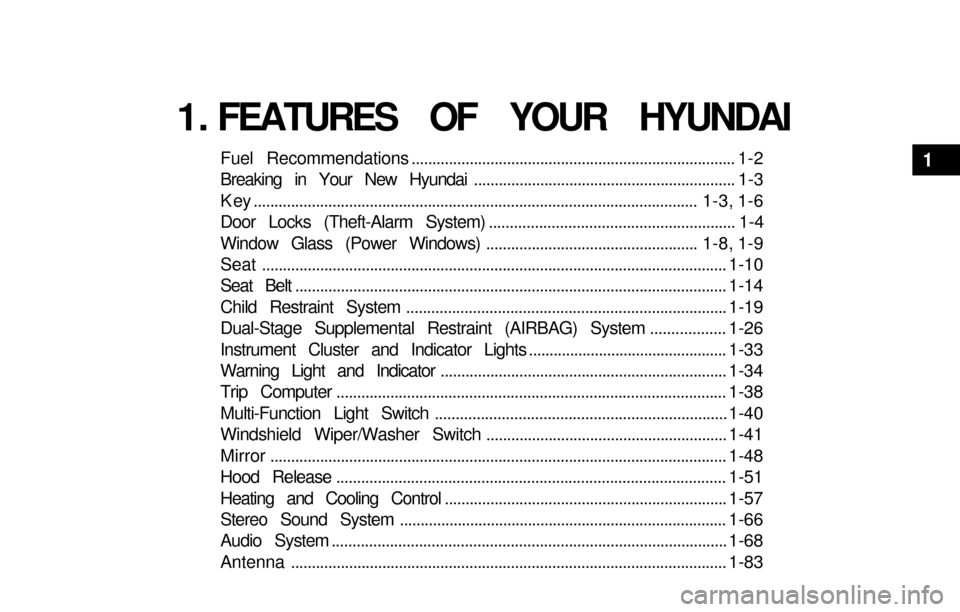

1 . FEATURES OF YOUR HYUNDAI
Fuel Recommendations.............................................................................. 1-2
Breaking in Your New Hyundai............................................................... 1-3
K ey ...........................................................................................................1-3, 1-6
Door Locks (Theft-Alarm System) ........................................................... 1-4
Window Glass (Power Windows) ...................................................1-8, 1-9
Seat................................................................................................................1-10
Seat Belt........................................................................................................1-14
Child Restraint System .............................................................................1-19
Dual-Stage Supplemental Restraint (AIRBAG) System ..................1-26
Instrument Cluster and Indicator Lights ................................................1-33
Warning Light and Indicator.....................................................................1-34
Trip Computer ..............................................................................................1-38
Multi-Function Light Switch ......................................................................1-40
Windshield Wiper/Washer Switch..........................................................1-41
Mirror..............................................................................................................1-48
Hood Release ..............................................................................................1-51
Heating and Cooling Control....................................................................1-57
Stereo Sound System ...............................................................................1-66
Audio System ...............................................................................................1-68
Antenna.........................................................................................................1-831

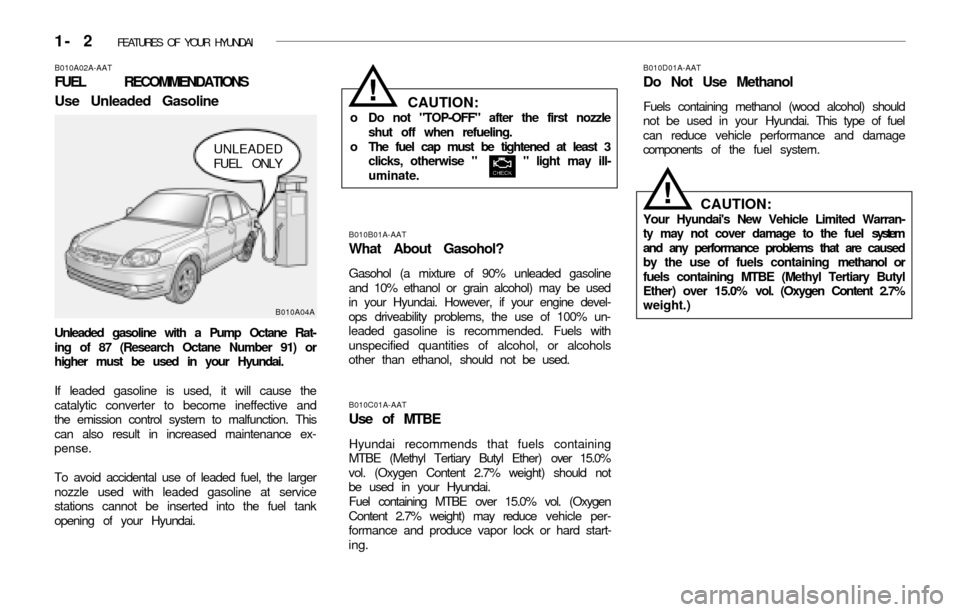

1- 2 FEATURES OF YOUR HYUNDAI
UNLEADED
FUEL ONLY
B010A04A
!
B010A02A-AAT
FUEL RECOMMENDATIONS
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane Rat-
ing of 87 (Research Octane Number 91) or
higher must be used in your Hyundai.
If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction. This
can also result in increased maintenance ex-
pense.
To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.
B010B01A-AAT
What About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100% un-
leaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard start-
ing.
B010D01A-AAT
Do Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.CAUTION:o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least 3
clicks, otherwise " " light may ill-
uminate.
CAUTION:Your Hyundai's New Vehicle Limited Warran-
ty may not cover damage to the fuel system
and any performance problems that are caused
by the use of fuels containing methanol or
fuels containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content 2.7%
weight.)
!

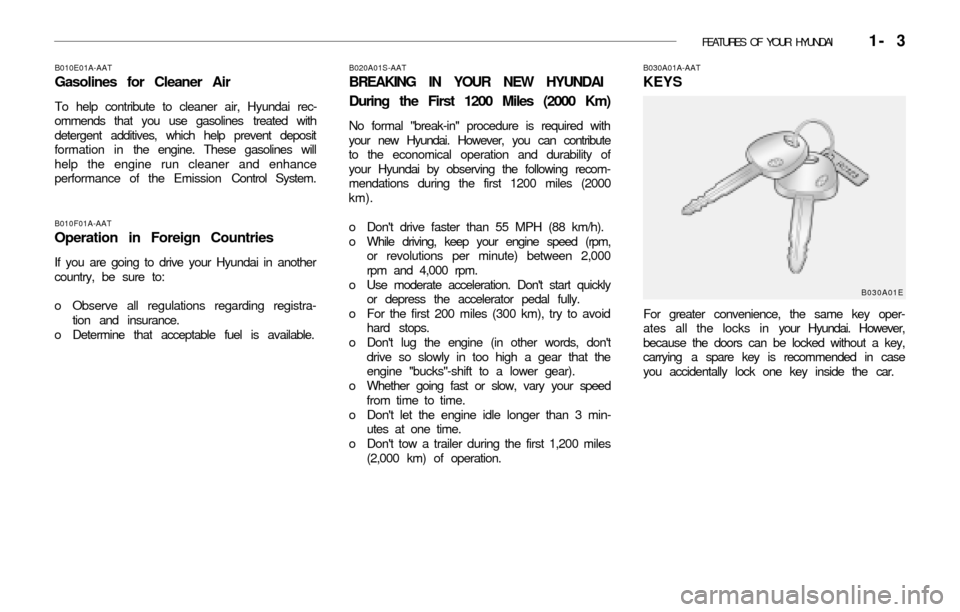

FEATURES OF YOUR HYUNDAI 1- 3
B010F01A-AAT
Operation in Foreign Countries
If you are going to drive your Hyundai in another
country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
B010E01A-AAT
Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance
performance of the Emission Control System.
B020A01S-AAT
BREAKING IN YOUR NEW HYUNDAI
During the First 1200 Miles (2000 Km)
No formal "break-in" procedure is required with
your new Hyundai. However, you can contribute
to the economical operation and durability of
your Hyundai by observing the following recom-
mendations during the first 1200 miles (2000
km).
o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000
rpm and 4,000 rpm.
o Use moderate acceleration. Don't start quickly
or depress the accelerator pedal fully.
o For the first 200 miles (300 km), try to avoid
hard stops.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 min-
utes at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
B030A01A-AAT
KEYS
For greater convenience, the same key oper-
ates all the locks in your Hyundai. However,
because the doors can be locked without a key,
carrying a spare key is recommended in case
you accidentally lock one key inside the car.
B030A01E

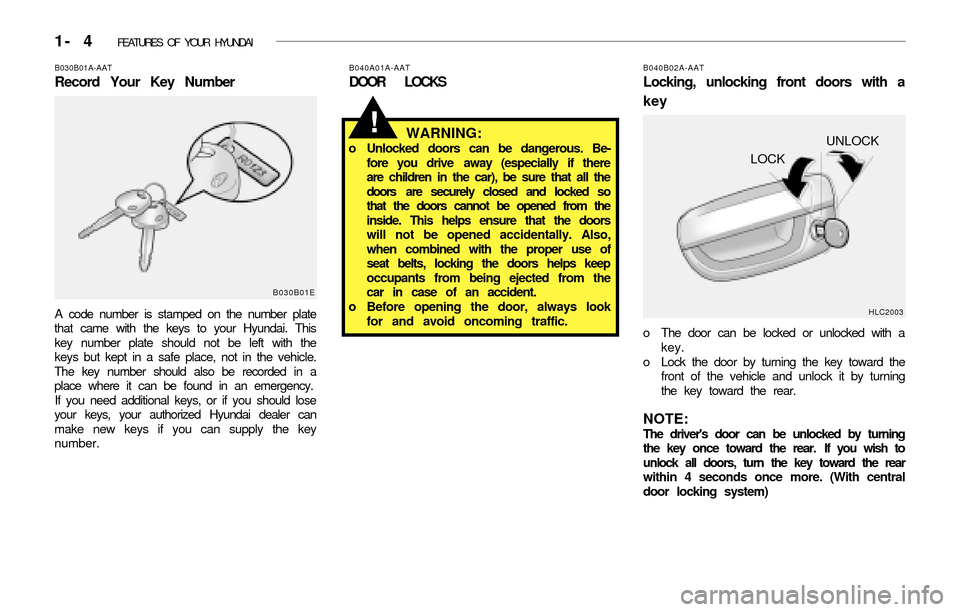

1- 4 FEATURES OF YOUR HYUNDAI
B030B01A-AAT
Record Your Key Number
A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the
keys but kept in a safe place, not in the vehicle.
The key number should also be recorded in a
place where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.
B030B01EB040A01A-AAT
DOOR LOCKS
B040B02A-AAT
Locking, unlocking front doors with a
key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning
the key toward the rear.
NOTE:The driver's door can be unlocked by turning
the key once toward the rear. If you wish to
unlock all doors, turn the key toward the rear
within 4 seconds once more. (With central
door locking system)
WARNING:o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from the
inside. This helps ensure that the doors
will not be opened accidentally. Also,
when combined with the proper use of
seat belts, locking the doors helps keep
occupants from being ejected from the
car in case of an accident.
o Before opening the door, always look
for and avoid oncoming traffic.
!UNLOCK
HLC2003
LOCK

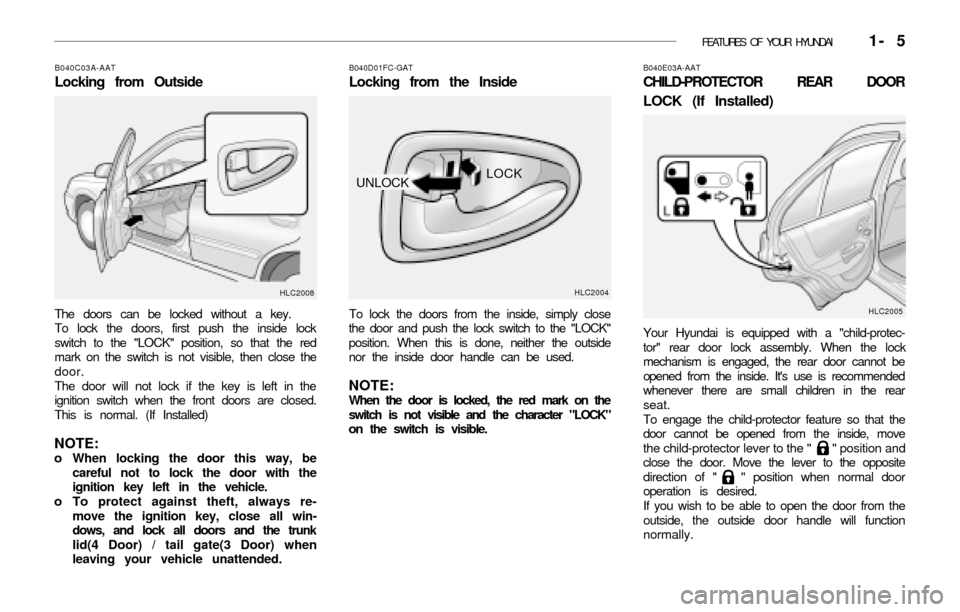

FEATURES OF YOUR HYUNDAI 1- 5
B040D01FC-GAT
Locking from the Inside
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the inside door handle can be used.
NOTE:When the door is locked, the red mark on the
switch is not visible and the character "LOCK"
on the switch is visible.
B040E03A-AAT
CHILD-PROTECTOR REAR DOOR
LOCK (If Installed)
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. It's use is recommended
whenever there are small children in the rear
seat.
To engage the child-protector feature so that the
door cannot be opened from the inside, move
the child-protector lever to the " " position and
close the door. Move the lever to the opposite
direction of " " position when normal door
operation is desired.
If you wish to be able to open the door from the
outside, the outside door handle will function
normally. The doors can be locked without a key.
To lock the doors, first push the inside lock
switch to the "LOCK" position, so that the red
mark on the switch is not visible, then close the
door.
The door will not lock if the key is left in the
ignition switch when the front doors are closed.
This is normal. (If Installed)
NOTE:o When locking the door this way, be
careful not to lock the door with the
ignition key left in the vehicle.
o To protect against theft, always re-
move the ignition key, close all win-
dows, and lock all doors and the trunk
lid(4 Door) / tail gate(3 Door) when
leaving your vehicle unattended.
B040C03A-AAT
Locking from Outside
HLC2008HLC2004
LOCK
UNLOCK
HLC2005

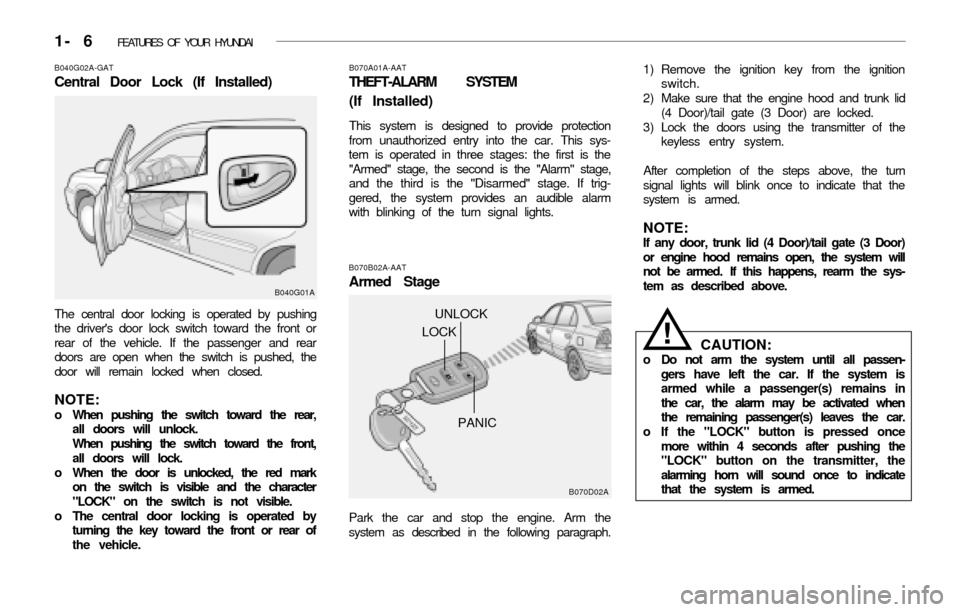

1- 6 FEATURES OF YOUR HYUNDAI
B070A01A-AAT
THEFT-ALARM SYSTEM
(If Installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages: the first is the
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
B040G02A-GAT
Central Door Lock (If Installed)
B040G01A
The central door locking is operated by pushing
the driver's door lock switch toward the front or
rear of the vehicle. If the passenger and rear
doors are open when the switch is pushed, the
door will remain locked when closed.
NOTE:o When pushing the switch toward the rear,
all doors will unlock.
When pushing the switch toward the front,
all doors will lock.
o When the door is unlocked, the red mark
on the switch is visible and the character
"LOCK" on the switch is not visible.
o The central door locking is operated by
turning the key toward the front or rear of
the vehicle.
B070D02A
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and trunk lid
(4 Door)/tail gate (3 Door) are locked.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.
NOTE:If any door, trunk lid (4 Door)/tail gate (3 Door)
or engine hood remains open, the system will
not be armed. If this happens, rearm the sys-
tem as described above.
B070B02A-AAT
Armed Stage
!CAUTION:o Do not arm the system until all passen-
gers have left the car. If the system is
armed while a passenger(s) remains in
the car, the alarm may be activated when
the remaining passenger(s) leaves the car.
o If the "LOCK" button is pressed once
more within 4 seconds after pushing the
"LOCK" button on the transmitter, the
alarming horn will sound once to indicate
that the system is armed.
Park the car and stop the engine. Arm the
system as described in the following paragraph.
LOCKUNLOCK
PANIC

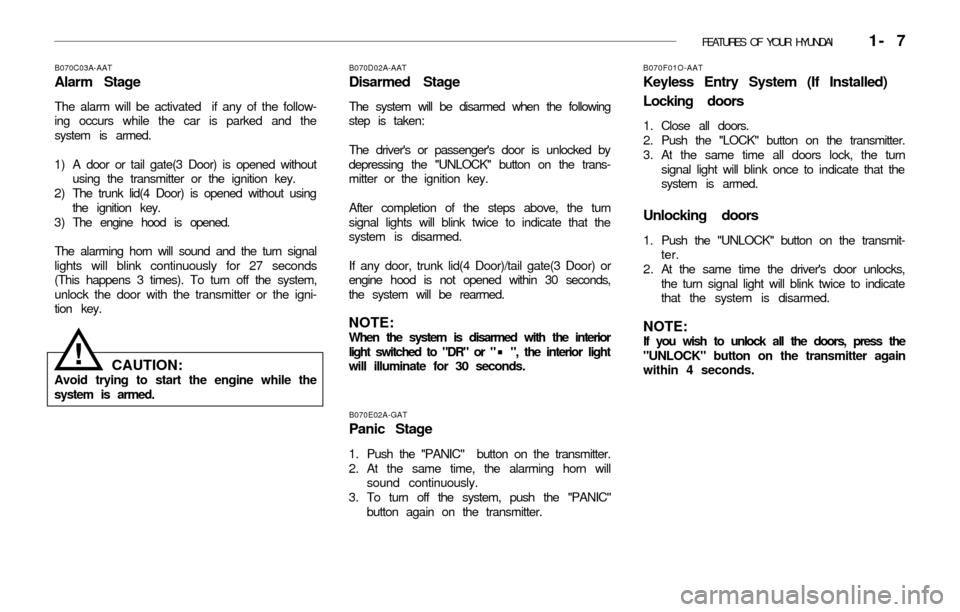

FEATURES OF YOUR HYUNDAI 1- 7
B070C03A-AAT
Alarm Stage
The alarm will be activated if any of the follow-
ing occurs while the car is parked and the
system is armed.
1) A door or tail gate(3 Door) is opened without
using the transmitter or the ignition key.
2) The trunk lid(4 Door) is opened without using
the ignition key.
3 ) The engine hood is opened.
The alarming horn will sound and the turn signal
lights will blink continuously for 27 seconds
(This happens 3 times). To turn off the system,
unlock the door with the transmitter or the igni-
tion key.
B070D02A-AAT
Disarmed Stage
The system will be disarmed when the following
step is taken:
The driver's or passenger's door is unlocked by
depressing the "UNLOCK" button on the trans-
mitter or the ignition key.
After completion of the steps above, the turn
signal lights will blink twice to indicate that the
system is disarmed.
If any door, trunk lid(4 Door)/tail gate(3 Door) or
engine hood is not opened within 30 seconds,
the system will be rearmed.
NOTE:When the system is disarmed with the interior
light switched to "DR" or "
·", the interior light
will illuminate for 30 seconds.CAUTION:Avoid trying to start the engine while the
system is armed.
!
B070E02A-GAT
Panic Stage
1. Push the "PANIC" button on the transmitter.
2. At the same time, the alarming horn will
sound continuously.
3. To turn off the system, push the "PANIC"
button again on the transmitter.
B070F01O-AAT
Keyless Entry System (If Installed)
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn
signal light will blink once to indicate that the
system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2 . At the same time the driver's door unlocks,
the turn signal light will blink twice to indicate
that the system is disarmed.
NOTE:If you wish to unlock all the doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.
