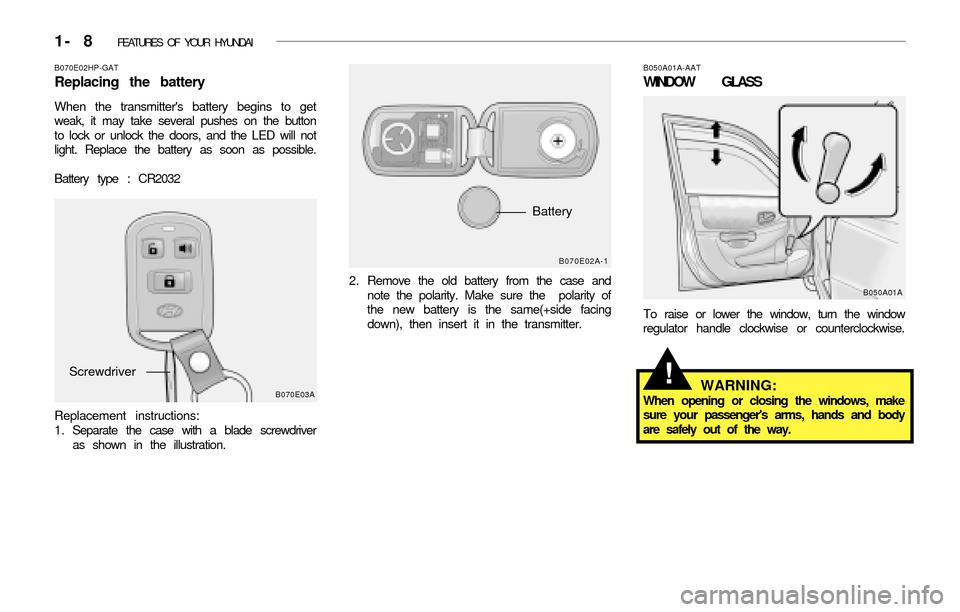

Page 21 of 186
1- 8 FEATURES OF YOUR HYUNDAI
B070E02HP-GAT
Replacing the battery
When the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Separate the case with a blade screwdriver
as shown in the illustration.2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.
B070E03A
Screwdriver
Battery
B070E02A-1
B050A01A B050A01A-AAT
WINDOW GLASS
To raise or lower the window, turn the window
regulator handle clockwise or counterclockwise.
WARNING:When opening or closing the windows, make
sure your passenger's arms, hands and body
are safely out of the way.
!
Page 22 of 186

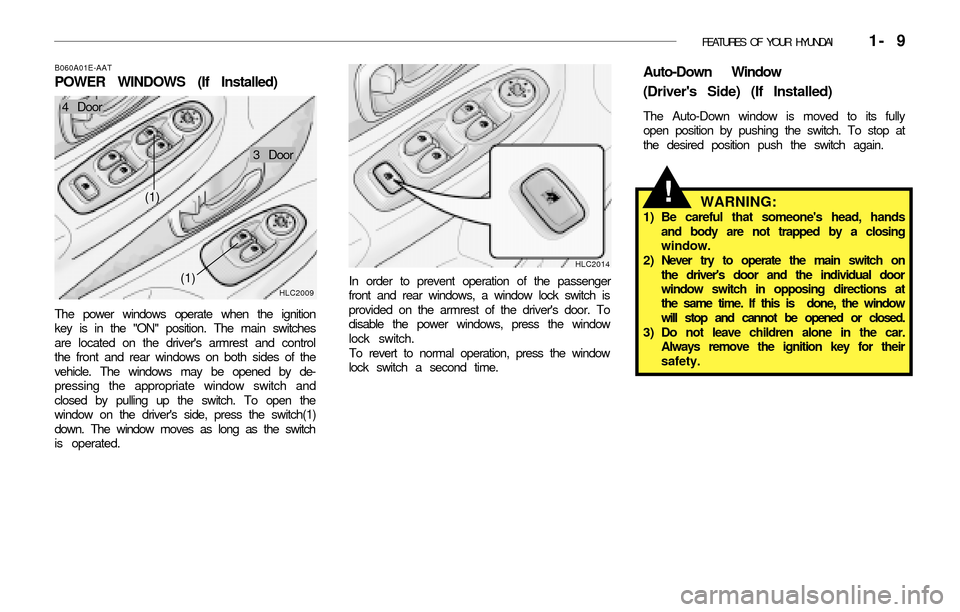

FEATURES OF YOUR HYUNDAI 1- 9
HLC2009
(1)
HLC2014
In order to prevent operation of the passenger
front and rear windows, a window lock switch is
provided on the armrest of the driver's door. To
disable the power windows, press the window
lock switch.
To revert to normal operation, press the window
lock switch a second time.
B060A01E-AAT
POWER WINDOWS (If Installed)
The power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de-
pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch(1)
down. The window moves as long as the switch
is operated.
Auto-Down Window
(Driver's Side) (If Installed)
The Auto-Down window is moved to its fully
open position by pushing the switch. To stop at
the desired position push the switch again.
!
(1) 4 Door
3 Door
WARNING:1) Be careful that someone's head, hands
and body are not trapped by a closing
window.
2 ) Never try to operate the main switch on
the driver's door and the individual door
window switch in opposing directions at
the same time. If this is done, the window
will stop and cannot be opened or closed.
3) Do not leave children alone in the car.
Always remove the ignition key for their
safety.
Page 23 of 186
1- 10 FEATURES OF YOUR HYUNDAI
B080C01A-AAT
Adjusting Seatback Angle
To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat.
Now lean back until the desired seatback angle
is achieved. To lock the seatback into position,
release the recliner control lever.
B080D02A-AAT
Adjustable Headrests
B080A01A-AAT
ADJUSTABLE FRONT SEATS
To move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position.
B080B01A-AAT
Adjusting Seat Forward and RearwardWARNING:
Never attempt to adjust the seat while the
vehicle is moving. This could result in loss of
control, and an accident causing death, seri-
ous injury, or property damage.
!
HLC2026
When you find the position you want, release
the lever and slide the seat forward or rearward
on its track until it locks into the desired position
and cannot be moved further.
HLC2027
WARNING:To minimize risk of severe injury in the event
of a collision or sudden stop, both the driver
and passenger seatbacks should always be in
a nearly upright position while the vehicle is
in motion. The protection provided by the
seat belts and airbags in a frontal collision
may be reduced significantly when the
seatback is reclined. There is greater risk
that the driver and passenger will slide
under the seat belt which may result in
serious injury if a crash occurs when the
seatback is reclined.
!
B080D01A
Lock knob
Page 24 of 186

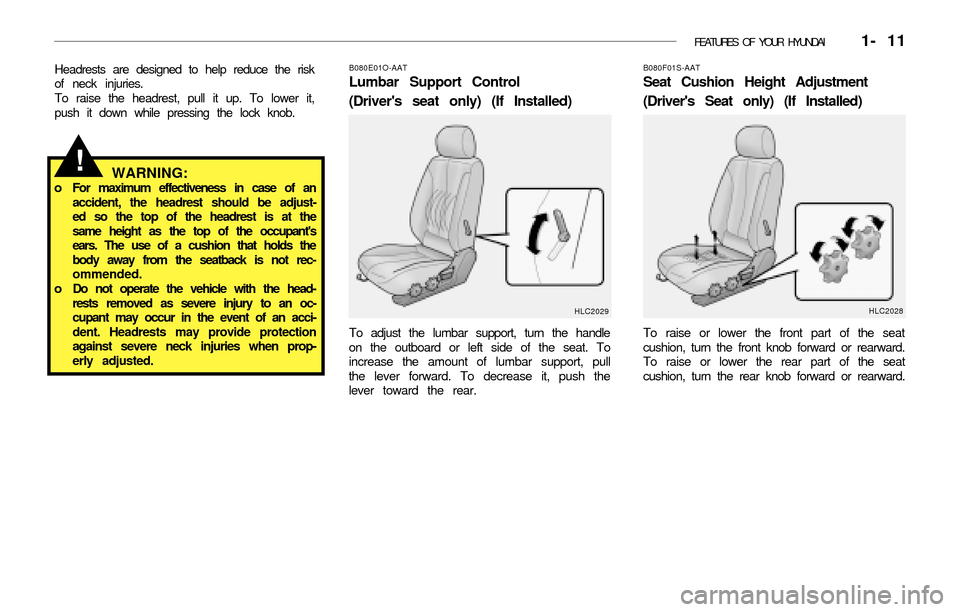

FEATURES OF YOUR HYUNDAI 1- 11
Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it,
push it down while pressing the lock knob.B080E01O-AAT
Lumbar Support Control
(Driver's seat only) (If Installed)
To adjust the lumbar support, turn the handle
on the outboard or left side of the seat. To
increase the amount of lumbar support, pull
the lever forward. To decrease it, push the
lever toward the rear.
WARNING:o For maximum effectiveness in case of an
accident, the headrest should be adjust-
ed so the top of the headrest is at the
same height as the top of the occupant's
ears. The use of a cushion that holds the
body away from the seatback is not rec-
ommended.
o Do not operate the vehicle with the head-
rests removed as severe injury to an oc-
cupant may occur in the event of an acci-
dent. Headrests may provide protection
against severe neck injuries when prop-
erly adjusted.
!
HLC2029HLC2028 B080F01S-AAT
Seat Cushion Height Adjustment
(Driver's Seat only) (If Installed)
To raise or lower the front part of the seat
cushion, turn the front knob forward or rearward.
To raise or lower the rear part of the seat
cushion, turn the rear knob forward or rearward.
Page 25 of 186

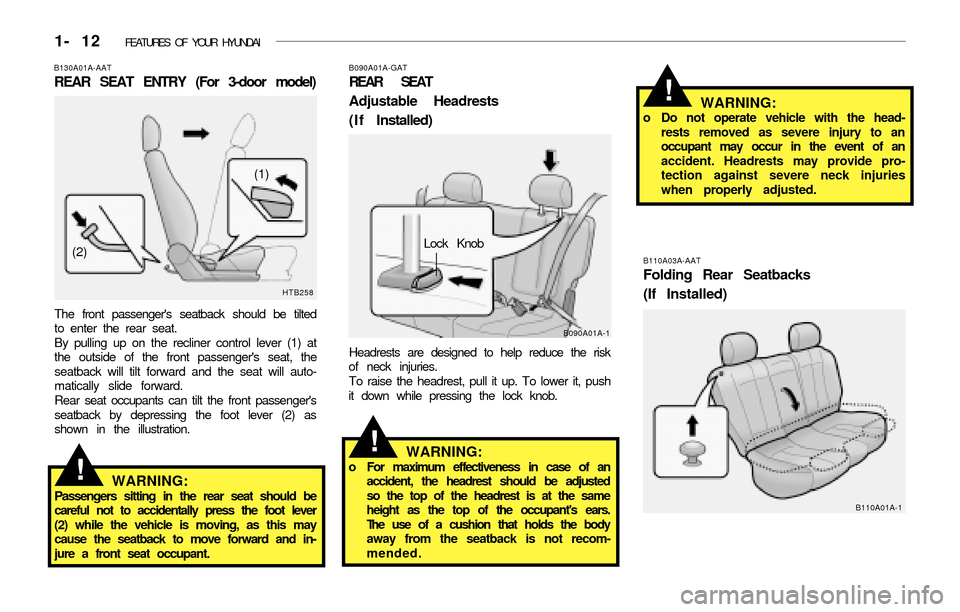

1- 12 FEATURES OF YOUR HYUNDAI
!
B130A01A-AAT
REAR SEAT ENTRY (For 3-door model)
The front passenger's seatback should be tilted
to enter the rear seat.
By pulling up on the recliner control lever (1) at
the outside of the front passenger's seat, the
seatback will tilt forward and the seat will auto-
matically slide forward.
Rear seat occupants can tilt the front passenger's
seatback by depressing the foot lever (2) as
shown in the illustration.
HTB258
(1)
(2)
WARNING:Passengers sitting in the rear seat should be
careful not to accidentally press the foot lever
(2) while the vehicle is moving, as this may
cause the seatback to move forward and in-
jure a front seat occupant.
!
Lock Knob
B090A01A-GAT
REAR SEAT
Adjustable Headrests
(If Installed)
Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it, push
it down while pressing the lock knob.
B090A01A-1
WARNING:o For maximum effectiveness in case of an
accident, the headrest should be adjusted
so the top of the headrest is at the same
height as the top of the occupant's ears.
The use of a cushion that holds the body
away from the seatback is not recom-
mended.
!
B110A03A-AAT
Folding Rear Seatbacks
(If Installed)
B110A01A-1
WARNING:o Do not operate vehicle with the head-
rests removed as severe injury to an
occupant may occur in the event of an
accident. Headrests may provide pro-
tection against severe neck injuries
when properly adjusted.
Page 26 of 186

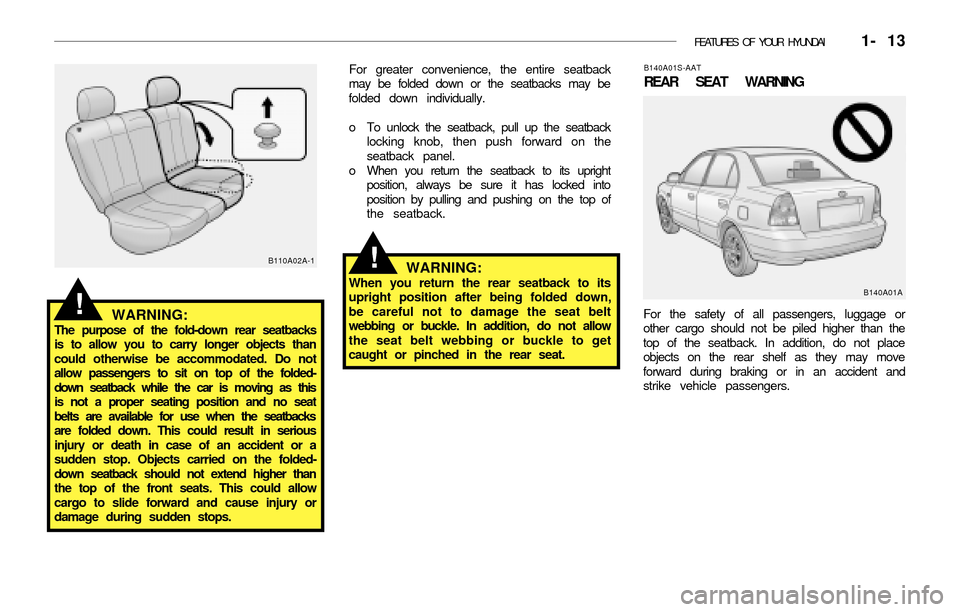

FEATURES OF YOUR HYUNDAI 1- 13
!
WARNING:The purpose of the fold-down rear seatbacks
is to allow you to carry longer objects than
could otherwise be accommodated. Do not
allow passengers to sit on top of the folded-
down seatback while the car is moving as this
is not a proper seating position and no seat
belts are available for use when the seatbacks
are folded down. This could result in serious
injury or death in case of an accident or a
sudden stop. Objects carried on the folded-
down seatback should not extend higher than
the top of the front seats. This could allow
cargo to slide forward and cause injury or
damage during sudden stops.
!
For greater convenience, the entire seatback
may be folded down or the seatbacks may be
folded down individually.
o To unlock the seatback, pull up the seatback
locking knob, then push forward on the
seatback panel.
o When you return the seatback to its upright
position, always be sure it has locked into
position by pulling and pushing on the top of
the seatback.
B110A02A-1B140A01S-AAT
REAR SEAT WARNING
For the safety of all passengers, luggage or
other cargo should not be piled higher than the
top of the seatback. In addition, do not place
objects on the rear shelf as they may move
forward during braking or in an accident and
strike vehicle passengers.
B140A01A
WARNING:When you return the rear seatback to its
upright position after being folded down,
be careful not to damage the seat belt
webbing or buckle. In addition, do not allow
the seat belt webbing or buckle to get
caught or pinched in the rear seat.
Page 27 of 186

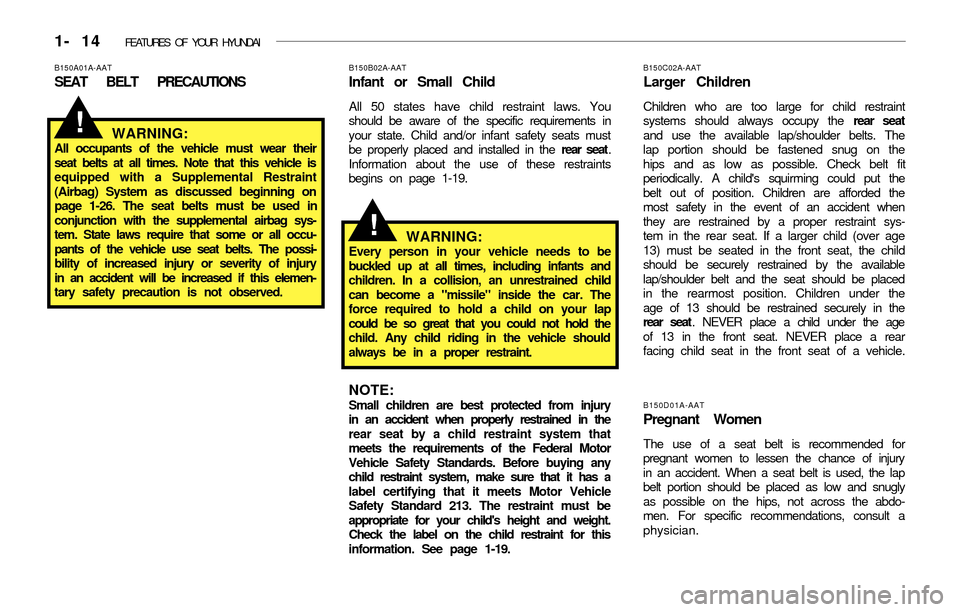

1- 14 FEATURES OF YOUR HYUNDAI
B150D01A-AAT
Pregnant Women
The use of a seat belt is recommended for
pregnant women to lessen the chance of injury
in an accident. When a seat belt is used, the lap
belt portion should be placed as low and snugly
as possible on the hips, not across the abdo-
men. For specific recommendations, consult a
physician.
B150B02A-AAT
Infant or Small Child
All 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
Information about the use of these restraints
begins on page 1-19.
B150A01A-AAT
SEAT BELT PRECAUTIONS
B150C02A-AAT
Larger Children
Children who are too large for child restraint
systems should always occupy the rear seat
and use the available lap/shoulder belts. The
lap portion should be fastened snug on the
hips and as low as possible. Check belt fit
periodically. A child's squirming could put the
belt out of position. Children are afforded the
most safety in the event of an accident when
they are restrained by a proper restraint sys-
tem in the rear seat. If a larger child (over age
13) must be seated in the front seat, the child
should be securely restrained by the available
lap/shoulder belt and the seat should be placed
in the rearmost position. Children under the
age of 13 should be restrained securely in the
rear seat. NEVER place a child under the age
of 13 in the front seat. NEVER place a rear
facing child seat in the front seat of a vehicle.
WARNING:All occupants of the vehicle must wear their
seat belts at all times. Note that this vehicle is
equipped with a Supplemental Restraint
(Airbag) System as discussed beginning on
page 1-26. The seat belts must be used in
conjunction with the supplemental airbag sys-
tem. State laws require that some or all occu-
pants of the vehicle use seat belts. The possi-
bility of increased injury or severity of injury
in an accident will be increased if this elemen-
tary safety precaution is not observed.
!
WARNING:Every person in your vehicle needs to be
buckled up at all times, including infants and
children. In a collision, an unrestrained child
can become a "missile" inside the car. The
force required to hold a child on your lap
could be so great that you could not hold the
child. Any child riding in the vehicle should
always be in a proper restraint.
NOTE:Small children are best protected from injury
in an accident when properly restrained in the
rear seat by a child restraint system that
meets the requirements of the Federal Motor
Vehicle Safety Standards. Before buying any
child restraint system, make sure that it has a
label certifying that it meets Motor Vehicle
Safety Standard 213. The restraint must be
appropriate for your child's height and weight.
Check the label on the child restraint for this
information. See page 1-19.
!
Page 28 of 186

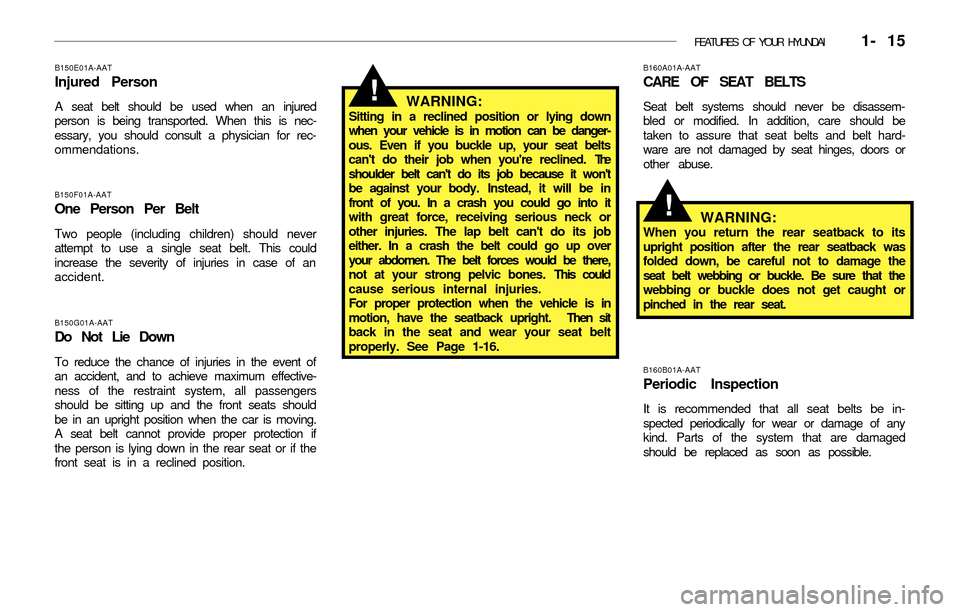

FEATURES OF YOUR HYUNDAI 1- 15
B150E01A-AAT
Injured Person
A seat belt should be used when an injured
person is being transported. When this is nec-
essary, you should consult a physician for rec-
ommendations.
B150F01A-AAT
One Person Per Belt
Two people (including children) should never
attempt to use a single seat belt. This could
increase the severity of injuries in case of an
accident.
B150G01A-AAT
Do Not Lie Down
To reduce the chance of injuries in the event of
an accident, and to achieve maximum effective-
ness of the restraint system, all passengers
should be sitting up and the front seats should
be in an upright position when the car is moving.
A seat belt cannot provide proper protection if
the person is lying down in the rear seat or if the
front seat is in a reclined position.
WARNING:Sitting in a reclined position or lying down
when your vehicle is in motion can be danger-
ous. Even if you buckle up, your seat belts
can't do their job when you're reclined. The
shoulder belt can't do its job because it won't
be against your body. Instead, it will be in
front of you. In a crash you could go into it
with great force, receiving serious neck or
other injuries. The lap belt can't do its job
either. In a crash the belt could go up over
your abdomen. The belt forces would be there,
not at your strong pelvic bones. This could
cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
back in the seat and wear your seat belt
properly. See Page 1-16.
B160A01A-AAT
CARE OF SEAT BELTS
Seat belt systems should never be disassem-
bled or modified. In addition, care should be
taken to assure that seat belts and belt hard-
ware are not damaged by seat hinges, doors or
other abuse.
B160B01A-AAT
Periodic Inspection
It is recommended that all seat belts be in-
spected periodically for wear or damage of any
kind. Parts of the system that are damaged
should be replaced as soon as possible.
!
WARNING:When you return the rear seatback to its
upright position after the rear seatback was
folded down, be careful not to damage the
seat belt webbing or buckle. Be sure that the
webbing or buckle does not get caught or
pinched in the rear seat.
!
Page 29 of 186

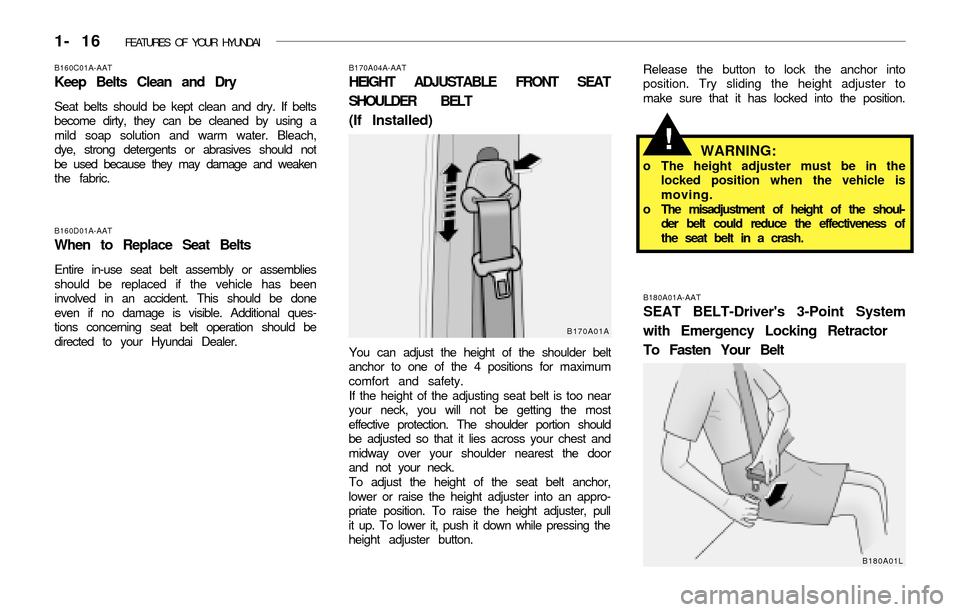

1- 16 FEATURES OF YOUR HYUNDAI
B180A01A-AAT
SEAT BELT-Driver's 3-Point System
with Emergency Locking Retractor
To Fasten Your Belt
B160D01A-AAT
When to Replace Seat Belts
Entire in-use seat belt assembly or assemblies
should be replaced if the vehicle has been
involved in an accident. This should be done
even if no damage is visible. Additional ques-
tions concerning seat belt operation should be
directed to your Hyundai Dealer.
B160C01A-AAT
Keep Belts Clean and Dry
Seat belts should be kept clean and dry. If belts
become dirty, they can be cleaned by using a
mild soap solution and warm water. Bleach,
dye, strong detergents or abrasives should not
be used because they may damage and weaken
the fabric.
B170A04A-AAT
HEIGHT ADJUSTABLE FRONT SEAT
SHOULDER BELT
(If Installed)
B170A01A
You can adjust the height of the shoulder belt
anchor to one of the 4 positions for maximum
comfort and safety.
If the height of the adjusting seat belt is too near
your neck, you will not be getting the most
effective protection. The shoulder portion should
be adjusted so that it lies across your chest and
midway over your shoulder nearest the door
and not your neck.
To adjust the height of the seat belt anchor,
lower or raise the height adjuster into an appro-
priate position. To raise the height adjuster, pull
it up. To lower it, push it down while pressing the
height adjuster button.
WARNING:o The height adjuster must be in the
locked position when the vehicle is
moving.
o The misadjustment of height of the shoul-
der belt could reduce the effectiveness of
the seat belt in a crash.
!
B180A01L
Release the button to lock the anchor into
position. Try sliding the height adjuster to
make sure that it has locked into the position.
Page 30 of 186

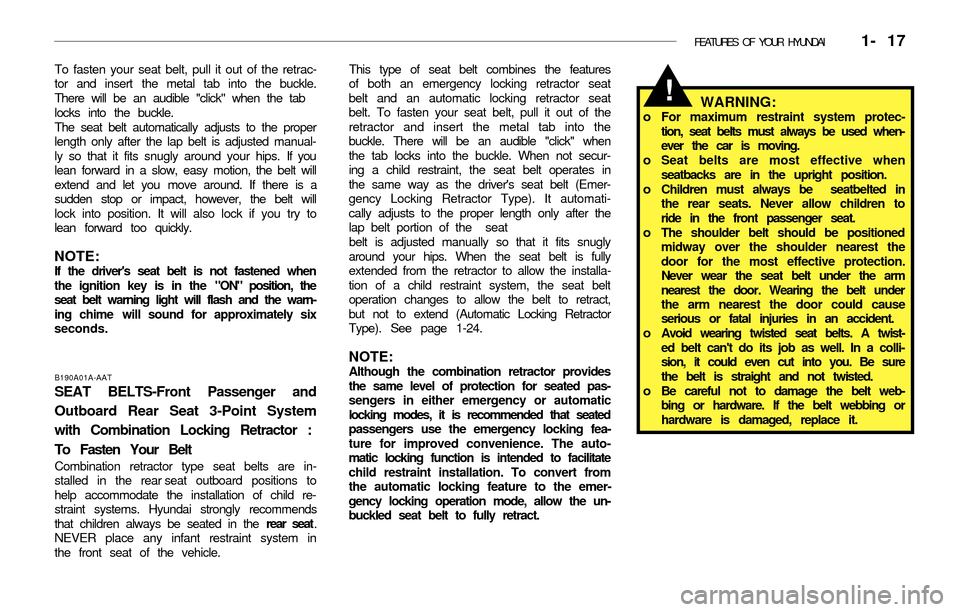

FEATURES OF YOUR HYUNDAI 1- 17
This type of seat belt combines the features
of both an emergency locking retractor seat
belt and an automatic locking retractor seat
belt. To fasten your seat belt, pull it out of the
retractor and insert the metal tab into the
buckle. There will be an audible "click" when
the tab locks into the buckle. When not secur-
ing a child restraint, the seat belt operates in
the same way as the driver's seat belt (Emer-
gency Locking Retractor Type). It automati-
cally adjusts to the proper length only after the
lap belt portion of the seat
belt is adjusted manually so that it fits snugly
around your hips. When the seat belt is fully
extended from the retractor to allow the installa-
tion of a child restraint system, the seat belt
operation changes to allow the belt to retract,
but not to extend (Automatic Locking Retractor
Type). See page 1-24.
NOTE:Although the combination retractor provides
the same level of protection for seated pas-
sengers in either emergency or automatic
locking modes, it is recommended that seated
passengers use the emergency locking fea-
ture for improved convenience. The auto-
matic locking function is intended to facilitate
child restraint installation. To convert from
the automatic locking feature to the emer-
gency locking operation mode, allow the un-
buckled seat belt to fully retract. To fasten your seat belt, pull it out of the retrac-
tor and insert the metal tab into the buckle.
There will be an audible "click" when the tab
locks into the buckle.
The seat belt automatically adjusts to the proper
length only after the lap belt is adjusted manual-
ly so that it fits snugly around your hips. If you
lean forward in a slow, easy motion, the belt will
extend and let you move around. If there is a
sudden stop or impact, however, the belt will
lock into position. It will also lock if you try to
lean forward too quickly.
NOTE:If the driver's seat belt is not fastened when
the ignition key is in the "ON" position, the
seat belt warning light will flash and the warn-
ing chime will sound for approximately six
seconds.
WARNING:o For maximum restraint system protec-
tion, seat belts must always be used when-
ever the car is moving.
o Seat belts are most effective when
seatbacks are in the upright position.
o Children must always be seatbelted in
the rear seats. Never allow children to
ride in the front passenger seat.
o The shoulder belt should be positioned
midway over the shoulder nearest the
door for the most effective protection.
Never wear the seat belt under the arm
nearest the door. Wearing the belt under
the arm nearest the door could cause
serious or fatal injuries in an accident.
o Avoid wearing twisted seat belts. A twist-
ed belt can't do its job as well. In a colli-
sion, it could even cut into you. Be sure
the belt is straight and not twisted.
o Be careful not to damage the belt web-
bing or hardware. If the belt webbing or
hardware is damaged, replace it.
B190A01A-AAT
SEAT BELTS-Front Passenger and
Outboard Rear Seat 3-Point System
with Combination Locking Retractor :
To Fasten Your Belt
Combination retractor type seat belts are in-
stalled in the rear seat outboard positions to
help accommodate the installation of child re-
straint systems. Hyundai strongly recommends
that children always be seated in the rear seat.
NEVER place any infant restraint system in
the front seat of the vehicle.
!
