Hyundai Accent 2003 Owner's Guide
Manufacturer: HYUNDAI, Model Year: 2003, Model line: Accent, Model: Hyundai Accent 2003Pages: 186, PDF Size: 11.36 MB
Page 31 of 186

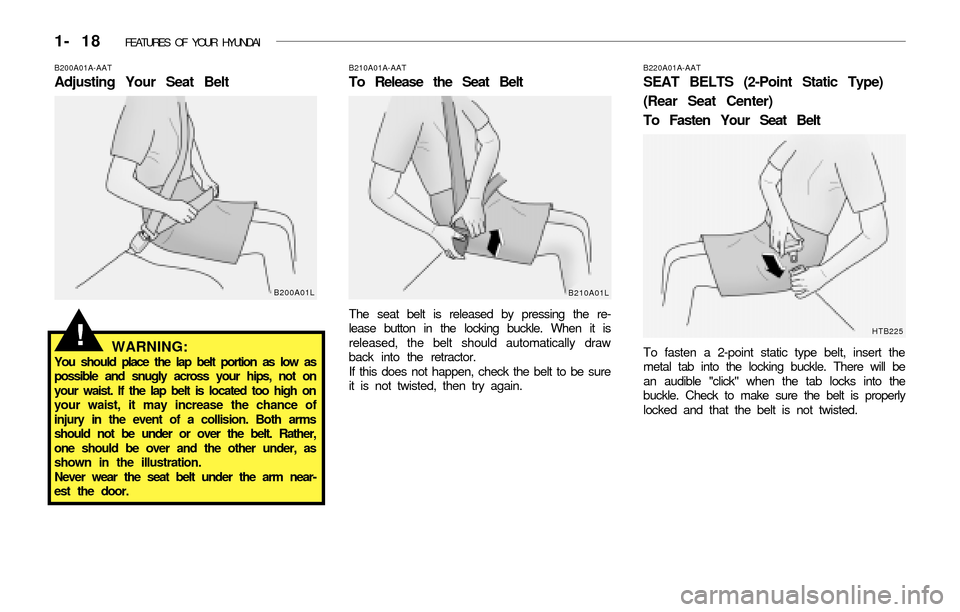

1- 18 FEATURES OF YOUR HYUNDAI
B220A01A-AAT
SEAT BELTS (2-Point Static Type)
(Rear Seat Center)
To Fasten Your Seat Belt
To fasten a 2-point static type belt, insert the
metal tab into the locking buckle. There will be
an audible "click" when the tab locks into the
buckle. Check to make sure the belt is properly
locked and that the belt is not twisted.
B200A01A-AAT
Adjusting Your Seat Belt
WARNING:
You should place the lap belt portion as low as
possible and snugly across your hips, not on
your waist. If the lap belt is located too high on
your waist, it may increase the chance of
injury in the event of a collision. Both arms
should not be under or over the belt. Rather,
one should be over and the other under, as
shown in the illustration.
Never wear the seat belt under the arm near-
est the door.
B210A01A-AAT
To Release the Seat Belt
The seat belt is released by pressing the re-
lease button in the locking buckle. When it is
released, the belt should automatically draw
back into the retractor.
If this does not happen, check the belt to be sure
it is not twisted, then try again.
B200A01L
!HTB225 B210A01L
Page 32 of 186

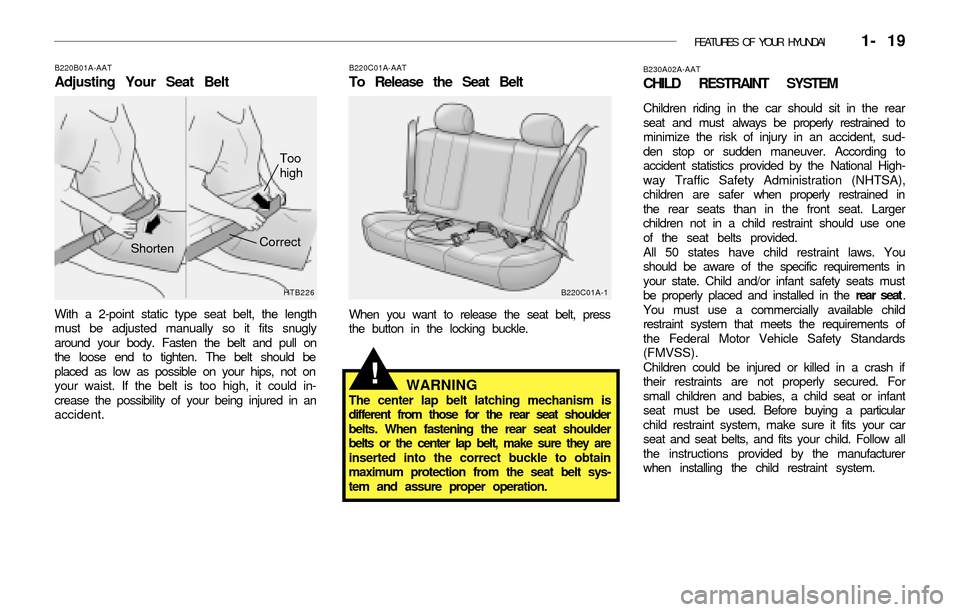

FEATURES OF YOUR HYUNDAI 1- 19
B220B01A-AAT
Adjusting Your Seat Belt
With a 2-point static type seat belt, the length
must be adjusted manually so it fits snugly
around your body. Fasten the belt and pull on
the loose end to tighten. The belt should be
placed as low as possible on your hips, not on
your waist. If the belt is too high, it could in-
crease the possibility of your being injured in an
accident.
B220C01A-AAT
To Release the Seat Belt
When you want to release the seat belt, press
the button in the locking buckle.
HTB226
Correct
ShortenToo
high
B220C01A-1
WARNINGThe center lap belt latching mechanism is
different from those for the rear seat shoulder
belts. When fastening the rear seat shoulder
belts or the center lap belt, make sure they are
inserted into the correct buckle to obtain
maximum protection from the seat belt sys-
tem and assure proper operation.
!
B230A02A-AAT
CHILD RESTRAINT SYSTEM
Children riding in the car should sit in the rear
seat and must always be properly restrained to
minimize the risk of injury in an accident, sud-
den stop or sudden maneuver. According to
accident statistics provided by the National High-
way Traffic Safety Administration (NHTSA),
children are safer when properly restrained in
the rear seats than in the front seat. Larger
children not in a child restraint should use one
of the seat belts provided.
All 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
You must use a commercially available child
restraint system that meets the requirements of
the Federal Motor Vehicle Safety Standards
(FMVSS).
Children could be injured or killed in a crash if
their restraints are not properly secured. For
small children and babies, a child seat or infant
seat must be used. Before buying a particular
child restraint system, make sure it fits your car
seat and seat belts, and fits your child. Follow all
the instructions provided by the manufacturer
when installing the child restraint system.
Page 33 of 186

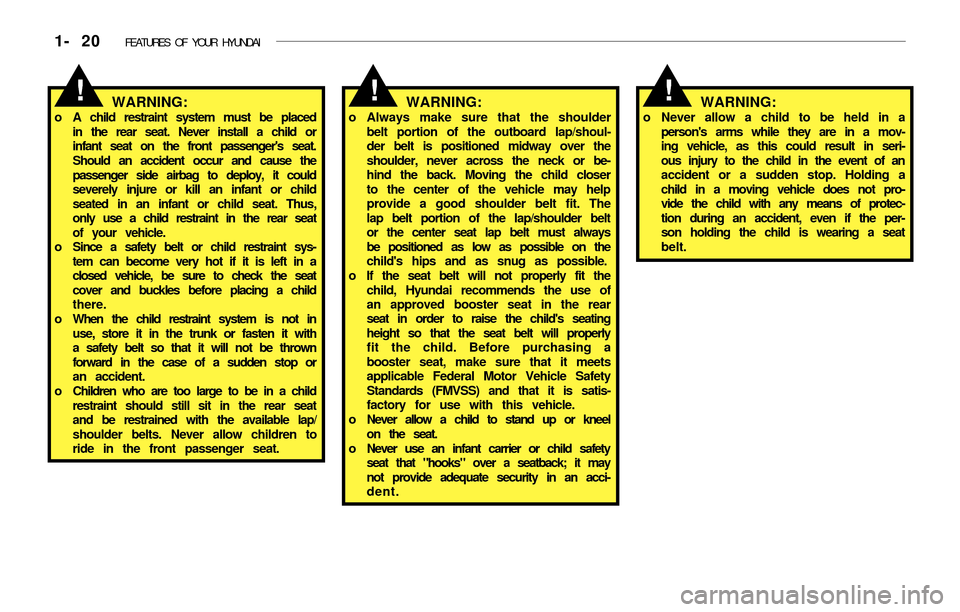

1- 20 FEATURES OF YOUR HYUNDAI
!WARNING:o Always make sure that the shoulder
belt portion of the outboard lap/shoul-
der belt is positioned midway over the
shoulder, never across the neck or be-
hind the back. Moving the child closer
to the center of the vehicle may help
provide a good shoulder belt fit. The
lap belt portion of the lap/shoulder belt
or the center seat lap belt must always
be positioned as low as possible on the
child's hips and as snug as possible.
o If the seat belt will not properly fit the
child, Hyundai recommends the use of
an approved booster seat in the rear
seat in order to raise the child's seating
height so that the seat belt will properly
fit the child. Before purchasing a
booster seat, make sure that it meets
applicable Federal Motor Vehicle Safety
Standards (FMVSS) and that it is satis-
factory for use with this vehicle.
o Never allow a child to stand up or kneel
on the seat.
o Never use an infant carrier or child safety
seat that "hooks" over a seatback; it may
not provide adequate security in an acci-
dent.WARNING:o A child restraint system must be placed
in the rear seat. Never install a child or
infant seat on the front passenger's seat.
Should an accident occur and cause the
passenger side airbag to deploy, it could
severely injure or kill an infant or child
seated in an infant or child seat. Thus,
only use a child restraint in the rear seat
of your vehicle.
o Since a safety belt or child restraint sys-
tem can become very hot if it is left in a
closed vehicle, be sure to check the seat
cover and buckles before placing a child
there.
o When the child restraint system is not in
use, store it in the trunk or fasten it with
a safety belt so that it will not be thrown
forward in the case of a sudden stop or
an accident.
o Children who are too large to be in a child
restraint should still sit in the rear seat
and be restrained with the available lap/
shoulder belts. Never allow children to
ride in the front passenger seat.
!WARNING:o Never allow a child to be held in a
person's arms while they are in a mov-
ing vehicle, as this could result in seri-
ous injury to the child in the event of an
accident or a sudden stop. Holding a
child in a moving vehicle does not pro-
vide the child with any means of protec-
tion during an accident, even if the per-
son holding the child is wearing a seat
belt.
!
Page 34 of 186

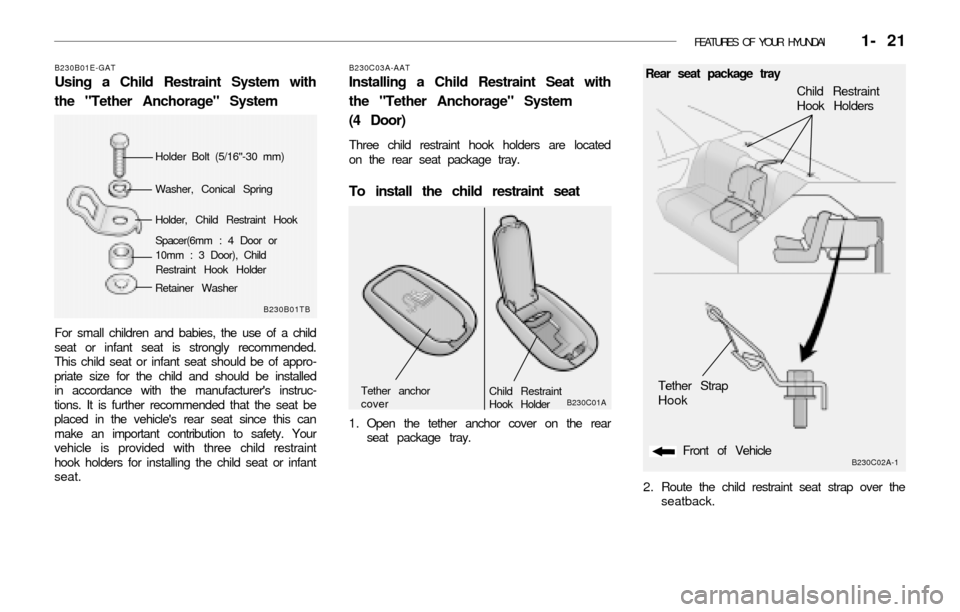

FEATURES OF YOUR HYUNDAI 1- 21
Spacer(6mm : 4 Door or
10mm : 3 Door), Child
Restraint Hook Holder
B230B01TB B230B01E-GAT
Using a Child Restraint System with
the "Tether Anchorage" System
For small children and babies, the use of a child
seat or infant seat is strongly recommended.
This child seat or infant seat should be of appro-
priate size for the child and should be installed
in accordance with the manufacturer's instruc-
tions. It is further recommended that the seat be
placed in the vehicle's rear seat since this can
make an important contribution to safety. Your
vehicle is provided with three child restraint
hook holders for installing the child seat or infant
seat.
Holder Bolt (5/16"-30 mm)
Washer, Conical Spring
Holder, Child Restraint Hook
B230C03A-AAT
Installing a Child Restraint Seat with
the "Tether Anchorage" System
(4 Door)
Three child restraint hook holders are located
on the rear seat package tray.
To install the child restraint seat
B230C01A
1 . Open the tether anchor cover on the rear
seat package tray.
Tether anchor
coverChild Restraint
Hook Holder
2 . Route the child restraint seat strap over the
seatback.
B230C02A-1Front of Vehicle
Tether Strap
HookChild Restraint
Hook Holders
Rear seat package tray
Retainer Washer
Page 35 of 186

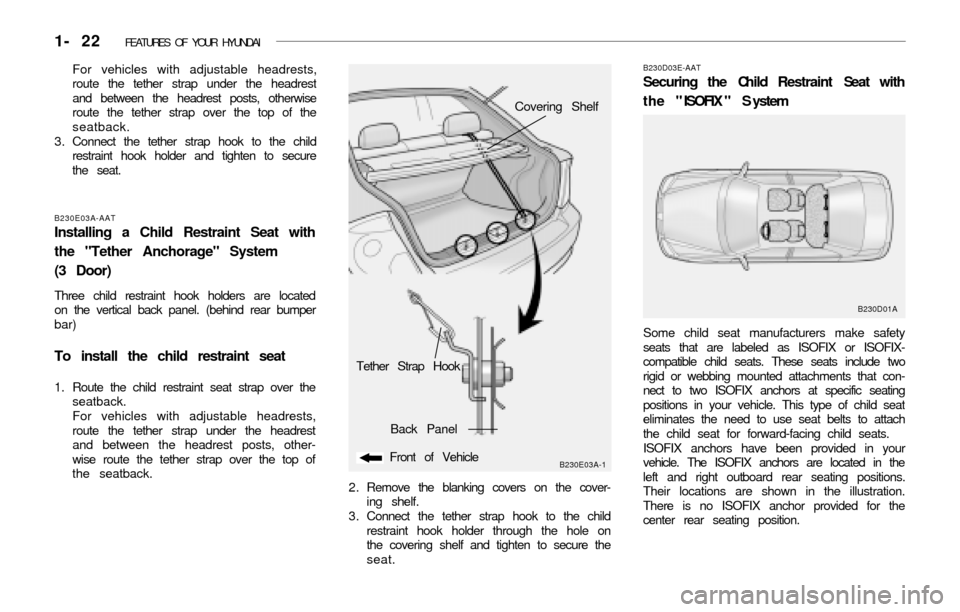

1- 22 FEATURES OF YOUR HYUNDAI
Tether Strap Hook
B230E03A-1Front of Vehicle
Back PanelCovering Shelf
2 . Remove the blanking covers on the cover-
ing shelf.
3 . Connect the tether strap hook to the child
restraint hook holder through the hole on
the covering shelf and tighten to secure the
seat.
B230D03E-AAT
Securing the Child Restraint Seat with
the "ISOFIX " System
Some child seat manufacturers make safety
seats that are labeled as ISOFIX or ISOFIX-
compatible child seats. These seats include two
rigid or webbing mounted attachments that con-
nect to two ISOFIX anchors at specific seating
positions in your vehicle. This type of child seat
eliminates the need to use seat belts to attach
the child seat for forward-facing child seats.
ISOFIX anchors have been provided in your
vehicle. The ISOFIX anchors are located in the
left and right outboard rear seating positions.
Their locations are shown in the illustration.
There is no ISOFIX anchor provided for the
center rear seating position.
B230D01A B230E03A-AAT
Installing a Child Restraint Seat with
the "Tether Anchorage" System
(3 Door)
Three child restraint hook holders are located
on the vertical back panel. (behind rear bumper
bar)
To install the child restraint seat
1. Route the child restraint seat strap over the
seatback.
For vehicles with adjustable headrests,
route the tether strap under the headrest
and between the headrest posts, other-
wise route the tether strap over the top of
the seatback. For vehicles with adjustable headrests,
route the tether strap under the headrest
and between the headrest posts, otherwise
route the tether strap over the top of the
seatback.
3 . Connect the tether strap hook to the child
restraint hook holder and tighten to secure
the seat.
Page 36 of 186

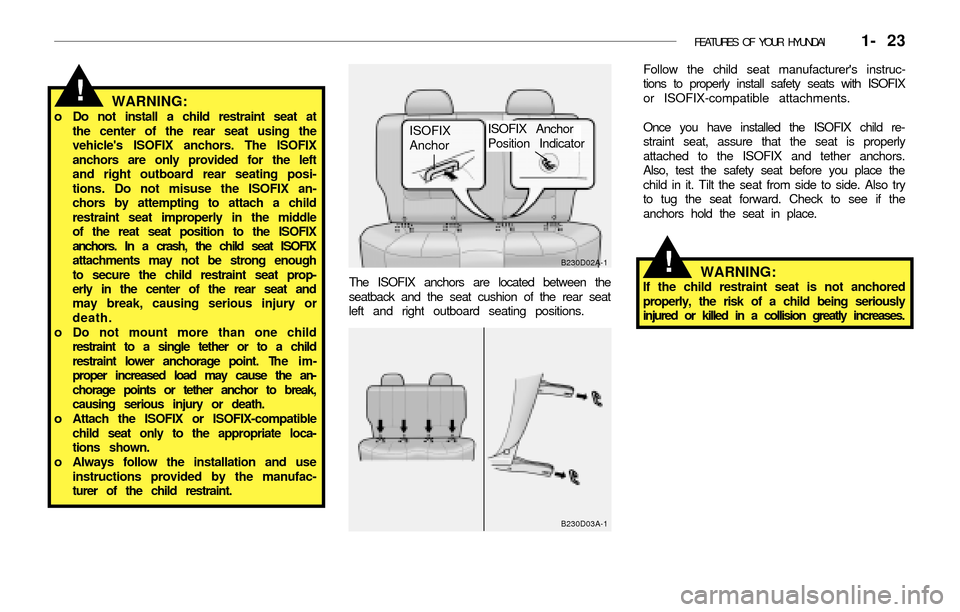

FEATURES OF YOUR HYUNDAI 1- 23
WARNING:o Do not install a child restraint seat at
the center of the rear seat using the
vehicle's ISOFIX anchors. The ISOFIX
anchors are only provided for the left
and right outboard rear seating posi-
tions. Do not misuse the ISOFIX an-
chors by attempting to attach a child
restraint seat improperly in the middle
of the reat seat position to the ISOFIX
anchors. In a crash, the child seat ISOFIX
attachments may not be strong enough
to secure the child restraint seat prop-
erly in the center of the rear seat and
may break, causing serious injury or
death.
o Do not mount more than one child
restraint to a single tether or to a child
restraint lower anchorage point. Th e i m -
proper increased load may cause the an-
chorage points or tether anchor to break,
causing serious injury or death.
o Attach the ISOFIX or ISOFIX-compatible
child seat only to the appropriate loca-
tions shown.
o Always follow the installation and use
instructions provided by the manufac-
turer of the child restraint.
!
The ISOFIX anchors are located between the
seatback and the seat cushion of the rear seat
left and right outboard seating positions.
B230D02A-1
ISOFIX
Anchor
!
ISOFIX Anchor
Position IndicatorFollow the child seat manufacturer's instruc-
tions to properly install safety seats with ISOFIX
or ISOFIX-compatible attachments.
Once you have installed the ISOFIX child re-
straint seat, assure that the seat is properly
attached to the ISOFIX and tether anchors.
Also, test the safety seat before you place the
child in it. Tilt the seat from side to side. Also try
to tug the seat forward. Check to see if the
anchors hold the seat in place.
WARNING:If the child restraint seat is not anchored
properly, the risk of a child being seriously
injured or killed in a collision greatly increases.
B230D03A-1
Page 37 of 186

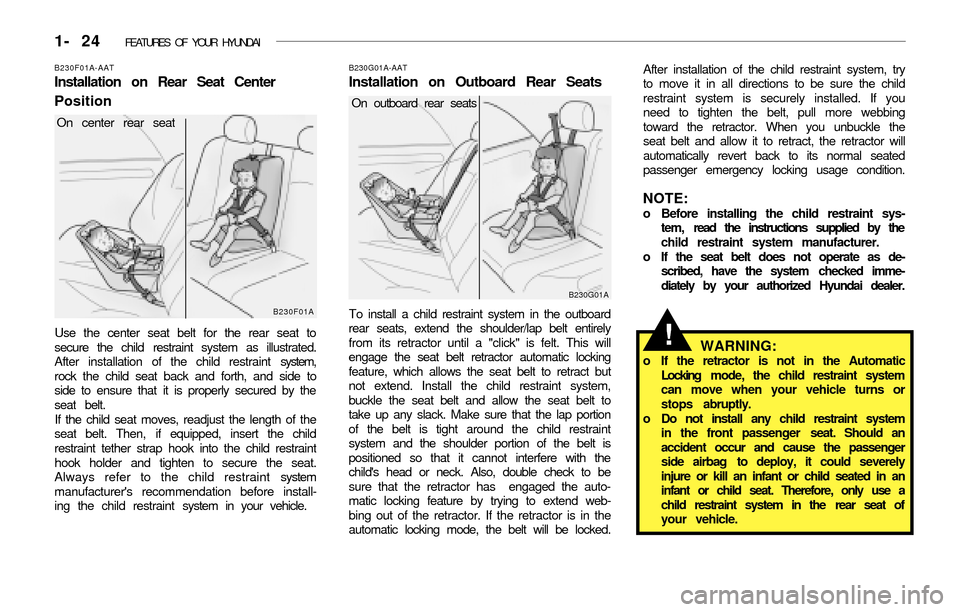

1- 24 FEATURES OF YOUR HYUNDAI
After installation of the child restraint system, try
to move it in all directions to be sure the child
restraint system is securely installed. If you
need to tighten the belt, pull more webbing
toward the retractor. When you unbuckle the
seat belt and allow it to retract, the retractor will
automatically revert back to its normal seated
passenger emergency locking usage condition.
NOTE:o Before installing the child restraint sys-
tem, read the instructions supplied by the
child restraint system manufacturer.
o If the seat belt does not operate as de-
scribed, have the system checked imme-
diately by your authorized Hyundai dealer.
WARNING:o If the retractor is not in the Automatic
Locking mode, the child restraint system
can move when your vehicle turns or
stops abruptly.
o Do not install any child restraint system
in the front passenger seat. Should an
accident occur and cause the passenger
side airbag to deploy, it could severely
injure or kill an infant or child seated in an
infant or child seat. Therefore, only use a
child restraint system in the rear seat of
your vehicle.
!
To install a child restraint system in the outboard
rear seats, extend the shoulder/lap belt entirely
from its retractor until a "click" is felt. This will
engage the seat belt retractor automatic locking
feature, which allows the seat belt to retract but
not extend. Install the child restraint system,
buckle the seat belt and allow the seat belt to
take up any slack. Make sure that the lap portion
of the belt is tight around the child restraint
system and the shoulder portion of the belt is
positioned so that it cannot interfere with the
child's head or neck. Also, double check to be
sure that the retractor has engaged the auto-
matic locking feature by trying to extend web-
bing out of the retractor. If the retractor is in the
automatic locking mode, the belt will be locked.
B230G01A-AAT
Installation on Outboard Rear Seats
On outboard rear seats
B230G01A B230F01A-AAT
Installation on Rear Seat Center
Position
Use the center seat belt for the rear seat to
secure the child restraint system as illustrated.
After installation of the child restraint system,
rock the child seat back and forth, and side to
side to ensure that it is properly secured by the
seat belt.
If the child seat moves, readjust the length of the
seat belt. Then, if equipped, insert the child
restraint tether strap hook into the child restraint
hook holder and tighten to secure the seat.
Always refer to the child restraint system
manufacturer's recommendation before install-
ing the child restraint system in your vehicle.
B230F01A
On center rear seat
Page 38 of 186

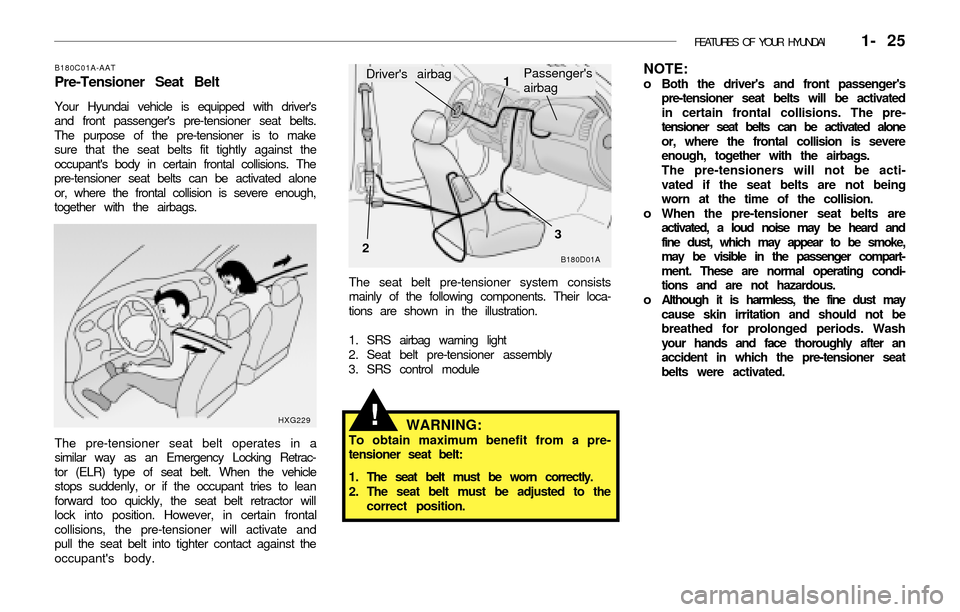

FEATURES OF YOUR HYUNDAI 1- 25
NOTE:o Both the driver's and front passenger's
pre-tensioner seat belts will be activated
in certain frontal collisions. The pre-
tensioner seat belts can be activated alone
or, where the frontal collision is severe
enough, together with the airbags.
The pre-tensioners will not be acti-
vated if the seat belts are not being
worn at the time of the collision.
o When the pre-tensioner seat belts are
activated, a loud noise may be heard and
fine dust, which may appear to be smoke,
may be visible in the passenger compart-
ment. These are normal operating condi-
tions and are not hazardous.
o Although it is harmless, the fine dust may
cause skin irritation and should not be
breathed for prolonged periods. Wash
your hands and face thoroughly after an
accident in which the pre-tensioner seat
belts were activated. The seat belt pre-tensioner system consists
mainly of the following components. Their loca-
tions are shown in the illustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
B180C01A-AAT
Pre-Tensioner Seat Belt
Your Hyundai vehicle is equipped with driver's
and front passenger's pre-tensioner seat belts.
The purpose of the pre-tensioner is to make
sure that the seat belts fit tightly against the
occupant's body in certain frontal collisions. The
pre-tensioner seat belts can be activated alone
or, where the frontal collision is severe enough,
together with the airbags.
The pre-tensioner seat belt operates in a
similar way as an Emergency Locking Retrac-
tor (ELR) type of seat belt. When the vehicle
stops suddenly, or if the occupant tries to lean
forward too quickly, the seat belt retractor will
lock into position. However, in certain frontal
collisions, the pre-tensioner will activate and
pull the seat belt into tighter contact against the
occupant's body.
Passenger's
airbag
HXG229B180D01A
Driver's airbag1
23
WARNING:To obtain maximum benefit from a pre-
tensioner seat belt:
1 . The seat belt must be worn correctly.
2. The seat belt must be adjusted to the
correct position.
!
Page 39 of 186
1- 26 FEATURES OF YOUR HYUNDAI
B240A01A-AAT
DUAL-STAGE SUPPLEMENTAL
RESTRAINT (AIRBAG) SYSTEM (SRS)
Your Hyundai is equipped with a Dual-stage
Supplemental Restraint (Airbag) System. The
indications of the system's presence are the
letters "SRS AIRBAG" embossed on the airbag
pad cover in the steering wheel and the
passenger's side front panel pad above the
glove box.
The Hyundai SRS consists of airbags installed
under the pad covers in the center of the steer-
ing wheel and the passenger's side front panel
above the glove box. The purpose of the SRS is
to provide the vehicle's driver and/or the front
passenger with additional protection than that
offered by the seat-belt system alone, in case of
a frontal impact of sufficient severity.
B240A03A
Driver's Airbag
WARNING:o Pre-tensioners are designed to operate
only one time. After activation, pre-
tensioner seat belts must be replaced. All
seat belts, of any type, should always be
replaced after they have been worn dur-
ing a collision.
o The pre-tensioner seat belt assembly
mechanisms become hot during activa-
tion. Do not touch the pre-tensioner seat
belt assemblies for several minutes after
they have been activated.
o Do not attempt to inspect or replace the
pre-tensioner seat belts yourself. This
must be done by an authorized Hyundai
dealer.
o Do not strike the pre-tensioner seat belt
assemblies.
o Do not attempt to service or repair the
pre-tensioner seat belt system in any
manner.
o Improper handling of the pre-tensioner
seat belt assemblies, and failure to heed
the warnings to not strike, modify, in-
spect, replace, service or repair the pre-
tensioner seat belt assemblies may lead
to improper operation or inadvertent acti-
vation and serious injury.
o Always wear the seat belts when driving
or riding in a motor vehicle.
!CAUTION:o Because the sensor that activates the
SRS airbag is connected with the pre-
tensioner seat belt, the SRS airbag warn-
ing light on the instrument panel will
blink for approximately 6 seconds after
the ignition key has been turned to the
"ON" position, and then it should turn off.
o If the pre-tensioner seat belt is not work-
ing properly, this warning light will illumi-
nate even if there is no malfunction of the
SRS airbag system.
If the SRS airbag warning light does not
illuminate when the ignition key is turned
to "ON", or if it remains illuminated after
blinking for approximately 6 seconds, or
if it illuminates while the vehicle is being
driven, please have an authorized Hyundai
dealer inspect the pre-tensioner seat belt
or SRS airbag system as soon as pos-
sible.
!
Page 40 of 186
FEATURES OF YOUR HYUNDAI 1- 27
o Front airbags are not intended to de-
ploy in side-impact, rear-impact or
rollover crashes. In addition, airbags
will not deploy in frontal crashes below
the deployment threshold speed.
o The driver should sit back as far as
possible while still maintaining control
of the vehicle. If you are sitting too
close to the airbag, it can cause death
or serious injury when it inflates.
B240A04A
Rear impact
Side ImpactRollover
!
The dual-stage SRS uses a collection of sen-
sors to gather information about the driver's
and front passenger's seat position, the
driver's and front passenger's seat belt usage
and impact severity.
The driver's and front passenger's seat posi-
tion sensors determine if the seats are fore or
aft of a reference position. Similarly, the seat
belt usage sensors determine if the driver and
front passenger's seat belts are fastened.
These sensors provide the ability to control
the SRS deployment's pressure based on how
close the driver's seat is to the steering wheel,
how close the passenger's seat is to the
instrument panel and whether or not the seat
belts are fastened.
The dual-stage airbags offer the ability to control
the airbag inflation with two pressure levels. A
lower pressure level is provided for moderate-
severity impacts. A higher-pressure level is pro-
vided for more severe impacts.
NOTE:o Be sure to read information about the
SRS on the labels provided on the back-
side of the sun visor and in the glove box.
o Dual-stage inflating airbags are combined
with pre-tensioner seat belts to help pro-
vided enhanced occupant protection in
frontal crashes. Front airbags are not in-
tended to deploy in light collisions in
which protection can be provided by the
pre-tensioner seat belt.
WARNING:o As its name implies, the SRS is de-
signed to work with, and be supple-
mental to, the driver's and the
passenger's three point seat belt sys-
tems and is not a substitute for them.
Therefore, your seat belts must be worn
at all times while the vehicle is in mo-
tion. The airbags deploy only in certain
frontal impact conditions severe
enough to cause significant injury to
the vehicle occupants.
o The SRS is designed to deploy the
airbags only when an impact is suffi-
ciently severe and when the impact
angle is less than 30° from the forward
longitudinal axis of the vehicle and will
not deploy in side, rear or rollover im-
pacts. Additionally, the airbags will only
deploy once. Thus, seat belts must be
worn at all times.
!WARNING:
