Hyundai Accent 2010 Owner's Manual

8
CONSUMER INFORMATION
3ENGINE NUMBERTIRE
I010B01A-GAT
The engine number is stamped on the engine block as shown in the drawing. I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best perfor-mance for normal driving. I030A02MC-GAT RECOMMENDED INFLATION PRESSURES The tire label located on the driver's side of the center pillar gives the tire pressures recommended for your car.
I030A01MC
Gasoline Engine Diesel Engine
OMC065001
OMC069002L
OMC079014
OMC059112N
3 DOOR
OMC059111N
4 DOOR

8CONSUMER INFORMATION
4
I040A02S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and havethe same load capacity as the original tires. Snow tires should be installed on all four wheels; otherwise, poor han-dling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pressurerecommended for the standard tires on the tire label on the driver's door edge, or up to the maximum pressure shownon the tire sidewall whichever is less. Do not drive faster than 120 km/h (75 mph) when your car is equipped withsnow tires.
These pressures were chosen to pro-vide the most satisfactory combinationof ride comfort, tire wear and stability under normal conditions. Tire pres- sures should be checked at leastmonthly. Proper tire inflation pressures should be maintained for these rea- sons:
o Lower-than-recommended tire pres-
sures cause uneven tread wear and poor handling.
o Higher-than-recommended tire
pressures increase the chance ofdamage from impacts and cause uneven tread wear. CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least threehours and hasn't been driven more than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pres-sure of other tires.
o Worn, old tires can cause acci-
dents. If your tread is badly worn, or if your tires have been dam-aged, replace them.
!

8
CONSUMER INFORMATION
5
!
I050A01MC-AAT TIRE CHAINS Tire chains, if necessary should be installed on the front wheels. Be surethat the chains are installed in accor- dance with the manufacturer's instruc- tions.To minimize tire and chain wear, do not continue to use tire chains when they are no longer needed. I060A02A-AAT TIRE ROTATION
WARNING:
o If your vehicle is equipped with 205/45R16 size tires, do not install tire chains. This may cause dam-age to the vehicle (wheels, sus-pension and body) by chains con-tacting the body.
o When driving on roads covered with snow or ice, drive at less than30 km/h (20 mph).
o Use the SAE "S" class or wire & plastic chains.
o If you have noise caused by chains contacting the body, retighten thechain to avoid contact with thevehicle body. I060A02TG
Spare tire
o To prevent body damage, retighten
the chains after driving 0.5~1 km.
o Don't use tire chains on a vehicle equipped with aluminium wheels. If it is unavoidable, use wire typechains.
o Use wire chains less than 15 mm to prevent damage to the chain'sconnection.

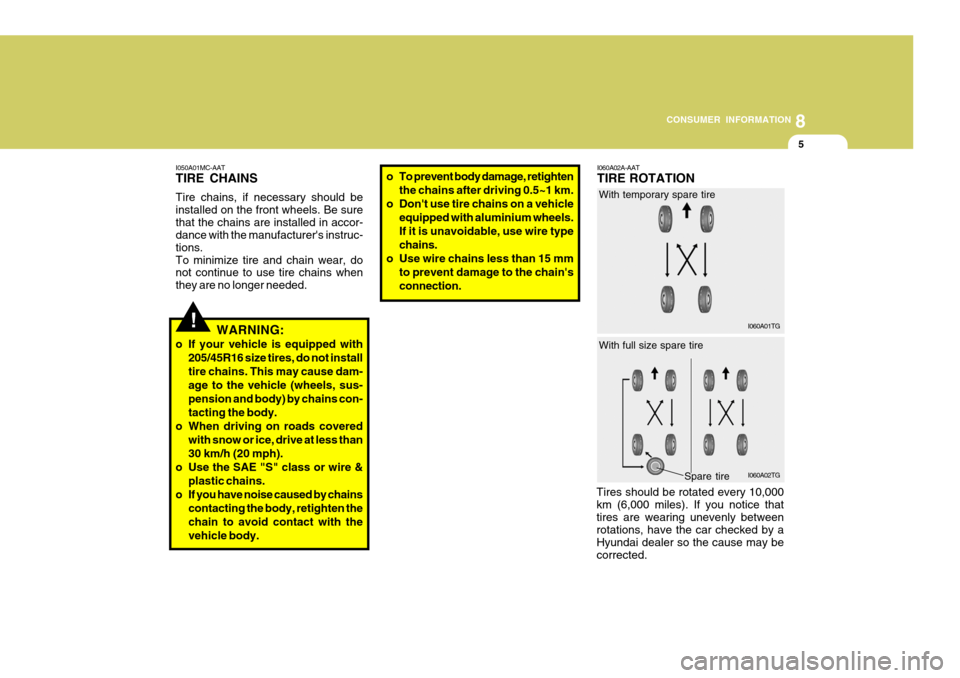

Tires should be rotated every 10,000 km (6,000 miles). If you notice thattires are wearing unevenly between rotations, have the car checked by a Hyundai dealer so the cause may becorrected.
I060A01TG
With temporary spare tire With full size spare tire

8CONSUMER INFORMATION
6
I090A03MC-GAT WHEN TO REPLACE TIRES
The original tires on your car have tread wear indicators. The location of tread wear indicators is shown by the "TWI"or " " marks, etc., The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tire should be replaced when these appear as a solid bar across two or more grooves of thetread. Always replace your tires with those of the recommended size. If you change wheels, the new wheel's rimwidth and offset must meet Hyundai specification.
OMC055017
Wear indicator
I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires onyour Hyundai were balanced before the car was delivered but may need balancing again during the years youown the car. Whenever a tire is dismounted for repair, it should be rebalanced beforebeing reinstalled on the car. I080A01A-AAT TIRE TRACTION Tire traction can be reduced if you drive on worn tires, tires that are im- properly inflated or on slippery road surfaces. Tires should be replacedwhen tread wear indicators appear. To reduce the possibility of losing control, slow down whenever there is rain,snow or ice on the road.
!WARNING:
o Do not use the temporary spare tire for tire rotations.
o Do not mix bias-ply and radial-ply tires under any circumstances. This may cause dangerous han-dling characteristics.
After rotating, adjust the tire pressuresand be sure to check wheel nut torque.

8
CONSUMER INFORMATION
7

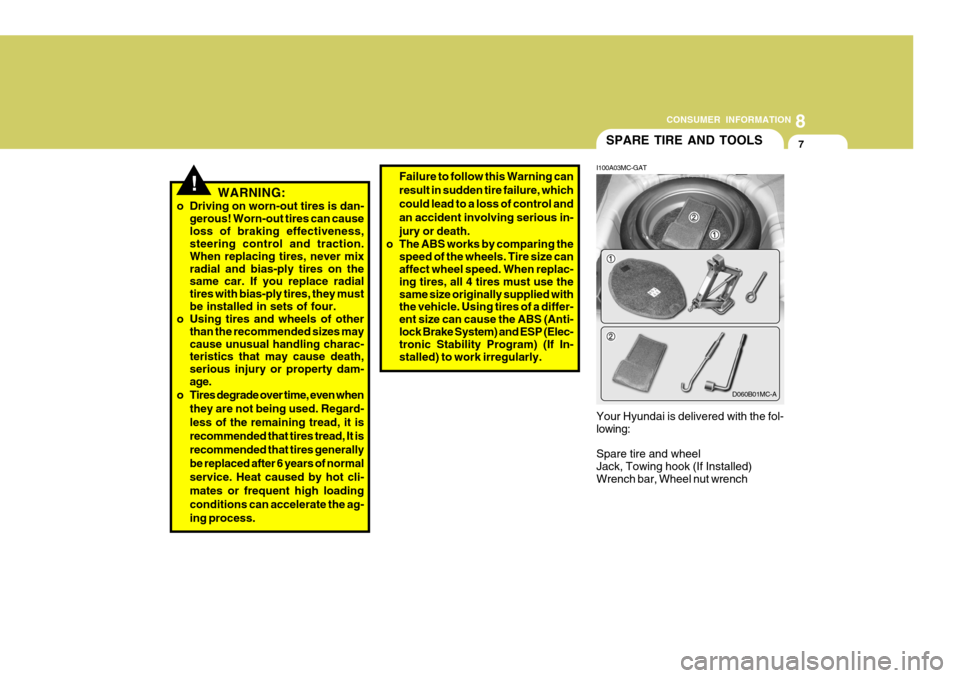

Your Hyundai is delivered with the fol- lowing: Spare tire and wheel Jack, Towing hook (If Installed) Wrench bar, Wheel nut wrench D060B01MC-A
SPARE TIRE AND TOOLS
I100A03MC-GAT
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause
loss of braking effectiveness, steering control and traction. When replacing tires, never mixradial and bias-ply tires on the same car. If you replace radial tires with bias-ply tires, they mustbe installed in sets of four.
o Using tires and wheels of other
than the recommended sizes maycause unusual handling charac- teristics that may cause death, serious injury or property dam-age.
o Tires degrade over time, even when
they are not being used. Regard- less of the remaining tread, it isrecommended that tires tread, It isrecommended that tires generallybe replaced after 6 years of normalservice. Heat caused by hot cli-mates or frequent high loadingconditions can accelerate the ag-ing process. Failure to follow this Warning canresult in sudden tire failure, whichcould lead to a loss of control andan accident involving serious in-jury or death.
o The ABS works by comparing the speed of the wheels. Tire size can affect wheel speed. When replac- ing tires, all 4 tires must use thesame size originally supplied with the vehicle. Using tires of a differ- ent size can cause the ABS (Anti-lock Brake System) and ESP (Elec- tronic Stability Program) (If In- stalled) to work irregularly.

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2
Type Wheel free play Rack strokeOil pump type 4 Door
4300 (169.3)
1695 (66.7)
1470 (57.9)/1475 (58)* 2500 (98.4)
1470 (57.9)/1485 (58.5)*
1460 (57.5)/1475 (58)*
ItemOverall length Overall width Overall heightWheel base Wheel tread J030A01MC-GAT TIRE
Dual hydraulic with brake booster Ventilated discDrum Disc (If Installed) Cable operated on rear wheel
J010A02MC-GAT MEASUREMENT
J060A01A-GAT FUEL SYSTEMRack and pinion 0 ~ 30 mm (0 ~ 1.18 in.) 142 mm (5.59 in.) 138 mm (5.43 in.)Vane type
175/70 R14, 185/65 R14, 195/55 R15 175/70 R14, 185/65 R14, 205/45 R16
4 Door 3 Door
Front Rear
mm (in.)
J020A01MC-GAT POWER STEERING Fuel tank Capacity Liter
45 Imp.gal
9.9
J050A02MC-GAT BRAKE
Type Front brake type Rear brake typeParking brake
3 Door
4045 (159.3)
175 Tire only Except 175 Tire
* with 175/70R14 Tire J035A01MC-GAT SPARE TIRE
Temporary (T115/70D15, T125/80D15) Full size
Type AType B

9
VEHICLE SPECIFICATIONS
3ENGINE
Engine Type Bore x Stroke (mm) Displacement (cc) Firing orderIdle speed (RPM) Ignition timing
J070A02MC-GAT
ITEMS
N,P
D
GASOLINE
720 ± 100 660 ± 100
BTDC 5° ± 5°
1.4L
75.5 x 78.1 1,399 1.6L
76.5 x 87 1,599 DIESEL
1.5L
75 x 84.5 1,493
820 ± 100
Auto control
4-Cylinder in-line DOHC
1 - 3 - 4 - 2

9 VEHICLE SPECIFICATIONS
4
Item
Engine Oil Gasoline
Recommends Diesel
Engine Oil Consumption Transaxle ManualAutomatic
Power Steering Fluid (If Installed)
Brake Fluid Coolant
LUBRICATION CHART
Oil & Grease Standard
API Service SM* 1
or above, SAE 5W-20* 2
, 5W-30
ILSAC GF-4 or above (ALL TEMP. RANGE) SAE 10W-30 (ABOVE -18°C) SAE 15W-40 (ABOVE -13°C) SAE 20W-50 (ABOVE -7°C)
API CH-4 or above, SAE 15W-40 (ABOVE -15 °C)
ACEA B4 SAE 10W-30 (-20 °C ~ 40 °C)
SAE 5W-30 (-25 °C ~ 40 °C)
SAE 0W-30 (BELOW 30 °C)
Normal driving conditionSevere driving condition HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) HYUNDAI GENUINE ATF SP-III, DIAMOND ATF SP-III, SK ATF SP-III or other brands approved by Hyundai Motor Co., PSF-3 DOT 3, DOT 4 or equivalent Ethylene glycol base for aluminum radiator
J080A03MC-GAT
Q'ty (liter)
Drain and refill (with oil filter) : 3.3 (2.9 Imp.qts) Drain and refill (with oil filter) : 5.3 (4.6 Imp.qts) MAX. 1L / 1,500 Km MAX. 1L / 1,000 Km Gasoline : 1.9 (1.64 Imp. qts) Diesel : 2.0 (1.73 Imp. qts) 6.1 (5.3 Imp.qts) (Gasoline only) As required As required Gasoline : 5.5~5.8Diesel : 5.3~5.4
* 1
: If the API service SM engine oil is not available in your country, you are able to use API service SL.
* 2
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
