1FEATURES OF YOUR HYUNDAI
110

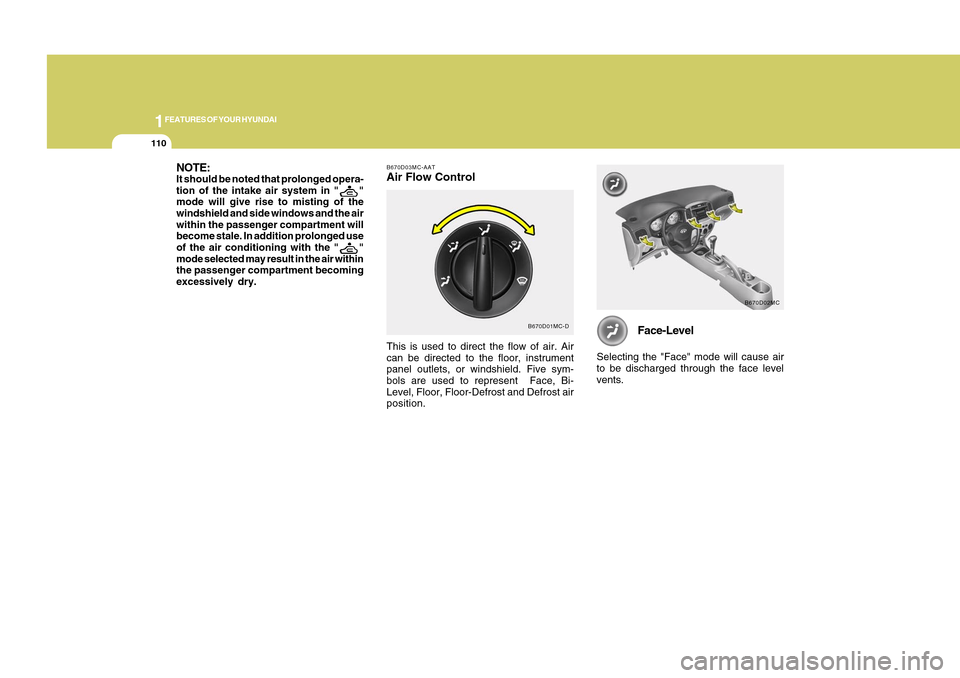

NOTE:It should be noted that prolonged opera-
tion of the intake air system in "
"
mode will give rise to misting of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition prolonged use
of the air conditioning with the ""
mode selected may result in the air within
the passenger compartment becoming
excessively dry.
B670D03MC-AATAir Flow ControlThis is used to direct the flow of air. Air
can be directed to the floor, instrument
panel outlets, or windshield. Five sym-
bols are used to represent Face, Bi-
Level, Floor, Floor-Defrost and Defrost air
position.
B670D01MC-D
Face-Level
Selecting the "Face" mode will cause air
to be discharged through the face level
vents.
B670D02MC

1
FEATURES OF YOUR HYUNDAI
1111
FEATURES OF YOUR HYUNDAI
111

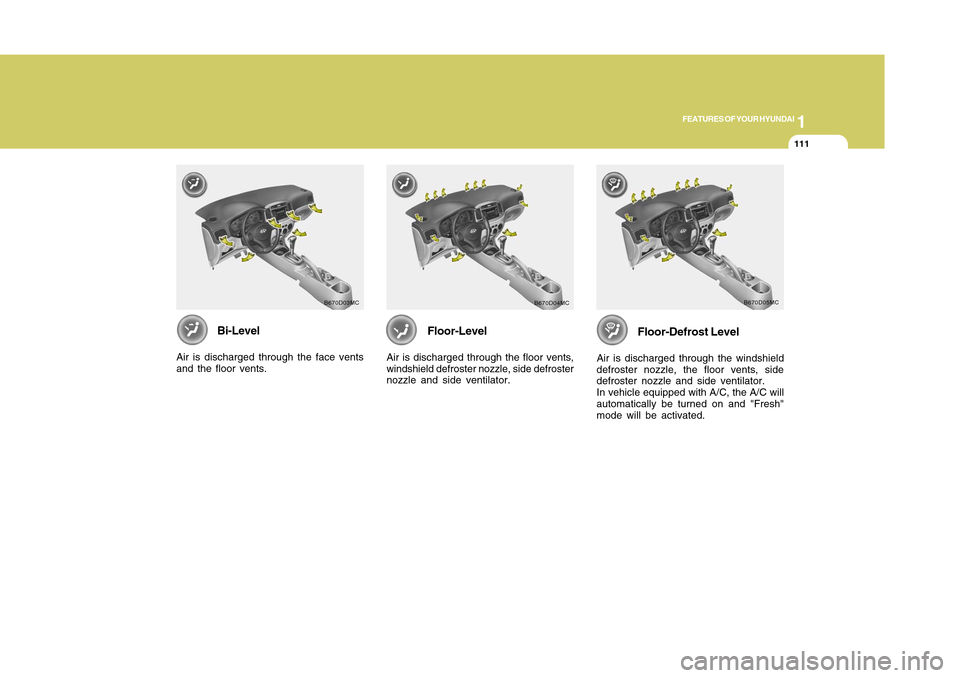

Bi-Level
Air is discharged through the face vents
and the floor vents.
Floor-Level
Air is discharged through the floor vents,
windshield defroster nozzle, side defroster
nozzle and side ventilator.
Floor-Defrost Level
Air is discharged through the windshield
defroster nozzle, the floor vents, side
defroster nozzle and side ventilator.
In vehicle equipped with A/C, the A/C will
automatically be turned on and "Fresh"
mode will be activated.
B670D03MC
B670D04MCB670D05MC

1FEATURES OF YOUR HYUNDAI
112

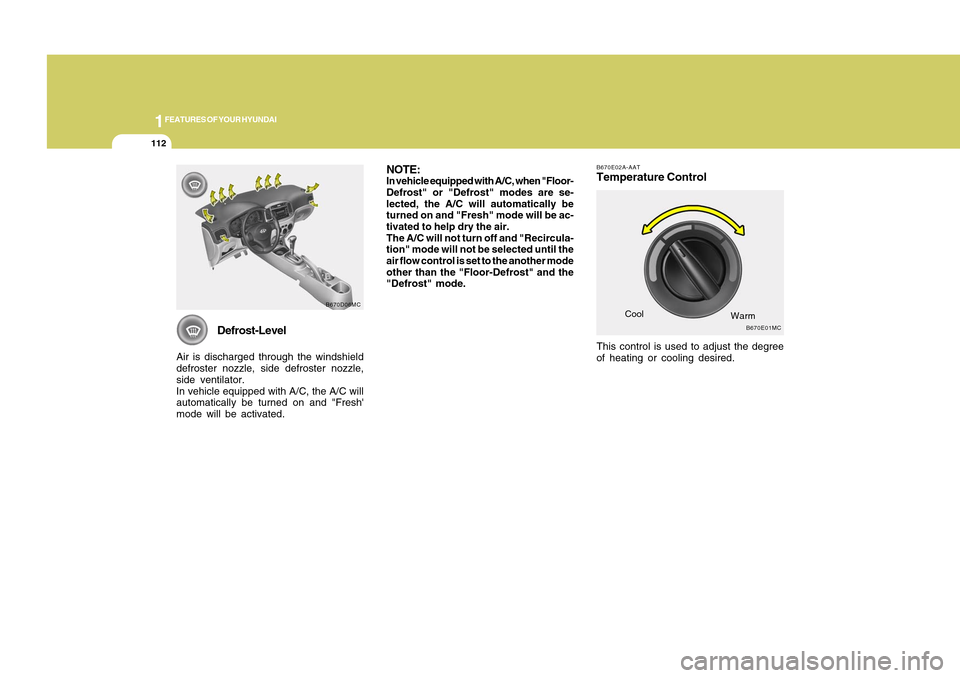

Defrost-Level
Air is discharged through the windshield
defroster nozzle, side defroster nozzle,
side ventilator.
In vehicle equipped with A/C, the A/C will
automatically be turned on and "Fresh'
mode will be activated.
B670D06MC
NOTE:In vehicle equipped with A/C, when "Floor-
Defrost" or "Defrost" modes are se-
lected, the A/C will automatically be
turned on and "Fresh" mode will be ac-
tivated to help dry the air.
The A/C will not turn off and "Recircula-
tion" mode will not be selected until the
air flow control is set to the another mode
other than the "Floor-Defrost" and the
"Defrost" mode.
B670E02A-AATTemperature ControlThis control is used to adjust the degree
of heating or cooling desired.
Cool
Warm
B670E01MC

1
FEATURES OF YOUR HYUNDAI
1131
FEATURES OF YOUR HYUNDAI
113

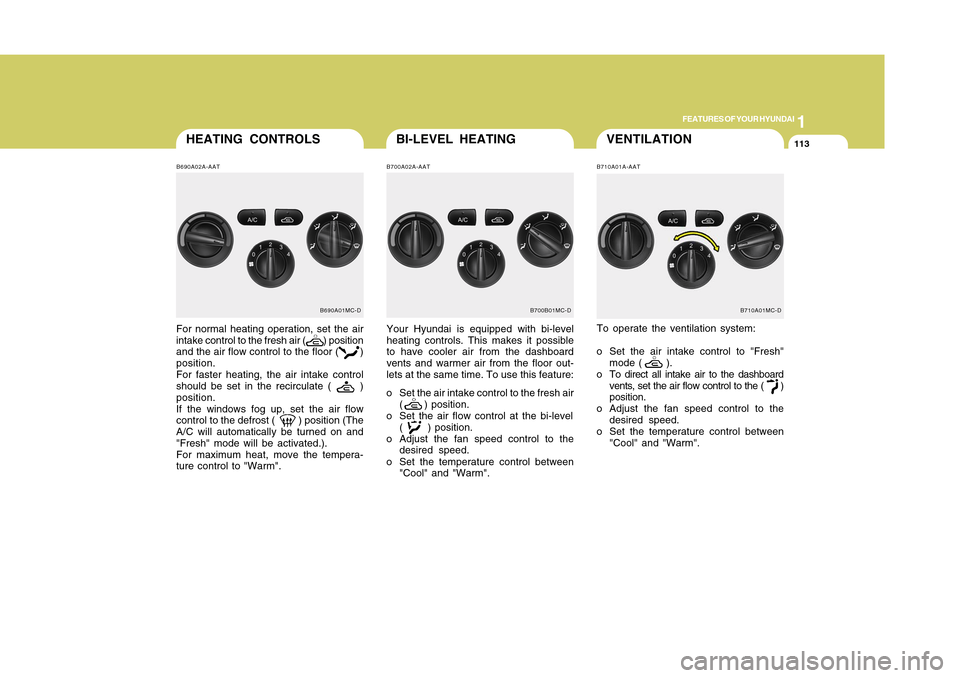

BI-LEVEL HEATINGB700A02A-AATYour Hyundai is equipped with bi-level
heating controls. This makes it possible
to have cooler air from the dashboard
vents and warmer air from the floor out-
lets at the same time. To use this feature:
o Set the air intake control to the fresh air
( ) position.
o Set the air flow control at the bi-level
( ) position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between
"Cool" and "Warm".
B700B01MC-D
VENTILATIONB710A01A-AATTo operate the ventilation system:
o Set the air intake control to "Fresh"
mode ( ).
o To direct all intake air to the dashboard
vents, set the air flow control to the (
)
position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between
"Cool" and "Warm".
B710A01MC-D
HEATING CONTROLSB690A02A-AATFor normal heating operation, set the air
intake control to the fresh air ( ) position
and the air flow control to the floor ( )
position.
For faster heating, the air intake control
should be set in the recirculate (
)
position.
If the windows fog up, set the air flow
control to the defrost ( ) position (The
A/C will automatically be turned on and
"Fresh" mode will be activated.).
For maximum heat, move the tempera-
ture control to "Warm".
B690A01MC-D

1FEATURES OF YOUR HYUNDAI
114

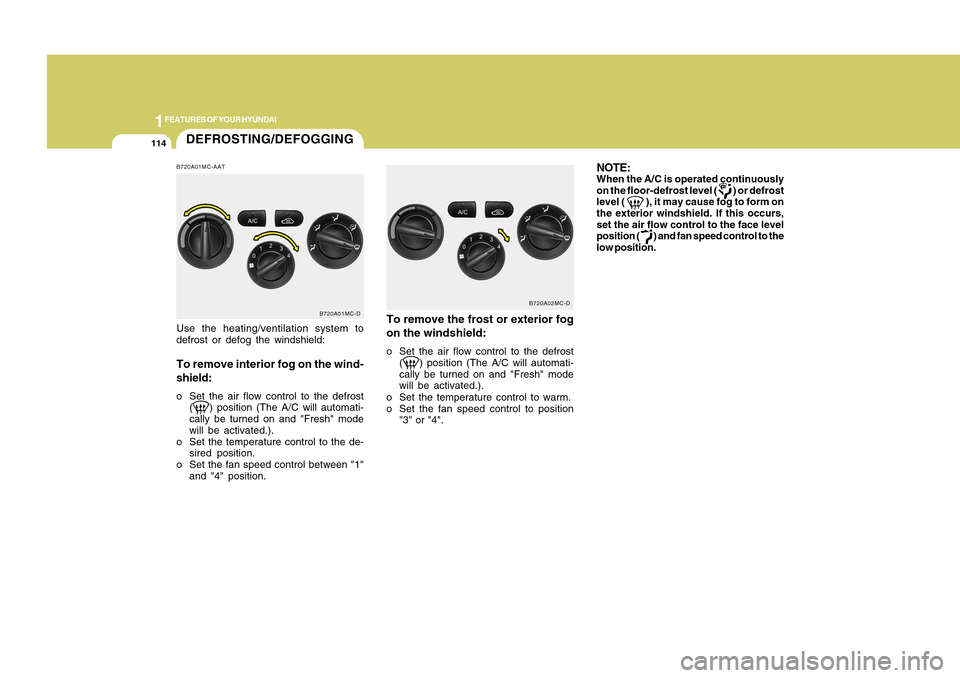

DEFROSTING/DEFOGGINGB720A01MC-AATUse the heating/ventilation system to
defrost or defog the windshield:To remove interior fog on the wind-
shield:o Set the air flow control to the defrost
(
) position (The A/C will automati-
cally be turned on and "Fresh" mode
will be activated.).
o Set the temperature control to the de-
sired position.
o Set the fan speed control between "1"
and "4" position.
B720A01MC-D
NOTE:When the A/C is operated continuously
on the floor-defrost level (
) or defrost
level (
), it may cause fog to form on
the exterior windshield. If this occurs,
set the air flow control to the face level
position ( ) and fan speed control to the
low position.
To remove the frost or exterior fog
on the windshield:o Set the air flow control to the defrost
(
) position (The A/C will automati-
cally be turned on and "Fresh" mode
will be activated.).
o Set the temperature control to warm.
o Set the fan speed control to position
"3" or "4".
B720A02MC-D

1
FEATURES OF YOUR HYUNDAI
1151
FEATURES OF YOUR HYUNDAI
115

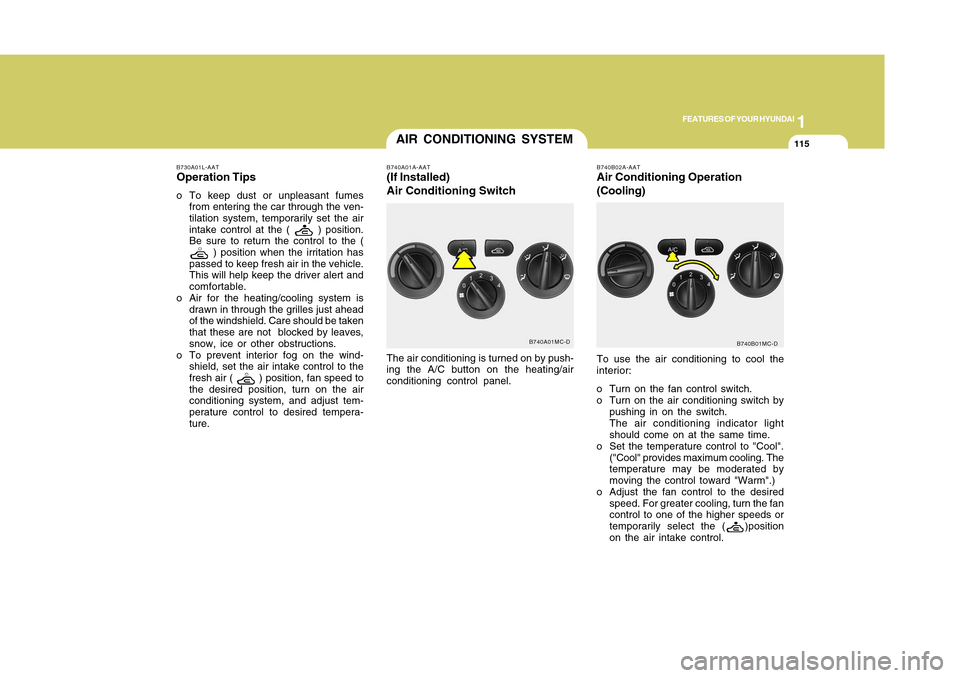

AIR CONDITIONING SYSTEM
B740A01MC-D B740A01A-AAT
(If Installed)
Air Conditioning SwitchThe air conditioning is turned on by push-
ing the A/C button on the heating/air
conditioning control panel.
B740B02A-AATAir Conditioning Operation
(Cooling)To use the air conditioning to cool the
interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch.
The air conditioning indicator light
should come on at the same time.
o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The
temperature may be moderated by
moving the control toward "Warm".)
o Adjust the fan control to the desired
speed. For greater cooling, turn the fan
control to one of the higher speeds or
temporarily select the (
)position
on the air intake control.B740B01MC-D B730A01L-AAT
Operation Tipso To keep dust or unpleasant fumes
from entering the car through the ven-
tilation system, temporarily set the air
intake control at the (
) position.
Be sure to return the control to the (
) position when the irritation has
passed to keep fresh air in the vehicle.
This will help keep the driver alert and
comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just ahead
of the windshield. Care should be taken
that these are not blocked by leaves,
snow, ice or other obstructions.
o To prevent interior fog on the wind-
shield, set the air intake control to the
fresh air (
) position, fan speed to
the desired position, turn on the air
conditioning system, and adjust tem-
perature control to desired tempera-
ture.

1FEATURES OF YOUR HYUNDAI
116

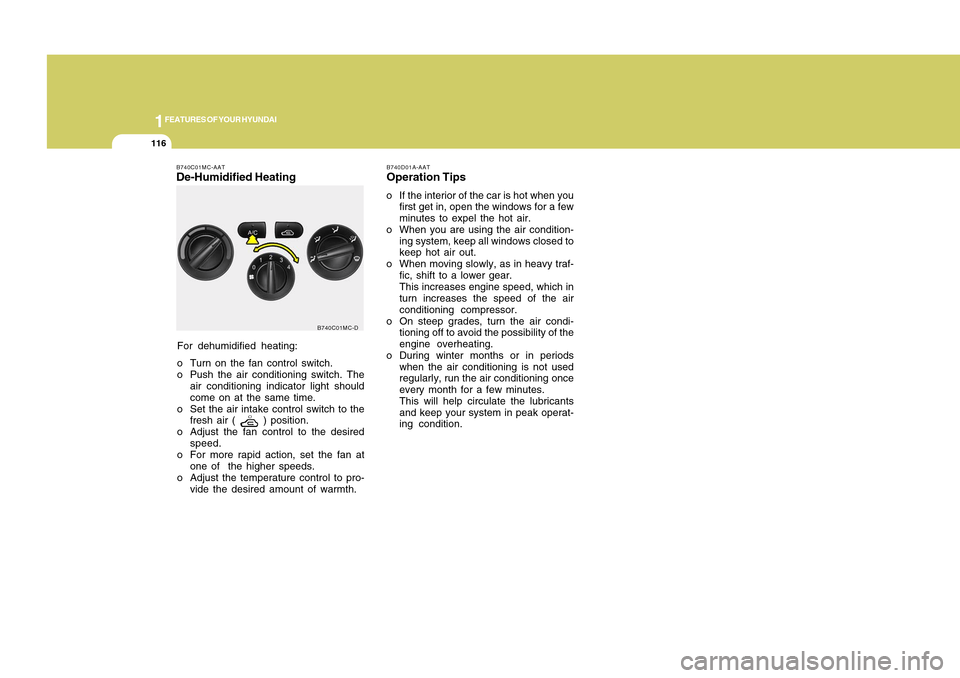

B740D01A-AATOperation Tipso If the interior of the car is hot when you
first get in, open the windows for a few
minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closed to
keep hot air out.
o When moving slowly, as in heavy traf-
fic, shift to a lower gear.
This increases engine speed, which in
turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air condi-
tioning off to avoid the possibility of the
engine overheating.
o During winter months or in periods
when the air conditioning is not used
regularly, run the air conditioning once
every month for a few minutes.
This will help circulate the lubricants
and keep your system in peak operat-
ing condition.
For dehumidified heating:
o Turn on the fan control switch.
o Push the air conditioning switch. The
air conditioning indicator light should
come on at the same time.
o Set the air intake control switch to the
fresh air (
) position.
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to pro-
vide the desired amount of warmth.
B740C01MC-AATDe-Humidified Heating
B740C01MC-D

1
FEATURES OF YOUR HYUNDAI
1171
FEATURES OF YOUR HYUNDAI
117

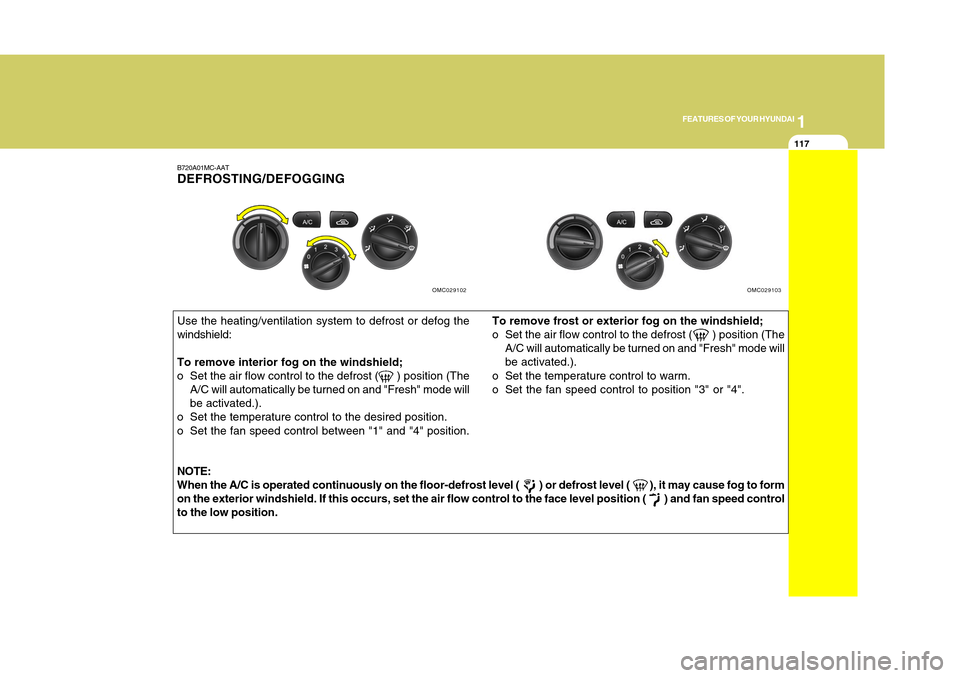

B720A01MC-AATDEFROSTING/DEFOGGINGUse the heating/ventilation system to defrost or defog the
windshield:
To remove interior fog on the windshield;
o Set the air flow control to the defrost ( ) position (The
A/C will automatically be turned on and "Fresh" mode will
be activated.).
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield;
o Set the air flow control to the defrost ( ) position (The
A/C will automatically be turned on and "Fresh" mode will
be activated.).
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
NOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause fog to form
on the exterior windshield. If this occurs, set the air flow control to the face level position ( ) and fan speed control
to the low position.
OMC029102
OMC029103

1FEATURES OF YOUR HYUNDAI
118
!

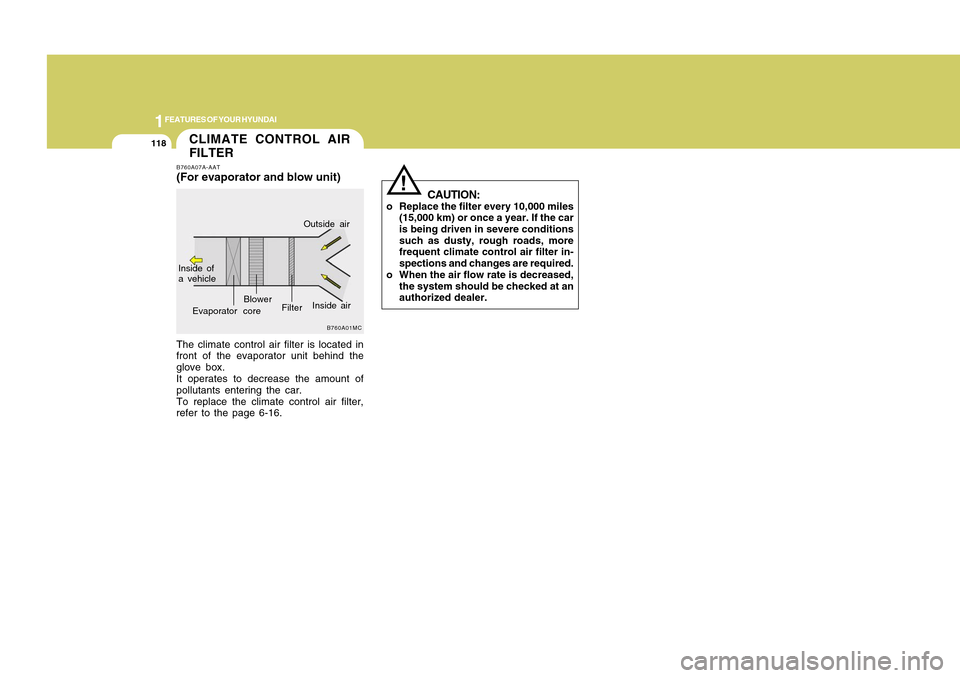

CAUTION:
o Replace the filter every 10,000 miles
(15,000 km) or once a year. If the car
is being driven in severe conditions
such as dusty, rough roads, more
frequent climate control air filter in-
spections and changes are required.
o When the air flow rate is decreased,
the system should be checked at an
authorized dealer.
CLIMATE CONTROL AIR
FILTER
B760A01MC
Inside of
a vehicle
Evaporator coreFilter Blower
Outside air
Inside air
The climate control air filter is located in
front of the evaporator unit behind the
glove box.
It operates to decrease the amount of
pollutants entering the car.
To replace the climate control air filter,
refer to the page 6-16.B760A07A-AAT(For evaporator and blow unit)

1
FEATURES OF YOUR HYUNDAI
1191
FEATURES OF YOUR HYUNDAI
119

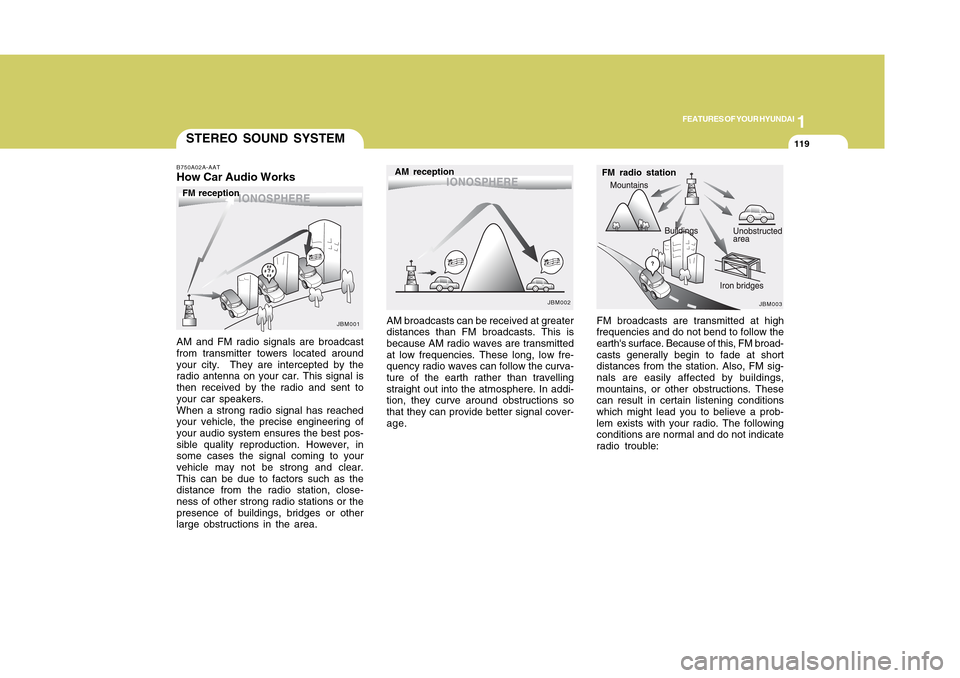

STEREO SOUND SYSTEM
FM broadcasts are transmitted at high
frequencies and do not bend to follow the
earth's surface. Because of this, FM broad-
casts generally begin to fade at short
distances from the station. Also, FM sig-
nals are easily affected by buildings,
mountains, or other obstructions. These
can result in certain listening conditions
which might lead you to believe a prob-
lem exists with your radio. The following
conditions are normal and do not indicate
radio trouble: AM broadcasts can be received at greater
distances than FM broadcasts. This is
because AM radio waves are transmitted
at low frequencies. These long, low fre-
quency radio waves can follow the curva-
ture of the earth rather than travelling
straight out into the atmosphere. In addi-
tion, they curve around obstructions so
that they can provide better signal cover-
age.
B750A02A-AATHow Car Audio WorksAM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your car. This signal is
then received by the radio and sent to
your car speakers.
When a strong radio signal has reached
your vehicle, the precise engineering of
your audio system ensures the best pos-
sible quality reproduction. However, in
some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors such as the
distance from the radio station, close-
ness of other strong radio stations or the
presence of buildings, bridges or other
large obstructions in the area.
FM radio station
JBM003
AM reception
JBM002
FM reception
JBM001
