1FEATURES OF YOUR HYUNDAI70

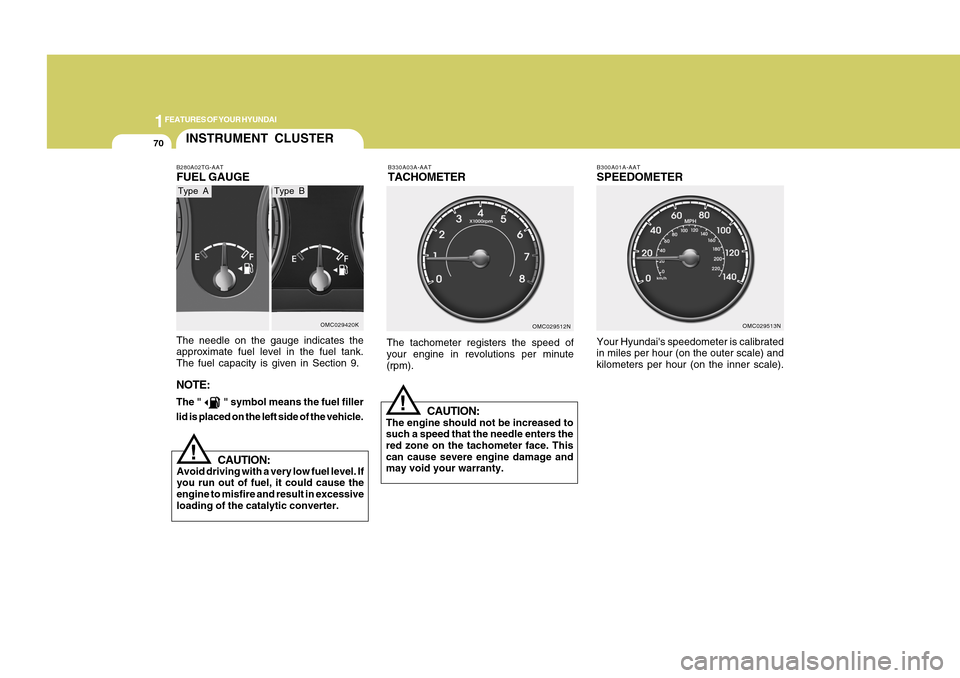

B330A03A-AATTACHOMETERThe tachometer registers the speed of
your engine in revolutions per minute
(rpm).
CAUTION:
The engine should not be increased to
such a speed that the needle enters the
red zone on the tachometer face. This
can cause severe engine damage and
may void your warranty.
!
B300A01A-AATSPEEDOMETERYour Hyundai's speedometer is calibrated
in miles per hour (on the outer scale) and
kilometers per hour (on the inner scale).
OMC029513N
INSTRUMENT CLUSTERB280A02TG-AATFUEL GAUGEThe needle on the gauge indicates the
approximate fuel level in the fuel tank.
The fuel capacity is given in Section 9.NOTE:The "
" symbol means the fuel filler
lid is placed on the left side of the vehicle.
OMC029420K
Type A
Type B
OMC029512N
CAUTION:
Avoid driving with a very low fuel level. If
you run out of fuel, it could cause the
engine to misfire and result in excessive
loading of the catalytic converter.
!

1
FEATURES OF YOUR HYUNDAI
711
FEATURES OF YOUR HYUNDAI
71

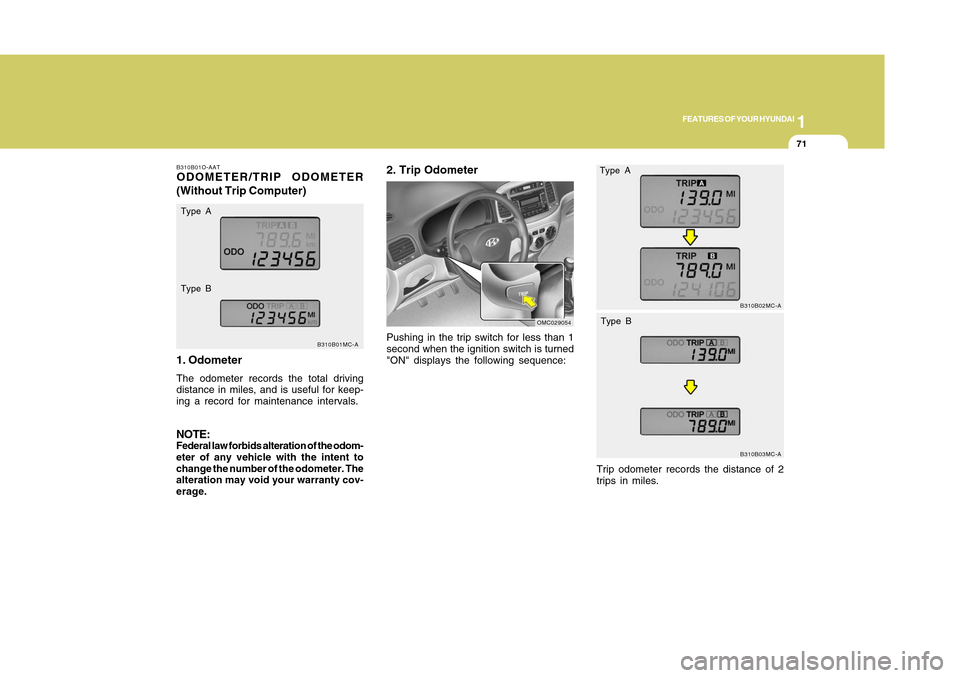

B310B01O-AATODOMETER/TRIP ODOMETER
(Without Trip Computer)
1. OdometerThe odometer records the total driving
distance in miles, and is useful for keep-
ing a record for maintenance intervals.NOTE:Federal law forbids alteration of the odom-
eter of any vehicle with the intent to
change the number of the odometer. The
alteration may void your warranty cov-
erage.
B310B01MC-A
Type A
Type B
Pushing in the trip switch for less than 1
second when the ignition switch is turned
"ON" displays the following sequence:2. Trip Odometer
OMC029054
B310B02MC-AB310B03MC-A
Type A
Type BTrip odometer records the distance of 2
trips in miles.

1FEATURES OF YOUR HYUNDAI72

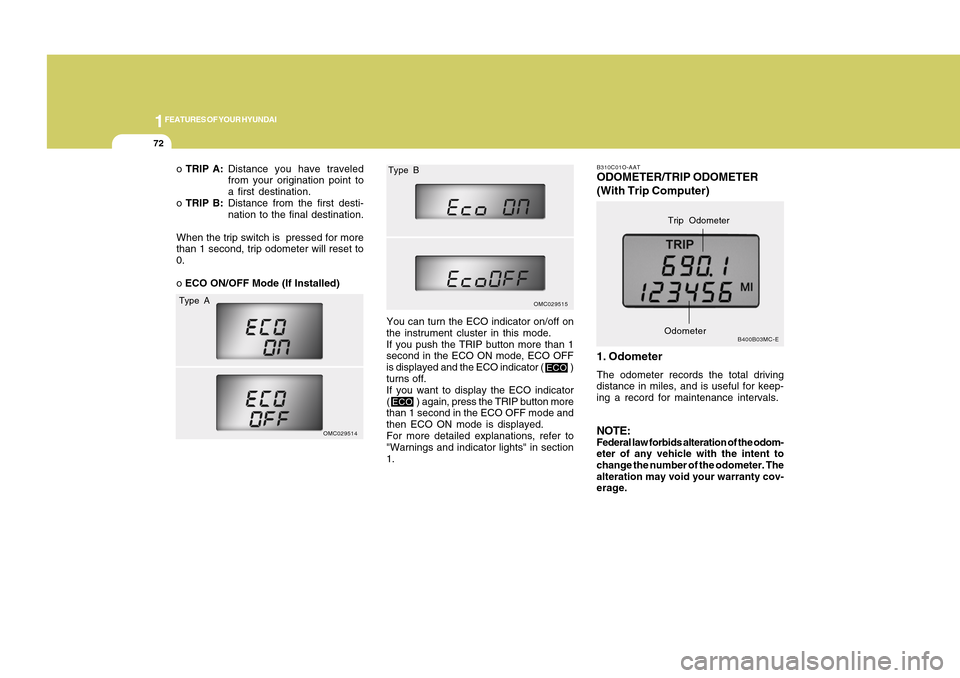

B310C01O-AATODOMETER/TRIP ODOMETER
(With Trip Computer)
1. OdometerThe odometer records the total driving
distance in miles, and is useful for keep-
ing a record for maintenance intervals.NOTE:Federal law forbids alteration of the odom-
eter of any vehicle with the intent to
change the number of the odometer. The
alteration may void your warranty cov-
erage.
B400B03MC-E
Trip Odometer
Odometer
o TRIP A:Distance you have traveled
from your origination point to
a first destination.
o TRIP B:Distance from the first desti-
nation to the final destination.
When the trip switch is pressed for more
than 1 second, trip odometer will reset to
0.
o ECO ON/OFF Mode (If Installed)
OMC029514
OMC029515
You can turn the ECO indicator on/off on
the instrument cluster in this mode.
If you push the TRIP button more than 1
second in the ECO ON mode, ECO OFF
is displayed and the ECO indicator ( )
turns off.
If you want to display the ECO indicator
( ) again, press the TRIP button more
than 1 second in the ECO OFF mode and
then ECO ON mode is displayed.
For more detailed explanations, refer to
"Warnings and indicator lights" in section
1.
Type AType B
ECO
ECO

1
FEATURES OF YOUR HYUNDAI
731
FEATURES OF YOUR HYUNDAI
73

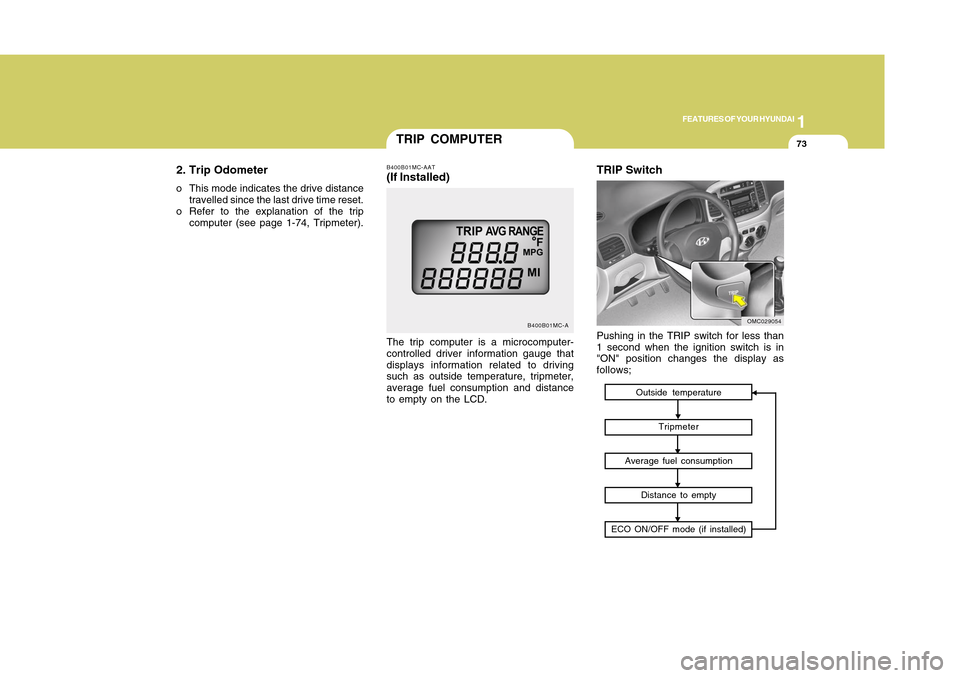

2. Trip Odometero This mode indicates the drive distance
travelled since the last drive time reset.
o Refer to the explanation of the trip
computer (see page 1-74, Tripmeter).
TRIP COMPUTER
B400B01MC-A
The trip computer is a microcomputer-
controlled driver information gauge that
displays information related to driving
such as outside temperature, tripmeter,
average fuel consumption and distance
to empty on the LCD.B400B01MC-AAT(If Installed)
Outside temperature
Tripmeter
Average fuel consumption
Distance to empty
ECO ON/OFF mode (if installed)
TRIP SwitchPushing in the TRIP switch for less than
1 second when the ignition switch is in
"ON" position changes the display as
follows;
OMC029054

1FEATURES OF YOUR HYUNDAI74

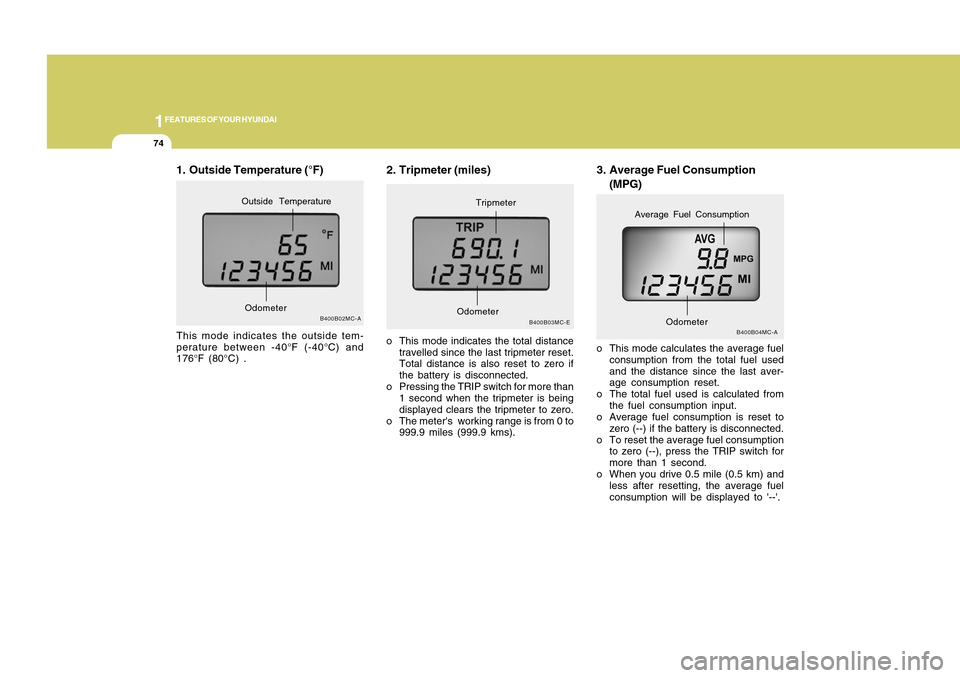

3. Average Fuel Consumption
(MPG)
B400B04MC-A
o This mode calculates the average fuel
consumption from the total fuel used
and the distance since the last aver-
age consumption reset.
o The total fuel used is calculated from
the fuel consumption input.
o Average fuel consumption is reset to
zero (--) if the battery is disconnected.
o To reset the average fuel consumption
to zero (--), press the TRIP switch for
more than 1 second.
o When you drive 0.5 mile (0.5 km) and
less after resetting, the average fuel
consumption will be displayed to '--'.
Odometer
Average Fuel Consumption
2. Tripmeter (miles)o This mode indicates the total distance
travelled since the last tripmeter reset.
Total distance is also reset to zero if
the battery is disconnected.
o Pressing the TRIP switch for more than
1 second when the tripmeter is being
displayed clears the tripmeter to zero.
o The meter's working range is from 0 to
999.9 miles (999.9 kms).
B400B03MC-E
OdometerTripmeter
1. Outside Temperature (°F)This mode indicates the outside tem-
perature between -40°F (-40°C) and
176°F (80°C) .
B400B02MC-A
OdometerOutside Temperature

1
FEATURES OF YOUR HYUNDAI
751
FEATURES OF YOUR HYUNDAI
75

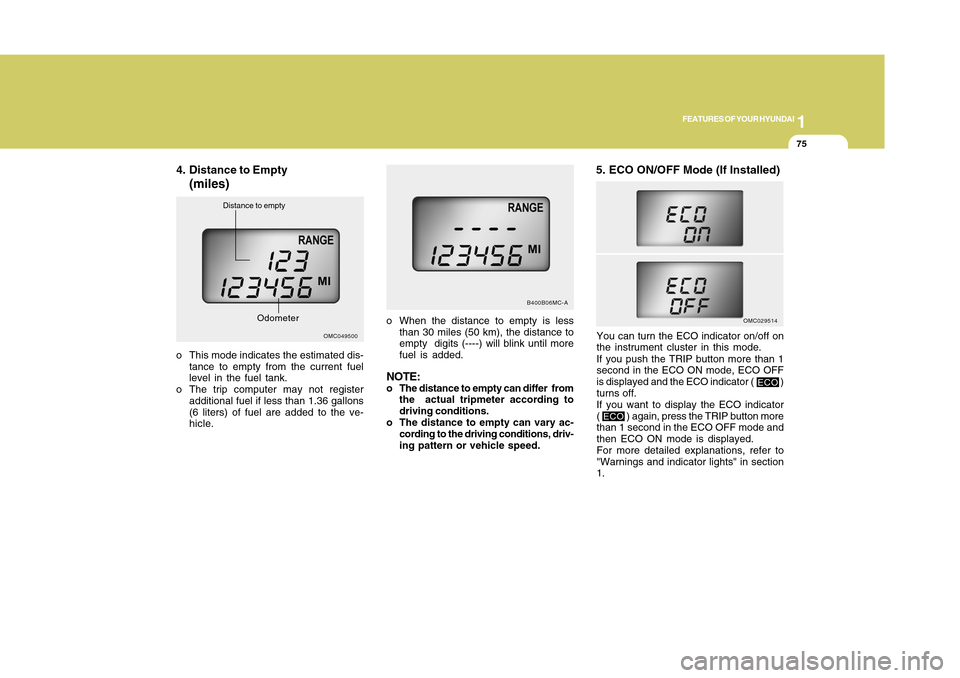

4. Distance to Empty
(miles)
o This mode indicates the estimated dis-
tance to empty from the current fuel
level in the fuel tank.
o The trip computer may not register
additional fuel if less than 1.36 gallons
(6 liters) of fuel are added to the ve-
hicle.
OMC049500
Distance to empty
Odometer
o When the distance to empty is less
than 30 miles (50 km), the distance to
empty digits (----) will blink until more
fuel is added.NOTE:o The distance to empty can differ from
the actual tripmeter according to
driving conditions.
o The distance to empty can vary ac-
cording to the driving conditions, driv-
ing pattern or vehicle speed.
B400B06MC-A
5. ECO ON/OFF Mode (If Installed)You can turn the ECO indicator on/off on
the instrument cluster in this mode.
If you push the TRIP button more than 1
second in the ECO ON mode, ECO OFF
is displayed and the ECO indicator ( )
turns off.
If you want to display the ECO indicator
( ) again, press the TRIP button more
than 1 second in the ECO OFF mode and
then ECO ON mode is displayed.
For more detailed explanations, refer to
"Warnings and indicator lights" in section
1.
OMC029514
ECO
ECO

1FEATURES OF YOUR HYUNDAI76

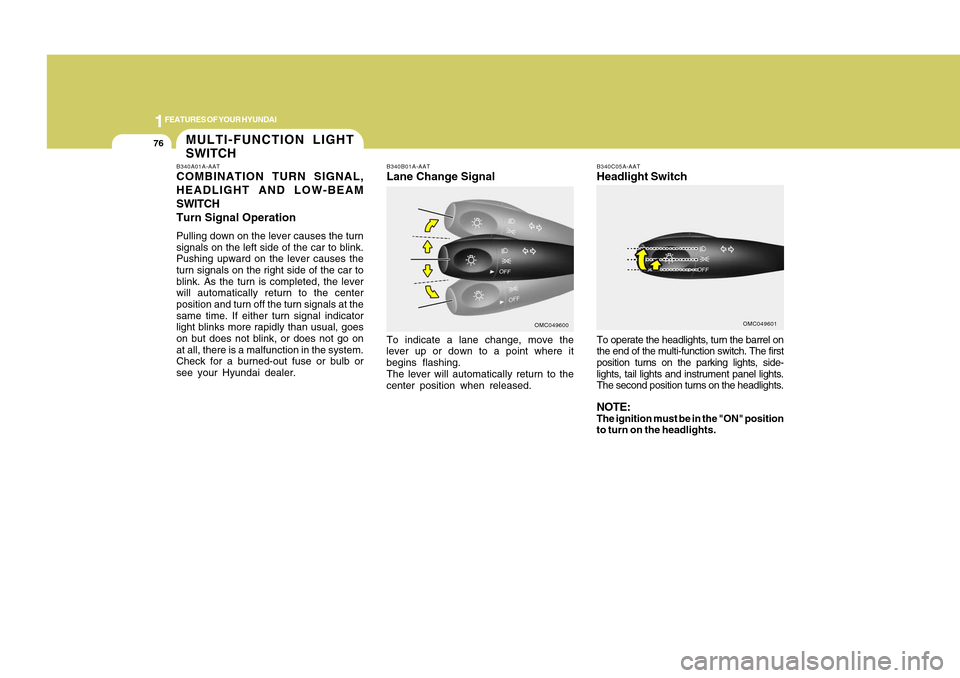

To operate the headlights, turn the barrel on
the end of the multi-function switch. The first
position turns on the parking lights, side-
lights, tail lights and instrument panel lights.
The second position turns on the headlights.NOTE:The ignition must be in the "ON" position
to turn on the headlights.B340C05A-AATHeadlight Switch
OMC049601
B340B01A-AATLane Change SignalTo indicate a lane change, move the
lever up or down to a point where it
begins flashing.
The lever will automatically return to the
center position when released.
OMC049600
MULTI-FUNCTION LIGHT
SWITCHB340A01A-AATCOMBINATION TURN SIGNAL,
HEADLIGHT AND LOW-BEAM
SWITCH
Turn Signal OperationPulling down on the lever causes the turn
signals on the left side of the car to blink.
Pushing upward on the lever causes the
turn signals on the right side of the car to
blink. As the turn is completed, the lever
will automatically return to the center
position and turn off the turn signals at the
same time. If either turn signal indicator
light blinks more rapidly than usual, goes
on but does not blink, or does not go on
at all, there is a malfunction in the system.
Check for a burned-out fuse or bulb or
see your Hyundai dealer.

1
FEATURES OF YOUR HYUNDAI
771
FEATURES OF YOUR HYUNDAI
77

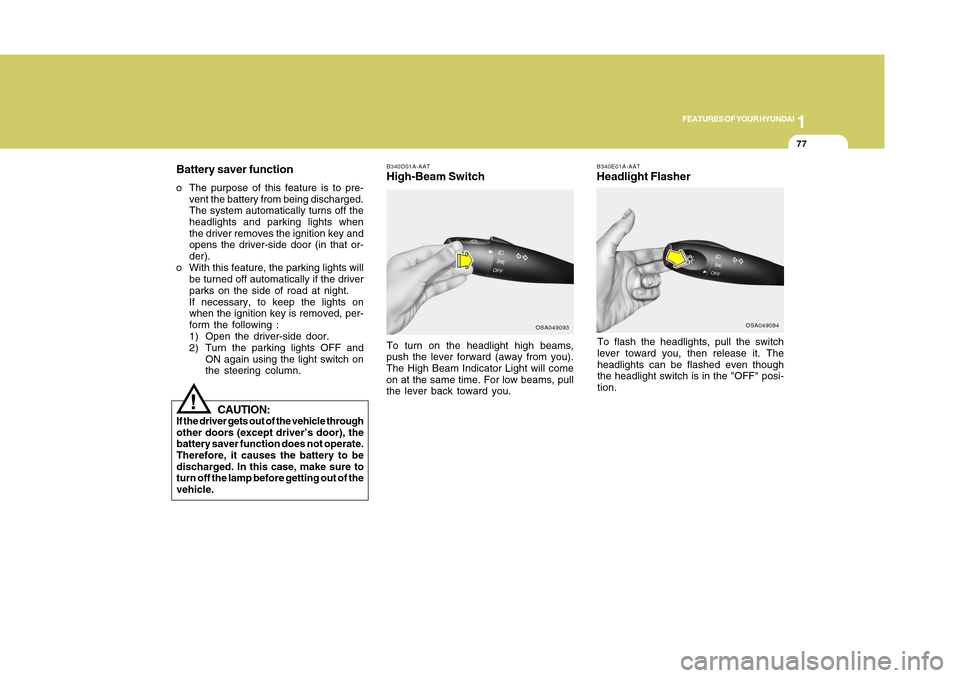

B340E01A-AATHeadlight FlasherTo flash the headlights, pull the switch
lever toward you, then release it. The
headlights can be flashed even though
the headlight switch is in the "OFF" posi-
tion.
B340D01A-AATHigh-Beam Switch
OSA049094
Battery saver functiono The purpose of this feature is to pre-
vent the battery from being discharged.
The system automatically turns off the
headlights and parking lights when
the driver removes the ignition key and
opens the driver-side door (in that or-
der).
o With this feature, the parking lights will
be turned off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lights on
when the ignition key is removed, per-
form the following :
1) Open the driver-side door.
2) Turn the parking lights OFF and
ON again using the light switch on
the steering column.To turn on the headlight high beams,
push the lever forward (away from you).
The High Beam Indicator Light will come
on at the same time. For low beams, pull
the lever back toward you.
OSA049093
CAUTION:
If the driver gets out of the vehicle through
other doors (except driver’s door), the
battery saver function does not operate.
Therefore, it causes the battery to be
discharged. In this case, make sure to
turn off the lamp before getting out of the
vehicle.
!

1FEATURES OF YOUR HYUNDAI78

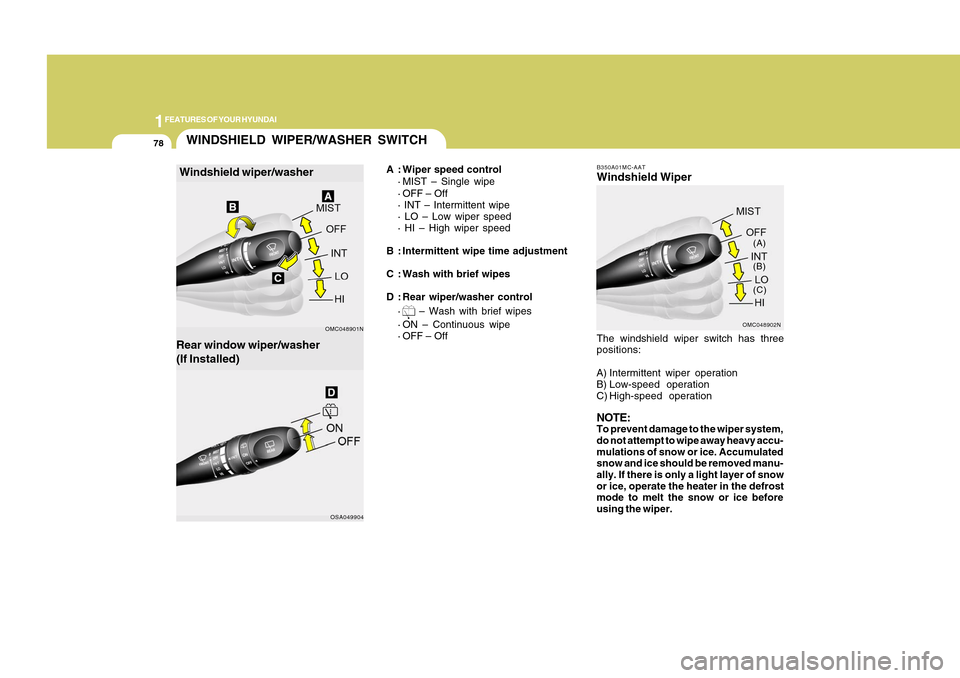

B350A01MC-AATWindshield Wiper
OMC048902N(A)
(B)
(C)
The windshield wiper switch has three
positions:
A) Intermittent wiper operation
B) Low-speed operation
C) High-speed operationNOTE:To prevent damage to the wiper system,
do not attempt to wipe away heavy accu-
mulations of snow or ice. Accumulated
snow and ice should be removed manu-
ally. If there is only a light layer of snow
or ice, operate the heater in the defrost
mode to melt the snow or ice before
using the wiper.
WINDSHIELD WIPER/WASHER SWITCHRear window wiper/washer
(If Installed)
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control
·
– Wash with brief wipes
· ON – Continuous wipe
· OFF – Off
Windshield wiper/washer
OSA049904 OMC048901N

1
FEATURES OF YOUR HYUNDAI
791
FEATURES OF YOUR HYUNDAI
79

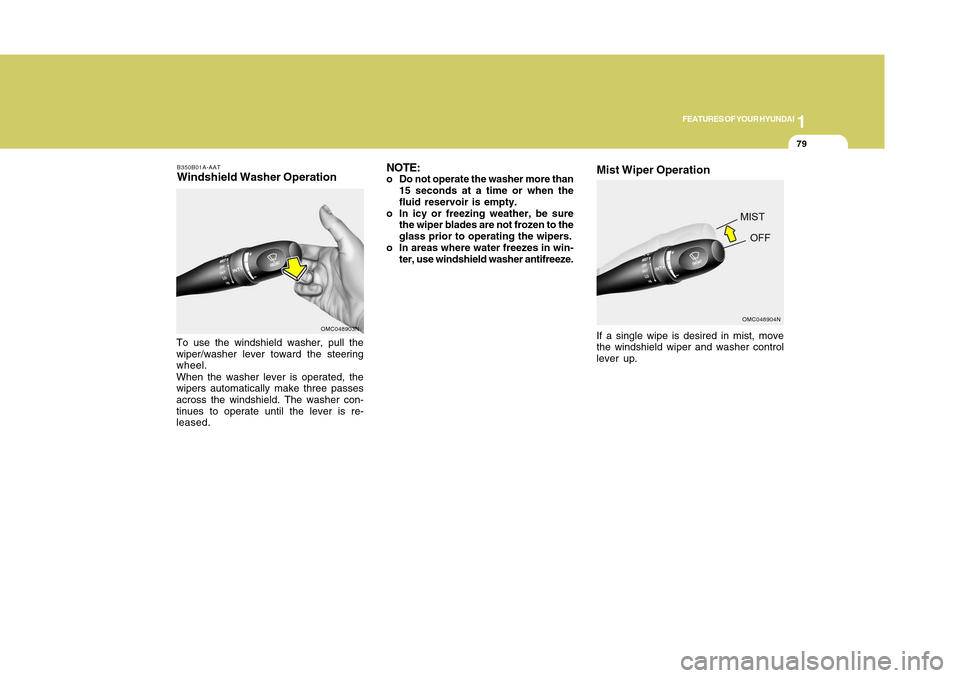

B350B01A-AATWindshield Washer OperationTo use the windshield washer, pull the
wiper/washer lever toward the steering
wheel.
When the washer lever is operated, the
wipers automatically make three passes
across the windshield. The washer con-
tinues to operate until the lever is re-
leased.
OMC048903N
Mist Wiper Operation
OMC048904N
If a single wipe is desired in mist, move
the windshield wiper and washer control
lever up.
NOTE:o Do not operate the washer more than
15 seconds at a time or when the
fluid reservoir is empty.
o In icy or freezing weather, be sure
the wiper blades are not frozen to the
glass prior to operating the wipers.
o In areas where water freezes in win-
ter, use windshield washer antifreeze.
