7EMISSION CONTROL SYSTEMS
4

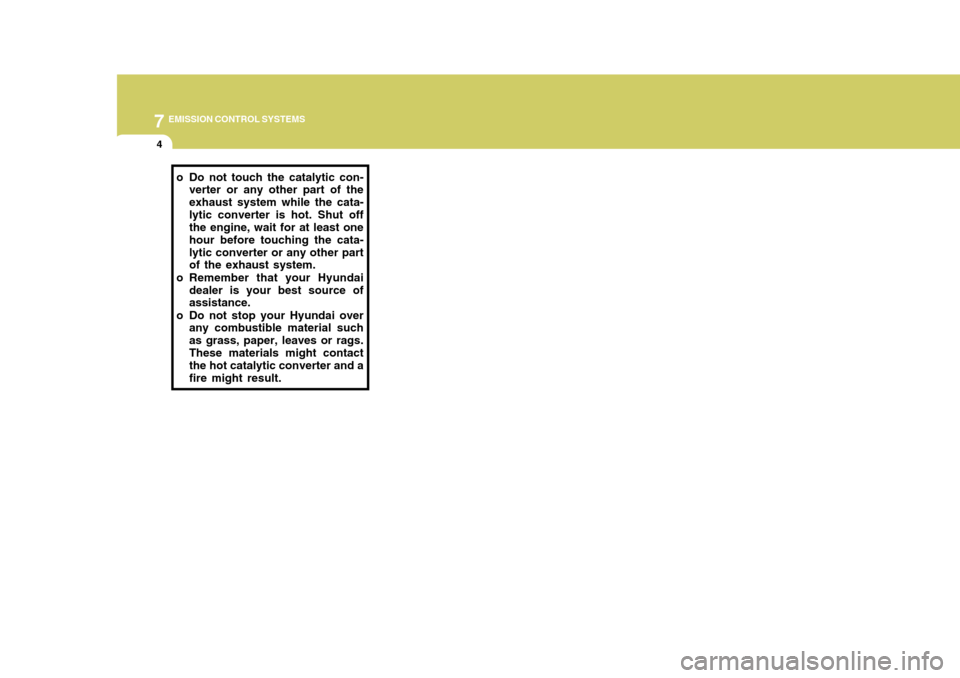

o Do not touch the catalytic con-
verter or any other part of the exhaust system while the cata-lytic converter is hot. Shut off the engine, wait for at least one hour before touching the cata-lytic converter or any other part of the exhaust system.
o Remember that your Hyundai dealer is your best source ofassistance.
o Do not stop your Hyundai over any combustible material such as grass, paper, leaves or rags.These materials might contact the hot catalytic converter and a fire might result.

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Recommended Inflation Pressures .............................. 8-2
Snow Tires ................................................................... 8-3
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................. 8-4
Tire Balancing ............................................................... 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................ 8-5
Spare Tire and Tools ................................................... 8-6
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2TIREVEHICLE IDENTIFICATION NUMBER (VIN)
I010B01A-AAT

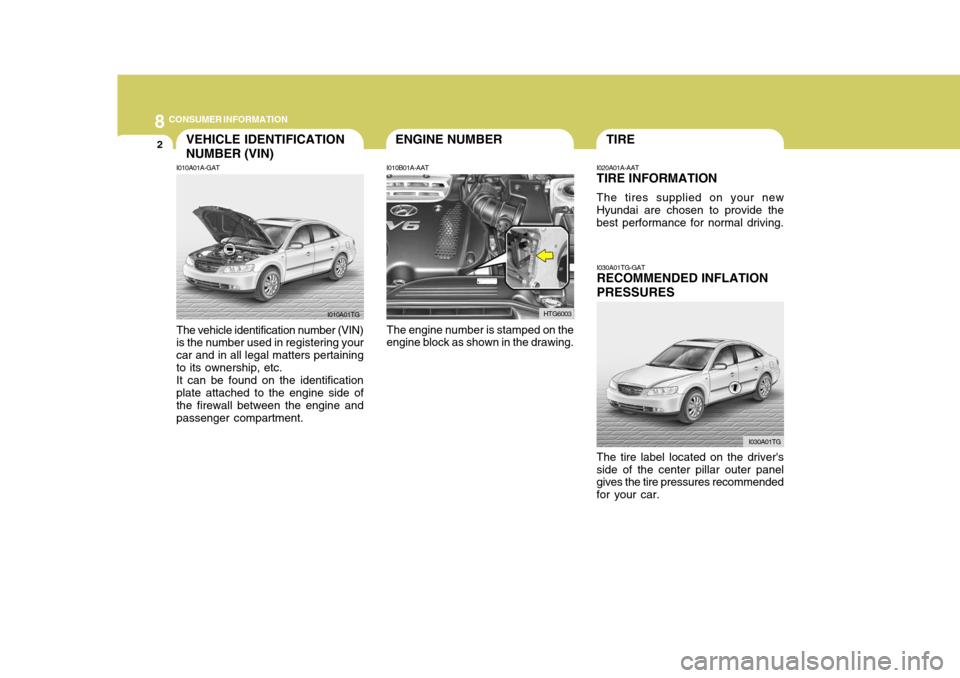

I010A01A-GAT The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertainingto its ownership, etc.It can be found on the identificationplate attached to the engine side of the firewall between the engine and passenger compartment. The engine number is stamped on the
engine block as shown in the drawing. I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best performance for normal driving.
I030A01TG-GAT RECOMMENDED INFLATION PRESSURES

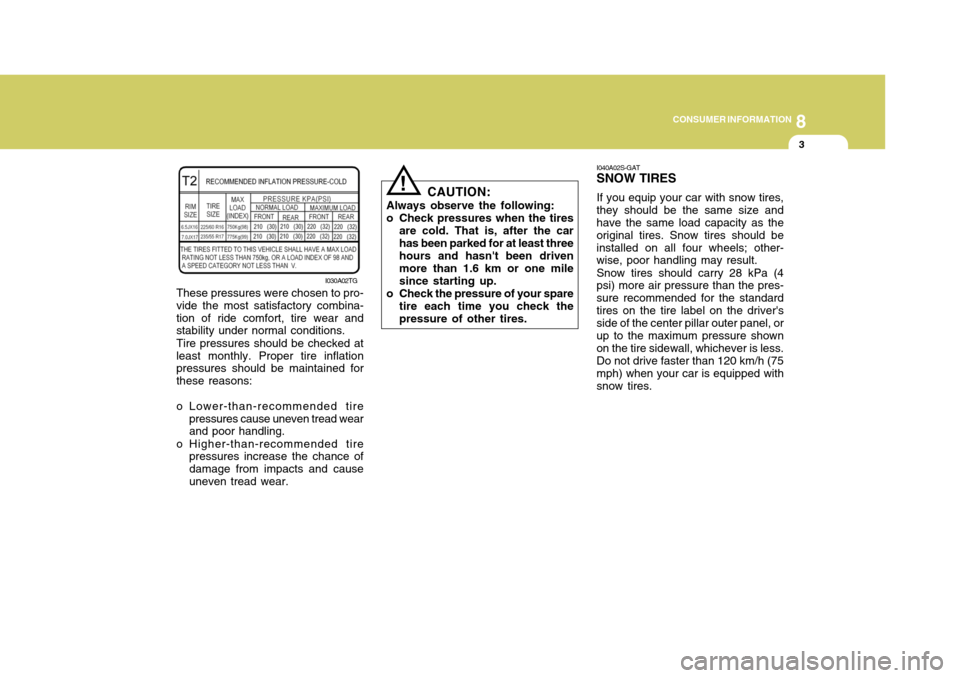

The tire label located on the driver's side of the center pillar outer panel gives the tire pressures recommended for your car.
I010A01TG
HTG6003
I030A01TG
ENGINE NUMBER

8
CONSUMER INFORMATION
3
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the carhas been parked for at least three hours and hasn't been driven more than 1.6 km or one milesince starting up.
o Check the pressure of your spare tire each time you check thepressure of other tires.
These pressures were chosen to pro-vide the most satisfactory combina-tion of ride comfort, tire wear and stability under normal conditions. Tire pressures should be checked at least monthly. Proper tire inflation pressures should be maintained for these reasons:
o Lower-than-recommended tire
pressures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance of damage from impacts and causeuneven tread wear.
! I040A02S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on the driver's side of the center pillar outer panel, or up to the maximum pressure shownon the tire sidewall, whichever is less.Do not drive faster than 120 km/h (75mph) when your car is equipped withsnow tires.
I030A02TG

8CONSUMER INFORMATION
4
!

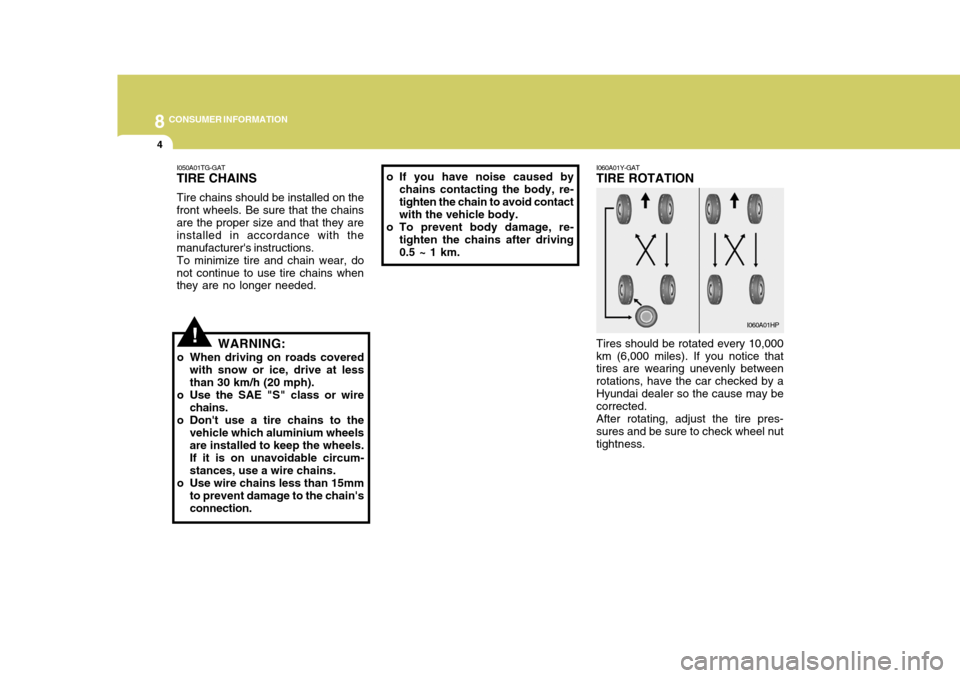

I060A01Y-GAT TIRE ROTATION Tires should be rotated every 10,000 km (6,000 miles). If you notice that tires are wearing unevenly between rotations, have the car checked by aHyundai dealer so the cause may be corrected. After rotating, adjust the tire pres- sures and be sure to check wheel nut tightness.
I050A01TG-GAT
TIRE CHAINS
Tire chains should be installed on the
front wheels. Be sure that the chains are the proper size and that they are installed in accordance with themanufacturer's instructions. To minimize tire and chain wear, do
not continue to use tire chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire
chains.
o Don't use a tire chains to the
vehicle which aluminium wheelsare installed to keep the wheels. If it is on unavoidable circum- stances, use a wire chains.
o Use wire chains less than 15mm to prevent damage to the chain'sconnection. o If you have noise caused by
chains contacting the body, re-tighten the chain to avoid contact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving 0.5 ~ 1 km.
I060A01HP

8
CONSUMER INFORMATION
5

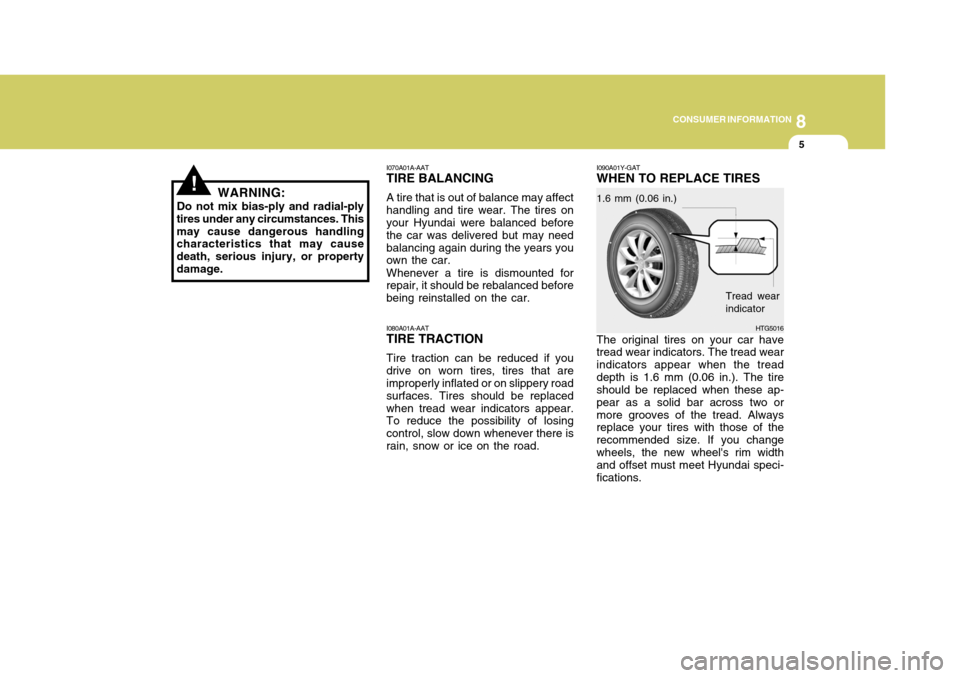

!WARNING:
Do not mix bias-ply and radial-ply
tires under any circumstances. This may cause dangerous handling characteristics that may cause death, serious injury, or propertydamage. I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tire is dismounted for repair, it should be rebalanced before being reinstalled on the car. I080A01A-AAT TIRE TRACTION Tire traction can be reduced if you drive on worn tires, tires that are improperly inflated or on slippery road surfaces. Tires should be replacedwhen tread wear indicators appear. To reduce the possibility of losing control, slow down whenever there israin, snow or ice on the road.
I090A01Y-GAT WHEN TO REPLACE TIRES The original tires on your car have tread wear indicators. The tread wear indicators appear when the treaddepth is 1.6 mm (0.06 in.). The tire should be replaced when these ap- pear as a solid bar across two ormore grooves of the tread. Always replace your tires with those of the recommended size. If you changewheels, the new wheel's rim width and offset must meet Hyundai speci- fications.HTG5016
Tread wear indicator
1.6 mm (0.06 in.)

8CONSUMER INFORMATION
6
!
SPARE TIRE AND TOOLS

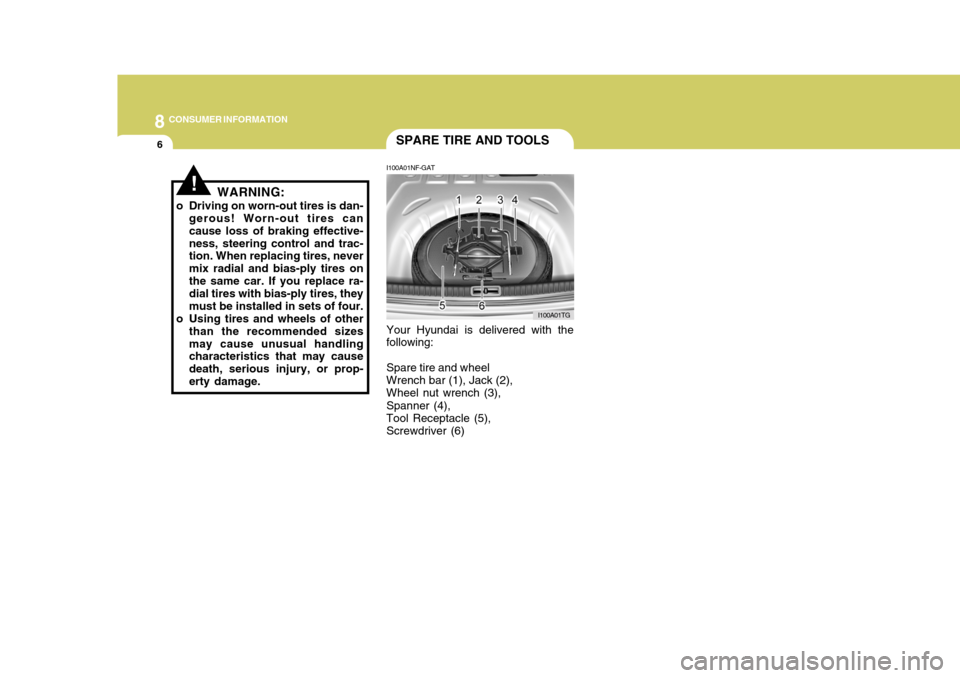

I100A01NF-GAT Your Hyundai is delivered with the following: Spare tire and wheel Wrench bar (1), Jack (2), Wheel nut wrench (3), Spanner (4), Tool Receptacle (5), Screwdriver (6)
WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effective-ness, steering control and trac- tion. When replacing tires, never mix radial and bias-ply tires onthe same car. If you replace ra- dial tires with bias-ply tires, they must be installed in sets of four.
o Using tires and wheels of other than the recommended sizesmay cause unusual handling characteristics that may cause death, serious injury, or prop-erty damage. I100A01TG

9
VEHICLE SPECIFICATIONS
MEASUREMENT ......................................................... 9-2
ENGINE ....................................................................... 9-3
LUBRICATION CHART ............................................... 9-4
9

9 VEHICLE SPECIFICATIONS
2
Standard OptionSpare
225/60 R16
235/55 R17
Full Size
3.3L
130A (13.5V)
J010A01TG-GAT MEASUREMENT4895 (192.7)
1865 (73.4) 1490 (58.6)
2780 (109.4)
1580 (62.2)1565 (61.6)
Overall lengthOverall width Overall heightWheel base Wheel tread
Front
Rear
Type Wheel free play Rack strokeOil pump type Rack and pinion0 ~ 30 mm (0 ~ 1.18 in.) 146 mm (5.74 in.) Vane type
J060A01TG-GAT FUEL SYSTEM
J020A01TG-GAT POWER STEERING J030A01TG-GAT TIRE
Item BatteryAlternator
J040A01TG-GAT ELECTRICAL
mm (in.)
Fuel tank capacity75 liter
CMF 68AH
J050A01TG-GAT BRAKE
Dual hydraulic with brake booster Ventilated discSolid disc Cable operated on rear wheel
Type Front brake typeRear brake type Parking brake

9
VEHICLE SPECIFICATIONS
3
3.3L
6-Cyl., V-type DOHC 92.0 x 83.83,342
1 - 2 - 3 - 4 - 5 - 6 0.17 ~ 0.23 mm 0.27 ~ 0.33 mm
IFR5G-11*BKR5ES
1.0 - 1.1 mm
0.7 ~ 0.8 mm 720 ± 100
BTDC 10° ± 5°ENGINE
J070A01TG -GAT
ITEMS
Engine Type Bore x Stroke (mm) Displacement (cc) Firing orderValve clearance (Warm engine) Intake Exhaust
Spark plug Unleaded Leaded
Spark plug gap Unleaded
Leaded
Idle speed (RPM) Ignition timing (Base)
* : Iridium coated.
