Hyundai Azera 2006 Owner's Manual

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
14
Temperature A, B, C - The tempera-
ture grades are A (the highest), B, and
C, representing the tire's resistance to
the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of
the tire to degenerate and reduce tire
life, and excessive temperature can
lead to sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A
represent higher levels of performance
on the laboratory test wheel than the
minimum required by law.
Traction AA, A, B, C - The traction
grades, from highest to lowest, are AA,
A, B, and C. Those grades represent
the tire's ability to stop on wet pave-
ment as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction per-
formance.
!
WARNING:
The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not in-
clude acceleration, cornering, hy-
droplaning, or peak traction charac-
teristics.
I130B04A-AATTire Quality Grading
Department of Transportation quality
grades - All passenger vehicle tires
must conform to Federal Safety Stan-
dards in addition to these grades. These
quality grades are molded on the
sidewall.
Treadwear - The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under con-
trolled conditions on a specified gov-
ernment test course. For example, a
tire graded 150 would wear one and a
half (1 - 1/2) times as well on the
government course as a tire graded
100. The relative performance of tires
depends upon the actual conditions of
their use, however, and may depart
significantly from the norm due to varia-
tions in driving habits, service prac-
tices and differences in road character-
istics and climate.

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
15
!
WARNING:
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Exces-
sive speed, underinflation, or exces-
sive loading, either separately or in
combination, can cause heat buildup
and possible tire failure.
Uniform Tire Quality Grading - Qual-
ity grades can be found on the tire
sidewall between the tread shoulder
and the maximum section width.
For example :
Treadwear 200 Traction AA Tempera-
ture A
I130D04A-AATHyundai motor vehicles are designed and
manufactured to meet or exceed all appli-
cable safety standards.
For your safety, however, we strongly urge
you to read and follow all directions in this
Owner's Manual, particularly the informa-
tion under the headings "NOTE", "CAU-
TION" and "WARNING".
If, after reading this manual, you have any
questions regarding the operation of your
vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed below:
Eastern Region : Connecticut, Delaware,
Maine, Maryland, Massachusetts, New
Hampshire, New Jersey, New York,
Pennsylvanina, Rhode Island, Vermont,
Virginia, West Virginia.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151Southern Region: Florida, Georgia, North
Carolina, South Carolina.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
South Central Region: Alabama, Arkan-
sas, Colorado, Kansas, Louisiana, Missis-
sippi, Missouri, New Mexico, Oklahoma,
Tennessee, Texas, Wyoming.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151
Central Region: Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota, Nebraska,
North Dakota, South Dakota, Ohio, Wis-
consin.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
16
I140A01A-AATAny claim or dispute you may have
related to your vehicle's warranty or the
duties contemplated under the warranty,
including claims related to the refund or
partial refund of your vehicle's purchase
price (excluding personal injury or prod-
uct liability claims), shall be resolved
by binding arbitration. Binding arbitra-
tion shall be administered by and through
the National Arbitration Forum (NAF) or
the American Arbitration Association
(AAA), under the Code of Procedure of
the entity you select.
You will not be responsible for paying
filing and hearing fees above $275.00.
All other arbitration costs shall be borne
by Hyundai Motor America. You are not
responsible to pay any of the costs
Hyundai incurs.
This Binding Arbitration Agreement shallBINDING ARBITRATION
(U.S.A only)
REPORTING SAFETY
DEFECTSI130C02A-AATIf you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying HYUNDAI MOTOR AMERICA. If
NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles,
it may order a recall and remedy cam-
paign. However, NHTSA cannot become
involved in individual problems between
you, your dealer, or HYUNDAI MOTOR
AMERICA.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-327-
4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administra-
tor, NHTSA, 400 Seventh Street, SW.,
Washington, DC 20590. You can also
obtain other information about motor ve-
hicle safety from http://www.safercar.gov. Western Region: Alaska, Hawaii, Arizona,
California, ldaho, Montana, Nevada, Or-
egon, Texas, Utah, Washington.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151

8
CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS
17
not deprive you of any remedies avail-
able to you under applicable law. The
parties are waiving their right to seek
remedies in court, including the right to
a jury trial.
This Binding Arbitration Agreement shall
be governed by and interpreted under
the Federal Arbitration Act, 9 U.S.C.
sections 1-16. Judgment upon any award
may be entered in any court having
jurisdiction.
You may revoke this Arbitration Agree-
ment by (1) written notice or (2) elec-
tronic notice. Written notice must be
delivered (via certified mail) to Hyundai
Motor America, Attn: Consumer Af-
fairs, 10550 Talbert Avenue, P.O. Box
20849, Fountain Valley, CA 92728-0849.
Electronic notice must be submitted at
the following website address: http://
warranty-arbitration.hyundaiUSA.com.
Notice must be received within 90 days
after you purchase your vehicle.

9
Measurement ................................................................ 9-2
Engine...........................................................................9-3
Lubrication Chart ........................................................... 9-4
VEHICLE SPECIFICATIONS
9

9
VEHICLE SPECIFICATIONS2
J010A01TG-AATMEASUREMENTJ060A01TG-AATFUEL SYSTEMJ020A01TG-AATPOWER STEERING
J030A01TG-AATTIREBattery
AlternatorJ040A01TG-AATELECTRICAL
in.(mm)
Fuel tank capacity
19.8 U.S.gal (16.4 Imp.gal, 75 liter)CMF80AH
130A (13.5V)
J050A01TG-AATBRAKE
Dual hydraulic with brake booster
Ventilated disc
Solid disc
Cable operated on rear wheel Type
Front brake type
Rear brake type
Parking brake
Type
Wheel free play
Rack stroke
Oil pump typeRack and pinion
0 ~ 1.18 in. (0 ~ 30 mm)
5.74 in. (146 mm)
Vane type
192.7 (4895)
72.8 (1850)
58.6 (1490)
109.4 (2780)
62.2 (1580)
61.6 (1565) Overall length
Overall width
Overall height
Wheel base
Wheel tread
Front
Rear
Standard
Option
P225/60R16
P235/55R17
J035A01TG-AATSPARE TIREStandard
Option
Temporary (T125/80D16)
Full size

9
VEHICLE SPECIFICATIONS
3
3.8L
6-Cyl., V-type DOHC
3.77 x 3.42 (96.0 x 87.0)
230.5 (3,778)
1 - 2 - 3 - 4 - 5 - 6
IFR5G-11
720 ± 100
BTDC 10° ± 5° 0.006 ~ 0.009 in. (0.17 ~ 0.23 mm)
0.01 ~ 0.012 in. (0.27 ~ 0.33 mm)
0.039 ~ 0.043 in. (1.0 - 1.1 mm)
ENGINEJ070A01TG-AAT
ITEMS
Engine Type
Bore x Stroke in.(mm)
Displacement cu.in.(cc)
Firing order
Valve clearance (warm engine) Intake
Exhaust
Spark plug
Spark plug gap
Idle speed (rpm)
Ignition timing (Base)

9
VEHICLE SPECIFICATIONS4
Oil & Grease Standard
API SJ, SL or ABOVE, SAE 5W-20, SAE 5W-30 (ALL TEMP. RANGE)
ILSAC GF-3 or ABOVE SAE 10W-30 (ABOVE 0°F(-18°C))
HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other
brands meeting the SP III specification approved by Hyundai Motor Co..
Ethylene glycol base for aluminum radiator
PSF-3 TYPE FLUID
DOT 3 or DOT 4 Equivalent
LUBRICATION CHARTJ080A01TG-AAT
Quantity (Us. qts)(Imp. qts, Liter)
Drain and refill ;
With oil filter : 5.91 (4.92, 5.6)
Without oil filter : 5.49 (4.57, 5.2)
11.51 (9.59, 10.9)
8.77 (7.3, 8.3)
0.95 (0.79, 0.9)
As required Item
Engine Oil
Recommends
Transaxle
Coolant
Power steering
Brake fluid
Automatic

10

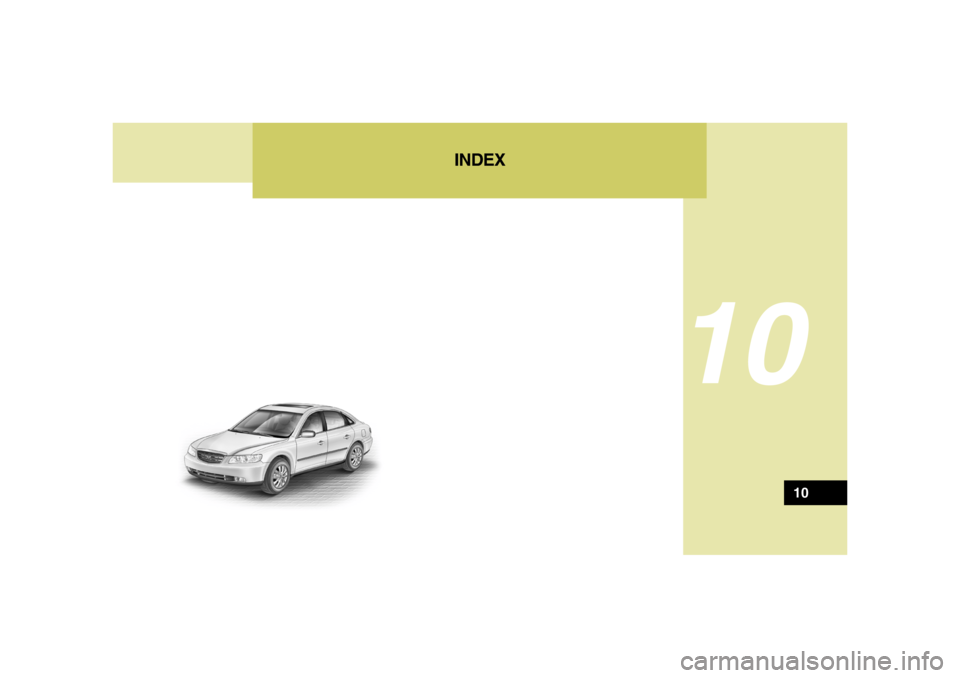

INDEX
10

10
INDEX
2
A
Accessory Box ....................................................................1-97
Advanced Supplemental Restraint (AIRBAG)
System (SRS) ....................................................................1-44
Curtain airbag .................................................................1-57
Driver's and passenger's front airbag ............................1-45
Occupant classification system ......................................1-52
Side impact airbag .........................................................1-56
Air Cleaner Filter .................................................................. 6-8
Air Conditioning
Care.................................................................................6-16
Filter..................................................................... 1-132, 6-17
Operation............................................................ 1-125, 6-16
Switch............................................................................1-128
Antenna ............................................................................1-166
Ashtray................................................................................1-88
Audio System ...................................................................1-136
Audio remote control switch .........................................1-121
Cassette tape player operation (M455) .......................1-146
Cassette tape player operation (M465) .......................1-156
Compact disc player operation (M445) .......................1-139
Compact disc player operation (M455) .......................1-149
Compact disc player operation (M465) .......................1-159
Stereo radio operation (M445) .....................................1-136
Stereo radio operation (M455) .....................................1-143
Stereo radio operation (M465) .....................................1-153Automatic Heating and Cooling Control System ............1-124
Automatic-Dimming Mirror with Z-Nav™ Electronic Compass
Display and HomeLink
®
..................................................................................
1-101
B
Battery .................................................................................6-21
Binding Arbitration .............................................................8-16
Brake
Anti-lock brake system (ABS) .........................................2-11
Checking the brakes ......................................................6-15
Fluid.................................................................................6-15
Practices..........................................................................2-13
Breaking-In your New Hyundai ........................................... 1-3
C
Care of Cassette Tapes ...................................................1-164
Care of Discs ....................................................................1-164
Catalytic Converter ............................................................... 7-3
Child Restraint System ......................................................1-34
Installing a child restraint system with
"Tether Anchorage" system ...........................................1-36
Securing a child restraint system with "ISOFIX" system1-37
Child-Protector Rear Door Lock .......................................... 1-9
Cigarette Lighter ................................................................1-87
Clock...................................................................................1-87
