Info

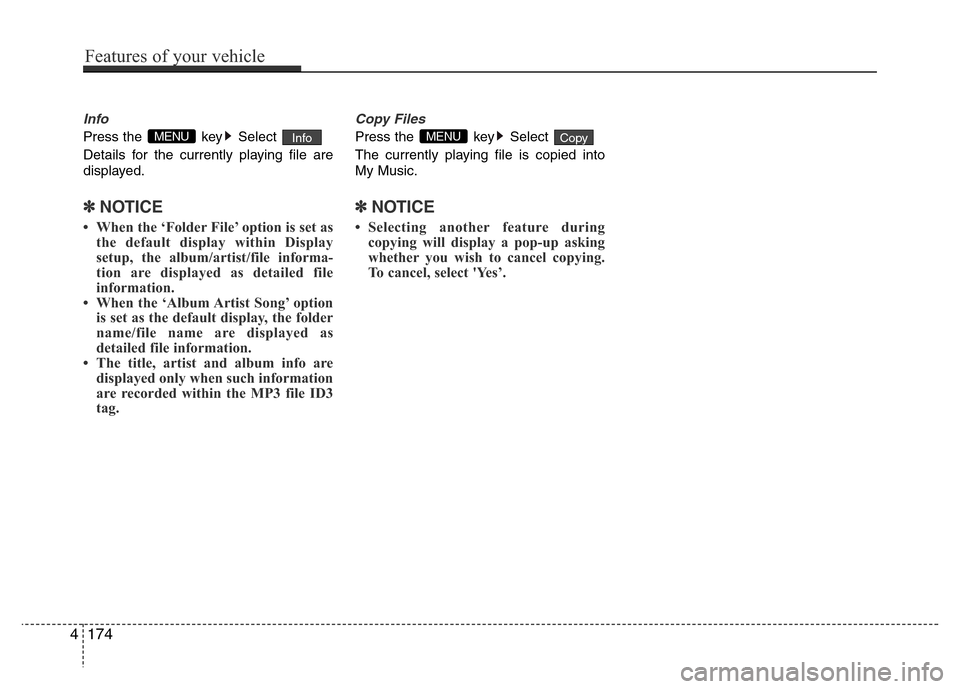

Press the key Select
Details for the currently playing file are
displayed.
✽NOTICE
• When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
• When the ‘Album Artist Song’ option
is set as the default display, the folder
name/file name are displayed as
detailed file information.
• The title, artist and album info are
displayed only when such information
are recorded within the MP3 file ID3
tag.
Copy Files
Press the key Select
The currently playing file is copied into
My Music.
✽NOTICE
• Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select 'Yes’.
CopyMENUInfoMENU
4174
Features of your vehicle

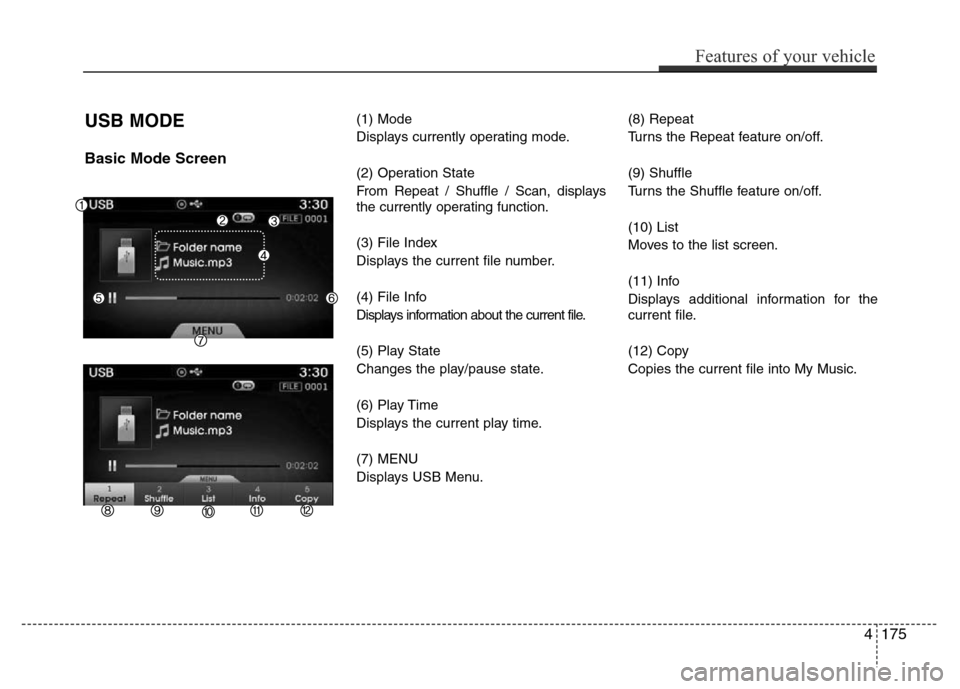

USB MODE
Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat / Shuffle / Scan, displays
the currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the current file.
(5) Play State
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) MENU
Displays USB Menu.(8) Repeat
Turns the Repeat feature on/off.
(9) Shuffle
Turns the Shuffle feature on/off.
(10) List
Moves to the list screen.
(11) Info
Displays additional information for the
current file.
(12) Copy
Copies the current file into My Music.
Features of your vehicle
175 4

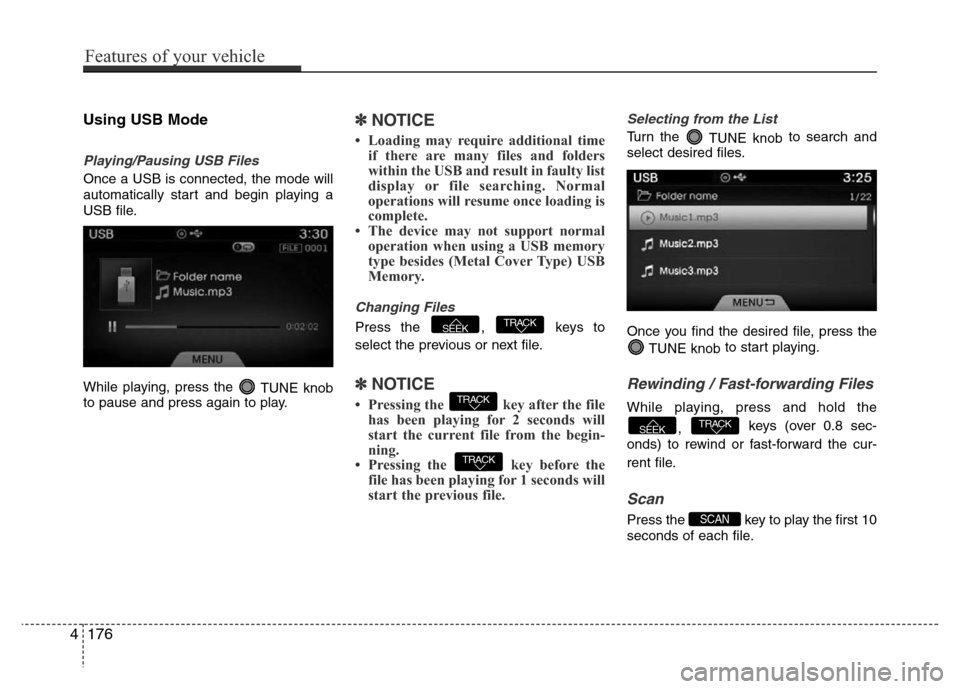

Using USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode will
automatically start and begin playing a
USB file.
While playing, press the
TUNE knob
to pause and press again to play.
✽NOTICE
• Loading may require additional time
if there are many files and folders
within the USB and result in faulty list
display or file searching. Normal
operations will resume once loading is
complete.
• The device may not support normal
operation when using a USB memory
type besides (Metal Cover Type) USB
Memory.
Changing Files
Press the , keys to
select the previous or next file.
✽NOTICE
• Pressing the key after the file
has been playing for 2 seconds will
start the current file from the begin-
ning.
• Pressing the key before the
file has been playing for 1 seconds will
start the previous file.
Selecting from the List
Turn the
TUNE knobto search and
select desired files.
Once you find the desired file, press the
TUNE knobto start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
, keys (over 0.8 sec-
onds) to rewind or fast-forward the cur-
rent file.
Scan
Press the key to play the first 10
seconds of each file.SCAN
TRACKSEEK
TRACK
TRACK
TRACKSEEK
4176
Features of your vehicle

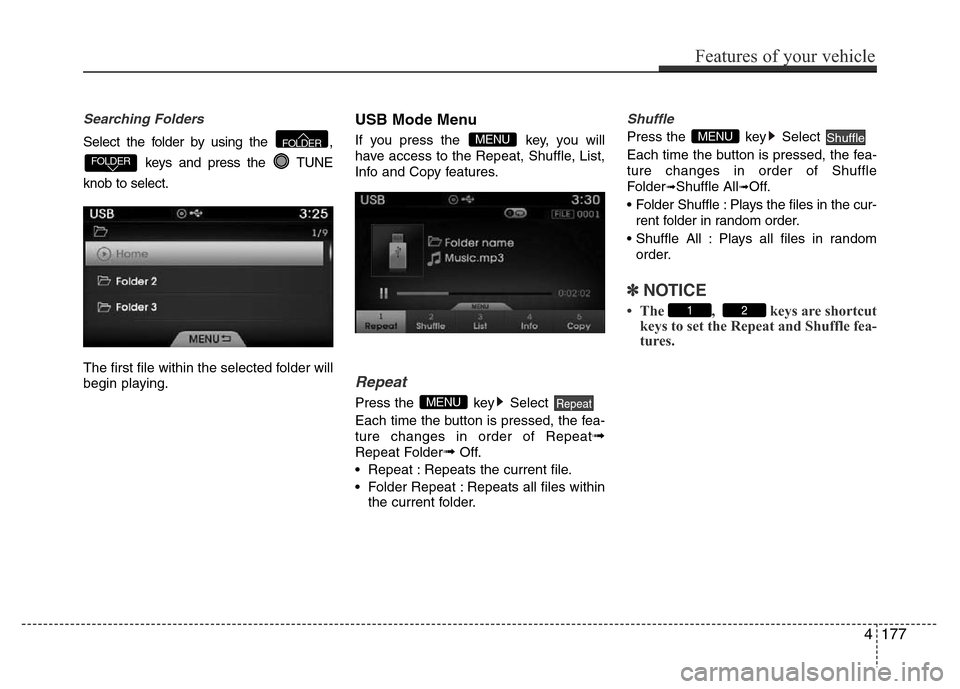

Searching Folders
Select the folder by using the ,
keys and press the TUNE
knob to select.
The first file within the selected folder will
begin playing.
USB Mode Menu
If you press the key, you will
have access to the Repeat, Shuffle, List,
Info and Copy features.
Repeat
Press the key Select
Each time the button is pressed, the fea-
ture changes in order of Repeat
➟
Repeat Folder➟Off.
• Repeat : Repeats the current file.
• Folder Repeat : Repeats all files within
the current folder.
Shuffle
Press the key Select
Each time the button is pressed, the fea-
ture changes in order of Shuffle
Folder
➟Shuffle All➟Off.
• Folder Shuffle : Plays the files in the cur-
rent folder in random order.
• Shuffle All : Plays all files in random
order.
✽NOTICE
• The , keys are shortcut
keys to set the Repeat and Shuffle fea-
tures.21
ShuffleMENU
RepeatMENU
MENU
FOLDER
FOLDER
Features of your vehicle
177 4

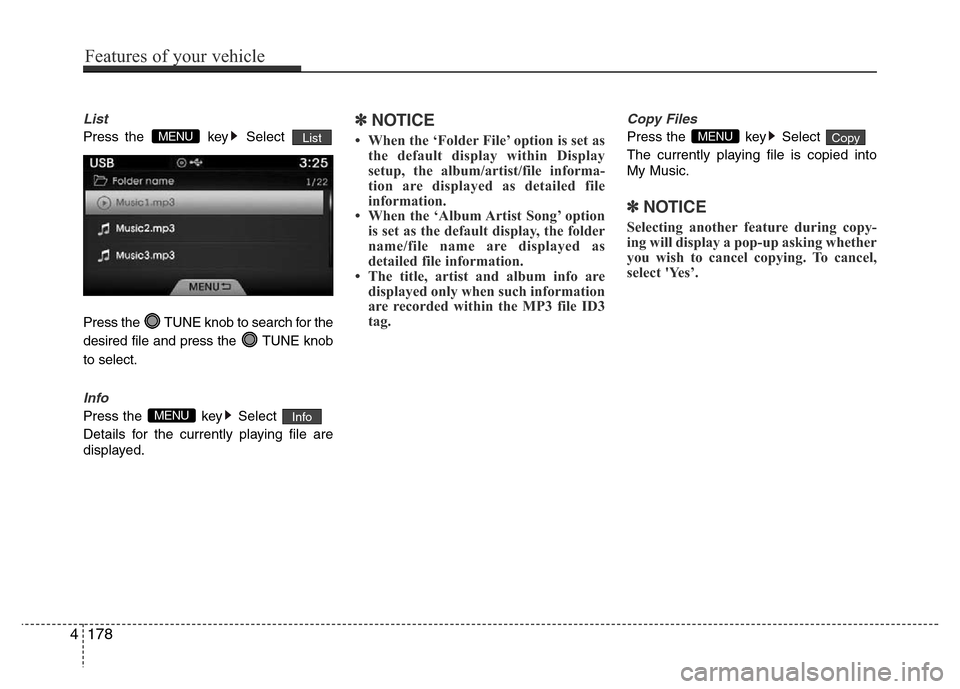

List
Press the key Select
Press the TUNE knob to search for the
desired file and press the TUNE knob
to select.
Info
Press the key Select
Details for the currently playing file are
displayed.
✽NOTICE
• When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
• When the ‘Album Artist Song’ option
is set as the default display, the folder
name/file name are displayed as
detailed file information.
• The title, artist and album info are
displayed only when such information
are recorded within the MP3 file ID3
tag.
Copy Files
Press the key Select
The currently playing file is copied into
My Music.
✽NOTICE
Selecting another feature during copy-
ing will display a pop-up asking whether
you wish to cancel copying. To cancel,
select 'Yes’.
CopyMENU
InfoMENU
ListMENU
4178
Features of your vehicle

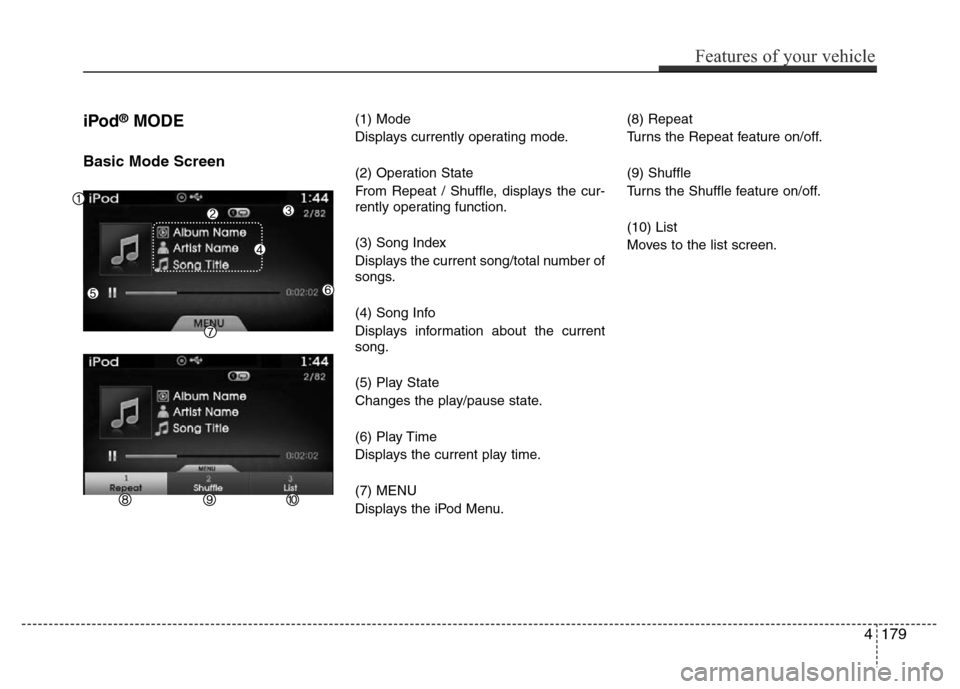

iPod®MODE
Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat / Shuffle, displays the cur-
rently operating function.
(3) Song Index
Displays the current song/total number of
songs.
(4) Song Info
Displays information about the current
song.
(5) Play State
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) MENU
Displays the iPod Menu.(8) Repeat
Turns the Repeat feature on/off.
(9) Shuffle
Turns the Shuffle feature on/off.
(10) List
Moves to the list screen.
Features of your vehicle
179 4

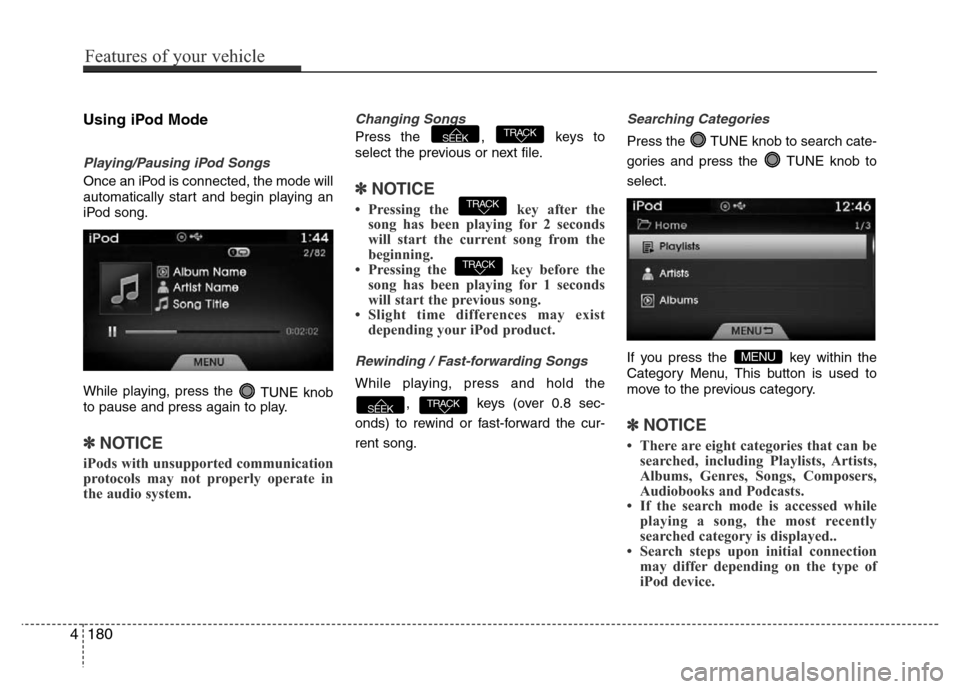

Using iPod Mode
Playing/Pausing iPod Songs
Once an iPod is connected, the mode will
automatically start and begin playing an
iPod song.
While playing, press the
TUNE knob
to pause and press again to play.
✽NOTICE
iPods with unsupported communication
protocols may not properly operate in
the audio system.
Changing Songs
Press the , keys to
select the previous or next file.
✽NOTICE
• Pressing the key after the
song has been playing for 2 seconds
will start the current song from the
beginning.
• Pressing the key before the
song has been playing for 1 seconds
will start the previous song.
• Slight time differences may exist
depending your iPod product.
Rewinding / Fast-forwarding Songs
While playing, press and hold the
, keys (over 0.8 sec-
onds) to rewind or fast-forward the cur-
rent song.
Searching Categories
Press the TUNE knob to search cate-
gories and press the TUNE knob to
select.
If you press the key within the
Category Menu, This button is used to
move to the previous category.
✽NOTICE
• There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts.
• If the search mode is accessed while
playing a song, the most recently
searched category is displayed..
• Search steps upon initial connection
may differ depending on the type of
iPod device.
MENU
TRACKSEEK
TRACK
TRACK
TRACKSEEK
4180
Features of your vehicle

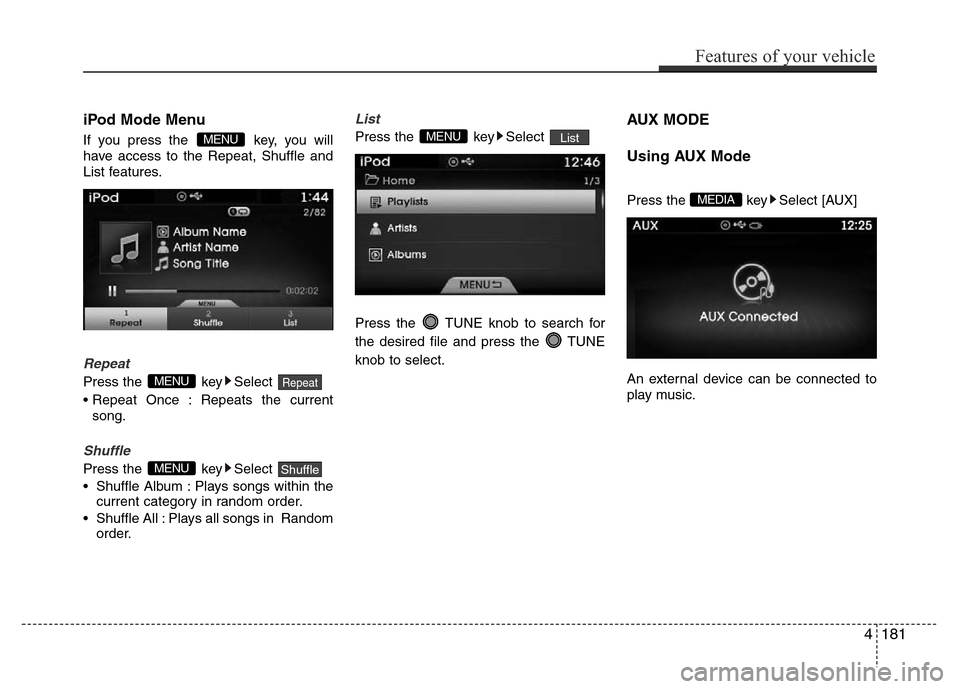

iPod Mode Menu
If you press the key, you will
have access to the Repeat, Shuffle and
List features.
Repeat
Press the key Select
• Repeat Once : Repeats the current
song.
Shuffle
Press the key Select
• Shuffle Album : Plays songs within the
current category in random order.
• Shuffle All : Plays all songs in Random
order.
List
Press the key Select
Press the TUNE knob to search for
the desired file and press the TUNE
knob to select.
AUX MODE
Using AUX Mode
Press the key Select [AUX]
An external device can be connected to
play music.MEDIA
ListMENU
ShuffleMENU
RepeatMENU
MENU
Features of your vehicle
181 4

✽NOTICE
• If an external device connector is con-
nected with the AUX terminal, then
AUX mode will automatically operate.
Once the connector is disconnected,
the previous mode will be restored.
• AUX mode can be used only when an
external audio player (camcorder, car
VCR, etc.) has been connected.
• The AUX volume can be controlled
separately from other audio modes.
Connecting an External Device
External audio players (Camcorders, car
VCR, etc.) can be played through a ded-
icated cable.
4182
Features of your vehicle
CAUTION
• Connecting a connector jack to
the AUX terminal without an
external device will convert the
system to AUX mode, but only
output noise. When an external
device is not being used, also
remove the connector jack.
• When the external device power
is connected to the power jack,
playing the external device may
output noise. In such cases, dis-
connect the power connection
before use.
• Fully insert the AUX cable to the
AUX jack uponuse.

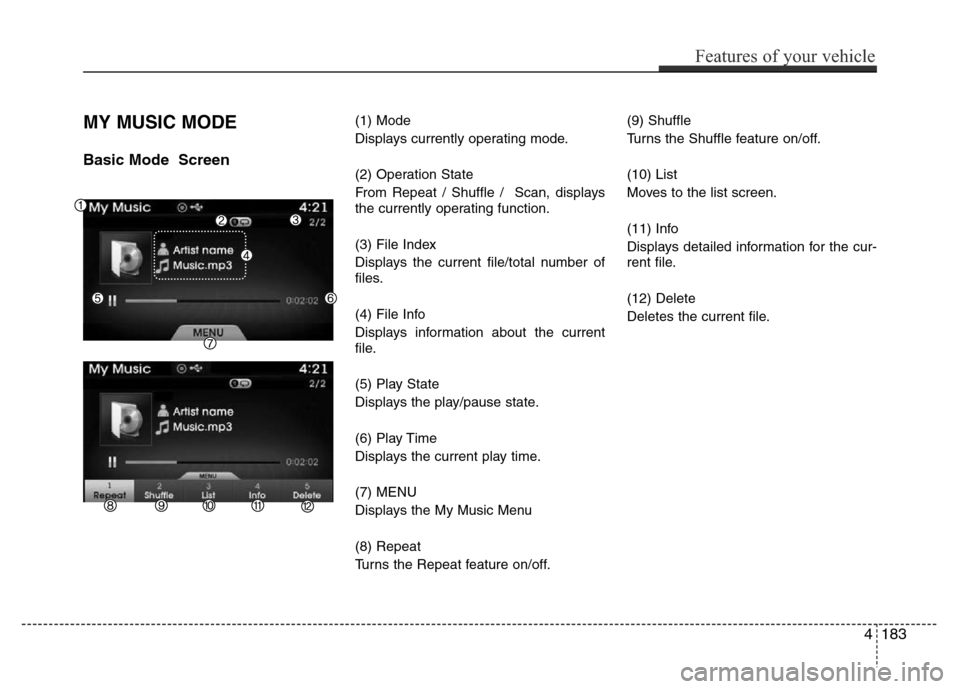

MY MUSIC MODE
Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat / Shuffle / Scan, displays
the currently operating function.
(3) File Index
Displays the current file/total number of
files.
(4) File Info
Displays information about the current
file.
(5) Play State
Displays the play/pause state.
(6) Play Time
Displays the current play time.
(7) MENU
Displays the My Music Menu
(8) Repeat
Turns the Repeat feature on/off.(9) Shuffle
Turns the Shuffle feature on/off.
(10) List
Moves to the list screen.
(11) Info
Displays detailed information for the cur-
rent file.
(12) Delete
Deletes the current file.
