FEATURES OF YOUR HYUNDAI
27
B230E03GK-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Two child restraint hook holders are located on the rear luggage compart- ment floor.
B230E02GK
Tether Anchor Cover
Child Restraint Hook Holder
1. Open the tether anchor cover on the
rear luggage compartment floor.
2. Route the child restraint seat strap over the seatback. For vehicles with adjustable head- rests, route the tether strap underthe headrest and between the head- rest posts, otherwise route the tether strap over the top of the seatback.3. Remove the load space cover.
4. Connect the tether strap hook to thechild restraint hook holder and tighten to secure the seat. B230D01GK-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System
ISOFIX is a standardised method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation.
B230E01GK
Front of Vehicle
Load Space Cover
Tether strap hook
Rear lugguage compartment floor
B230F01GK
Child RestraintHookHolders

1FEATURES OF YOUR HYUNDAI
28

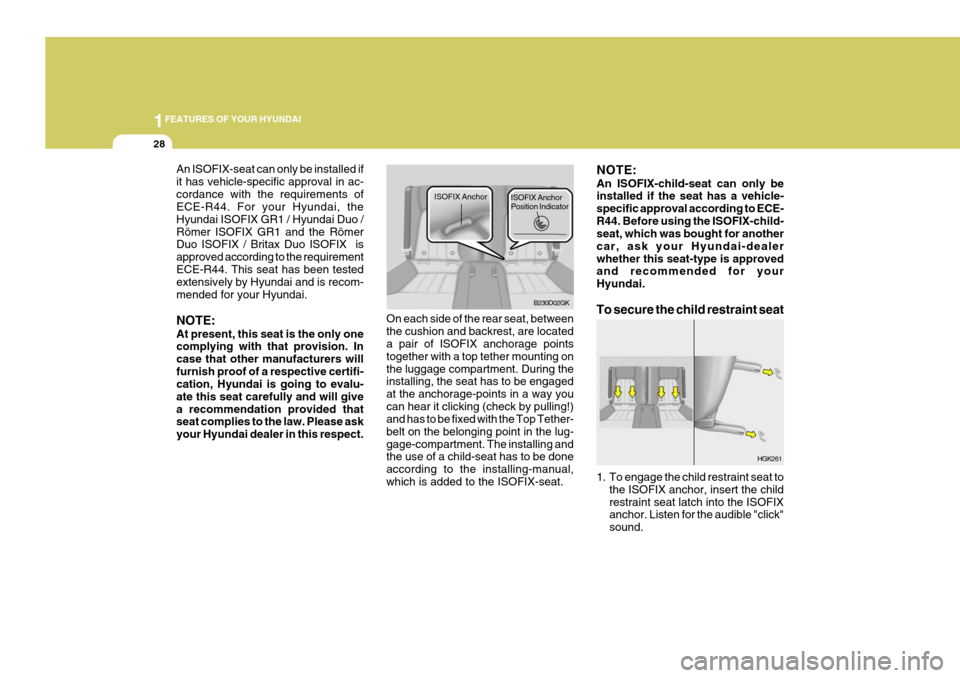

On each side of the rear seat, between the cushion and backrest, are located a pair of ISOFIX anchorage points together with a top tether mounting onthe luggage compartment. During the installing, the seat has to be engaged at the anchorage-points in a way youcan hear it clicking (check by pulling!) and has to be fixed with the Top Tether- belt on the belonging point in the lug-gage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual,which is added to the ISOFIX-seat. NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
1. To engage the child restraint seat to
the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click" sound.
B230D02GK
ISOFIX Anchor
ISOFIX Anchor Position Indicator
HGK261
An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac-cordance with the requirements of ECE-R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo /Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved according to the requirementECE-R44. This seat has been tested extensively by Hyundai and is recom- mended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. In case that other manufacturers willfurnish proof of a respective certifi- cation, Hyundai is going to evalu- ate this seat carefully and will givea recommendation provided that seat complies to the law. Please ask your Hyundai dealer in this respect.

1
FEATURES OF YOUR HYUNDAI
29
!
2. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat. Refer to "Securing a Child Restraint System with the Tether Anchorage System"on page 1-26.
WARNING:
o There is no center rear seating position.
o Do not install a child restraint seat at the center of the rear seatusing the vehicle's ISOFIX an- chors. The ISOFIX anchors are only provided for the left andright outboard of the rear seat. Do not misuse the ISOFIX an- chors by attempting to attach achild restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, the childrestraint seat ISOFIX attachments may not be strong enough to secure the child restraint seatproperly in the center of the rear seat and may break, causing se- rious injury or death.o When using the vehicle’s “ISOFIX”
system to install a child restraint system in the rear seat, all unused vehicle rear seat belt metal latchplates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must beretracted behind the child restraint to prevent the child from reaching and taking hold of unretracted seat
belts. Unlatched metal latch plates or tabs may allow the child to reach the unretracted seat beltswhich may result in strangulation and a serious injury or death to the child in the child restraint.
o Do not mount more than one child restraint to a child restraint loweranchorage point. The improperincreased load may cause the an- chorage points or tether anchor to break, causing serious injury ordeath.
o Attach the ISOFIX or ISOFIX-com-
patible child restraint seat onlyto the appropriate locations shown in the illustration. o Always follow the installation and
use instructions provided by themanufacturer of the child re- straint.
B230H04GK-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriate for your children.
Rear
Center
Age Group Seating Position
X
N/A
X X
N/A
X L1 N/A
X X N/A Rear
Outboard
1st
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~4 years)II & III : 15kg to36kg (4 ~ 12years) X

1FEATURES OF YOUR HYUNDAI
30
B180B02GK-GAT Pre-tensioner Seat Belt (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against theoccupant's body in certain frontal col- lisions. The pre-tensioner seat belts can beactivated alone or, where the frontal collision is severe enough, together with the airbags. The pre-tensioner seat belt operates ina similiar way as an Emergency Lock-ing Retractor (ELR) type of seat belt. When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position. In certain frontal colli- sions, the pre-tensioner will activateand pull the seat belt into tighter contact against the occupant's body.
HXG229 B180B01GK
Driver's airbag1
2 3Passenger's airbag
U: Suitable for "universal" category
restraints approved for use in this mass group
UF: Suitable for forward-facing "uni-
versal" category restraints ap-proved for use in this mass group
L1: Suitable for "Römer ISOFIX GR1"
approved for use in this massgroup
(Approval No: E1 R44-03301133)
X: Seat position not suitable for chil- dren in this mass group
N/A: No seating position is provided

1
FEATURES OF YOUR HYUNDAI
31
!

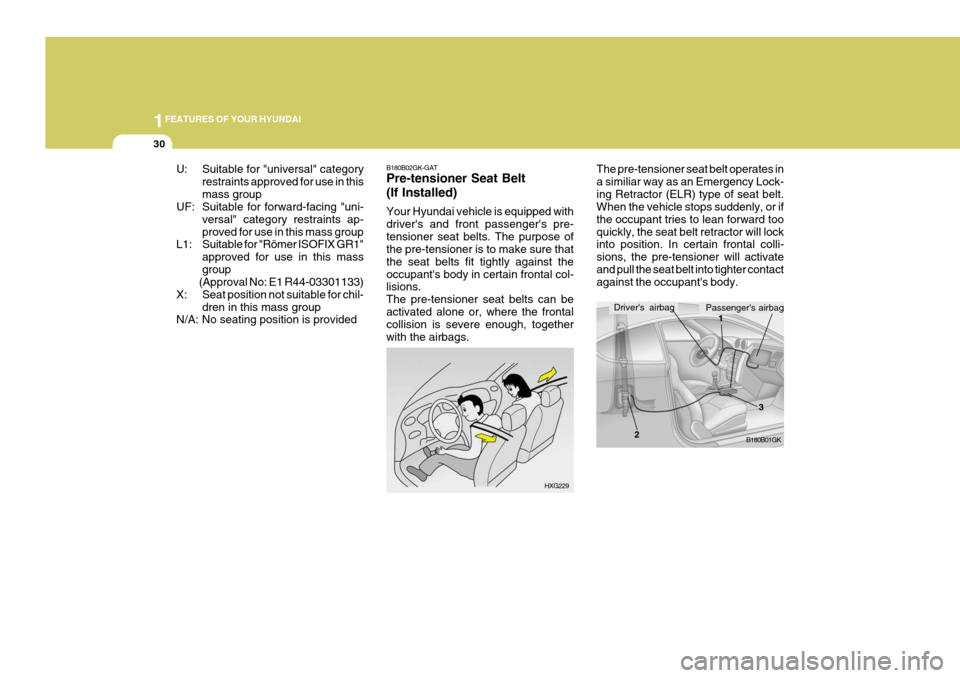

The seat belt pre-tensioner system consists mainly of the following com-ponents. Their locations are shown in the illus- tration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to
the correct position.
!
NOTE:
o Both the driver's and front
passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated alone or, where the frontalcollision is severe enough, to- gether with the airbags.
o When the pre-tensioner seat belts are activated, a loud noise maybe heard and fine dust, which may appear to be smoke, may bevisible in the passenger compart- ment. These are normal operat- ing conditions and are not haz-ardous.
o Although it is harmless, the fine
dust may cause skin irritationand should not be breathed for prolonged periods. Wash your hands and face thoroughly afteran accident in which the pre- tensioner seat belts were acti- vated. CAUTION:
o Because the sensor that activates the SRS airbag is connected withpre-tensioner seat belt, the SRSairbag warning light on the instrument panel will come on for approximately 6 seconds af-ter the ignition key has been turned to the "ON" position, and then it should turn off.
o If pre-tensioner seat belt is not working properly, this warninglight will illuminate even if there is no malfunction of the SRS airbag. If the SRS airbag warninglight does not illuminate when the ignition key is turned to "ON", or if it remains illuminated aftercoming for approximately 6 sec- onds, or if it illuminates while the vehicle is being driven, pleasehave an authorized Hyundai dealer inspect the pre-tensioner seat belts and SRS airbag sys-tem as soon as possible.
AIR
BAG

1FEATURES OF YOUR HYUNDAI
32SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM (SRS)
o Improper handling of the pre-
tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, re-place, service or repair the pre- tensioner seat belt assemblies may lead to improper operationor inadvertent activation and se- rious injury.
o Always wear seat belts when driv- ing or riding in a motor vehicle. B240A01GK-GAT (If Installed) Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. The indications of the system's presenceare the letters "SRS AIR BAG" em- bossed on the ornament in the steering wheel and the passenger's side frontpanel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in the center of the steering wheel and the passenger's side front panel above theglove box. The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional pro-tection than that offered by the seat beltDriver's Airbag
B240A01GK
!WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts, of any type, should always bereplaced after they have been worn during a collision.
o The pre-tensioner seat belt as- sembly mechanisms become hotduring activation. Do not touch the pre-tensioner seat belt as-semblies for several minutes af- ter they have been activated.
o Do not attempt to inspect or re- place the pre-tensioner seat beltsyourself. This must be done by an authorized Hyundai dealer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or re- pair the pre-tensioner seat belt system in any manner.

1
FEATURES OF YOUR HYUNDAI
33
!
system alone, in case of a frontal im- pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided in the front of the sun visor and in theglove box.
WARNING:

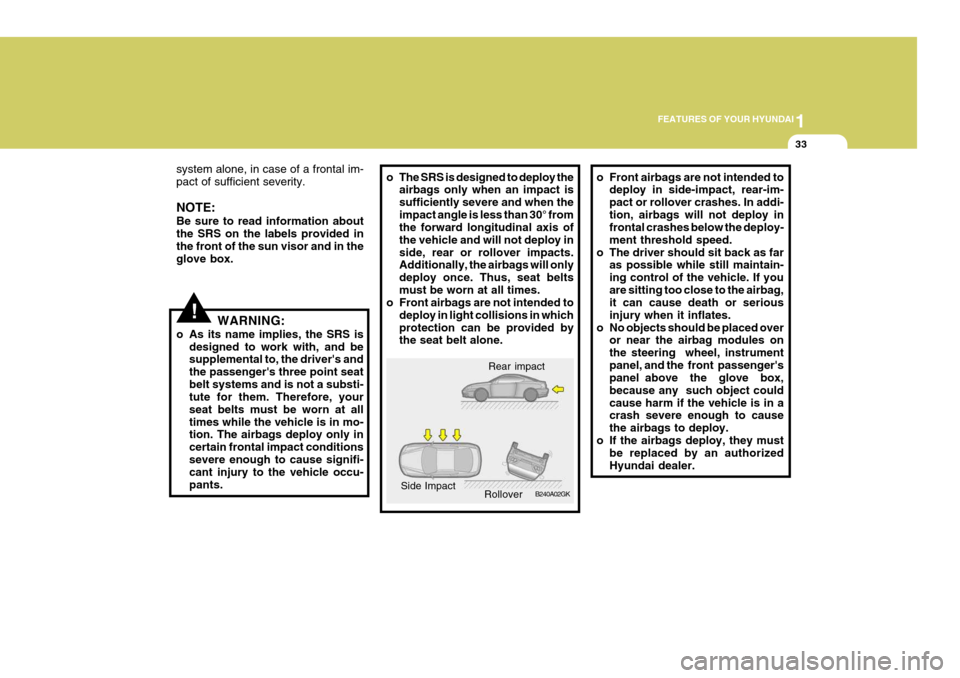

o As its name implies, the SRS is designed to work with, and be supplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore, your seat belts must be worn at alltimes while the vehicle is in mo- tion. The airbags deploy only in certain frontal impact conditionssevere enough to cause signifi- cant injury to the vehicle occu- pants.o The SRS is designed to deploy theairbags only when an impact is sufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat beltsmust be worn at all times.
o Front airbags are not intended to
deploy in light collisions in whichprotection can be provided by the seat belt alone. o Front airbags are not intended to
deploy in side-impact, rear-im- pact or rollover crashes. In addi-tion, airbags will not deploy in frontal crashes below the deploy- ment threshold speed.
o The driver should sit back as far as possible while still maintain-ing control of the vehicle. If youare sitting too close to the airbag, it can cause death or serious injury when it inflates.
o No objects should be placed over or near the airbag modules onthe steering wheel, instrumentpanel, and the front passenger's panel above the glove box, because any such object couldcause harm if the vehicle is in a crash severe enough to cause the airbags to deploy.
o If the airbags deploy, they must be replaced by an authorizedHyundai dealer.
Rear impact
B240A02GK
Side Impact
Rollover

1FEATURES OF YOUR HYUNDAI
34

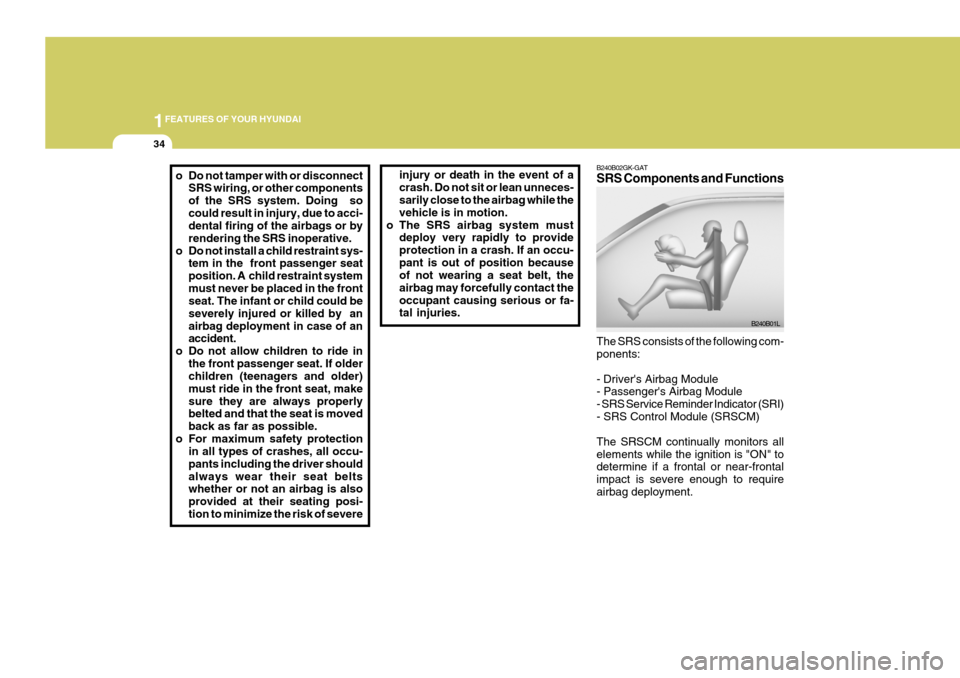

injury or death in the event of a crash. Do not sit or lean unneces- sarily close to the airbag while the vehicle is in motion.
o The SRS airbag system must deploy very rapidly to provideprotection in a crash. If an occu-pant is out of position because of not wearing a seat belt, the airbag may forcefully contact theoccupant causing serious or fa- tal injuries. B240B02GK-GAT SRS Components and Functions The SRS consists of the following com- ponents: - Driver's Airbag Module - Passenger's Airbag Module - SRS Service Reminder Indicator (SRI)- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontal impact is severe enough to requireairbag deployment.B240B01Lo Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing socould result in injury, due to acci- dental firing of the airbags or by rendering the SRS inoperative.
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint systemmust never be placed in the front seat. The infant or child could be severely injured or killed by anairbag deployment in case of an accident.
o Do not allow children to ride in
the front passenger seat. If olderchildren (teenagers and older) must ride in the front seat, makesure they are always properly belted and that the seat is moved back as far as possible.
o For maximum safety protection in all types of crashes, all occu-pants including the driver shouldalways wear their seat belts whether or not an airbag is also provided at their seating posi-tion to minimize the risk of severe

1
FEATURES OF YOUR HYUNDAI
35
The SRS service reminder indicator (SRI) on the instrument panel will comeon for about 6 seconds after the igni- tion key is turned to the "ON" position or after the engine is started, afterwhich the SRI should go out. The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags. B240B02LPassenger's Airbag
Upon deployment, tear seams molded directly into the pad covers will sepa-rate under pressure from the expan- sion of the airbags. Further opening of the covers then allows full inflation ofthe airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward motion, thus reducing the risk of headand chest injury. After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility. B240B03L
B240B01GK
!
CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger's panel above the glove box in a ve-hicle with a passenger's air bag. Such objects may become danger- ous projectiles and cause injury ifthe passenger's air bag inflates.

1FEATURES OF YOUR HYUNDAI
36
!WARNING:

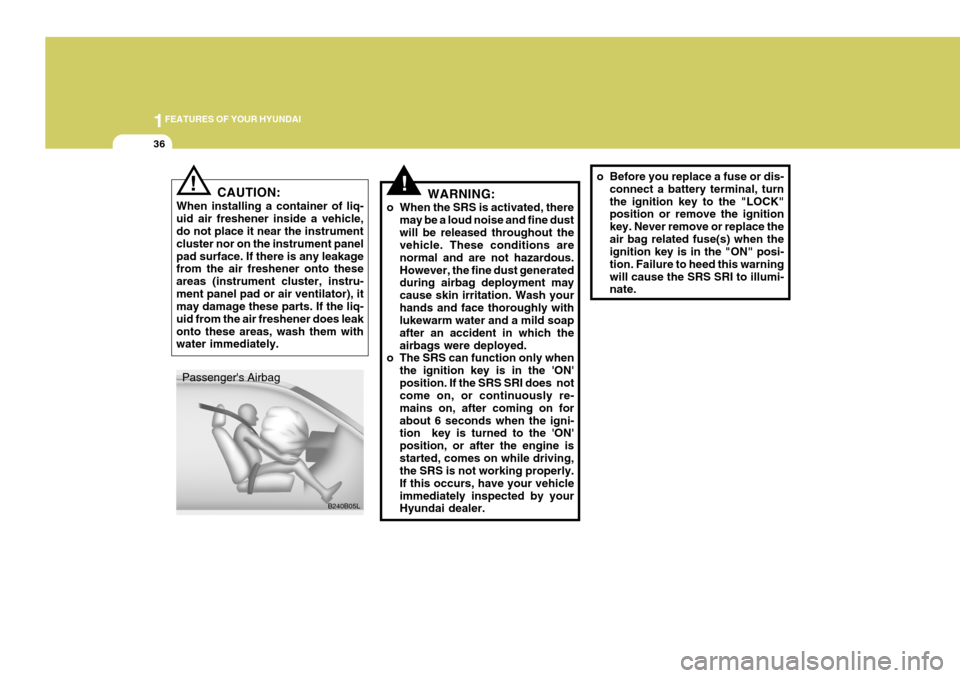

o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are normal and are not hazardous.However, the fine dust generated during airbag deployment may cause skin irritation. Wash yourhands and face thoroughly with lukewarm water and a mild soap after an accident in which theairbags were deployed.
o The SRS can function only when
the ignition key is in the 'ON'position. If the SRS SRI does not come on, or continuously re- mains on, after coming on forabout 6 seconds when the igni- tion key is turned to the 'ON' position, or after the engine isstarted, comes on while driving, the SRS is not working properly. If this occurs, have your vehicleimmediately inspected by your Hyundai dealer. o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.CAUTION:
When installing a container of liq- uid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panelpad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instru-ment panel pad or air ventilator), it may damage these parts. If the liq- uid from the air freshener does leakonto these areas, wash them with water immediately.!
B240B05L
Passenger's Airbag
