Hyundai Coupe 2005 Repair Manual

1
FEATURES OF YOUR HYUNDAI
47
!

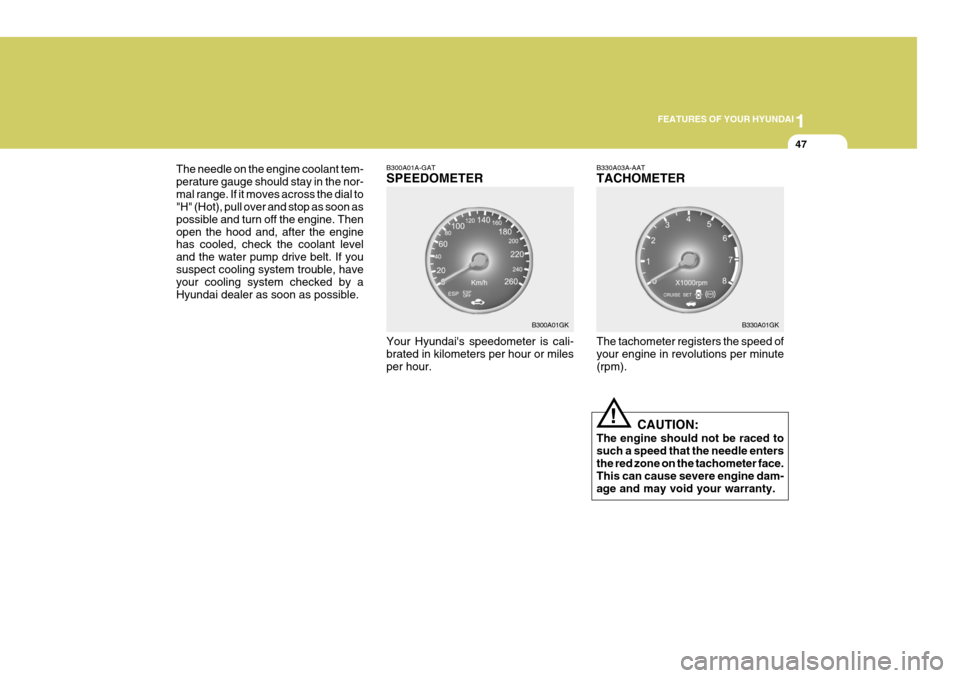

The needle on the engine coolant tem- perature gauge should stay in the nor-mal range. If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turn off the engine. Thenopen the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. If yoususpect cooling system trouble, have your cooling system checked by a Hyundai dealer as soon as possible.
B300A01A-GAT SPEEDOMETER Your Hyundai's speedometer is cali- brated in kilometers per hour or miles per hour.B330A03A-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute (rpm).
CAUTION:
The engine should not be raced tosuch a speed that the needle entersthe red zone on the tachometer face. This can cause severe engine dam- age and may void your warranty.
B300A01GK
B330A01GK

1FEATURES OF YOUR HYUNDAI
48

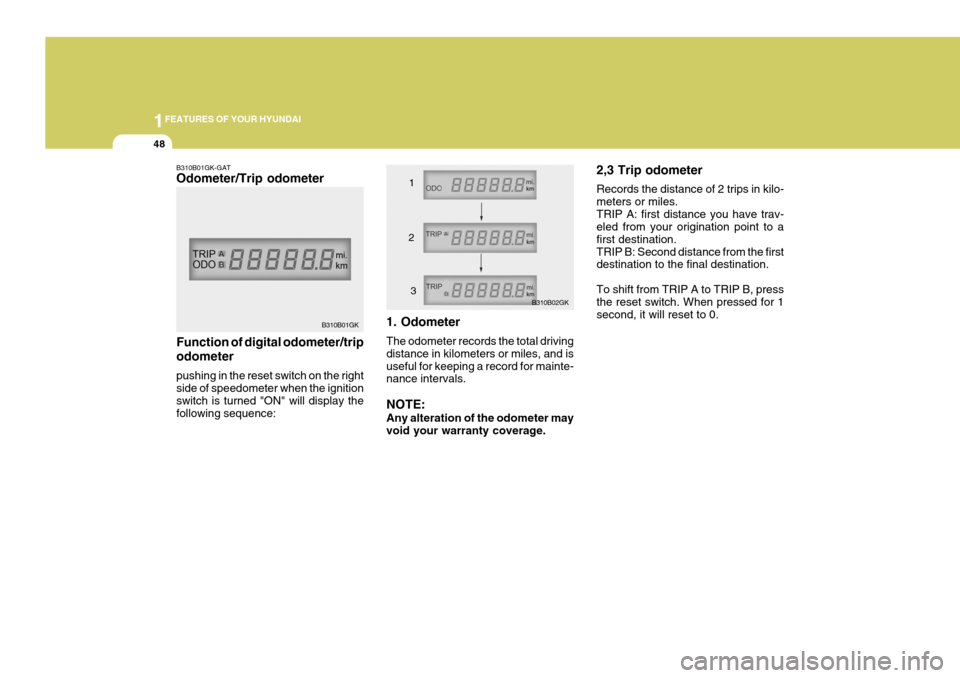

B310B01GK-GAT Odometer/Trip odometer Function of digital odometer/trip odometer pushing in the reset switch on the right side of speedometer when the ignition switch is turned "ON" will display thefollowing sequence: 1. Odometer The odometer records the total driving distance in kilometers or miles, and isuseful for keeping a record for mainte- nance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. 2,3 Trip odometer Records the distance of 2 trips in kilo- meters or miles.TRIP A: first distance you have trav- eled from your origination point to a first destination.TRIP B: Second distance from the first destination to the final destination. To shift from TRIP A to TRIP B, press the reset switch. When pressed for 1 second, it will reset to 0.
B310B01GK
B310B02GK
1
2 3

1
FEATURES OF YOUR HYUNDAI

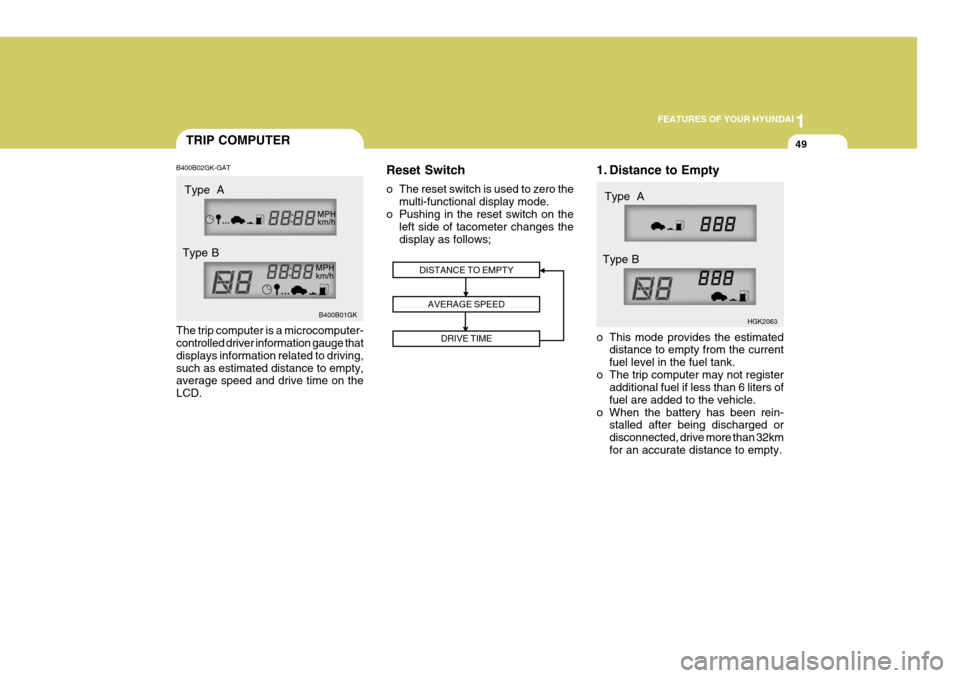

49TRIP COMPUTER
B400B02GK-GAT The trip computer is a microcomputer- controlled driver information gauge that displays information related to driving,such as estimated distance to empty, average speed and drive time on the LCD. Reset Switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch on the left side of tacometer changes the display as follows; 1. Distance to Empty
o This mode provides the estimated
distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register additional fuel if less than 6 liters offuel are added to the vehicle.
o When the battery has been rein- stalled after being discharged ordisconnected, drive more than 32kmfor an accurate distance to empty.
DISTANCE TO EMPTY
AVERAGE SPEED DRIVE TIME
B400B01GK HGK2063
Type A
Type B Type A
Type B

1FEATURES OF YOUR HYUNDAI
50
NOTE:
o When the distance to empty is
less than 50 km, the symbol will always come on and the distanceto empty digits will indicate "--- " with flash until more fuel is added.
o The distance to empty can differ from the actual tripmeter ac-cording to driving conditions.

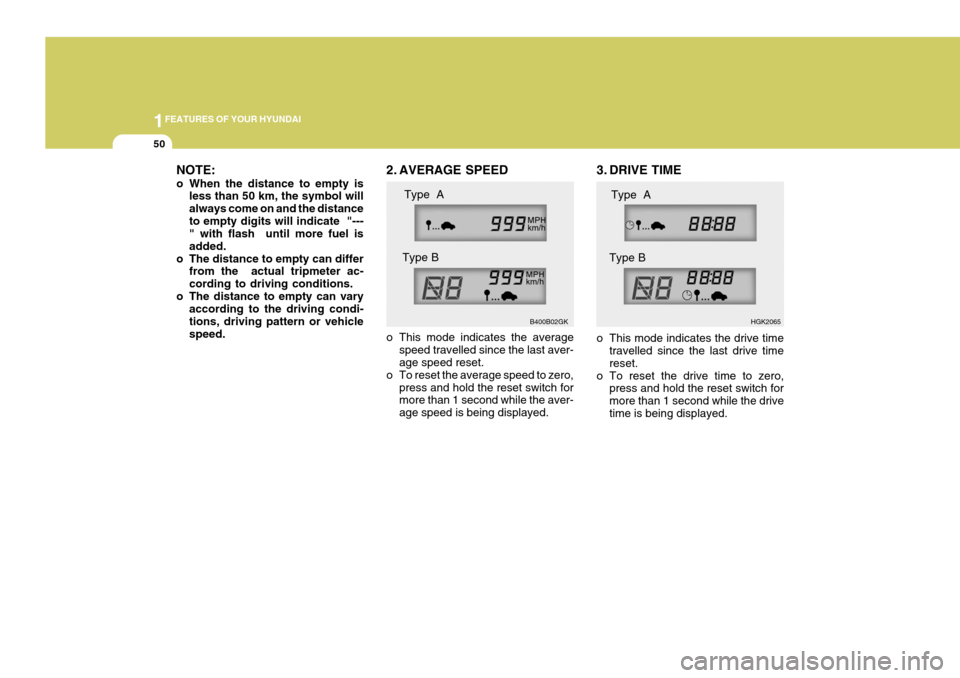

o The distance to empty can vary according to the driving condi-tions, driving pattern or vehiclespeed. 2. AVERAGE SPEED
o This mode indicates the average
speed travelled since the last aver- age speed reset.
o To reset the average speed to zero, press and hold the reset switch formore than 1 second while the aver- age speed is being displayed. 3. DRIVE TIME
o This mode indicates the drive time
travelled since the last drive time reset.
o To reset the drive time to zero, press and hold the reset switch formore than 1 second while the drivetime is being displayed.
B400B02GK
HGK2065
Type A
Type B Type A
Type B

1
FEATURES OF YOUR HYUNDAI
51MULTI GAUGE
B330C01GK-GAT (If installed) Multi gauge is consists of torque gauge, instantaneous fuel consumption gaugeand volt gauge.
Instantaneous fuel Consumption gauge It shows instantaneous fuel consump- tion according to the driving condition. The more indicated figure is low, the more it indicates efficient driving situa-tion.
Torque gauge It shows instantaneous change of the torque by rpm. Volt gauge It shows moment volt change and makes for diver correspond to low voltsituation.
B330C01GK B330C02GK
B330C03GK

1FEATURES OF YOUR HYUNDAI

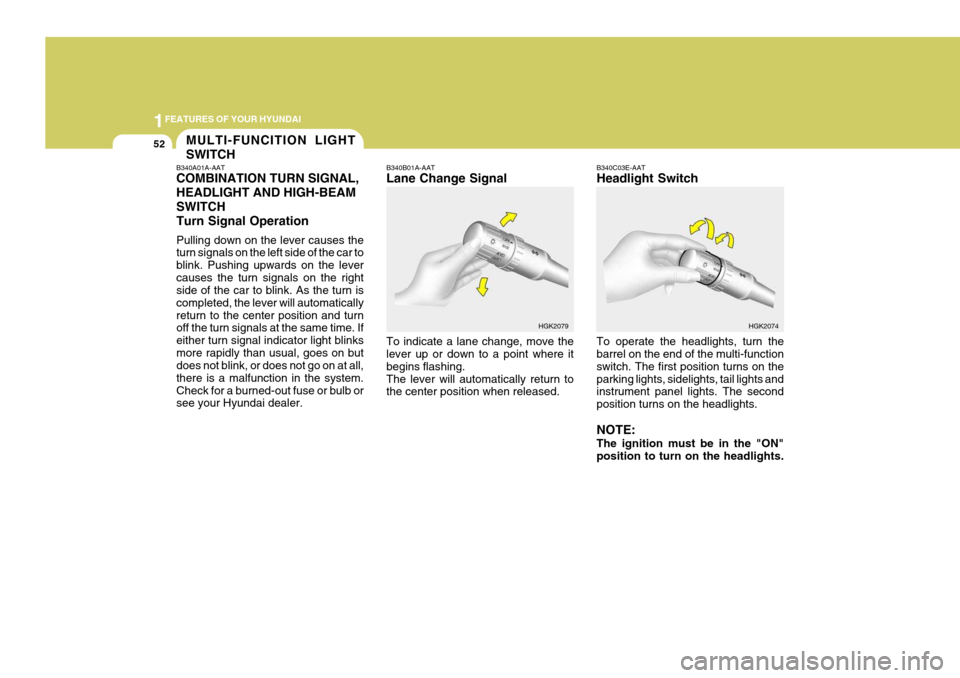

52MULTI-FUNCITION LIGHT SWITCH
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the levercauses the turn signals on the right side of the car to blink. As the turn is completed, the lever will automaticallyreturn to the center position and turn off the turn signals at the same time. If either turn signal indicator light blinksmore rapidly than usual, goes on but does not blink, or does not go on at all, there is a malfunction in the system.Check for a burned-out fuse or bulb or see your Hyundai dealer. B340B01A-AAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the center position when released.
B340C03E-AAT Headlight Switch To operate the headlights, turn the barrel on the end of the multi-function switch. The first position turns on theparking lights, sidelights, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights.
HGK2079
HGK2074

1
FEATURES OF YOUR HYUNDAI
53

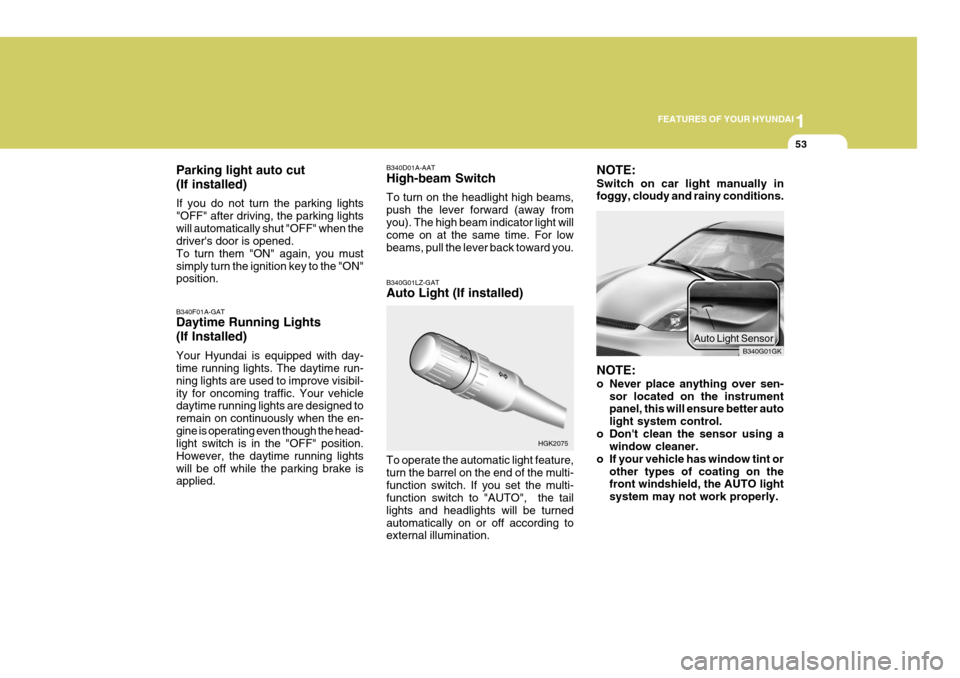

Parking light auto cut (If installed) If you do not turn the parking lights "OFF" after driving, the parking lightswill automatically shut "OFF" when the driver's door is opened. To turn them "ON" again, you mustsimply turn the ignition key to the "ON" position. B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run- ning lights are used to improve visibil-ity for oncoming traffic. Your vehicle daytime running lights are designed to remain on continuously when the en-gine is operating even though the head- light switch is in the "OFF" position. However, the daytime running lightswill be off while the parking brake is applied. B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away fromyou). The high beam indicator light will come on at the same time. For low beams, pull the lever back toward you. B340G01LZ-GAT Auto Light (If installed) To operate the automatic light feature, turn the barrel on the end of the multi-function switch. If you set the multi- function switch to "AUTO", the tail lights and headlights will be turnedautomatically on or off according to external illumination.
HGK2075NOTE: Switch on car light manually in foggy, cloudy and rainy conditions. NOTE:
o Never place anything over sen-
sor located on the instrument panel, this will ensure better auto light system control.
o Don't clean the sensor using a window cleaner.
o If your vehicle has window tint or other types of coating on the front windshield, the AUTO light system may not work properly. B340G01GK
Auto Light Sensor

1FEATURES OF YOUR HYUNDAI
54
(2)

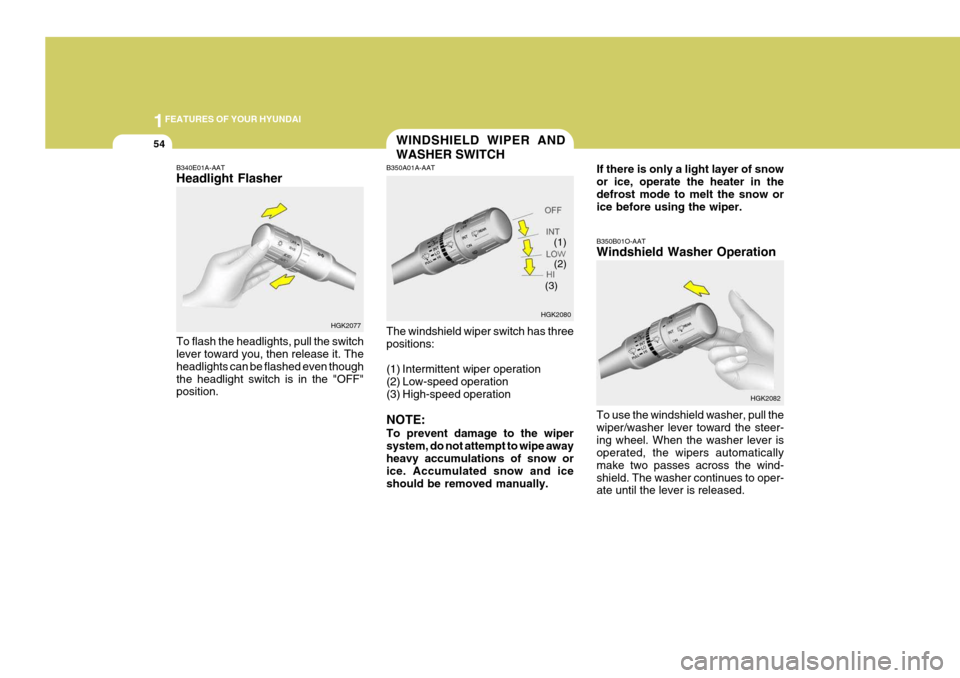

B350B01O-AAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer-ing wheel. When the washer lever is operated, the wipers automatically make two passes across the wind-shield. The washer continues to oper- ate until the lever is released. HGK2082
WINDSHIELD WIPER AND WASHER SWITCH
B340E01A-AAT Headlight Flasher To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even thoughthe headlight switch is in the "OFF" position. B350A01A-AAT The windshield wiper switch has three positions:
(1) Intermittent wiper operation
(2) Low-speed operation
(3) High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and iceshould be removed manually. If there is only a light layer of snowor ice, operate the heater in thedefrost mode to melt the snow or ice before using the wiper.
HGK2077
HGK2080(1)
(3)

1
FEATURES OF YOUR HYUNDAI
55
NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reser- voir is empty.
o In icy or freezing weather, be sure the wiper blades are notfrozen to the glass prior to oper-ating the wipers.
o In areas where water freezes in
winter, use windshield washerantifreeze.

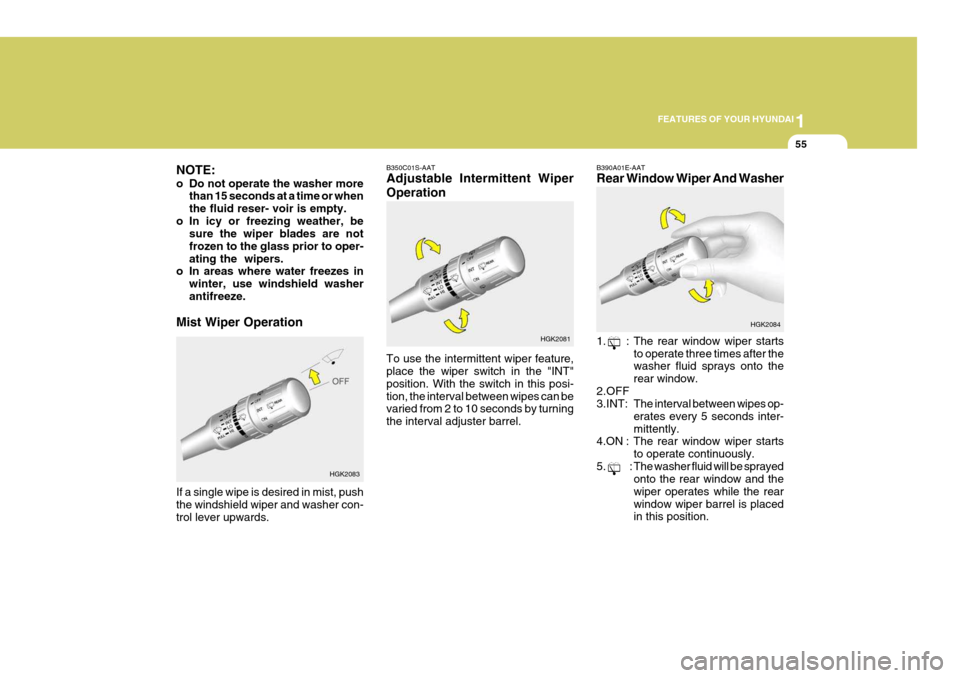

Mist Wiper Operation B350C01S-AAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi-tion, the interval between wipes can be varied from 2 to 10 seconds by turning the interval adjuster barrel.B390A01E-AAT Rear Window Wiper And Washer
1. : The rear window wiper starts
to operate three times after the washer fluid sprays onto the rear window.
2.OFF 3.INT: The interval between wipes op- erates every 5 seconds inter-mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed onto the rear window and thewiper operates while the rearwindow wiper barrel is placed in this position.
HGK2081
HGK2084
HGK2083
If a single wipe is desired in mist, push the windshield wiper and washer con-trol lever upwards.

1FEATURES OF YOUR HYUNDAI

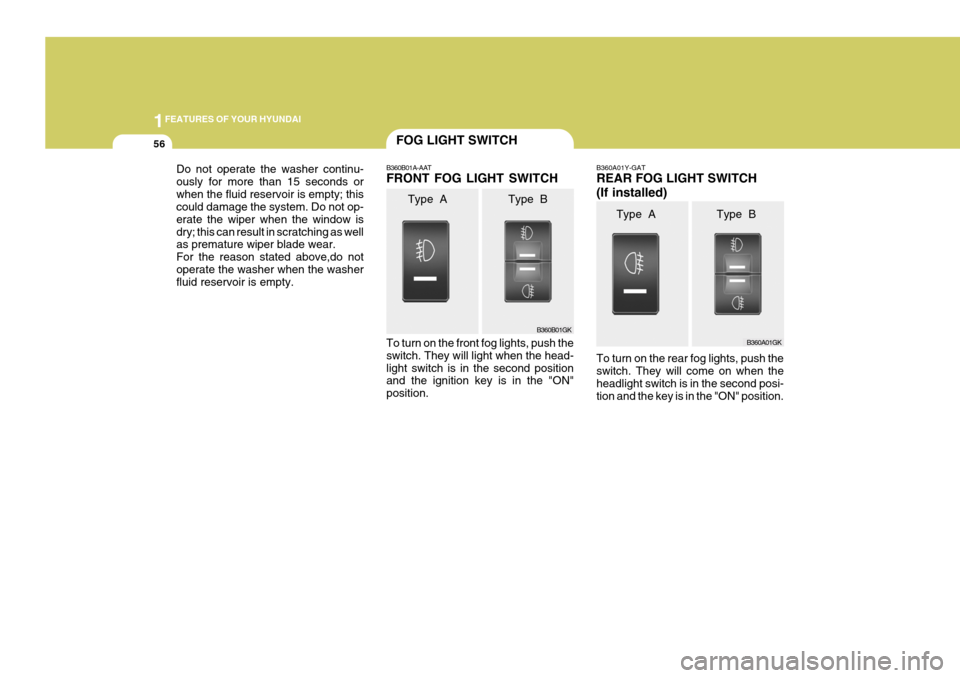

56FOG LIGHT SWITCH
B360B01GK
B360A01GK
B360B01A-AAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, push the switch. They will light when the head-light switch is in the second position and the ignition key is in the "ON" position. B360A01Y-GAT REAR FOG LIGHT SWITCH (If installed) To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position.
Do not operate the washer continu-ously for more than 15 seconds orwhen the fluid reservoir is empty; this could damage the system. Do not op- erate the wiper when the window isdry; this can result in scratching as well as premature wiper blade wear. For the reason stated above,do notoperate the washer when the washer fluid reservoir is empty.
Type A Type B
Type A Type B
