Hyundai Coupe 2006 Owner's Manual

6OWNER MAINTENANCE
14
!WARNING:
o Windscreen washer fluid agents contain some amounts of alcohol and can be flammable under cer- tain circumstances. Do not allow sparks or flame to contact thewasher fluid or the washer fluid reservoir. Damage to the vehicle or its occupants could occur.
o Windscreen washer fluid is poi- sonous to humans and animals.Do not drink windscreen washer fluid. Serious injury or death could occur.
AUTOMATIC TRANSAXLE FLUIDCHECKING THE TRANSAXLE OIL (MANUAL)
G100A01MC-EAT
Transaxle lubricant in the manual transaxle should be checked at those intervals specified in the vehicle main-tenance schedule in Section 5.
!WARNING:
It is always better to check the
transaxle oil level when the engine is cool or cold. If the engine is hot, you should exercise great caution to avoid burning yourself on hotengine or exhaust parts.
NOTE: It is recommended that the manual
transaxle fluid should be checked by a Hyundai authorised repairer. G110A01MC-EAT The automatic transaxle fluid level should be checked and changed at those intervals prescribed in the main-tenance schedule. It is of paramount importance that only the specified fluid is used when replenishing or changingthe fluid. The use of other fluids may irreparably damage the transaxle and invalidate the manufacturers warranty.In addition the ingress of dirt or lint may prevent correct functioning of the transaxle and care must be exercisedto prevent the ingress of such matter.
gkfluk-6.p65
12/26/2006, 5:24 PM
14

6
OWNER MAINTENANCE
15
!
NOTE: Automatic transaxle fluid is red in colour. As driving distance in-creases, the fluid colour turns dark- ish red gradually. It is a normal condition and you should not judgethe need to replace based upon the changing colour. You must replace the automatic transaxle fluid in accordance with intervals specified in the vehicle maintenances schedule in section 5.
WARNING:
The transaxle fluid level must bechecked with the engine running and at normal operating tempera- ture and therefore care must be ex-ercised to prevent injury occurring through contact with rotating or hot parts of the engine. G110D03L-GAT
Checking the automatic transaxle fluid level
The automatic transaxle fluid level
should be checked regularly.
Keep the vehicle on the level ground
with the parking brake applied and check the fluid level according to the following procedure.
1. Place the selector lever in N (Neu- tral) position and confirm the engine is running at normal idle speed.
2. After the transaxle is warmed up sufficiently (fluid temperature70~80°C (158~176°F)), for example by 10 minutes usual driving, shiftthe selector lever through all posi- tions then place the selector lever in N (Neutral) or P (Park) position.
HGK5007
1.6L/2.0L
2.7L
HGK5008
Fluid level should be within "HOT" range
3. Confirm that the fluid level is in “HOT” range on the level gauge. If the fluid level is lower, add the specified fluid from the fill hole. If the fluid level is higher, drain thefluid from the drain hole.
4. If the fluid level is checked in cold condition (fluid temperature 20~30°C(68~86°F)) add the fluid to “COLD” line and then recheck the fluid level according to the above step 2.
gkfluk-6.p65 12/26/2006, 5:24 PM
15

6OWNER MAINTENANCE
16
HGK5012
SG120D1-E
Brake Fluid Level
!
SG120A1-E BRAKE SYSTEM CHECK- ING
CAUTION:
Correct operation of the braking
system is essential to the safe operation of the vehicle and there- fore, any maintenance operationsother than those listed below should be entrusted to a Hyundai authorised repairer.
!WARNING:
The electric engine cooling fan au-
tomatically switches on and off ac- cording to engine temperature. Be careful to keep away from the fan during this check as it may switchon at any time.
NOTE: Only lint free cloth should be used for wiping the dipstick. The pres- ence of lint within the transaxle may cause problems with the nor- mal function of the transaxle. The fluid level in the brake fluid reser-
voir should be checked periodically. The level should be between the "MIN" and "MAX" marks on the side of the reservoir. If the level is at or belowthe "MIN" mark, fluid should be added having carefully cleaned the area sur- rounding the reservoir cap to ensurethat dirt is not allowed to enter the system. It should be noted will de- crease slightly as the friction linings ofthe pads and shoes become worn and that this is a normal condition.
gkfluk-6.p65 12/26/2006, 5:24 PM
16

6
OWNER MAINTENANCE
17
HGK5013-E
CHECKING THE CLUTCH FLUID
SG130A1-C
(Manual Transaxle)To Check the Clutch Fluid
The clutch fluid level in the master cylinder should be checked when performing other under bonnet checks. The system should be checked forleakage at the same time.Ensure that the clutch fluid level isalways between the "MAX" and "MIN" level markings on the fluid reservoir. Fill as required. Fluid loss indicates aleak in the clutch system which should be inspected and repaired immedi- ately.
WARNING:
Brake fluid is hygroscopic and should never be stored in an un- sealed container. The presence ofwater in the braking system will cause vapour locks and increase the possibility of brake fade alongwith promoting corrosion within the braking system. The brake fluid must be changed at the specifiedtime or mileage interval to ensure continued safe operation of the system. Brake fluid will cause rapidand serious damage to paintwork. If accidental spillage occurs, the affected area must be rinsed withwater immediately. Do not allow brake fluid to come into contact with the eyes or to be ingestedand ensure that fluid is safely stored away form the reach of chil- dren.
!
SG140A1-E Condenser Ensure that the condenser is periodi- cally inspected and that accumula- tions of dirt, dead insects and leaves etc, are removed to ensure that theefficiency of the system is not im- paired. Care must be exercised to ensure that the condenser fins arenot damaged during cleaning. AIR CONDITIONING SYSTEM MAINTENANCE
gkfluk-6.p65
12/26/2006, 5:24 PM
17

6OWNER MAINTENANCE
18
SG140D1-E
Off Season Maintenance
The air conditioning must be run for
ten minutes or so weekly during peri- ods when the system would not nor- mally be used to ensure that thecompressor and seals are lubricated. If this precaution is not observed the compressor seals may become stuckto the compressor shaft and dam- aged when the system is next used resulting in a loss of refrigerant anddamage to the compressor.
!
SG140C2-E
Checking the Refrigerant
1. Start the engine and run at idle for
several minutes with the refrigera- tion system running at the coldest setting.
2. If the air coming out of the in-dash vents is not cold, have the air con-ditioning system inspected by your Hyundai authorised repairer.
CAUTION:
Running the air conditioning sys-tem for extended periods of time with a low refrigerant level maydamage the compressor.

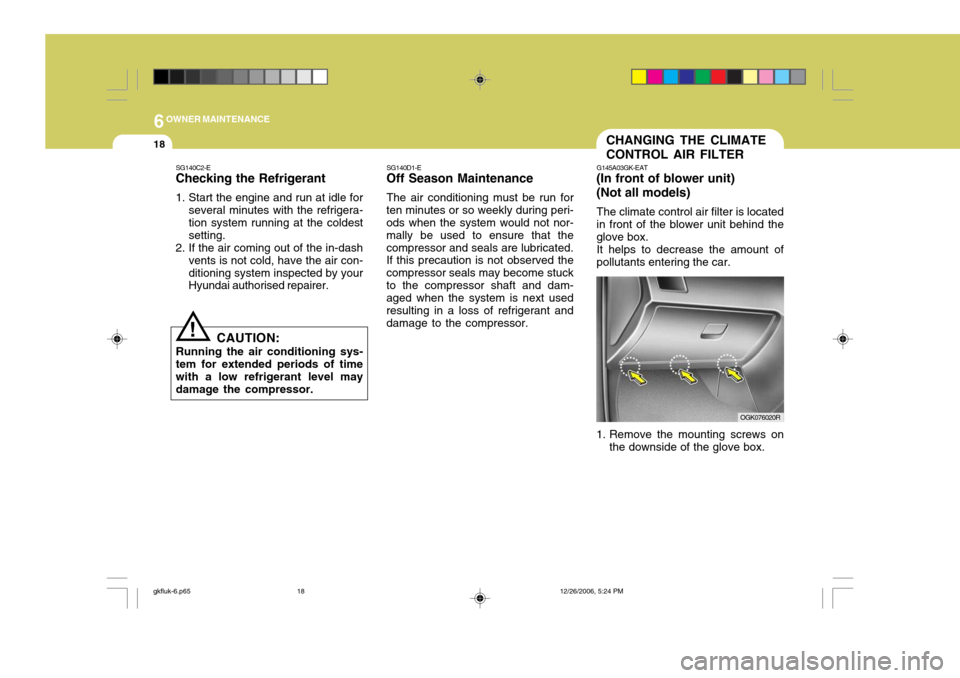

CHANGING THE CLIMATE CONTROL AIR FILTER
G145A03GK-EAT
(In front of blower unit)(Not all models)
The climate control air filter is located in front of the blower unit behind the glove box. It helps to decrease the amount of pollutants entering the car.
1. Remove the mounting screws on the downside of the glove box. OGK076020R
gkfluk-6.p65
12/26/2006, 5:24 PM
18

6
OWNER MAINTENANCE
19
!

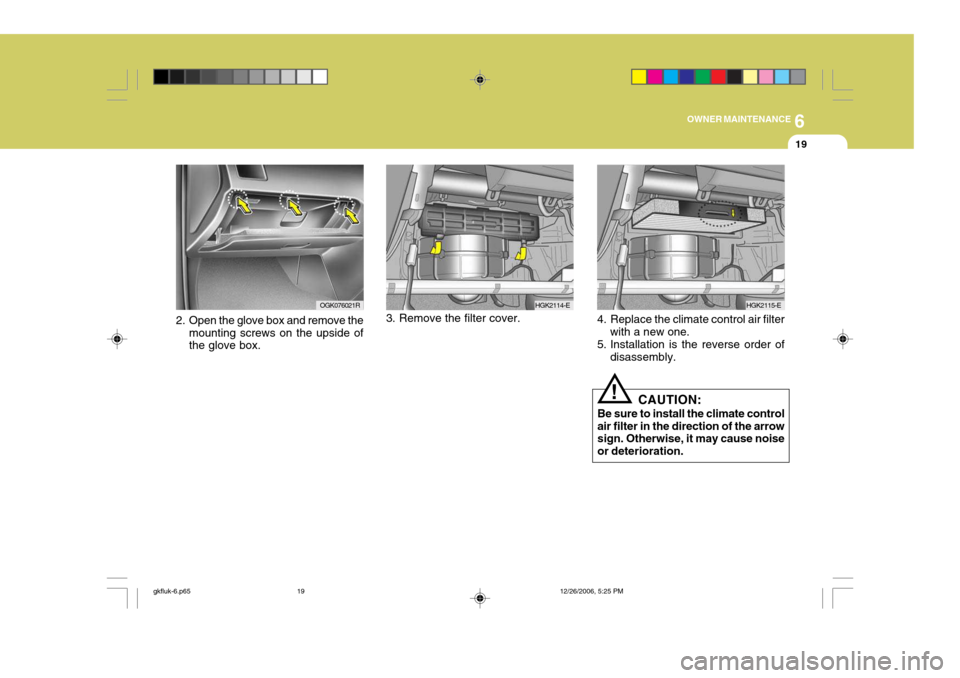

2. Open the glove box and remove the
mounting screws on the upside of the glove box. 4. Replace the climate control air filter
with a new one.
5. Installation is the reverse order of disassembly.
CAUTION:
Be sure to install the climate control air filter in the direction of the arrow sign. Otherwise, it may cause noise or deterioration.
OGK076021RHGK2114-EHGK2115-E
3. Remove the filter cover.
gkfluk-6.p65 12/26/2006, 5:25 PM
19

6OWNER MAINTENANCE
20
!
G200A01E

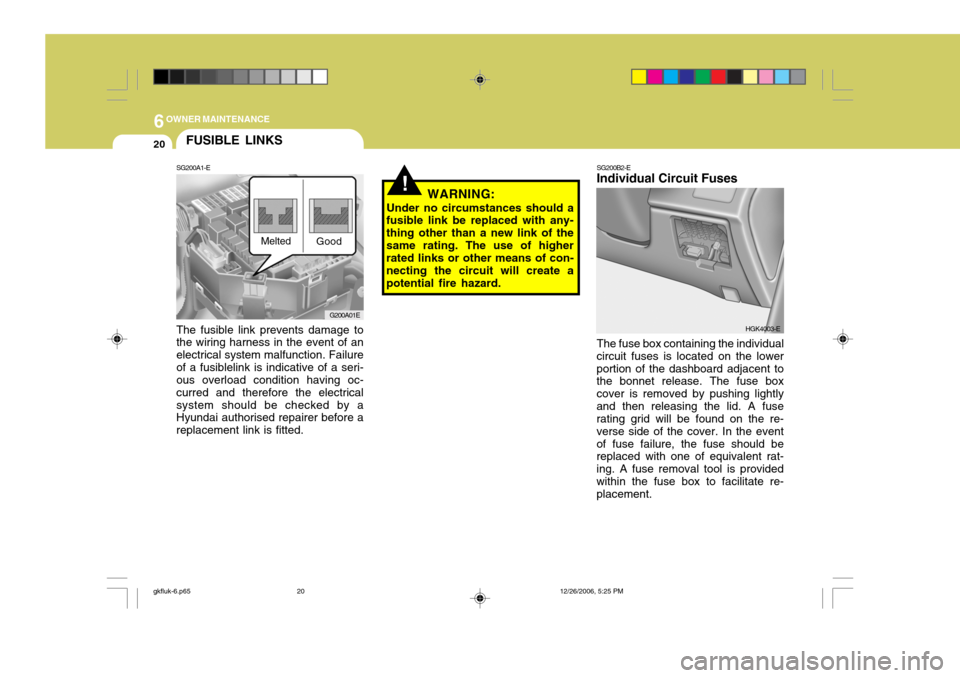

FUSIBLE LINKS
SG200A1-E The fusible link prevents damage to the wiring harness in the event of an electrical system malfunction. Failureof a fusiblelink is indicative of a seri- ous overload condition having oc- curred and therefore the electricalsystem should be checked by a Hyundai authorised repairer before a replacement link is fitted. WARNING:
Under no circumstances should a
fusible link be replaced with any-thing other than a new link of thesame rating. The use of higher rated links or other means of con- necting the circuit will create apotential fire hazard.
Melted SG200B2-E
Individual Circuit Fuses
The fuse box containing the individual
circuit fuses is located on the lowerportion of the dashboard adjacent to the bonnet release. The fuse box cover is removed by pushing lightlyand then releasing the lid. A fuse rating grid will be found on the re- verse side of the cover. In the eventof fuse failure, the fuse should be replaced with one of equivalent rat- ing. A fuse removal tool is providedwithin the fuse box to facilitate re- placement.
Good
HGK4003-E
gkfluk-6.p6512/26/2006, 5:25 PM
20

6
OWNER MAINTENANCE
21
!

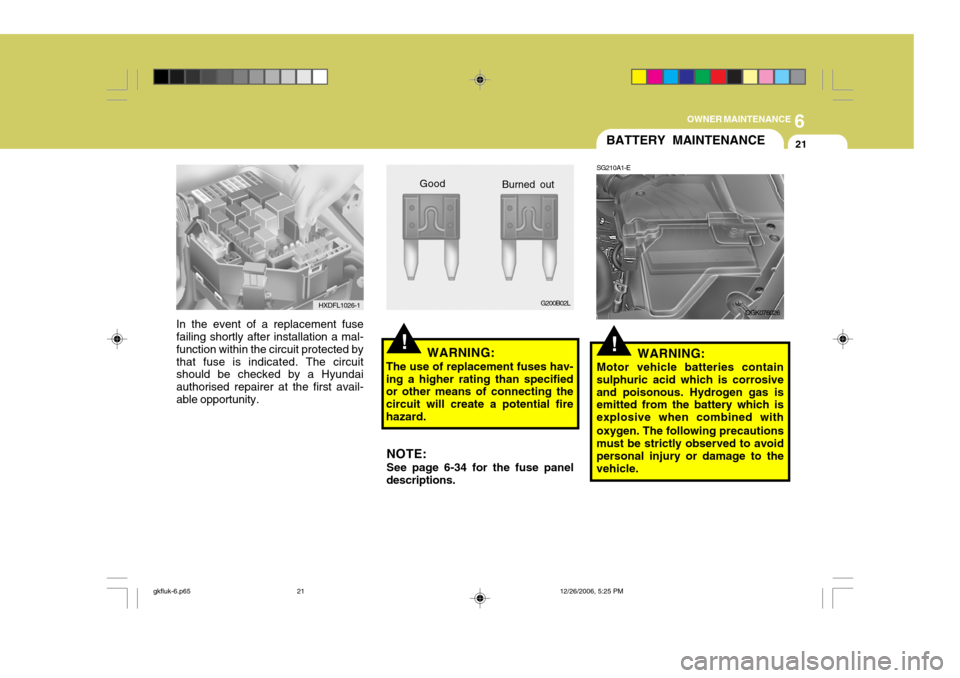

In the event of a replacement fuse failing shortly after installation a mal- function within the circuit protected bythat fuse is indicated. The circuit should be checked by a Hyundai authorised repairer at the first avail-able opportunity. WARNING:
The use of replacement fuses hav-ing a higher rating than specified or other means of connecting the circuit will create a potential firehazard. Good
HXDFL1026-1
G200B02L
Burned out
NOTE: See page 6-34 for the fuse panel
descriptions.
!

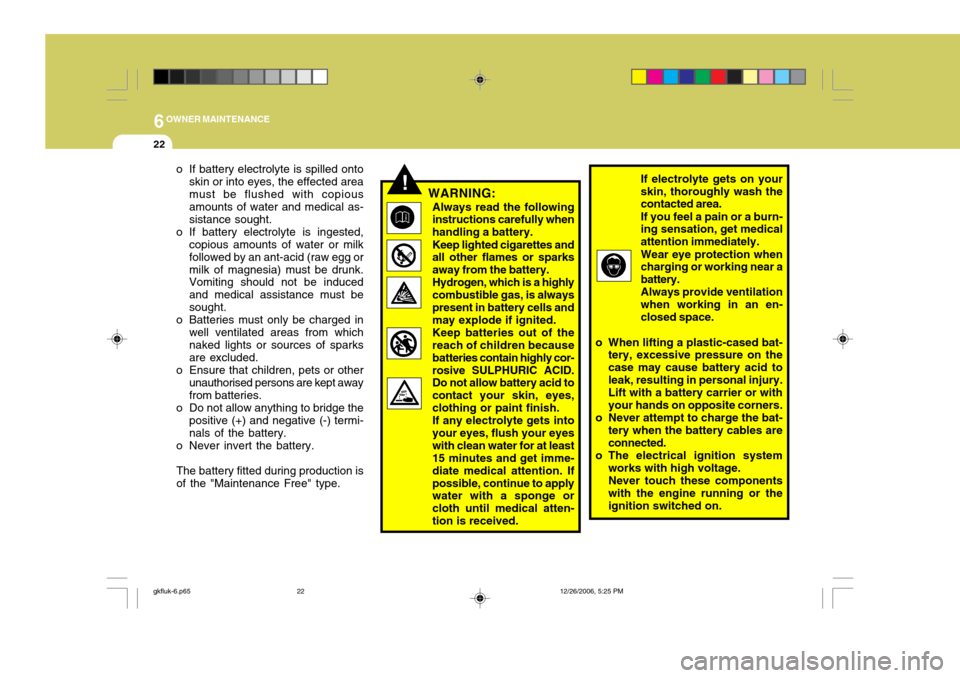

BATTERY MAINTENANCE
SG210A1-E
WARNING:
Motor vehicle batteries contain sulphuric acid which is corrosiveand poisonous. Hydrogen gas is emitted from the battery which is explosive when combined with oxygen. The following precautions must be strictly observed to avoid personal injury or damage to the vehicle. OGK076026
gkfluk-6.p65
12/26/2006, 5:25 PM
21

6OWNER MAINTENANCE
22
o If battery electrolyte is spilled ontoskin or into eyes, the effected area must be flushed with copious amounts of water and medical as- sistance sought.
o If battery electrolyte is ingested, copious amounts of water or milkfollowed by an ant-acid (raw egg ormilk of magnesia) must be drunk. Vomiting should not be induced and medical assistance must besought.
o Batteries must only be charged in well ventilated areas from which naked lights or sources of sparks are excluded.
o Ensure that children, pets or other unauthorised persons are kept awayfrom batteries.
o Do not allow anything to bridge the
positive (+) and negative (-) termi-nals of the battery.
o Never invert the battery.
The battery fitted during production isof the "Maintenance Free" type.
If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or a burn- ing sensation, get medical attention immediately. Wear eye protection when charging or working near a battery.Always provide ventilationwhen working in an en-closed space.
o When lifting a plastic-cased bat- tery, excessive pressure on thecase may cause battery acid toleak, resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners.
o Never attempt to charge the bat- tery when the battery cables areconnected.
o The electrical ignition system works with high voltage.Never touch these componentswith the engine running or theignition switched on.!WARNING:
Always read the following instructions carefully when handling a battery. Keep lighted cigarettes and all other flames or sparks away from the battery.Hydrogen, which is a highlycombustible gas, is alwayspresent in battery cells and may explode if ignited. Keep batteries out of the reach of children because
batteries contain highly cor-rosive SULPHURIC ACID. Do not allow battery acid to
contact your skin, eyes,
clothing or paint finish.If any electrolyte gets intoyour eyes, flush your eyeswith clean water for at least 15 minutes and get imme- diate medical attention. Ifpossible, continue to apply water with a sponge or cloth until medical atten-tion is received.
gkfluk-6.p65 12/26/2006, 5:25 PM
22

6
OWNER MAINTENANCE

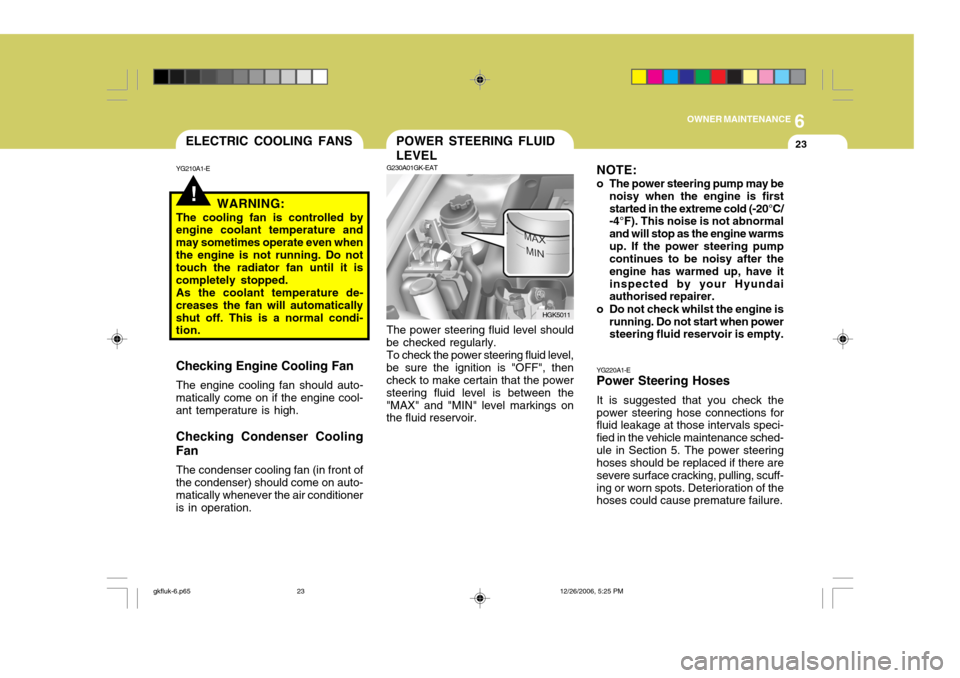

23POWER STEERING FLUID LEVELELECTRIC COOLING FANS
!
YG210A1-E
WARNING:
The cooling fan is controlled by
engine coolant temperature and may sometimes operate even whenthe engine is not running. Do not touch the radiator fan until it is completely stopped.
As the coolant temperature de-
creases the fan will automaticallyshut off. This is a normal condi- tion. Checking Engine Cooling Fan
The engine cooling fan should auto-
matically come on if the engine cool- ant temperature is high. Checking Condenser Cooling Fan
The condenser cooling fan (in front of
the condenser) should come on auto- matically whenever the air conditioneris in operation. YG220A1-E Power Steering Hoses It is suggested that you check the power steering hose connections for fluid leakage at those intervals speci- fied in the vehicle maintenance sched-ule in Section 5. The power steering hoses should be replaced if there are severe surface cracking, pulling, scuff-ing or worn spots. Deterioration of the hoses could cause premature failure.
HGK5011
G230A01GK-EAT The power steering fluid level should
be checked regularly.
To check the power steering fluid level,
be sure the ignition is "OFF", then check to make certain that the power steering fluid level is between the"MAX" and "MIN" level markings on the fluid reservoir. NOTE:
o The power steering pump may be
noisy when the engine is first started in the extreme cold (-20°C/ -4°F). This noise is not abnormal and will stop as the engine warmsup. If the power steering pump continues to be noisy after the engine has warmed up, have itinspected by your Hyundai authorised repairer.
o Do not check whilst the engine is running. Do not start when powersteering fluid reservoir is empty.
