Hyundai Coupe 2006 Owner's Manual

6OWNER MAINTENANCE
24
G290B01GK-EAT
Adjustment After Headlight As- sembly Replacement
If the vehicle has had front body repair and the headlight assembly has been replaced, the headlight aiming should be checked using an aiming screen asshown in the illustration. Turn on the headlight switch.
1. Adjust headlights so that main axis of light is parallel to centre line of the body and is aligned with point"P" shown in the illustration.
2. Dotted lines in the illustration show centre of headlights.
1. Keep all tyres inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper & rearbumper down several times. Placevehicle at a distance of 118.1 in. (3m) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tyre,jack, and tools).
4. Clean the head lights lens and turn
on the headlight.
5. Open the bonnet.
6. Draw the vertical line (through the centre of each headlight beam pat- tern) and the horizontal line (through the centre of each headlight beampattern) on the aiming screen.And then, draw a parallel line at1.18 in. (30 mm) under the hori- zontal line.
7. Adjust each cut-off line of the low beam to the parallel line with aphillips screwdriver - VERTICAL AIMING.
8. Adjust each cut-off line of the low
beam to the each vertical line witha phillips screwdriver - HORIZON- TAL AIMING. L
G290B01JM-D
W
H
H Cut-off line"P"
Vertical lineHorizontal line
Ground line
1.18 in.
G290A02GK-EAT

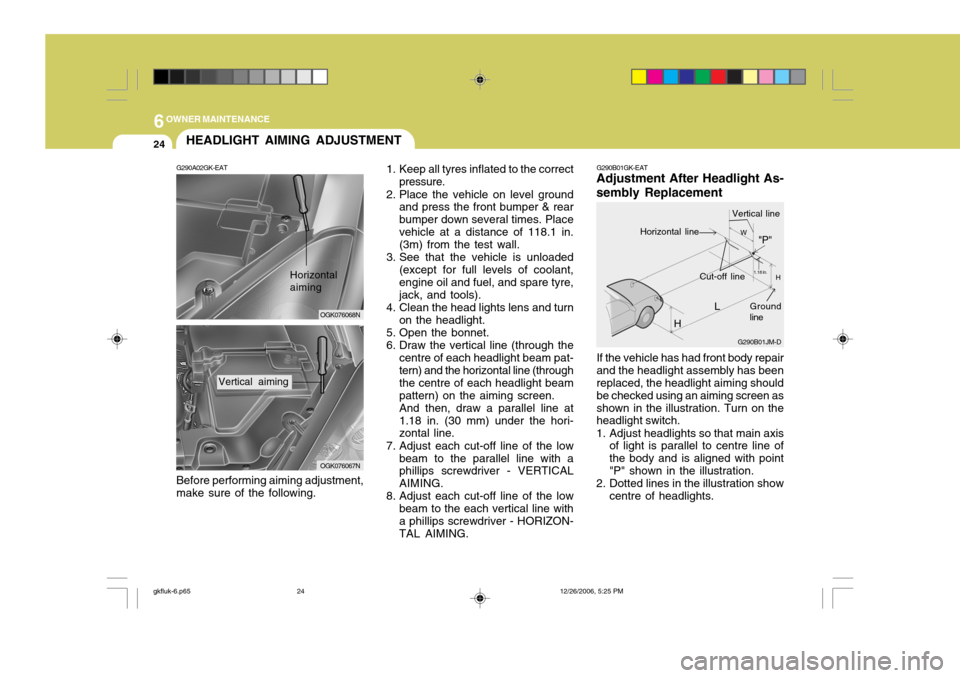

HEADLIGHT AIMING ADJUSTMENT
Before performing aiming adjustment, make sure of the following.
OGK076068N
OGK076067N
Horizontal aiming
Vertical aiming
gkfluk-6.p65 12/26/2006, 5:25 PM
24

6
OWNER MAINTENANCE
25

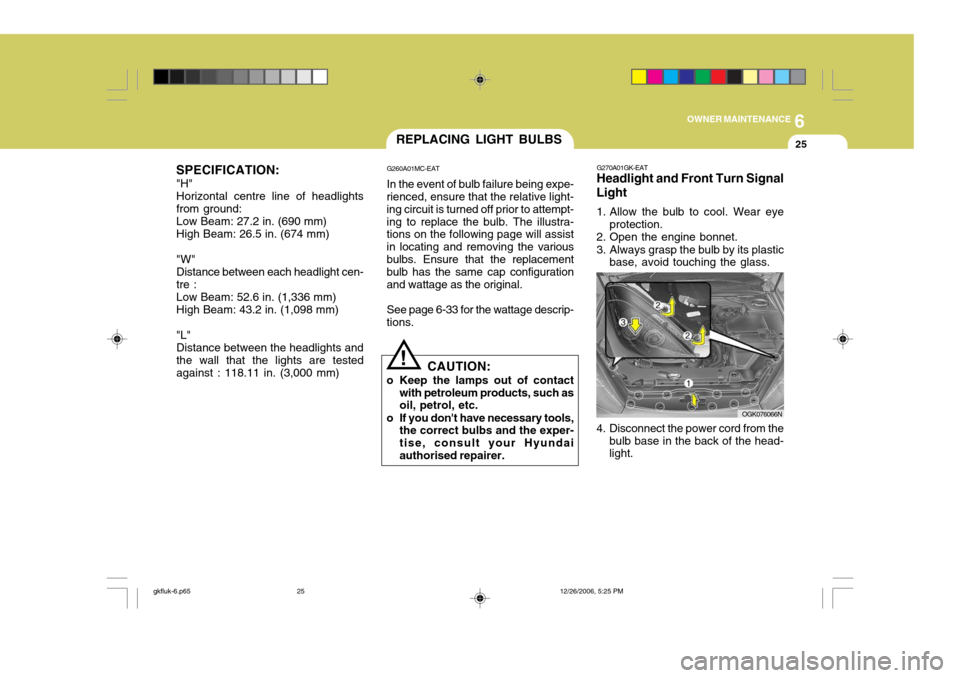

SPECIFICATION: "H" Horizontal centre line of headlights from ground: Low Beam: 27.2 in. (690 mm) High Beam: 26.5 in. (674 mm) "W" Distance between each headlight cen- tre : Low Beam: 52.6 in. (1,336 mm) High Beam: 43.2 in. (1,098 mm) "L" Distance between the headlights and the wall that the lights are tested against : 118.11 in. (3,000 mm)REPLACING LIGHT BULBS
G260A01MC-EAT In the event of bulb failure being expe-
rienced, ensure that the relative light- ing circuit is turned off prior to attempt-ing to replace the bulb. The illustra- tions on the following page will assist in locating and removing the various
bulbs. Ensure that the replacement bulb has the same cap configuration and wattage as the original.
See page 6-33 for the wattage descrip-
tions.
CAUTION:
o Keep the lamps out of contact with petroleum products, such as oil, petrol, etc.
o If you don't have necessary tools, the correct bulbs and the exper- tise, consult your Hyundaiauthorised repairer.
!
G270A01GK-EAT
Headlight and Front Turn Signal Light
1. Allow the bulb to cool. Wear eye
protection.
2. Open the engine bonnet.
3. Always grasp the bulb by its plastic base, avoid touching the glass.
4. Disconnect the power cord from the
bulb base in the back of the head- light. OGK076066N
gkfluk-6.p65
12/26/2006, 5:25 PM
25

6OWNER MAINTENANCE
26

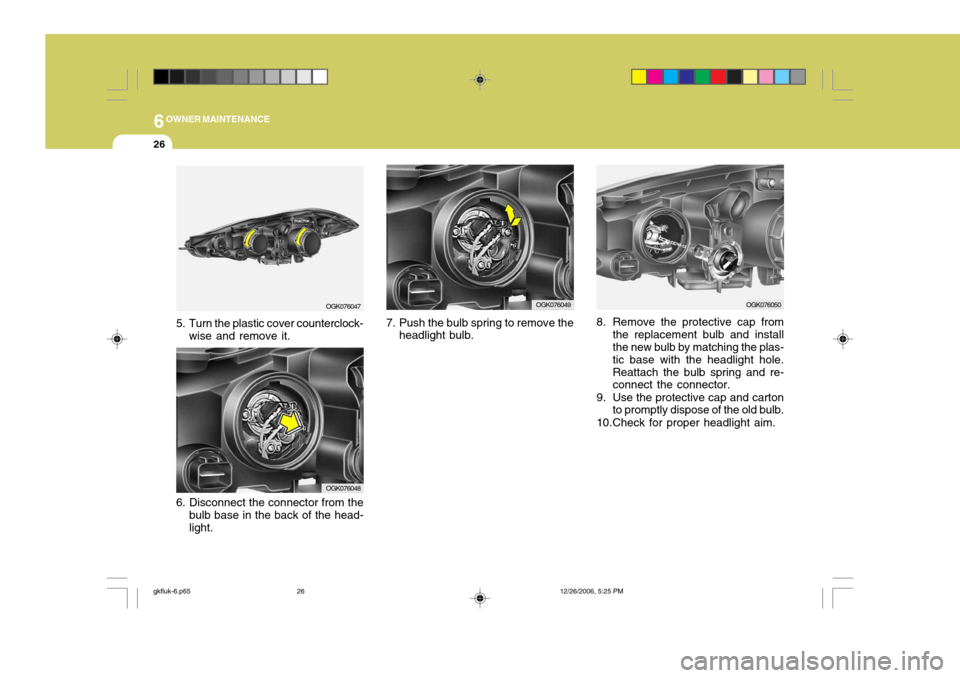

8. Remove the protective cap from
the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Reattach the bulb spring and re- connect the connector.
9. Use the protective cap and carton to promptly dispose of the old bulb.
10.Check for proper headlight aim.
7. Push the bulb spring to remove the
headlight bulb.
OGK076050OGK076049
OGK076048
OGK076047
5. Turn the plastic cover counterclock- wise and remove it.
6. Disconnect the connector from the bulb base in the back of the head- light.
gkfluk-6.p65 12/26/2006, 5:25 PM
26

6
OWNER MAINTENANCE
27

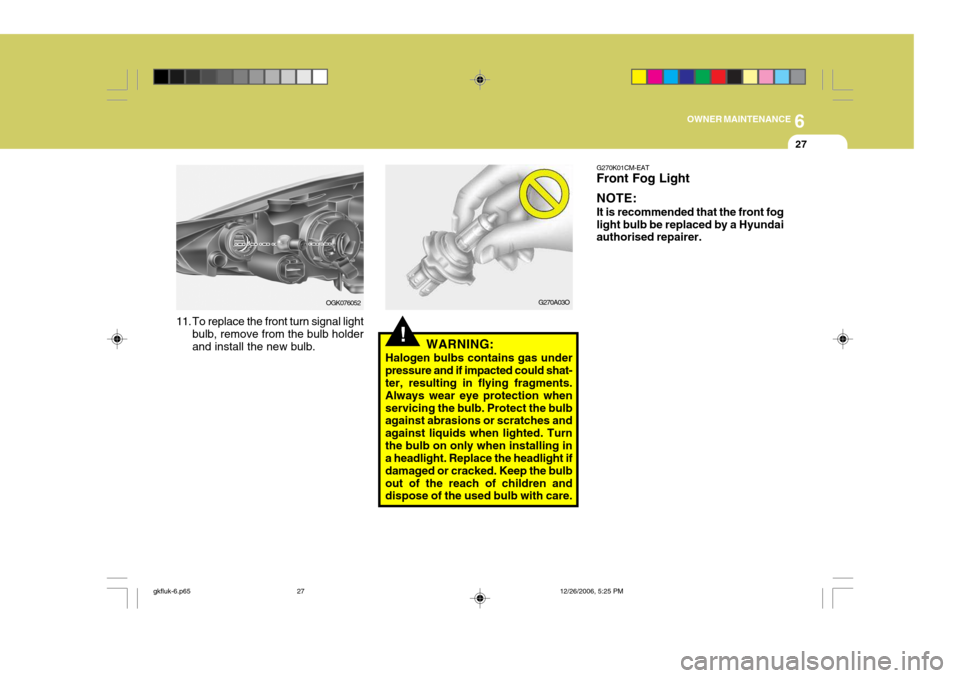

!WARNING:
Halogen bulbs contains gas under pressure and if impacted could shat- ter, resulting in flying fragments. Always wear eye protection whenservicing the bulb. Protect the bulb against abrasions or scratches and against liquids when lighted. Turnthe bulb on only when installing in a headlight. Replace the headlight if damaged or cracked. Keep the bulbout of the reach of children and dispose of the used bulb with care.
11. To replace the front turn signal light
bulb, remove from the bulb holderand install the new bulb. OGK076052
G270A03OG270K01CM-EAT Front Fog Light NOTE: It is recommended that the front fog light bulb be replaced by a Hyundai authorised repairer.
gkfluk-6.p65
12/26/2006, 5:25 PM
27

6OWNER MAINTENANCE
28

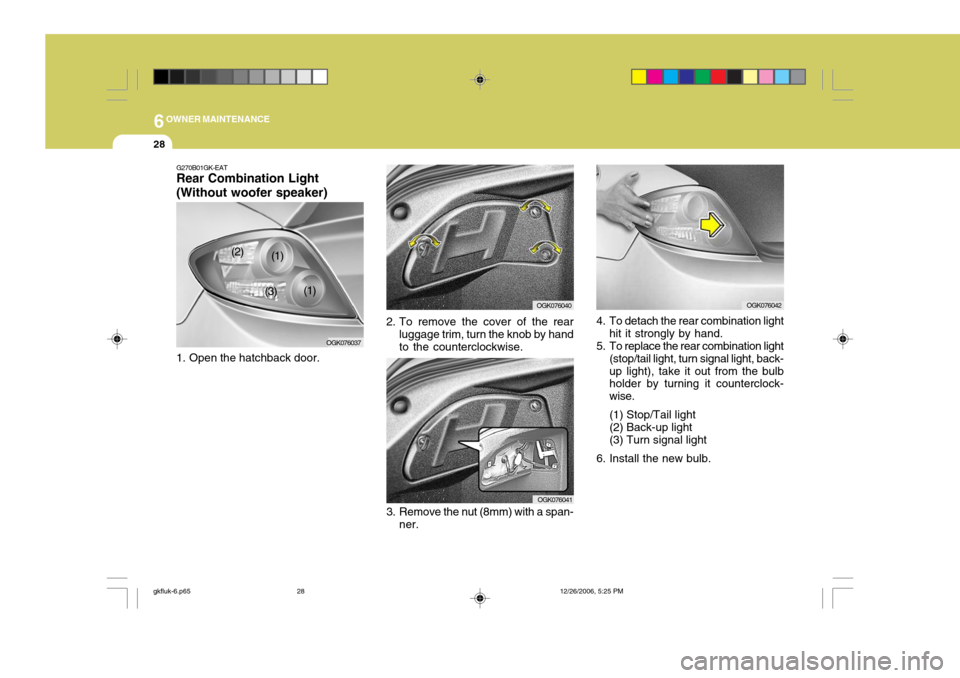

G270B01GK-EAT Rear Combination Light (Without woofer speaker)
1. Open the hatchback door.
3. Remove the nut (8mm) with a span-ner. OGK0760414. To detach the rear combination light
hit it strongly by hand.
5. To replace the rear combination light (stop/tail light, turn signal light, back- up light), take it out from the bulb holder by turning it counterclock- wise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
6. Install the new bulb. OGK076042
OGK076040
2. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
OGK076037
(1)
(2)
(3) (1)
gkfluk-6.p65
12/26/2006, 5:25 PM
28

6
OWNER MAINTENANCE
29
1. Open the hatchback door. OGK076039
3. Extract the mounting screws (10mm) around the woofer speaker with a spanner.
4. Disconnect the power cord from the woofer speaker.
HGK5038
G275B01GK-EAT
Rear Combination Light (With woofer speaker)
2. Take off the luggage board.
OGK076037
(1)
(2)
(3) (1)
OGK076040
5. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
OGK076041
6. Remove the nut (8mm) with a wrench.
gkfluk-6.p65 12/26/2006, 5:25 PM
29

6OWNER MAINTENANCE
30
OGK076042

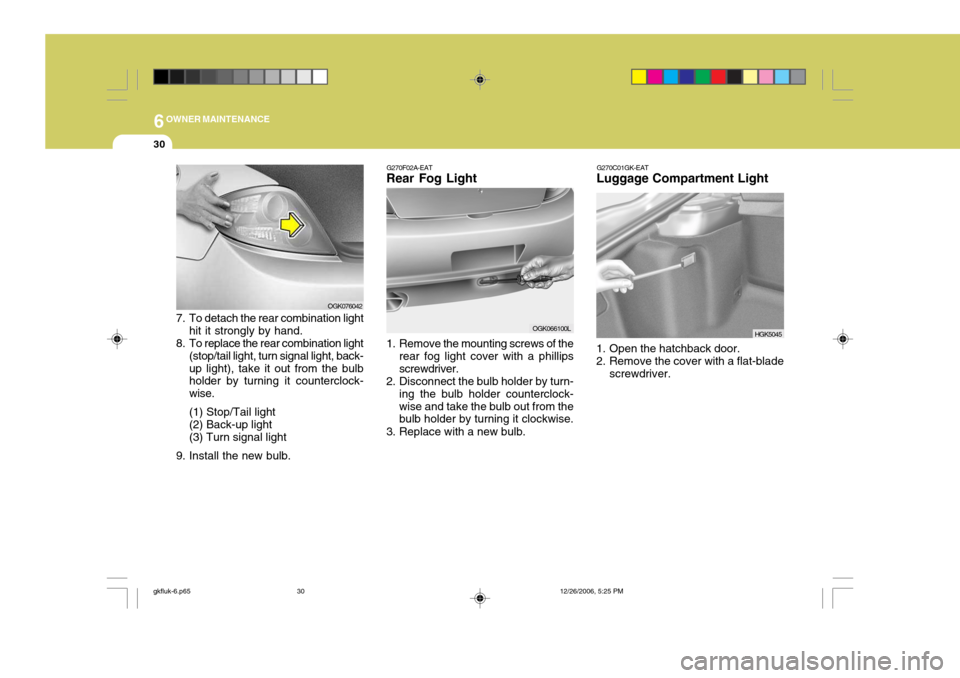

7. To detach the rear combination light hit it strongly by hand.
8. To replace the rear combination light (stop/tail light, turn signal light, back- up light), take it out from the bulb holder by turning it counterclock- wise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
9. Install the new bulb.
G270C01GK-EAT
Luggage Compartment Light
1. Open the hatchback door.
2. Remove the cover with a flat-blade screwdriver.
HGK50451. Remove the mounting screws of the
rear fog light cover with a phillips screwdriver.
2. Disconnect the bulb holder by turn-
ing the bulb holder counterclock-wise and take the bulb out from the bulb holder by turning it clockwise.
3. Replace with a new bulb. G270F02A-EAT
Rear Fog Light
OGK066100L
gkfluk-6.p65 12/26/2006, 5:25 PM
30

6
OWNER MAINTENANCE
31
G270G01GK-AAT

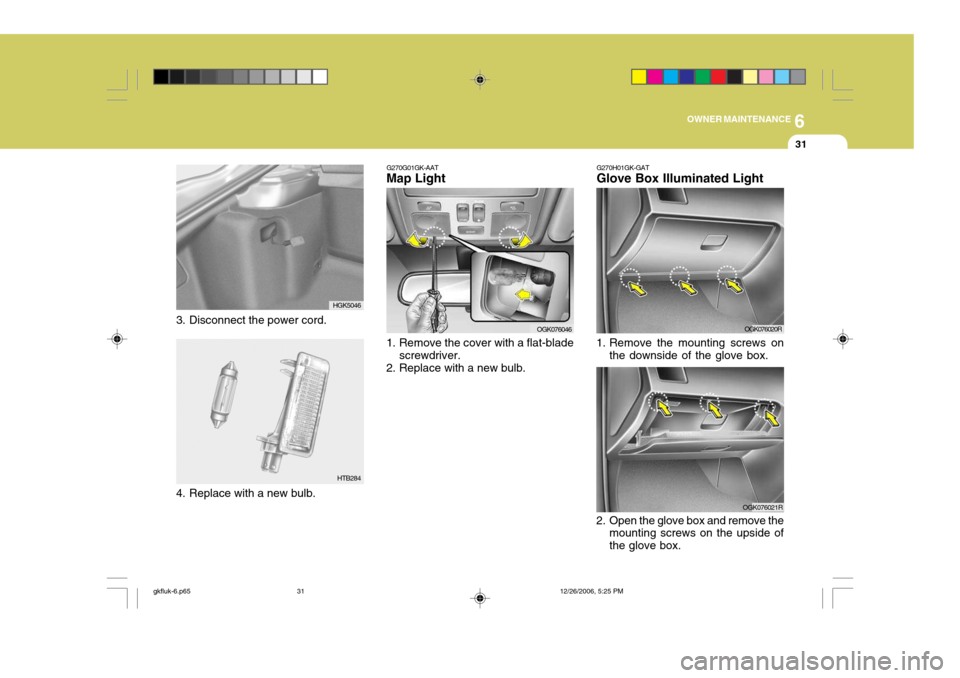

Map Light
1. Remove the cover with a flat-blade
screwdriver.
2. Replace with a new bulb.
OGK076046
OGK076021R
2. Open the glove box and remove the mounting screws on the upside of the glove box.
G270H01GK-GAT Glove Box Illuminated Light
1. Remove the mounting screws on the downside of the glove box. OGK076020R
HTB284
3. Disconnect the power cord.
HGK5046
4. Replace with a new bulb.
gkfluk-6.p65 12/26/2006, 5:25 PM
31

6OWNER MAINTENANCE
32

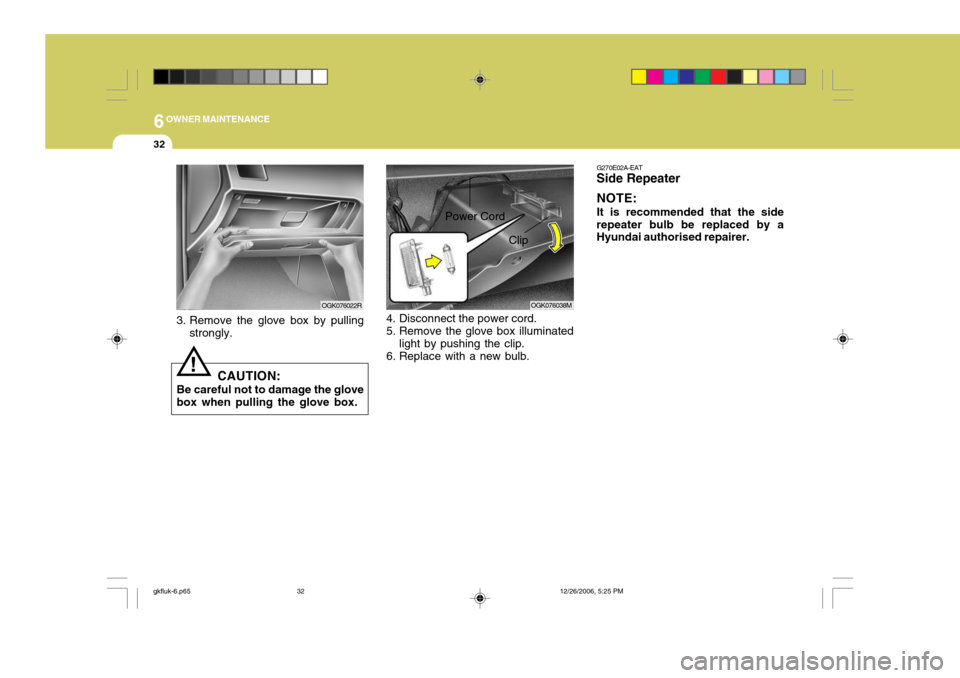

3. Remove the glove box by pulling
strongly.
CAUTION:
Be careful not to damage the glove box when pulling the glove box.
!
OGK076022ROGK076038M
Clip
Power Cord
4. Disconnect the power cord.
5. Remove the glove box illuminated light by pushing the clip.
6. Replace with a new bulb. G270E02A-EAT
Side Repeater
NOTE: It is recommended that the side
repeater bulb be replaced by a Hyundai authorised repairer.
gkfluk-6.p65 12/26/2006, 5:25 PM
32

6
OWNER MAINTENANCE

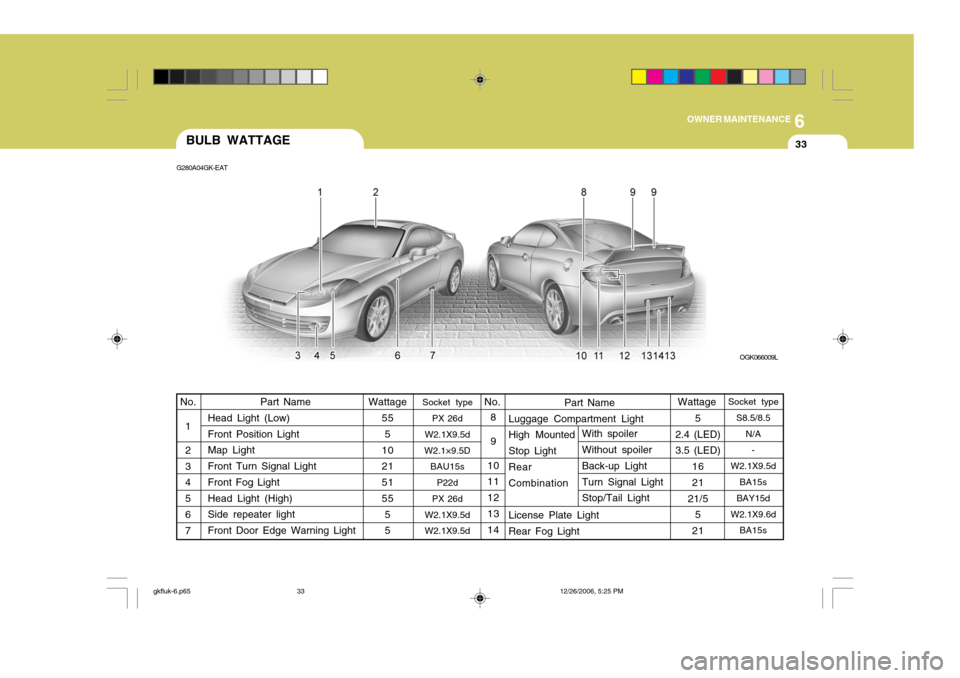

33BULB WATTAGE
G280A04GK-EAT
OGK066009L
Part Name
Luggage Compartment Light High Mounted Stop Light Rear Combination License Plate Light Rear Fog Light With spoiler Without spoiler Back-up Light Turn Signal Light Stop/Tail Light
8 9
10 11 12 13 14
Part Name
Head Light (Low)Front Position Light Map Light Front Turn Signal Light Front Fog Light Head Light (High) Side repeater light Front Door Edge Warning Light Socket type
PX 26d
W2.1X9.5d
W2.1×9.5D BAU15s
P22d
PX 26d
W2.1X9.5d W2.1X9.5d Wattage
No.No.
1 2 3 4 5 6 7Wattage 555
10 21 51 55 55
5
2.4 (LED) 3.5 (LED) 1621
21/5 5
21 Socket type
S8.5/8.5 N/A
-
W2.1X9.5d
BA15s
BAY15d
W2.1X9.6d BA15s
gkfluk-6.p65 12/26/2006, 5:25 PM
