CONTROLS AND EQUIPMENT
53

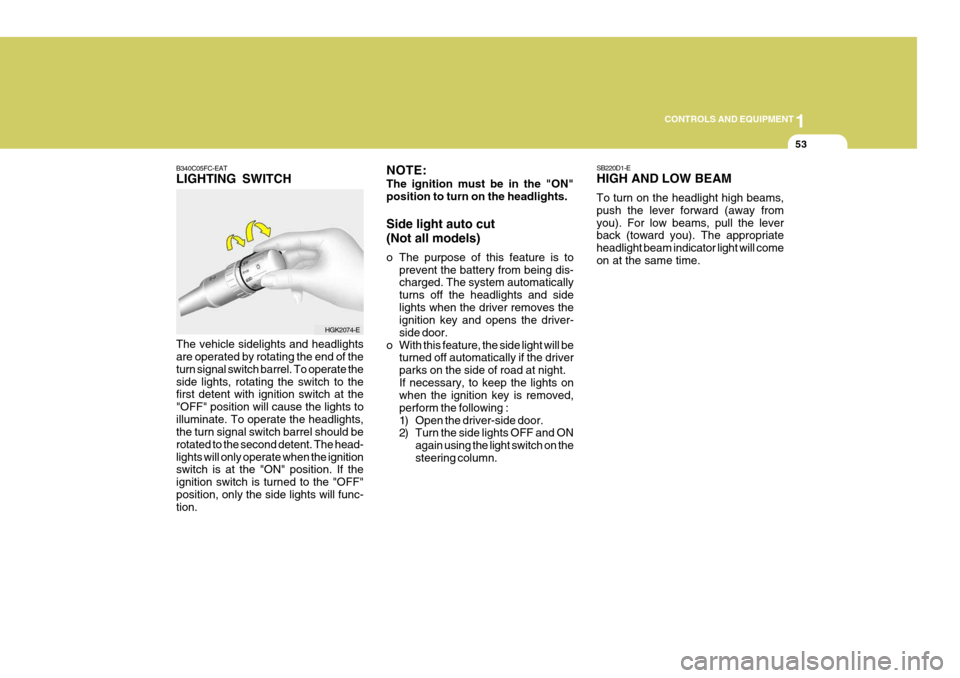

B340C05FC-EAT LIGHTING SWITCH The vehicle sidelights and headlights are operated by rotating the end of the turn signal switch barrel. To operate theside lights, rotating the switch to the first detent with ignition switch at the "OFF" position will cause the lights toilluminate. To operate the headlights, the turn signal switch barrel should be rotated to the second detent. The head-lights will only operate when the ignition switch is at the "ON" position. If the ignition switch is turned to the "OFF"position, only the side lights will func- tion.
HGK2074-E SB220D1-E HIGH AND LOW BEAM To turn on the headlight high beams, push the lever forward (away fromyou). For low beams, pull the lever back (toward you). The appropriate headlight beam indicator light will comeon at the same time.
NOTE: The ignition must be in the "ON" position to turn on the headlights. Side light auto cut (Not all models)
o The purpose of this feature is to
prevent the battery from being dis- charged. The system automatically turns off the headlights and sidelights when the driver removes the ignition key and opens the driver- side door.
o With this feature, the side light will be turned off automatically if the driverparks on the side of road at night.If necessary, to keep the lights on when the ignition key is removed, perform the following :
1) Open the driver-side door.
2) Turn the side lights OFF and ON
again using the light switch on the steering column.

1CONTROLS AND EQUIPMENT
54
B340G01LZ-EAT Auto Light (Not all models) To operate the automatic light feature, turn the barrel on the end of the multi- function switch. If you set the multi-function switch to "AUTO", the side lights and headlights will be turned au- tomatically on or off according to exter-nal illumination. NOTE: Switch on car light manually in foggy, cloudy and rainy conditions. OGK026223R
NOTE:
o Never place anything over sen-
sor located on the instrument panel, this will ensure better auto light system control.
o Don't clean the sensor using a window cleaner.
o If your vehicle has window tint or other types of coating on the front windscreen, the AUTO light system may not work properly. OGK026223CR
Auto Light Sensor
SB220E1-E Headlight Flasher The headlight may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlight willbe extinguished when the switch is released.
HGK2077-E

1
CONTROLS AND EQUIPMENT

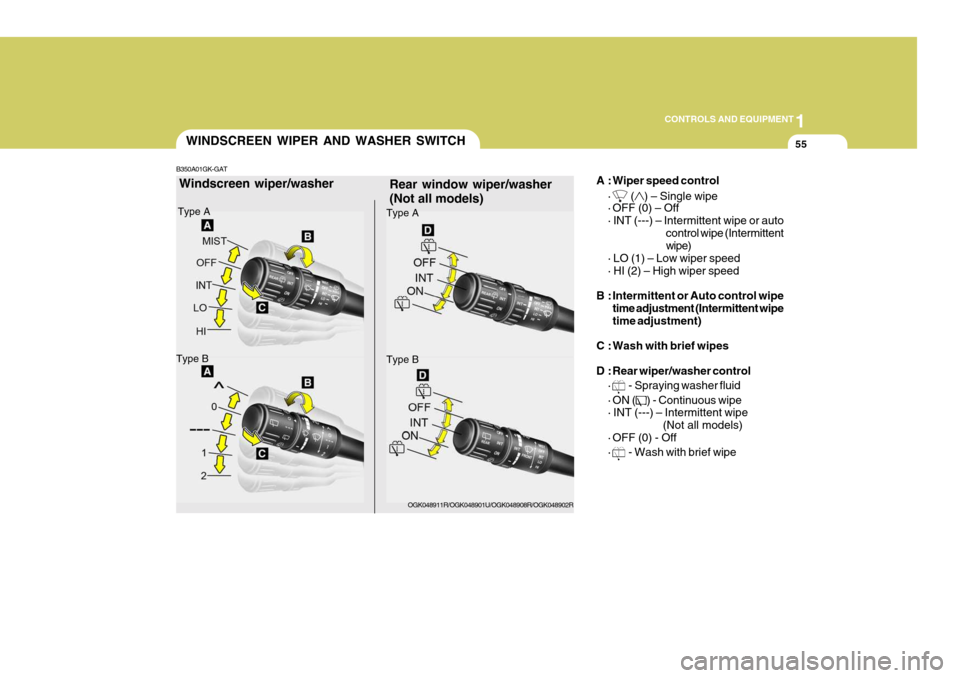

55WINDSCREEN WIPER AND WASHER SWITCH
Rear window wiper/washer (Not all models) A : Wiper speed control
·
() – Single wipe
· OFF (0) – Off · INT (---) – Intermittent wipe or auto
control wipe (Intermittent wipe)
· LO (1) – Low wiper speed · HI (2) – High wiper speed
B : Intermittent or Auto control wipe time adjustment (Intermittent wipe time adjustment)
C : Wash with brief wipes
D : Rear wiper/washer control ·
- Spraying washer fluid
· ON (
) - Continuous wipe
· INT (---) – Intermittent wipe
(Not all models)
· OFF (0) - Off ·
- Wash with brief wipe
Windscreen wiper/washer
Type A
Type B
Type A
Type B
OGK048911R/OGK048901U/OGK048908R/OGK048902R
B350A01GK-GAT

1CONTROLS AND EQUIPMENT
56

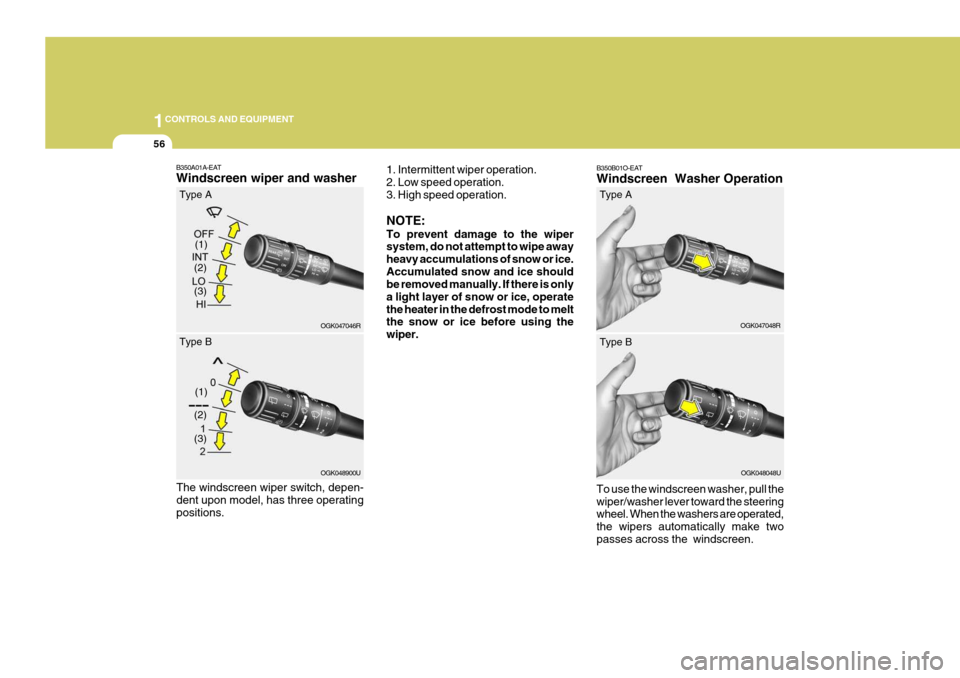

B350B01O-EAT Windscreen Washer Operation To use the windscreen washer, pull the wiper/washer lever toward the steering wheel. When the washers are operated, the wipers automatically make twopasses across the windscreen. OGK047048R
(2)
B350A01A-EAT Windscreen wiper and washer
1. Intermittent wiper operation. 2. Low speed operation. 3. High speed operation. NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow or ice.Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operatethe heater in the defrost mode to melt the snow or ice before using the wiper.
OGK047046R
(1)
(3)
Type A
(2)
OGK048900U
(1)
(3)
Type B
The windscreen wiper switch, depen- dent upon model, has three operatingpositions. Type A
OGK048048U
Type B

1
CONTROLS AND EQUIPMENT
57

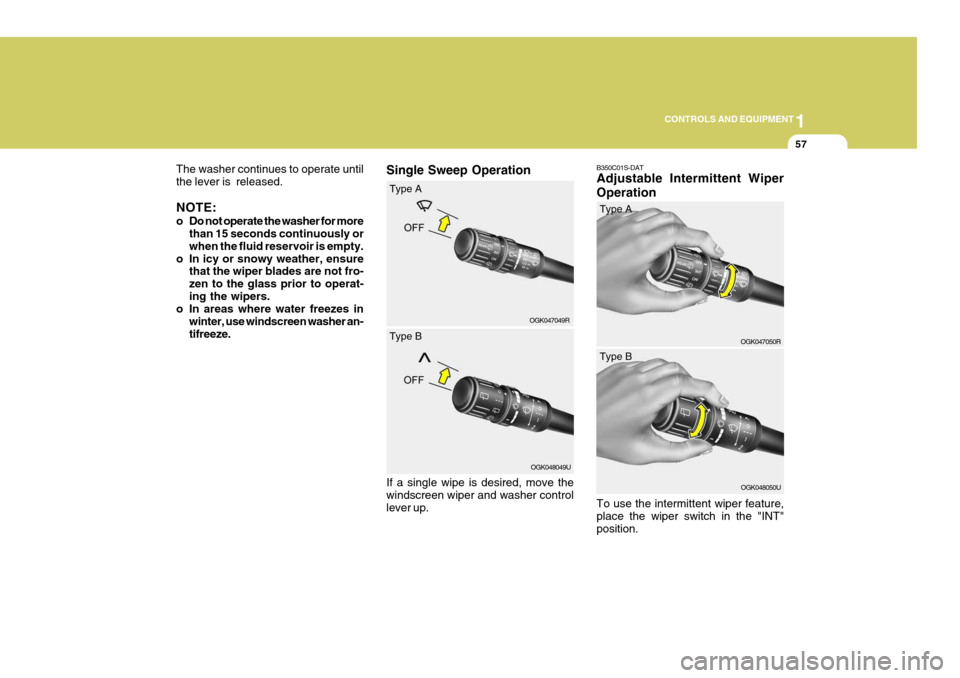

Single Sweep Operation
OGK047049RB350C01S-DAT Adjustable Intermittent Wiper Operation
OGK047050R
The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer for more
than 15 seconds continuously or when the fluid reservoir is empty.
o In icy or snowy weather, ensure that the wiper blades are not fro-zen to the glass prior to operat-ing the wipers.
o In areas where water freezes in
winter, use windscreen washer an-tifreeze. Type A
OGK048049U
Type B
If a single wipe is desired, move the windscreen wiper and washer control lever up. To use the intermittent wiper feature,place the wiper switch in the "INT"position.Type A
OGK048050U
Type B

1CONTROLS AND EQUIPMENT
58
OGK047051R
B390A01E-EAT Rear Window Wiper and Washer 1. : The rear window wiper starts to
operate three times after the washer fluid sprays onto therear window.
2.OFF (0)3.INT (---) : The interval between wipes
operates every 5 seconds intermittently.
4.ON (
) : The rear window wiper starts to operate continuously.
5. : The washer fluid will be sprayed onto the rear window and the wiper operates whilst the rear window wiper barrel is placedin this position.
NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty; this could damage the system. Donot operate the wiper when the win- dow is dry; this can result in scratch- ing as well as premature wiper bladewear. For the reason stated above,do not operate the washer when the washerfluid reservoir is empty.

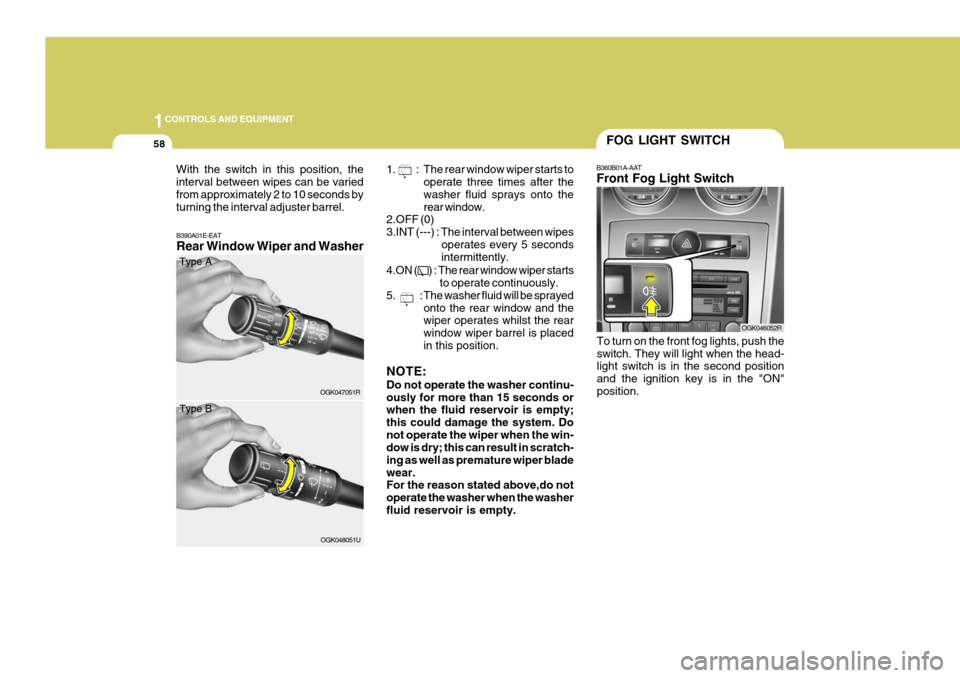

FOG LIGHT SWITCH
OGK046052R
B360B01A-AAT Front Fog Light Switch
To turn on the front fog lights, push the switch. They will light when the head- light switch is in the second position and the ignition key is in the "ON"position.
With the switch in this position, the interval between wipes can be varied from approximately 2 to 10 seconds byturning the interval adjuster barrel.
Type A
OGK048051U
Type B

1
CONTROLS AND EQUIPMENT
59HAZARD WARNING SYS- TEM

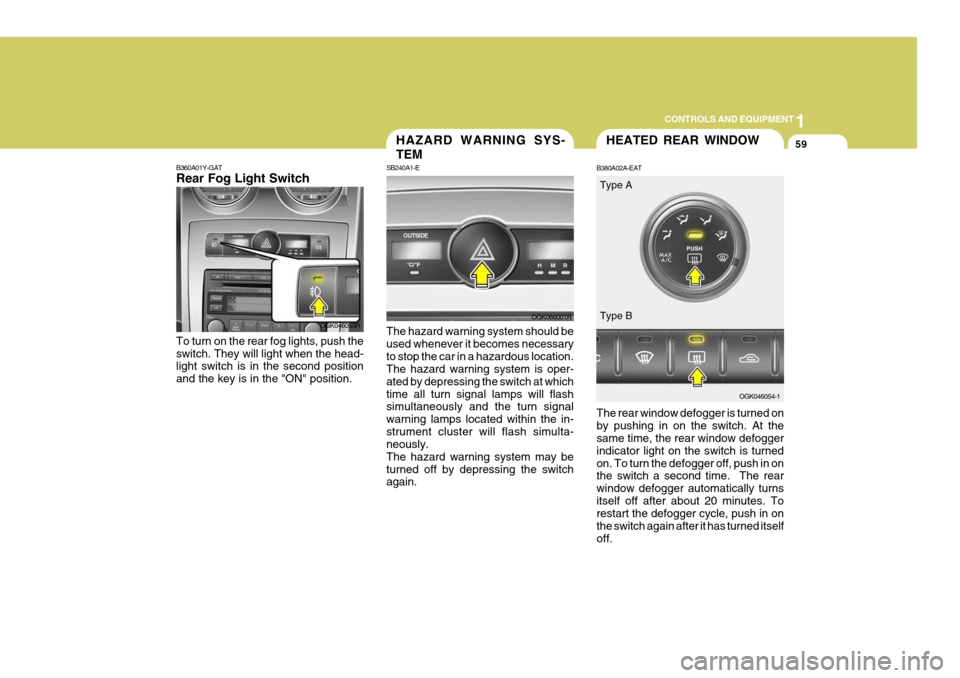

SB240A1-E The hazard warning system should be used whenever it becomes necessaryto stop the car in a hazardous location. The hazard warning system is oper- ated by depressing the switch at whichtime all turn signal lamps will flash simultaneously and the turn signal warning lamps located within the in-strument cluster will flash simulta- neously. The hazard warning system may beturned off by depressing the switch again.
OGK066001R
HEATED REAR WINDOW
B380A02A-EAT The rear window defogger is turned on by pushing in on the switch. At the same time, the rear window defogger indicator light on the switch is turnedon. To turn the defogger off, push in on the switch a second time. The rear window defogger automatically turnsitself off after about 20 minutes. To restart the defogger cycle, push in on the switch again after it has turned itselfoff. OGK046054-1
OGK046053R
B360A01Y-GAT Rear Fog Light Switch To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position and the key is in the "ON" position. Type A Type B

1CONTROLS AND EQUIPMENT
60
!
CAUTION:
The inside of the rear windscreen should never be cleaned with a hard or sharp implement since damage to the heating element may occur.The glass should only be cleaned with a soft cloth or chamois leather with the use only of a mild deter-gent or proprietary glass cleaner where necessary. Only horizontal movement of the cloth should bemade when cleaning the glass and care should be exercised to ensure that the heating elements are not damaged by rings or jewellery whilst the glass is being cleaned. NOTE: The engine must be running for the rear window defroster to operate.
INSTRUMENT PANEL ILLUMINATION CONTROL

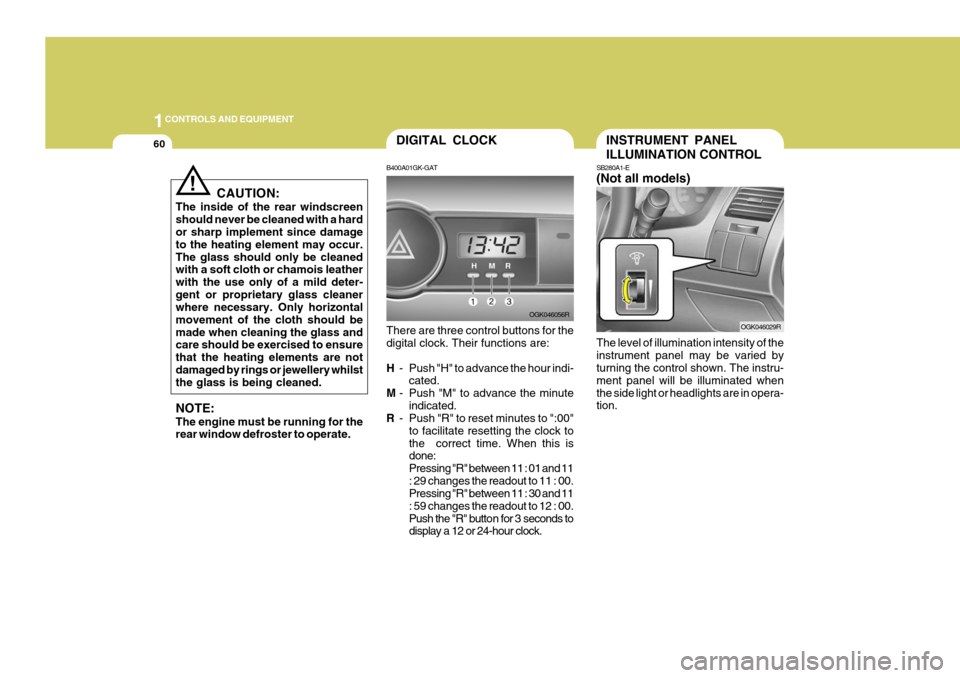

SB280A1-E (Not all models) The level of illumination intensity of the instrument panel may be varied by turning the control shown. The instru- ment panel will be illuminated whenthe side light or headlights are in opera- tion. OGK046029RDIGITAL CLOCK
B400A01GK-GAT There are three control buttons for the digital clock. Their functions are: H - Push "H" to advance the hour indi-
cated.
M - Push "M" to advance the minute
indicated.
R - Push "R" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 11 : 01 and 11: 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.
Push the "R" button for 3 seconds to display a 12 or 24-hour clock. OGK046056R

1
CONTROLS AND EQUIPMENT
61
!
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
ASHTRAY

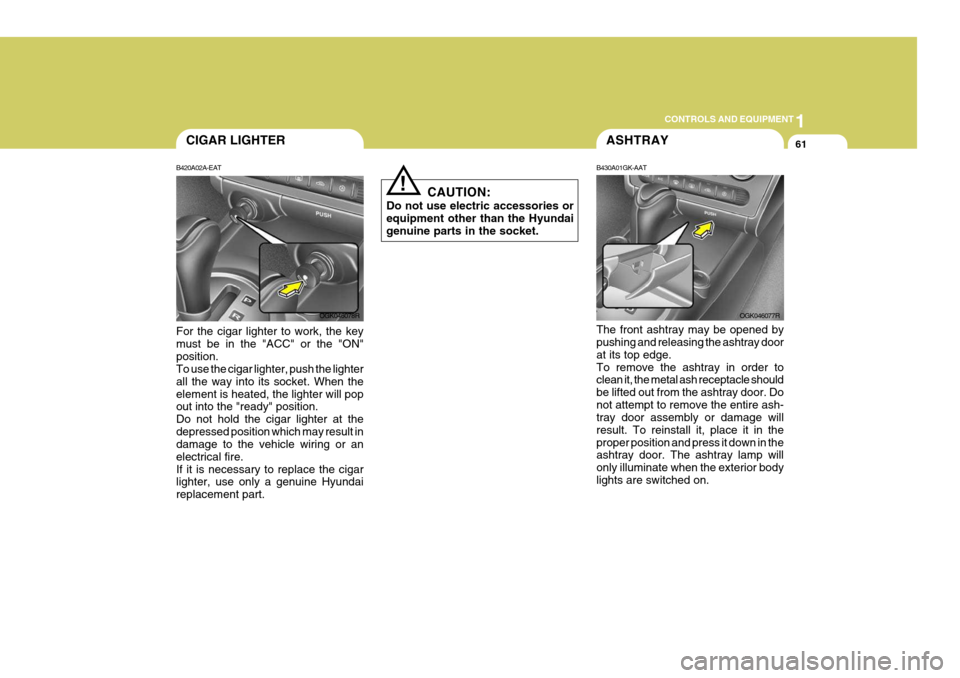

B430A01GK-AAT The front ashtray may be opened by pushing and releasing the ashtray door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be lifted out from the ashtray door. Donot attempt to remove the entire ash- tray door assembly or damage will result. To reinstall it, place it in theproper position and press it down in the ashtray door. The ashtray lamp will only illuminate when the exterior bodylights are switched on. OGK046077RCIGAR LIGHTER
B420A02A-EAT For the cigar lighter to work, the key must be in the "ACC" or the "ON"position. To use the cigar lighter, push the lighter all the way into its socket. When theelement is heated, the lighter will pop out into the "ready" position. Do not hold the cigar lighter at thedepressed position which may result in damage to the vehicle wiring or an electrical fire.If it is necessary to replace the cigar lighter, use only a genuine Hyundai replacement part. OGK046078R

1CONTROLS AND EQUIPMENT
62DRINK HOLDER

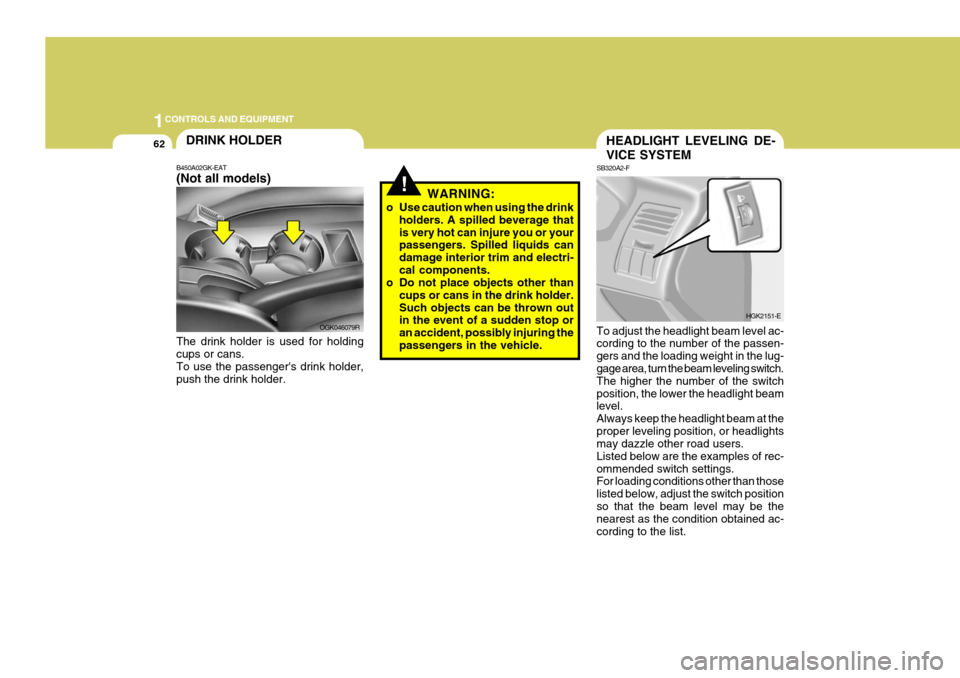

B450A02GK-EAT (Not all models) The drink holder is used for holding cups or cans. To use the passenger's drink holder,push the drink holder. OGK046079R
