Hyundai Coupe 2007 Owner's Manual

1
CONTROLS AND EQUIPMENT
73

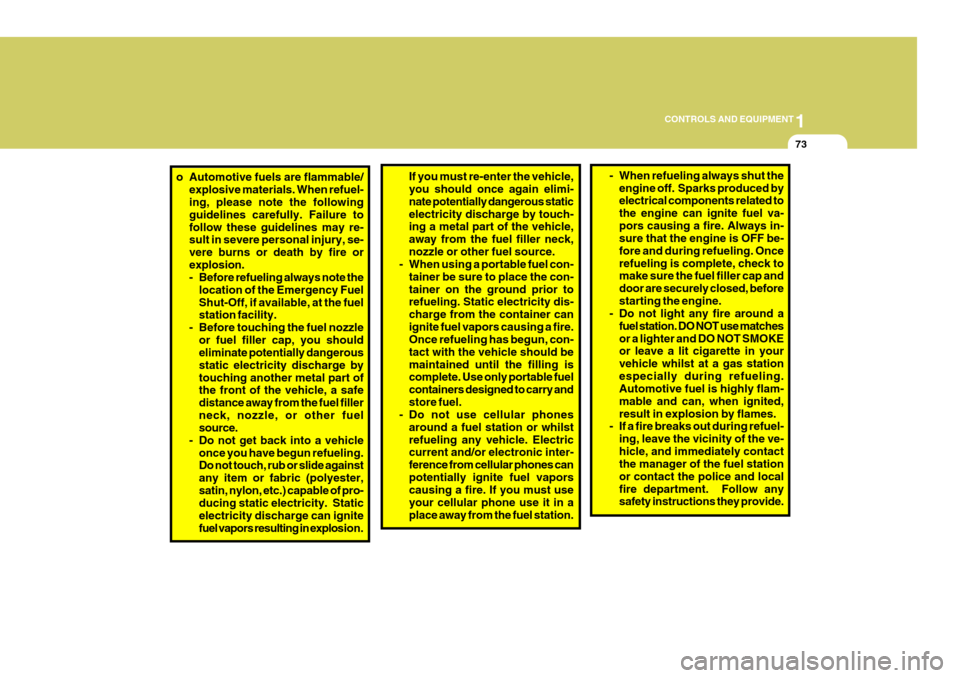

o Automotive fuels are flammable/
explosive materials. When refuel- ing, please note the following guidelines carefully. Failure tofollow these guidelines may re- sult in severe personal injury, se- vere burns or death by fire orexplosion.
- Before refueling always note the
location of the Emergency Fuel Shut-Off, if available, at the fuel station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other fuel source.
- Do not get back into a vehicle once you have begun refueling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapors resulting in explo sion.If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other fuel source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore fuel.
- Do not use cellular phones
around a fuel station or whilstrefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the fuel station. - When refueling always shut the
engine off. Sparks produced by electrical components related to the engine can ignite fuel va-pors causing a fire. Always in- sure that the engine is OFF be- fore and during refueling. Oncerefueling is complete, check to make sure the fuel filler cap and door are securely closed, beforestarting the engine.
- Do not light any fire around a
fuel station. DO NOT use matchesor a lighter and DO NOT SMOKE or leave a lit cigarette in your vehicle whilst at a gas stationespecially during refueling. Automotive fuel is highly flam- mable and can, when ignited,result in explosion by flames.
- If a fire breaks out during refuel-
ing, leave the vicinity of the ve-hicle, and immediately contact the manager of the fuel station or contact the police and localfire department. Follow any safety instructions they provide.

1CONTROLS AND EQUIPMENT
74HATCHBACK DOOR
SB450A2-E Remote Hatchback Door Release The hatchback door may be opened by pulling the lever to release the lock. The hatchback door should be closedby depressing the lid firmly until the latch engages. Ensure that hatchback door is securely latched before settingthe vehicle in motion. OGK046005R
!WARNING:
The hatchback door should always be kept completely closed whilst the vehicle is in motion. If it is left openor ajar, poisonous exhaust gases may enter the car resulting in seri- ous illness or death to the occu-pants. See additional warnings con- cerning exhaust gases on page 2-2.
SB450C2-E To Unlock Using the Key To open the hatchback door using the ignition key, insert the key into the lock barrel and turn clockwise to releasethe latch. The hatchback door com- partment light will illuminate whenever the hatchback door is opened. OGK046006

1
CONTROLS AND EQUIPMENT
75SUNVISOR
B580A01GK-EAT Your Hyundai is equipped with sun visors to give the driver and front pas-senger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down.A ticket holder is provided on the back of the sun visor for the driver. Vanity mirrors are provided on the back of thesunvisor for the driver and the front passenger (Not all models). NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the front ofeach sun visor. Vanity mirror
HGK2119
!WARNING:
Do not close an open hatchback door whilst a person(s) is sittingupright on the rear seat. The hatch- back door or hatchback door glass may contact the head of a personsitting upright on the rear seat. Clos- ing the hatchback door onto a person's head may cause seriousinjuries, including death.
B540D01GK-EAT When you close the hatchback door
OGK016540
HGK227

1CONTROLS AND EQUIPMENT
76

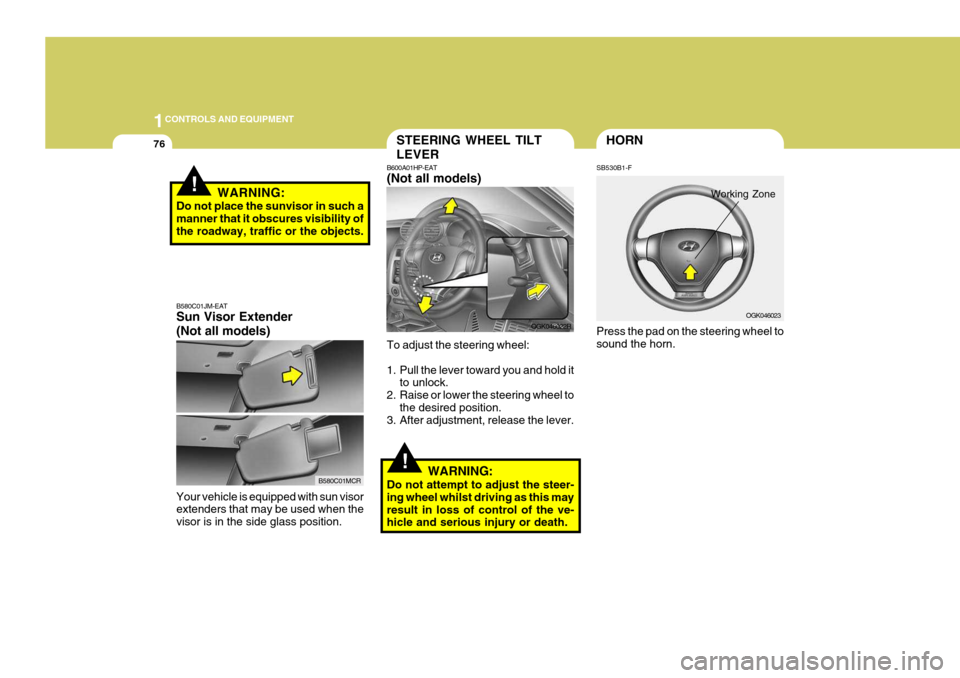

!WARNING:
Do not place the sunvisor in such a manner that it obscures visibility ofthe roadway, traffic or the objects.
!
STEERING WHEEL TILT LEVER
B600A01HP-EAT (Not all models) To adjust the steering wheel:
1. Pull the lever toward you and hold it
to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, release the lever.
WARNING:
Do not attempt to adjust the steer- ing wheel whilst driving as this mayresult in loss of control of the ve- hicle and serious injury or death. OGK046022R
OGK046023
HORN
SB530B1-F Press the pad on the steering wheel to sound the horn.
Working Zone
B580C01JM-EAT Sun Visor Extender (Not all models) Your vehicle is equipped with sun visor extenders that may be used when the visor is in the side glass position.
B580C01MCR

1
CONTROLS AND EQUIPMENT

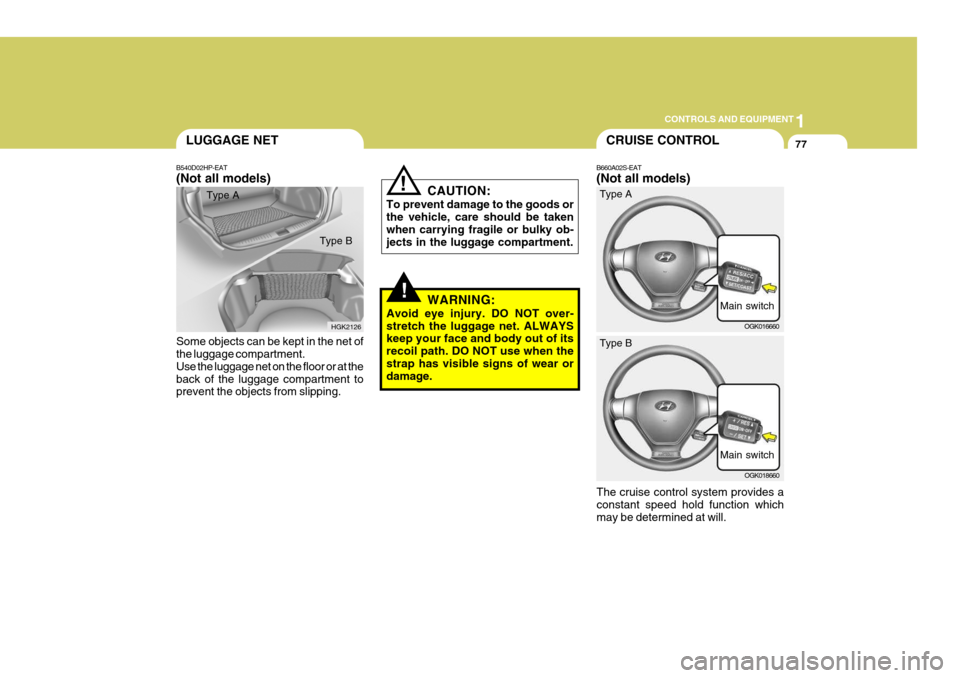

77CRUISE CONTROL
B660A02S-EAT (Not all models)
Main switchOGK016660
!
! CAUTION:
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment.
WARNING:
Avoid eye injury. DO NOT over-stretch the luggage net. ALWAYS keep your face and body out of its recoil path. DO NOT use when thestrap has visible signs of wear or damage.
LUGGAGE NET
B540D02HP-EAT (Not all models) Type A
Some objects can be kept in the net of the luggage compartment. Use the luggage net on the floor or at theback of the luggage compartment to prevent the objects from slipping. HGK2126
Type B
Type A
The cruise control system provides a constant speed hold function whichmay be determined at will.
Main switch OGK018660
Type B

1CONTROLS AND EQUIPMENT
78

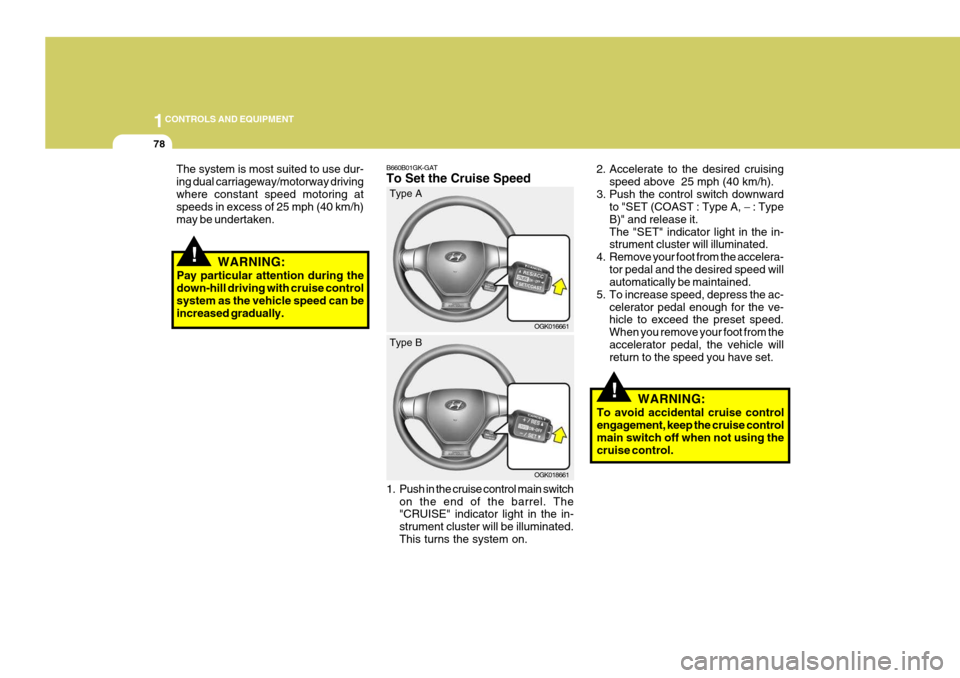

B660B01GK-GAT To Set the Cruise Speed
1. Push in the cruise control main switch
on the end of the barrel. The "CRUISE" indicator light in the in- strument cluster will be illuminated.This turns the system on. OGK016661
!
The system is most suited to use dur- ing dual carriageway/motorway drivingwhere constant speed motoring at speeds in excess of 25 mph (40 km/h) may be undertaken.
!WARNING:
Pay particular attention during the down-hill driving with cruise control system as the vehicle speed can beincreased gradually. Type A
OGK018661
Type B 2. Accelerate to the desired cruising
speed above 25 mph (40 km/h).
3. Push the control switch downward to "SET (COAST : Type A,

1
CONTROLS AND EQUIPMENT
79

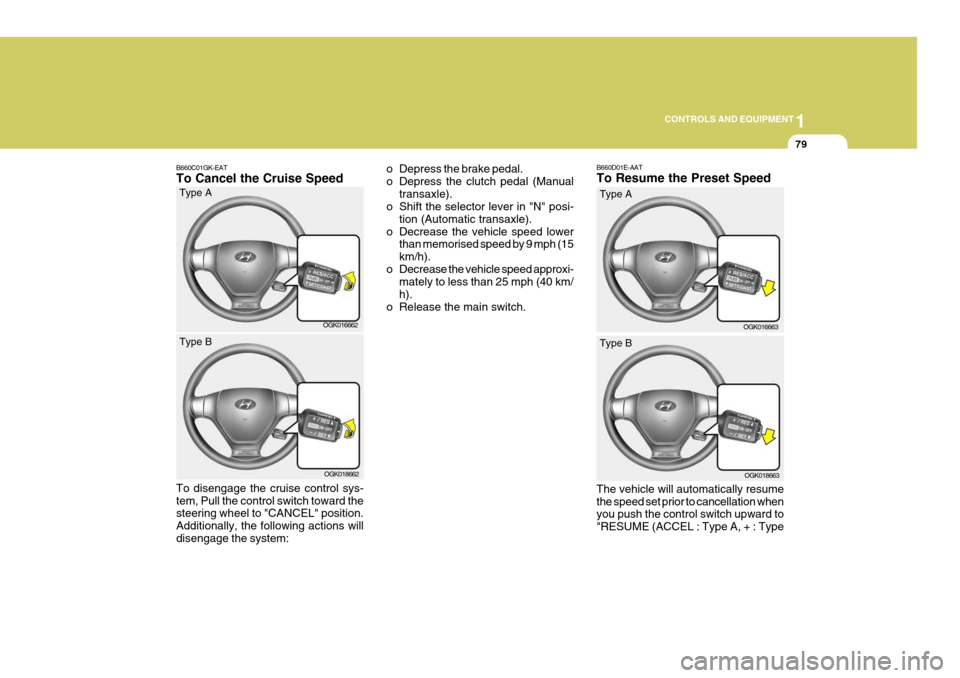

B660C01GK-EAT To Cancel the Cruise Speed o Depress the brake pedal.
o Depress the clutch pedal (Manual
transaxle).
o Shift the selector lever in "N" posi-
tion (Automatic transaxle).
o Decrease the vehicle speed lower than memorised speed by 9 mph (15km/h).
o Decrease the vehicle speed approxi- mately to less than 25 mph (40 km/h).
o Release the main switch.
OGK016662
Type A
OGK018662
Type B
To disengage the cruise control sys- tem, Pull the control switch toward the steering wheel to "CANCEL" position. Additionally, the following actions willdisengage the system: B660D01E-AAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation when you push the control switch upward to "RESUME (ACCEL : Type A, + : Type
OGK016663
Type A
OGK018663
Type B

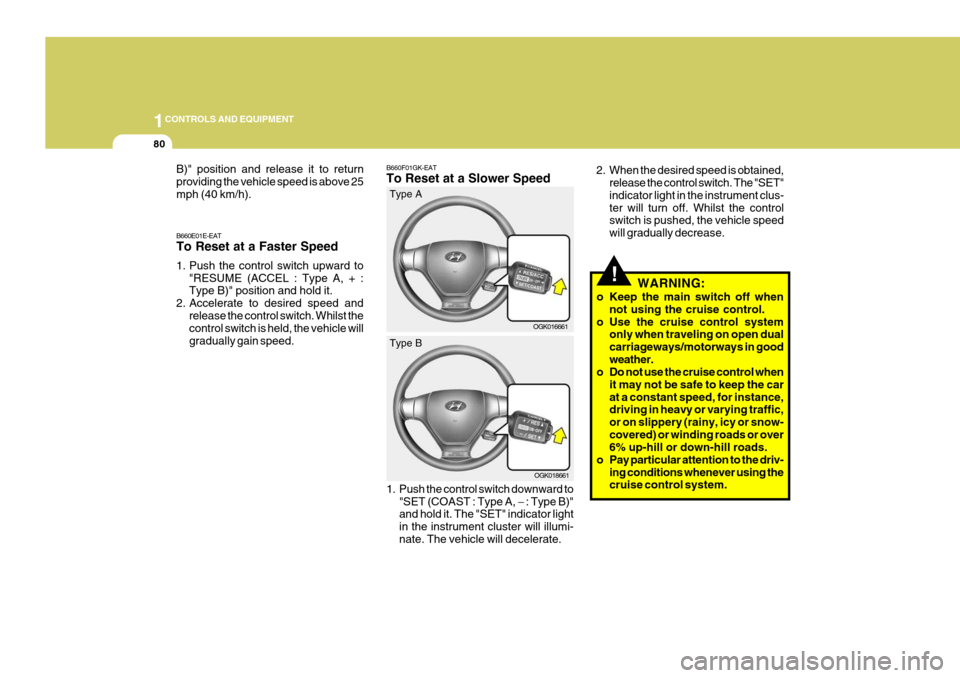

1CONTROLS AND EQUIPMENT
80
!WARNING:
o Keep the main switch off when not using the cruise control.
o Use the cruise control system only when traveling on open dual carriageways/motorways in goodweather.
o Do not use the cruise control when
it may not be safe to keep the carat a constant speed, for instance, driving in heavy or varying traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
o Pay particular attention to the driv- ing conditions whenever using thecruise control system.
B660E01E-EAT To Reset at a Faster Speed
1. Push the control switch upward to"RESUME (ACCEL : Type A, + : Type B)" position and hold it.
2. Accelerate to desired speed and release the control switch. Whilst thecontrol switch is held, the vehicle will gradually gain speed. B660F01GK-EAT To Reset at a Slower Speed
2. When the desired speed is obtained,
release the control switch. The "SET" indicator light in the instrument clus-ter will turn off. Whilst the control switch is pushed, the vehicle speed will gradually decrease.
OGK016661
B)" position and release it to returnproviding the vehicle speed is above 25mph (40 km/h).
Type A
OGK018661
Type B
1. Push the control switch downward to "SET (COAST : Type A,

1
CONTROLS AND EQUIPMENT

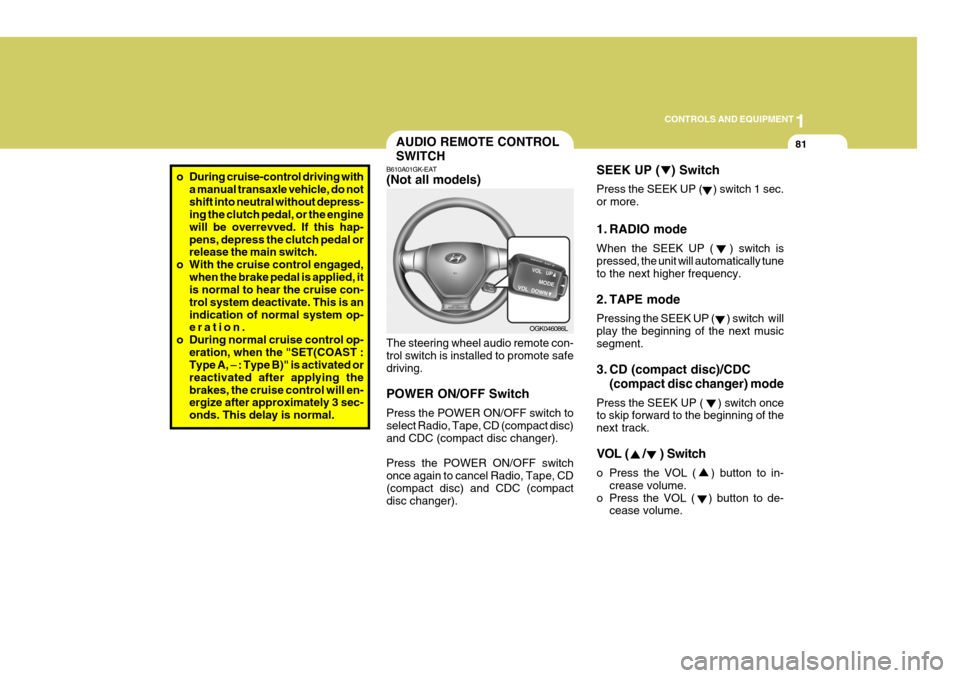

81AUDIO REMOTE CONTROL SWITCH
o During cruise-control driving with a manual transaxle vehicle, do not shift into neutral without depress- ing the clutch pedal, or the engine will be overrevved. If this hap-pens, depress the clutch pedal or release the main switch.
o With the cruise control engaged, when the brake pedal is applied, itis normal to hear the cruise con- trol system deactivate. This is anindication of normal system op- eration.
o During normal cruise control op- eration, when the "SET(COAST :Type A,

1FEATURES OF YOUR HYUNDAI

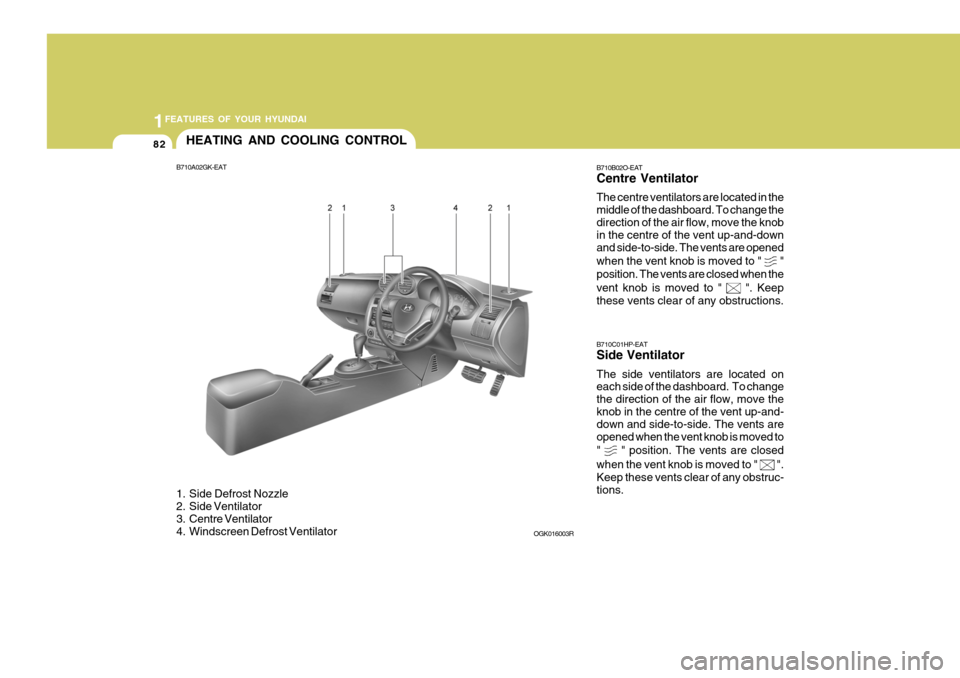

82HEATING AND COOLING CONTROL
B710A02GK-EAT
1. Side Defrost Nozzle
2. Side Ventilator
3. Centre Ventilator
4. Windscreen Defrost Ventilator OGK016003R
B710B02O-EAT Centre Ventilator The centre ventilators are located in the middle of the dashboard. To change thedirection of the air flow, move the knob in the centre of the vent up-and-down and side-to-side. The vents are opened when the vent knob is moved to "
"
position. The vents are closed when the vent knob is moved to "
". Keep
these vents clear of any obstructions. B710C01HP-EAT Side Ventilator The side ventilators are located on each side of the dashboard. To change the direction of the air flow, move theknob in the centre of the vent up-and- down and side-to-side. The vents are opened when the vent knob is moved to "
" position. The vents are closed
when the vent knob is moved to "
".
Keep these vents clear of any obstruc- tions.
