Hyundai Creta 2016 Owner's Manual

3-117
Convenient features of your vehicle
Cup holder
Cups or small beverage cans may be
placed in the cup holders.
•Keep your drinks sealed while driv
ing to prevent spilling your drink. If
liquid spills, it may get into the
vehicle's electrical/electronic sys
tem and damage electrical/elec
tronic parts.
•When cleaning spilled liquids, do
not dry the cup holder at high tem
perature. This may damage the
cup holder.
NOTICE
Keep cans or bottles out of direct
sun light and do not put them in a
hot vehicle. It may explode.
WARNING
•Avoid abrupt starting and brak
ing when the cup holder is in use
to prevent spilling your drink. If
hot liquid spills, you could be
burned. Such a burn to the driv
er could cause loss of vehicle
control resulting in an accident.
•Do not place uncovered or
unsecured cups, bottles, cans,
etc., in the cup holder containing
hot liquid while the vehicle is in
motion. Injuries may result in the
event of sudden stop or colli
sion.
•Only use soft cups in the cup
holders. Hard objects can injure
you in an accident.
WARNING
OGS045046
OGC044070

Rear

Front

3-118
Convenient features of your vehicle
3

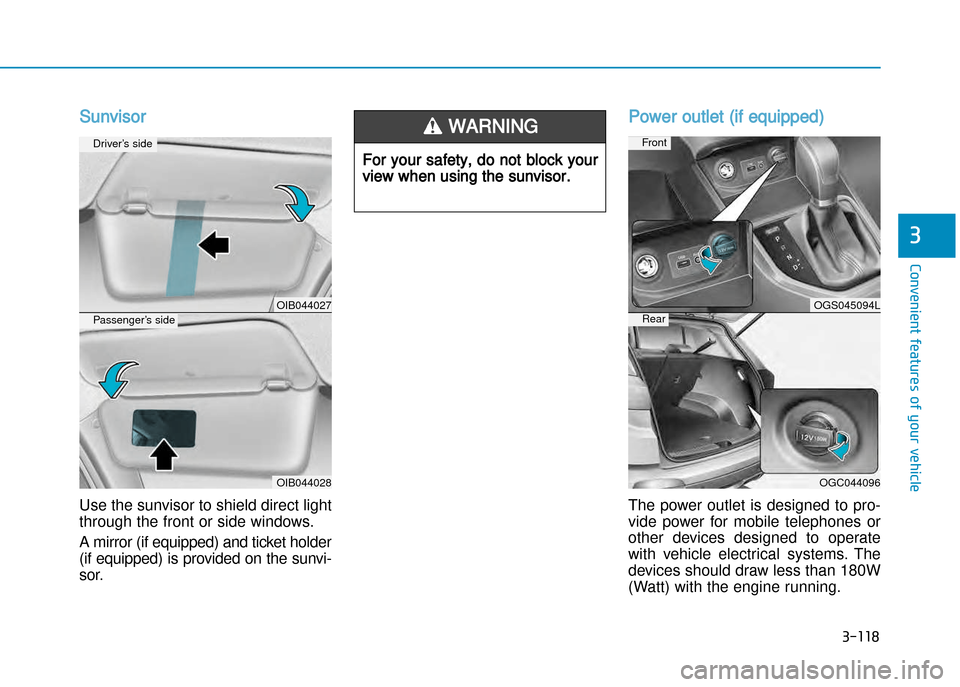

Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
A mirror (if equipped) and ticket holder
(if equipped) is provided on the sunvi
sor.
Power outlet (if equipped)
The power outlet is designed to pro
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 180W
(Watt) with the engine running.
For your safety, do not block your
view when using the sunvisor.
WARNING
OIB044027
OIB044028

Passenger’s side

Driver’s side
OGS045094L
OGC044096

Rear

Front

3-119
Convenient features of your vehicle

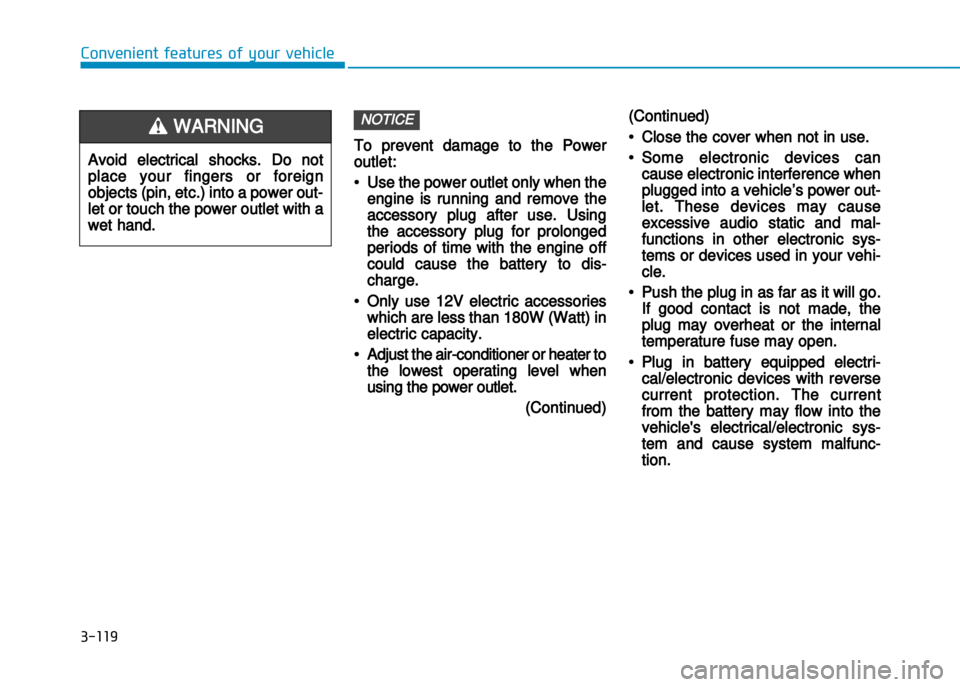

To prevent damage to the Power
outlet:
•Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using
the accessory plug for prolonged
periods of time with the engine off
could cause the battery to dis
charge.
•Only use 12V electric accessories
which are less than 180W (Watt) in
electric capacity.
•Adjust the airconditioner or heater to
the lowest operating level when
using the power outlet.
(Continued)
(Continued)
•Close the cover when not in use.
•Some electronic devices can
cause electronic interference when
plugged into a vehicle’s power out
let. These devices may cause
excessive audio static and mal
functions in other electronic sys
tems or devices used in your vehi
cle.
•Push the plug in as far as it will go.
If good contact is not made, the
plug may overheat or the internal
temperature fuse may open.
•Plug in battery equipped electri
cal/electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle's electrical/electronic sys
tem and cause system malfunc
tion.
NOTICE
Avoid electrical shocks. Do not
place your fingers or foreign
objects (pin, etc.) into a power out
let or touch the power outlet with a
wet hand.
WARNING

3-120
Convenient features of your vehicle
3

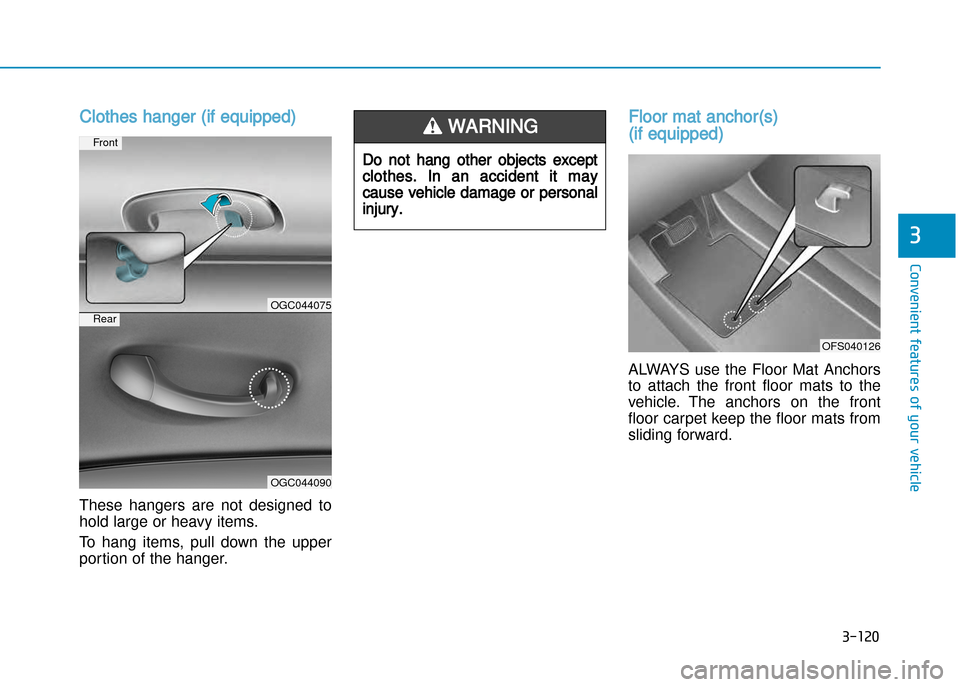

Clothes hanger (if equipped)
These hangers are not designed to
hold large or heavy items.
To hang items, pull down the upper
portion of the hanger.
Floor mat anchor(s)
(if equipped)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward.
Do not hang other objects except
clothes. In an accident it may
cause vehicle damage or personal
injury.
WARNING
OFS040126
OGC044075
OGC044090

Rear

Front

3-121
Convenient features of your vehicle

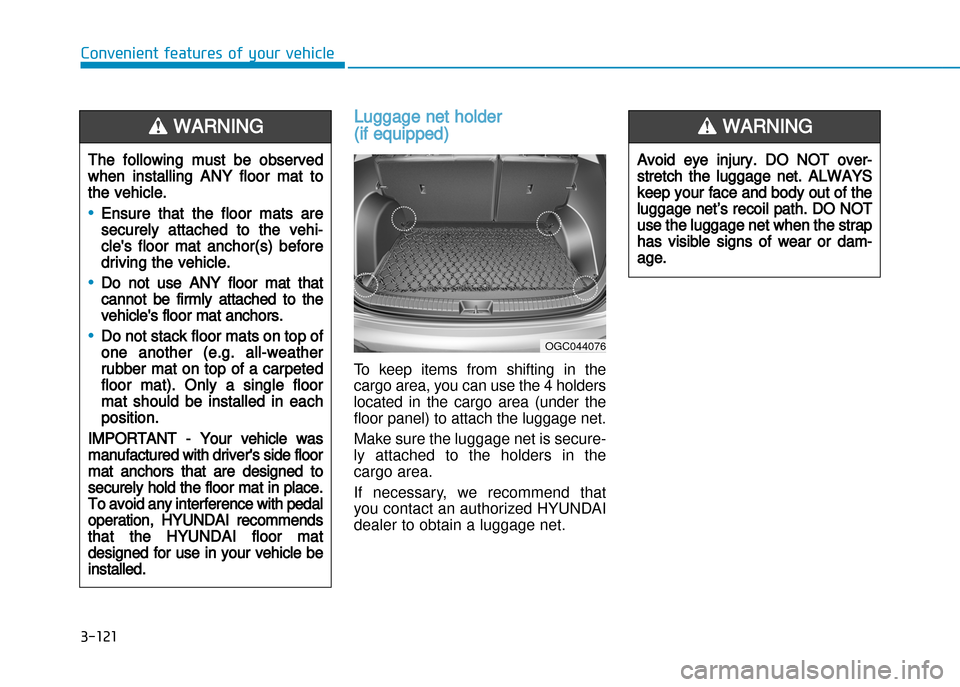

Luggage net holder
(if equipped)
To keep items from shifting in the
cargo area, you can use the 4 holders
located in the cargo area (under the
floor panel) to attach the luggage net.
Make sure the luggage net is secure
ly attached to the holders in the
cargo area.
If necessary, we recommend that
you contact an authorized HYUNDAI
dealer to obtain a luggage net.
The following must be observed
when installing ANY floor mat to
the vehicle.
•Ensure that the floor mats are
securely attached to the vehi
cle's floor mat anchor(s) before
driving the vehicle.
•Do not use ANY floor mat that
cannot be firmly attached to the
vehicle's floor mat anchors.
•Do not stack floor mats on top of
one another (e.g. allweather
rubber mat on top of a carpeted
floor mat). Only a single floor
mat should be installed in each
position.
IMPORTANT Your vehicle was
manufactured with driver's side floor
mat anchors that are designed to
securely hold the floor mat in place.
To avoid any interference with pedal
operation, HYUNDAI recommends
that the HYUNDAI floor mat
designed for use in your vehicle be
installed.
WARNING
OGC044076
Avoid eye injury. DO NOT over
stretch the luggage net. ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use the luggage net when the strap
has visible signs of wear or dam
age.
WARNING

3-122
Convenient features of your vehicle
3

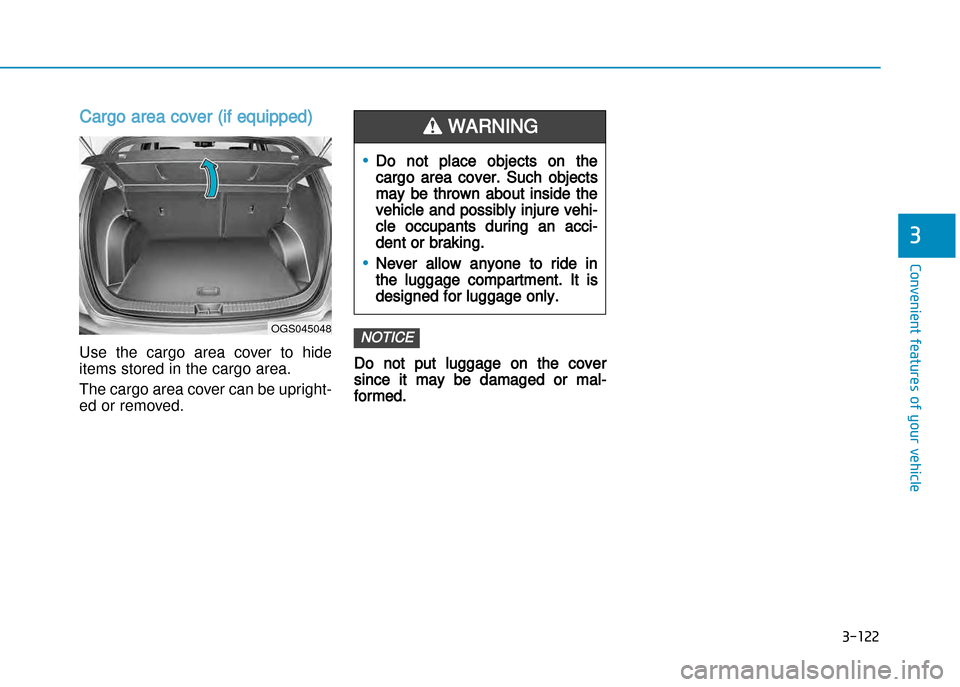

Cargo area cover (if equipped)
Use the cargo area cover to hide
items stored in the cargo area.
The cargo area cover can be upright
ed or removed.Do not put luggage on the cover
since it may be damaged or mal
formed.
NOTICEOGS045048
•Do not place objects on the
cargo area cover. Such objects
may be thrown about inside the
vehicle and possibly injure vehi
cle occupants during an acci
dent or braking.
•Never allow anyone to ride in
the luggage compartment. It is
designed for luggage only.
WARNING

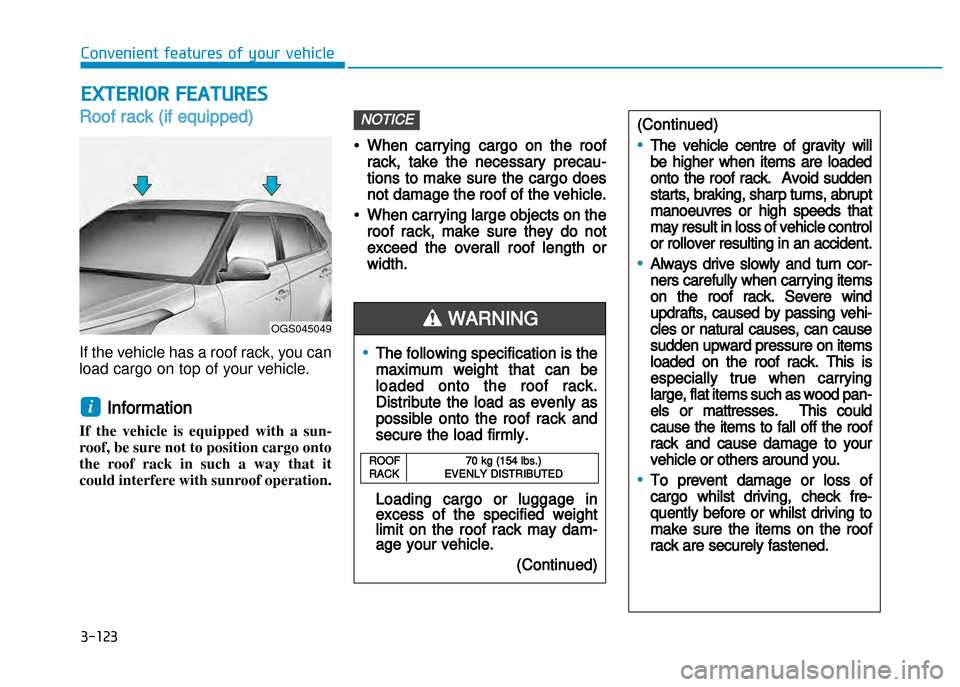

Roof rack (if equipped)
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
Information
If the vehicle is equipped with a sun
roof, be sure not to position cargo onto
the roof rack in such a way that it
could interfere with sunroof operation.
•When carrying cargo on the roof
rack, take the necessary precau
tions to make sure the cargo does
not damage the roof of the vehicle.
•When carrying large objects on the
roof rack, make sure they do not
exceed the overall roof length or
width.
NOTICE
i
ExtERioR FEAtURES
•The following specification is the
maximum weight that can be
loaded onto the roof rack.
Distribute the load as evenly as
possible onto the roof rack and
secure the load firmly.
Loading cargo or luggage inexcess of the specified weightlimit on the roof rack may damage your vehicle.
(Continued)
WARNING
(Continued)
•The vehicle centre of gravity will
be higher when items are loaded
onto the roof rack. Avoid sudden
starts, braking, sharp turns, abrupt
manoeuvres or high speeds that
may result in loss of vehicle control
or rollover resulting in an accident.
•Always drive slowly and turn cor
ners carefully when carrying items
on the roof rack. Severe wind
updrafts, caused by passing vehi
cles or natural causes, can cause
sudden upward pressure on items
loaded on the roof rack. This is
especially true when carrying
large, flat items such as wood pan
els or mattresses. This could
cause the items to fall off the roof
rack and cause damage to your
vehicle or others around you.
•To prevent damage or loss of
cargo whilst driving, check fre
quently before or whilst driving to
make sure the items on the roof
rack are securely fastened.
ROOF70 kg (154 lbs.)RACK EVENLY DISTRIBUTED
OGS045049
Convenient features of your vehicle
3-123

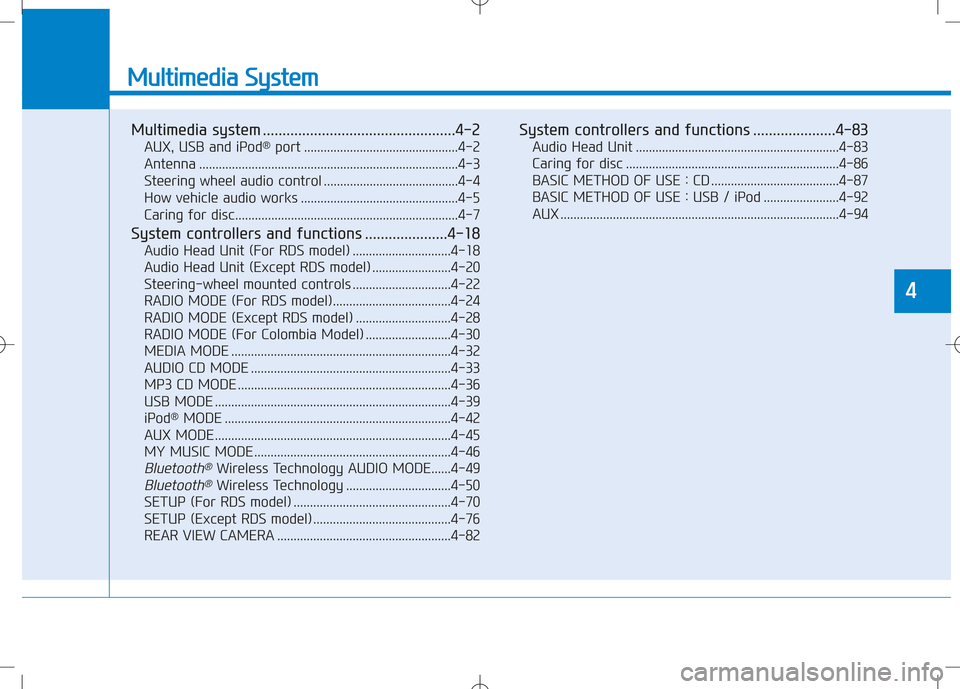

Multimedia System
Multimedia system .................................................4-2AUX, USB and iPod ®
port ...............................................4-2
Antenna ...............................................................................4-3
Steering wheel audio control .........................................4-4
How vehicle audio works ................................................4-5
Caring for disc....................................................................4-7
System controllers and functions .....................4-18 Audio Head Unit (For RDS model) ..............................4-18
Audio Head Unit (Except RDS model) ........................4-20
Steering-wheel mounted controls ..............................4-22
RADIO MODE (For RDS model)....................................4-24
RADIO MODE (Except RDS model) .............................4-28
RADIO MODE (For Colombia Model) ..........................4-30
MEDIA MODE ...................................................................4-32
AUDIO CD MODE .............................................................4-33
MP3 CD MODE .................................................................4-36
USB MODE ........................................................................4-39
iPod ®
MODE .....................................................................4-42
AUX MODE........................................................................4-45
MY MUSIC MODE............................................................4-46
Bluetooth®Wireless Technology AUDIO MODE......4-49
Bluetooth®Wireless Technology ................................4-50
SETUP (For RDS model) ................................................4-70
SETUP (Except RDS model) ..........................................4-76
REAR VIEW CAMERA .....................................................4-82 System controllers and functions .....................4-83
Audio Head Unit ..............................................................4-83
Caring for disc .................................................................4-86
BASIC METHOD OF USE : CD .......................................4-87
BASIC METHOD OF USE : USB / iPod .......................4-92
AUX .....................................................................................4-94
4

• If you install an aftermarket HIDhead lamp, your vehicle’s audio
and electronic device may mal-function.
• Prevent chemicals such as per- fume, cosmetic oil, sun cream,
hand cleaner, and air freshener
from contacting the interior
parts because they may cause
damage or discoloration.

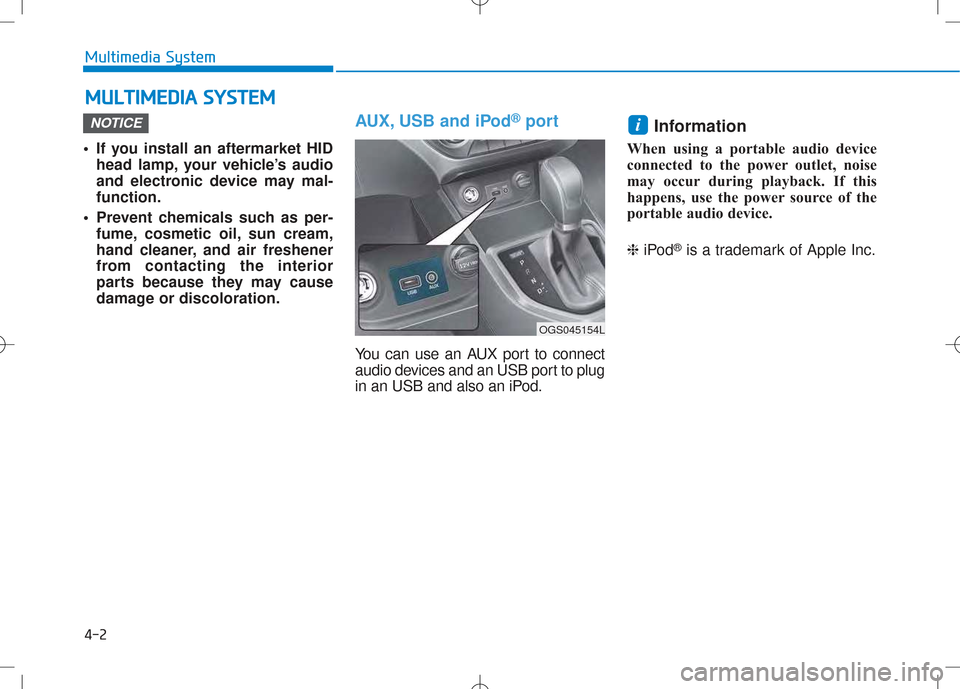

AUX, USB and iPod ®
port
You can use an AUX port to connect
audio devices and an USB port to plug
in an USB and also an iPod. Information
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device. ❈ iPod ®
is a trademark of Apple Inc.
iNOTICE
MM UULLTT IIMM EEDD IIAA SS YY SSTT EEMM
4-2
Multimedia System
OGS045154L
