Hyundai Creta 2016 Owner's Manual

4-13
Multimedia System
4

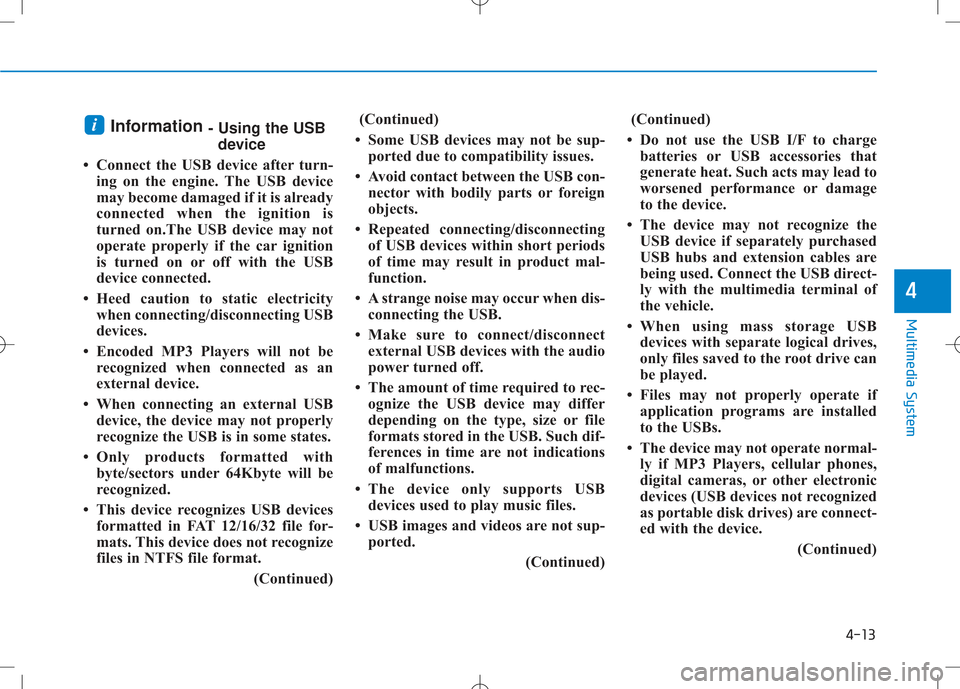

Information - Using the USB
device
 Connect the USB device after turn- ing on the engine. The USB device
may become damaged if it is already
connected when the ignition is
turned on.The USB device may not
operate properly if the car ignition
is turned on or off with the USB
device connected.
 Heed caution to static electricity when connecting/disconnecting USB
devices.
 Encoded MP3 Players will not be recognized when connected as an
external device.
 When connecting an external USB device, the device may not properly
recognize the USB is in some states.
 Only products formatted with byte/sectors under 64Kbyte will be
recognized.
 This device recognizes USB devices formatted in FAT 12/16/32 file for-
mats. This device does not recognize
files in NTFS file format.
(Continued)(Continued)
 Some USB devices may not be sup- ported due to compatibility issues.
 Avoid contact between the USB con- nector with bodily parts or foreign
objects.
 Repeated connecting/disconnecting of USB devices within short periods
of time may result in product mal-
function.
 A strange noise may occur when dis- connecting the USB.
 Make sure to connect/disconnect external USB devices with the audio
power turned off.
 The amount of time required to rec- ognize the USB device may differ
depending on the type, size or file
formats stored in the USB. Such dif-
ferences in time are not indications
of malfunctions.
 The device only supports USB devices used to play music files.
 USB images and videos are not sup- ported.
(Continued)(Continued)
 Do not use the USB I/F to charge batteries or USB accessories that
generate heat. Such acts may lead to
worsened performance or damage
to the device.
 The device may not recognize the USB device if separately purchased
USB hubs and extension cables are
being used. Connect the USB direct-
ly with the multimedia terminal of
the vehicle.
 When using mass storage USB devices with separate logical drives,
only files saved to the root drive can
be played.
 Files may not properly operate if application programs are installed
to the USBs.
 The device may not operate normal- ly if MP3 Players, cellular phones,
digital cameras, or other electronic
devices (USB devices not recognized
as portable disk drives) are connect-
ed with the device.
(Continued)i

4-14
Multimedia System
(Continued)
 Charging through the USB may notwork for some mobile devices.
 The device may not support normal operation when using a USB memo-
ry type besides (Metal Cover Type)
USB Memory.
 The device may not support normal operation when using formats such
as HDD Type, CF, or SD Memory.
 The device will not support files locked by DRM (Digital Rights
Management.)
 USB memory sticks used by con- necting an Adaptor (SD Type or CF
Type) may not be properly recog-
nized.
 The device may not operate properly when using USB HDDs or USBs sub-
ject to connection failures caused by
vehicle vibrations. (e.g. i-stick type)
(Continued)(Continued)
 Avoid use of USB mem-
ory products that can
also be used as key
chains or mobile phone
accessories. Use of such products
may cause damage to the USB jack.
 Connecting an MP3 device or phone through various channels, such as
AUX/BT or Audio/ USB mode may
result in pop noises or abnormal
operation. Information
- Using the
iPod ®
device
 iPod ®
is a registered trademark of
Apple Inc.
 In order to use the iPod ®
while oper-
ating the keys, you must use a dedi-
cated iPod ®
cable. (the cable that is
supplied when purchasing iPod ®
/
iPhone ®
products)
 If the iPod ®
is connected to the vehi-
cle while it is playing, a high pitch
sound could occur for approximately
1-2 seconds immediately after con-
necting. If possible, connect the iPod
to the vehicle with the iPod ®
stopped/
paused.
 During ACC ON state, connecting the iPod ®
through the iPod ®
cable
will charge the iPod ®
through the
car audio system.
 When connecting with the iPod ®
cable, make sure to fully insert the
jack to prevent communication
interference.
(Continued)i

4-15
Multimedia System
4

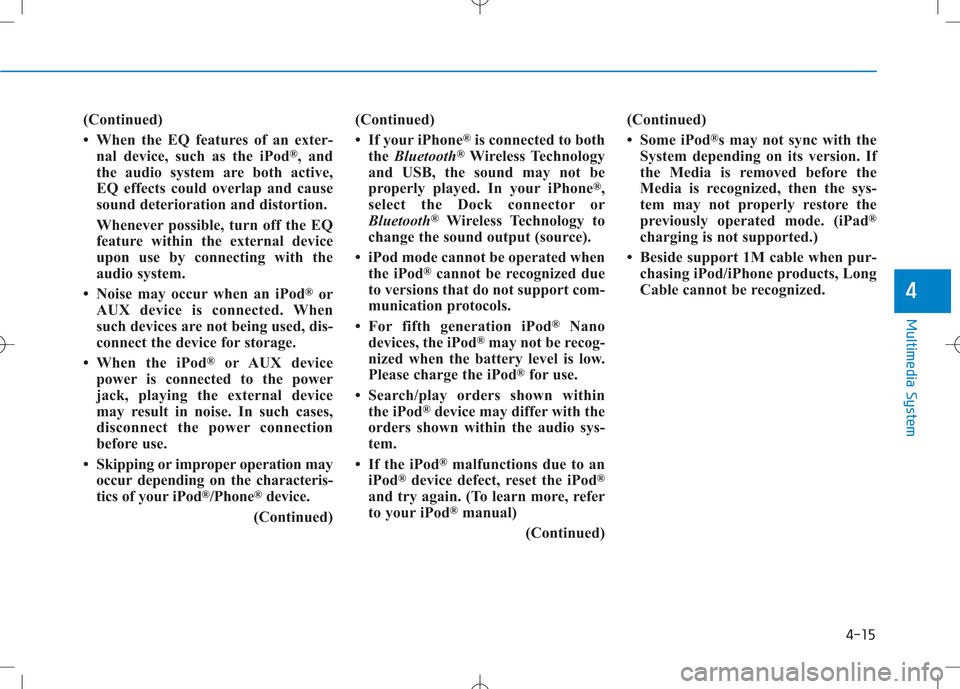

(Continued)
 When the EQ features of an exter-nal device, such as the iPod ®
, and
the audio system are both active,
EQ effects could overlap and cause
sound deterioration and distortion.
Whenever possible, turn off the EQ
feature within the external device
upon use by connecting with the
audio system.
 Noise may occur when an iPod ®
or
AUX device is connected. When
such devices are not being used, dis-
connect the device for storage.
 When the iPod ®
or AUX device
power is connected to the power
jack, playing the external device
may result in noise. In such cases,
disconnect the power connection
before use.
 Skipping or improper operation may occur depending on the characteris-
tics of your iPod ®
/Phone ®
device.
(Continued) (Continued)
 If your iPhone
®
is connected to both
the Bluetooth ®
Wireless Technology
and USB, the sound may not be
properly played. In your iPhone ®
,
select the Dock connector or
Bluetooth ®
Wireless Technology to
change the sound output (source).
 iPod mode cannot be operated when the iPod ®
cannot be recognized due
to versions that do not support com-
munication protocols.
 For fifth generation iPod ®
Nano
devices, the iPod ®
may not be recog-
nized when the battery level is low.
Please charge the iPod ®
for use.
 Search/play orders shown within the iPod ®
device may differ with the
orders shown within the audio sys-
tem.
 If the iPod ®
malfunctions due to an
iPod ®
device defect, reset the iPod ®
and try again. (To learn more, refer
to your iPod ®
manual)
(Continued) (Continued)
 Some iPod
®
s may not sync with the
System depending on its version. If
the Media is removed before the
Media is recognized, then the sys-
tem may not properly restore the
previously operated mode. (iPad ®
charging is not supported.)
 Beside support 1M cable when pur- chasing iPod/iPhone products, Long
Cable cannot be recognized.

4-16
Multimedia System

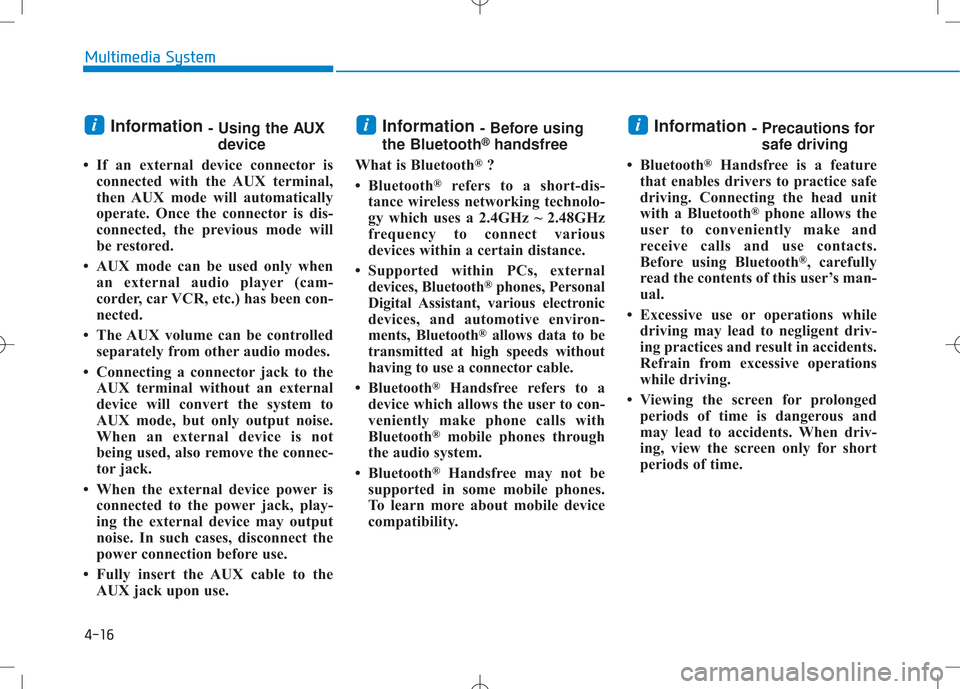

Information - Using the AUX
device
 If an external device connector is connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
 AUX mode can be used only when an external audio player (cam-
corder, car VCR, etc.) has been con-
nected.
 The AUX volume can be controlled separately from other audio modes.
 Connecting a connector jack to the AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not
being used, also remove the connec-
tor jack.
 When the external device power is connected to the power jack, play-
ing the external device may output
noise. In such cases, disconnect the
power connection before use.
 Fully insert the AUX cable to the AUX jack upon use. Information
- Before using
the Bluetooth ®
handsfree
What is Bluetooth ®
?
 Bluetooth ®
refers to a short-dis-
tance wireless networking technolo-
gy which uses a 2.4GHz ~ 2.48GHz
frequency to connect various
devices within a certain distance.
 Supported within PCs, external devices, Bluetooth ®
phones, Personal
Digital Assistant, various electronic
devices, and automotive environ-
ments, Bluetooth ®
allows data to be
transmitted at high speeds without
having to use a connector cable.
 Bluetooth ®
Handsfree refers to a
device which allows the user to con-
veniently make phone calls with
Bluetooth ®
mobile phones through
the audio system.
 Bluetooth ®
Handsfree may not be
supported in some mobile phones.
To learn more about mobile device
compatibility. Information
- Precautions for
safe driving
 Bluetooth ®
Handsfree is a feature
that enables drivers to practice safe
driving. Connecting the head unit
with a Bluetooth ®
phone allows the
user to conveniently make and
receive calls and use contacts.
Before using Bluetooth ®
, carefully
read the contents of this user’s man-
ual.
 Excessive use or operations while driving may lead to negligent driv-
ing practices and result in accidents.
Refrain from excessive operations
while driving.
 Viewing the screen for prolonged periods of time is dangerous and
may lead to accidents. When driv-
ing, view the screen only for short
periods of time.iii

4-17
Multimedia System
4

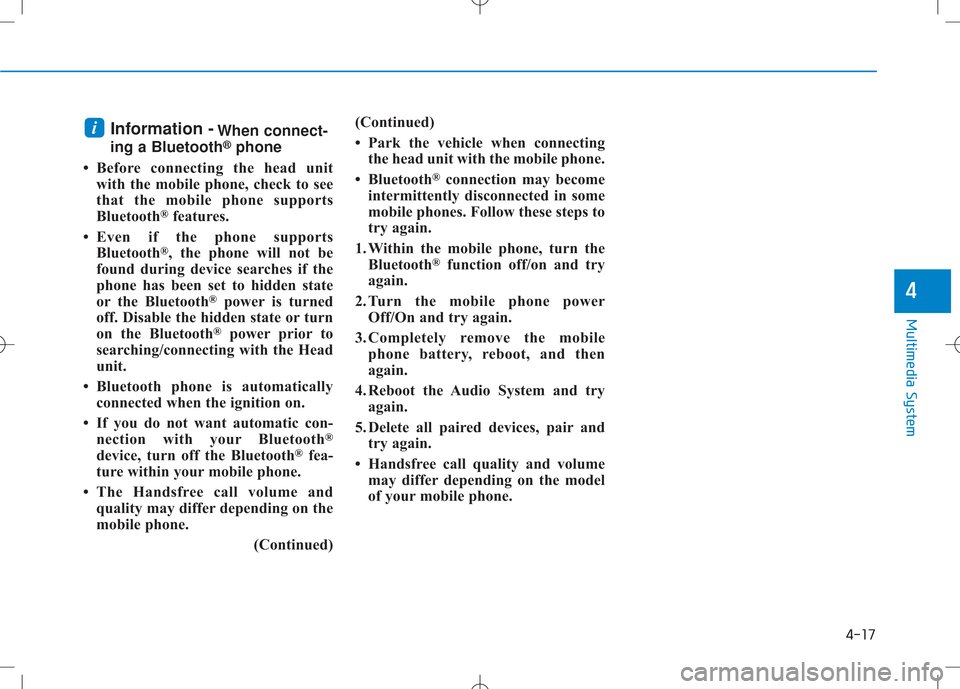

Information -When connect-
ing a Bluetooth ®
phone
 Before connecting the head unit with the mobile phone, check to see
that the mobile phone supports
Bluetooth ®
features.
 Even if the phone supports Bluetooth ®
, the phone will not be
found during device searches if the
phone has been set to hidden state
or the Bluetooth ®
power is turned
off. Disable the hidden state or turn
on the Bluetooth ®
power prior to
searching/connecting with the Head
unit.
 Bluetooth phone is automatically connected when the ignition on.
 If you do not want automatic con- nection with your Bluetooth ®
device, turn off the Bluetooth ®
fea-
ture within your mobile phone.
 The Handsfree call volume and quality may differ depending on the
mobile phone.
(Continued)(Continued)
 Park the vehicle when connecting
the head unit with the mobile phone.
 Bluetooth ®
connection may become
intermittently disconnected in some
mobile phones. Follow these steps to
try again.
1. Within the mobile phone, turn the Bluetooth ®
function off/on and try
again.
2. Turn the mobile phone power Off/On and try again.
3. Completely remove the mobile phone battery, reboot, and then
again.
4. Reboot the Audio System and try again.
5. Delete all paired devices, pair and try again.
 Handsfree call quality and volume may differ depending on the model
of your mobile phone.i

4-18
Multimedia System

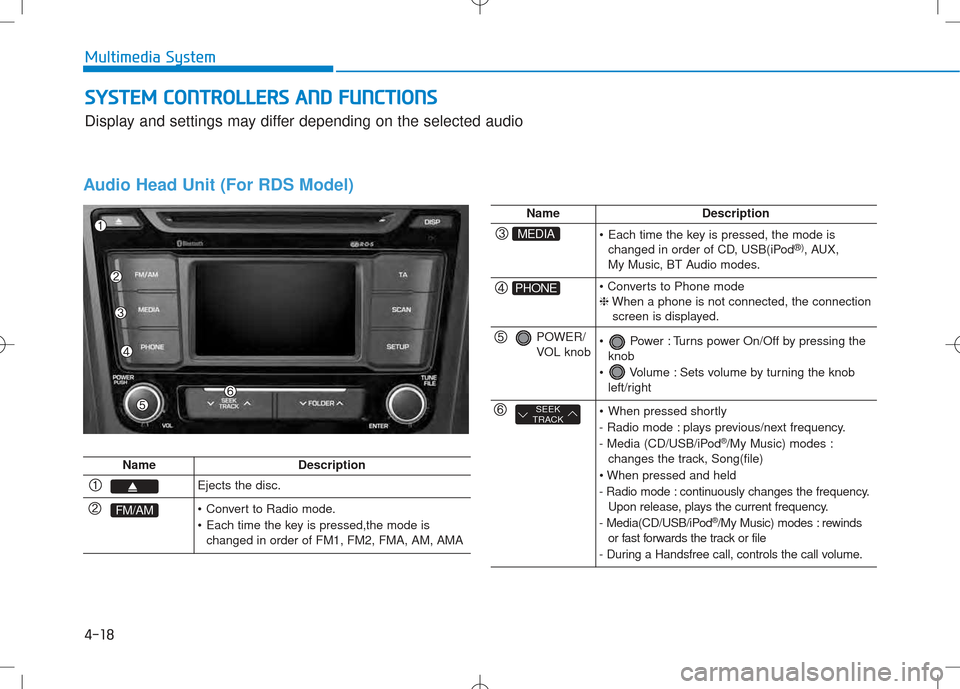

Audio Head Unit (For RDS Model)
NameDescription
Ejects the disc.
FM/AM Convert to Radio mode.
Each time the key is pressed,the mode ischanged in order of FM1, FM2, FMA, AM, AMA
NameDescription
MEDIA Each time the key is pressed, the mode ischanged in order of CD, USB(iPod ®)
, AUX,
My Music, BT Audio modes.
PHONE ❈ When a phone is not connected, the connection
screen is displayed.
POWER/
VOL knob Power : Turns power On/Off by pressing the knob
Volume : Sets volume by turning the knob left/right
SEEK
TRACK When pressed shortly
- Radio mode : plays previous/next frequency.
- Media (CD/USB/iPod ®
/My Music) modes :
changes the track, Song(file)

- Radio mode : continuously changes the frequency. Upon release, plays the current frequency.
- Media(CD/USB/iPod ®
/My Music) modes : rewinds
or fast forwards the track or file
- During a Handsfree call, controls the call volume.
SS YY SSTT EEMM CC OO NNTTRR OO LLLLEE RR SS AA NN DD FF UU NNCCTT IIOO NNSS
Display and settings may differ depending on the selected audio

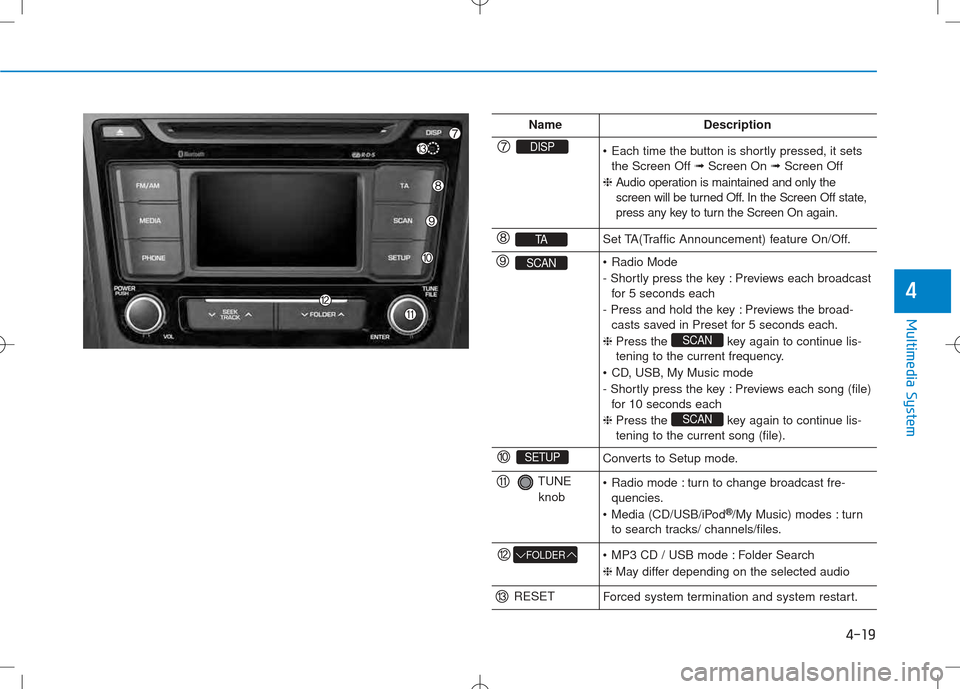

4-19
Multimedia System
4
NameDescription
DISP Each time the button is shortly pressed, it setsthe Screen Off ➟Screen On ➟Screen Off
❈ Audio operation is maintained and only the
screen will be turned Off. In the Screen Off state,
press any key to turn the Screen On again.
TASet TA(Traffic Announcement) feature On/Off.
SCAN Radio Mode
- Shortly press the key : Previews each broadcast
for 5 seconds each
- Press and hold the key : Previews the broad- casts saved in Preset for 5 seconds each.
❈ Press the key again to continue lis-
tening to the current frequency.
CD, USB, My Music mode
- Shortly press the key : Previews each song (file) for 10 seconds each
❈ Press the key again to continue lis- tening to the current song (file).
SCAN
SCAN
SETUPConverts to Setup mode.
TUNE
knob Radio mode : turn to change broadcast fre- quencies.
Media (CD/USB/iPod ®
/My Music) modes : turn
to search tracks/ channels/files.
FOLDER MP3 CD / USB mode : Folder Search ❈ May differ depending on the selected audio
RESETForced system termination and system restart.

4-20
Multimedia System

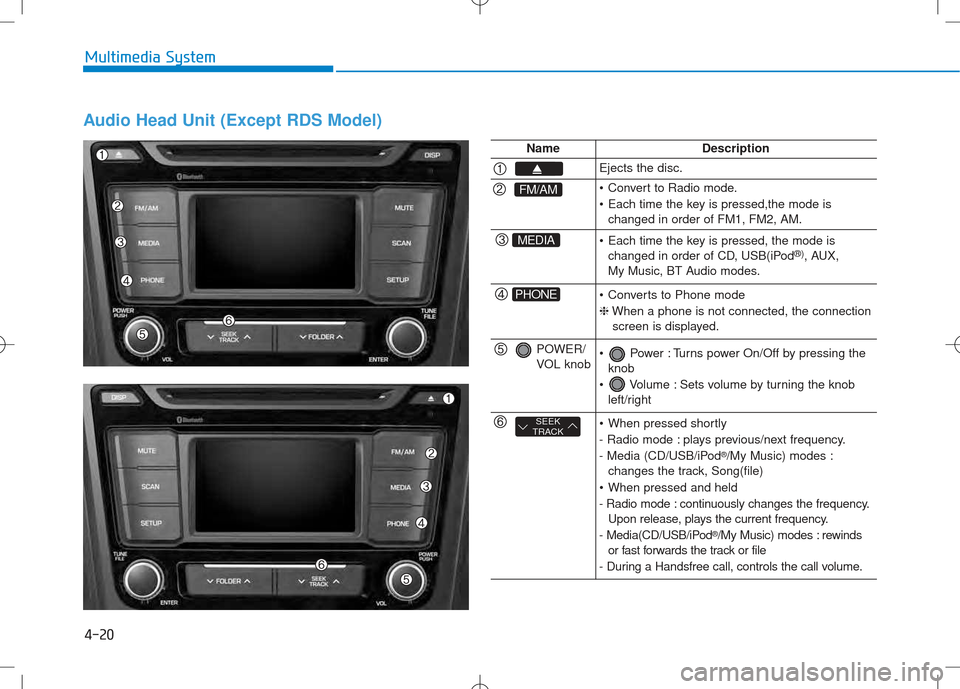

Audio Head Unit (Except RDS Model)
NameDescription
Ejects the disc.
FM/AM Convert to Radio mode.
Each time the key is pressed,the mode ischanged in order of FM1, FM2, AM.
MEDIA Each time the key is pressed, the mode ischanged in order of CD, USB(iPod ®)
, AUX,
My Music, BT Audio modes.
PHONE Converts to Phone mode ❈ When a phone is not connected, the connection
screen is displayed.
POWER/
VOL knob Power : Turns power On/Off by pressing the knob
Volume : Sets volume by turning the knob left/right
SEEK
TRACK When pressed shortly
- Radio mode : plays previous/next frequency.
- Media (CD/USB/iPod ®
/My Music) modes :
changes the track, Song(file)
When pressed and held
- Radio mode : continuously changes the frequency. Upon release, plays the current frequency.
- Media(CD/USB/iPod ®
/My Music) modes : rewinds
or fast forwards the track or file
- During a Handsfree call, controls the call volume.

4-21
Multimedia System
4
NameDescription
DISP Each time the button is shortly pressed, it setsthe Screen Off ➟Screen On ➟Screen Off
❈ Audio operation is maintained and only the
screen will be turned Off. In the Screen Off state,
press any key to turn the Screen On again.
MUTEWhen the button is pressed, stops sound and
“Audio Mute” is displayed on LCD.
SCAN Radio Mode
- Shortly press the key : Previews each broadcast
for 5 seconds each
- Press and hold the key : Previews the broad- casts saved in Preset for 5 seconds each.
❈ Press the key again to continue lis-
tening to the current frequency.
CD, USB, My Music mode
- Shortly press the key : Previews each song (file) for 10 seconds each
❈ Press the key again to continue lis- tening to the current song (file).
SCAN
SCAN
SETUPConverts to Setup mode.
TUNE
knob Radio mode : turn to change broadcast fre- quencies.
Media (CD/USB/iPod ®
/My Music) modes : turn
to search tracks/ channels/files.
FOLDER MP3 CD / USB mode : Folder Search ❈ May differ depending on the selected audio
RESETForced system termination and system restart.

4-22
Multimedia System
Steering-wheel mounted controls
❈The actual feature in the vehicle may differ from the
illustration.
NameDescription
MUTEMutes the microphone during a call
MODE Each time this key is pressed, the mode is changed in order of FM1 ➟FM2 ➟FMA ➟AM
AMA ➟CD ➟USB(iPod ®
)➟ AUX ➟My Music ➟
BT Audio.
If the media is not connected or a disc is not inserted, corresponding modes will be disabled.
,VOL-VOL+Used to control volume.
, When pressed shortly (under 0.8 seconds)
- Radio mode : searches broadcast frequenciessaved to presets.
- Media(CD / USB / iPod ®
/ My Music / BT Audio)
modes : changes the track, file or chapter.
When pressed and held (over 0.8 seconds)
- Radio mode, automatically searches broadcast frequencies and channels
- Media(CD / USB / iPod ®
/ My Music) modes,
rewinds or fast forwards the track or song(file)
- BT Audio mode may not be supported in some mobile phones.
