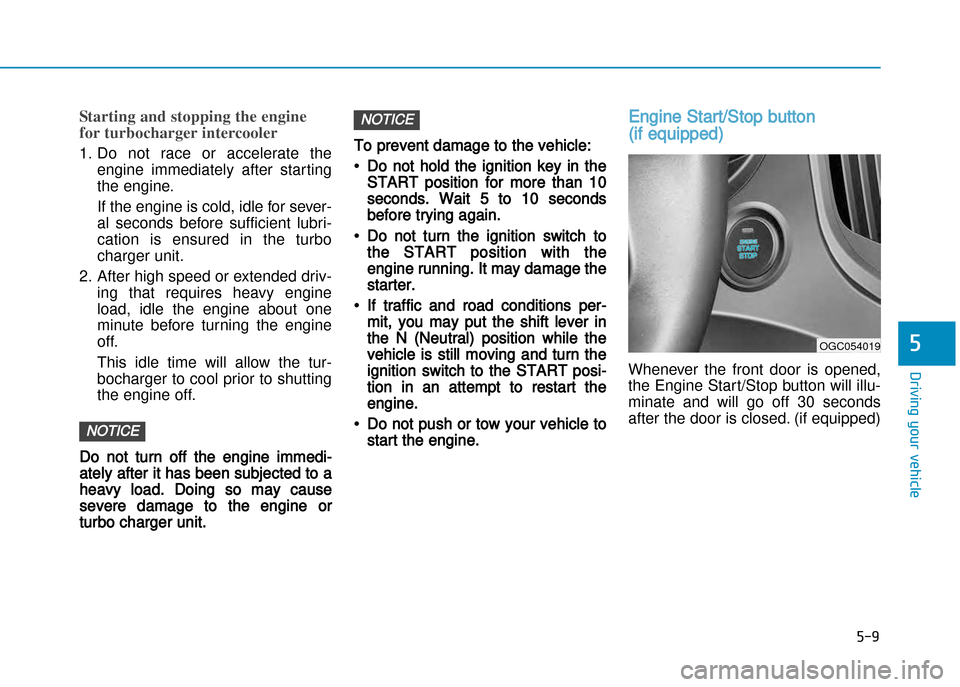

Hyundai Creta 2016 Owner's Manual

5-9
Driving your vehicle
5
Starting and stopping the engine
for turbocharger intercooler
1. Do not race or accelerate theengine immediately after starting
the engine.
If the engine is cold, idle for sever
al seconds before sufficient lubri
cation is ensured in the turbo
charger unit.
2. After high speed or extended driv ing that requires heavy engine
load, idle the engine about one
minute before turning the engine
off.
This idle time will allow the tur
bocharger to cool prior to shutting
the engine off.
Do not turn off the engine immedi
ately after it has been subjected to a
heavy load. Doing so may cause
severe damage to the engine or
turbo charger unit.
To prevent damage to the vehicle:
•Do not hold the ignition key in the
START position for more than 10
seconds. Wait 5 to 10 seconds
before trying again.
•Do not turn the ignition switch to
the START position with the
engine running. It may damage the
starter.
•If traffic and road conditions per
mit, you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and turn the
ignition switch to the START posi
tion in an attempt to restart the
engine.
•Do not push or tow your vehicle to
start the engine.
Engine Start/Stop button
(if equipped)
Whenever the front door is opened,
the Engine Start/Stop button will illu
minate and will go off 30 seconds
after the door is closed. (if equipped)
NOTICE
NOTICE
OGC054019

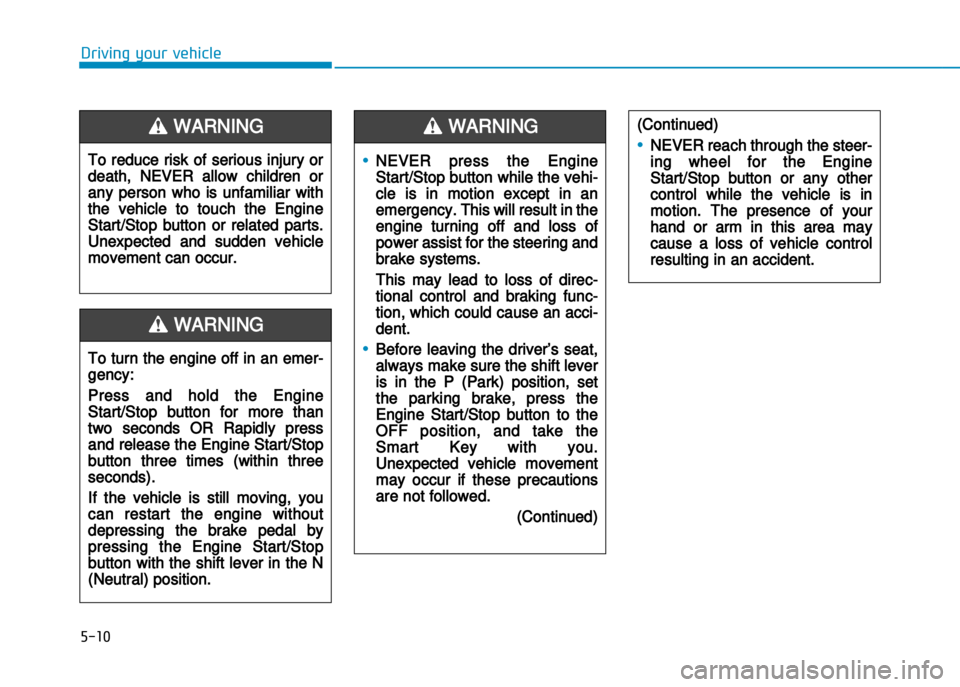

5-10
Driving your vehicle
•NEVER press the Engine
Start/Stop button while the vehi
cle is in motion except in an
emergency. This will result in the
engine turning off and loss of
power assist for the steering and
brake systems.
This may lead to loss of direc
tional control and braking func
tion, which could cause an acci
dent.
•Before leaving the driver’s seat,
always make sure the shift lever
is in the P (Park) position, set
the parking brake, press the
Engine Start/Stop button to the
OFF position, and take the
Smart Key with you.
Unexpected vehicle movement
may occur if these precautions
are not followed.
(Continued)
WARNING
To turn the engine off in an emer
gency:
Press and hold the Engine
Start/Stop button for more than
two seconds OR Rapidly press
and release the Engine Start/Stop
button three times (within three
seconds).
If the vehicle is still moving, you
can restart the engine without
depressing the brake pedal by
pressing the Engine Start/Stop
button with the shift lever in the N
(Neutral) position.
(Continued)
•NEVER reach through the steer
ing wheel for the Engine
Start/Stop button or any other
control while the vehicle is in
motion. The presence of your
hand or arm in this area may
cause a loss of vehicle control
resulting in an accident.
WARNING
To reduce risk of serious injury or
death, NEVER allow children or
any person who is unfamiliar with
the vehicle to touch the Engine
Start/Stop button or related parts.
Unexpected and sudden vehicle
movement can occur.
WARNING

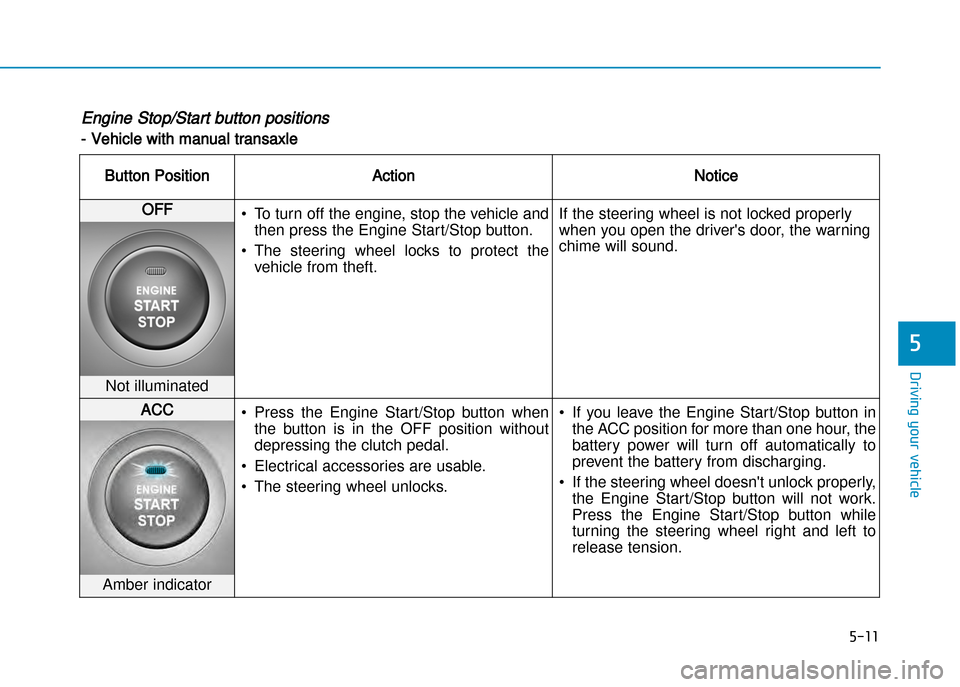

5-11
Driving your vehicle
5
Engine Stop/Start button positions
Vehicle with manual transaxle
Button PositionActionNotice
OFF• To turn off the engine, stop the vehicle and
then press the Engine Start/Stop button.
• The steering wheel locks to protect the vehicle from theft. If the steering wheel is not locked properly
when you open the driver's door, the warning
chime will sound.
Not illuminated
ACC
• Press the Engine Start/Stop button when
the button is in the OFF position without
depressing the clutch pedal.
• Electrical accessories are usable.
• The steering wheel unlocks. • If you leave the Engine Start/Stop button in
the ACC position for more than one hour, the
battery power will turn off automatically to
prevent the battery from discharging.
• If the steering wheel doesn't unlock properly, the Engine Start/Stop button will not work.
Press the Engine Start/Stop button while
turning the steering wheel right and left to
release tension.
Amber indicator

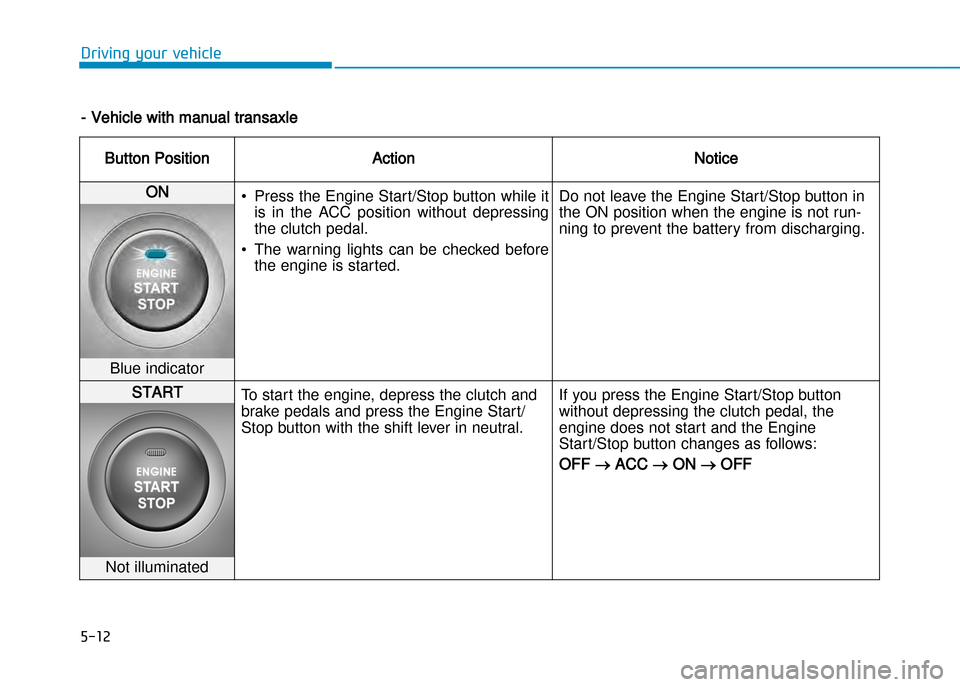

5-12
Driving your vehicle
Button PositionActionNotice
ON • Press the Engine Start/Stop button while it
is in the ACC position without depressing
the clutch pedal.
• The warning lights can be checked before the engine is started. Do not leave the Engine Start/Stop button in
the ON position when the engine is not run
ning to prevent the battery from discharging.
Blue indicator
START
To start the engine, depress the clutch and
brake pedals and press the Engine Start/
Stop button with the shift lever in neutral. If you press the Engine Start/Stop button
without depressing the clutch pedal, the
engine does not start and the Engine
Start/Stop button changes as follows:
OFF ACC ON OFF
Not illuminated
Vehicle with manual transaxle

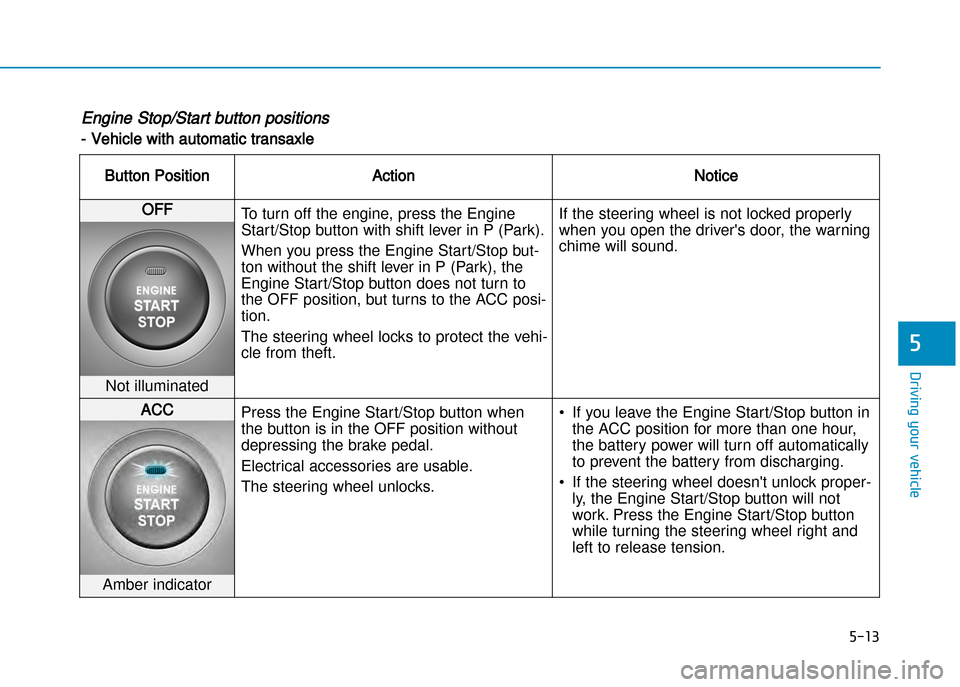

5-13
Driving your vehicle
5
Engine Stop/Start button positions
Vehicle with automatic transaxle
Button PositionActionNotice
OFFTo turn off the engine, press the Engine
Start/Stop button with shift lever in P (Park).
When you press the Engine Start/Stop but
ton without the shift lever in P (Park), the
Engine Start/Stop button does not turn to
the OFF position, but turns to the ACC posi
tion.
The steering wheel locks to protect the vehi
cle from theft. If the steering wheel is not locked properly
when you open the driver's door, the warning
chime will sound.
Not illuminated
ACC
Press the Engine Start/Stop button when
the button is in the OFF position without
depressing the brake pedal.
Electrical accessories are usable.
The steering wheel unlocks. • If you leave the Engine Start/Stop button in
the ACC position for more than one hour,
the battery power will turn off automatically
to prevent the battery from discharging.
• If the steering wheel doesn't unlock proper ly, the Engine Start/Stop button will not
work. Press the Engine Start/Stop button
while turning the steering wheel right and
left to release tension.
Amber indicator

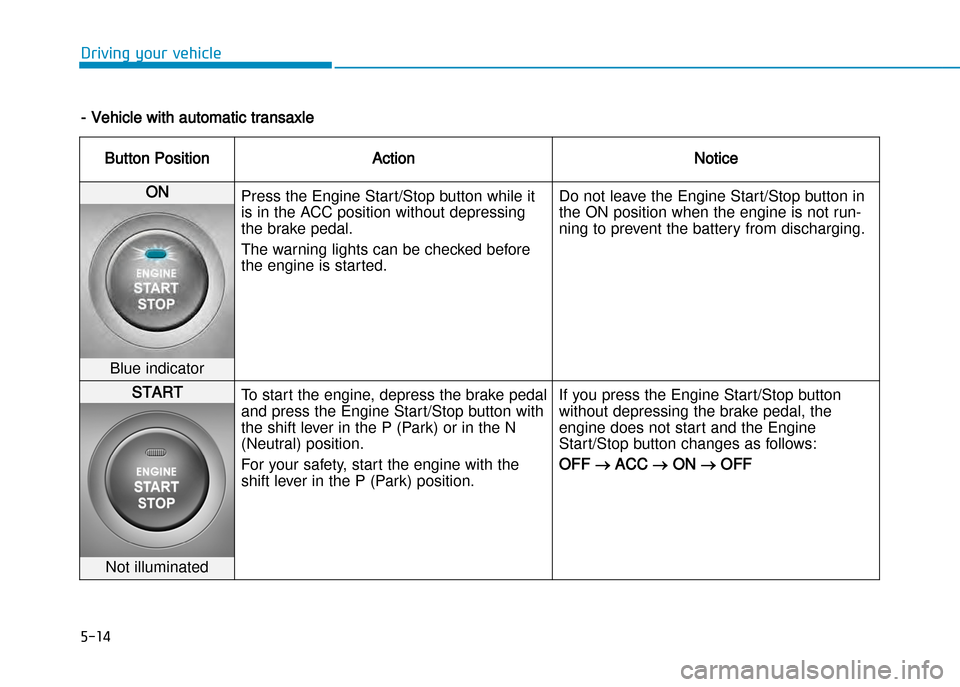

5-14
Driving your vehicle
Vehicle with automatic transaxle
Button PositionActionNotice
ON Press the Engine Start/Stop button while it
is in the ACC position without depressing
the brake pedal.
The warning lights can be checked before
the engine is started. Do not leave the Engine Start/Stop button in
the ON position when the engine is not run
ning to prevent the battery from discharging.
Blue indicator
START
To start the engine, depress the brake pedal
and press the Engine Start/Stop button with
the shift lever in the P (Park) or in the N
(Neutral) position.
For your safety, start the engine with the
shift lever in the P (Park) position. If you press the Engine Start/Stop button
without depressing the brake pedal, the
engine does not start and the Engine
Start/Stop button changes as follows:
OFF ACC ON OFF
Not illuminated

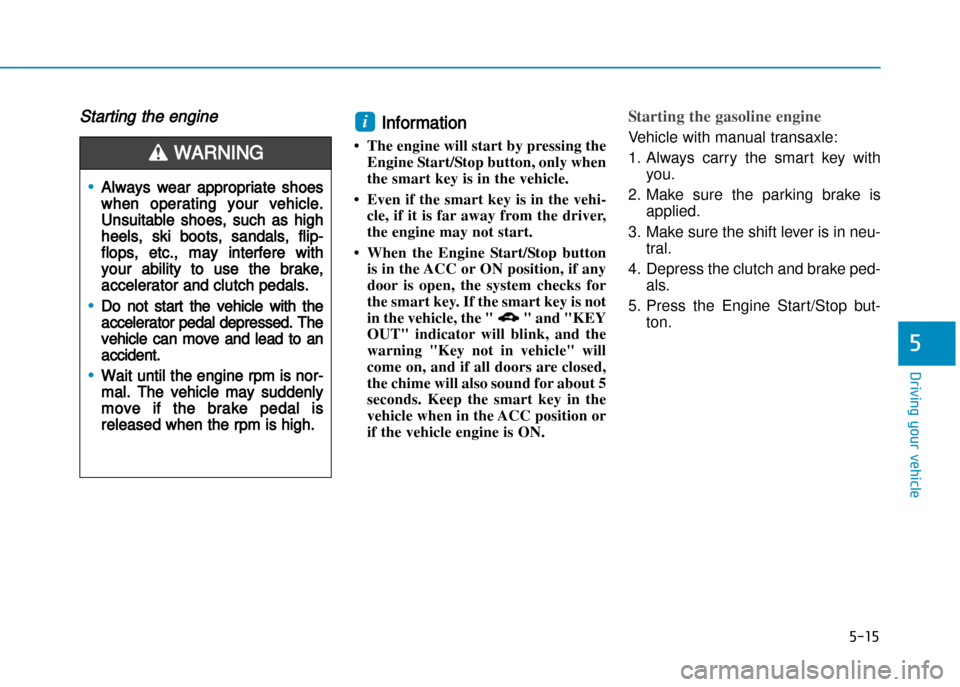

5-15
Driving your vehicle
5
Starting the engine Information
• The engine will start by pressing the Engine Start/Stop button, only when
the smart key is in the vehicle.
• Even if the smart key is in the vehi cle, if it is far away from the driver,
the engine may not start.
• When the Engine Start/Stop button is in the ACC or ON position, if any
door is open, the system checks for
the smart key. If the smart key is notin the vehicle, the " " and "KEY
OUT" indicator will blink, and the
warning "Key not in vehicle" will
come on, and if all doors are closed,
the chime will also sound for about 5
seconds. Keep the smart key in the
vehicle when in the ACC position or
if the vehicle engine is ON.Starting the gasoline engine
Vehicle with manual transaxle:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in neu tral.
4. Depress the clutch and brake ped als.
5. Press the Engine Start/Stop but ton. i
•Always wear appropriate shoes
when operating your vehicle.
Unsuitable shoes, such as high
heels, ski boots, sandals, flip
flops, etc., may interfere with
your ability to use the brake,
accelerator and clutch pedals.
•Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.
•Wait until the engine rpm is nor
mal. The vehicle may suddenly
move if the brake pedal is
released when the rpm is high.
WARNING

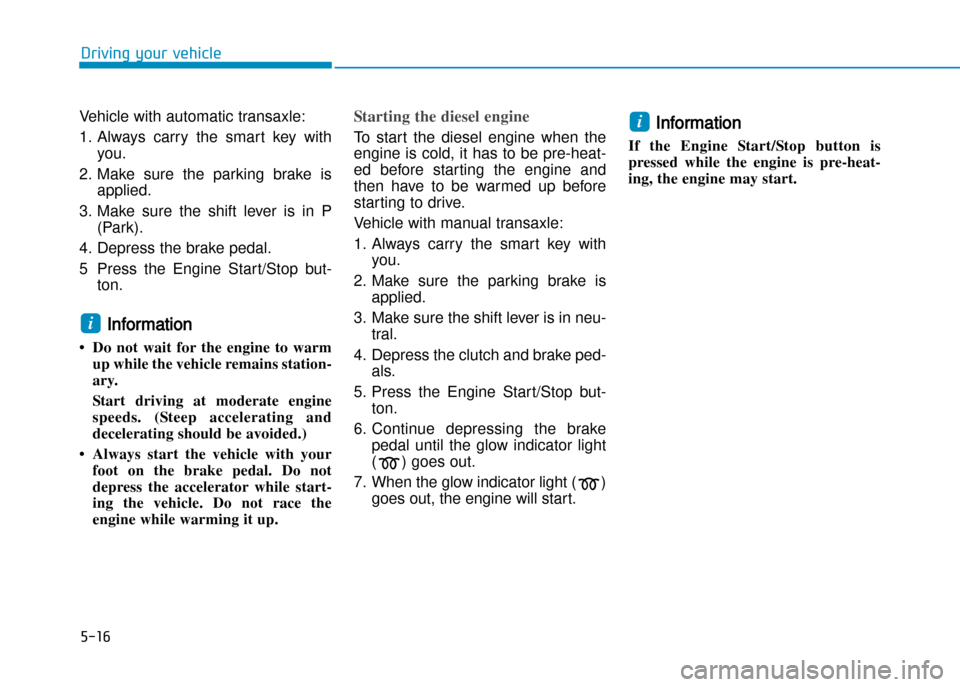

5-16
Driving your vehicle
Vehicle with automatic transaxle:
1. Always carry the smart key withyou.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5 Press the Engine Start/Stop but ton.
Information
• Do not wait for the engine to warm up while the vehicle remains station
ary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.)
• Always start the vehicle with your foot on the brake pedal. Do not
depress the accelerator while start
ing the vehicle. Do not race the
engine while warming it up.
Starting the diesel engine
To start the diesel engine when the
engine is cold, it has to be preheat
ed before starting the engine and
then have to be warmed up before
starting to drive.
Vehicle with manual transaxle:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in neu tral.
4. Depress the clutch and brake ped als.
5. Press the Engine Start/Stop but ton.
6. Continue depressing the brake pedal until the glow indicator light
( ) goes out.
7. When the glow indicator light ( ) goes out, the engine will start. Information
If the Engine Start/Stop button is
pressed while the engine is preheat
ing, the engine may start.i
i

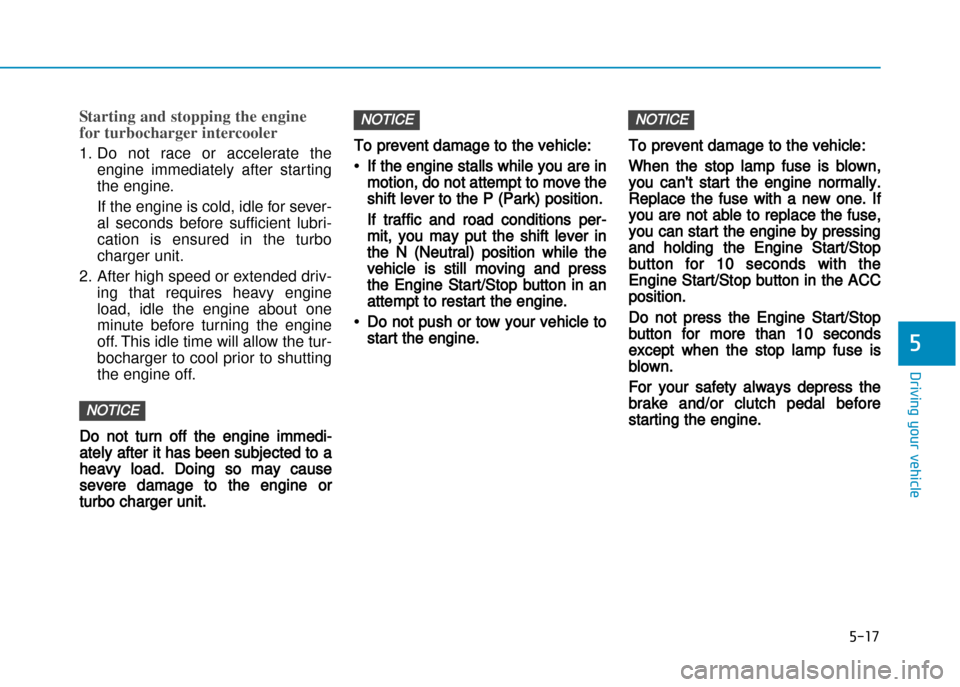

5-17
Driving your vehicle
5
Starting and stopping the engine
for turbocharger intercooler
1. Do not race or accelerate theengine immediately after starting
the engine.
If the engine is cold, idle for sever
al seconds before sufficient lubri
cation is ensured in the turbo
charger unit.
2. After high speed or extended driv ing that requires heavy engine
load, idle the engine about one
minute before turning the engine
off. This idle time will allow the tur
bocharger to cool prior to shutting
the engine off.
Do not turn off the engine immedi
ately after it has been subjected to a
heavy load. Doing so may cause
severe damage to the engine or
turbo charger unit.
To prevent damage to the vehicle:
•If the engine stalls while you are in
motion, do not attempt to move the
shift lever to the P (Park) position.
If traffic and road conditions per
mit, you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and press
the Engine Start/Stop button in an
attempt to restart the engine.
•Do not push or tow your vehicle to
start the engine.
To prevent damage to the vehicle:
When the stop lamp fuse is blown,
you can't start the engine normally.
Replace the fuse with a new one. If
you are not able to replace the fuse,
you can start the engine by pressing
and holding the Engine Start/Stop
button for 10 seconds with the
Engine Start/Stop button in the ACC
position.
Do not press the Engine Start/Stop
button for more than 10 seconds
except when the stop lamp fuse is
blown.
For your safety always depress the
brake and/or clutch pedal before
starting the engine.
NOTICENOTICE
NOTICE

5-18
Driving your vehicle

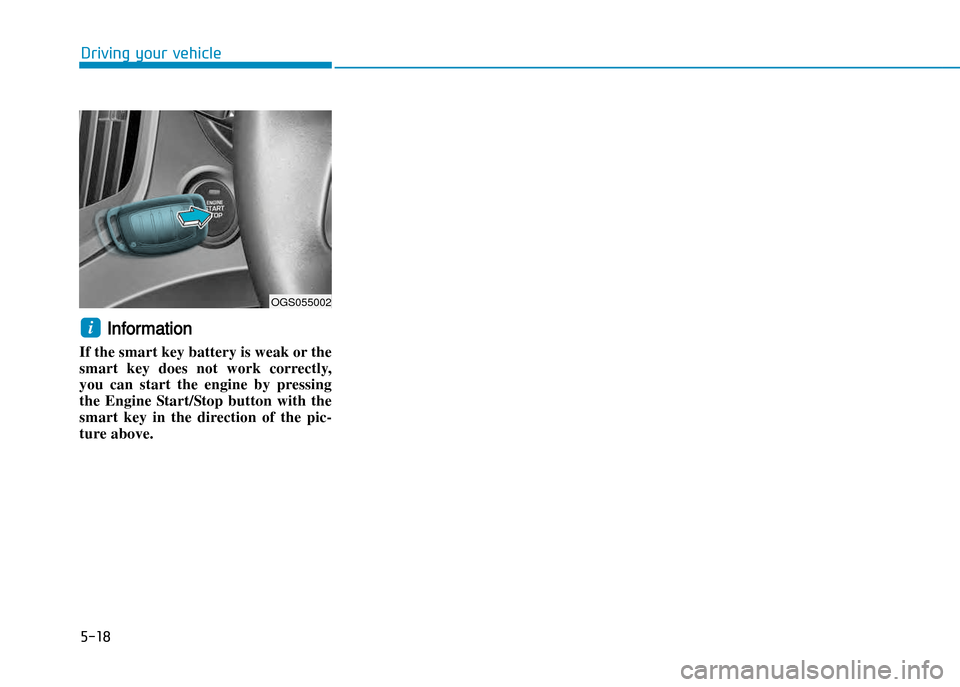

Information
If the smart key battery is weak or the
smart key does not work correctly,
you can start the engine by pressing
the Engine Start/Stop button with the
smart key in the direction of the pic
ture above. i
OGS055002
