Hyundai Creta 2016 Owner's Manual

5-29
Driving your vehicle
5

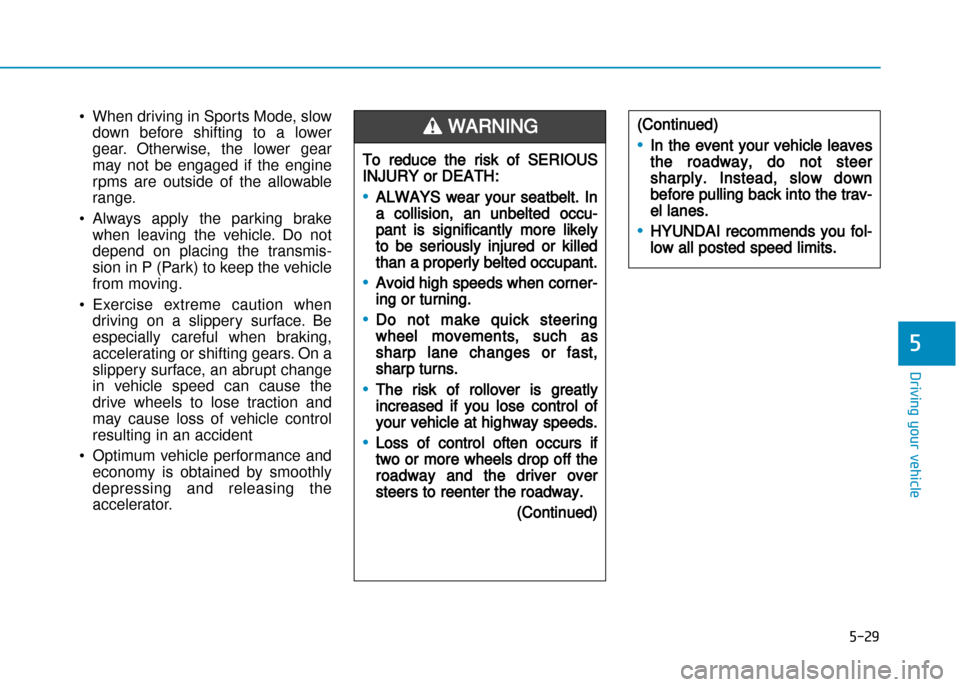

•When driving in Sports Mode, slow
down before shifting to a lower
gear. Otherwise, the lower gear
may not be engaged if the engine
rpms are outside of the allowable
range.
• Always apply the parking brake when leaving the vehicle. Do not
depend on placing the transmis
sion in P (Park) to keep the vehicle
from moving.
• Exercise extreme caution when driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the
drive wheels to lose traction and
may cause loss of vehicle control
resulting in an accident
• Optimum vehicle performance and economy is obtained by smoothly
depressing and releasing the
accelerator.
To reduce the risk of SERIOUS
INJURY or DEATH:
•ALWAYS wear your seatbelt. In
a collision, an unbelted occu
pant is significantly more likely
to be seriously injured or killed
than a properly belted occupant.
•Avoid high speeds when corner
ing or turning.
•Do not make quick steering
wheel movements, such as
sharp lane changes or fast,
sharp turns.
•The risk of rollover is greatly
increased if you lose control of
your vehicle at highway speeds.
•Loss of control often occurs if
two or more wheels drop off the
roadway and the driver over
steers to reenter the roadway.
(Continued)
(Continued)
•In the event your vehicle leaves
the roadway, do not steer
sharply. Instead, slow down
before pulling back into the trav
el lanes.
•HYUNDAI recommends you fol
low all posted speed limits.
WARNING

5-30
Driving your vehicle
Power brakes
Your vehicle has powerassisted
brakes that adjust automatically
through normal usage.
If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
You can still stop your vehicle by
applying greater force to the brake
pedal than typical. The stopping dis
tance, however, will be longer than
with power brakes.
When the engine is not running, the
reser ve brake power is par tially
depleted each time the brake pedal
is applied. Do not pump the brake
pedal when the power assist has
been interrupted.
Pump the brake pedal only when
necessary to maintain steering con
trol on slippery surfaces.
BRAKING SYSTEM
Take the following precautions:
•Do not drive with your foot rest
ing on the brake pedal. This will
create abnormal high brake tem
peratures, excessive brake lin
ing and pad wear, and
increased stopping distances.
•When descending a long or
steep hill, shift to a lower gear
and avoid continuous applica
tion of the brakes. Applying the
brakes continuously will cause
the brakes to overheat and
could result in a temporary loss
of braking performance.
(Continued)
(Continued)
•Wet brakes may impair the vehi
cle’s ability to safely slow down;
the vehicle may also pull to one
side when the brakes are
applied. Applying the brakes
lightly will indicate whether they
have been affected in this way.
Always test your brakes in this
fashion after driving through
deep water. To dry the brakes,
lightly tap the brake pedal to
heat up the brakes while main
taining a safe forward speed
until brake performance returns
to normal. Avoid driving at high
speeds until the brakes function
correctly.
WARNING

5-31
Driving your vehicle
5

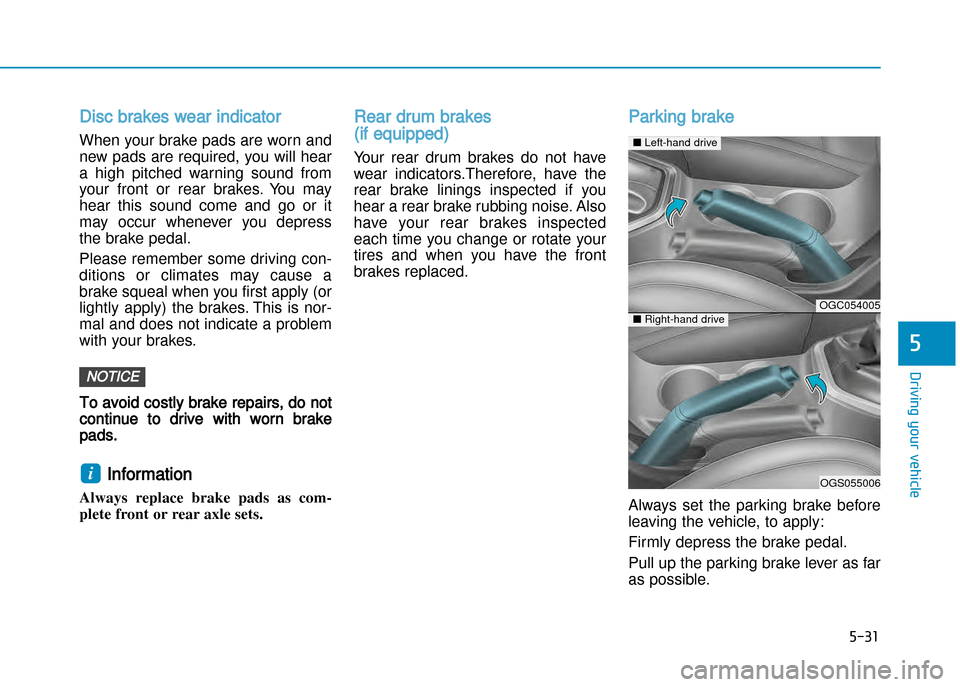

Disc brakes wear indicator
When your brake pads are worn and
new pads are required, you will hear
a high pitched warning sound from
your front or rear brakes. You may
hear this sound come and go or it
may occur whenever you depress
the brake pedal.
Please remember some driving con
ditions or climates may cause a
brake squeal when you first apply (or
lightly apply) the brakes. This is nor
mal and does not indicate a problem
with your brakes.
To avoid costly brake repairs, do not
continue to drive with worn brake
pads.
Information
Always replace brake pads as com
plete front or rear axle sets.
Rear drum brakes
(if equipped)
Your rear drum brakes do not have
wear indicators.Therefore, have the
rear brake linings inspected if you
hear a rear brake rubbing noise. Also
have your rear brakes inspected
each time you change or rotate your
tires and when you have the front
brakes replaced.
Parking brake
Always set the parking brake before
leaving the vehicle, to apply:
Firmly depress the brake pedal.
Pull up the parking brake lever as far
as possible.
i
NOTICE
OGC054005
OGS055006
■ Lefthand drive
■Righthand drive

5-32
Driving your vehicle

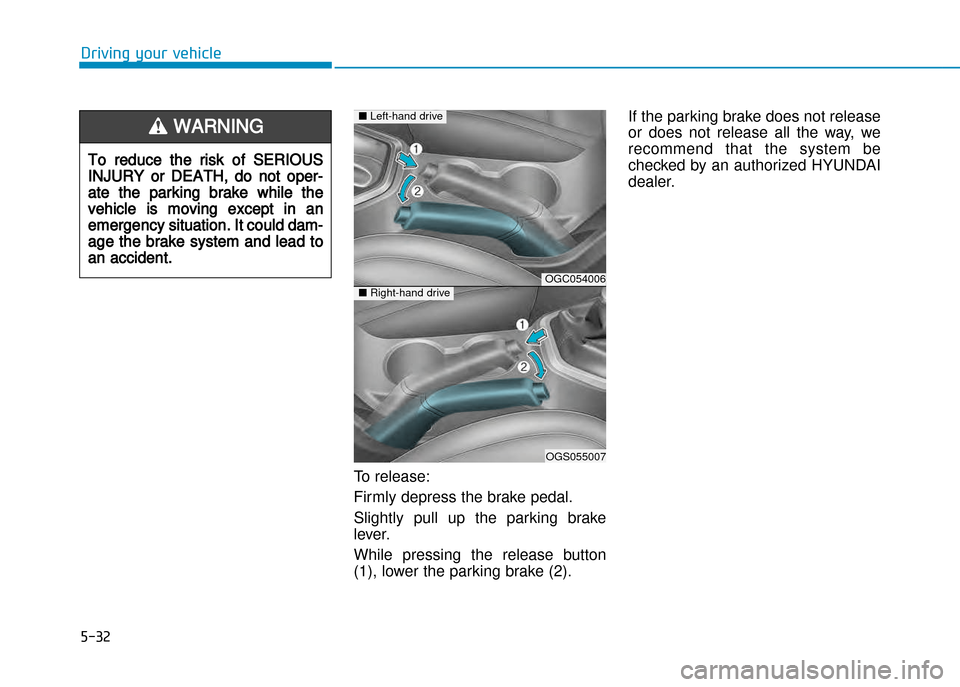

To release:
Firmly depress the brake pedal.
Slightly pull up the parking brake
lever.
While pressing the release button
(1), lower the parking brake (2).If the parking brake does not release
or does not release all the way, we
recommend that the system be
checked by an authorized HYUNDAI
dealer.
To reduce the risk of SERIOUS
INJURY or DEATH, do not oper
ate the parking brake while the
vehicle is moving except in an
emergency situation. It could dam
age the brake system and lead to
an accident.
WARNING
OGC054006
OGS055007
■
Lefthand drive
■Righthand drive

5-33
Driving your vehicle
5
•Do not apply the accelerator pedal
while the parking brake is
engaged. If you depress the accel
erator pedal with the parking brake
engaged, warning will sound.
Damage to the parking brake may
occur.
•Driving with the parking brake on
can overheat the braking system
and cause premature wear or
damage to brake parts. Make sure
the parking brake is released and
the Brake Warning Light is off
before driving.Check the Parking
Brake Warning Light by
placing the ignition
switch to the ON posi
tion (do not start theengine).
This light will be illuminated when the
parking brake is applied with the igni
tion switch in the START or ON position.
Before driving, be sure the parking
brake is released and the Brake
Warning Light is OFF.
NOTICE
•Whenever leaving the vehicle or
parking, always come to a com
plete stop and continue to
depress the brake pedal. Move
the shift lever into the 1st gear
(for manual transaxle vehicle) or
P (Park, for automatic transaxle
vehicle) position, then apply the
parking brake, and place the
ignition switch in the LOCK/OFF
position.
Vehicles with the parking brake
not fully engaged are at risk for
moving inadvertently and caus
ing injury to yourself or others.
•NEVER allow anyone who is
unfamiliar with the vehicle to
touch the parking brake. If the
parking brake is released unin
tentionally, serious injury may
occur.
•Only release the parking brake
when you are seated inside the
vehicle with your foot firmly on
the brake pedal.
WARNING

5-34
Driving your vehicle

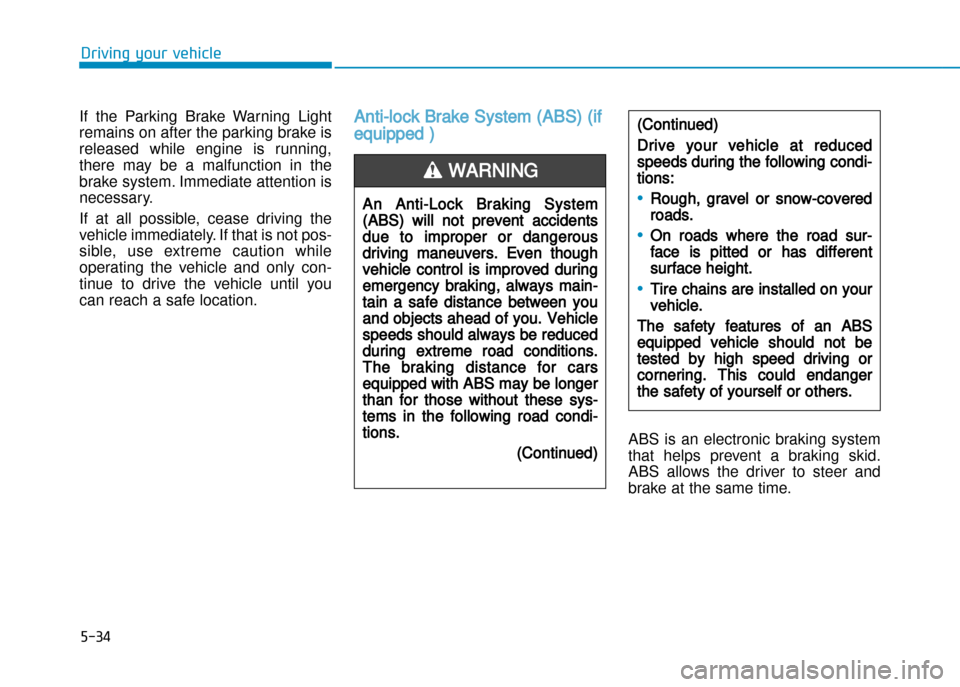

If the Parking Brake Warning Light
remains on after the parking brake is
released while engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the
vehicle immediately. If that is not pos
sible, use extreme caution while
operating the vehicle and only con
tinue to drive the vehicle until you
can reach a safe location.Antilock Brake System (ABS) (if
equipped )
ABS is an electronic braking system
that helps prevent a braking skid.
ABS allows the driver to steer and
brake at the same time.
(Continued)
Drive your vehicle at reduced
speeds during the following condi
tions:
•Rough, gravel or snowcovered
roads.
•On roads where the road sur
face is pitted or has different
surface height.
•Tire chains are installed on your
vehicle.
The safety features of an ABS
equipped vehicle should not be
tested by high speed driving or
cornering. This could endanger
the safety of yourself or others.
An AntiLock Braking System
(ABS) will not prevent accidents
due to improper or dangerous
driving maneuvers. Even though
vehicle control is improved during
emergency braking, always main
tain a safe distance between you
and objects ahead of you. Vehicle
speeds should always be reduced
during extreme road conditions.
The braking distance for cars
equipped with ABS may be longer
than for those without these sys
tems in the following road condi
tions.
(Continued)
WARNING

5-35
Driving your vehicle
5
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your
brake pressure and do not try to
pump your brakes. Depress your
brake pedal as hard as possible.
When you apply your brakes under
conditions which may lock the
wheels, you may hear sounds from
the brakes, or feel a corresponding
sensation in the brake pedal. This is
normal and it means your ABS is
active.
ABS does not reduce the time or dis
tance it takes to stop the vehicle.
Always maintain a safe distance from
the vehicle in front of you.
ABS will not prevent a skid that
results from sudden changes in
direction, such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather con
ditions. ABS cannot prevent a loss of stabili
ty. Always steer moderately when
braking hard. Severe or sharp steer
ing wheel movement can still cause
your vehicle to veer into oncoming
traffic or off the road.
On loose or uneven road surfaces,
operation of the antilock brake sys
tem may result in a longer stopping
distance than for vehicles equipped
with a conventional brake system.
The ABS warning light ( ) will stay
on for several seconds after the igni
tion switch is in the ON position.
During that time, the ABS will go
through selfdiagnosis and the light
will go off if everything is normal. If
the light stays on, you may have a
problem with your ABS. We recom
mend that you contact an authorized
HYUNDAI dealer as soon as possi
ble.
If the ABS warning light () is on
and stays on, you may have a
problem with the ABS. Your power
brakes will work normally. To
reduce the risk of serious injury or
death, we recommend that you
contact your HYUNDAI dealer as
soon as possible.
WARNING

5-36
Driving your vehicle

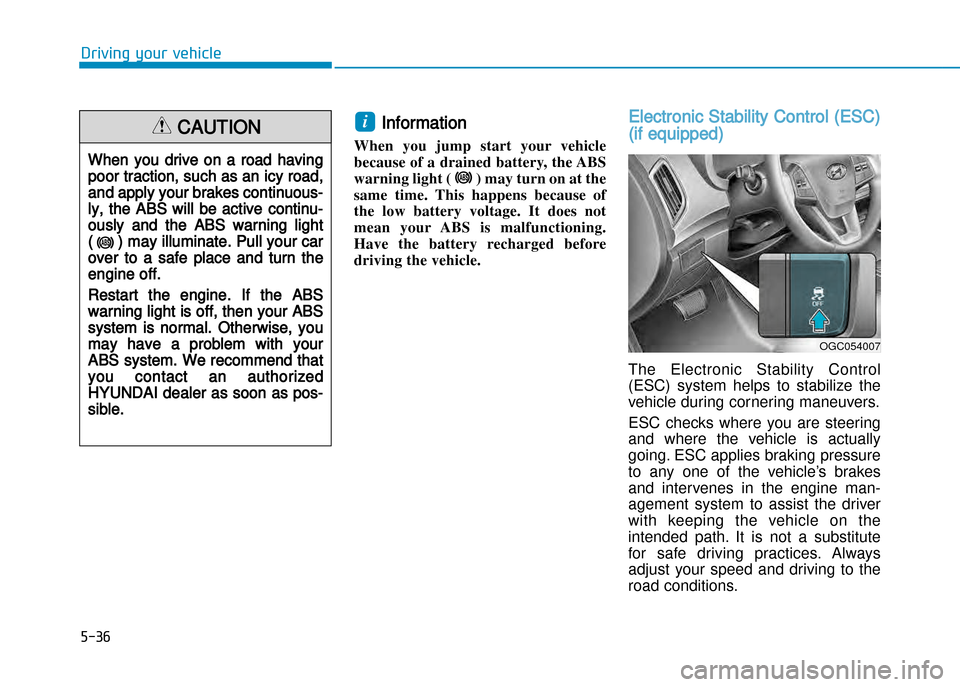

Information
When you jump start your vehicle
because of a drained battery, the ABS
warning light ( ) may turn on at the
same time. This happens because of
the low battery voltage. It does not
mean your ABS is malfunctioning.
Have the battery recharged before
driving the vehicle.Electronic Stability Control (ESC)
(if equipped)
The Electronic Stability Control
(ESC) system helps to stabilize the
vehicle during cornering maneuvers.
ESC checks where you are steering
and where the vehicle is actually
going. ESC applies braking pressure
to any one of the vehicle’s brakes
and intervenes in the engine man
agement system to assist the driver
with keeping the vehicle on the
intended path. It is not a substitute
for safe driving practices. Always
adjust your speed and driving to the
road conditions.
i
When you drive on a road having
poor traction, such as an icy road,
and apply your brakes continuous
ly, the ABS will be active continu
ously and the ABS warning light
() may illuminate. Pull your car
over to a safe place and turn the
engine off.
Restart the engine. If the ABS
warning light is off, then your ABS
system is normal. Otherwise, you
may have a problem with your
ABS system. We recommend that
you contact an authorized
HYUNDAI dealer as soon as pos
sible.
CAUTION
OGC054007

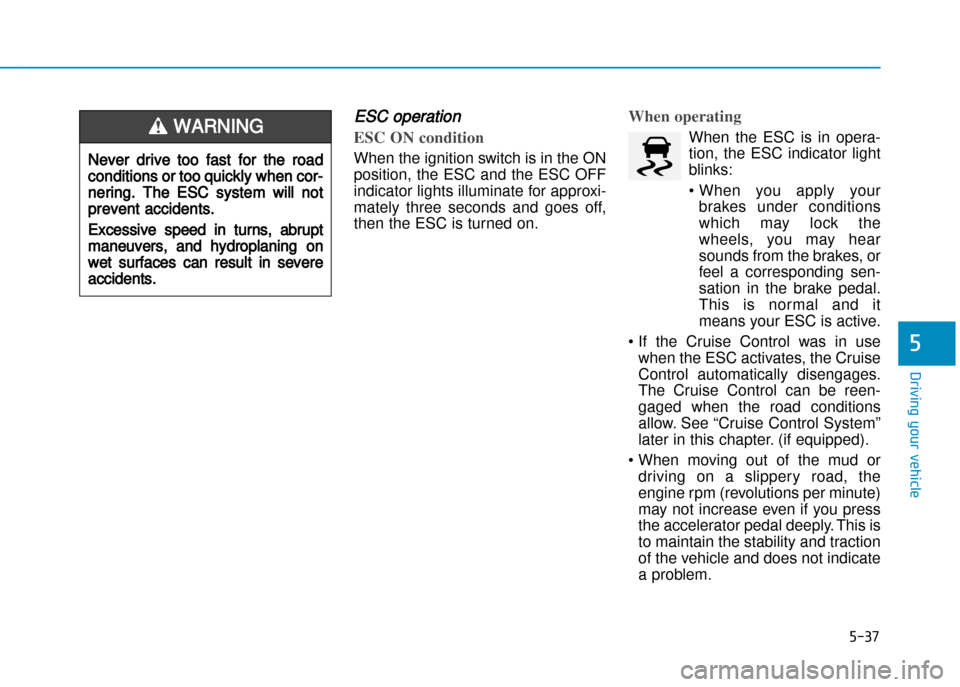

ESC operation
ESC ON condition
When the ignition switch is in the ON
position, the ESC and the ESC OFF
indicator lights illuminate for approxi
mately three seconds and goes off,
then the ESC is turned on.
When operating
When the ESC is in opera
tion, the ESC indicator light
blinks:
• When you apply yourbrakes under conditions
which may lock the
wheels, you may hear
sounds from the brakes, or
feel a corresponding sen
sation in the brake pedal.
This is normal and it
means your ESC is active.
• If the Cruise Control was in use when the ESC activates, the Cruise
Control automatically disengages.
The Cruise Control can be reen
gaged when the road conditions
allow. See “Cruise Control System”
later in this chapter. (if equipped).
• When moving out of the mud or driving on a slippery road, the
engine rpm (revolutions per minute)
may not increase even if you press
the accelerator pedal deeply. This is
to maintain the stability and traction
of the vehicle and does not indicate
a problem.
5-37
Driving your vehicle
5
Never drive too fast for the road
conditions or too quickly when cor
nering. The ESC system will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on
wet surfaces can result in severe
accidents.
WARNING

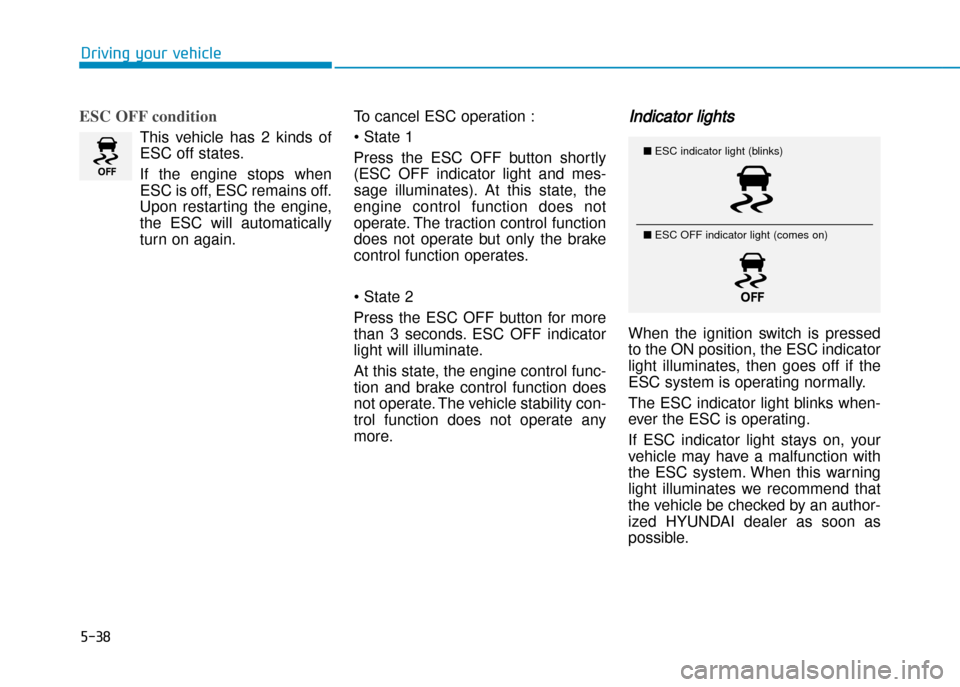

ESC OFF condition
This vehicle has 2 kinds of
ESC off states.
If the engine stops when
ESC is off, ESC remains off.
Upon restarting the engine,
the ESC will automatically
turn on again. To cancel ESC operation :
• State 1
Press the ESC OFF button shortly
(ESC OFF indicator light and mes
sage illuminates). At this state, the
engine control function does not
operate. The traction control function
does not operate but only the brake
control function operates.
• State 2
Press the ESC OFF button for more
than 3 seconds. ESC OFF indicator
light will illuminate.
At this state, the engine control func
tion and brake control function does
not operate. The vehicle stability con
trol function does not operate any
more.
Indicator lights
When the ignition switch is pressed
to the ON position, the ESC indicator
light illuminates, then goes off if the
ESC system is operating normally.
The ESC indicator light blinks when
ever the ESC is operating.
If ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning
light illuminates we recommend that
the vehicle be checked by an author
ized HYUNDAI dealer as soon as
possible.
5-38
Driving your vehicle
■ ESC indicator light (blinks)
■ ESC OFF indicator light (comes on)
