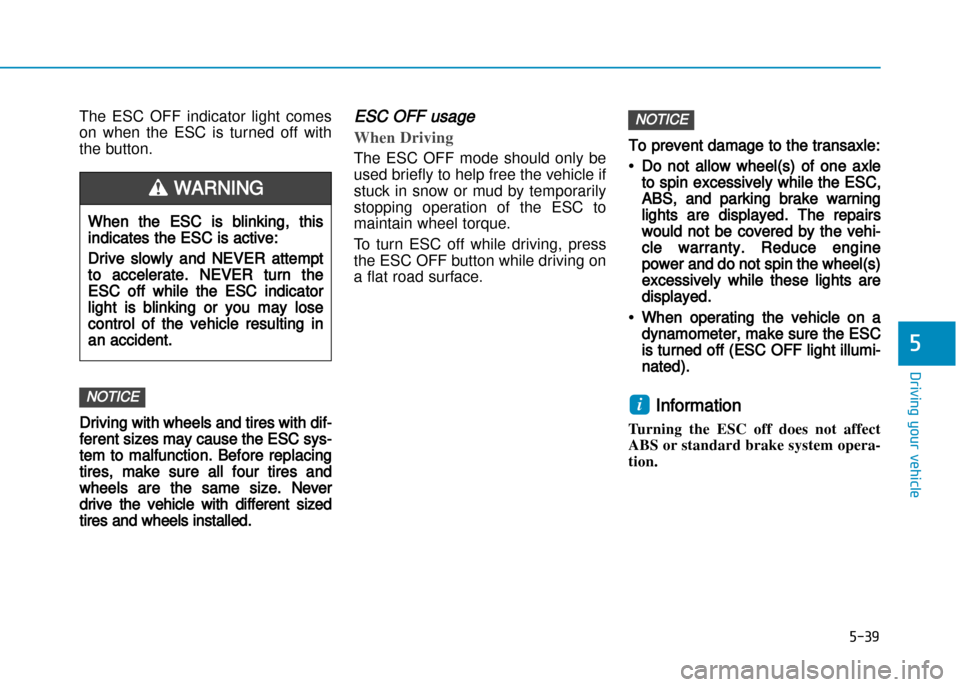

The ESC OFF indicator light comes
on when the ESC is turned off with
the button.
Driving with wheels and tires with dif
ferent sizes may cause the ESC sys
tem to malfunction. Before replacing
tires, make sure all four tires and
wheels are the same size. Never
drive the vehicle with different sized
tires and wheels installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be
used briefly to help free the vehicle if
stuck in snow or mud by temporarily
stopping operation of the ESC to
maintain wheel torque.
To turn ESC off while driving, press
the ESC OFF button while driving on
a flat road surface.To prevent damage to the transaxle:
•Do not allow wheel(s) of one axle
to spin excessively while the ESC,
ABS, and parking brake warning
lights are displayed. The repairs
would not be covered by the vehi
cle warranty. Reduce engine
power and do not spin the wheel(s)
excessively while these lights are
displayed.
•When operating the vehicle on a
dynamometer, make sure the ESC
is turned off (ESC OFF light illumi
nated).
Information
Turning the ESC off does not affect
ABS or standard brake system operation.NOTICEi
NOTICE
5-39
Driving your vehicle
5
When the ESC is blinking, this
indicates the ESC is active:
Drive slowly and NEVER attempt
to accelerate. NEVER turn the
ESC off while the ESC indicator
light is blinking or you may lose
control of the vehicle resulting in
an accident.
WARNING

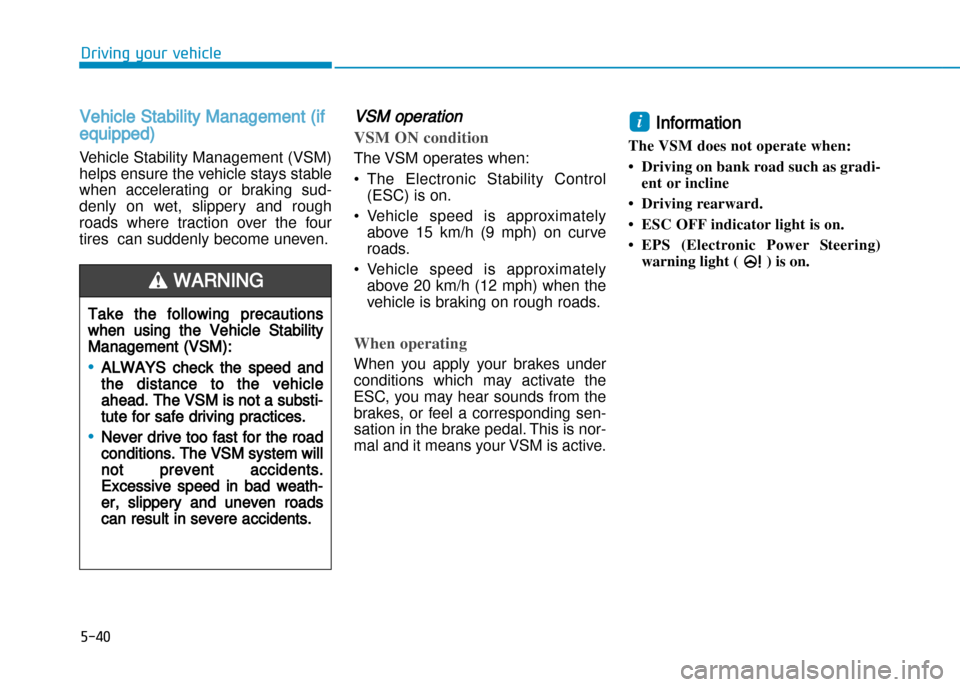

Vehicle Stability Management (if
equipped)
Vehicle Stability Management (VSM)
helps ensure the vehicle stays stable
when accelerating or braking sud
denly on wet, slippery and rough
roads where traction over the four
tires can suddenly become uneven.
VSM operation
VSM ON condition
The VSM operates when:
• The Electronic Stability Control(ESC) is on.
• Vehicle speed is approximately above 15 km/h (9 mph) on curve
roads.
• Vehicle speed is approximately above 20 km/h (12 mph) when the
vehicle is braking on rough roads.
When operating
When you apply your brakes under
conditions which may activate the
ESC, you may hear sounds from the
brakes, or feel a corresponding sen
sation in the brake pedal. This is nor
mal and it means your VSM is active.
Information
The VSM does not operate when:
• Driving on bank road such as gradi ent or incline
• Driving rearward.
• ESC OFF indicator light is on.
• EPS (Electronic Power Steering) warning light ( ) is on. i
5-40
Driving your vehicle
Take the following precautions
when using the Vehicle Stability
Management (VSM):
•ALWAYS check the speed and
the distance to the vehicle
ahead. The VSM is not a substi
tute for safe driving practices.
•Never drive too fast for the road
conditions. The VSM system will
not prevent accidents.
Excessive speed in bad weath
er, slippery and uneven roads
can result in severe accidents.
WARNING

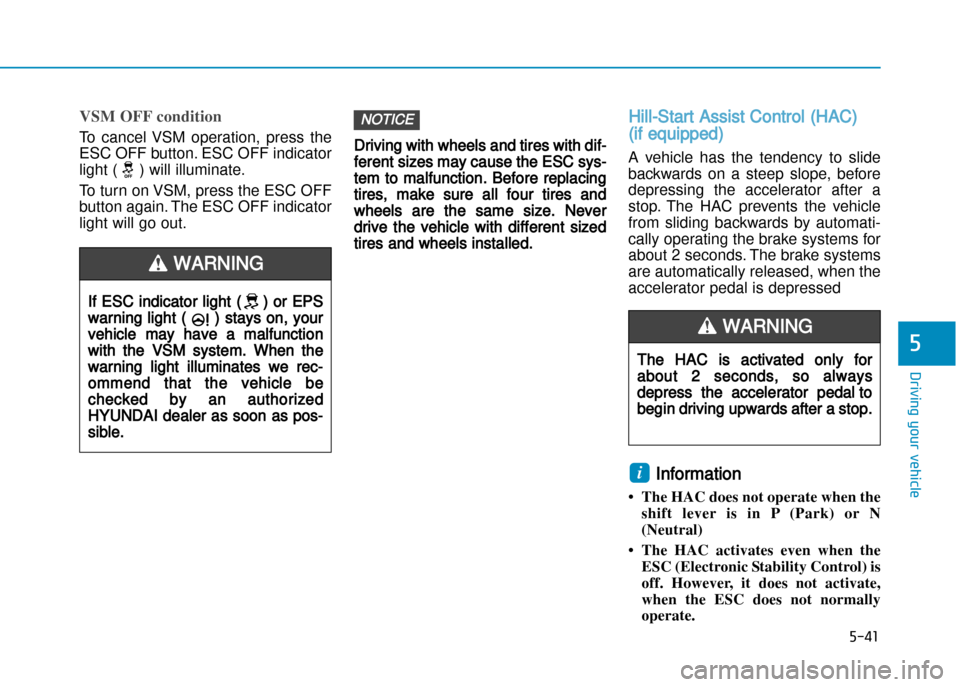

VSM OFF condition
To cancel VSM operation, press the
ESC OFF button. ESC OFF indicator
light ( ) will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator
light will go out. Driving with wheels and tires with dif
ferent sizes may cause the ESC sys
tem to malfunction. Before replacing
tires, make sure all four tires and
wheels are the same size. Never
drive the vehicle with different sized
tires and wheels installed.
HillStart Assist Control (HAC)
(if equipped)
A vehicle has the tendency to slide
backwards on a steep slope, before
depressing the accelerator after a
stop. The HAC prevents the vehicle
from sliding backwards by automati
cally operating the brake systems for
about 2 seconds. The brake systems
are automatically released, when the
accelerator pedal is depressed
Information
• The HAC does not operate when the shift lever is in P (Park) or N
(Neutral)
• The HAC activates even when the ESC (Electronic Stability Control) is
off. However, it does not activate,
when the ESC does not normallyoperate.i
NOTICE
5-41
Driving your vehicle
5
If ESC indicator light () or EPS
warning light () stays on, your
vehicle may have a malfunction
with the VSM system. When the
warning light illuminates we rec
ommend that the vehicle be
checked by an authorized
HYUNDAI dealer as soon as pos
sible.
WARNING
The HAC is activated only for
about 2 seconds, so always
depress the accelerator pedal to
begin driving upwards after a stop.
WARNING

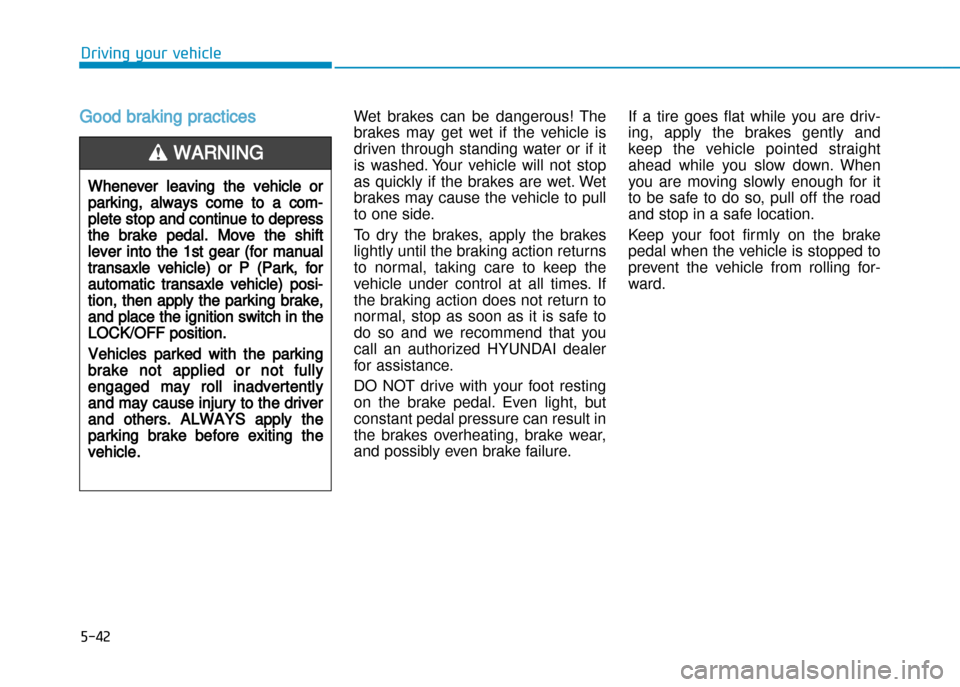

Good braking practices Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop
as quickly if the brakes are wet. Wet
brakes may cause the vehicle to pull
to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns
to normal, taking care to keep the
vehicle under control at all times. If
the braking action does not return to
normal, stop as soon as it is safe to
do so and we recommend that you
call an authorized HYUNDAI dealer
for assistance.
DO NOT drive with your foot resting
on the brake pedal. Even light, but
constant pedal pressure can result in
the brakes overheating, brake wear,
and possibly even brake failure. If a tire goes flat while you are driv
ing, apply the brakes gently and
keep the vehicle pointed straight
ahead while you slow down. When
you are moving slowly enough for it
to be safe to do so, pull off the road
and stop in a safe location.
Keep your foot firmly on the brake
pedal when the vehicle is stopped to
prevent the vehicle from rolling for
ward.
5-42
Driving your vehicle
Whenever leaving the vehicle or
parking, always come to a com
plete stop and continue to depress
the brake pedal. Move the shift
lever into the 1st gear (for manual
transaxle vehicle) or P (Park, for
automatic transaxle vehicle) posi
tion, then apply the parking brake,
and place the ignition switch in the
LOCK/OFF position.
Vehicles parked with the parking
brake not applied or not fully
engaged may roll inadvertently
and may cause injury to the driver
and others. ALWAYS apply the
parking brake before exiting the
vehicle.
WARNING

5-43
Driving your vehicle
5

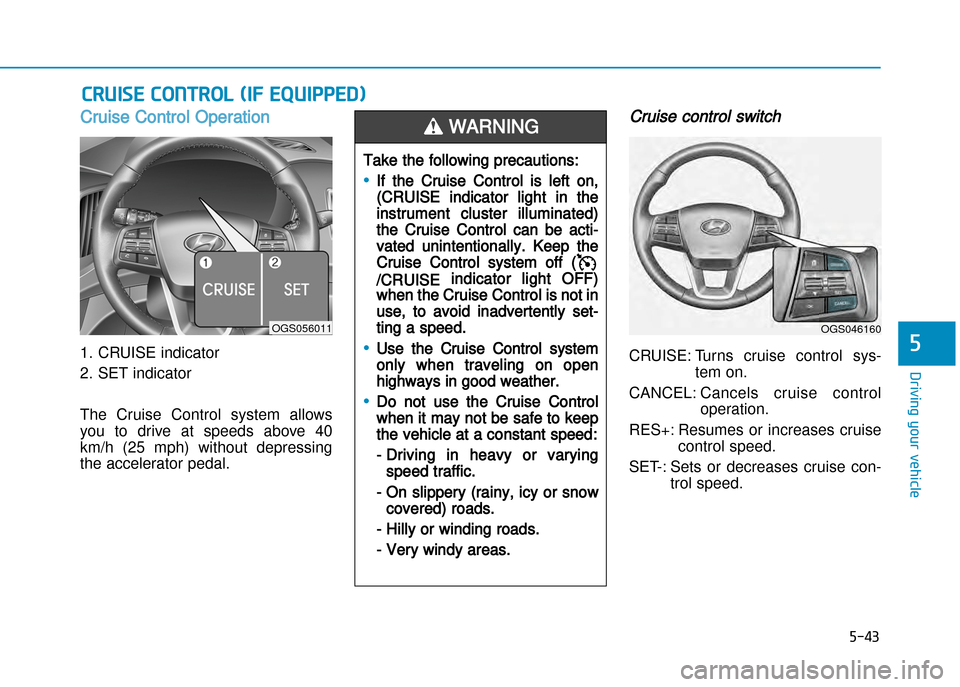

Cruise Control Operation
1. CRUISE indicator
2. SET indicator
The Cruise Control system allows
you to drive at speeds above 40
km/h (25 mph) without depressing
the accelerator pedal.
Cruise control switch
CRUISE: Turns cruise control system on.
CANCEL: Cancels cruise control operation.
RES+: Resumes or increases cruise control speed.
SET: Sets or decreases cruise con trol speed.
CRUISE CONTROL (IF EqUIppED)
OGS056011
Take the following precautions:
•If the Cruise Control is left on,
(CRUISE indicator light in the
instrument cluster illuminated)
the Cruise Control can be acti
vated unintentionally. Keep the
Cruise Control system off (
/CRUISEindicator light OFF)
when the Cruise Control is not in
use, to avoid inadvertently set
ting a speed.
•Use the Cruise Control system
only when traveling on open
highways in good weather.
•Do not use the Cruise Control
when it may not be safe to keep
the vehicle at a constant speed:
Driving in heavy or varying
speed traffic.
On slippery (rainy, icy or snow
covered) roads.
Hilly or winding roads.
Very windy areas.
WARNING
OGS046160

5-44
Driving your vehicle

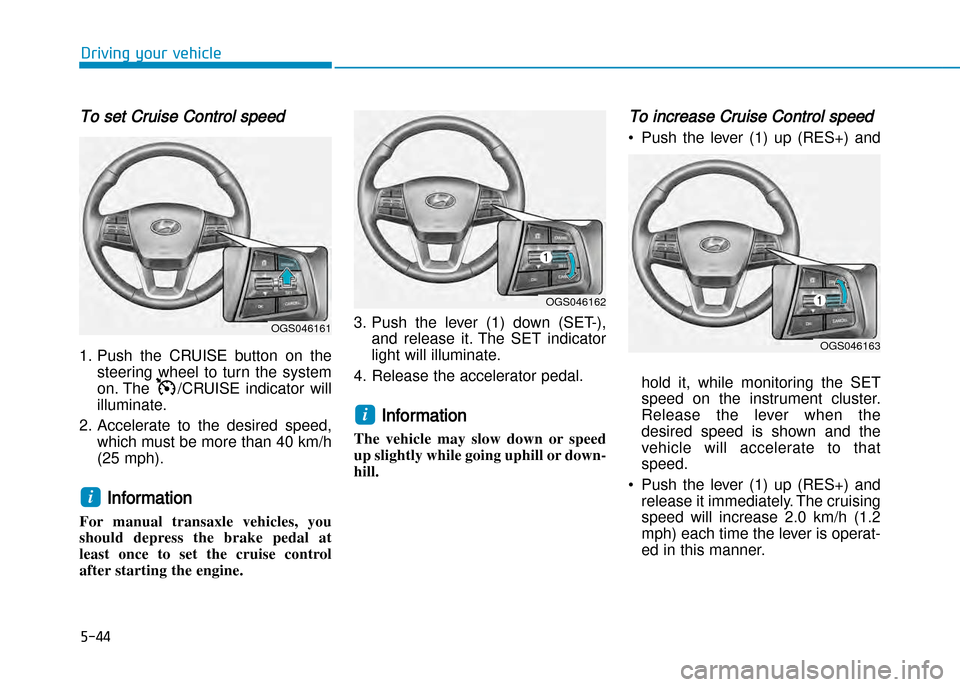

To set Cruise Control speed
1. Push the CRUISE button on thesteering wheel to turn the system
on. The /CRUISE indicator will
illuminate.
2. Accelerate to the desired speed, which must be more than 40 km/h
(25 mph).
Information
For manual transaxle vehicles, you
should depress the brake pedal at
least once to set the cruise control
after starting the engine. 3. Push the lever (1) down (SET),
and release it. The SET indicator
light will illuminate.
4. Release the accelerator pedal.
Information
The vehicle may slow down or speed
up slightly while going uphill or down
hill.
To increase Cruise Control speed
• Push the lever (1) up (RES+) and
hold it, while monitoring the SET
speed on the instrument cluster.
Release the lever when the
desired speed is shown and the
vehicle will accelerate to thatspeed.
• Push the lever (1) up (RES+) and release it immediately. The cruising
speed will increase 2.0 km/h (1.2
mph) each time the lever is operat
ed in this manner.
i
i
OGS046162
OGS046163
OGS046161

5-45
Driving your vehicle
5

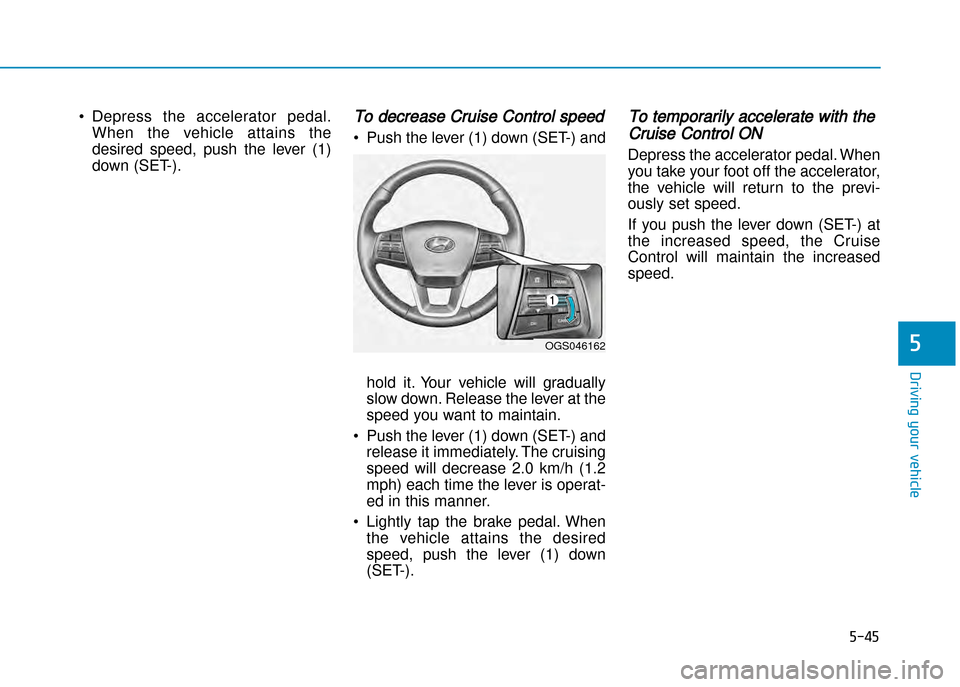

•Depress the accelerator pedal.
When the vehicle attains the
desired speed, push the lever (1)
down (SET).To decrease Cruise Control speed
• Push the lever (1) down (SET) and
hold it. Your vehicle will gradually
slow down. Release the lever at the
speed you want to maintain.
• Push the lever (1) down (SET) and release it immediately. The cruising
speed will decrease 2.0 km/h (1.2
mph) each time the lever is operat
ed in this manner.
• Lightly tap the brake pedal. When the vehicle attains the desired
speed, push the lever (1) down
(SET).
To temporarily accelerate with the
Cruise Control ON
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ
ously set speed.
If you push the lever down (SET) at
the increased speed, the Cruise
Control will maintain the increasedspeed.
OGS046162

5-46
Driving your vehicle

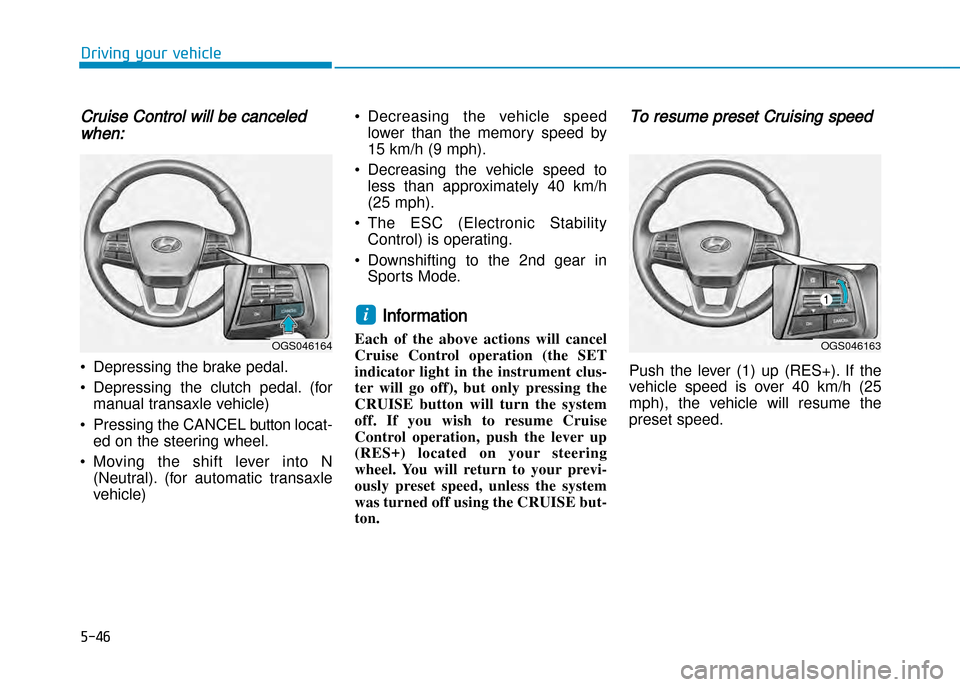

Cruise Control will be canceled
when:
• Depressing the brake pedal.
• Depressing the clutch pedal. (formanual transaxle vehicle)
• Pressing the CANCEL button locat ed on the steering wheel.
• Moving the shift lever into N (Neutral). (for automatic transaxle
vehicle) • Decreasing the vehicle speed
lower than the memory speed by
15 km/h (9 mph).
• Decreasing the vehicle speed to less than approximately 40 km/h
(25 mph).
• The ESC (Electronic Stability Control) is operating.
• Downshifting to the 2nd gear in Sports Mode.
Information
Each of the above actions will cancel
Cruise Control operation (the SET
indicator light in the instrument clus
ter will go off), but only pressing the
CRUISE button will turn the system
off. If you wish to resume Cruise
Control operation, push the lever up
(RES+) located on your steering
wheel. You will return to your previ
ously preset speed, unless the system
was turned off using the CRUISE button.
To resume preset Cruising speed
Push the lever (1) up (RES+). If the
vehicle speed is over 40 km/h (25
mph), the vehicle will resume the
preset speed.
i
OGS046163OGS046164

5-47
Driving your vehicle
5

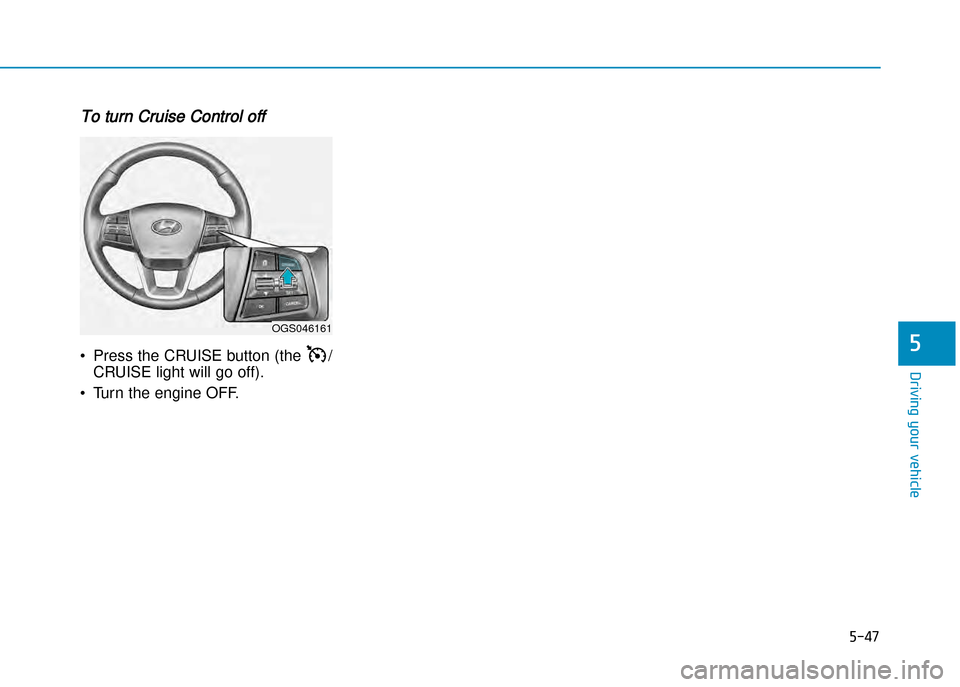

To turn Cruise Control off
• Press the CRUISE button (the /CRUISE light will go off).
• Turn the engine OFF.
OGS046161

5-48
Driving your vehicle

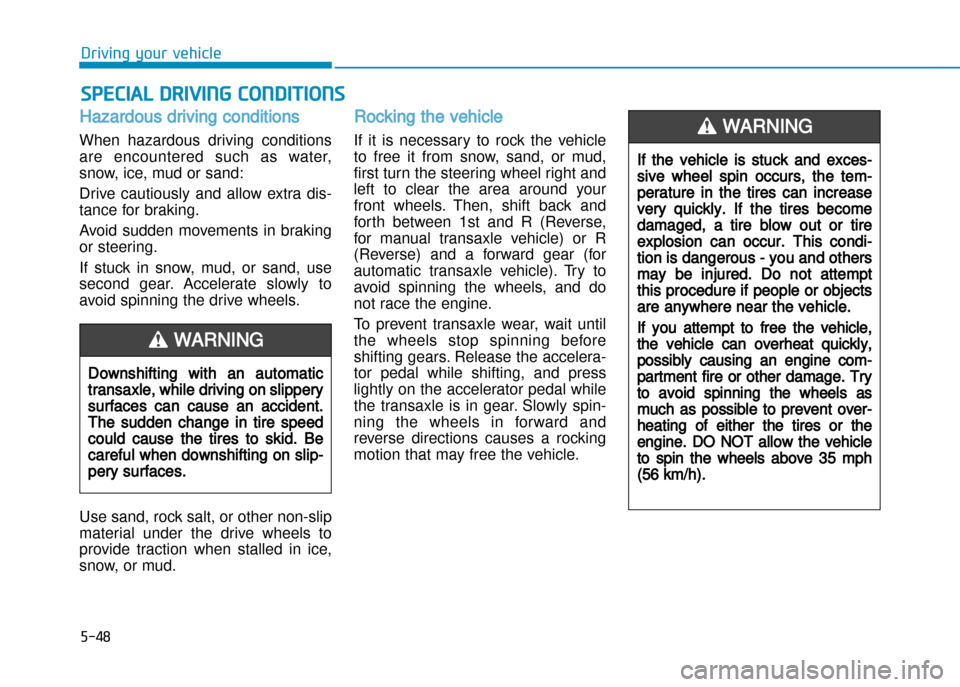

SpECIAL DRIVING CONDITIONS
Hazardous driving conditions
When hazardous driving conditions
are encountered such as water,
snow, ice, mud or sand:
Drive cautiously and allow extra dis
tance for braking.
Avoid sudden movements in braking
or steering.
If stuck in snow, mud, or sand, use
second gear. Accelerate slowly to
avoid spinning the drive wheels.
Use sand, rock salt, or other nonslip
material under the drive wheels to
provide traction when stalled in ice,
snow, or mud.
Rocking the vehicle
If it is necessary to rock the vehicle
to free it from snow, sand, or mud,
first turn the steering wheel right and
left to clear the area around your
front wheels. Then, shift back and
forth between 1st and R (Reverse,
for manual transaxle vehicle) or R
(Reverse) and a forward gear (for
automatic transaxle vehicle). Try to
avoid spinning the wheels, and do
not race the engine.
To prevent transaxle wear, wait until
the wheels stop spinning before
shifting gears. Release the accelera
tor pedal while shifting, and press
lightly on the accelerator pedal while
the transaxle is in gear. Slowly spin
ning the wheels in forward and
reverse directions causes a rocking
motion that may free the vehicle.
Downshifting with an automatic
transaxle, while driving on slippery
surfaces can cause an accident.
The sudden change in tire speed
could cause the tires to skid. Be
careful when downshifting on slip
pery surfaces.
WARNING
If the vehicle is stuck and exces
sive wheel spin occurs, the tem
perature in the tires can increase
very quickly. If the tires become
damaged, a tire blow out or tire
explosion can occur. This condi
tion is dangerous you and others
may be injured. Do not attempt
this procedure if people or objects
are anywhere near the vehicle.
If you attempt to free the vehicle,
the vehicle can overheat quickly,
possibly causing an engine com
partment fire or other damage. Try
to avoid spinning the wheels as
much as possible to prevent over
heating of either the tires or the
engine. DO NOT allow the vehicle
to spin the wheels above 35 mph
(56 km/h).
WARNING
