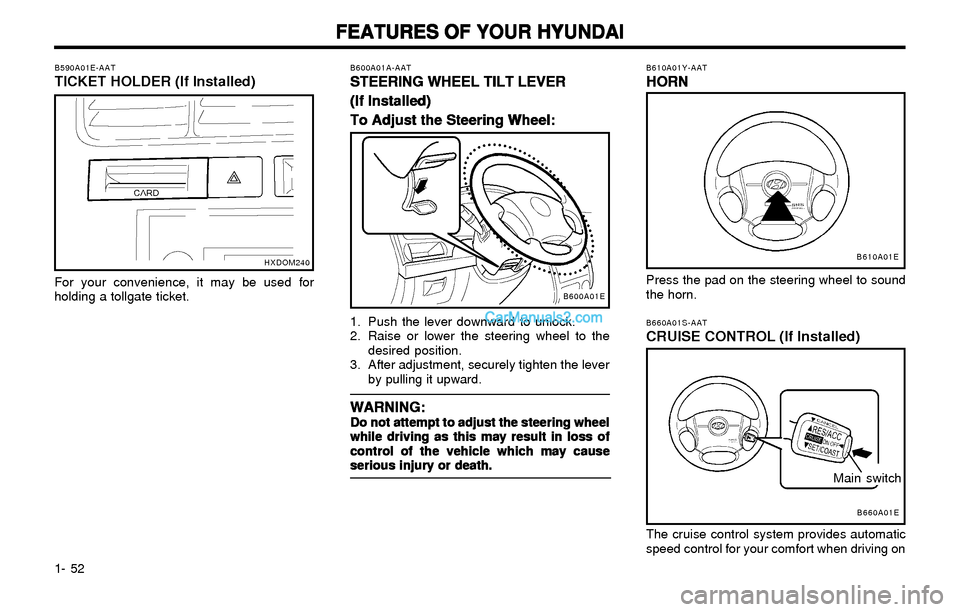

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 521. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, securely tighten the lever
by pulling it upward.
WARNING: WARNING:WARNING: WARNING:
WARNING:Do not attempt to adjust the steering wheel Do not attempt to adjust the steering wheelDo not attempt to adjust the steering wheel Do not attempt to adjust the steering wheel
Do not attempt to adjust the steering wheel
while driving as this may result in loss of while driving as this may result in loss ofwhile driving as this may result in loss of while driving as this may result in loss of
while driving as this may result in loss of
control of the vehicle which may cause control of the vehicle which may causecontrol of the vehicle which may cause control of the vehicle which may cause
control of the vehicle which may cause
serious injury or death. serious injury or death.serious injury or death. serious injury or death.
serious injury or death.
B610A01Y-AAT
HORN HORNHORN HORN
HORN
Press the pad on the steering wheel to sound
the horn.
B610A01E
B660A01E
Main switch
B660A01S-AATCRUISE CONTROL (If Installed)
The cruise control system provides automatic
speed control for your comfort when driving on
B600A01A-AAT
STEERING WHEEL TILT LEVER STEERING WHEEL TILT LEVERSTEERING WHEEL TILT LEVER STEERING WHEEL TILT LEVER
STEERING WHEEL TILT LEVER
(If Installed) (If Installed)(If Installed) (If Installed)
(If Installed)
To Adjust the Steering Wheel: To Adjust the Steering Wheel:To Adjust the Steering Wheel: To Adjust the Steering Wheel:
To Adjust the Steering Wheel:
B600A01E B590A01E-AAT
TICKET HOLDER (If Installed)
HXDOM240
For your convenience, it may be used for
holding a tollgate ticket.

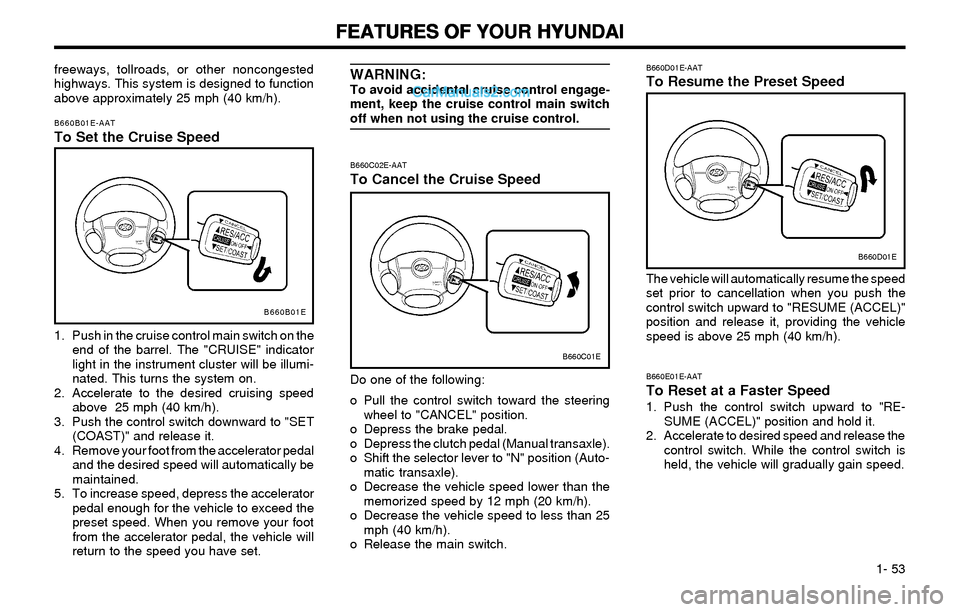

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 53
B660D01E-AATTo Resume the Preset Speed
B660D01E
The vehicle will automatically resume the speed
set prior to cancellation when you push the
control switch upward to "RESUME (ACCEL)"
position and release it, providing the vehicle
speed is above 25 mph (40 km/h).
B660E01E-AAT
To Reset at a Faster Speed1. Push the control switch upward to "RE-
SUME (ACCEL)" position and hold it.
2. Accelerate to desired speed and release the
control switch. While the control switch is
held, the vehicle will gradually gain speed.
B660C02E-AAT
To Cancel the Cruise Speed
Do one of the following:
o Pull the control switch toward the steering
wheel to "CANCEL" position.
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" position (Auto-
matic transaxle).
o Decrease the vehicle speed lower than the
memorized speed by 12 mph (20 km/h).
o Decrease the vehicle speed to less than 25
mph (40 km/h).
o Release the main switch.
B660C01E
WARNING:To avoid accidental cruise control engage-
ment, keep the cruise control main switch
off when not using the cruise control.
B660B01E
B660B01E-AATTo Set the Cruise Speed
1. Push in the cruise control main switch on the
end of the barrel. The "CRUISE" indicator
light in the instrument cluster will be illumi-
nated. This turns the system on.
2. Accelerate to the desired cruising speed
above 25 mph (40 km/h).
3. Push the control switch downward to "SET
(COAST)" and release it.
4. Remove your foot from the accelerator pedal
and the desired speed will automatically be
maintained.
5. To increase speed, depress the accelerator
pedal enough for the vehicle to exceed the
preset speed. When you remove your foot
from the accelerator pedal, the vehicle will
return to the speed you have set. freeways, tollroads, or other noncongested
highways. This system is designed to function
above approximately 25 mph (40 km/h).

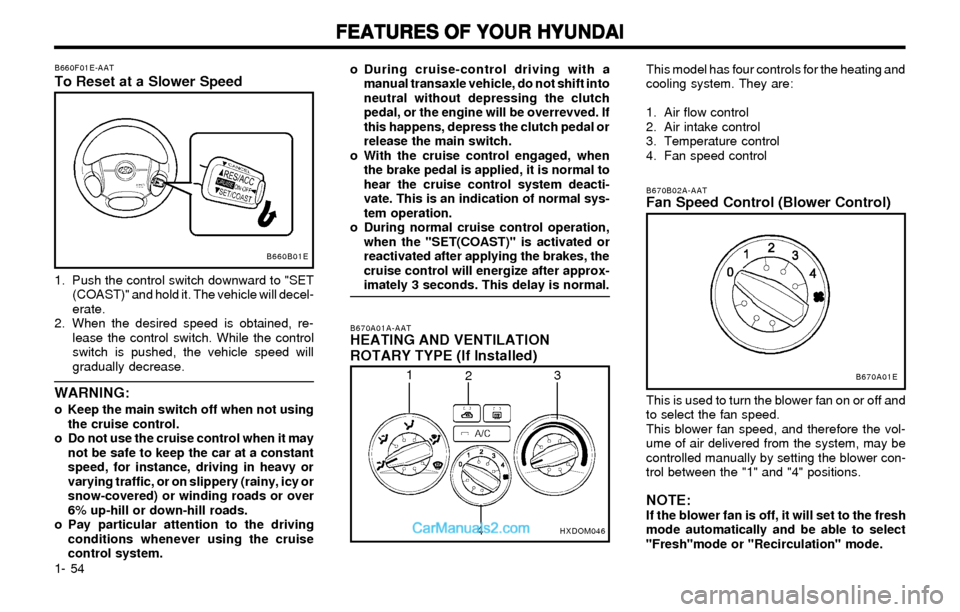

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 54o During cruise-control driving with a
manual transaxle vehicle, do not shift into
neutral without depressing the clutch
pedal, or the engine will be overrevved. If
this happens, depress the clutch pedal or
release the main switch.
o With the cruise control engaged, when
the brake pedal is applied, it is normal to
hear the cruise control system deacti-
vate. This is an indication of normal sys-
tem operation.
o During normal cruise control operation,
when the "SET(COAST)" is activated or
reactivated after applying the brakes, the
cruise control will energize after approx-
imately 3 seconds. This delay is normal.
B670B02A-AATFan Speed Control (Blower Control)
B670A01E
This is used to turn the blower fan on or off and
to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
NOTE:If the blower fan is off, it will set to the fresh
mode automatically and be able to select
"Fresh"mode or "Recirculation" mode.
B670A01A-AATHEATING AND VENTILATION
ROTARY TYPE (If Installed)
HXDOM046
This model has four controls for the heating and
cooling system. They are:
1. Air flow control
2. Air intake control
3. Temperature control
4. Fan speed control
1
23
4
B660F01E-AATTo Reset at a Slower Speed
B660B01E
1. Push the control switch downward to "SET
(COAST)" and hold it. The vehicle will decel-
erate.
2. When the desired speed is obtained, re-
lease the control switch. While the control
switch is pushed, the vehicle speed will
gradually decrease.
WARNING:
o Keep the main switch off when not using
the cruise control.
o Do not use the cruise control when it may
not be safe to keep the car at a constant
speed, for instance, driving in heavy or
varying traffic, or on slippery (rainy, icy or
snow-covered) or winding roads or over
6% up-hill or down-hill roads.
o Pay particular attention to the driving
conditions whenever using the cruise
control system.

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI

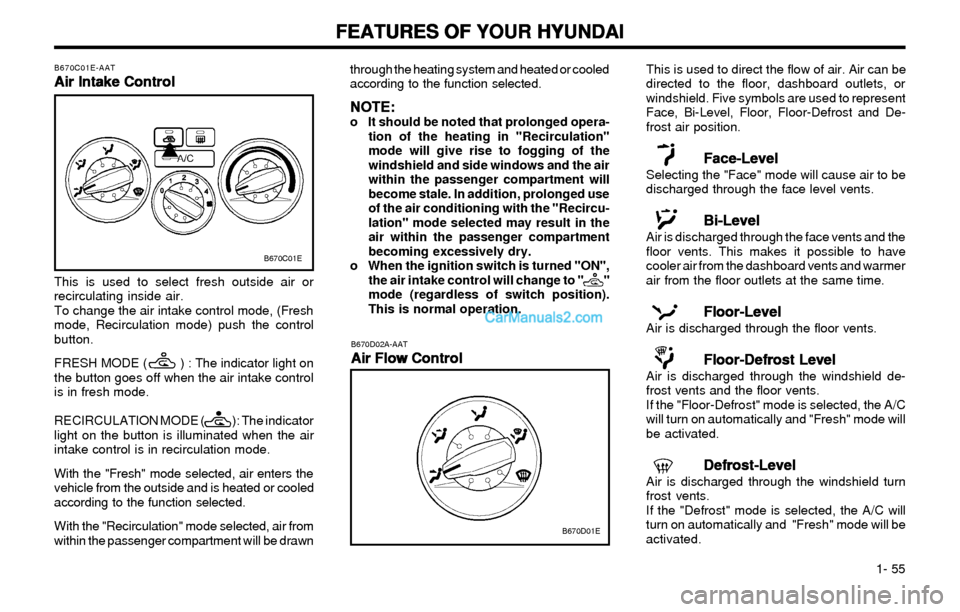

FEATURES OF YOUR HYUNDAI
1- 55
through the heating system and heated or cooled
according to the function selected.
NOTE: NOTE:NOTE: NOTE:
NOTE:o It should be noted that prolonged opera-
tion of the heating in "Recirculation"
mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode selected may result in the
air within the passenger compartment
becoming excessively dry.
o When the ignition switch is turned "ON",
the air intake control will change to " "
mode (regardless of switch position).
This is normal operation.
B670D02A-AAT
Air Flow Control Air Flow ControlAir Flow Control Air Flow Control
Air Flow Control
B670D01E
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.
Face-Level Face-LevelFace-Level Face-Level
Face-LevelSelecting the "Face" mode will cause air to be
discharged through the face level vents.
Bi-Level Bi-LevelBi-Level Bi-Level
Bi-LevelAir is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.
Floor-Level Floor-LevelFloor-Level Floor-Level
Floor-LevelAir is discharged through the floor vents.
Floor-Defrost Level Floor-Defrost LevelFloor-Defrost Level Floor-Defrost Level
Floor-Defrost LevelAir is discharged through the windshield de-
frost vents and the floor vents.
If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode will
be activated.
Defrost-Level Defrost-LevelDefrost-Level Defrost-Level
Defrost-LevelAir is discharged through the windshield turn
frost vents.
If the "Defrost" mode is selected, the A/C will
turn on automatically and "Fresh" mode will be
activated.
B670C01E-AAT
Air Intake Control Air Intake ControlAir Intake Control Air Intake Control
Air Intake Control
B670C01E
This is used to select fresh outside air or
recirculating inside air.
To change the air intake control mode, (Fresh
mode, Recirculation mode) push the control
button.
FRESH MODE ( ) : The indicator light on
the button goes off when the air intake control
is in fresh mode.
RECIRCULATION MODE ( ): The indicator
light on the button is illuminated when the air
intake control is in recirculation mode.
With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooled
according to the function selected.
With the "Recirculation" mode selected, air from
within the passenger compartment will be drawn

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 56
B710A01S-AAT
VENTILATION VENTILATIONVENTILATION VENTILATION
VENTILATIONTo operate the ventilation system:
o Set the air intake control to "Fresh" mode
( ).
o To direct all intake air to the dashboard
vents, set the airflow control to "Face".
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".

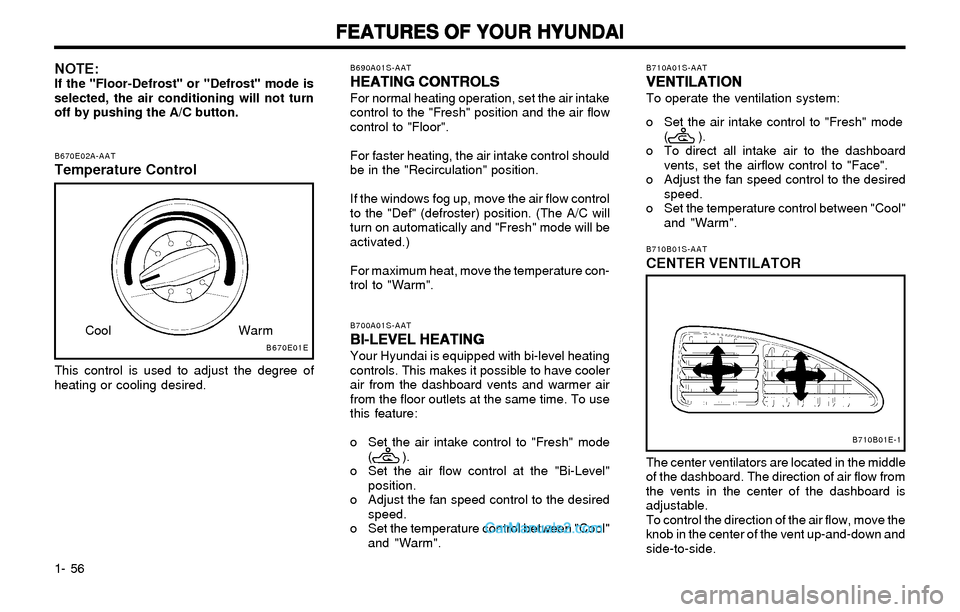

B700A01S-AAT
BI-LEVEL HEATING BI-LEVEL HEATINGBI-LEVEL HEATING BI-LEVEL HEATING
BI-LEVEL HEATINGYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control to "Fresh" mode
( ).
o Set the air flow control at the "Bi-Level"
position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
The center ventilators are located in the middle
of the dashboard. The direction of air flow from
the vents in the center of the dashboard is
adjustable.
To control the direction of the air flow, move the
knob in the center of the vent up-and-down and
side-to-side.
B710B01S-AATCENTER VENTILATOR
B710B01E-1
B690A01S-AAT
HEATING CONTROLS HEATING CONTROLSHEATING CONTROLS HEATING CONTROLS
HEATING CONTROLSFor normal heating operation, set the air intake
control to the "Fresh" position and the air flow
control to "Floor".
For faster heating, the air intake control should
be in the "Recirculation" position.
If the windows fog up, move the air flow control
to the "Def" (defroster) position. (The A/C will
turn on automatically and "Fresh" mode will be
activated.)
For maximum heat, move the temperature con-
trol to "Warm".
This control is used to adjust the degree of
heating or cooling desired.
B670E01E
B670E02A-AATTemperature Control
NOTE:If the "Floor-Defrost" or "Defrost" mode is
selected, the air conditioning will not turn
off by pushing the A/C button.
CoolWarm

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 57

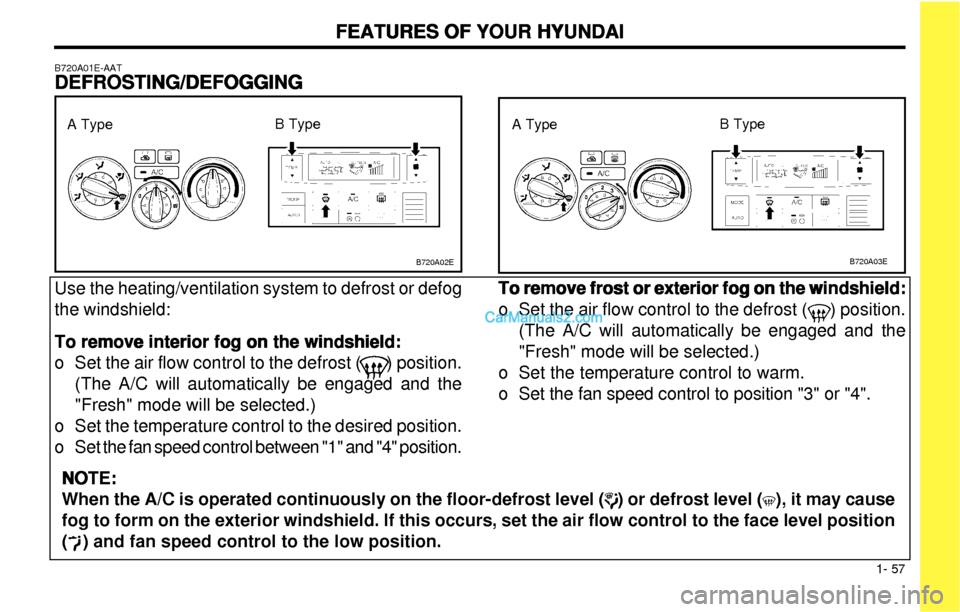

NOTE: NOTE:NOTE: NOTE:
NOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause
fog to form on the exterior windshield. If this occurs, set the air flow control to the face level position
( ) and fan speed control to the low position. Use the heating/ventilation system to defrost or defog
the windshield:
To remove interior fog on the windshield: To remove interior fog on the windshield:To remove interior fog on the windshield: To remove interior fog on the windshield:
To remove interior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The A/C will automatically be engaged and the
"Fresh" mode will be selected.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield: To remove frost or exterior fog on the windshield:To remove frost or exterior fog on the windshield: To remove frost or exterior fog on the windshield:
To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The A/C will automatically be engaged and the
"Fresh" mode will be selected.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
B720A01E-AAT
DEFROSTING/DEFOGGING DEFROSTING/DEFOGGINGDEFROSTING/DEFOGGING DEFROSTING/DEFOGGING
DEFROSTING/DEFOGGING
B720A02EB720A03E
A TypeB Type
A TypeB Type

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI

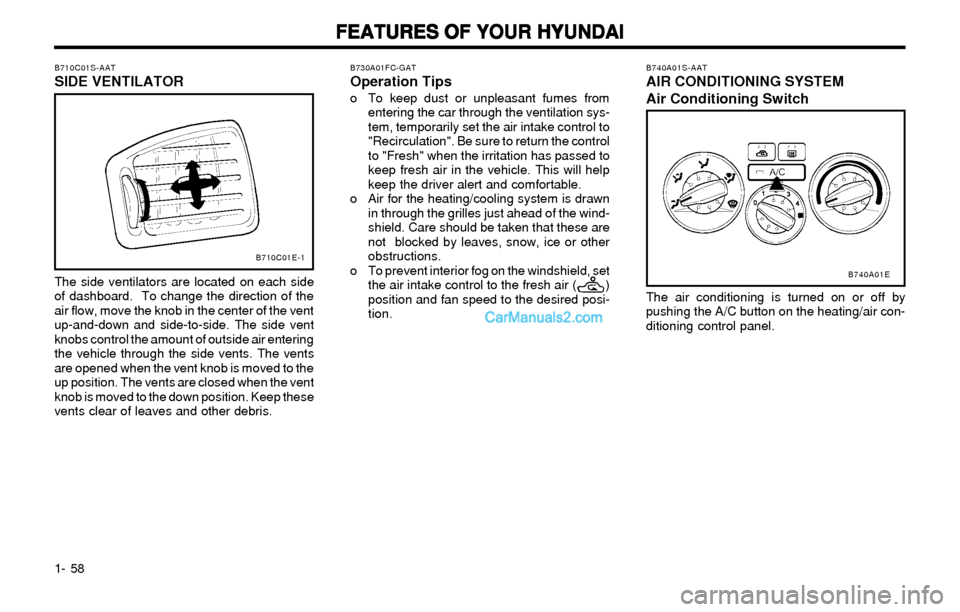

1- 58The air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
B730A01FC-GATOperation Tipso To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
"Recirculation". Be sure to return the control
to "Fresh" when the irritation has passed to
keep fresh air in the vehicle. This will help
keep the driver alert and comfortable.
o Air for the heating/cooling system is drawn
in through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position and fan speed to the desired posi-
tion.
B740A01S-AATAIR CONDITIONING SYSTEM
Air Conditioning Switch
B740A01E
B710C01S-AATSIDE VENTILATOR
B710C01E-1
The side ventilators are located on each side
of dashboard. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The side vent
knobs control the amount of outside air entering
the vehicle through the side vents. The vents
are opened when the vent knob is moved to the
up position. The vents are closed when the vent
knob is moved to the down position. Keep these
vents clear of leaves and other debris.

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 59
B740C01S-AAT
Dehumidified Heating Dehumidified HeatingDehumidified Heating Dehumidified Heating
Dehumidified Heating
B740C01E
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on
at the same time.
o Set the air intake control to "Fresh" mode
( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide
the desired amount of warmth.
B740D01A-AATOperation Tips
o If the interior of the car is hot when you first
get in, open the windows for a few minutes
to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to keep
hot air out.
o When moving slowly, as in heavy traffic,
shift to a lower gear. This increases engine
speed, which in turn increases the speed of
the air conditioning compressor.
o On steep grades, turn the air conditioning
off to avoid the possibility of the engine
over-heating.
o During winter months or in periods when the
air conditioning is not used regularly, run the
air conditioning once every month for a few
minutes. This will help circulate the lubri-
cants and keep your system in peak operat-
ing condition.
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the "Recirculation" position on the air
intake control.B740B01S-AAT

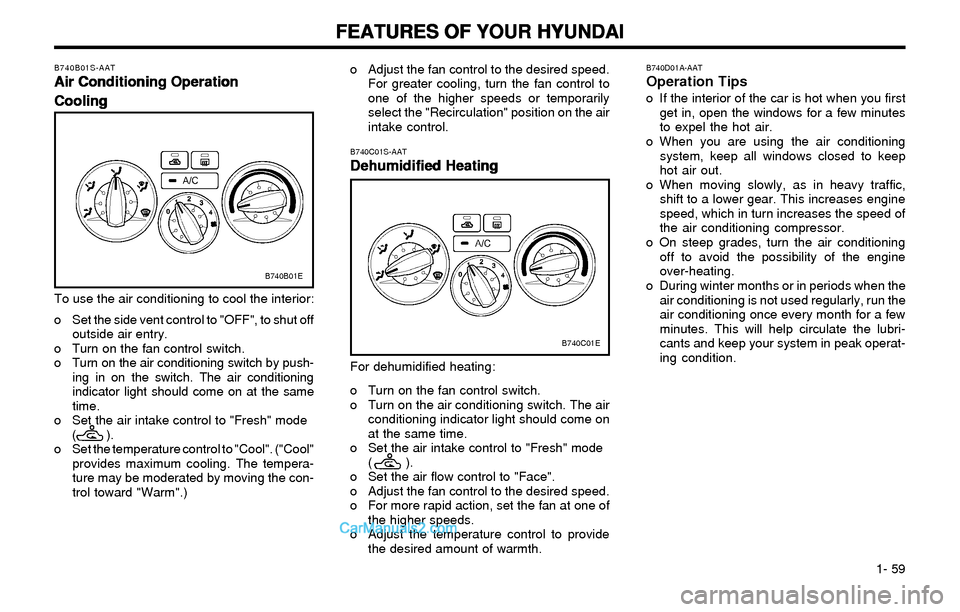

Air Conditioning Operation Air Conditioning OperationAir Conditioning Operation Air Conditioning Operation
Air Conditioning Operation
Cooling CoolingCooling Cooling
Cooling
B740B01E
To use the air conditioning to cool the interior:
o Set the side vent control to "OFF", to shut off
outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control to "Fresh" mode
( ).
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 60

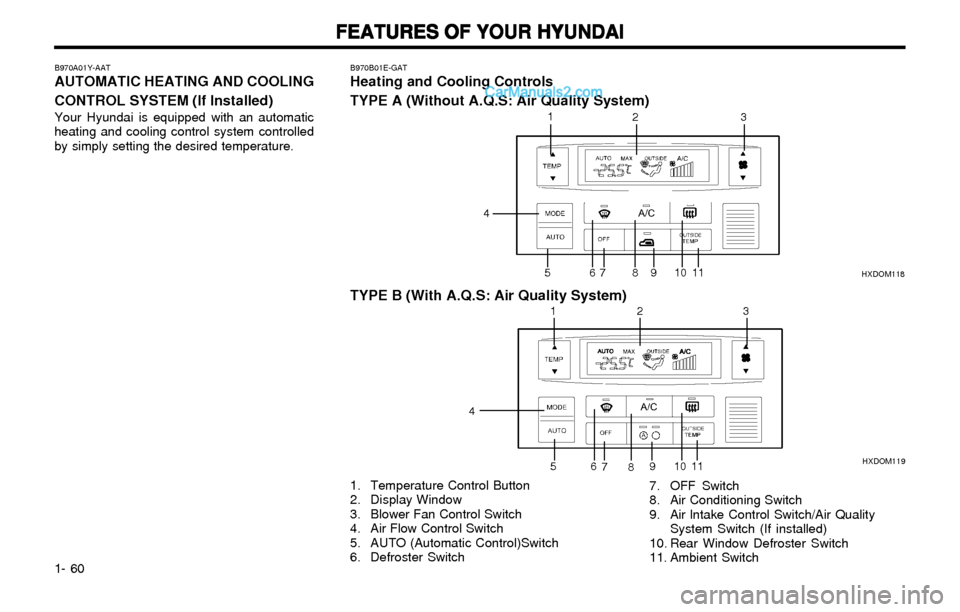

B970A01Y-AATAUTOMATIC HEATING AND COOLING
CONTROL SYSTEM (If lnstalled)
Your Hyundai is equipped with an automatic
heating and cooling control system controlled
by simply setting the desired temperature.
1. Temperature Control Button
2. Display Window
3. Blower Fan Control Switch
4. Air Flow Control Switch
5. AUTO (Automatic Control)Switch
6. Defroster Switch7. OFF Switch
8. Air Conditioning Switch
9. Air lntake Control Switch/Air Quality
System Switch (If installed)
10. Rear Window Defroster Switch
11. Ambient Switch
B970B01E-GATHeating and Cooling Controls
TYPE A (Without A.Q.S: Air Quality System)
1
2
3
4
567891011
12 3
4
5
6
7
891011HXDOM119 HXDOM118
TYPE B (With A.Q.S: Air Quality System)

FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAIFEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI
FEATURES OF YOUR HYUNDAI
1- 61

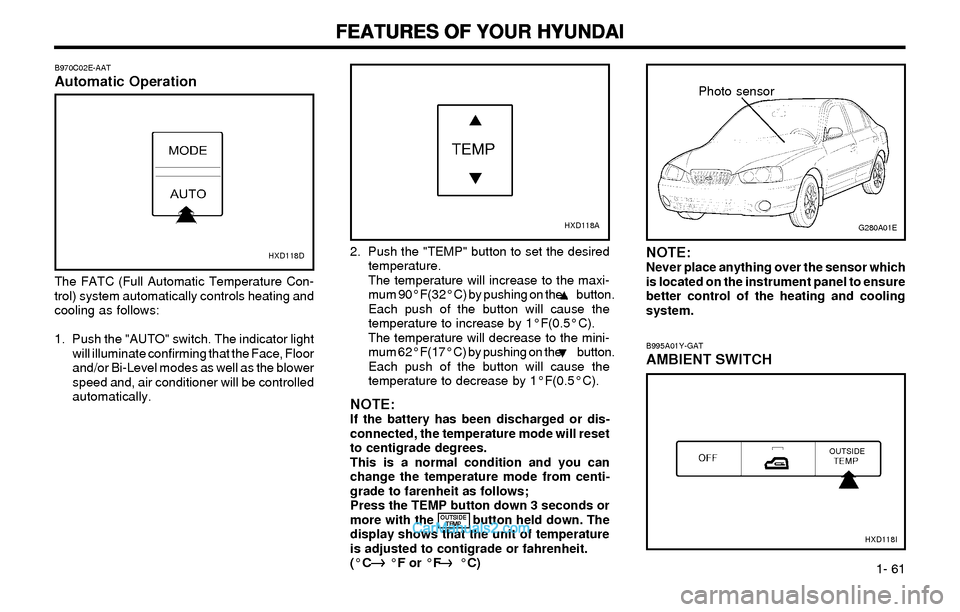

B970C02E-AATAutomatic Operation
HXD118D
The FATC (Full Automatic Temperature Con-
trol) system automatically controls heating and
cooling as follows:
1. Push the "AUTO" switch. The indicator light
will illuminate confirming that the Face, Floor
and/or Bi-Level modes as well as the blower
speed and, air conditioner will be controlled
automatically.2. Push the "TEMP" button to set the desired
temperature.
The temperature will increase to the maxi-
mum 90°F(32°C) by pushing on the button.
Each push of the button will cause the
temperature to increase by 1°F(0.5°C).
The temperature will decrease to the mini-
mum 62°F(17°C) by pushing on the button.
Each push of the button will cause the
temperature to decrease by 1°F(0.5°C).
NOTE:If the battery has been discharged or dis-
connected, the temperature mode will reset
to centigrade degrees.
This is a normal condition and you can
change the temperature mode from centi-
grade to farenheit as follows;
Press the TEMP button down 3 seconds or
more with the button held down. The
display shows that the unit of temperature
is adjusted to contigrade or fahrenheit.
(°C °F or °F °C)
G280A01E
B995A01Y-GAT
AMBIENT SWITCH
HXD118I
Photo sensor
HXD118A
NOTE:Never place anything over the sensor which
is located on the instrument panel to ensure
better control of the heating and cooling
system.
OUTSIDE
TEMP
