Hyundai Elantra 2004 User Guide

YOUR VEHICLE AT A GLANCE
B255A01E-AAT

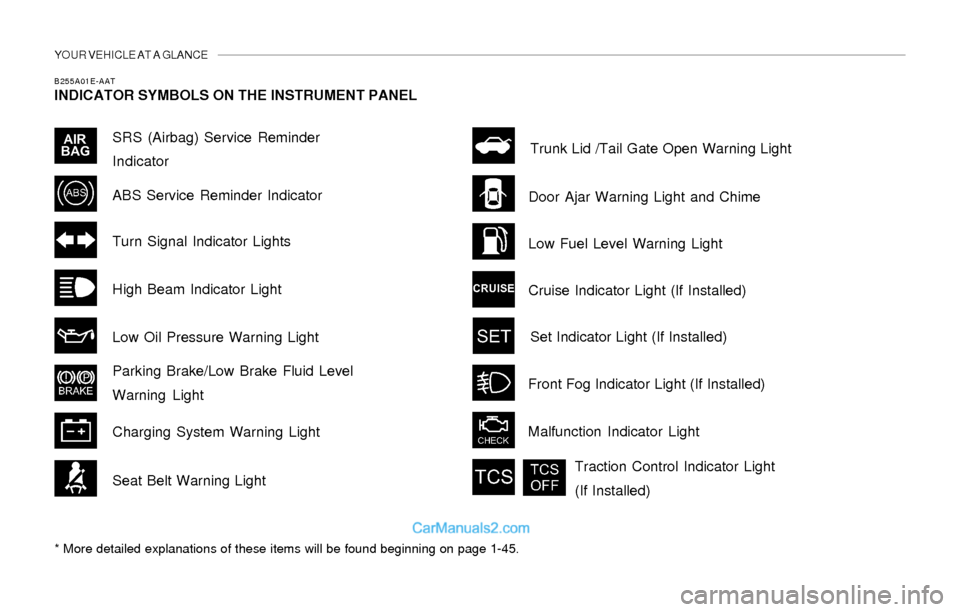

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* More detailed explanations of these items will be found beginning on page 1-45.
SRS (Airbag) Service Reminder
Indicator
ABS Service Reminder Indicator
Turn Signal Indicator Lights
High Beam Indicator Light
Low Oil Pressure Warning Light
Parking Brake/Low Brake Fluid Level
Warning Light
Charging System Warning Light
Seat Belt Warning LightTrunk Lid /Tail Gate Open Warning Light
Door Ajar Warning Light and Chime
Low Fuel Level Warning Light
Cruise Indicator Light (If Installed)
Front Fog Indicator Light (If Installed)
Malfunction Indicator Light
Traction Control Indicator Light
(If Installed)
Set Indicator Light (If Installed)

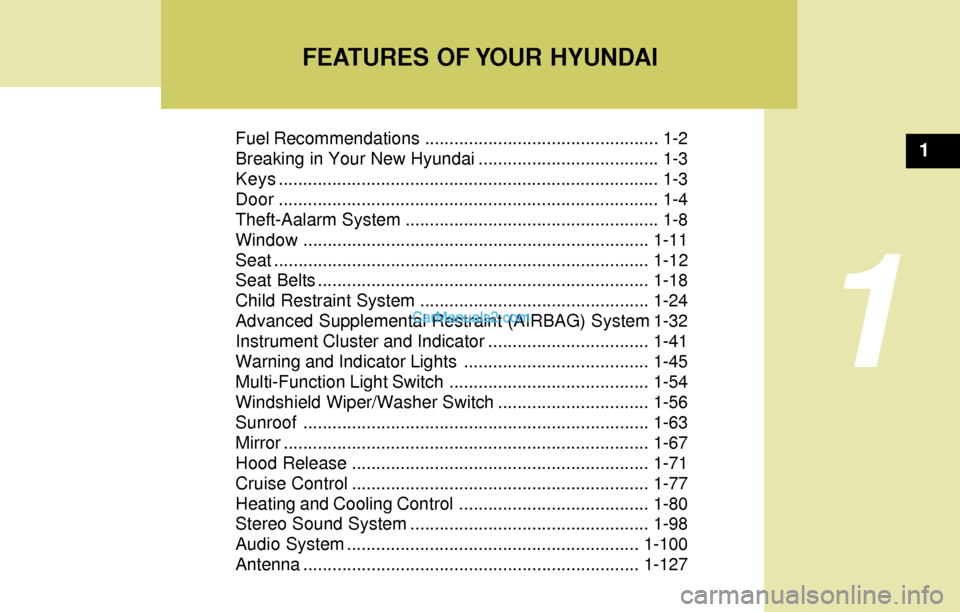

FEATURES OF YOUR HYUNDAI
1
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai ..................................... 1-3
Keys.............................................................................. 1-3
Door .............................................................................. 1-4
Theft-Aalarm System .................................................... 1-8
Window .......................................................................1-11
Seat ............................................................................. 1-12
Seat Belts....................................................................1-18
Child Restraint System ...............................................1-24
Advanced Supplemental Restraint (AIRBAG) System1-32
Instrument Cluster and Indicator .................................1-41
Warning and Indicator Lights......................................1-45
Multi-Function Light Switch .........................................1-54
Windshield Wiper/Washer Switch...............................1-56
Sunroof.......................................................................1-63
Mirror...........................................................................1-67
Hood Release .............................................................1-71
Cruise Control.............................................................1-77
Heating and Cooling Control .......................................1-80
Stereo Sound System.................................................1-98
Audio System............................................................1-100
Antenna.....................................................................1-1271

1FEATURES OF YOUR HYUNDAI

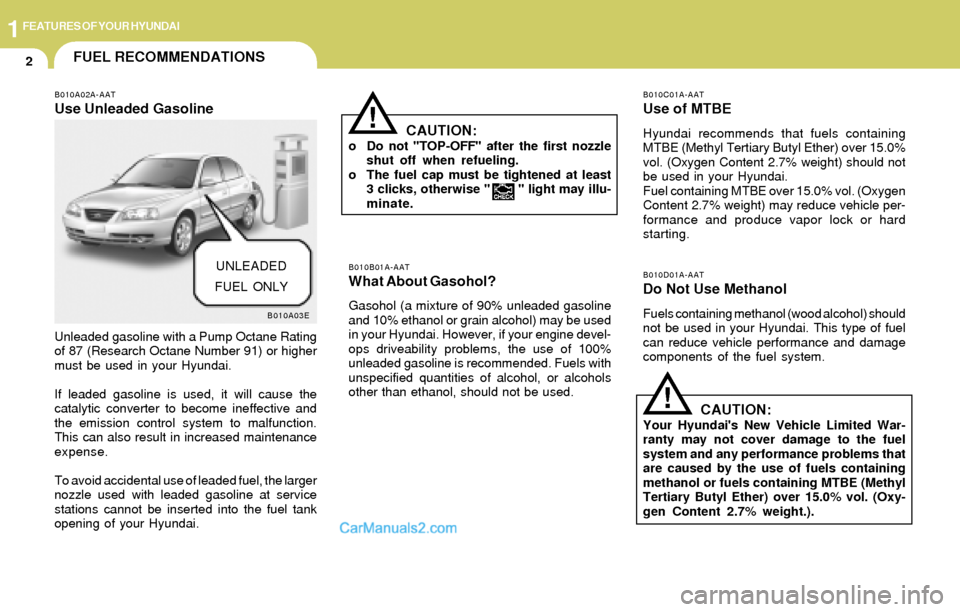

2FUEL RECOMMENDATIONS
B010A02A-AAT
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane Rating
of 87 (Research Octane Number 91) or higher
must be used in your Hyundai.
If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction.
This can also result in increased maintenance
expense.
To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.
B010A03E
UNLEADED
FUEL ONLY
CAUTION:o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least
3 clicks, otherwise " " light may illu-
minate.
!
B010B01A-AAT
What About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100%
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard
starting.
B010D01A-AAT
Do Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.
!CAUTION:Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems that
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol. (Oxy-
gen Content 2.7% weight.).

1FEATURES OF YOUR HYUNDAI
3KEYSBREAKING IN YOUR NEW HYUNDAI
B010E01A-AAT

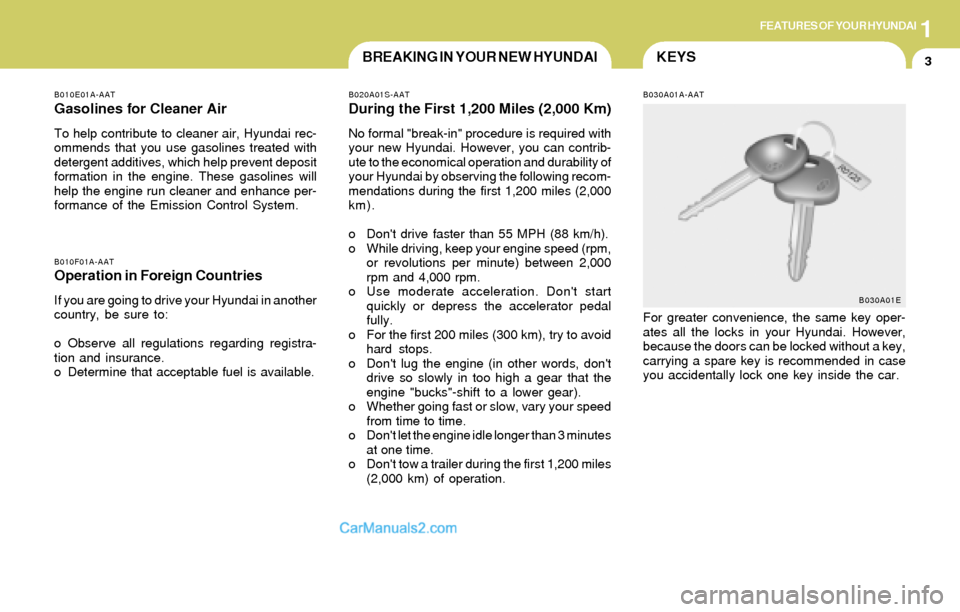

Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance per-
formance of the Emission Control System.
B010F01A-AATOperation in Foreign Countries
If you are going to drive your Hyundai in another
country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
B020A01S-AAT
During the First 1,200 Miles (2,000 Km)
No formal "break-in" procedure is required with
your new Hyundai. However, you can contrib-
ute to the economical operation and durability of
your Hyundai by observing the following recom-
mendations during the first 1,200 miles (2,000
km).
o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000
rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator pedal
fully.
o For the first 200 miles (300 km), try to avoid
hard stops.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 minutes
at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
B030A01A-AAT
For greater convenience, the same key oper-
ates all the locks in your Hyundai. However,
because the doors can be locked without a key,
carrying a spare key is recommended in case
you accidentally lock one key inside the car.
B030A01E

1FEATURES OF YOUR HYUNDAI
4ILLUMINATED IGNITION SWITCH
!
DOOR
B030B01A-AAT

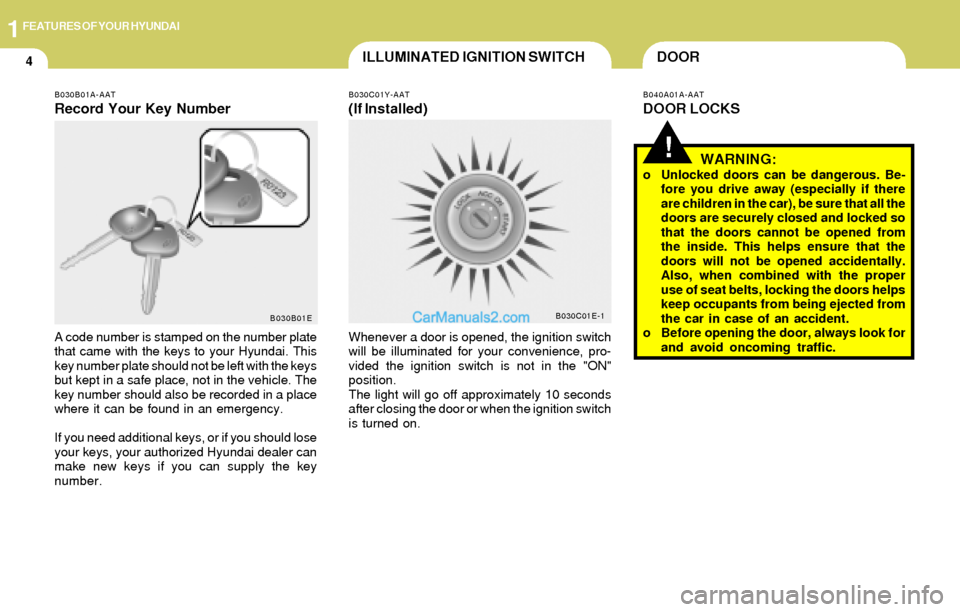

Record Your Key Number
A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the keys
but kept in a safe place, not in the vehicle. The
key number should also be recorded in a place
where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.
B030C01Y-AAT
(If Installed)
Whenever a door is opened, the ignition switch
will be illuminated for your convenience, pro-
vided the ignition switch is not in the "ON"
position.
The light will go off approximately 10 seconds
after closing the door or when the ignition switch
is turned on.
B040A01A-AAT
DOOR LOCKS
B030B01EB030C01E-1
WARNING:o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from
the inside. This helps ensure that the
doors will not be opened accidentally.
Also, when combined with the proper
use of seat belts, locking the doors helps
keep occupants from being ejected from
the car in case of an accident.
o Before opening the door, always look for
and avoid oncoming traffic.

1FEATURES OF YOUR HYUNDAI
5
B040B01A-AAT

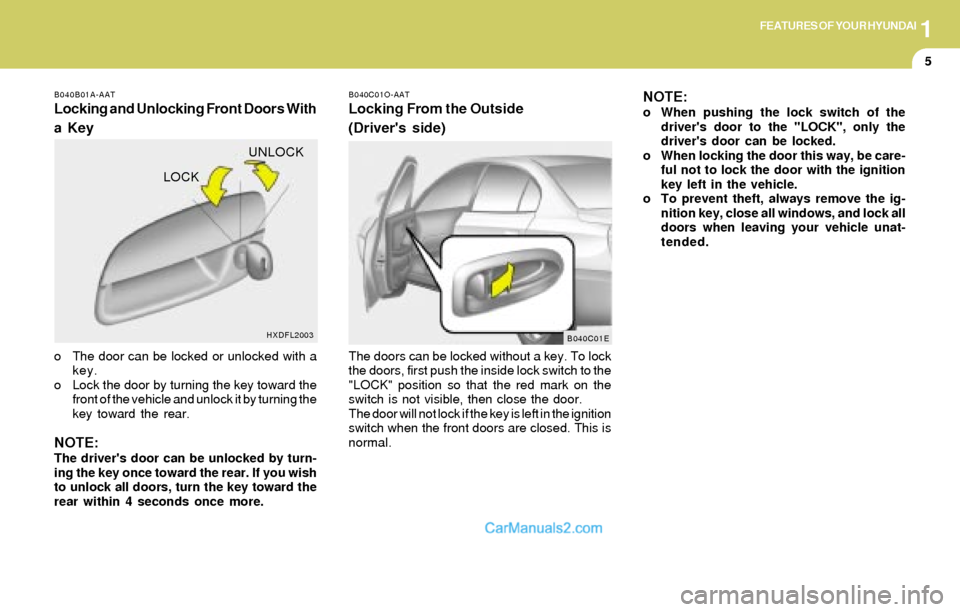

Locking and Unlocking Front Doors With
a Key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning the
key toward the rear.
NOTE:The driver's door can be unlocked by turn-
ing the key once toward the rear. If you wish
to unlock all doors, turn the key toward the
rear within 4 seconds once more.
B040C01O-AAT
Locking From the Outside
(Driver's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.
The door will not lock if the key is left in the ignition
switch when the front doors are closed. This is
normal.
UNLOCK
LOCK
HXDFL2003
B040C01E
NOTE:o When pushing the lock switch of the
driver's door to the "LOCK", only the
driver's door can be locked.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To prevent theft, always remove the ig-
nition key, close all windows, and lock all
doors when leaving your vehicle unat-
tended.

1FEATURES OF YOUR HYUNDAI
6
B040D01E-AAT

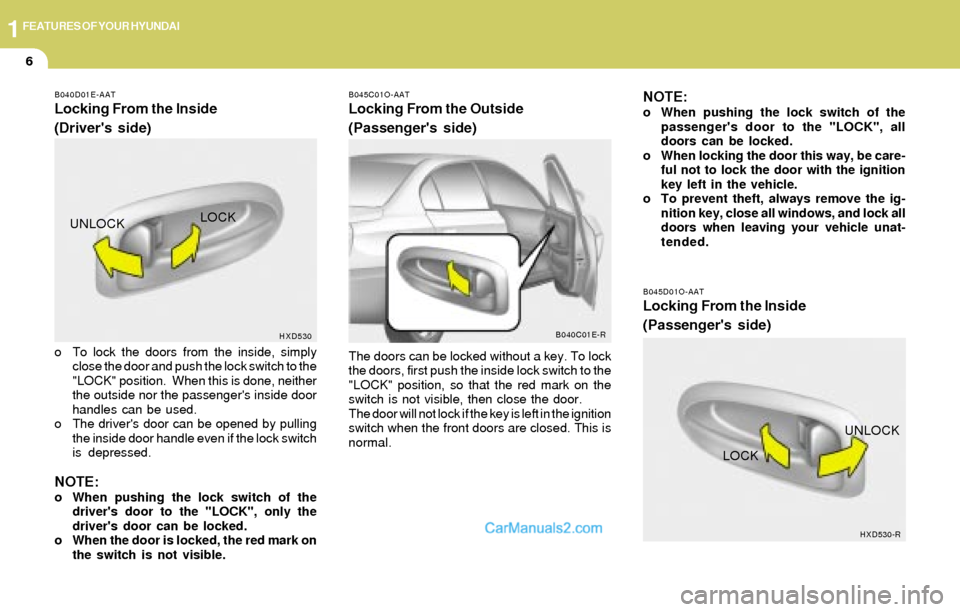

Locking From the Inside
(Driver's side)
o To lock the doors from the inside, simply
close the door and push the lock switch to the
"LOCK" position. When this is done, neither
the outside nor the passenger's inside door
handles can be used.
o The driver's door can be opened by pulling
the inside door handle even if the lock switch
is depressed.
NOTE:o When pushing the lock switch of the
driver's door to the "LOCK", only the
driver's door can be locked.
o When the door is locked, the red mark on
the switch is not visible.
HXD530
LOCK
UNLOCK
B045C01O-AAT
Locking From the Outside
(Passenger's side)
B045D01O-AATLocking From the Inside
(Passenger's side)
The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position, so that the red mark on the
switch is not visible, then close the door.
The door will not lock if the key is left in the ignition
switch when the front doors are closed. This is
normal.
B040C01E-R
HXD530-R
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK", all
doors can be locked.
o When locking the door this way, be care-
ful not to lock the door with the ignition
key left in the vehicle.
o To prevent theft, always remove the ig-
nition key, close all windows, and lock all
doors when leaving your vehicle unat-
tended.
LOCKUNLOCK

1FEATURES OF YOUR HYUNDAI

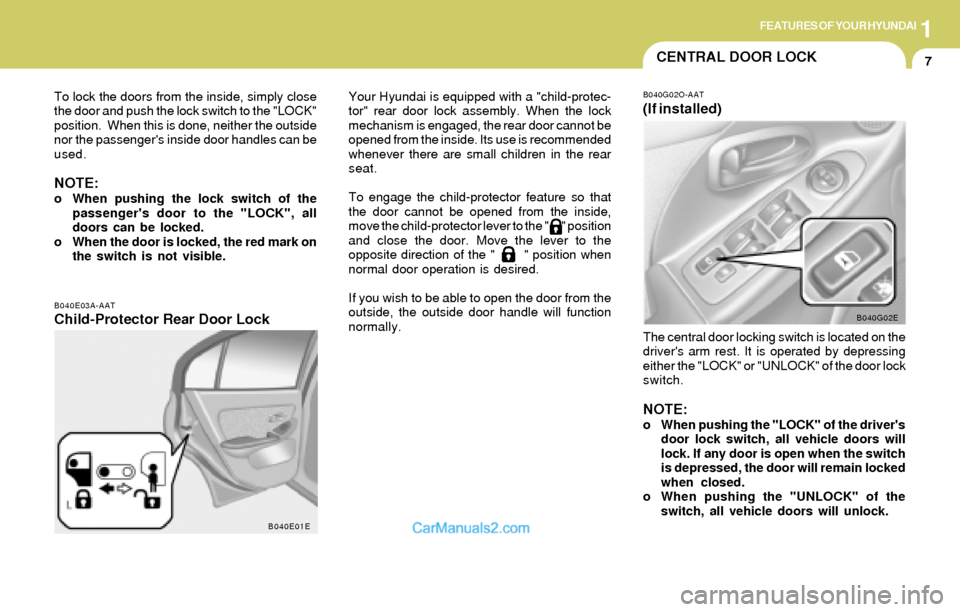

7CENTRAL DOOR LOCK
B040E03A-AATChild-Protector Rear Door Lock
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recommended
whenever there are small children in the rear
seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " " position
and close the door. Move the lever to the
opposite direction of the " " position when
normal door operation is desired.
If you wish to be able to open the door from the
outside, the outside door handle will function
normally.B040G02O-AAT
(If installed)
The central door locking switch is located on the
driver's arm rest. It is operated by depressing
either the "LOCK" or "UNLOCK" of the door lock
switch.
NOTE:o When pushing the "LOCK" of the driver's
door lock switch, all vehicle doors will
lock. If any door is open when the switch
is depressed, the door will remain locked
when closed.
o When pushing the "UNLOCK" of the
switch, all vehicle doors will unlock.
B040E01EB040G02E
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the passenger's inside door handles can be
used.
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK", all
doors can be locked.
o When the door is locked, the red mark on
the switch is not visible.

1FEATURES OF YOUR HYUNDAI

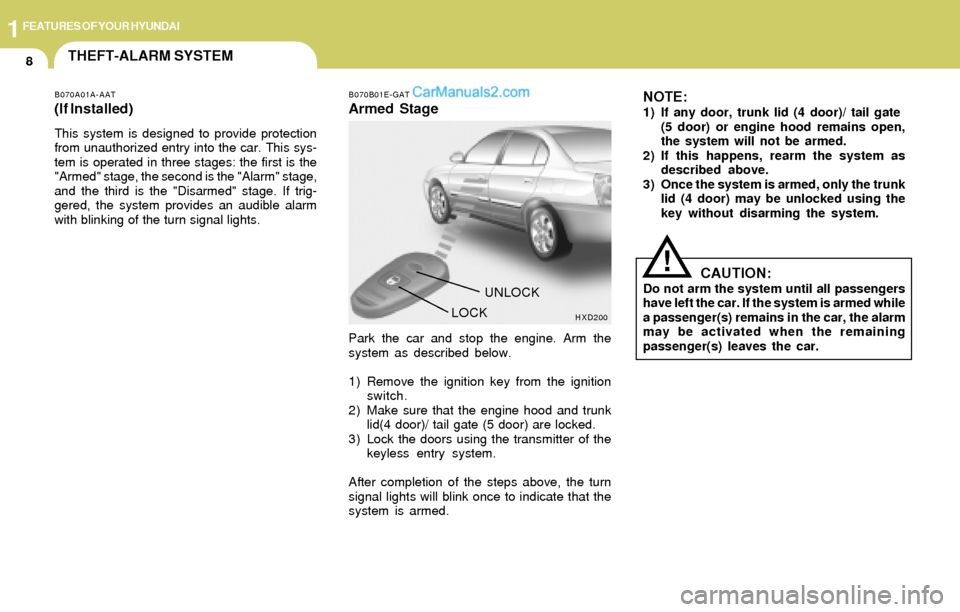

8THEFT-ALARM SYSTEM
B070A01A-AAT
(If Installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages: the first is the
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
B070B01E-GAT
Armed Stage
Park the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and trunk
lid(4 door)/ tail gate (5 door) are locked.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.
NOTE:1) If any door, trunk lid (4 door)/ tail gate
(5 door) or engine hood remains open,
the system will not be armed.
2) If this happens, rearm the system as
described above.
3) Once the system is armed, only the trunk
lid (4 door) may be unlocked using the
key without disarming the system.
CAUTION:Do not arm the system until all passengers
have left the car. If the system is armed while
a passenger(s) remains in the car, the alarm
may be activated when the remaining
passenger(s) leaves the car.
!
HXD200
UNLOCK
LOCK

1FEATURES OF YOUR HYUNDAI
9

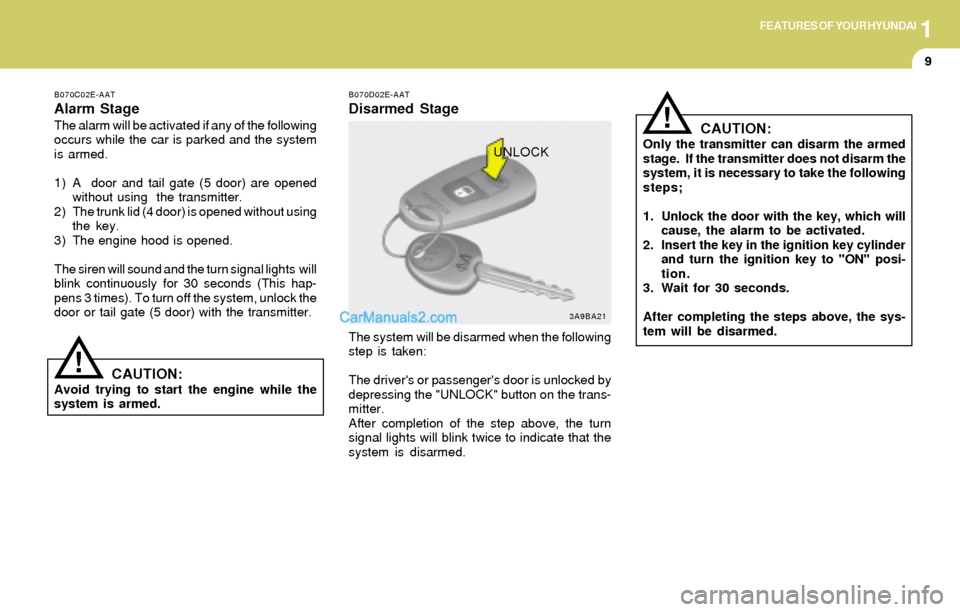

B070C02E-AAT
Alarm StageThe alarm will be activated if any of the following
occurs while the car is parked and the system
is armed.
1) A door and tail gate (5 door) are opened
without using the transmitter.
2) The trunk lid (4 door) is opened without using
the key.
3) The engine hood is opened.
The siren will sound and the turn signal lights will
blink continuously for 30 seconds (This hap-
pens 3 times). To turn off the system, unlock the
door or tail gate (5 door) with the transmitter.
B070D02E-AAT
Disarmed Stage
The system will be disarmed when the following
step is taken:
The driver's or passenger's door is unlocked by
depressing the "UNLOCK" button on the trans-
mitter.
After completion of the step above, the turn
signal lights will blink twice to indicate that the
system is disarmed.
CAUTION:Only the transmitter can disarm the armed
stage. If the transmitter does not disarm the
system, it is necessary to take the following
steps;
1. Unlock the door with the key, which will
cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder
and turn the ignition key to "ON" posi-
tion.
3. Wait for 30 seconds.
After completing the steps above, the sys-
tem will be disarmed.
!
!CAUTION:Avoid trying to start the engine while the
system is armed.
3A9BA21
UNLOCK
