Hyundai Elantra GT 2017 Owner's Manual

795
Maintenance

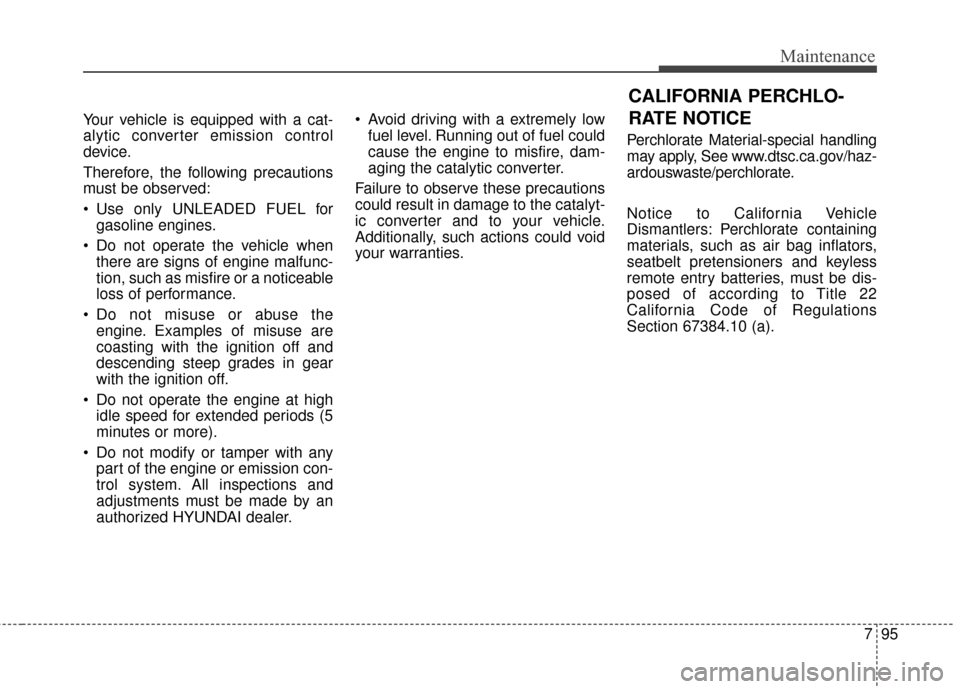

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer. Avoid driving with a extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties. Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle
Dismantlers: Perchlorate containing
materials, such as air bag inflators,
seatbelt pretensioners and keyless
remote entry batteries, must be dis-
posed of according to Title 22
California Code of Regulations
Section 67384.10 (a).
CALIFORNIA PERCHLO-
RATE NOTICE

Specifications, Consumer information and Reporting safety defects

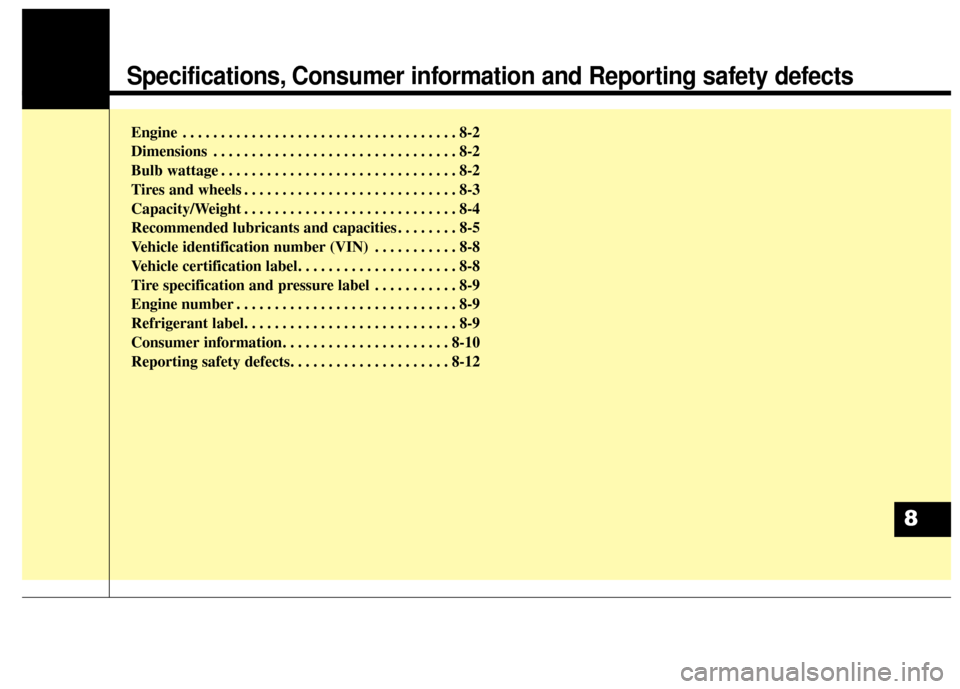

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Capacity/Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Recommended lubricants and capacities . . . . . . . . 8-5
Vehicle identification number (VIN) . . . . . . . . . . . 8-8
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-8
Tire specification and pressure label . . . . . . . . . . . 8-9
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Consumer information. . . . . . . . . . . . . . . . . . . . . . 8-10
Reporting safety defects. . . . . . . . . . . . . . . . . . . . . 8-12
8

Specifications, Consumer information, Reporting safety defects
28
ItemSpecification

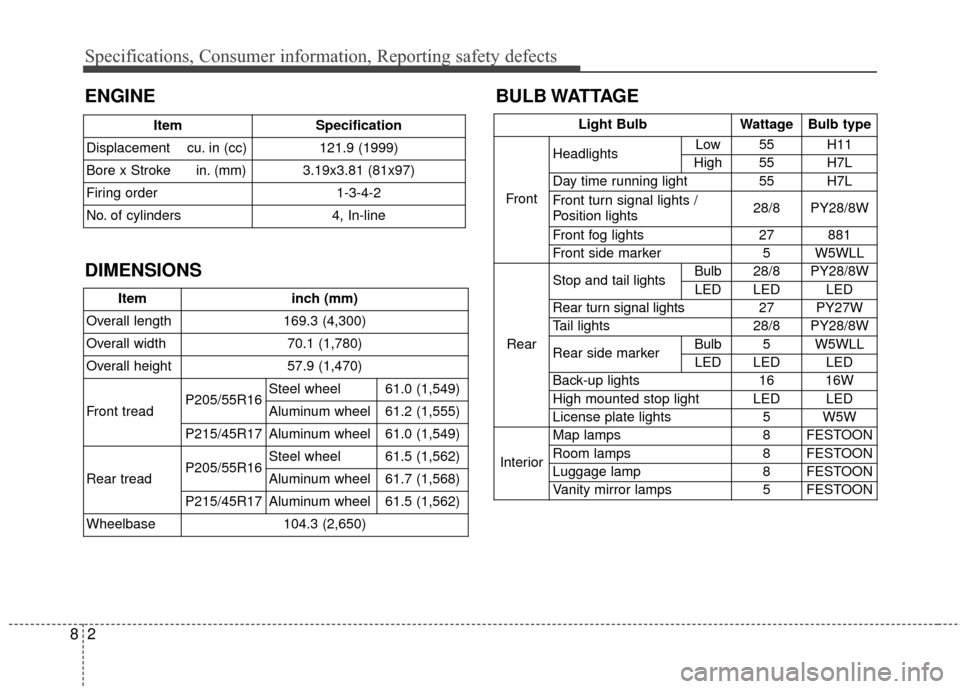

Displacement cu. in (cc) 121.9 (1999)
Bore x Stroke in. (mm) 3.19x3.81 (81x97)
Firing order 1-3-4-2
No. of cylinders 4, In-line
ENGINE BULB WATTAGE
DIMENSIONS
Iteminch (mm)
Overall length169.3 (4,300)
Overall width70.1 (1,780)
Overall height 57.9 (1,470)
Front treadP205/55R16Steel wheel61.0 (1,549)
Aluminum wheel61.2 (1,555)
P215/45R17Aluminum wheel61.0 (1,549)
Rear treadP205/55R16Steel wheel61.5 (1,562)
Aluminum wheel61.7 (1,568)
P215/45R17Aluminum wheel61.5 (1,562)
Wheelbase104.3 (2,650)
Light BulbWattageBulb type
Front
HeadlightsLow55H11
High55H7L
Day time running light55H7L
Front turn signal lights /
Position lights28/8PY28/8W
Front fog lights27881
Front side marker5W5WLL
Rear
Stop and tail lightsBulb28/8PY28/8W
LEDLEDLED
Rear turn signal lights 27PY27W
Tail lights 28/8PY28/8W
Rear side markerBulb5W5WLL
LEDLEDLED
Back-up lights 1616W
High mounted stop lightLEDLED
License plate lights5W5W
Interior
Map lamps8FESTOON
Room lamps8FESTOON
Luggage lamp8FESTOON
Vanity mirror lamps5FESTOON

83
Specifications, Consumer information, Reporting safety defects
TIRES AND WHEELS
*1Normal load : Up to 3 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.

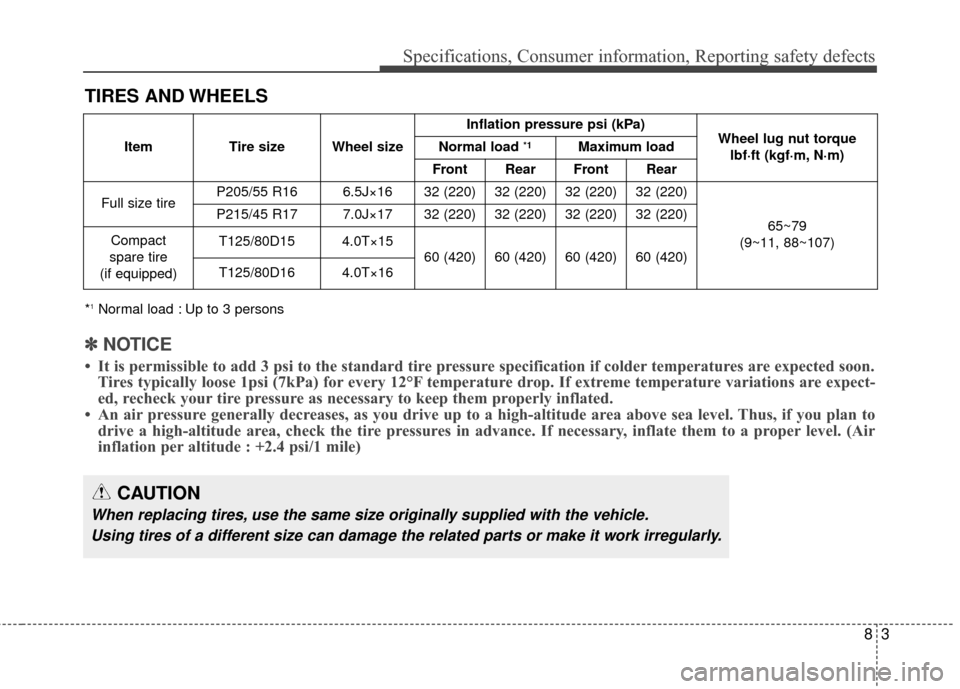

ItemTire sizeWheel size
Inflation pressure psi (kPa)Wheel lug nut torque lbf·ft (kgf·m, N·m)Normal load *1Maximum load
FrontRearFrontRear
Full size tireP205/55 R166.5J×1632 (220)32 (220)32 (220)32 (220)
65~79
(9~11, 88~107)P215/45 R177.0J×1732 (220)32 (220)32 (220)32 (220)
Compact
spare tire
(if equipped)T125/80D154.0T×15
60 (420)60 (420)60 (420)60 (420)
T125/80D164.0T×16
✽
✽ NOTICE
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are expect-
ed, recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level. (Air
inflation per altitude : +2.4 psi/1 mile)

Specifications, Consumer information, Reporting safety defects
48
CAPACITY/WEIGHT

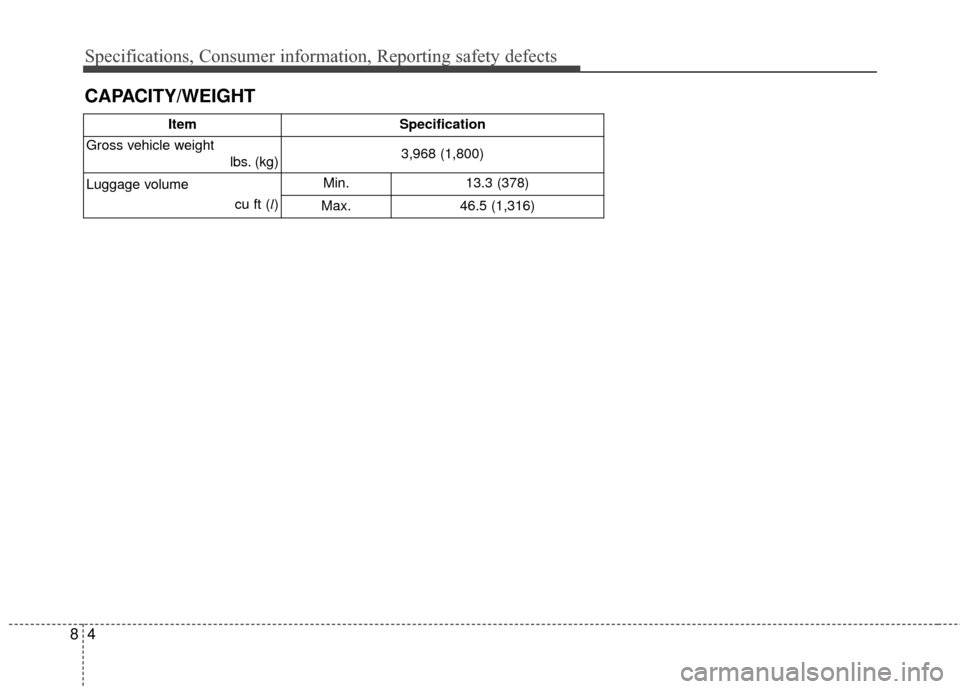

ItemSpecification
Gross vehicle weight lbs. (kg) 3,968 (1,800)
Luggage volume cu ft (l)Min.
13.3 (378)
Max. 46.5 (1,316)

85
Specifications, Consumer information, Reporting safety defects

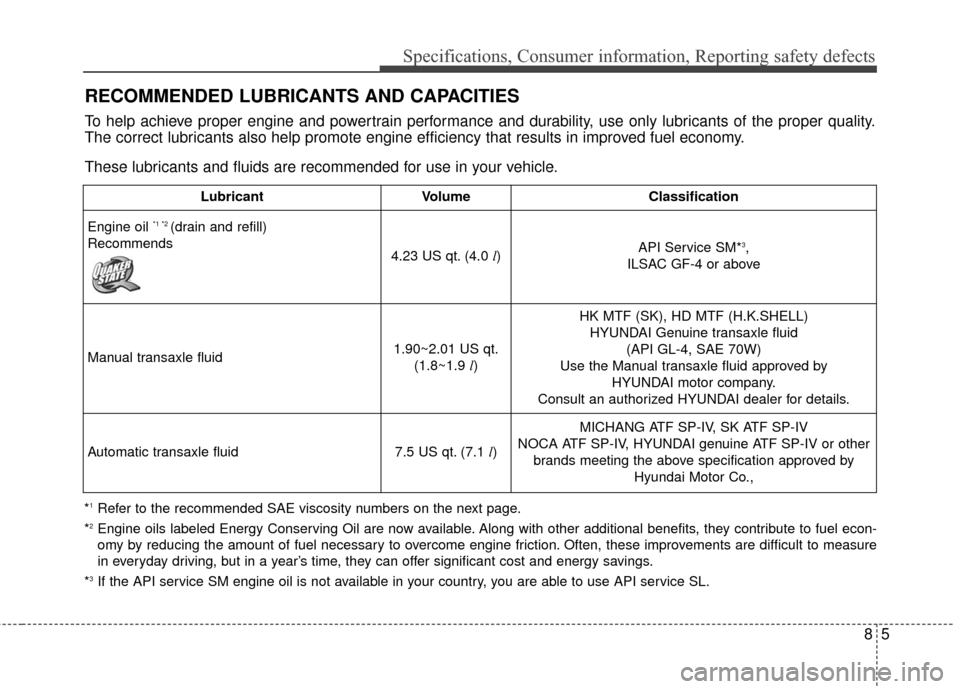

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
4.23 US qt. (4.0 l)API Service SM*3,
ILSAC GF-4 or above
Manual transaxle fluid1.90~2.01 US qt. (1.8~1.9 l)
HK MTF (SK), HD MTF (H.K.SHELL)
HYUNDAI Genuine transaxle fluid (API GL-4, SAE 70W)
Use the Manual transaxle fluid approved by HYUNDAI motor company.
Consult an authorized HYUNDAI dealer for details.
Automatic transaxle fluid7.5 US qt. (7.1 l)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co.,
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.

Specifications, Consumer information, Reporting safety defects
68

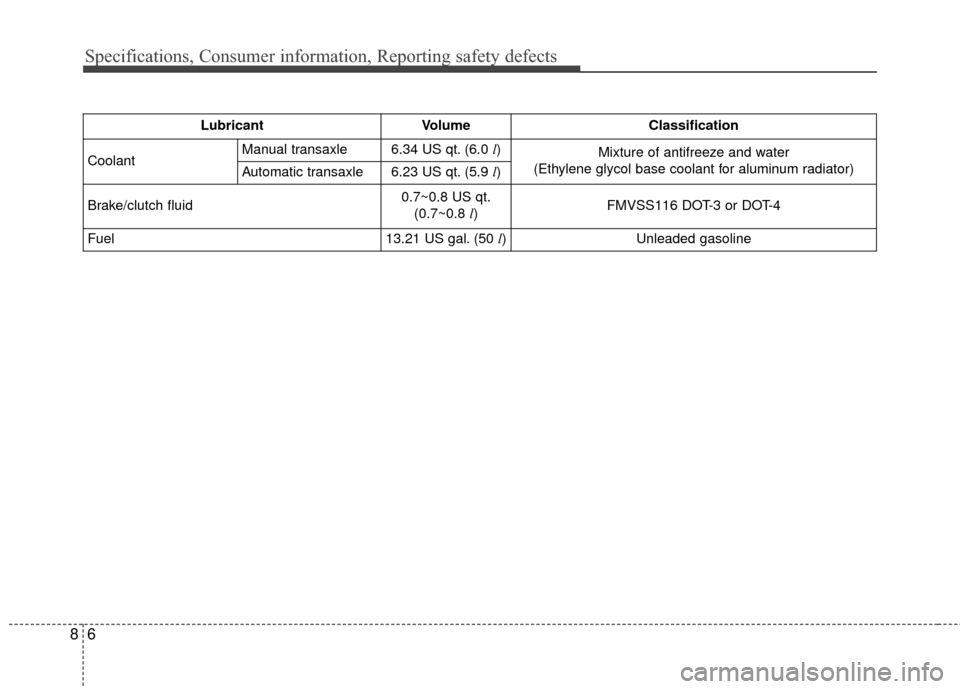

LubricantVolumeClassification
Coolant Manual transaxle6.34 US qt. (6.0 l)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Automatic transaxle6.23 US qt. (5.9 l)
Brake/clutch fluid0.7~0.8 US qt.
(0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel13.21 US gal. (50 l)Unleaded gasoline

87
Specifications, Consumer information, Reporting safety defects
Recommended SAE viscosity
numberEngine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
*1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (API
SM / ILSAC GF-4). However, if the engine oil is not
available in your country, select the proper engine oil
using the engine oil viscosity chart.

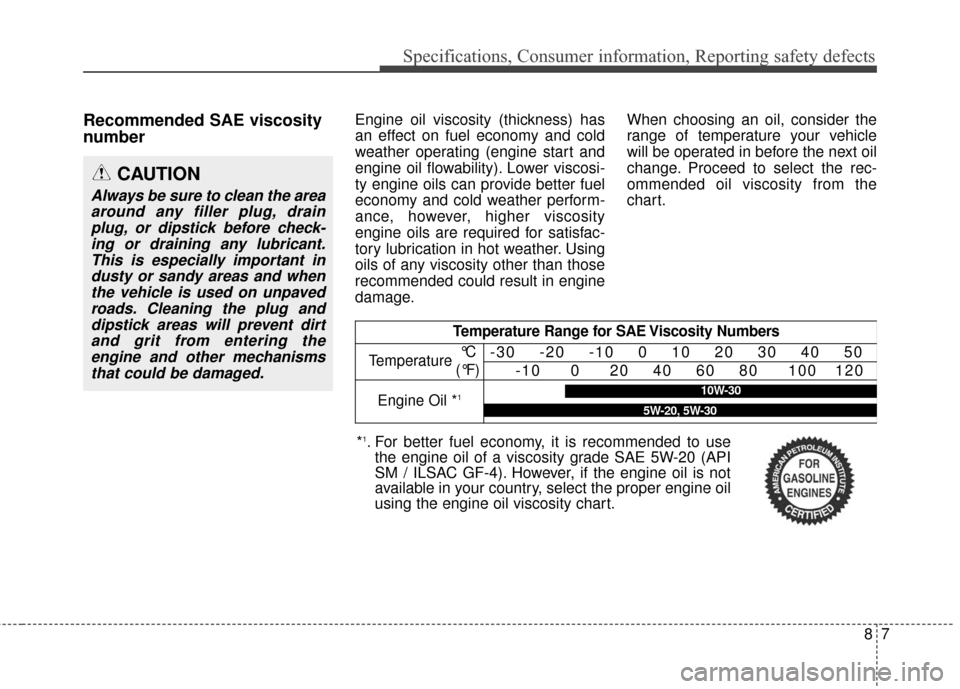

Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)

Specifications, Consumer information, Reporting safety defects
88

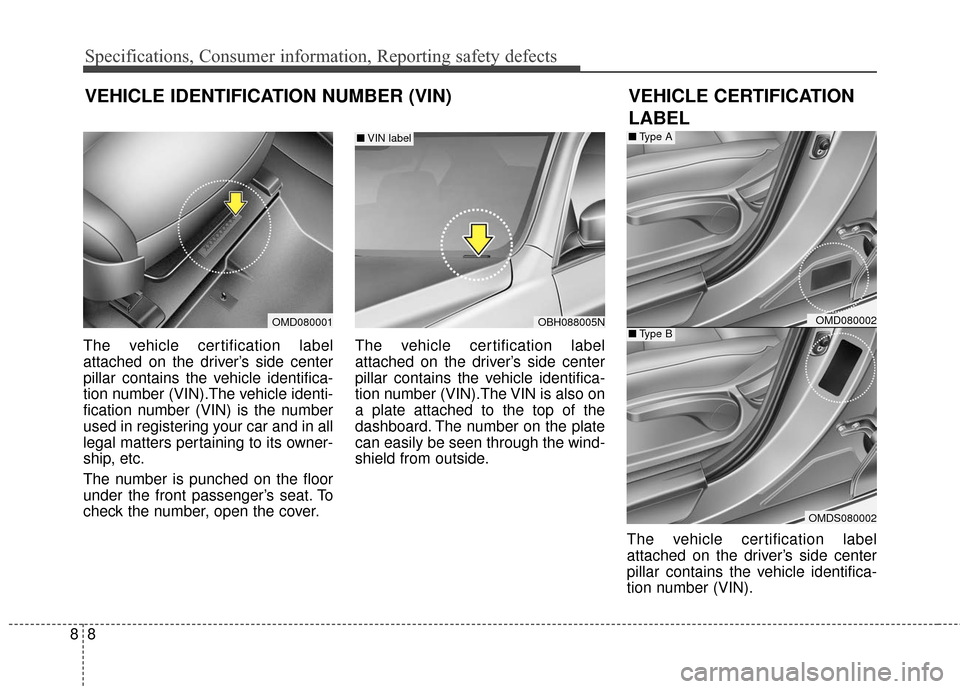

The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The vehicle identi-
fication number (VIN) is the number
used in registering your car and in all
legal matters pertaining to its owner-
ship, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The VIN is also on
a plate attached to the top of the
dashboard. The number on the plate
can easily be seen through the wind-
shield from outside.
The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OBH088005N
■VIN label
OMD080001OMD080002
OMDS080002
■Type A
■Type B
VEHICLE CERTIFICATION
LABEL

89
Specifications, Consumer information, Reporting safety defects

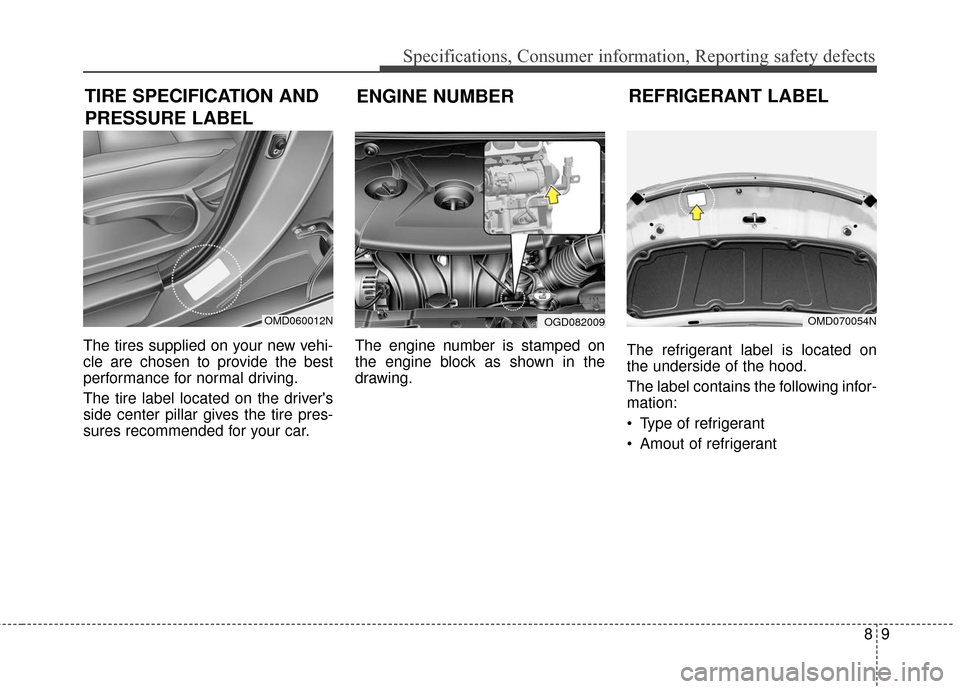

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located on
the underside of the hood.
The label contains the following infor-
mation:
Type of refrigerant
Amout of refrigerant
TIRE SPECIFICATION AND
PRESSURE LABEL
OMD060012NOMD070054N
REFRIGERANT LABEL
ENGINE NUMBER
OGD082009
