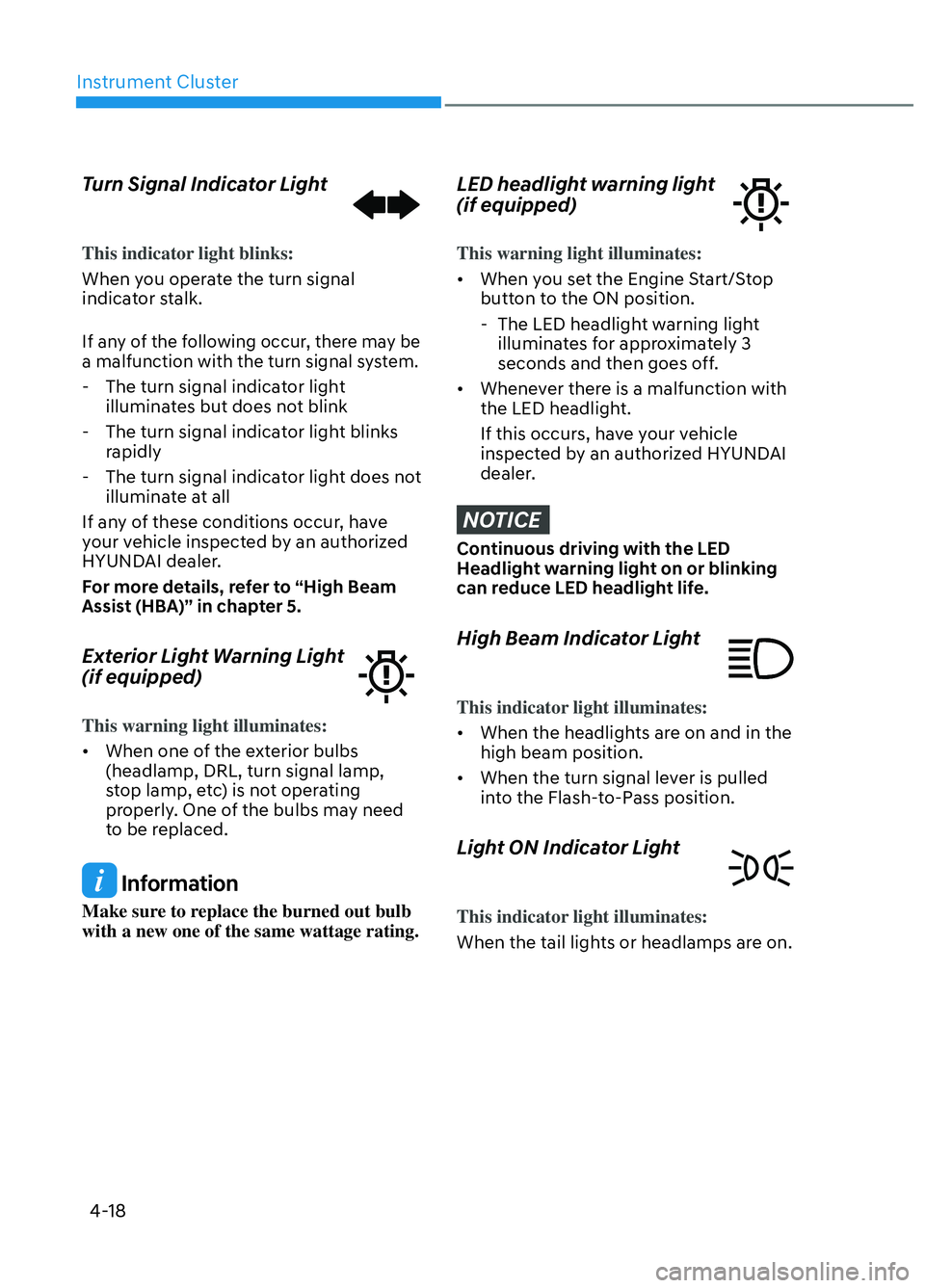

Instrument Cluster4-18
Turn Signal Indicator Light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may be
a malfunction with the turn signal system.

- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
your vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to “High Beam
Assist (HBA)” in chapter 5.
Exterior Light Warning Light
(if equipped)
This warning light illuminates:
• When one of the exterior bulbs (headlamp, DRL, turn signal lamp,
s

top lamp, etc) is not operating
properly. One of the bulbs may need
to be replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.
LED headlight warning light
(if equipped)
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- The LED headlight warning light illuminates for approximately 3
seconds and then goes off.
• Whenever there is a malfunction with the LED headlight.
If this occurs, have your vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.
High Beam Indicator Light
This indicator light illuminates:
• When the headlights are on and in the high beam position.
•

When the turn signal lever is pulled
into the Flash-to-Pass position.
Light ON Indicator Light
This indicator light illuminates:
When the tail lights or headlamps are on.
CN7 N HMA 4.indd 4-18 2021-09-14  9:32:37

04
4-19

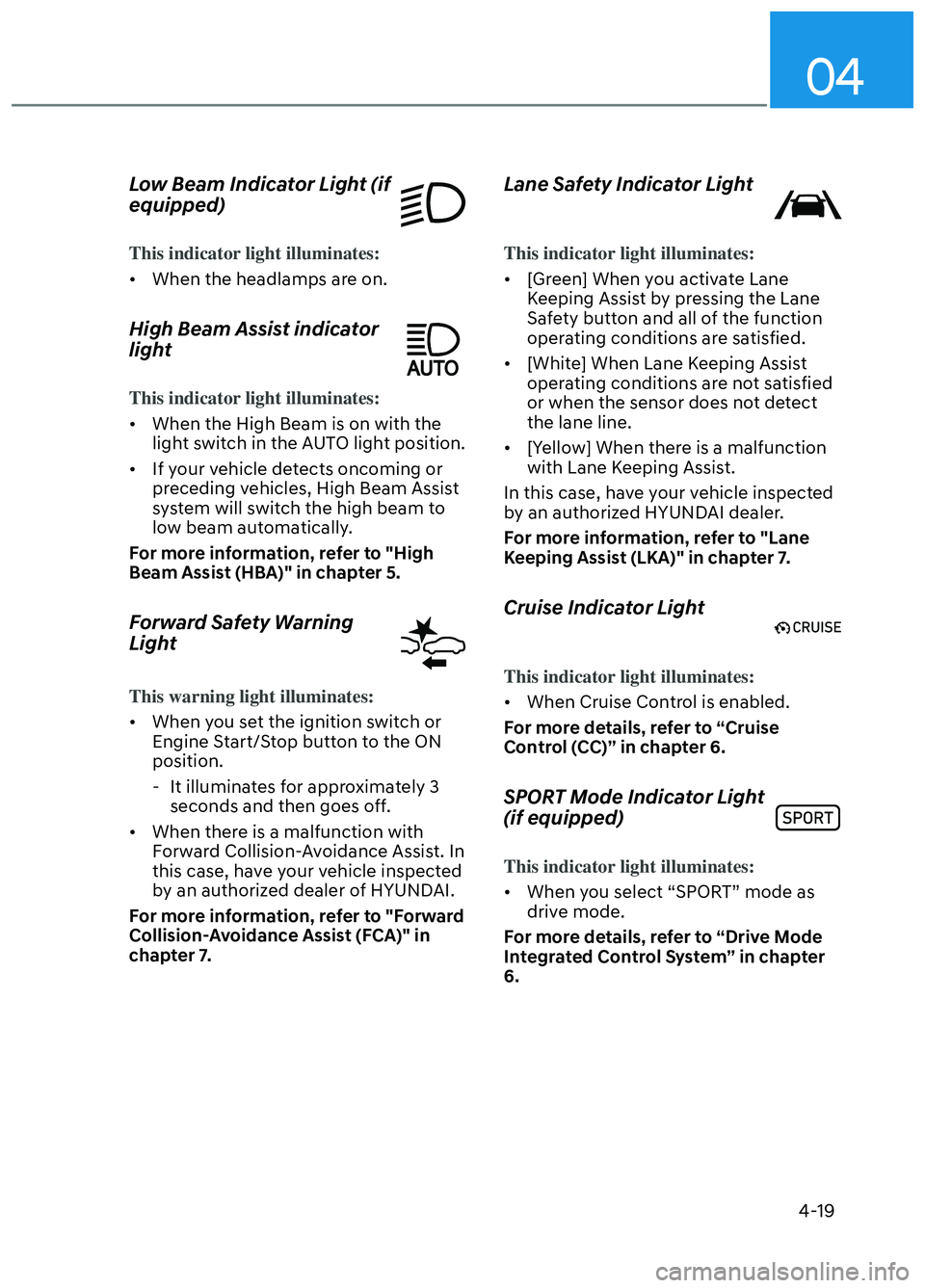

Low Beam Indicator Light (if
equipped)
This indicator light illuminates:
• When the headlamps are on.
High Beam Assist indicator
light
This indicator light illuminates:
• When the High Beam is on with the light s
witch in the AUTO light position.
• If your vehicle detects oncoming or preceding vehicles, High Beam Assist
system will switch the high beam to
low beam automatically.
For more information, refer to "High
Beam Assist (HBA)" in chapter 5.
Forward Safety Warning
Light
This warning light illuminates:
• When you set the ignition switch or E
ngine Start/Stop button to the ON
position.
- It illuminates for approximately 3 seconds and then goes off.
• When there is a malfunction with Forward Collision-Avoidance Assist. In
this case, have your vehicle inspected
by an authorized dealer of HYUNDAI.
For more information, refer to "Forward
Collision-Avoidance Assist (FCA)" in
chapter 7.
Lane Safety Indicator Light
This indicator light illuminates:
• [Green] When you activate Lane K
eeping Assist by pressing the Lane
Safety button and all of the function
operating conditions are satisfied.
• [White] When Lane Keeping Assist operating conditions are not satisfied
or when the sensor does not detect
the lane line.
• [Yellow] When there is a malfunction with Lane Keeping Assist.
In this case, have your vehicle inspected
by an authorized HYUNDAI dealer.
For more information, refer to "Lane
Keeping Assist (LKA)" in chapter 7.
Cruise Indicator Light
This indicator light illuminates:
• When Cruise Control is enabled.
F
or more details, refer to “Cruise
Control (CC)” in chapter 6.
SPORT Mode Indicator Light
(if equipped)
This indicator light illuminates:
• When you select “SPORT” mode as driv
e mode.
For more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
CN7 N HMA 4.indd 4-19 2021-09-14  9:32:38

Instrument Cluster4-20

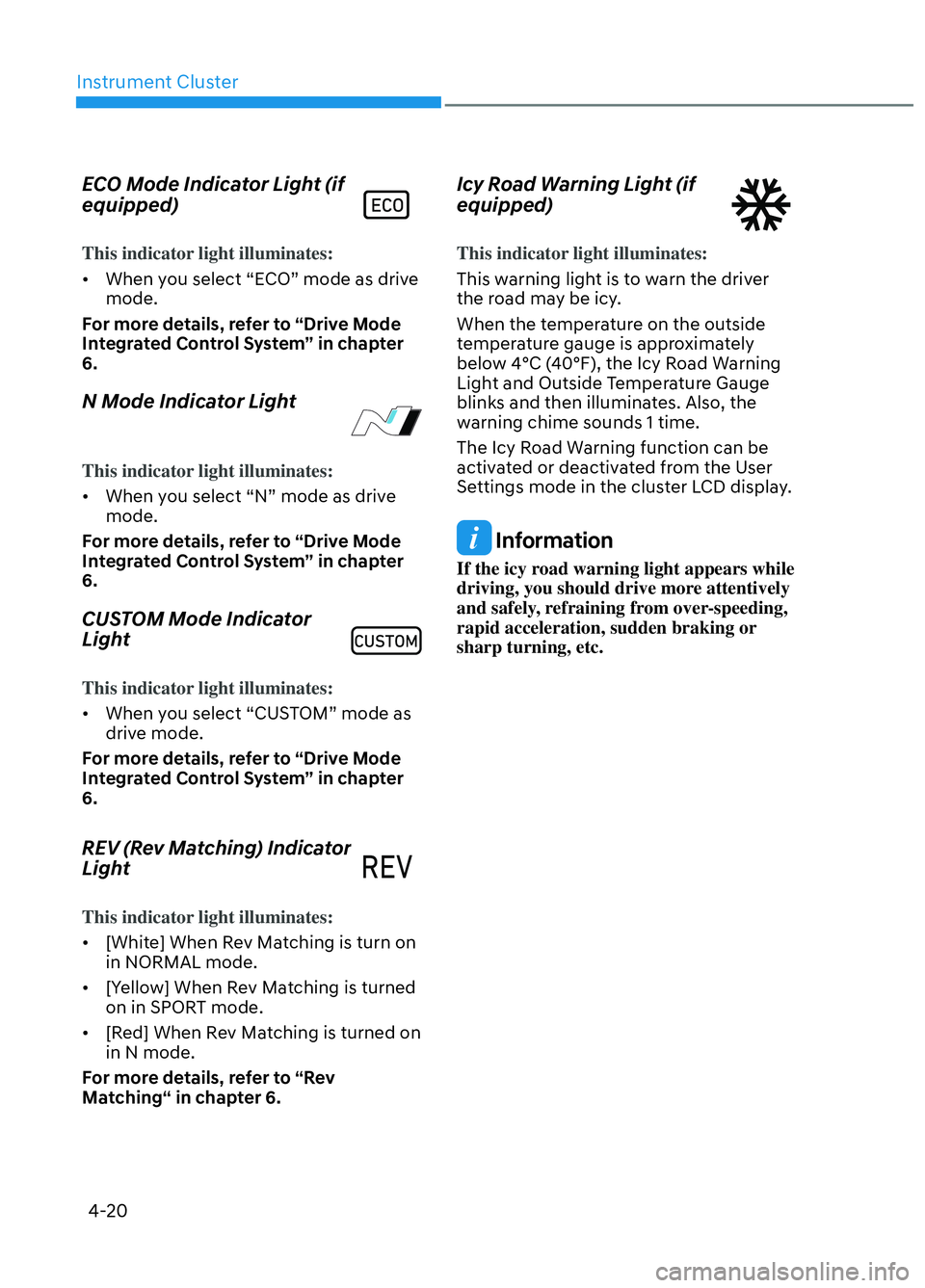

ECO Mode Indicator Light (if
equipped)
This indicator light illuminates:
• When you select “ECO” mode as drive mode.
F

or more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
N Mode Indicator Light
This indicator light illuminates:
• When you select “N” mode as drive mode.
F

or more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
CUSTOM Mode Indicator
Light
This indicator light illuminates:
• When you select “CUSTOM” mode as driv
e mode.
For more details, refer to “Drive Mode
Integrated Control System” in chapter
6.
REV (Rev Matching) Indicator
Light
003500280039
This indicator light illuminates:
• [White] When Rev Matching is turn on in NORMAL mode.
•

[Yellow] When Rev Matching is turned
on in SPORT mode.
• [Red] When Rev Matching is turned on in N mode.
For more details, refer to “Rev
Matching“ in chapter 6.
Icy Road Warning Light (if
equipped)
This indicator light illuminates:
This warning light is to warn the driver
the r
oad may be icy.
When the temperature on the outside
temperature gauge is approximately
below 4°C (40°F), the Icy Road Warning
Light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
The Icy Road Warning function can be
activated or deactivated from the User
Settings mode in the cluster LCD display.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely, refraining from over-speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
CN7 N HMA 4.indd 4-20 2021-09-14  9:32:38

04
4-21

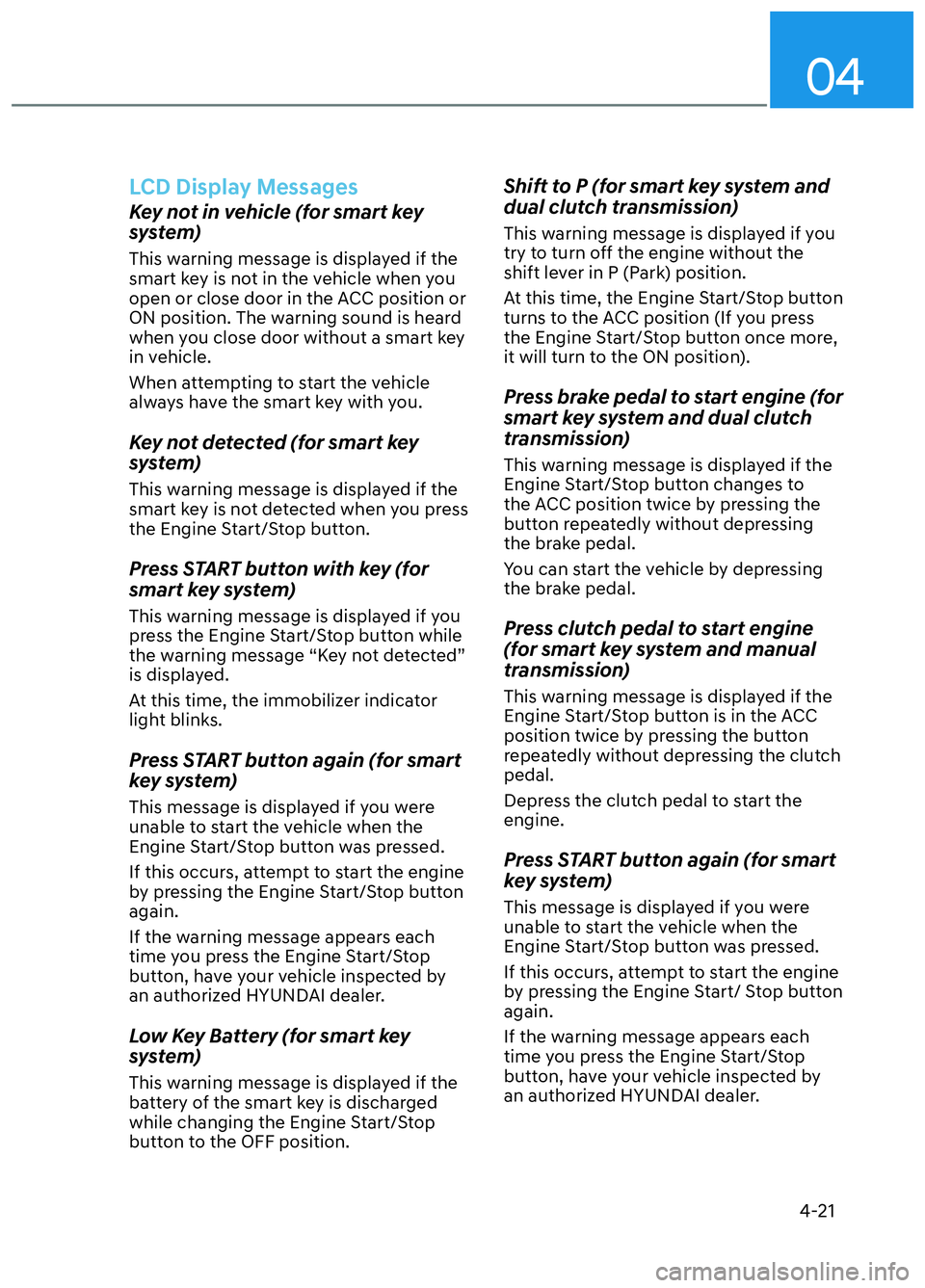

LCD Display Messages
Key not in vehicle (for smart key
system)
This warning message is displayed if the
smart key is not in the vehicle when you
open or close door in the ACC position or
ON position. The warning sound is heard
when you close door without a smart key
in vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected (for smart key
system)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START button with key (for
smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message “Key not detected”
is displayed.
At this time, the immobilizer indicator
light blinks.
Press START button again (for smart
key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Low Key Battery (for smart key
system)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Shift to P (for smart key system and
dual clutch transmission)
This warning message is displayed if you
try to turn off the engine without the
shift lever in P (Park) position.
At this time, the Engine Start/Stop button
turns to the ACC position (If you press
the Engine Start/Stop button once more,
it will turn to the ON position).
Press brake pedal to start engine (for
smart key system and dual clutch
transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Press clutch pedal to start engine
(for smart key system and manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START button again (for smart
key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
CN7 N HMA 4.indd 4-212021-09-14  9:32:38

Instrument Cluster4-22

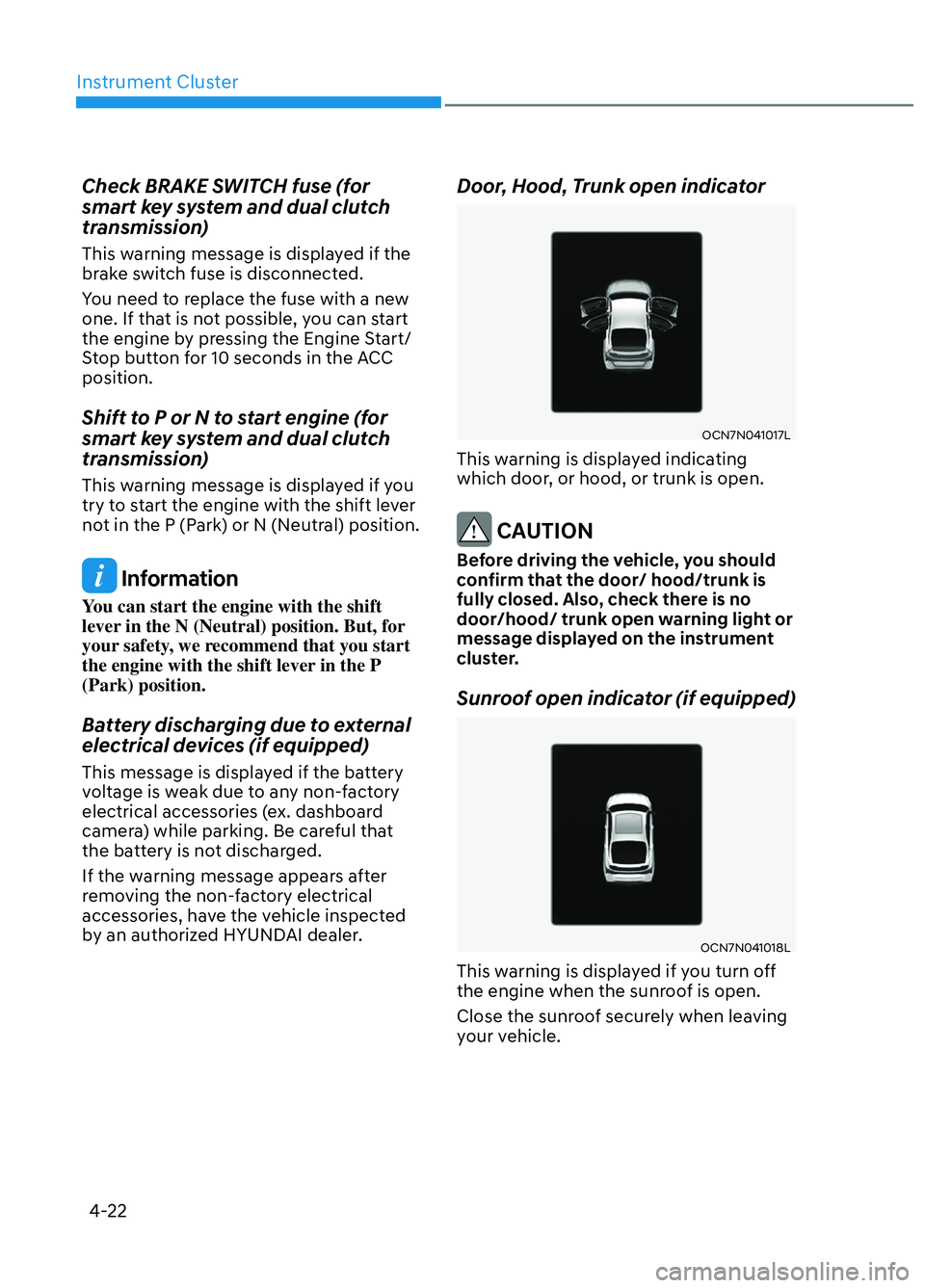

Check BRAKE SWITCH fuse (for
smart key system and dual clutch
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one. If that is not possible, you can start
the engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Shift to P or N to start engine (for
smart key system and dual clutch
transmission)
This warning message is displayed if you
try to start the engine with the shift lever
not in the P (Park) or N (Neutral) position.
Information
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have the vehicle inspected
by an authorized HYUNDAI dealer.
Door, Hood, Trunk open indicator
OCN7N041017LOCN7N041017L
This warning is displayed indicating
which door, or hood, or trunk is open.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/trunk is
fully closed. Also, check there is no
door/hood/ trunk open warning light or
message displayed on the instrument
cluster.
Sunroof open indicator (if equipped)
OCN7N041018LOCN7N041018L
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely when leaving
your vehicle.
CN7 N HMA 4.indd 4-22 2021-09-14  9:32:39

04
4-23

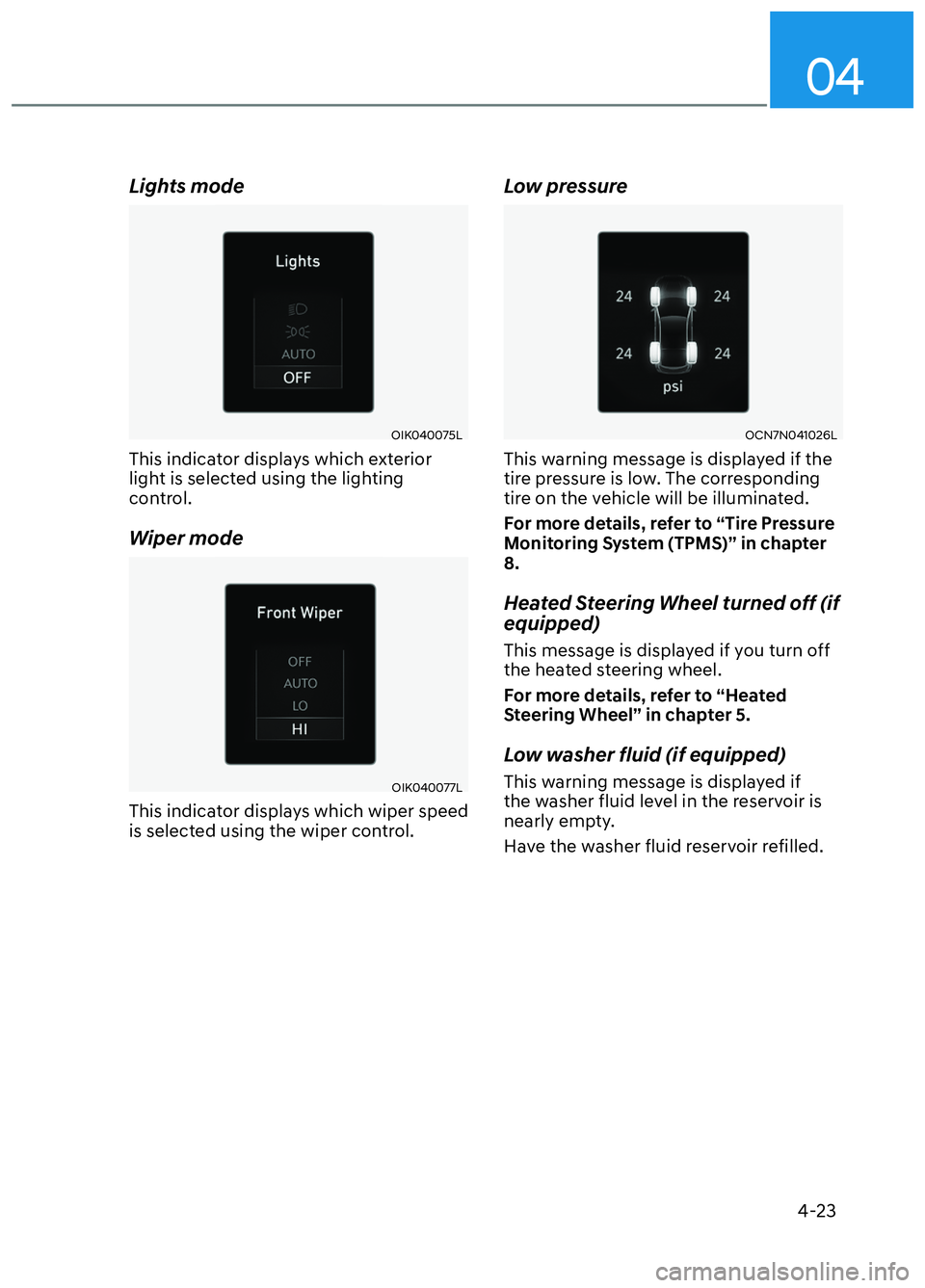

Lights mode
OIK040075LOIK040075L
This indicator displays which exterior
light is selected using the lighting
control.
Wiper mode
OIK040077LOIK040077L
This indicator displays which wiper speed
is selected using the wiper control.
Low pressure
OCN7N041026LOCN7N041026L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.
Heated Steering Wheel turned off (if
equipped)
This message is displayed if you turn off
the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low washer fluid (if equipped)
This warning message is displayed if
the washer fluid level in the reservoir is
nearly empty.
Have the washer fluid reservoir refilled.
CN7 N HMA 4.indd 4-232021-09-14  9:32:42

Instrument Cluster4-24

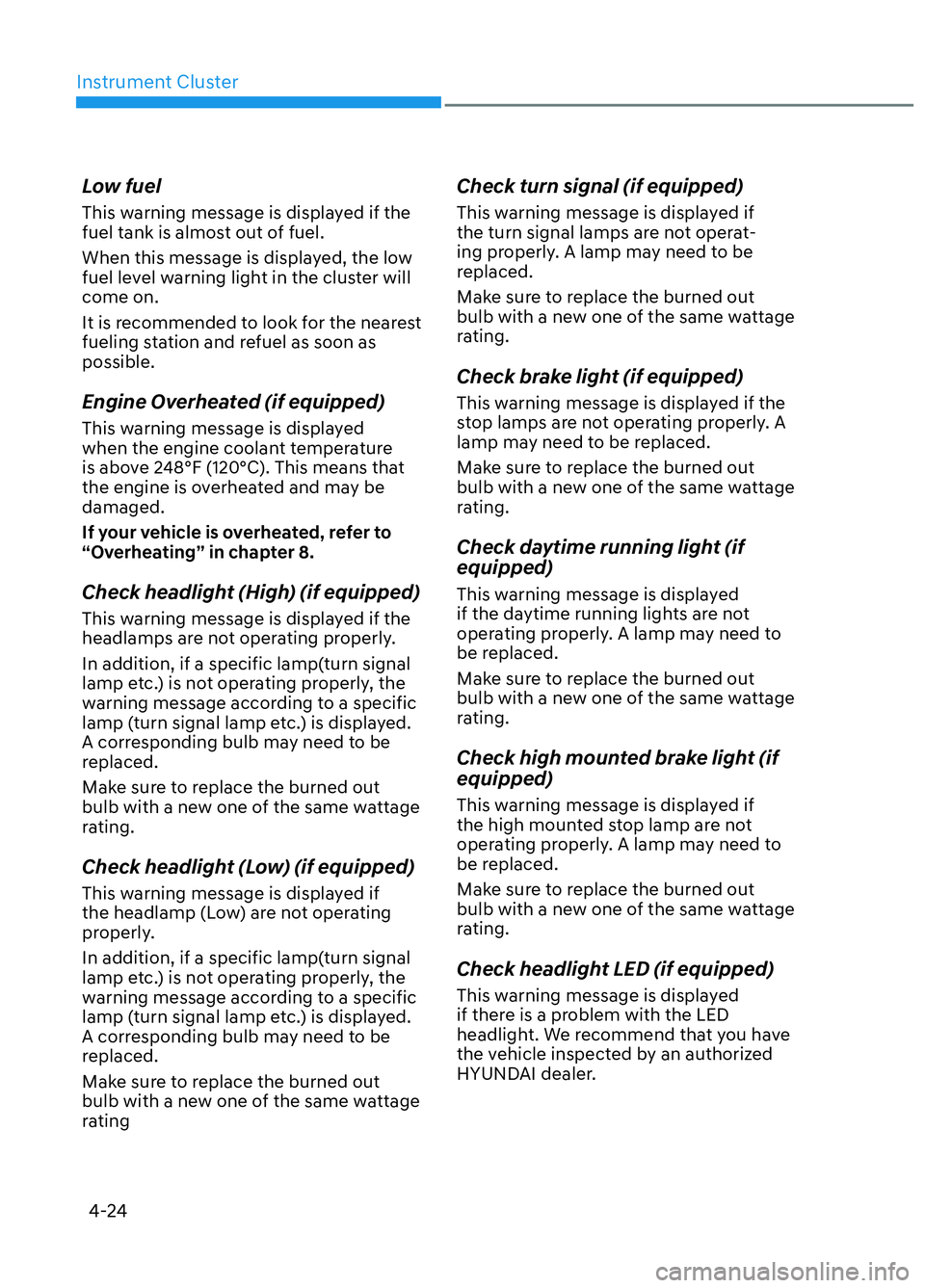

Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Engine Overheated (if equipped)
This warning message is displayed
when the engine coolant temperature
is above 248°F (120°C). This means that
the engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” in chapter 8.
Check headlight (High) (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight (Low) (if equipped)
This warning message is displayed if
the headlamp (Low) are not operating
properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating
Check turn signal (if equipped)
This warning message is displayed if
the turn signal lamps are not operat-
ing properly. A lamp may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check brake light (if equipped)
This warning message is displayed if the
stop lamps are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check daytime running light (if
equipped)
This warning message is displayed
if the daytime running lights are not
operating properly. A lamp may need to
be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check high mounted brake light (if
equipped)
This warning message is displayed if
the high mounted stop lamp are not
operating properly. A lamp may need to
be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlight LED (if equipped)
This warning message is displayed
if there is a problem with the LED
headlight. We recommend that you have
the vehicle inspected by an authorized
HYUNDAI dealer.
CN7 N HMA 4.indd 4-24 2021-09-14  9:32:43

4-25
04

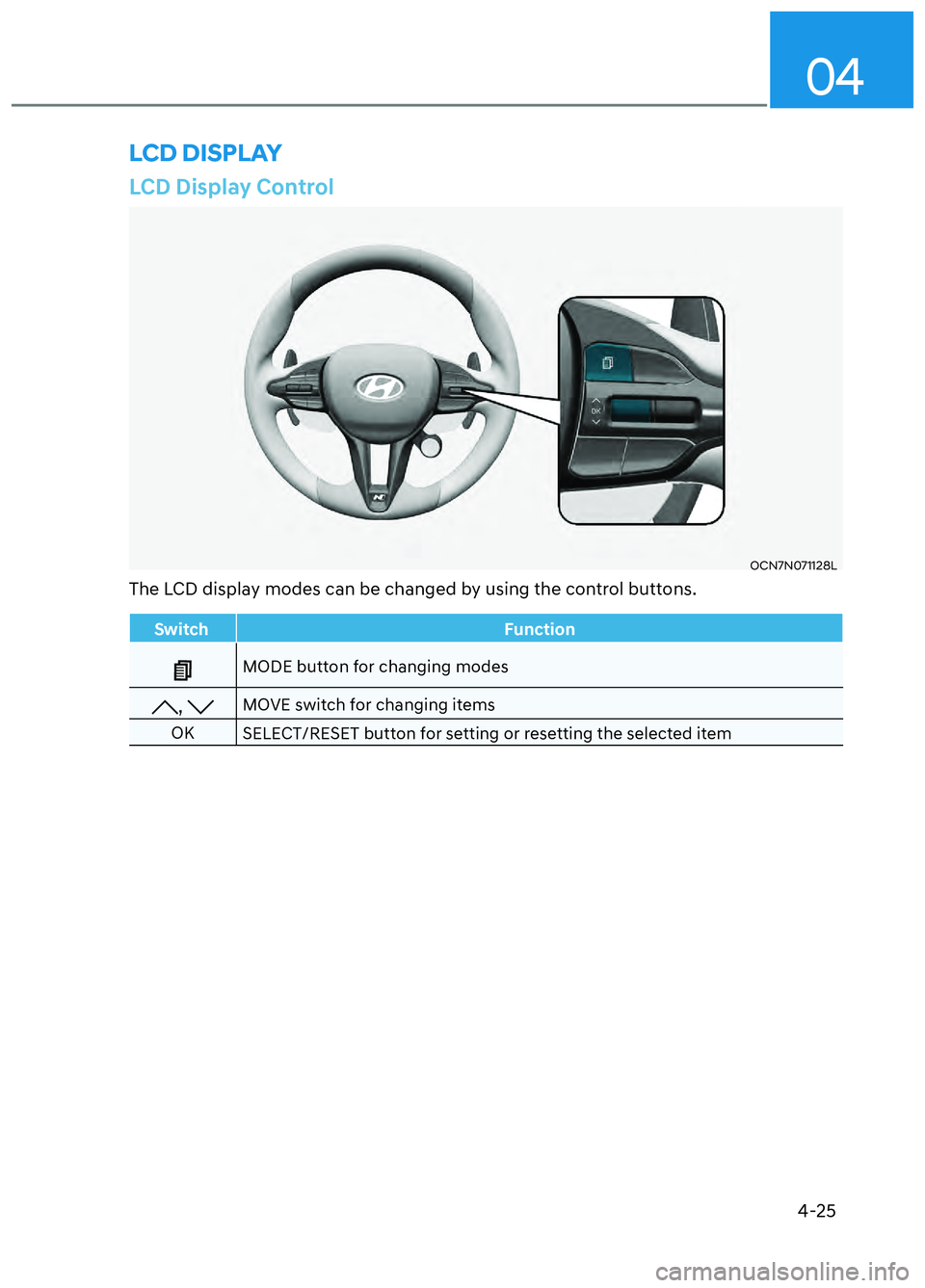

LCD Display Control
OCN7N071128L OCN7N071128L
The LCD display modes can be changed by using the control buttons.
SwitchFunction
MODE button for changing modes
, MOVE switch for changing items
OK SELECT/RESET button for setting or resetting the selected item
LCD DISPLAY
CN7 N HMA 4.indd 4-25 2021-09-14  9:32:43

Instrument Cluster4-26

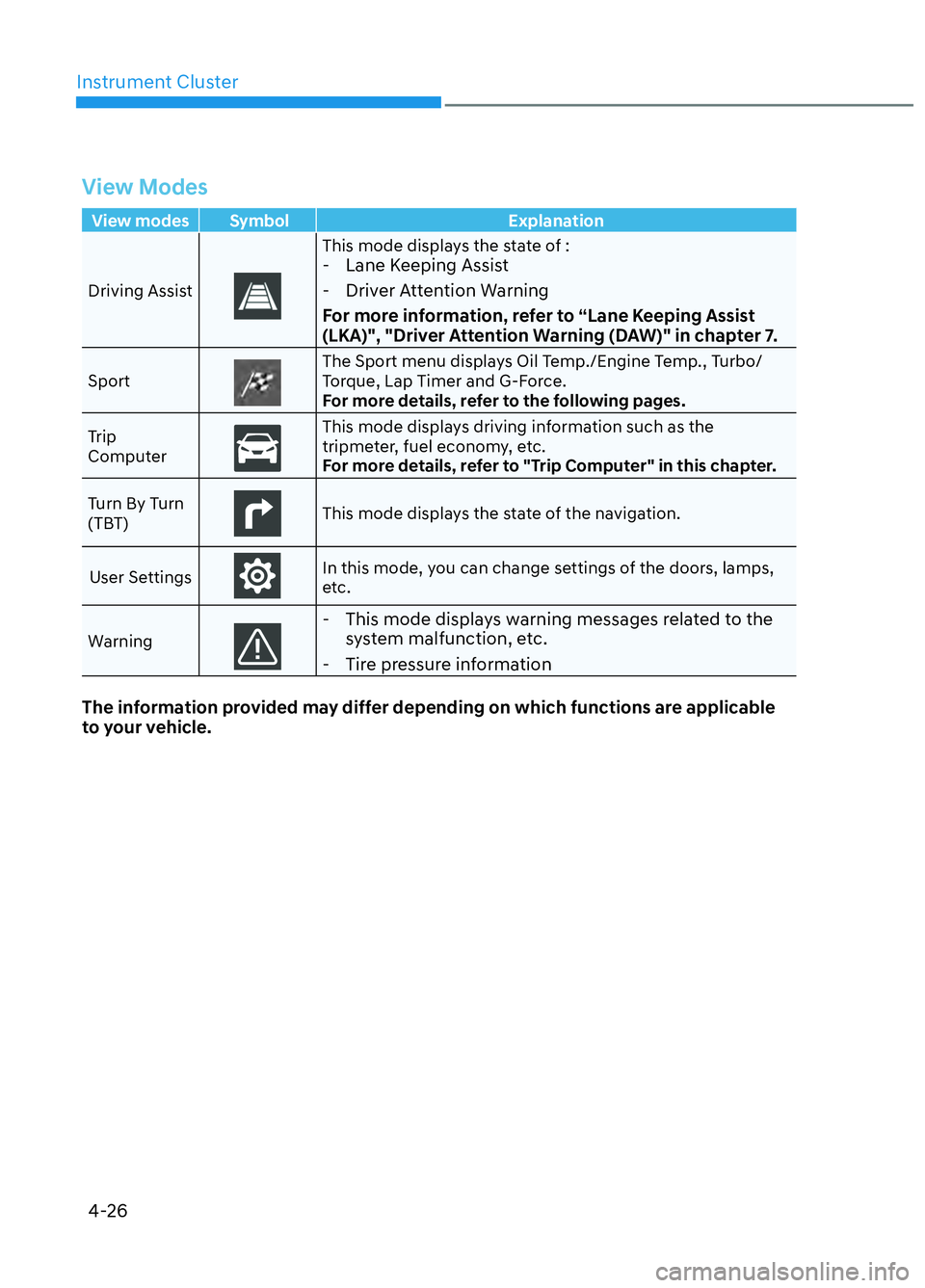

View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist

- Driver Attention Warning
For more information, refer to “Lane Keeping Assist
(LKA)", "Driver Attention Warning (DAW)" in chapter 7.
SportThe Sport menu displays Oil Temp./Engine Temp., Turbo/
Torque, Lap Timer and G-Force.
For more details, refer to the following pages.
Trip
Computer
This mode displays driving information such as the
tripmeter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the system malfunction, etc.

- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.
CN7 N HMA 4.indd 4-26 2021-09-14  9:32:44

04
4-27

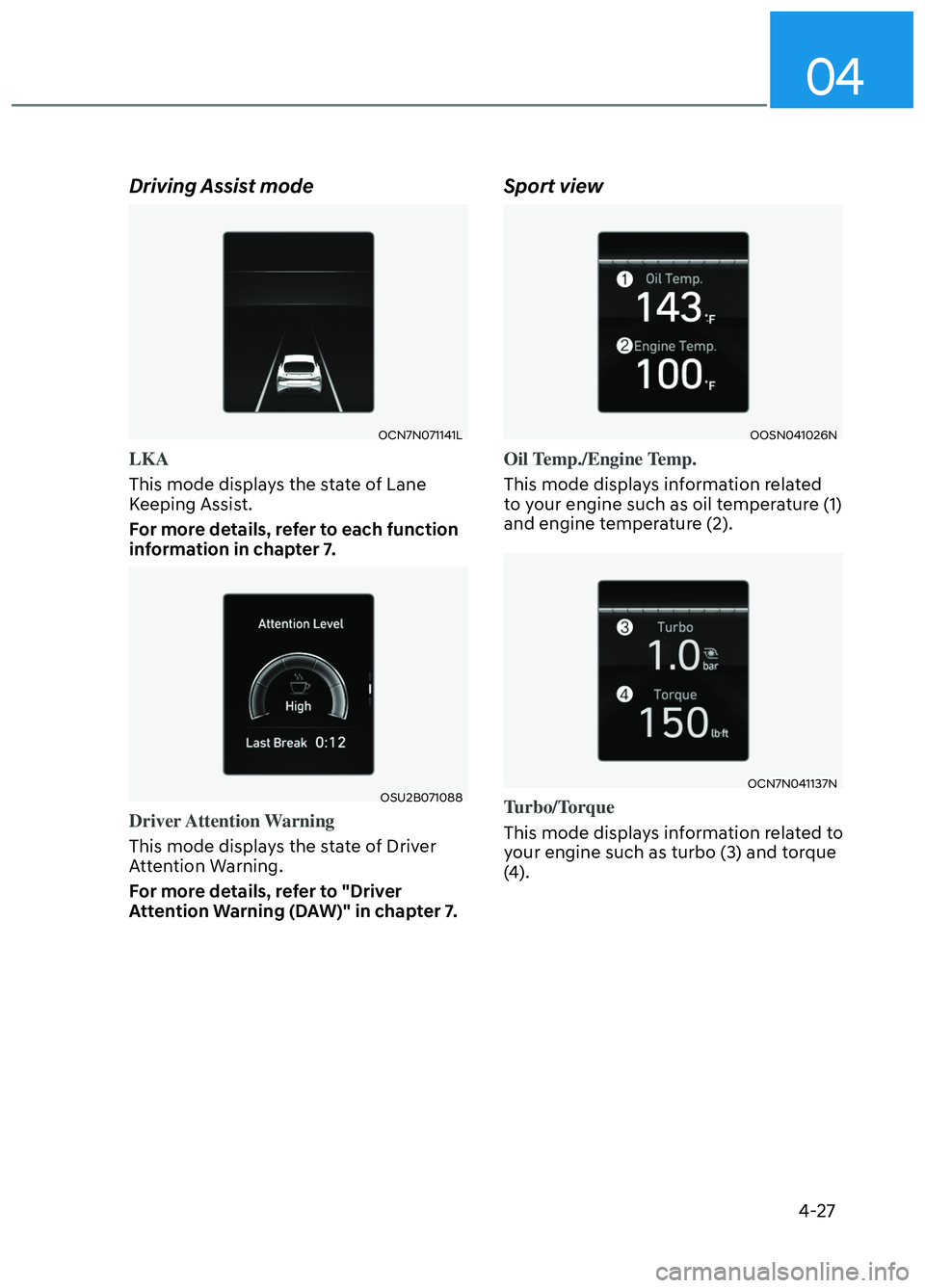

Driving Assist mode
OCN7N071141LOCN7N071141L
LKA
This mode displays the state of Lane
K
eeping Assist.
For more details, refer to each function
information in chapter 7.
OSU2B071088OSU2B071088
Driver Attention Warning
This mode displays the state of Driver
A
ttention Warning.
For more details, refer to "Driver
Attention Warning (DAW)" in chapter 7.
Sport view
OOSN041026NOOSN041026N
Oil Temp./Engine Temp.
This mode displays information related
t
o your engine such as oil temperature (1)
and engine temperature (2).
OCN7N041137NOCN7N041137N
Turbo/Torque
This mode displays information related to
y
our engine such as turbo (3) and torque
(4).
CN7 N HMA 4.indd 4-27 2021-09-14  9:32:44
