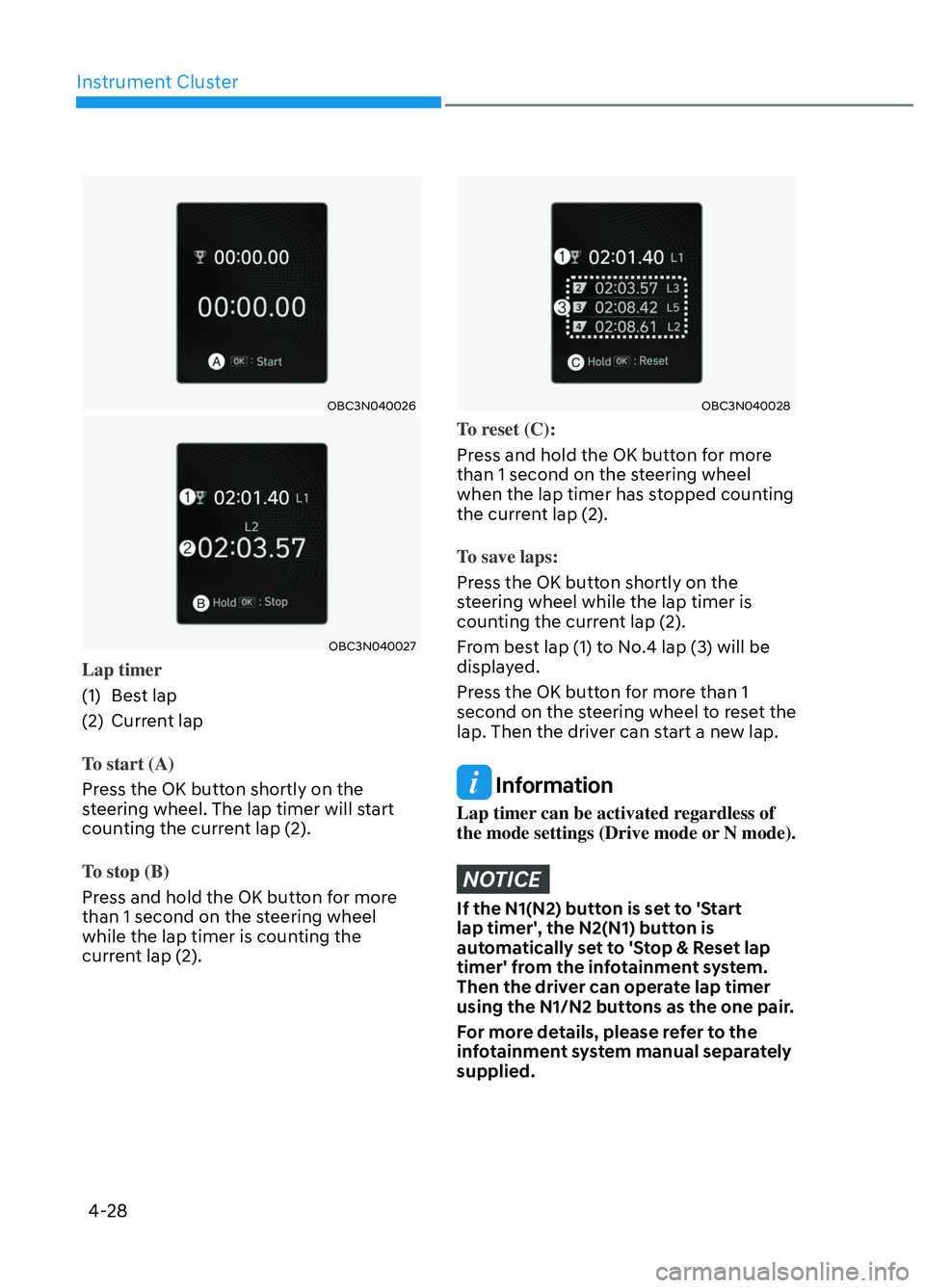

Lap timer
(1) Best lap
(2) Curr
ent lap
To start (A)
Press the OK button shortly on the
s
teering wheel. The lap timer will start
counting the current lap (2).
To stop (B)
Press and hold the OK button for more
than 1 second on the s
teering wheel
while the lap timer is counting the
current lap (2).
OBC3N040028OBC3N040028
To reset (C):
Press and hold the OK button for more
than 1 second on the s
teering wheel
when the lap timer has stopped counting
the current lap (2).
To save laps:
Press the OK button shortly on the
s
teering wheel while the lap timer is
counting the current lap (2).
From best lap (1) to No.4 lap (3) will be
displayed.
Press the OK button for more than 1
second on the steering wheel to reset the
lap. Then the driver can start a new lap.
Information
Lap timer can be activated regardless of
the mode settings (Drive mode or N mode).
NOTICE
If the N1(N2) button is set to 'Start
lap timer', the N2(N1) button is
automatically set to 'Stop & Reset lap
timer' from the infotainment system.
Then the driver can operate lap timer
using the N1/N2 buttons as the one pair.
For more details, please refer to the
infotainment system manual separately
supplied.
CN7 N HMA 4.indd 4-28 2021-09-14  9:32:48

04
4-29
OBC3N040029OBC3N040029

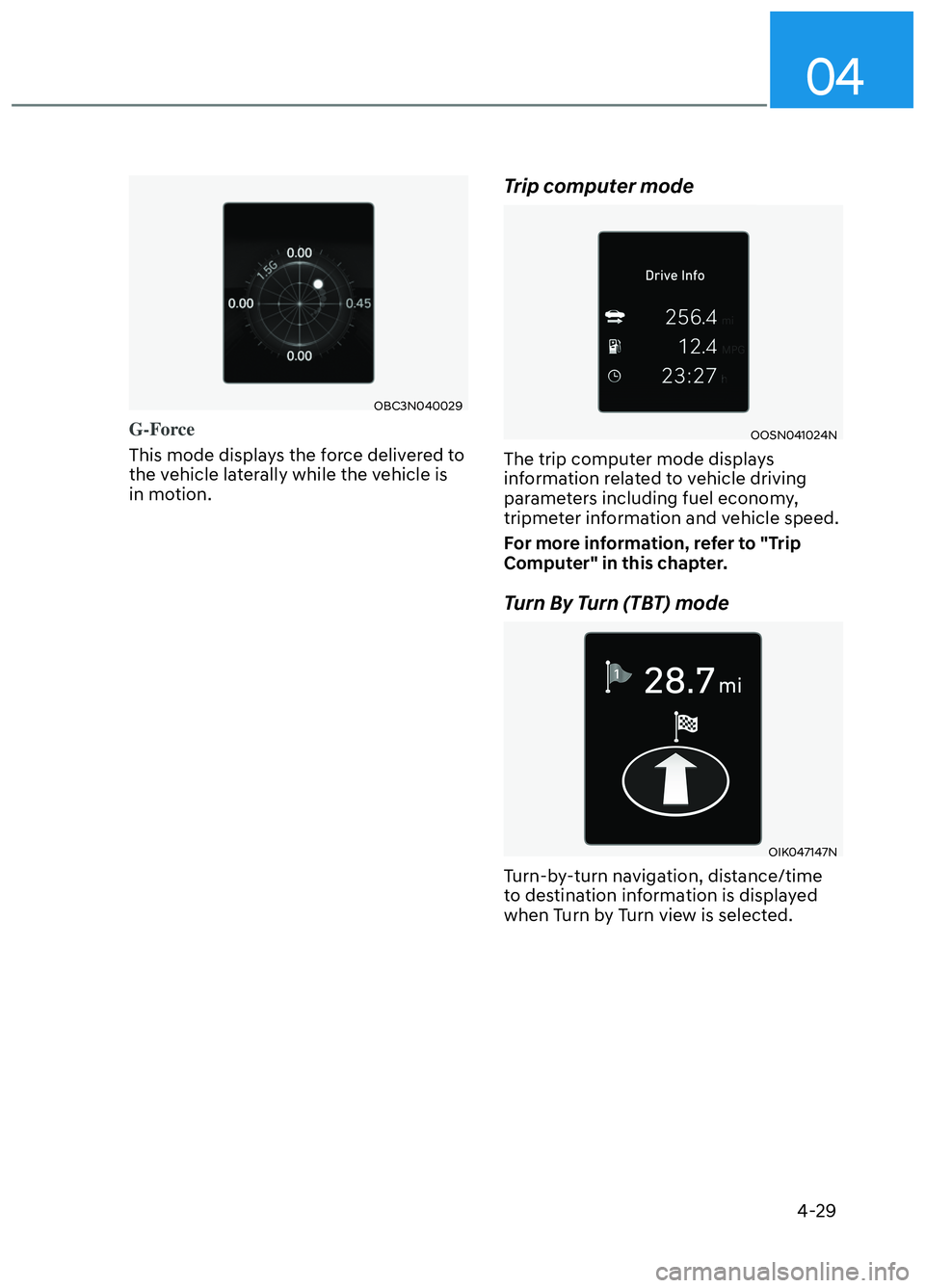

G-Force
This mode displays the force delivered to
the v
ehicle laterally while the vehicle is
in motion.
Trip computer mode
OOSN041024NOOSN041024N
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) mode
OIK047147NOIK047147N
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
CN7 N HMA 4.indd 4-29 2021-09-14  9:32:52

Instrument Cluster4-30

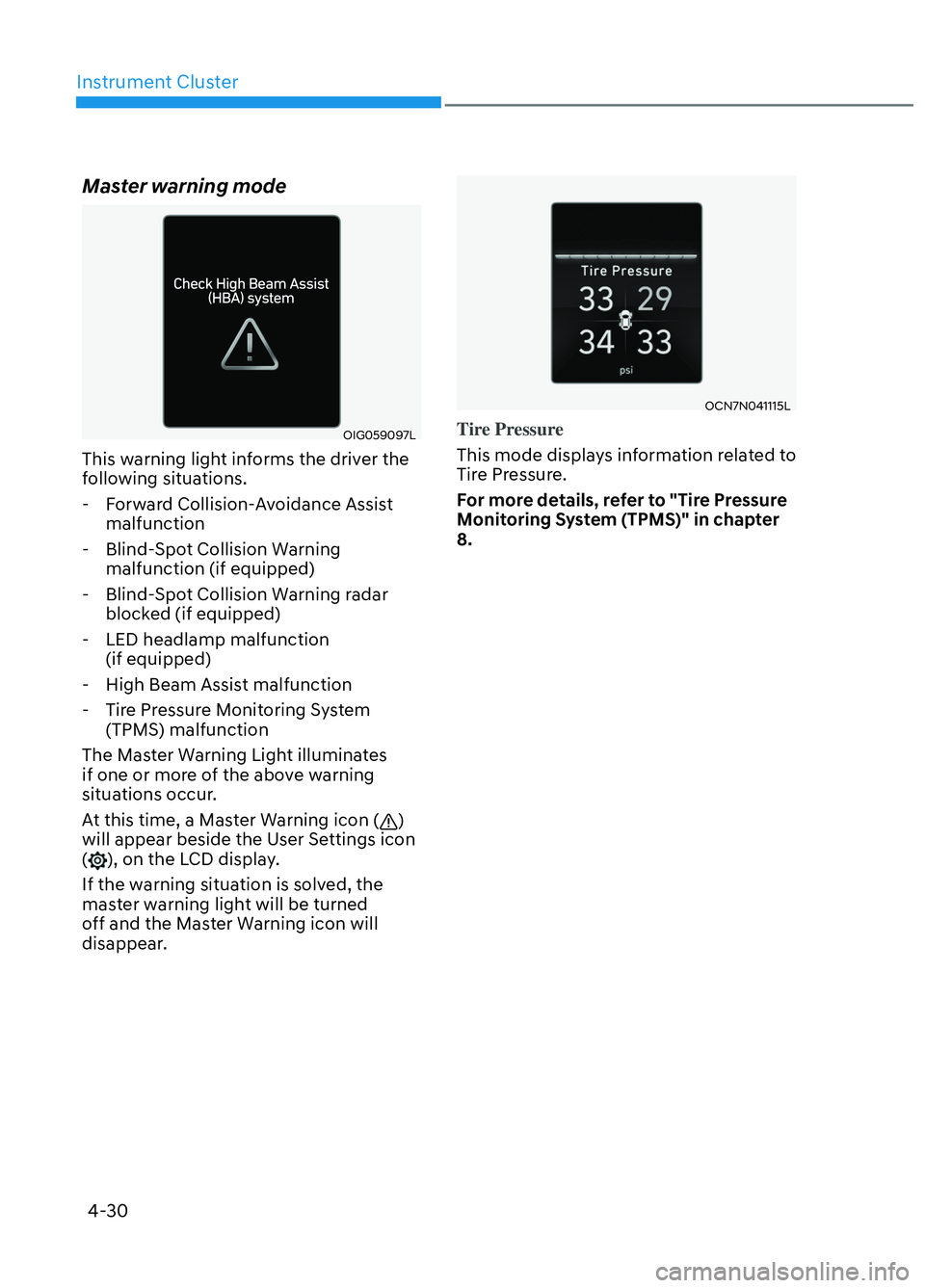

Master warning mode
OIG059097LOIG059097L
This warning light informs the driver the
following situations. - Forward Collision-Avoidance Assist malfunction
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- LED headlamp malfunction (if equipped)
- High Beam Assist malfunction
- Tire Pressure Monitoring System (TPMS) malfunction
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
will appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OCN7N041115L OCN7N041115L
Tire Pressure
This mode displays information related to
Tir
e Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter
8.
CN7 N HMA 4.indd 4-30 2021-09-14  9:32:54

04
4-31

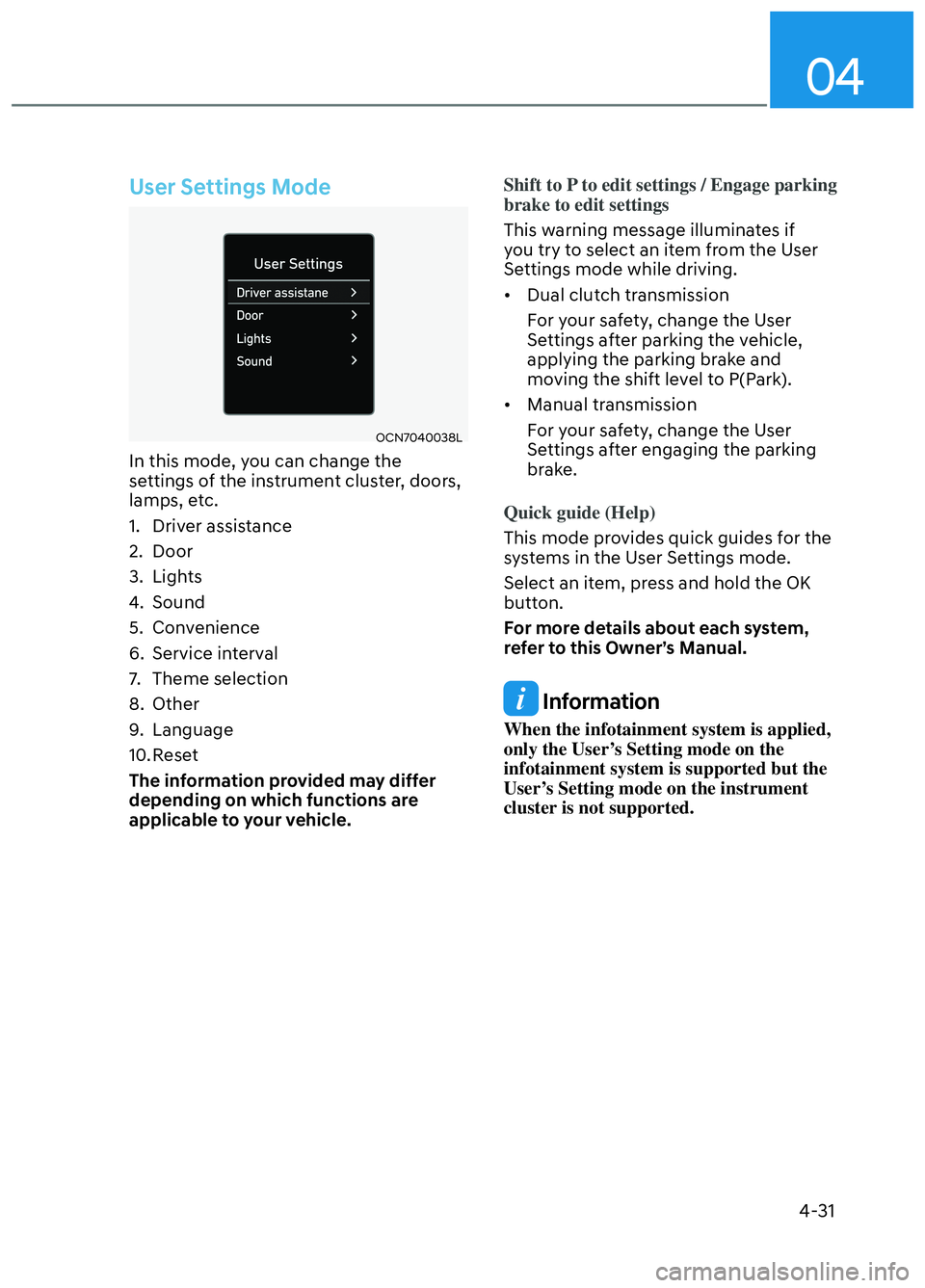

User Settings Mode
OCN7040038LOCN7040038L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Theme selection
8. Other
9. Language
10. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.Shift to P to edit settings / Engage parking
brake to edit settings
This warning message illuminates if
y

ou try to select an item from the User
Settings mode while driving.
• Dual clutch transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).
• Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.
CN7 N HMA 4.indd 4-31 2021-09-14  9:32:56

Instrument Cluster4-32

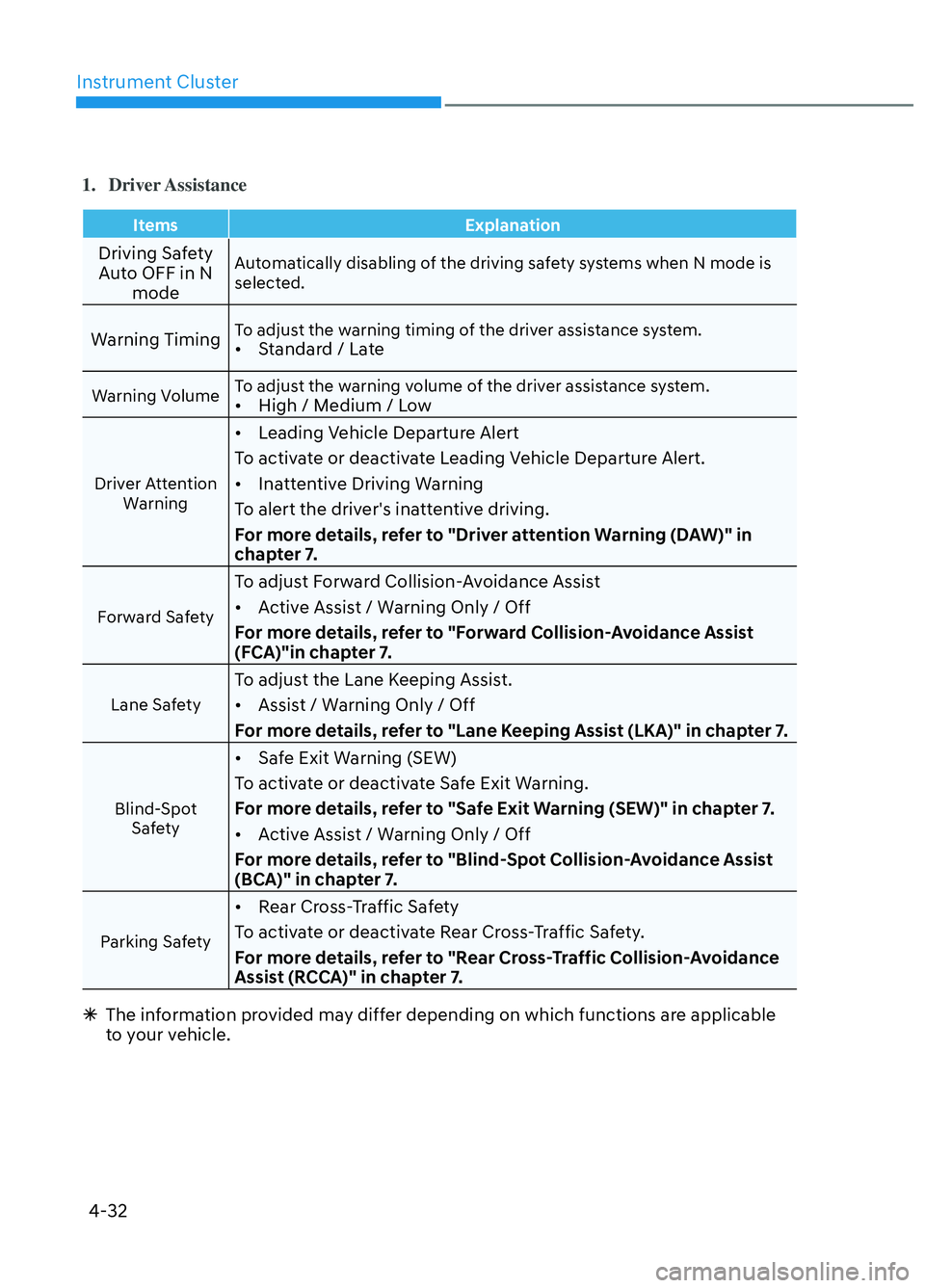

1. Driver Assistance
Items Explanation
Driving Safety
Auto OFF in N modeAutomatically disabling of the driving safety systems when N mode is
selected.
Warning TimingTo adjust the warning timing of the driver assistance system.• Standard / Late
Warning Volume To adjust the warning volume of the driver assistance system.• High / Medium / Low
Driver Attention
Warning
• Leading Vehicle Departure Alert
To activate or deactivate Leading Vehicle Departure Alert.
• Inattentive Driving Warning
To alert the driver's inattentive driving.
For more details, refer to "Driver attention Warning (DAW)" in
chapter 7.
Forward Safety
To adjust Forward Collision-Avoidance Assist
• Active Assist / Warning Only / Off
For more details, refer to "Forward Collision-Avoidance Assist
(FCA)"in chapter 7.
Lane Safety
To adjust the Lane Keeping Assist.
• Assist / Warning Only / Off
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.
Blind-Spot Safety
• Safe Exit Warning (SEW)
To activate or deactivate Safe Exit Warning.
For more details, refer to "Safe Exit Warning (SEW)" in chapter 7.
• Active Assist / Warning Only / Off
For more details, refer to "Blind-Spot Collision-Avoidance Assist
(BCA)" in chapter 7.
Parking Safety
• Rear Cross-Traffic Safety
To activate or deactivate Rear Cross-Traffic Safety.
For more details, refer to "Rear Cross-Traffic Collision-Avoidance
Assist (RCCA)" in chapter 7.

 The information provided may differ depending on which functions are applicable
to your vehicle.
CN7 N HMA 4.indd 4-32 2021-09-14  9:32:56

04
4-33

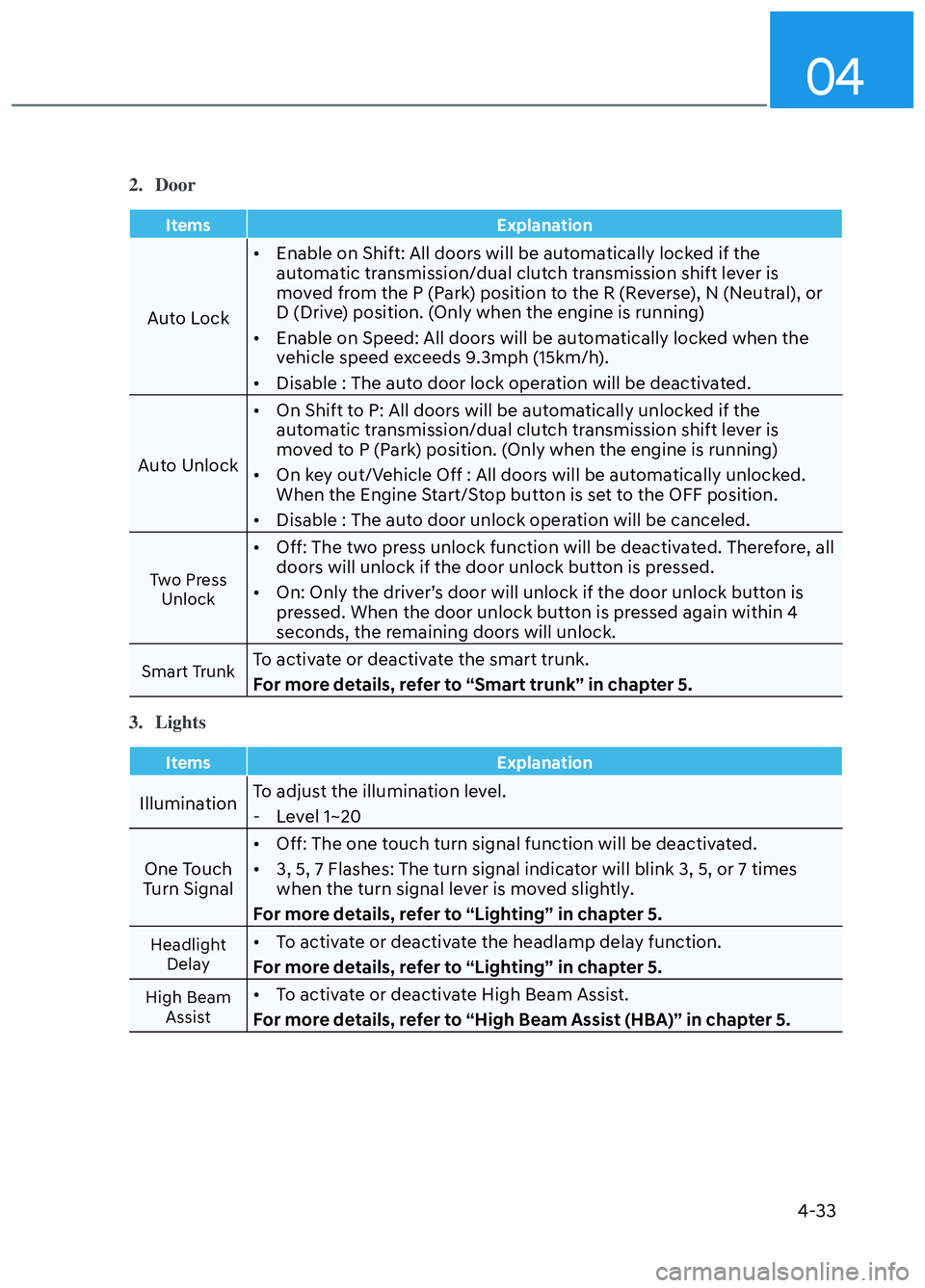

2. Door
ItemsExplanation
Auto Lock• Enable on Shift: All doors will be automatically locked if the
automatic transmission/dual clutch transmission shift lever is
moved from the P (Park) position to the R (Reverse), N (Neutral), or
D (Drive) position. (Only when the engine is running)
• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3mph (15km/h).
• Disable : The auto door lock operation will be deactivated.
Auto Unlock • On Shift to P: All doors will be automatically unlocked if the
automatic transmission/dual clutch transmission shift lever is
moved to P (Park) position. (Only when the engine is running)
• On key out/Vehicle Off : All doors will be automatically unlocked. When the Engine Start/Stop button is set to the OFF position.
• Disable : The auto door unlock operation will be canceled.
Two Press Unlock
• Off: The two press unlock function will be deactivated. Therefore, all doors will unlock if the door unlock button is pressed.
• On: Only the driver’s door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Smart TrunkTo activate or deactivate the smart trunk.
For more details, refer to “Smart trunk” in chapter 5.
3. Lights
Items Explanation
IlluminationTo adjust the illumination level.
- Level 1~20
One Touch
Turn Signal • Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight Delay• To activate or deactivate the headlamp delay function.
For more details, refer to “Lighting” in chapter 5.
High Beam Assist• To activate or deactivate High Beam Assist.
For more details, refer to “High Beam Assist (HBA)” in chapter 5.
CN7 N HMA 4.indd 4-33 2021-09-14  9:32:57

Instrument Cluster4-34

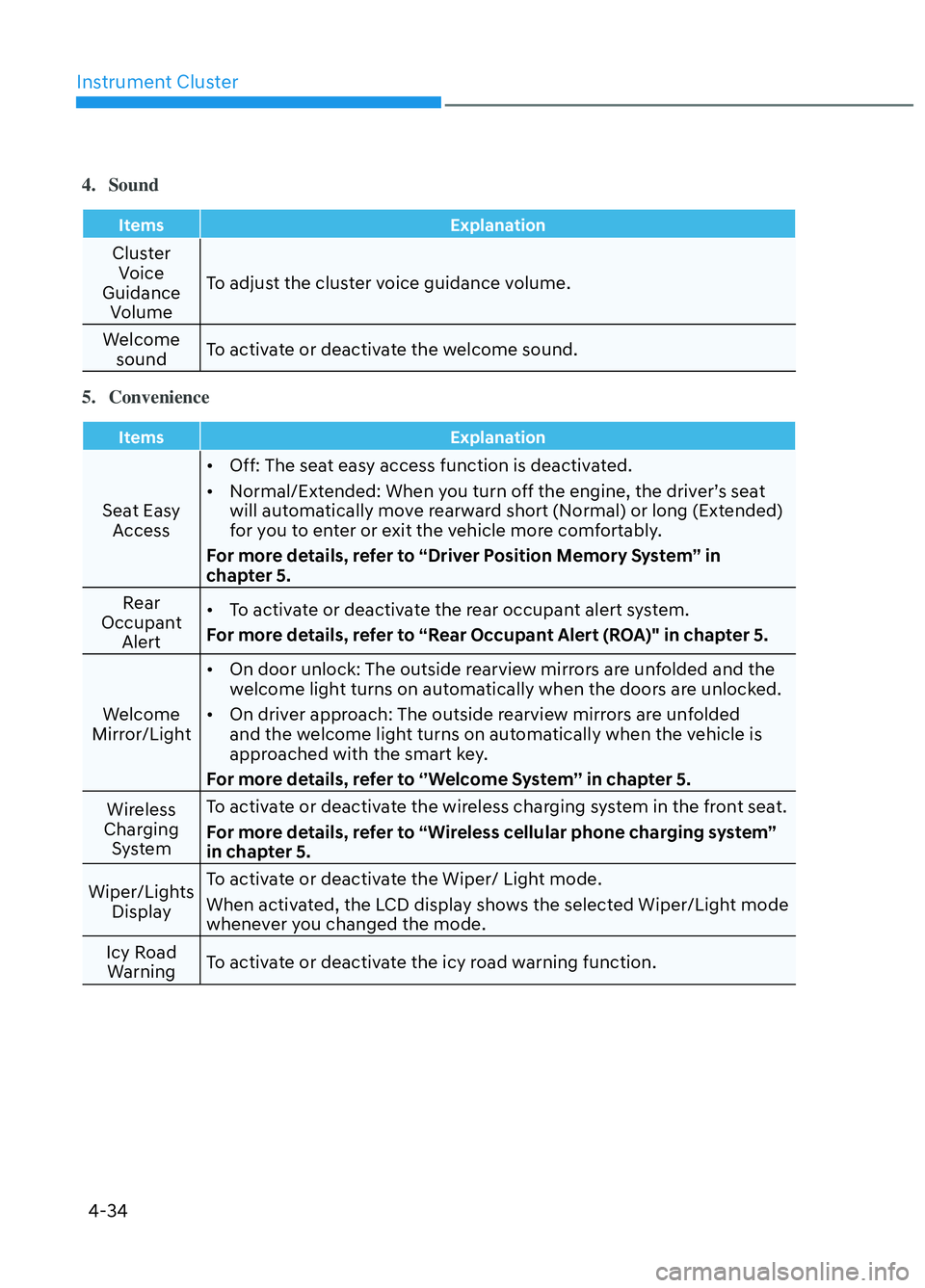

4. Sound
Items Explanation
Cluster
Voice
Guidance Volume To adjust the cluster voice guidance volume.
Welcome sound To activate or deactivate the welcome sound.
5. Convenience
Items Explanation
Seat Easy
Access • Off: The seat easy access function is deactivated.
• Normal/Extended: When you turn off the engine, the driver’s seat
will automatically move rearward short (Normal) or long (Extended)
for you to enter or exit the vehicle more comfortably.
For more details, refer to “Driver Position Memory System” in
chapter 5.
Rear
Occupant Alert • To activate or deactivate the rear occupant alert system.
For more details, refer to “Rear Occupant Alert (ROA)" in chapter 5.
Welcome
Mirror/Light • On door unlock: The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the doors are unlocked.
• On driver approach: The outside rearview mirrors are unfolded and the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
Charging System To activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system”
in chapter 5.
Wiper/Lights Display To activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Icy Road Warning To activate or deactivate the icy road warning function.
CN7 N HMA 4.indd 4-34
2021-09-14  9:32:57

04
4-35

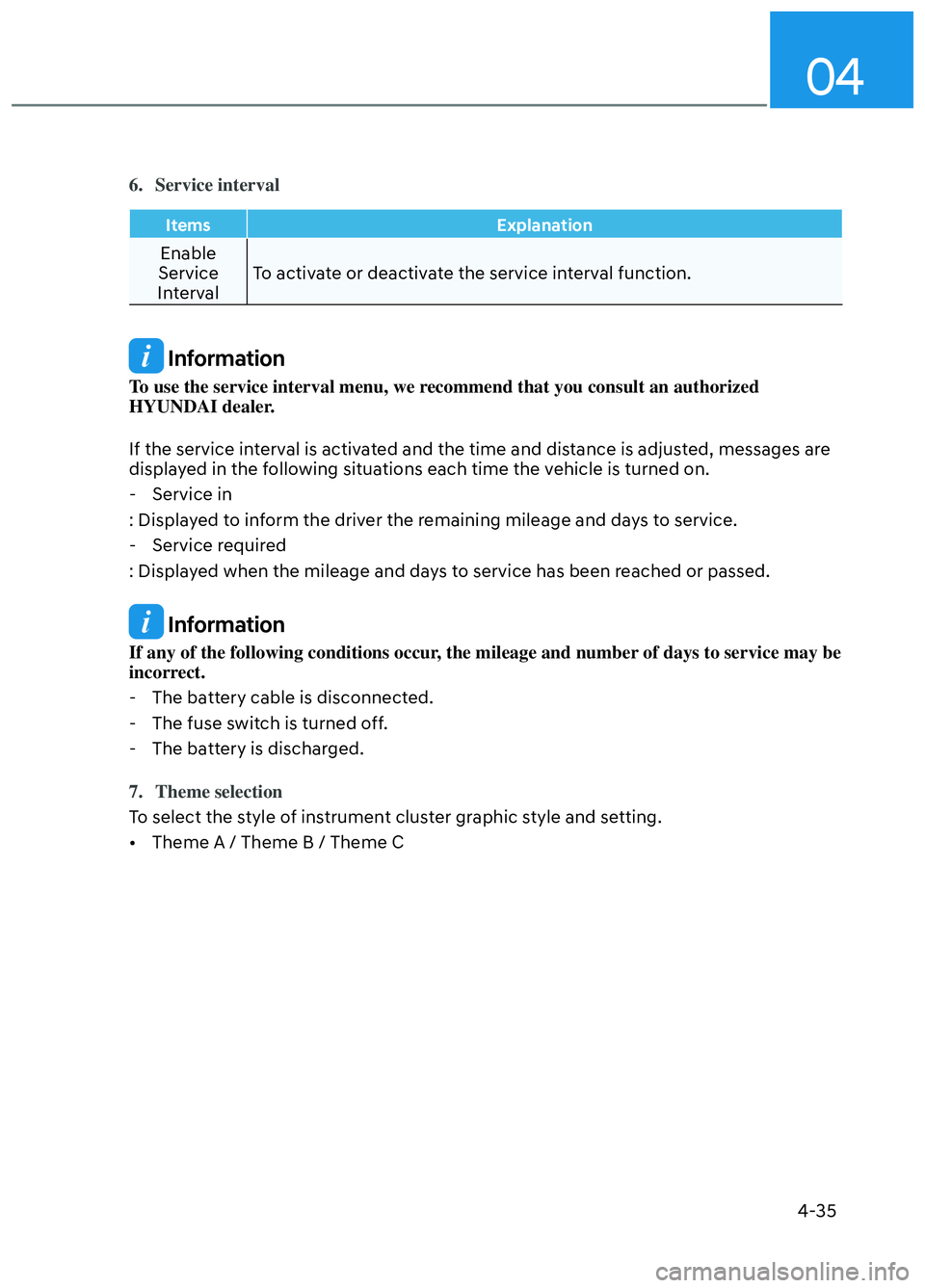

6. Service interval
ItemsExplanation
Enable
Service
Interval To activate or deactivate the service interval function.
Information
To use the service interval menu, we recommend that you consult an authorized
HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on.
- Service in
: Displayed to inform the driver the remaining mileage and days to service.
- Service required
: Displayed when the mileage and days to service has been reached or passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect. - The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
7. Theme selection
To select the style of instrument cluster graphic style and setting.
•
Theme A / Theme B / Theme C
CN7 N HMA 4.indd 4-35 2021-09-14  9:32:57

Instrument Cluster4-36

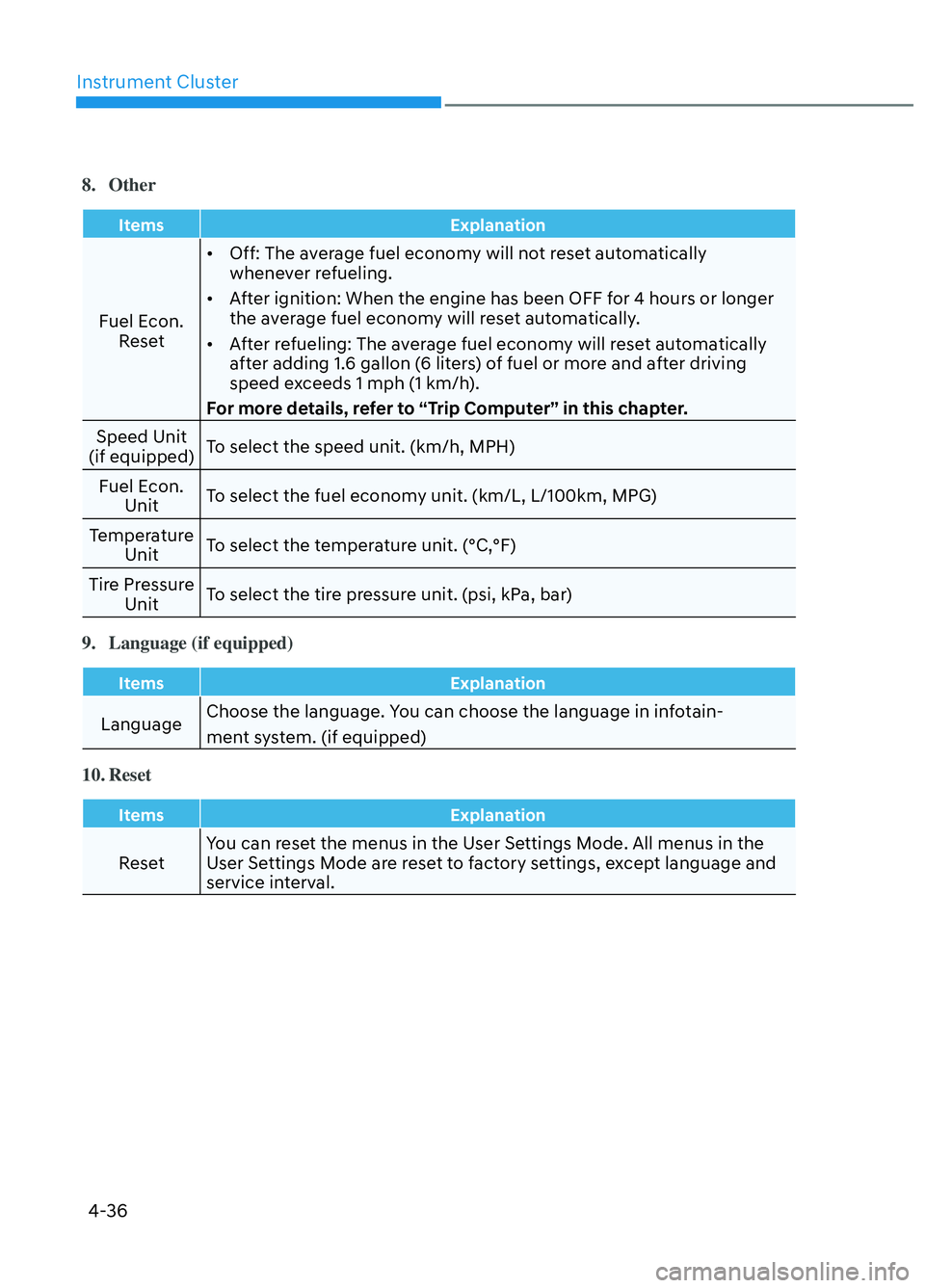

8. Other
Items Explanation
Fuel Econ.
Reset • Off: The average fuel economy will not reset automatically
whenever refueling.
• After ignition: When the engine has been OFF for 4 hours or longer the average fuel economy will reset automatically.
• After refueling: The average fuel economy will reset automatically after adding 1.6 gallon (6 liters) of fuel or more and after driving
speed exceeds 1 mph (1 km/h).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped) To select the speed unit. (km/h, MPH)
Fuel Econ. Unit To select the fuel economy unit. (km/L, L/100km, MPG)
Temperature Unit To select the temperature unit. (°C,°F)
Tire Pressure Unit To select the tire pressure unit. (psi, kPa, bar)
9. Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotain-
ment system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.
CN7 N HMA 4.indd 4-36
2021-09-14  9:32:57

04
4-37

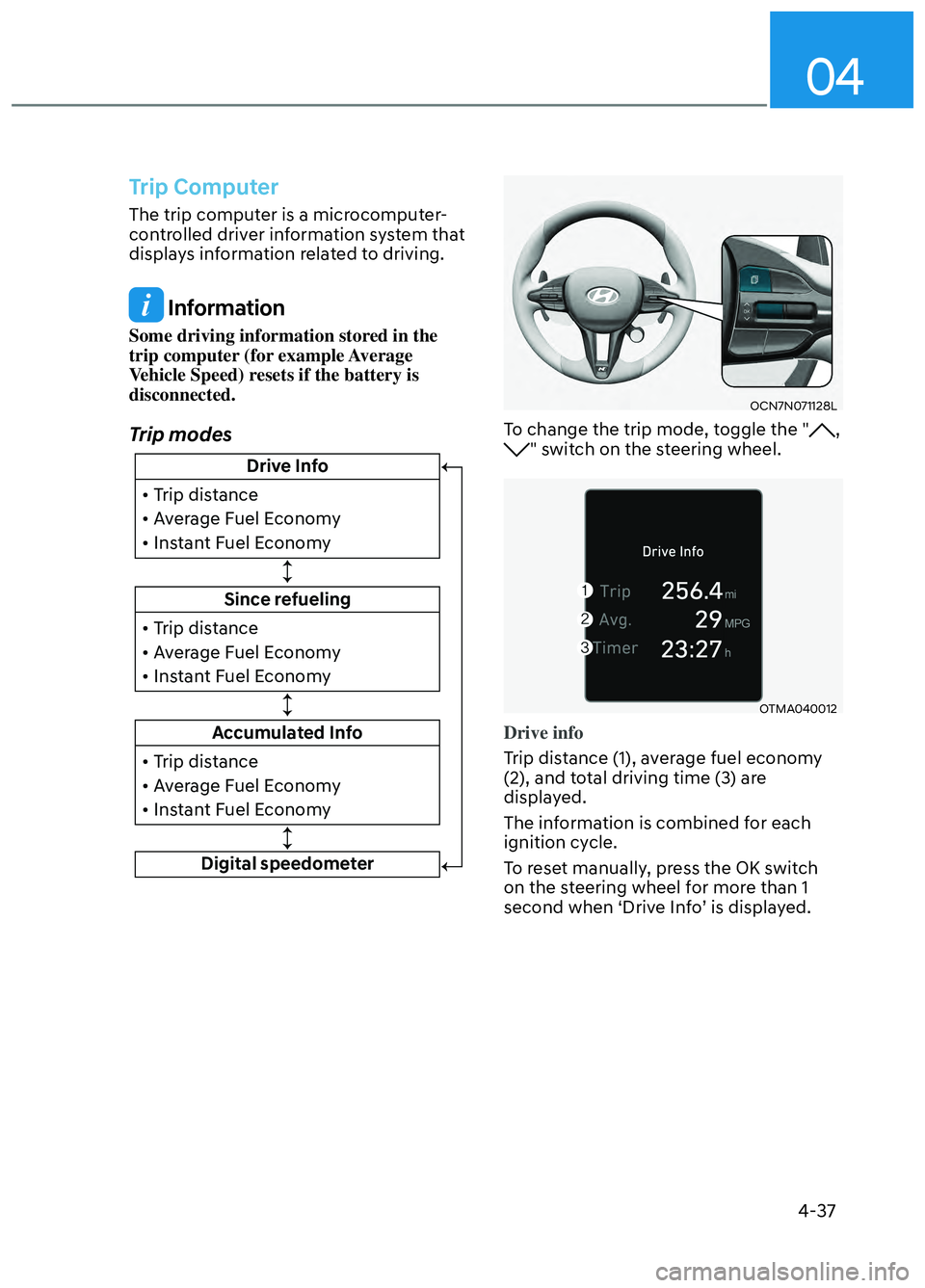

Trip Computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Since refueling
Drive Info
• Trip distance
• Average Fuel Economy
• Instant Fuel Economy
• Trip distance
• Average Fuel Economy
• Instant Fuel Economy
• Trip distance
• Average Fuel Economy
• Instant Fuel Economy
Accumulated Info
Digital speedometer
OCN7N071128L OCN7N071128L
To change the trip mode, toggle the ", " switch on the steering wheel.
OTMA040012OTMA040012
Drive info
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) are
displayed.
The information is combined for each
ignition cycle.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
CN7 N HMA 4.indd 4-37 2021-09-14  9:32:57
