HYUNDAI ELANTRA N 2022 Owners Manual

Instrument Cluster4-38
Type AType AType BType B
OTMA040014OTMA040014OOSN041027NOOSN041027N

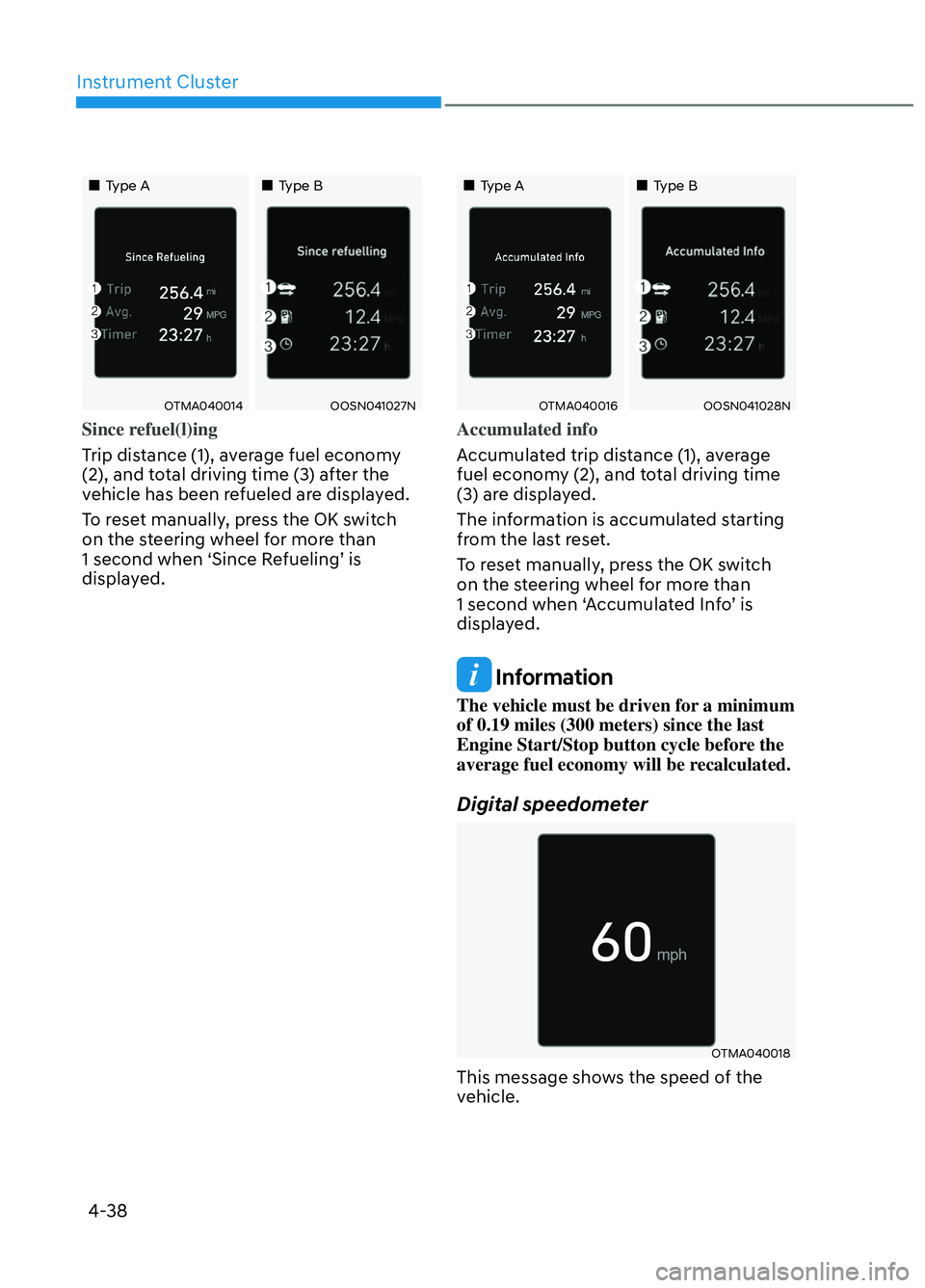

Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and t
otal driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
Type AType AType BType B
OTMA040016OTMA040016OOSN041028NOOSN041028N
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
Engine Start/Stop button cycle before the
average fuel economy will be recalculated.
Digital speedometer
OTMA040018OTMA040018
This message shows the speed of the
vehicle.
CN7 N HMA 4.indd 4-38 2021-09-14  9:32:58

04
4-39

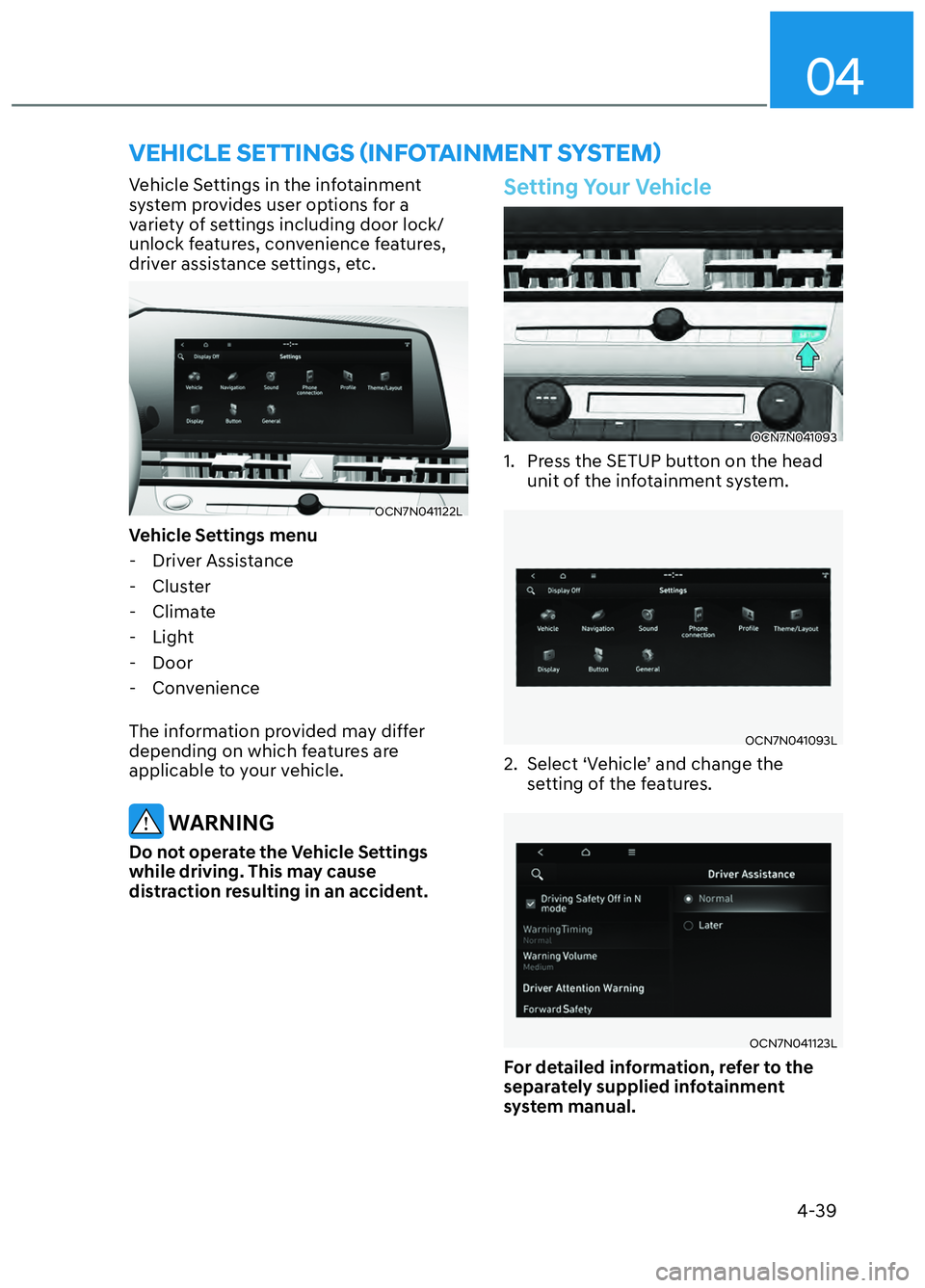

Vehicle Settings in the infotainment
system provides user options for a
variety of settings including door lock/
unlock features, convenience features,
driver assistance settings, etc.
OCN7N041122L OCN7N041122L
Vehicle Settings menu - Driver Assistance
- Cluster
- Climate

- Light
- Door
- Convenience
The information provided may differ
depending on which features are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
OCN7N041093 OCN7N041093
1. Press the SETUP button on the head unit of the infotainment system.
OCN7N041093LOCN7N041093L
2. Select ‘Vehicle’ and change the setting of the features.
OCN7N041123LOCN7N041123L
For detailed information, refer to the
separately supplied infotainment
system manual.
VEHICLE SETTINGS (INFOTAINMENT SYSTEM)
CN7 N HMA 4.indd 4-39 2021-09-14  9:33:01

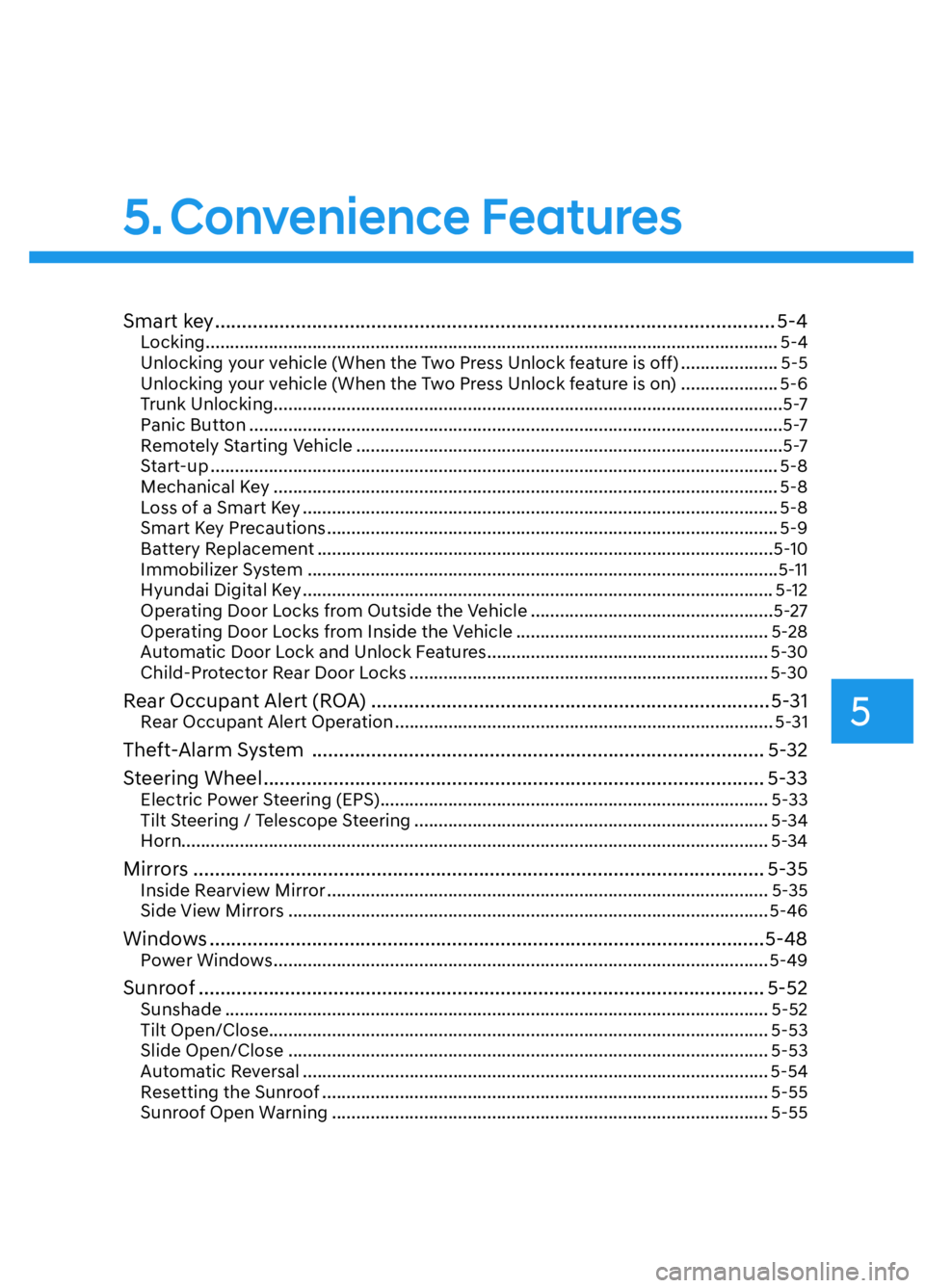

5. Convenience Features
Smart key ........................................................................\
................................ 5-4Locking .................................................................\
..................................................... 5-4

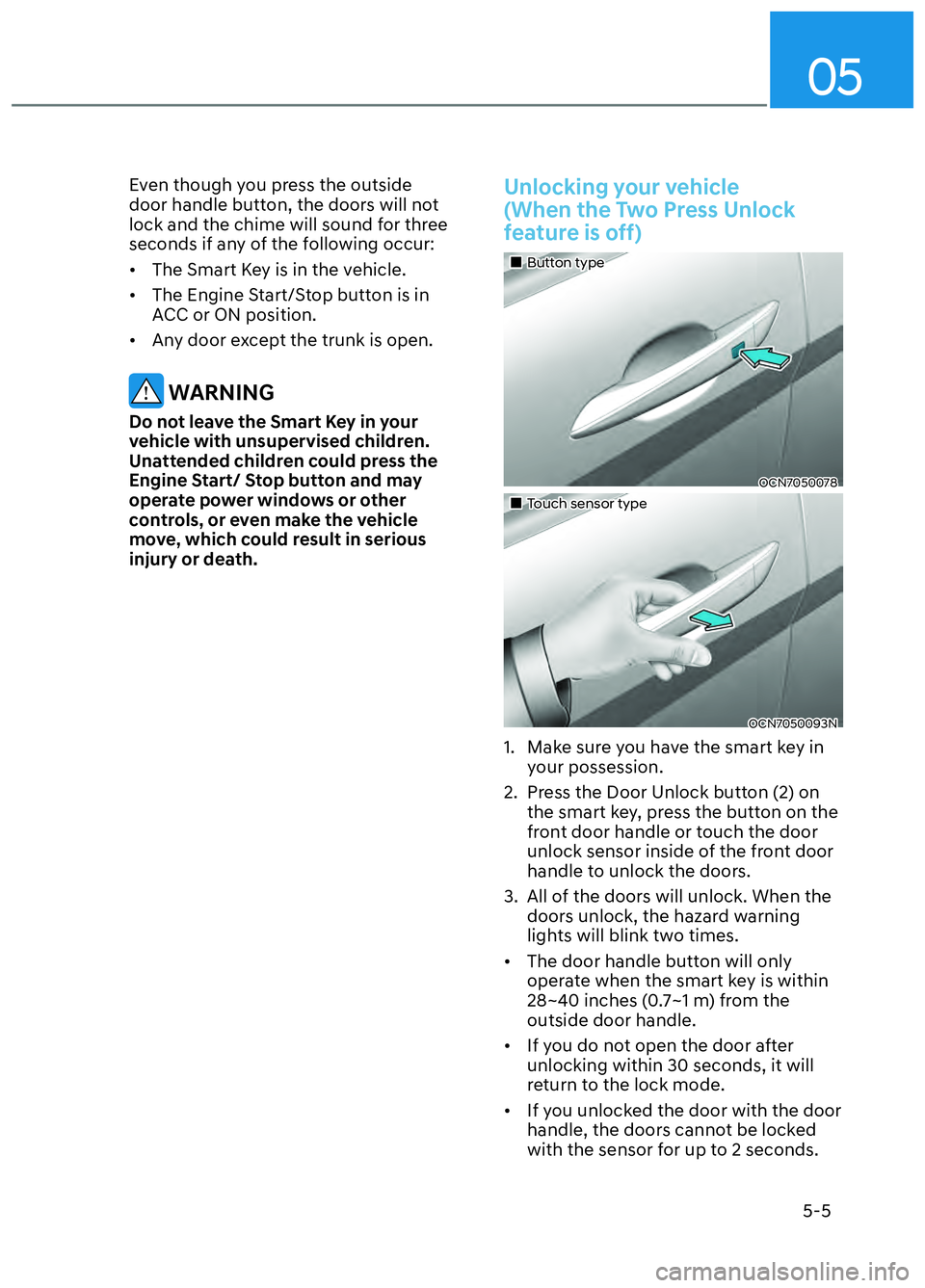

Unlocking your vehicle (When the Two Press Unlock feature is off) .................... 5-5

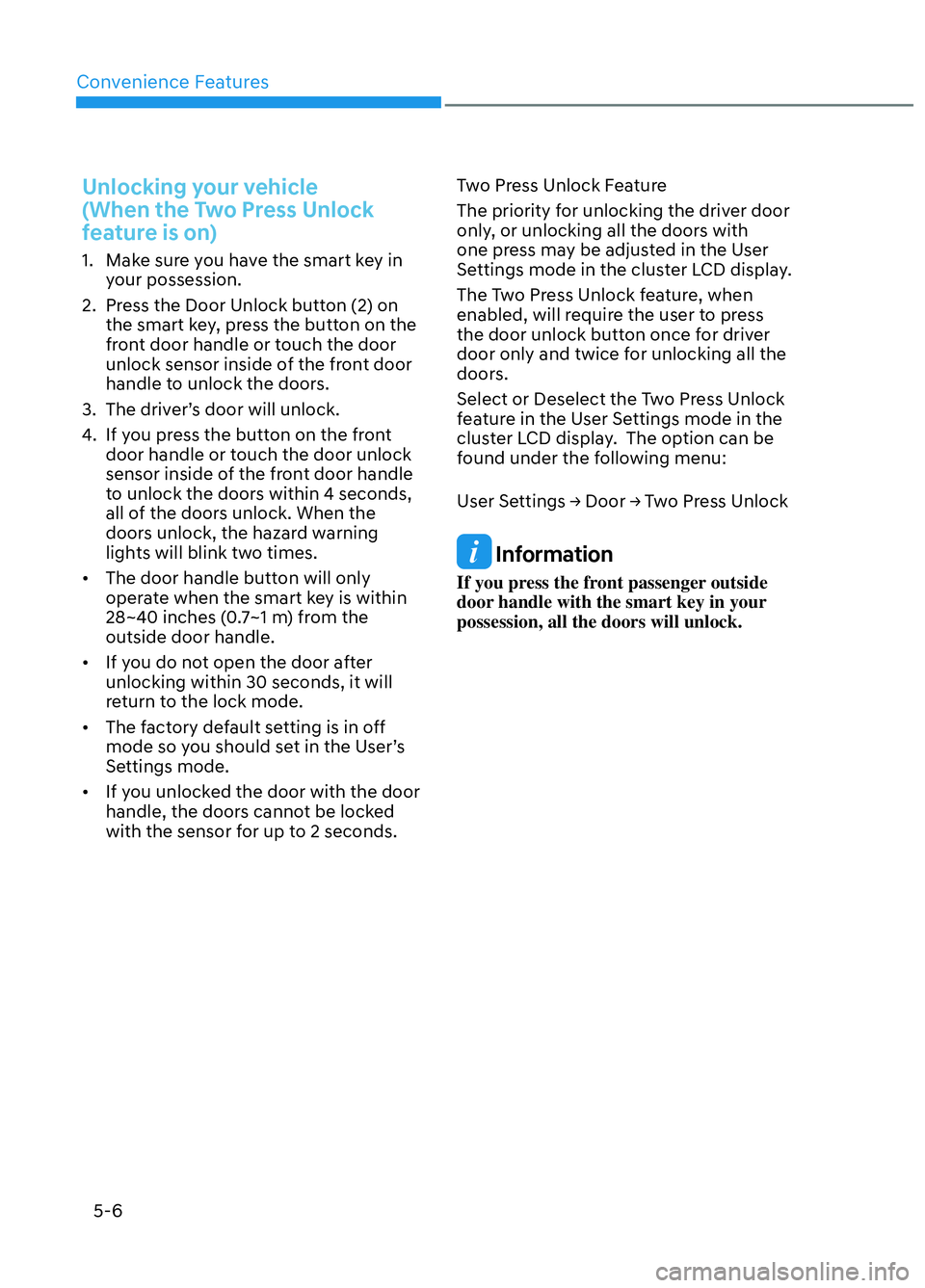

Unlocking your vehicle (When the Two Press Unlock feature is on) .................... 5-6

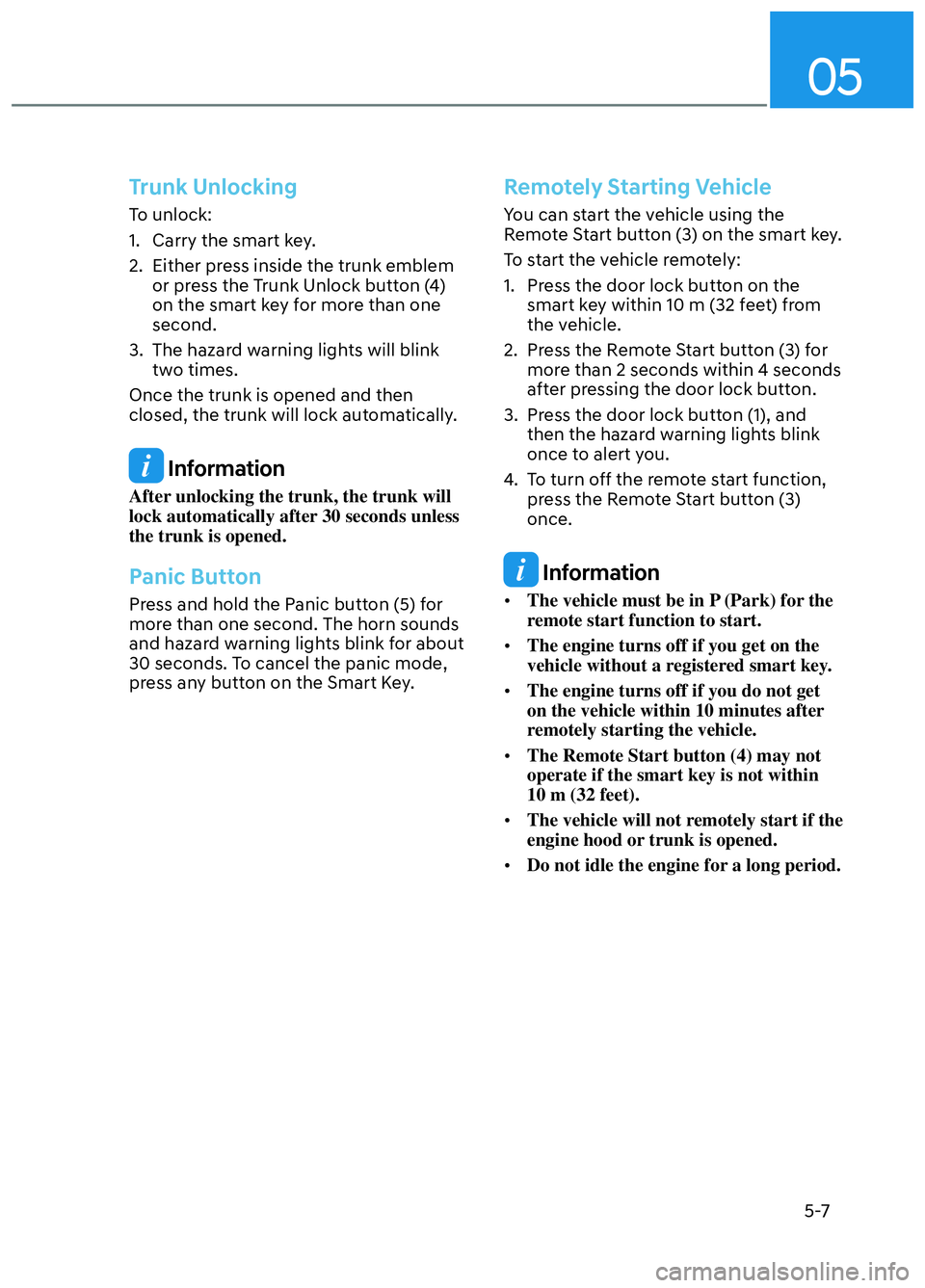

Trunk Unlocking ........................................................................\
.................................5-7
Panic Button ........................................................................\
......................................5-7
Remotely Starting Vehicle ........................................................................\
................5-7

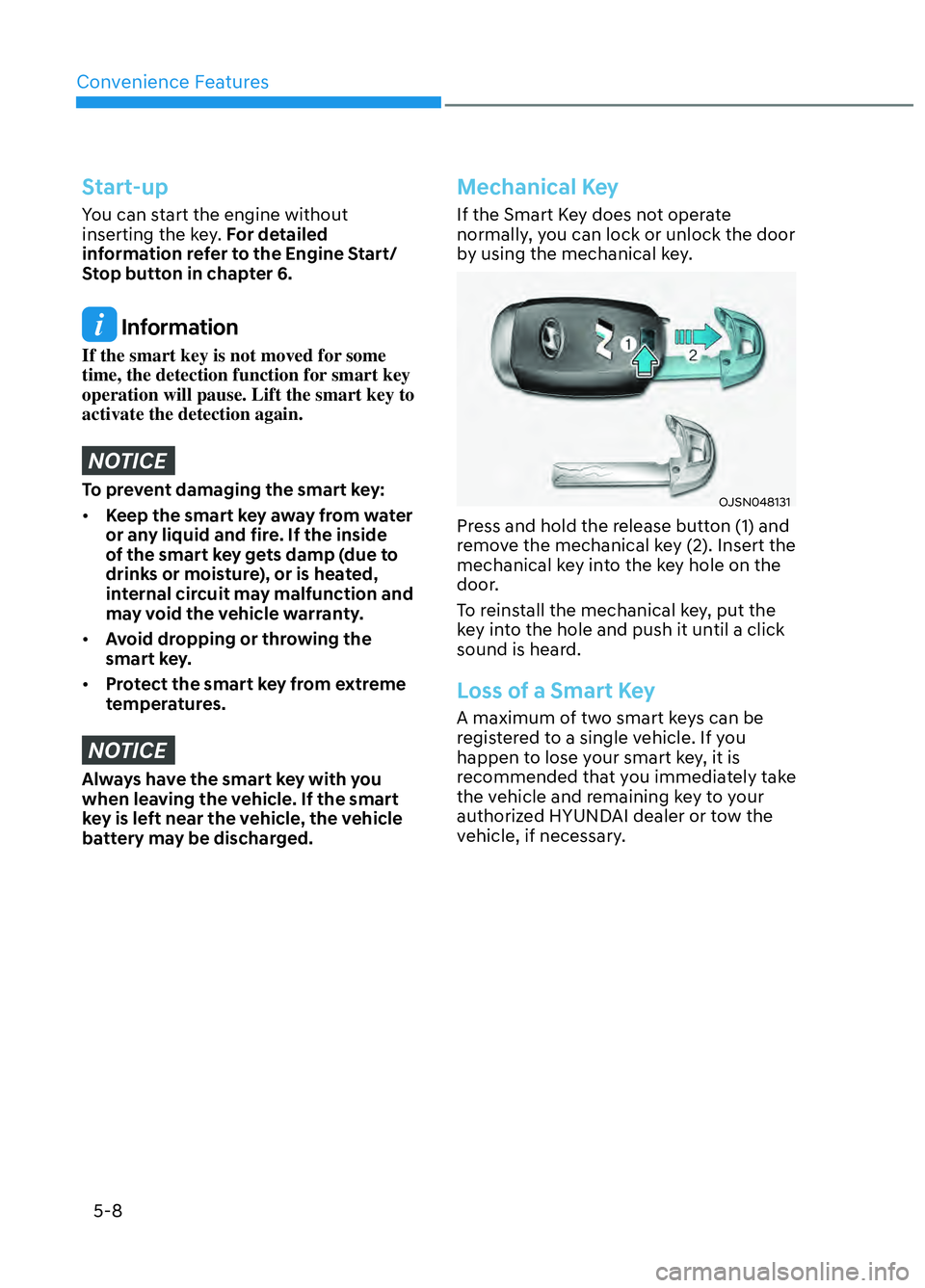

Start-up ....................................................................\
................................................. 5 -8
Mechanical Key ........................................................................\
................................ 5-8
Loss of a Smart Key ........................................................................\
.......................... 5-8
Smart Key Precautions ........................................................................\
..................... 5-9
Battery Replacement ........................................................................\
......................5-10
Immobilizer System ........................................................................\
.........................5-11
Hyundai Digital Key ........................................................................\
......................... 5-12
Operating Door Locks from Outside the Vehicle ..................................................5-27
Operating Door Locks from Inside the Vehicle .................................................... 5-28
Automatic Door Lock and Unlock Features .......................................................... 5-30
Child-Protector Rear Door Locks ........................................................................\
.. 5-30
Rear Occupant Alert (ROA) ........................................................................\
.. 5-31Rear Occupant Alert Operation ........................................................................\
...... 5-31
Theft-Alarm System ........................................................................\
............ 5-32
Steering Wheel ........................................................................\
..................... 5-33
Electric Power Steering (EPS) ........................................................................\
........ 5-33
Tilt Steering / Telescope Steering ........................................................................\
. 5-34
Horn........................................................................\
................................................. 5-34
Mirrors ......................................................................\
.................................... 5-35Inside Rearview Mirror ........................................................................\
................... 5-35
Side View Mirrors ........................................................................\
........................... 5-46
Windows ......................................................................\
.................................5-48Power Windows ........................................................................\
.............................. 5-49
Sunroof ......................................................................\
................................... 5-52Sunshade ...............................................................\
................................................. 5-52
Tilt Open/Close........................................................................\
............................... 5-53
Slide Open/Close .......................................................\
............................................ 5-53
Automatic Reversal ........................................................................\
........................ 5-54
Resetting the Sunroof ........................................................................\
.................... 5-55
Sunroof Open Warning ........................................................................\
.................. 5-55
5
CN7 N HMA 5.indd 5-1 2021-09-06  3:06:03

5

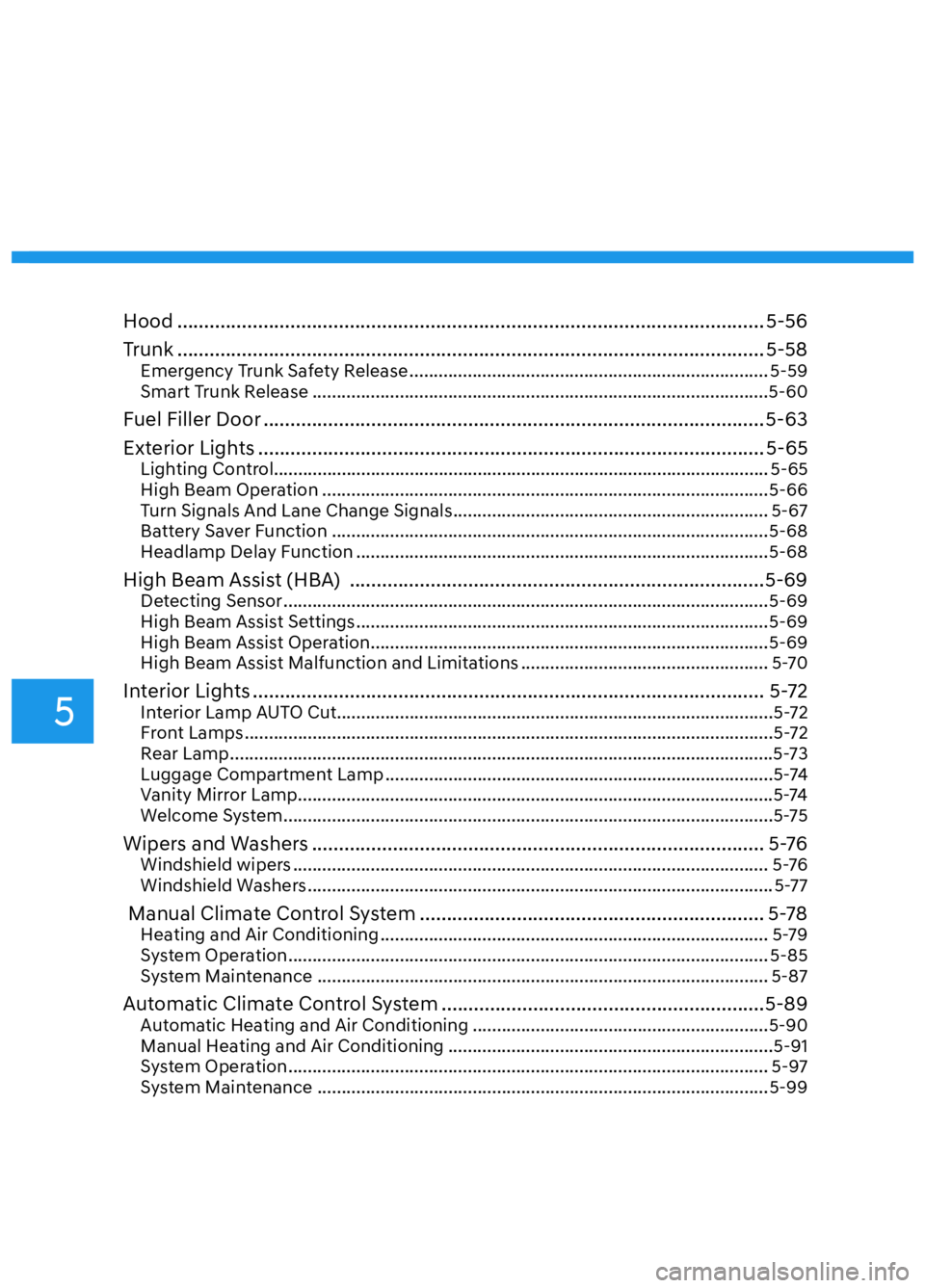

Hood ....................................................................\
......................................... 5-56
Trunk ...................................................................\
.......................................... 5-58
Emergency Trunk Safety Release ........................................................................\
.. 5-59
Smart Trunk Release ........................................................................\
......................5-60
Fuel Filler Door ........................................................................\
..................... 5-63
Exterior Lights ........................................................................\
...................... 5-65
Lighting Control......................................................................\
................................ 5-65
High Beam Operation ........................................................................\
.................... 5-66
Turn Signals And Lane Change Signals ................................................................. 5-67
Battery Saver Function ................................................................\
..........................5-68
Headlamp Delay Function ........................................................................\
.............5-68
High Beam Assist (HBA) ........................................................................\
.....5-69Detecting Sensor ........................................................................\
............................ 5-69
High Beam Assist Settings ........................................................................\
............. 5-69
High Beam Assist Operation ........................................................................\
.......... 5-69
High Beam Assist Malfunction and Limitations ................................................... 5-70
Interior Lights ........................................................................\
....................... 5-72Interior Lamp AUTO Cut........................................................................\
..................5-72
Front Lamps ........................................................................\
.....................................5-72
Rear Lamp ........................................................................\
........................................5-73
Luggage Compartment Lamp ........................................................................\
........5-74
Vanity Mirror Lamp ........................................................................\
..........................5-74
Welcome System ........................................................................\
.............................5-75
Wipers and Washers ........................................................................\
............ 5-76Windshield wipers ........................................................................\
.......................... 5-76
Windshield Washers ........................................................................\
........................ 5-77
Manual Climate Control System ................................................................ 5-78Heating and Air Conditioning ........................................................................\
........ 5-79
System Operation ........................................................................\
........................... 5-85
System Maintenance ........................................................................\
..................... 5-87
Automatic Climate Control System ............................................................5-89Automatic Heating and Air Conditioning .............................................................5-90
Manual Heating and Air Conditioning ...................................................................5-91
System Operation ........................................................................\
........................... 5-97
System Maintenance ........................................................................\
..................... 5-99
CN7 N HMA 5.indd 5-22021-09-06  3:06:09

5

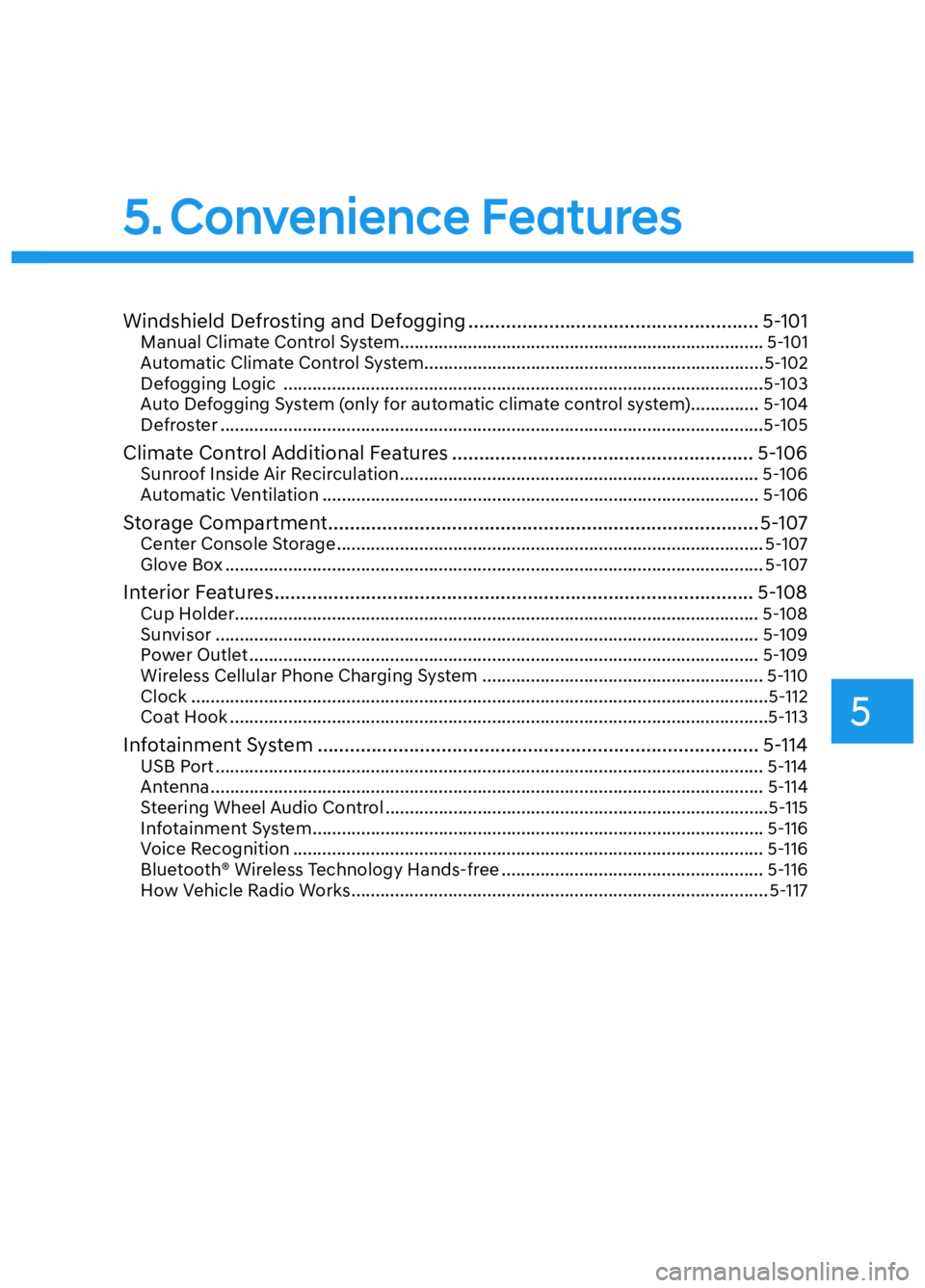

Windshield Defrosting and Defogging ...................................................... 5-101Manual Climate Control System......................................................................\
..... 5-101
Automatic Climate Control System......................................................................\
5-102
Defogging Logic ........................................................................\
...........................5-103
Auto Defogging System (only for automatic climate control system) .............. 5-104
Defroster .....................................................................\
...........................................5-105
Climate Control Additional Features ........................................................ 5-106Sunroof Inside Air Recirculation ........................................................................\
.. 5-106
Automatic Ventilation ........................................................................\
.................. 5-106
Storage Compartment ........................................................................\
........ 5-107Center Console Storage ........................................................................\
................ 5-107
Glove Box ........................................................................\
....................................... 5-107
Interior Features ........................................................................\
................. 5-108Cup Holder ........................................................................\
.................................... 5-108
Sunvisor ..................................................................\
.............................................. 5-109
Power Outlet ........................................................................\
................................. 5-109
Wireless Cellular Phone Charging System .......................................................... 5-110
Clock ..................................................................\
.....................................................5-112
Coat Hook ........................................................................\
.......................................5-113
Infotainment System ........................................................................\
.......... 5-114USB Port ........................................................................\
......................................... 5-114
Antenna ...................................................................\
............................................... 5-114
Steering Wheel Audio Control ........................................................................\
.......5-115
Infotainment System ........................................................................\
..................... 5-116
Voice Recognition ........................................................................\
......................... 5-116
Bluetooth® Wireless Technology Hands-free ...................................................... 5-116
How Vehicle Radio Works ........................................................................\
.............. 5-117
5. Convenience Features
CN7 N HMA 5.indd 5-3 2021-09-06  3:06:09

Convenience Features5-4
OCN7N051005NOCN7N051005N
Your HYUNDAI uses a Smart Key, which
you can use to lock or unlock a door (and
trunk) and even start the engine.
1. Door Lock
2. Door Unlock
3. Remote start
4. Trunk Unlock
5. Panic
Locking
OCN7N051078LOCN7N051078L
To lock :
1. Close all doors, engine hood and trunk.
2. Carry the smart key.
3. Either press the door handle button or press the Door Lock button (1) on the
smart key.
4. The hazard warning lights will blink. Also, the outside rearview mirror
will fold, if ‘Convenience → Welcome
mirror/light → On door unlock’ is
selected from the User Settings mode
on the LCD display. For more details,
refer to “LCD Display” in chapter 4.
5. Make sure the doors are locked by pulling the door outside handle.
Information
The door handle button will only operate
when the smart key is within 28~40 in.
(0.7~1 m) from the outside door handle.
SMART KEY
CN7 N HMA 5.indd 5-4 2021-09-06  3:06:09

05
5-5
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is in ACC or ON position.
• Any door except the trunk is open.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
(When the Two Press Unlock
feature is off)
Button typeButton type
OCN7050078OCN7050078
Touch sensor typeTouch sensor type
OCN7050093NOCN7050093N
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. All of the doors will unlock. When the doors unlock, the hazard warning
lights will blink two times.
• The door handle button will only operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
• If you do not open the door after unlocking within 30 seconds, it will
return to the lock mode.
• If you unlocked the door with the door handle, the doors cannot be locked
with the sensor for up to 2 seconds.
CN7 N HMA 5.indd 5-5 2021-09-06  3:06:10

Convenience Features5-6
Unlocking your vehicle
(When the Two Press Unlock
feature is on)
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door
unlock sensor inside of the front door
handle to unlock the doors.
3. The driver’s door will unlock.
4. If you press the button on the front door handle or touch the door unlock
sensor inside of the front door handle
to unlock the doors within 4 seconds,
all of the doors unlock. When the
doors unlock, the hazard warning
lights will blink two times.
• The door handle button will only operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.
• If you do not open the door after unlocking within 30 seconds, it will
return to the lock mode.
• The factory default setting is in off mode so you should set in the User’s
Settings mode.
• If you unlocked the door with the door handle, the doors cannot be locked
with the sensor for up to 2 seconds. Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with
one press may be adjusted in the User
Settings mode in the cluster LCD display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
Select or Deselect the Two Press Unlock
feature in the User Settings mode in the
cluster LCD display. The option can be
found under the following menu:
User Settings → Door → Two Press Unlock
Information
If you press the front passenger outside
door handle with the smart key in your
possession, all the doors will unlock.
CN7 N HMA 5.indd 5-6
2021-09-06  3:06:10

05
5-7
Trunk Unlocking
To unlock:
1. Carry the smart key.
2. Either press inside the trunk emblem or press the Trunk Unlock button (4)
on the smart key for more than one
second.
3. The hazard warning lights will blink two times.
Once the trunk is opened and then
closed, the trunk will lock automatically.
Information
After unlocking the trunk, the trunk will
lock automatically after 30 seconds unless
the trunk is opened.
Panic Button
Press and hold the Panic button (5) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Remotely Starting Vehicle
You can start the vehicle using the
Remote Start button (3) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the smart key within 10 m (32 feet) from
the vehicle.
2. Press the Remote Start button (3) for more than 2 seconds within 4 seconds
after pressing the door lock button.
3. Press the door lock button (1), and then the hazard warning lights blink
once to alert you.
4. To turn off the remote start function, press the Remote Start button (3)
once.
Information
• The vehicle must be in P (Park) for the
remote start function to start.
• The engine turns off if you get on the
vehicle without a registered smart key.
• The engine turns off if you do not get
on the vehicle within 10 minutes after
remotely starting the vehicle.
• The Remote Start button (4) may not
operate if the smart key is not within
10 m (32 feet).
• The vehicle will not remotely start if the
engine hood or trunk is opened.
• Do not idle the engine for a long period.
CN7 N HMA 5.indd 5-7 2021-09-06  3:06:10

Convenience Features5-8
Start-up
You can start the engine without
inserting the key. For detailed
information refer to the Engine Start/
Stop button in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
• Keep the smart key away from water
or any liquid and fire. If the inside
of the smart key gets damp (due to
drinks or moisture), or is heated,
internal circuit may malfunction and
may void the vehicle warranty.
• Avoid dropping or throwing the
smart key.
• Protect the smart key from extreme
temperatures.
NOTICE
Always have the smart key with you
when leaving the vehicle. If the smart
key is left near the vehicle, the vehicle
battery may be discharged.
Mechanical Key
If the Smart Key does not operate
normally, you can lock or unlock the door
by using the mechanical key.
OJSN048131 OJSN048131
Press and hold the release button (1) and
remove the mechanical key (2). Insert the
mechanical key into the key hole on the
door.
To reinstall the mechanical key, put the
key into the hole and push it until a click
sound is heard.
Loss of a Smart Key
A maximum of two smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you immediately take
the vehicle and remaining key to your
authorized HYUNDAI dealer or tow the
vehicle, if necessary.
CN7 N HMA 5.indd 5-8 2021-09-06  3:06:10
