HYUNDAI ELANTRA N 2022 Owners Manual

Instrument Cluster4-8
Outside Temperature Gauge
Normal modeNormal modeN modeN mode
OCN7N041129NOCN7N041129NOCN7N041124NOCN7N041124N
This gauge indicates the current outside
air temperatures either in Celsius (°C) or
Fahrenheit. - Temperature range : -40°F ~ 140°F (-40°C ~ 60°C)
The outside temperature on the display
may not immediately change like a
general thermometer not to distract the
driver.
The temperature unit (from °F to °C or
from °C to °F ) can be changed by:
- Settings menu in the infotainment
system screen : Setup → General
Settings → Unit → Temperature Unit →
°F/°C

- Automatic climate control system :
While pressing the OFF button, press
the AUTO button for 3 seconds or
more.
The temperature unit of the instrument
cluster and climate control system will
change at once.
Odometer
Normal modeNormal modeN modeN mode
OCN7040015NOCN7040015NOCN7N041135NOCN7N041135N
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
CN7 N HMA 4.indd 4-8 2021-09-14  9:32:19

04

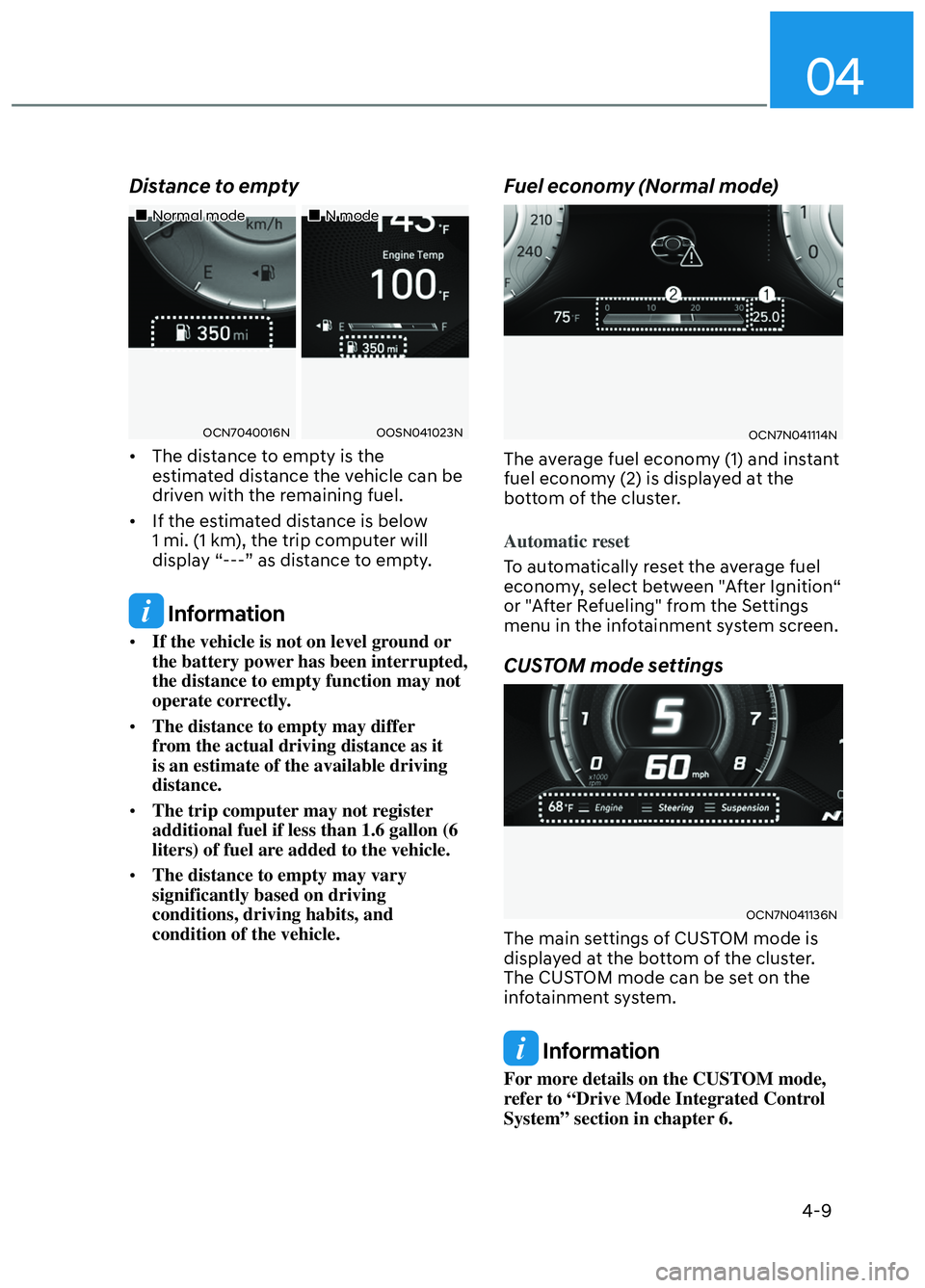

4-9
Distance to empty
Normal modeNormal modeN modeN mode
OCN7040016NOCN7040016NOOSN041023NOOSN041023N
• The distance to empty is the estimated distance the vehicle can be
driven with the remaining fuel.
• If the estimated distance is below 1 mi. (1 km), the trip computer will
display “---” as distance to empty.
Information
• If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.
• The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
• The trip computer may not register
additional fuel if less than 1.6 gallon (6
liters) of fuel are added to the vehicle.
• The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.
Fuel economy (Normal mode)
OCN7N041114NOCN7N041114N
The average fuel economy (1) and instant
fuel economy (2) is displayed at the
bottom of the cluster.
Automatic reset
To automatically reset the average fuel
econom

y, select between "After Ignition“
or "After Refueling" from the Settings
menu in the infotainment system screen.
CUSTOM mode settings
OCN7N041136NOCN7N041136N
The main settings of CUSTOM mode is
displayed at the bottom of the cluster.
The CUSTOM mode can be set on the
infotainment system.
Information
For more details on the CUSTOM mode,
refer to “Drive Mode Integrated Control
System” section in chapter 6.
CN7 N HMA 4.indd 4-9 2021-09-14  9:32:23

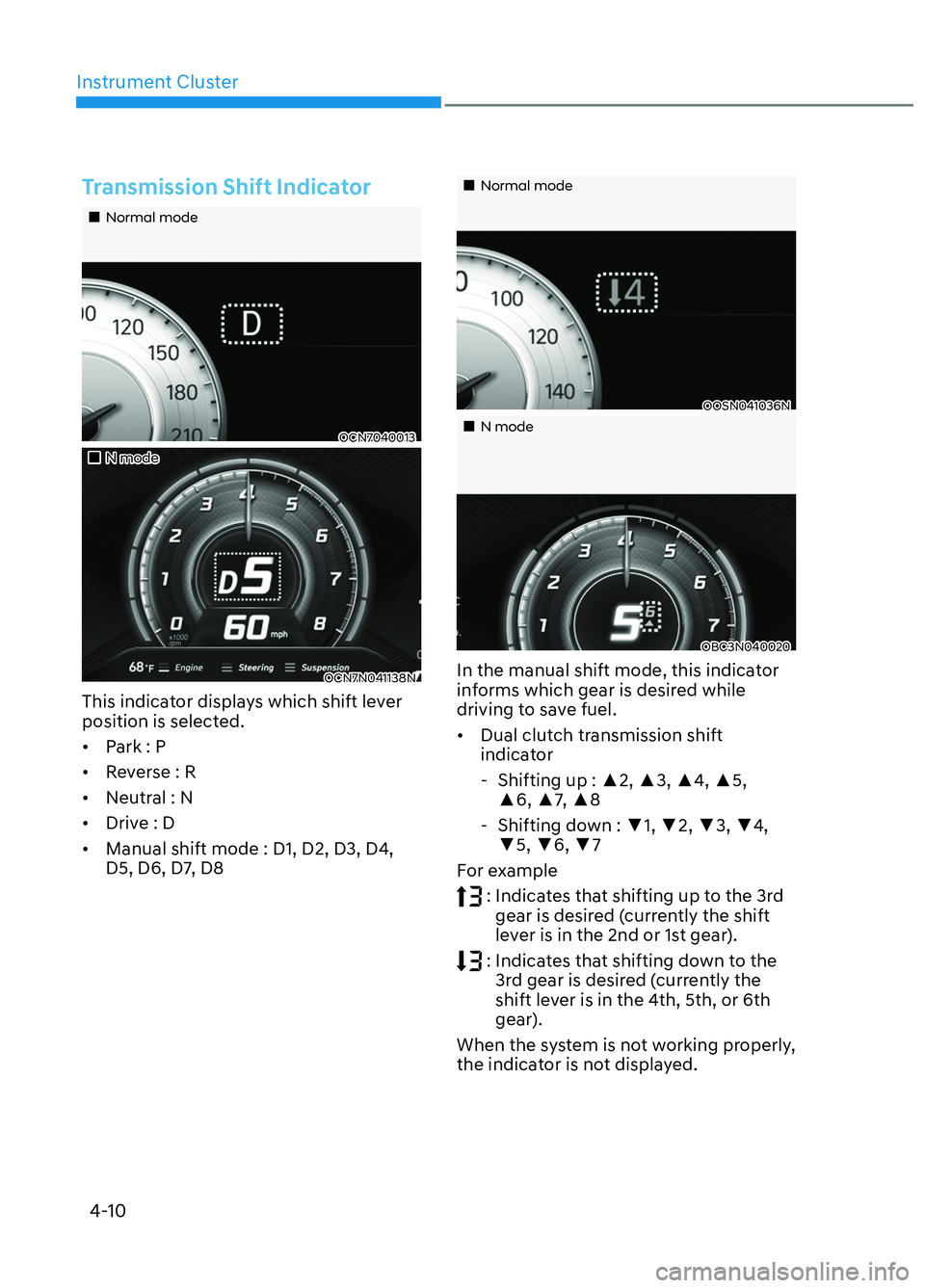

Instrument Cluster4-10
Transmission Shift Indicator
Normal modeNormal mode
OCN7040013OCN7040013
N modeN mode
OCN7N041138NOCN7N041138N
This indicator displays which shift lever
position is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Manual shift mode : D1, D2, D3, D4, D5, D6, D7, D8
Normal modeNormal mode
OOSN041036NOOSN041036N
N modeN mode
OBC3N040020OBC3N040020
In the manual shift mode, this indicator
informs which gear is desired while
driving to save fuel.
• Dual clutch transmission shift indicator
- Shifting up : ▲2, ▲3, ▲4, ▲5,
▲6, ▲7, ▲8
- Shifting down : ▼1, ▼2, ▼3, ▼4, ▼5, ▼6, ▼7
For example
: Indicates that shifting up to the 3rd gear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the
shift lever is in the 4th, 5th, or 6th
gear).
When the system is not working properly,
the indicator is not displayed.
CN7 N HMA 4.indd 4-10 2021-09-14  9:32:30

04

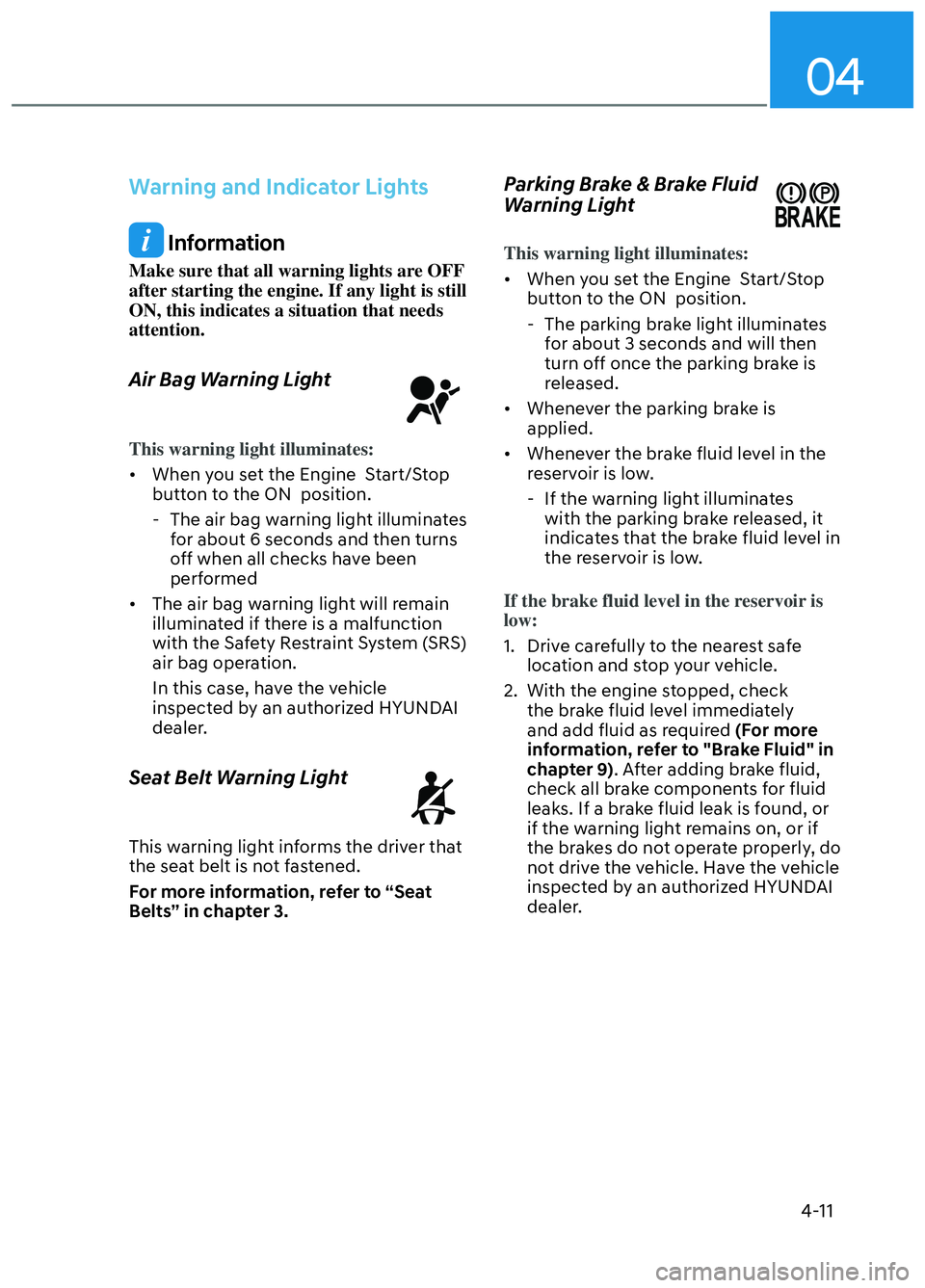

4-11
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Air Bag Warning Light
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- The air bag warning light illuminates for about 6 seconds and then turns
off when all checks have been
performed
• The air bag warning light will remain illuminated if there is a malfunction
with the Safety Restraint System (SRS)
air bag operation.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Seat Belt Warning Light
This warning light informs the driver that
the seat belt is not fastened.
For more information, refer to “Seat
Belts” in chapter 3.
Parking Brake & Brake Fluid
Warning Light
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.

- The parking brake light illuminates
for about 3 seconds and will then
turn off once the parking brake is
released.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the reservoir is low.

- If the warning light illuminates
with the parking brake released, it
indicates that the brake fluid level in
the reservoir is low.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately
and add fluid as required (For more
information, refer to "Brake Fluid" in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
the brakes do not operate properly, do
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
CN7 N HMA 4.indd 4-11 2021-09-14  9:32:36

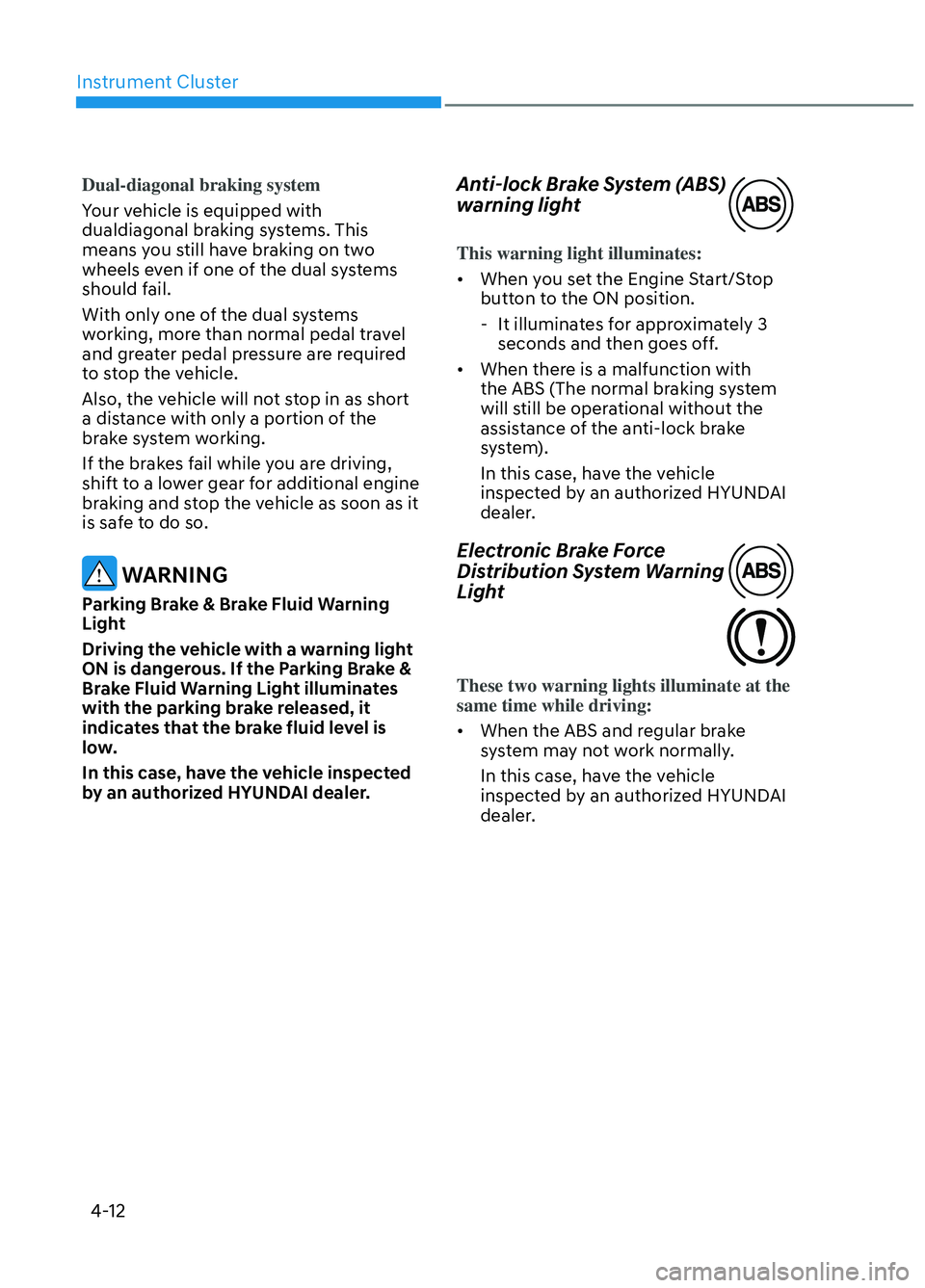

Instrument Cluster4-12
Dual-diagonal braking system
Your vehicle is equipped with
dualdiagonal br
aking systems. This
means you still have braking on two
wheels even if one of the dual systems
should fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure are required
to stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional engine
braking and stop the vehicle as soon as it
is safe to do so.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake &
Brake Fluid Warning Light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- It illuminates for approximately 3 seconds and then goes off.
• When there is a malfunction with the ABS (The normal braking system
will still be operational without the
assistance of the anti-lock brake
system).
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Electronic Brake Force
Distribution System Warning
Light
These two warning lights illuminate at the
same time while driving:
• When the ABS and regular brake s
ystem may not work normally.
In this case, have the vehicle
inspected by an authorized HYUNDAI
dealer.
CN7 N HMA 4.indd 4-12 2021-09-14  9:32:36

04

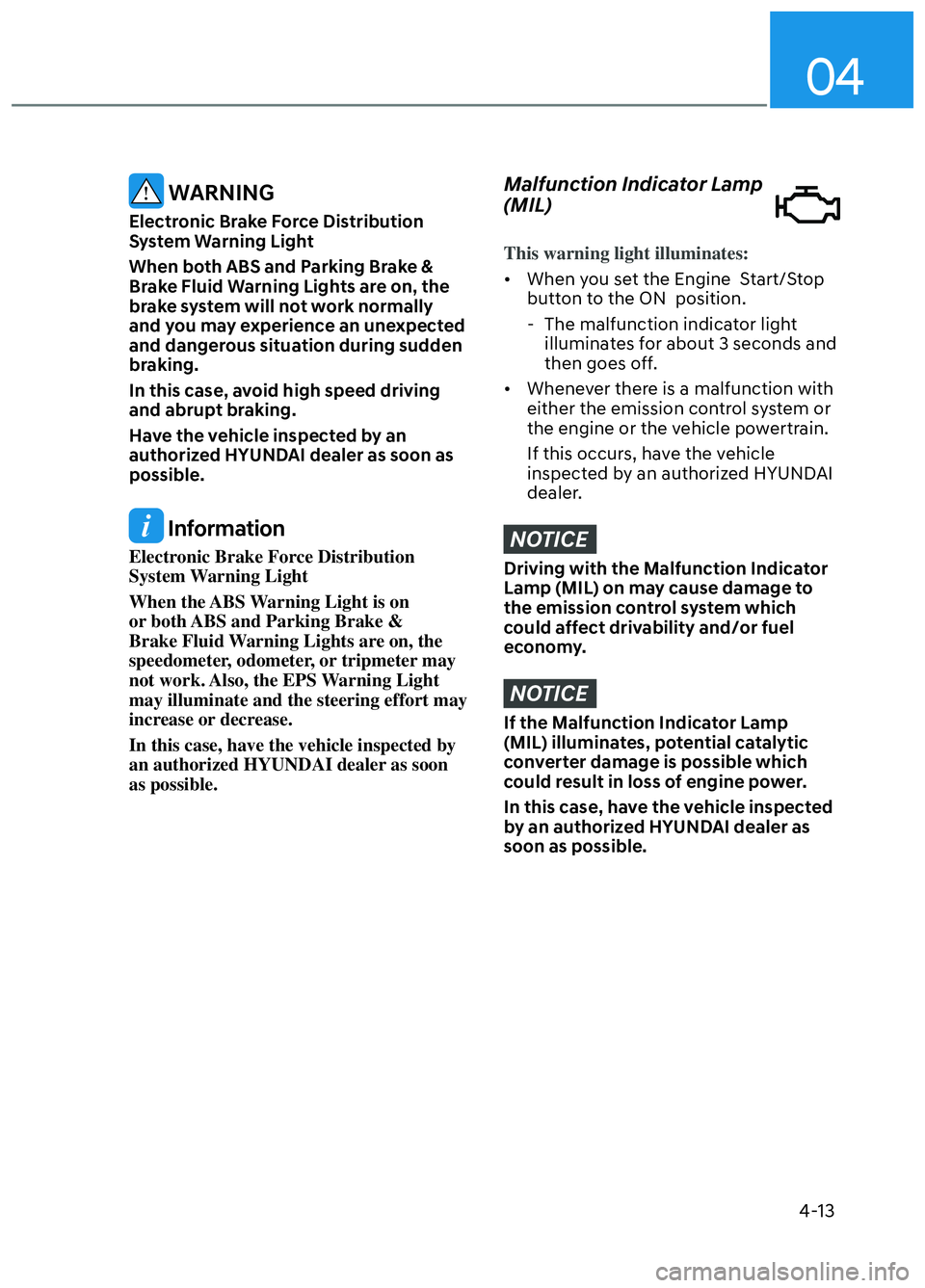

4-13
WARNING
Electronic Brake Force Distribution
System Warning Light
When both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Information
Electronic Brake Force Distribution
System Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter may
not work. Also, the EPS Warning Light
may illuminate and the steering effort may
increase or decrease.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer as soon
as possible.
Malfunction Indicator Lamp
(MIL)
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.
• Whenever there is a malfunction with either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system which
could affect drivability and/or fuel
economy.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
CN7 N HMA 4.indd 4-13 2021-09-14  9:32:36

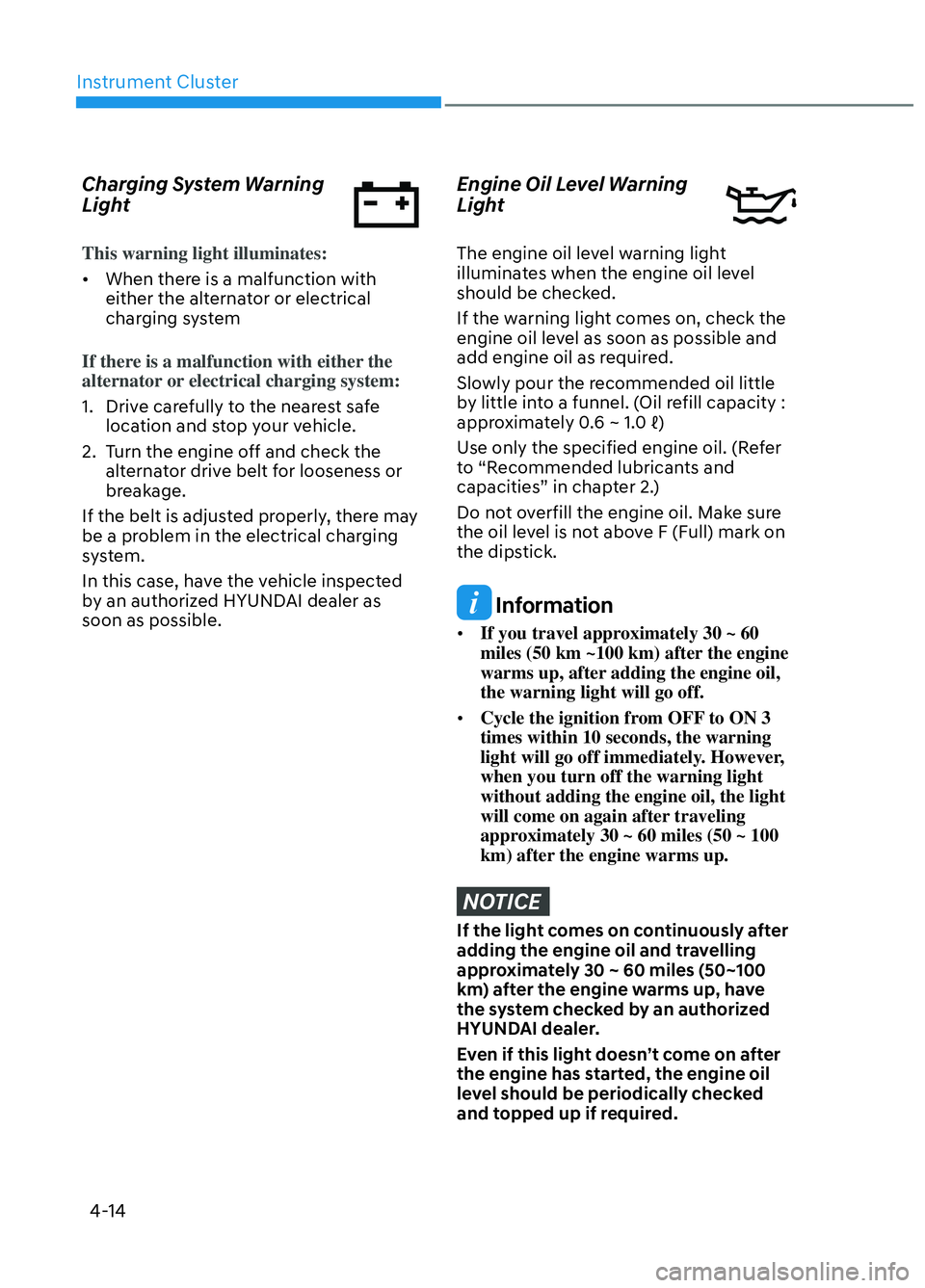

Instrument Cluster4-14
Charging System Warning
Light
This warning light illuminates:
• When there is a malfunction with either the alt
ernator or electrical
charging system
If there is a malfunction with either the
alternator
or electrical charging system:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there may
be a problem in the electrical charging
system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Engine Oil Level Warning
Light
The engine oil level warning light
illuminates when the engine oil level
should be checked.
If the warning light comes on, check the
engine oil level as soon as possible and
add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel. (Oil refill capacity :
approximately 0.6 ~ 1.0 ℓ)
Use only the specified engine oil. (Refer
to “Recommended lubricants and
capacities” in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
• If you travel approximately 30 ~ 60
miles (50 km ~100 km) after the engine
warms up, after adding the engine oil,
the warning light will go off.
• Cycle the ignition from OFF to ON 3
times within 10 seconds, the warning
light will go off immediately. However,
when you turn off the warning light
without adding the engine oil, the light
will come on again after traveling
approximately 30 ~ 60 miles (50 ~ 100
km) after the engine warms up.
NOTICE
If the light comes on continuously after
adding the engine oil and travelling
approximately 30 ~ 60 miles (50~100
km) after the engine warms up, have
the system checked by an authorized
HYUNDAI dealer.
Even if this light doesn’t come on after
the engine has started, the engine oil
level should be periodically checked
and topped up if required.
CN7 N HMA 4.indd 4-14 2021-09-14  9:32:37

04
4-15

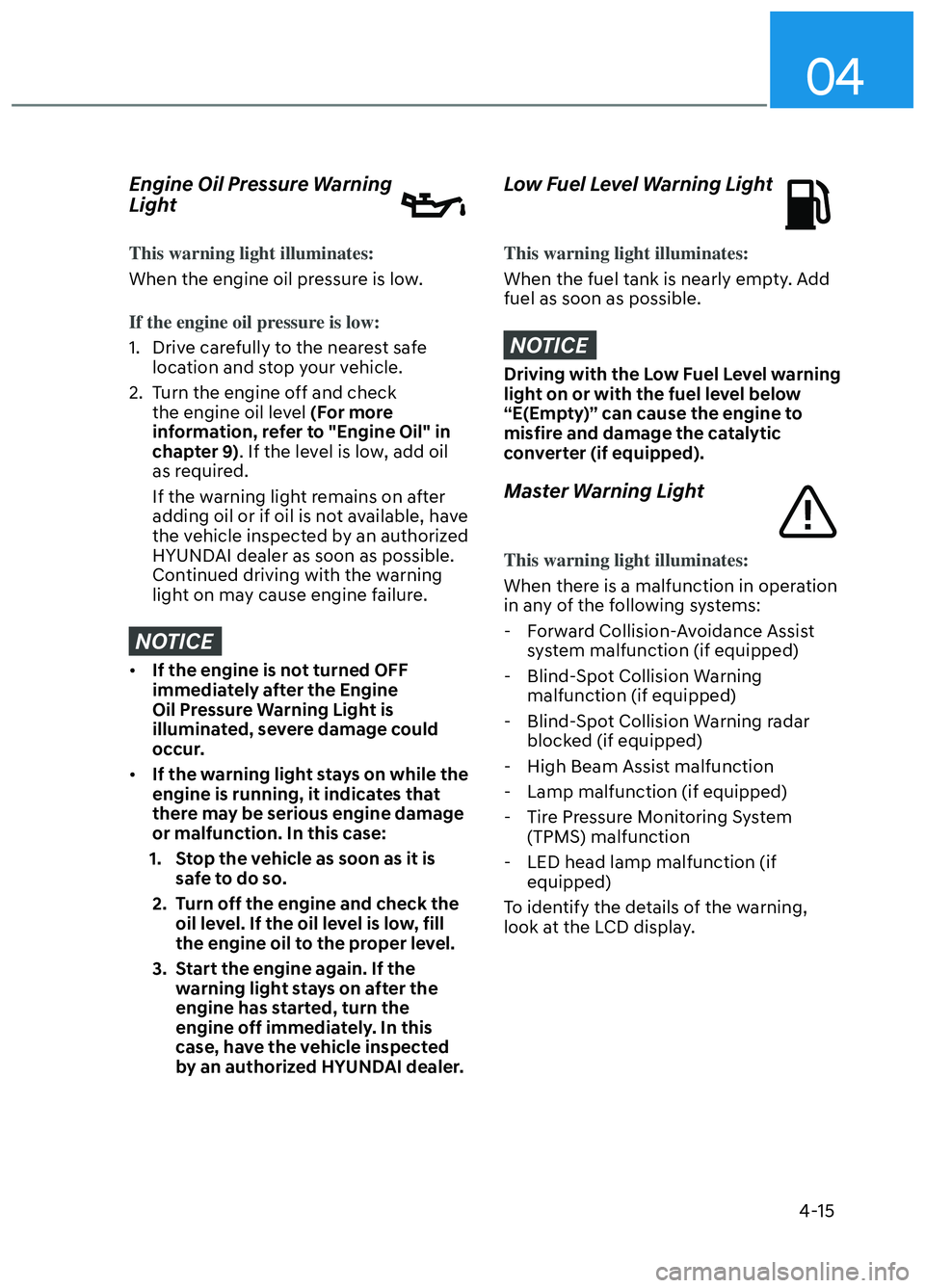

Engine Oil Pressure Warning
Light
This warning light illuminates:
When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the engine oil level (For more
information, refer to "Engine Oil" in
chapter 9). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
NOTICE
• If the engine is not turned OFF
immediately after the Engine
Oil Pressure Warning Light is
illuminated, severe damage could
occur.
• If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case:
1. Stop the vehicle as soon as it is safe to do so.
2. Turn off the engine and check the oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the warning light stays on after the
engine has started, turn the
engine off immediately. In this
case, have the vehicle inspected
by an authorized HYUNDAI dealer.
Low Fuel Level Warning Light
This warning light illuminates:
When the fuel tank is nearly empty. Add
fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below
“E(Empty)” can cause the engine to
misfire and damage the catalytic
converter (if equipped).
Master Warning Light
This warning light illuminates:
When there is a malfunction in operation
in an
y of the following systems:
- Forward Collision-Avoidance Assist system malfunction (if equipped)
- Blind-Spot Collision Warning malfunction (if equipped)
- Blind-Spot Collision Warning radar blocked (if equipped)
- High Beam Assist malfunction
- Lamp malfunction (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction
- LED head lamp malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.
CN7 N HMA 4.indd 4-15 2021-09-14  9:32:37

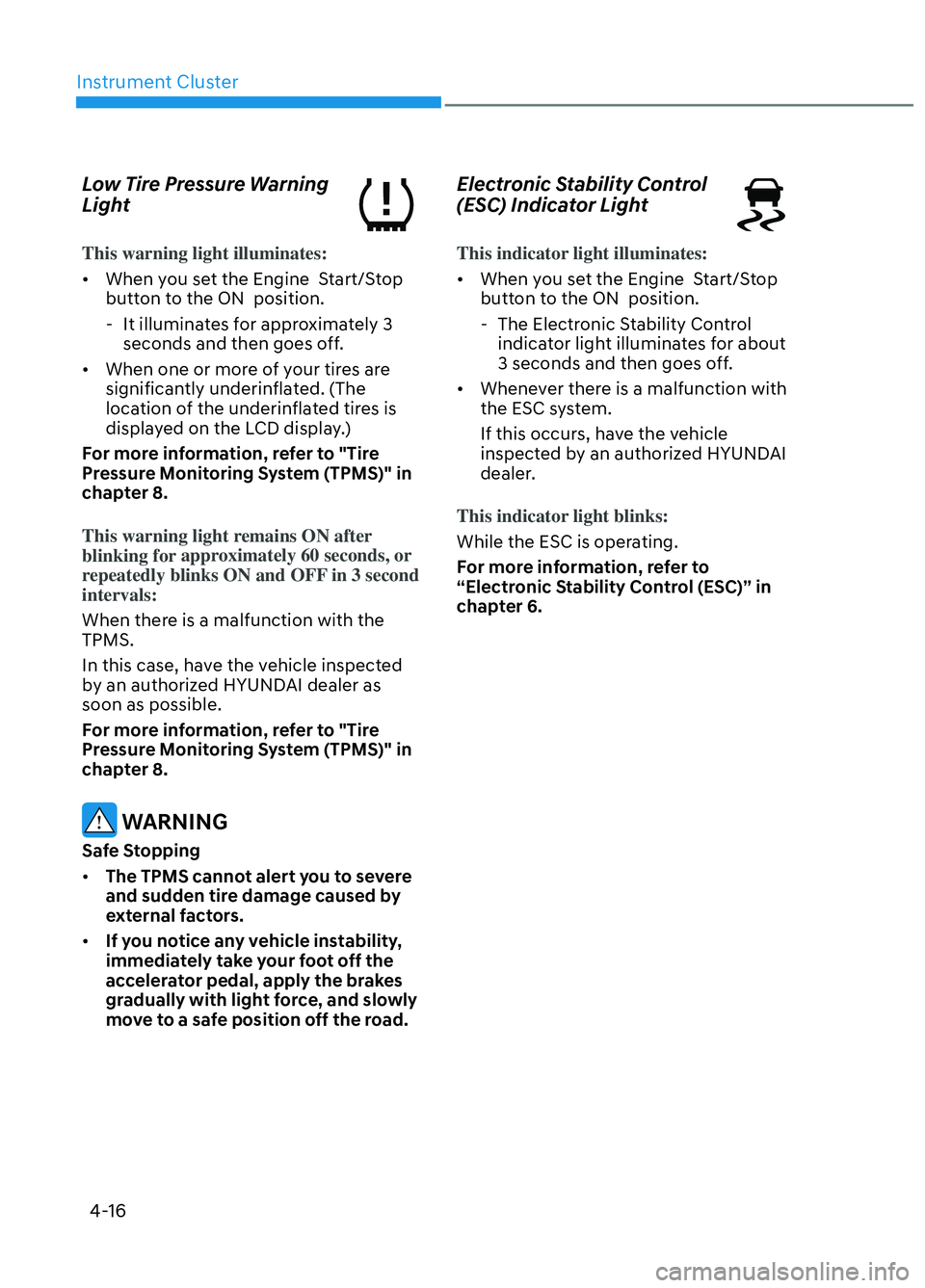

Instrument Cluster4-16
Low Tire Pressure Warning
Light
This warning light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- It illuminates for approximately 3 seconds and then goes off.
• When one or more of your tires are significantly underinflated. (The
location of the underinflated tires is
displayed on the LCD display.)
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
In this case, ha

ve the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
WARNING
Safe Stopping
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
• If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Electronic Stability Control
(ESC) Indicator Light
This indicator light illuminates:
• When you set the Engine Start/Stop
butt
on to the ON position.
- The Electronic Stability Control indicator light illuminates for about
3 seconds and then goes off.
• Whenever there is a malfunction with the ESC system.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
While the ESC is operating.
F
or more information, refer to
“Electronic Stability Control (ESC)” in
chapter 6.
CN7 N HMA 4.indd 4-16 2021-09-14  9:32:37

04
4-17

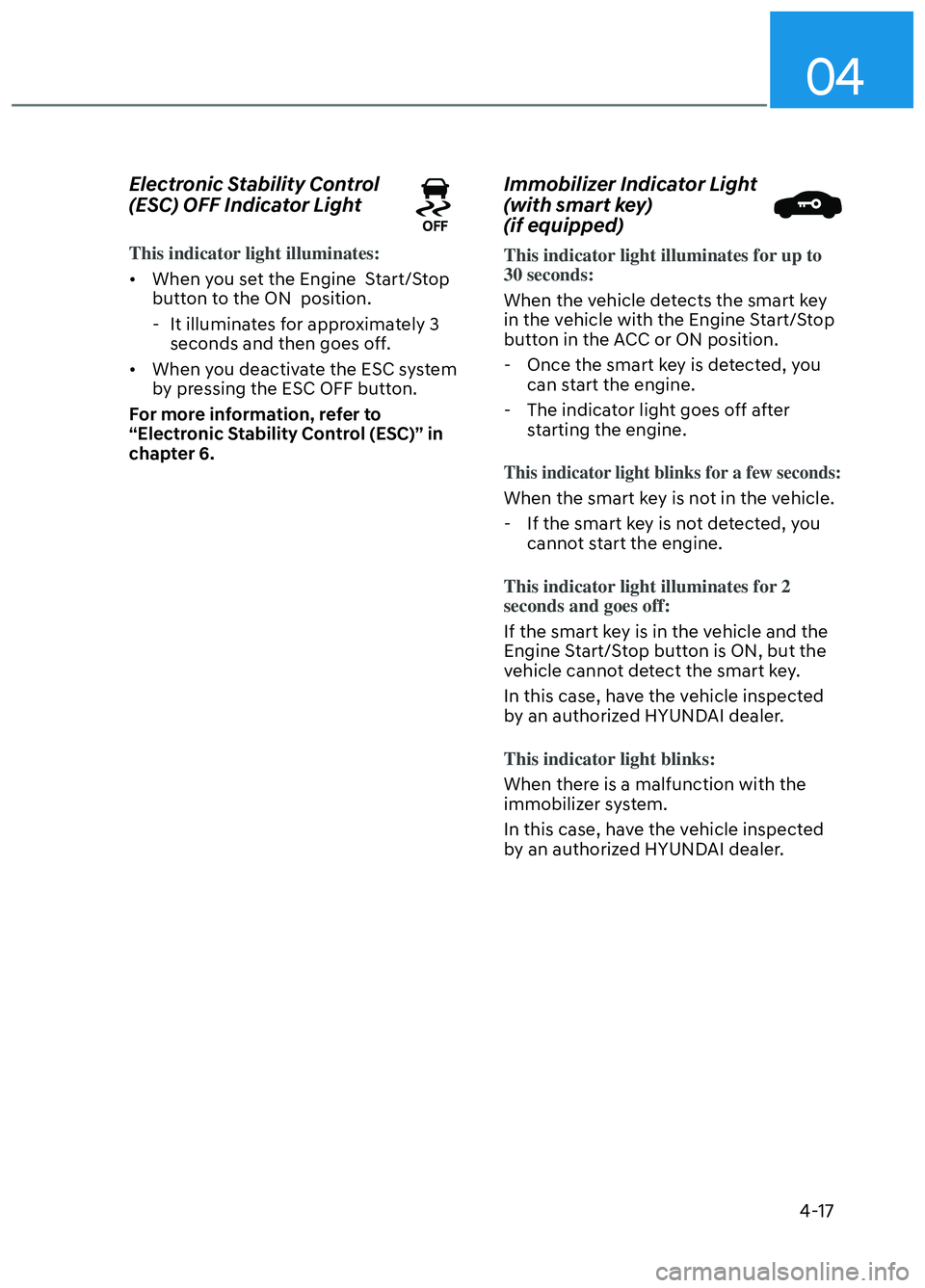

Electronic Stability Control
(ESC) OFF Indicator Light
This indicator light illuminates:
• When you set the Engine Start/Stop butt
on to the ON position.
- It illuminates for approximately 3 seconds and then goes off.
• When you deactivate the ESC system by pressing the ESC OFF button.
For more information, refer to
“Electronic Stability Control (ESC)” in
chapter 6.
Immobilizer Indicator Light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
E
ngine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
This indicator light blinks:
When there is a malfunction with the
immobiliz
er system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
CN7 N HMA 4.indd 4-17 2021-09-14  9:32:37
