Hyundai Equus 2010 Owner's Manual

4113
Features of your vehicle

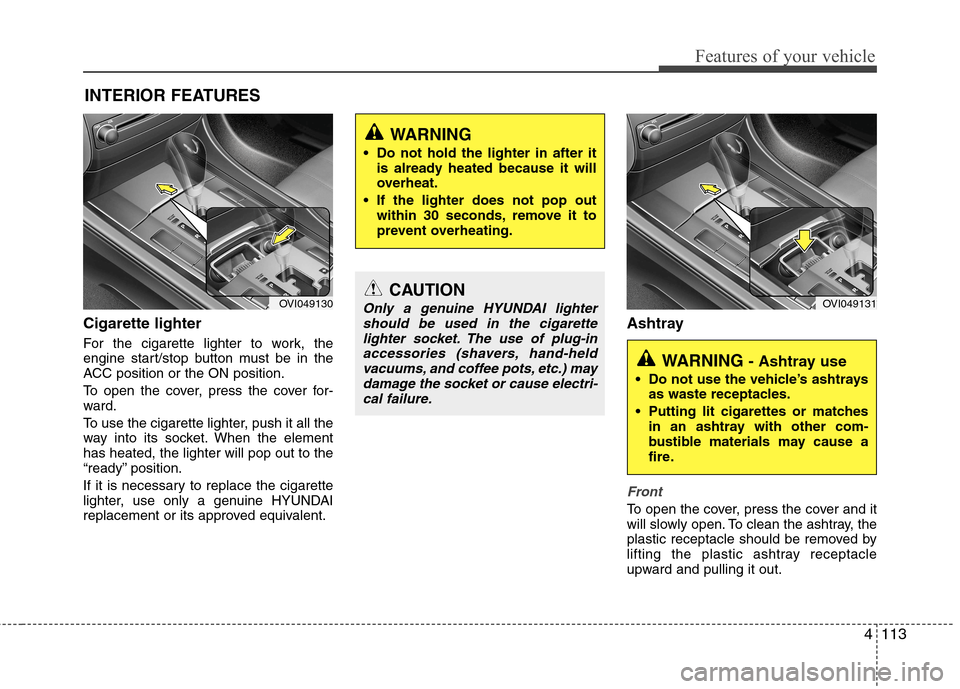

Cigarette lighter
For the cigarette lighter to work, the
engine start/stop button must be in the
ACC position or the ON position.
To open the cover, press the cover for-
ward.
To use the cigarette lighter, push it all the
way into its socket. When the elementhas heated, the lighter will pop out to the
“ready” position.
If it is necessary to replace the cigarette
lighter, use only a genuine HYUNDAI
replacement or its approved equivalent.Ashtray
Front
To open the cover, press the cover and it
will slowly open. To clean the ashtray, the
plastic receptacle should be removed by
lifting the plastic ashtray receptacle
upward and pulling it out.
INTERIOR FEATURES
CAUTION
Only a genuine HYUNDAI lighter
should be used in the cigarette
lighter socket. The use of plug-in accessories (shavers, hand-heldvacuums, and coffee pots, etc.) maydamage the socket or cause electri-
cal failure.
WARNING
Do not hold the lighter in after it is already heated because it will
overheat.
If the lighter does not pop out within 30 seconds, remove it to
prevent overheating.
OVI049130
WARNING - Ashtray use
Do not use the vehicle’s ashtrays as waste receptacles.
Putting lit cigarettes or matches in an ashtray with other com-
bustible materials may cause a
fire.
OVI049131

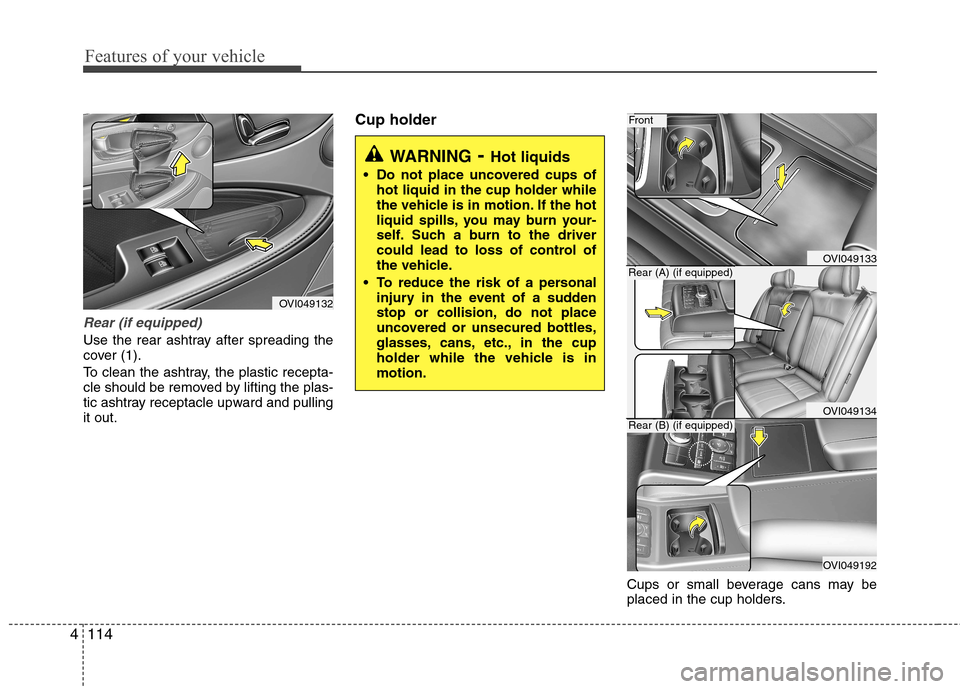

Features of your vehicle
114
4
Rear (if equipped)
Use the rear ashtray after spreading the
cover (1).
To clean the ashtray, the plastic recepta-
cle should be removed by lifting the plas-
tic ashtray receptacle upward and pullingit out. Cup holder
Cups or small beverage cans may be
placed in the cup holders.
OVI049132
WARNING- Hot liquids
Do not place uncovered cups of hot liquid in the cup holder while
the vehicle is in motion. If the hot
liquid spills, you may burn your-
self. Such a burn to the driver
could lead to loss of control of
the vehicle.
To reduce the risk of a personal injury in the event of a sudden
stop or collision, do not place
uncovered or unsecured bottles,
glasses, cans, etc., in the cup
holder while the vehicle is inmotion.
OVI049133
OVI049134
OVI049192
Front
Rear (A) (if equipped)
Rear (B) (if equipped)

4115
Features of your vehicle

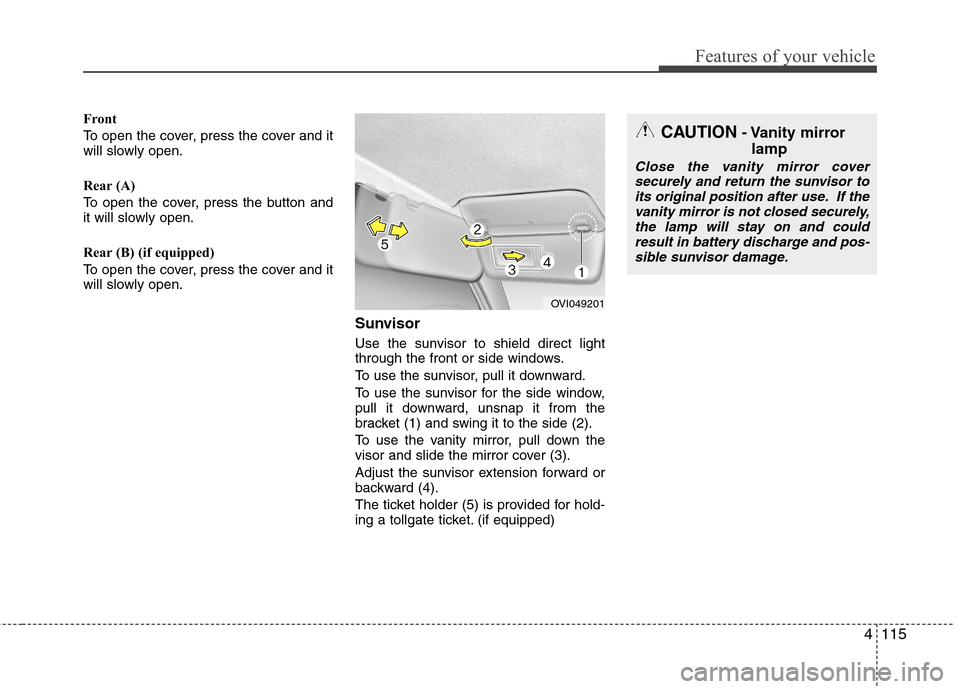

Front
To open the cover, press the cover and it
will slowly open.
Rear (A)
To open the cover, press the button and
it will slowly open.
Rear (B) (if equipped)
To open the cover, press the cover and it
will slowly open.Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use the sunvisor, pull it downward.
To use the sunvisor for the side window,
pull it downward, unsnap it from the
bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the
visor and slide the mirror cover (3).
Adjust the sunvisor extension forward or
backward (4).
The ticket holder (5) is provided for hold-
ing a tollgate ticket. (if equipped)
OVI049201
CAUTION- Vanity mirror
lamp
Close the vanity mirror coversecurely and return the sunvisor to
its original position after use. If thevanity mirror is not closed securely,the lamp will stay on and couldresult in battery discharge and pos-
sible sunvisor damage.

Features of your vehicle
116
4
CAUTION
Use the power outlet only when
the engine is running and remove
the accessory plug after use.Using the accessory plug for pro-longed periods of time with theengine off could cause the bat-
tery to discharge.
Only use 12V electric accessories which are less than 10A in elec-tric capacity.
Adjust the air-conditioner or heater to the lowest operating
level when using the power outlet.
Close the cover when not in use. Some electronic devices can cause electronic interferencewhen plugged into a vehicle’s
power outlet. These devices may cause excessive audio static andmalfunctions in other electronic systems or devices used in your
vehicle.

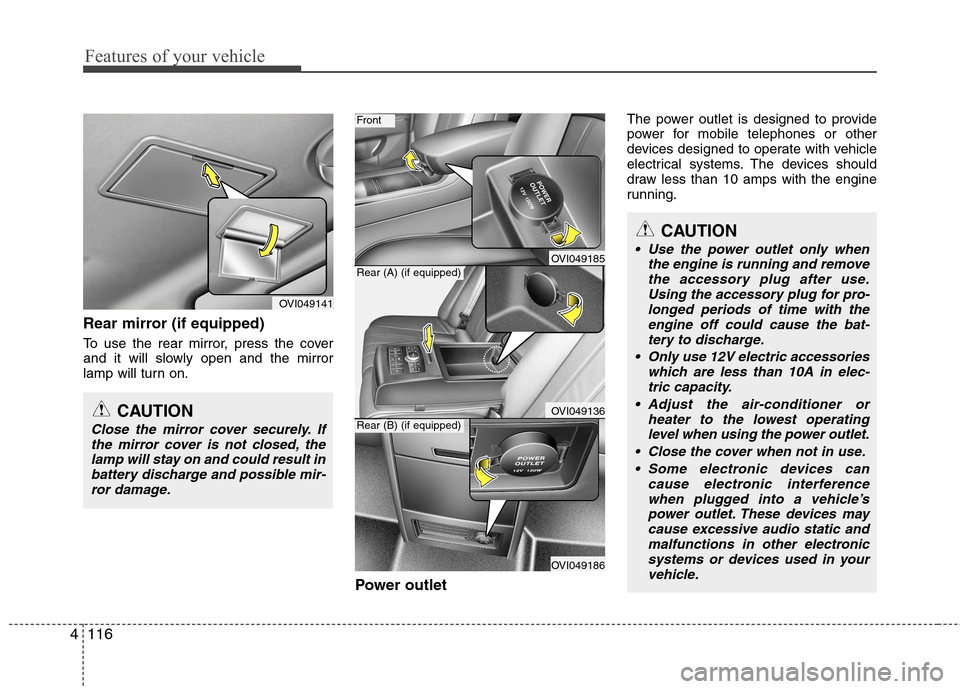

Rear mirror (if equipped)
To use the rear mirror, press the cover
and it will slowly open and the mirror
lamp will turn on.
Power outletThe power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 10 amps with the engine
running.
OVI049141
CAUTION
Close the mirror cover securely. If
the mirror cover is not closed, thelamp will stay on and could result in battery discharge and possible mir-ror damage.
OVI049185
OVI049136
OVI049186
Front
Rear (A) (if equipped)
Rear (B) (if equipped)

4117
Features of your vehicle

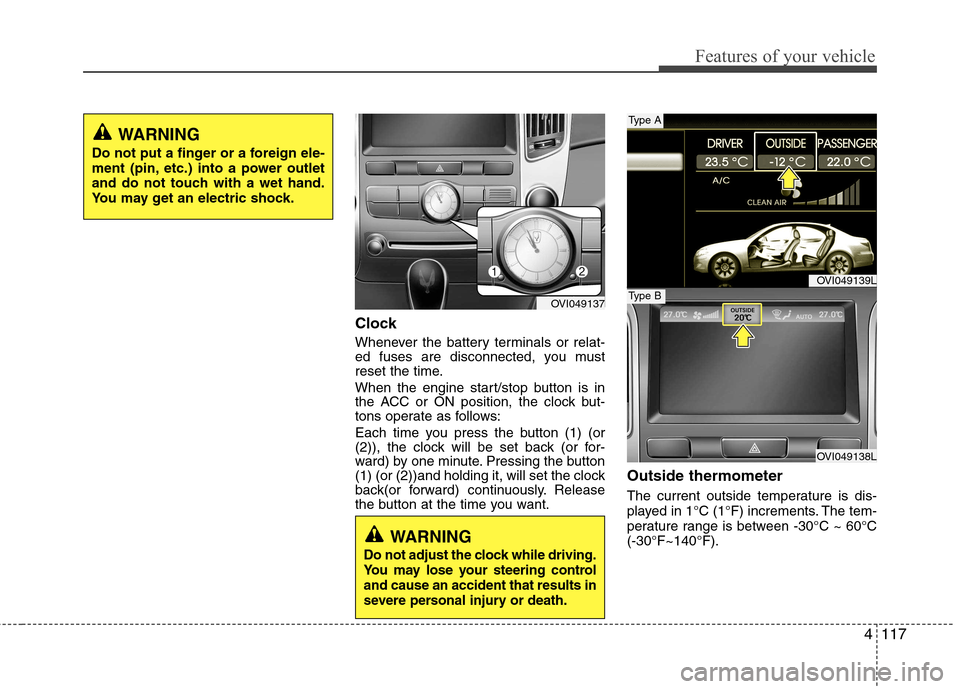

Clock
Whenever the battery terminals or relat-
ed fuses are disconnected, you must
reset the time.
When the engine start/stop button is in
the ACC or ON position, the clock but-
tons operate as follows:
Each time you press the button (1) (or
(2)), the clock will be set back (or for-
ward) by one minute. Pressing the button
(1) (or (2))and holding it, will set the clock
back(or forward) continuously. Release
the button at the time you want.Outside thermometer
The current outside temperature is dis-
played in 1°C (1°F) increments. The tem-
perature range is between -30°C ~ 60°C(-30°F~140°F).
WARNING
Do not adjust the clock while driving.
You may lose your steering controland cause an accident that results in
severe personal injury or death.
WARNING
Do not put a finger or a foreign ele-
ment (pin, etc.) into a power outlet
and do not touch with a wet hand.
You may get an electric shock.
OVI049137
OVI049139L
OVI049138L
Type A
Type B

Features of your vehicle
118
4

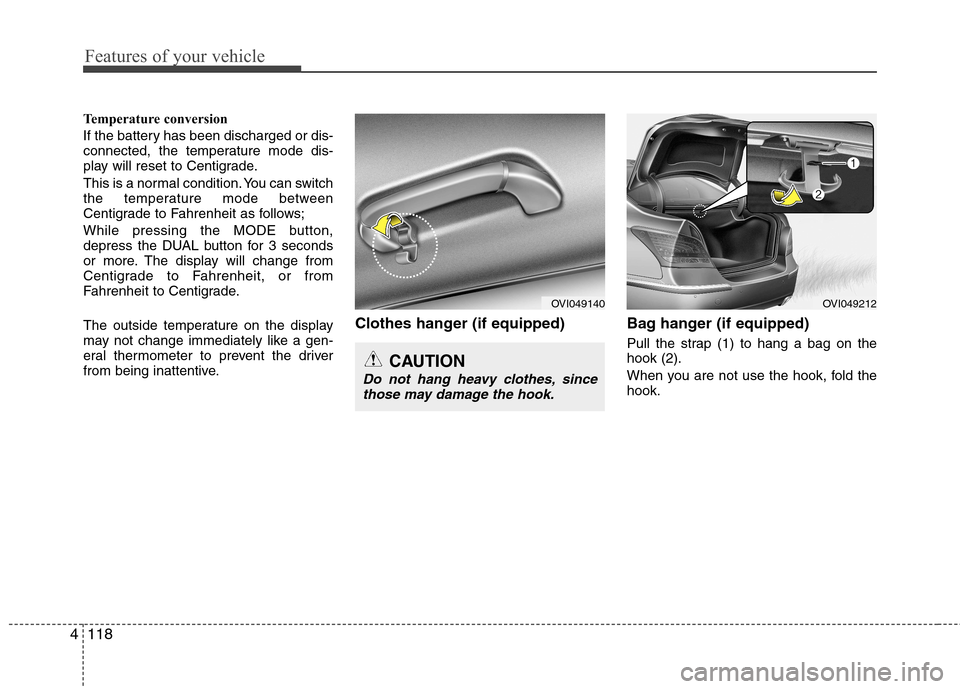

Temperature conversion
If the battery has been discharged or dis-
connected, the temperature mode dis-
play will reset to Centigrade.
This is a normal condition. You can switch
the temperature mode between
Centigrade to Fahrenheit as follows;
While pressing the MODE button,
depress the DUAL button for 3 seconds
or more. The display will change from
Centigrade to Fahrenheit, or from
Fahrenheit to Centigrade.
The outside temperature on the display
may not change immediately like a gen-
eral thermometer to prevent the driver
from being inattentive. Clothes hanger (if equipped) Bag hanger (if equipped)
Pull the strap (1) to hang a bag on thehook (2).
When you are not use the hook, fold the hook.
CAUTION
Do not hang heavy clothes, sincethose may damage the hook.
OVI049140OVI049212

4119
Features of your vehicle

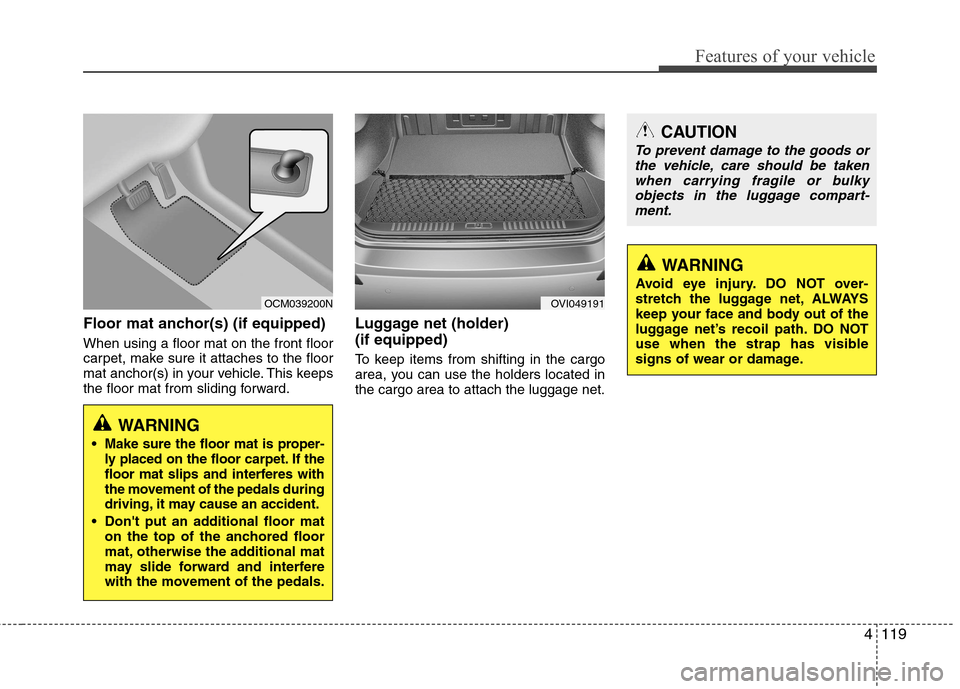

Floor mat anchor(s) (if equipped) When using a floor mat on the front floor
carpet, make sure it attaches to the floor
mat anchor(s) in your vehicle. This keeps
the floor mat from sliding forward.Luggage net (holder) (if equipped)
To keep items from shifting in the cargo
area, you can use the holders located inthe cargo area to attach the luggage net.
OCM039200NOVI049191
WARNING

Make sure the floor mat is proper-
ly placed on the floor carpet. If the
floor mat slips and interferes with
the movement of the pedals during
driving, it may cause an accident.
Don't put an additional floor mat on the top of the anchored floor
mat, otherwise the additional mat
may slide forward and interfere
with the movement of the pedals.
CAUTION
To prevent damage to the goods or
the vehicle, care should be taken
when carrying fragile or bulky objects in the luggage compart-ment.
WARNING
Avoid eye injury. DO NOT over-
stretch the luggage net, ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use when the strap has visible
signs of wear or damage.

Features of your vehicle
120
4
Rear curtain (if equipped)
To fold the rear curtain, press the button.
To unfold the rear curtain, press the but-ton again.
The rear curtain will be folded automati-
cally when you shift the shift lever into R
(Reverse) and unfolded automatically
when you shift the shift lever from R
(Reverse) into P (Park). After the rear curtain is folded by shifting
the shift lever into R (Reverse), if you
drive more than 20km/h with the shift
lever in D (Drive), the rear curtain will be
unfolded automatically.
CAUTION
Do not pull or fold the rear curtain
by hand. It could cause motor fail-
ure.
OVI049144
OVI049217
Rear Type B (if equipped)
Rear Type A (if equipped)
OVI049252L
OVI049143
Front (Type B)
Front (Type A)

4121
Features of your vehicle

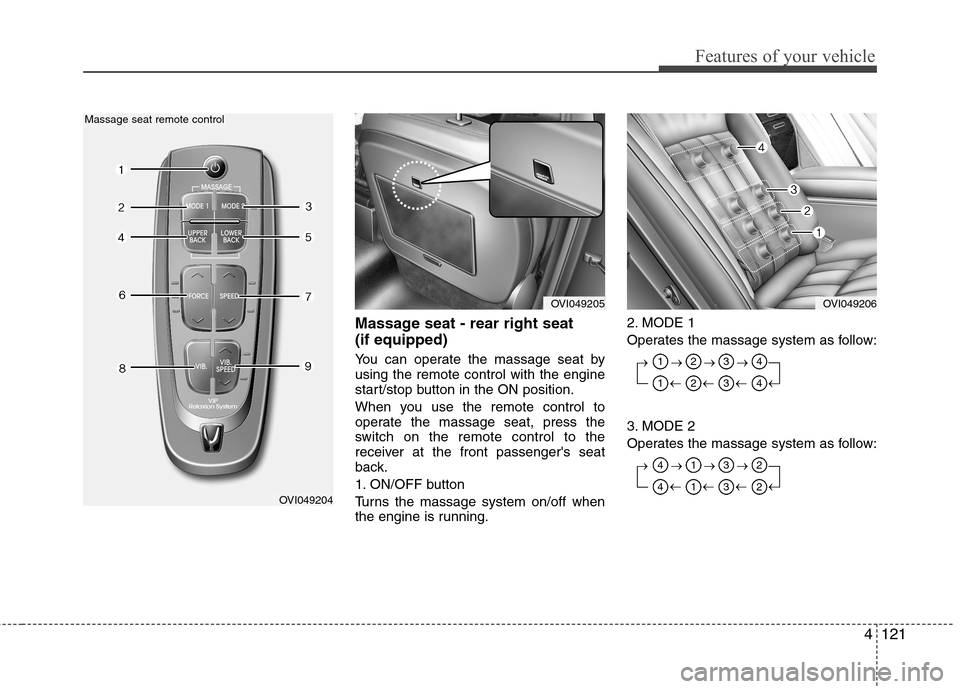

Massage seat - rear right seat (if equipped)
You can operate the massage seat by using the remote control with the engine
start/stop button in the ON position.
When you use the remote control to
operate the massage seat, press the
switch on the remote control to the
receiver at the front passenger's seat
back.
1. ON/OFF button
Turns the massage system on/off when
the engine is running.2. MODE 1
Operates the massage system as follow:
3. MODE 2
Operates the massage system as follow:
OVI049204
Massage seat remote control
OVI049205OVI049206

1234
1234
4132
4132

Features of your vehicle
122
4

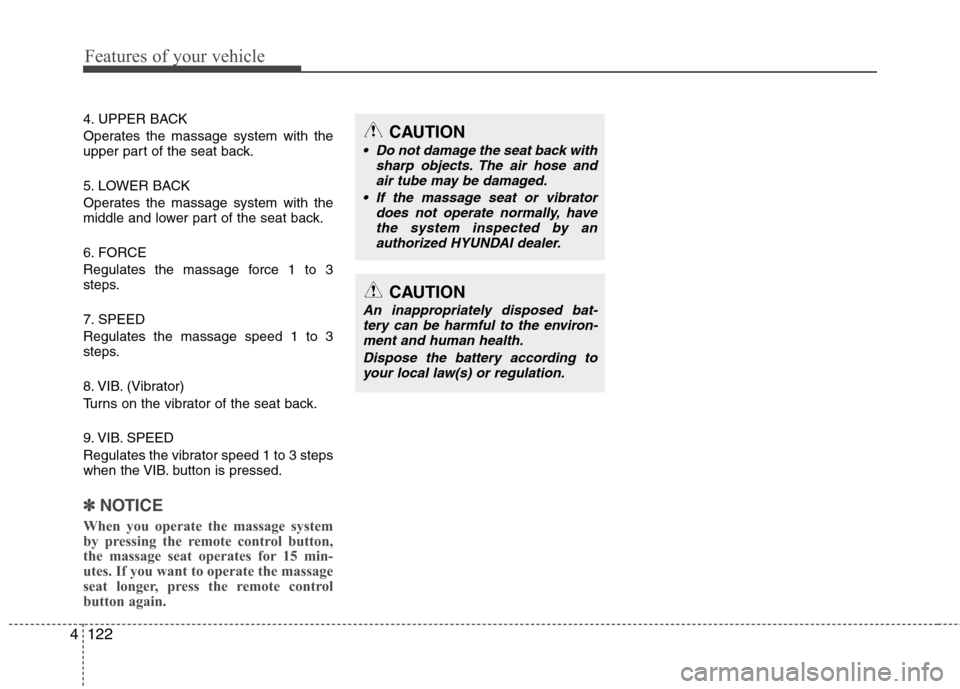

4. UPPER BACK
Operates the massage system with the
upper part of the seat back.
5. LOWER BACK
Operates the massage system with the
middle and lower part of the seat back.
6. FORCE
Regulates the massage force 1 to 3
steps.
7. SPEED Regulates the massage speed 1 to 3
steps.
8. VIB. (Vibrator)
Turns on the vibrator of the seat back.
9. VIB. SPEED
Regulates the vibrator speed 1 to 3 steps
when the VIB. button is pressed.
✽✽
NOTICE
When you operate the massage system
by pressing the remote control button,
the massage seat operates for 15 min-
utes. If you want to operate the massage
seat longer, press the remote control
button again.
CAUTION
Do not damage the seat back with sharp objects. The air hose and
air tube may be damaged.
If the massage seat or vibrator does not operate normally, havethe system inspected by an
authorized HYUNDAI dealer.
CAUTION
An inappropriately disposed bat- tery can be harmful to the environ-
ment and human health.
Dispose the battery according toyour local law(s) or regulation.
