Features of your vehicle
WARNING
The air conditioning system should
be serviced by an authorized
HYUNDAI dealer. Improper service
may cause serious injury to the
person performing the service.

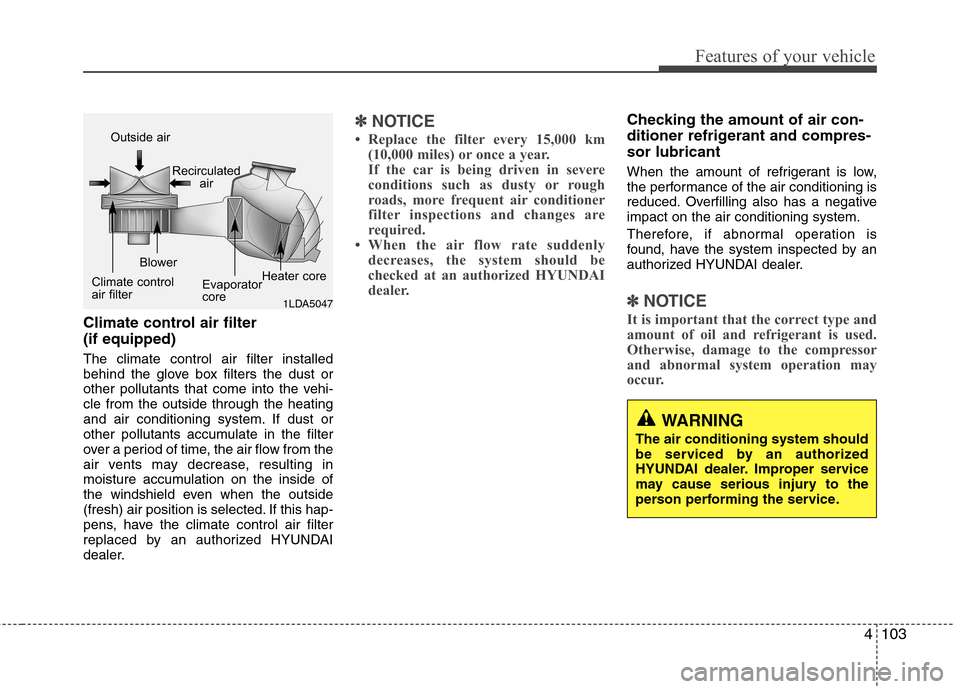

Climate control air filter (if equipped) The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi-cle from the outside through the heating
and air conditioning system. If dust or
other pollutants accumulate in the filter
over a period of time, the air flow from the
air vents may decrease, resulting in
moisture accumulation on the inside of
the windshield even when the outside
(fresh) air position is selected. If this hap-
pens, have the climate control air filter
replaced by an authorized HYUNDAI
dealer.
✽✽ NOTICE
 Replace the filter every 15,000 km (10,000 miles) or once a year.
If the car is being driven in severe
conditions such as dusty or rough
roads, more frequent air conditioner
filter inspections and changes are
required.
 When the air flow rate suddenly
decreases, the system should be
checked at an authorized HYUNDAI
dealer.Checking the amount of air con-
ditioner refrigerant and compres-sor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning is
reduced. Overfilling also has a negativeimpact on the air conditioning system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
✽✽ NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. 1LDA5047
Outside air
Recirculatedair
Climate control
air filter Blower
Evaporator
coreHeater core

Features of your vehicle
104
4

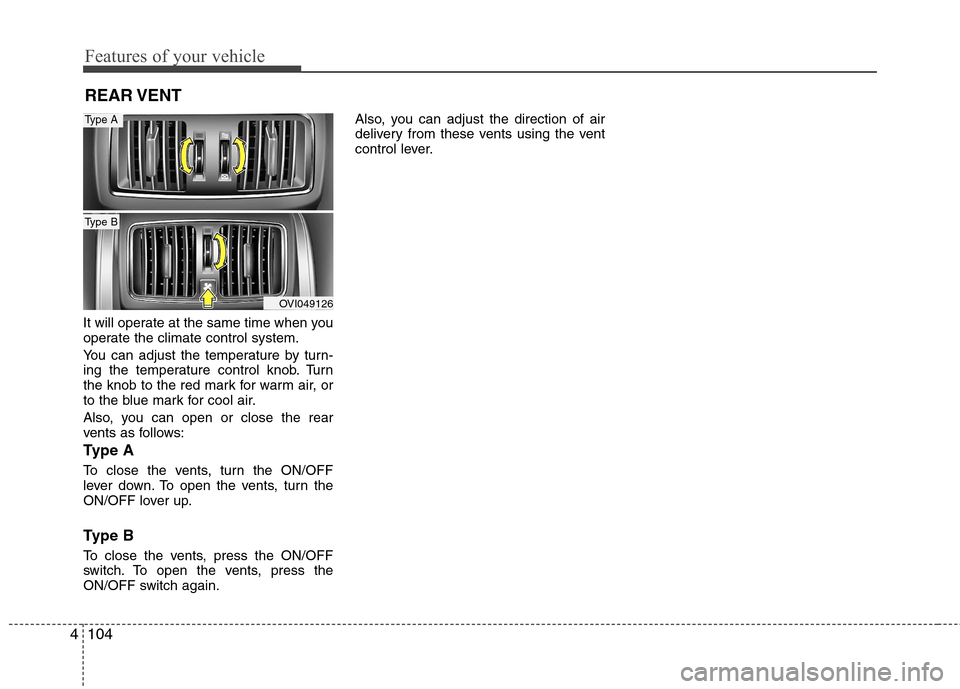

REAR VENT
It will operate at the same time when you
operate the climate control system.
You can adjust the temperature by turn-
ing the temperature control knob. Turn
the knob to the red mark for warm air, or
to the blue mark for cool air.
Also, you can open or close the rear
vents as follows:
Ty p e A
To close the vents, turn the ON/OFF
lever down. To open the vents, turn the
ON/OFF lover up.
Ty p e B
To close the vents, press the ON/OFF
switch. To open the vents, press the
ON/OFF switch again. Also, you can adjust the direction of air
delivery from these vents using the vent
control lever.
OVI049126
Type A
Type B

4105
Features of your vehicle

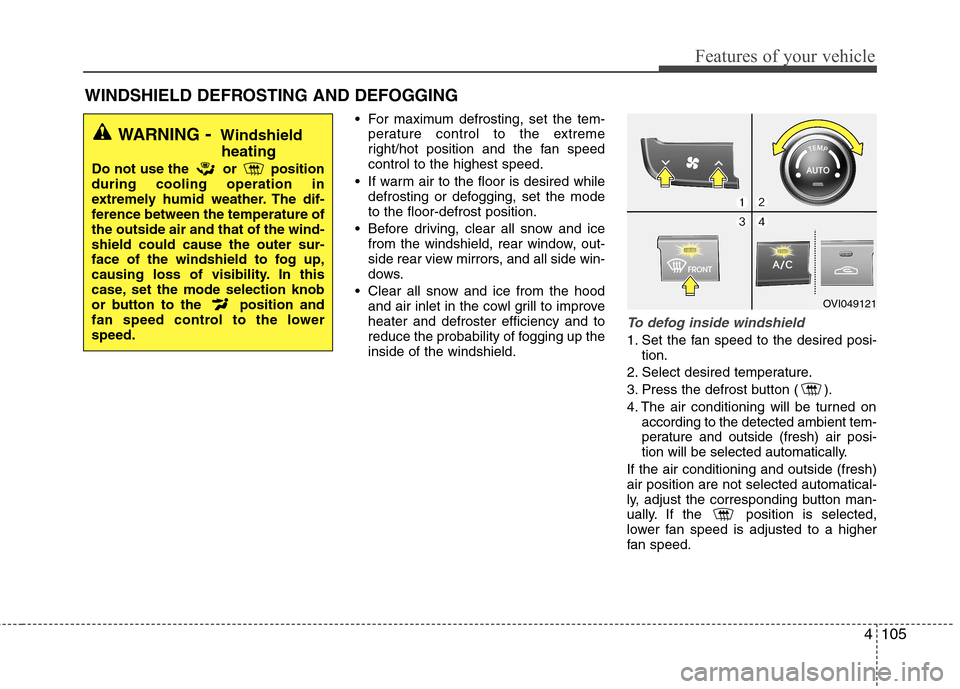

For maximum defrosting, set the tem-perature control to the extreme
right/hot position and the fan speedcontrol to the highest speed.
If warm air to the floor is desired while defrosting or defogging, set the modeto the floor-defrost position.
Before driving, clear all snow and ice from the windshield, rear window, out-
side rear view mirrors, and all side win-
dows.
Clear all snow and ice from the hood and air inlet in the cowl grill to improveheater and defroster efficiency and to
reduce the probability of fogging up theinside of the windshield.
To defog inside windshield
1. Set the fan speed to the desired posi- tion.
2. Select desired temperature.
3. Press the defrost button ( ).
4. The air conditioning will be turned on according to the detected ambient tem-
perature and outside (fresh) air posi-
tion will be selected automatically.
If the air conditioning and outside (fresh)air position are not selected automatical-
ly, adjust the corresponding button man-
ually. If the position is selected,
lower fan speed is adjusted to a higher
fan speed.
WINDSHIELD DEFROSTING AND DEFOGGING
WARNING - Windshield
heating
Do not use the or position during cooling operation in
extremely humid weather. The dif-
ference between the temperature ofthe outside air and that of the wind-shield could cause the outer sur-
face of the windshield to fog up,
causing loss of visibility. In this
case, set the mode selection knob
or button to the position and
fan speed control to the lowerspeed.
OVI049121

Features of your vehicle
106
4

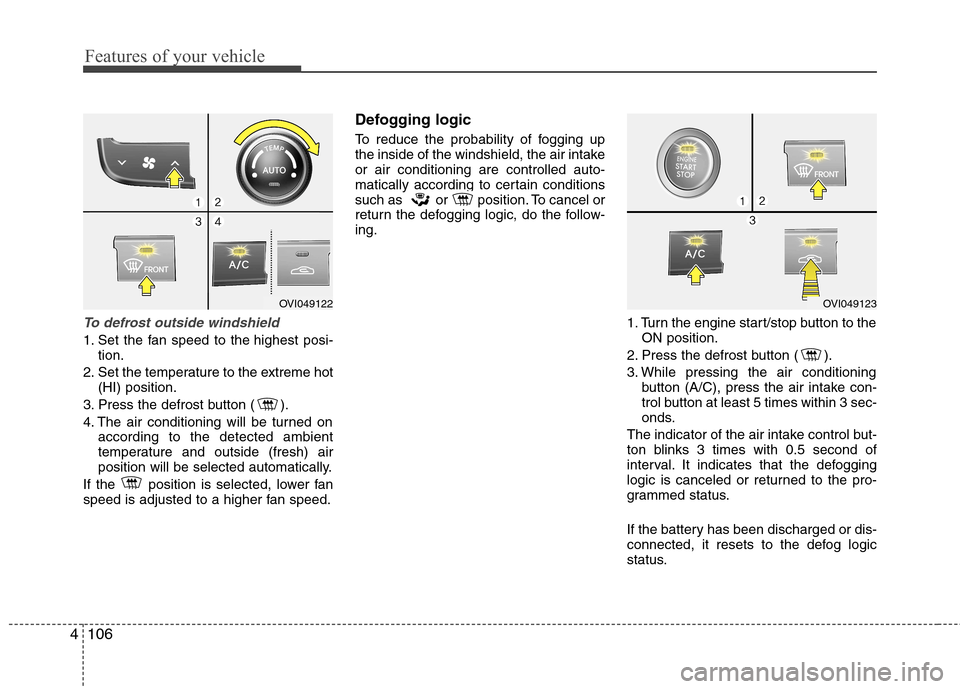

To defrost outside windshield
1. Set the fan speed to the highest posi-
tion.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defrost button ( ).
4. The air conditioning will be turned on according to the detected ambient
temperature and outside (fresh) air
position will be selected automatically.
If the position is selected, lower fan
speed is adjusted to a higher fan speed. Defogging logic
To reduce the probability of fogging up
the inside of the windshield, the air intakeor air conditioning are controlled auto-
matically according to certain conditions
such as or position. To cancel or
return the defogging logic, do the follow-ing.
1. Turn the engine start/stop button to theON position.
2. Press the defrost button ( ).
3. While pressing the air conditioning button (A/C), press the air intake con-
trol button at least 5 times within 3 sec-
onds.
The indicator of the air intake control but-
ton blinks 3 times with 0.5 second of
interval. It indicates that the defogging
logic is canceled or returned to the pro-
grammed status.
If the battery has been discharged or dis-
connected, it resets to the defog logic
status.
OVI049122OVI049123

4107
Features of your vehicle

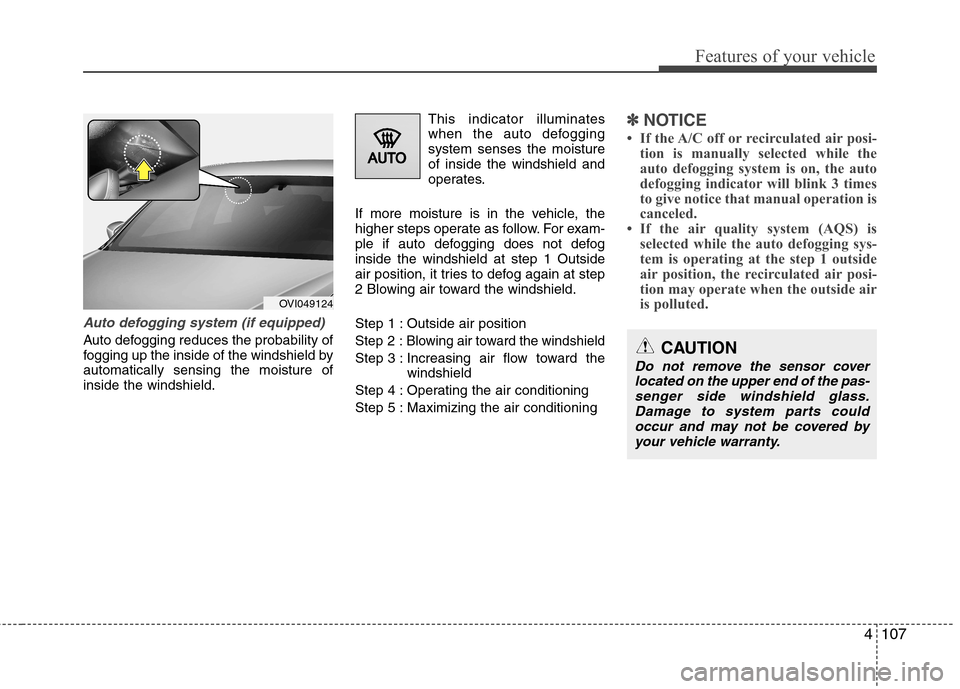

Auto defogging system (if equipped)
Auto defogging reduces the probability of
fogging up the inside of the windshield byautomatically sensing the moisture ofinside the windshield.This indicator illuminates
when the auto defoggingsystem senses the moistureof inside the windshield and
operates.
If more moisture is in the vehicle, the
higher steps operate as follow. For exam-
ple if auto defogging does not defoginside the windshield at step 1 Outside
air position, it tries to defog again at step
2 Blowing air toward the windshield.
Step 1 : Outside air positionStep 2 :Blowing air toward the windshield
Step 3 : Increasing air flow toward the windshield
Step 4 : Operating the air conditioning
Step 5 : Maximizing the air conditioning
✽✽ NOTICE
 If the A/C off or recirculated air posi- tion is manually selected while the
auto defogging system is on, the auto
defogging indicator will blink 3 times
to give notice that manual operation is
canceled.
 If the air quality system (AQS) is
selected while the auto defogging sys-
tem is operating at the step 1 outside
air position, the recirculated air posi-
tion may operate when the outside air
is polluted.
OVI049124
CAUTION
Do not remove the sensor cover
located on the upper end of the pas- senger side windshield glass.Damage to system parts could occur and may not be covered by
your vehicle warranty.

Features of your vehicle
108
4

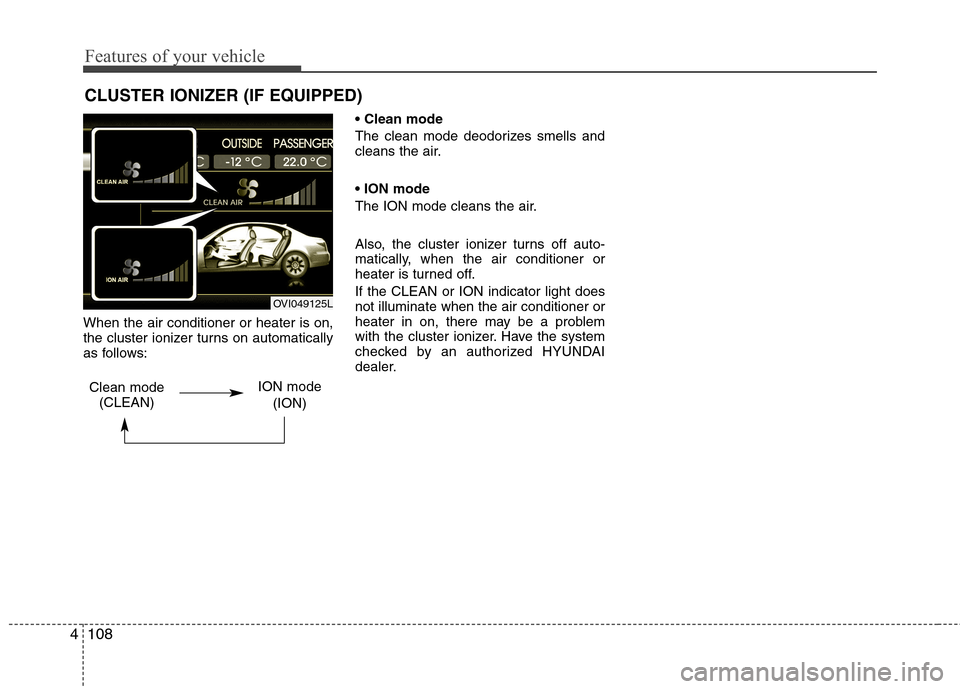

When the air conditioner or heater is on,
the cluster ionizer turns on automatically
as follows:
The clean mode deodorizes smells and
cleans the air.
The ION mode cleans the air.
Also, the cluster ionizer turns off auto-
matically, when the air conditioner or
heater is turned off. If the CLEAN or ION indicator light does not illuminate when the air conditioner or
heater in on, there may be a problem
with the cluster ionizer. Have the system
checked by an authorized HYUNDAI
dealer.
CLUSTER IONIZER (IF EQUIPPED)
Clean mode (CLEAN) ION mode
(ION)
OVI049125L

4109
Features of your vehicle

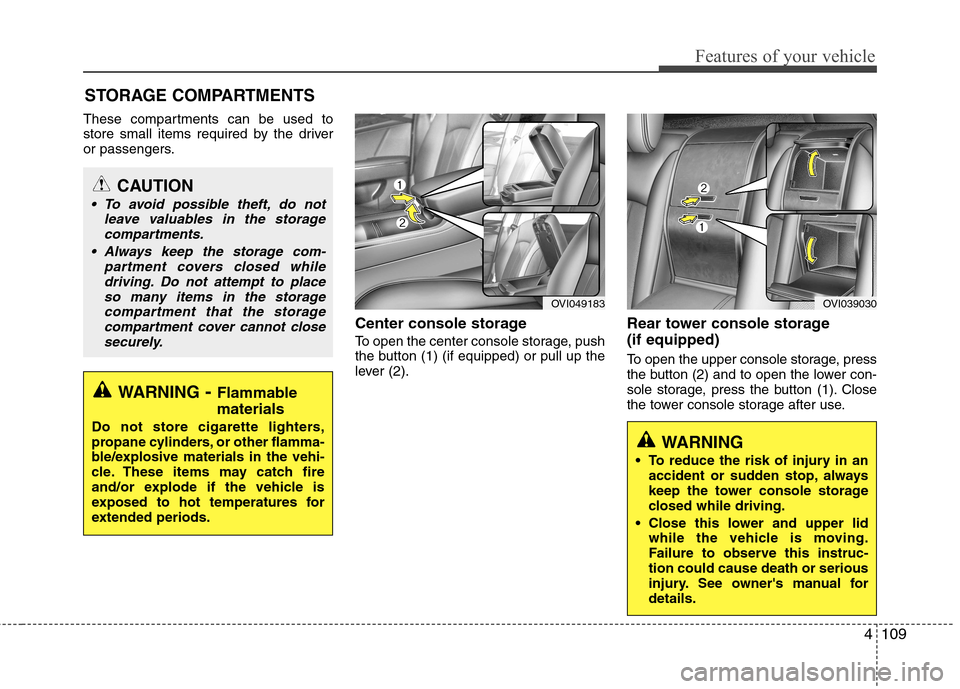

These compartments can be used to
store small items required by the driver
or passengers.Center console storage
To open the center console storage, push
the button (1) (if equipped) or pull up the
lever (2).Rear tower console storage (if equipped)
To open the upper console storage, press
the button (2) and to open the lower con-
sole storage, press the button (1). Close
the tower console storage after use.
STORAGE COMPARTMENTS
WARNING
- Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING
To reduce the risk of injury in an accident or sudden stop, always
keep the tower console storage
closed while driving.
Close this lower and upper lid while the vehicle is moving.
Failure to observe this instruc-tion could cause death or serious
injury. See owner's manual fordetails.
CAUTION
To avoid possible theft, do not
leave valuables in the storagecompartments.
Always keep the storage com- partment covers closed while
driving. Do not attempt to place so many items in the storagecompartment that the storagecompartment cover cannot close
securely.
OVI049183OVI039030

Features of your vehicle
110
4

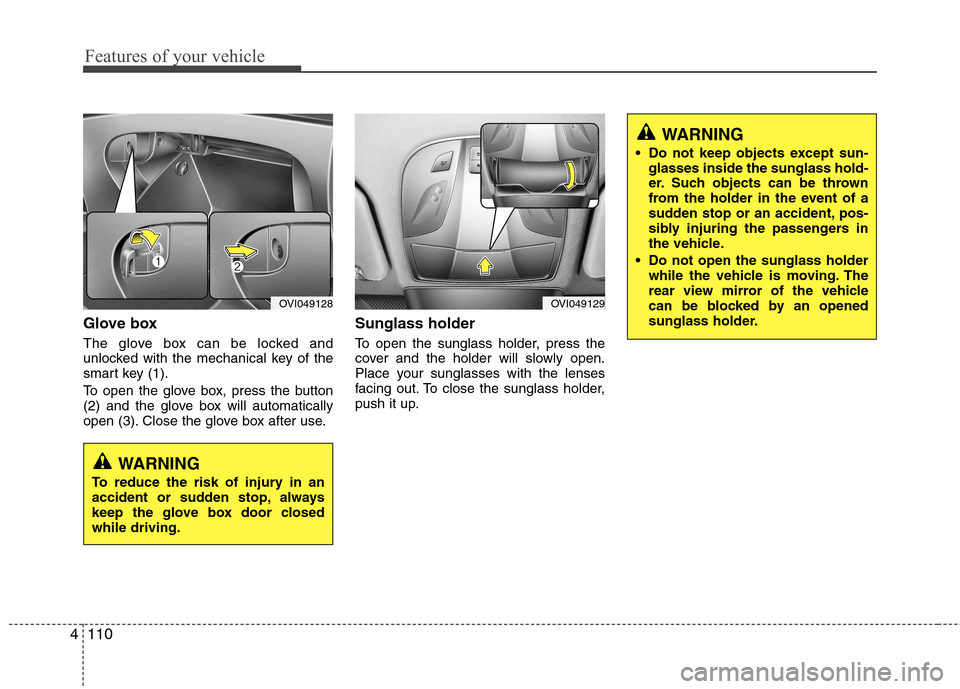

Glove box
The glove box can be locked and
unlocked with the mechanical key of the
smart key (1).
To open the glove box, press the button
(2) and the glove box will automatically
open (3). Close the glove box after use. Sunglass holder
To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses with the lenses
facing out. To close the sunglass holder,
push it up.
OVI049129
WARNING
Do not keep objects except sun- glasses inside the sunglass hold-
er. Such objects can be thrown
from the holder in the event of a
sudden stop or an accident, pos-
sibly injuring the passengers in
the vehicle.
Do not open the sunglass holder while the vehicle is moving. The
rear view mirror of the vehicle
can be blocked by an opened
sunglass holder.
OVI049128
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closedwhile driving.

4111
Features of your vehicle

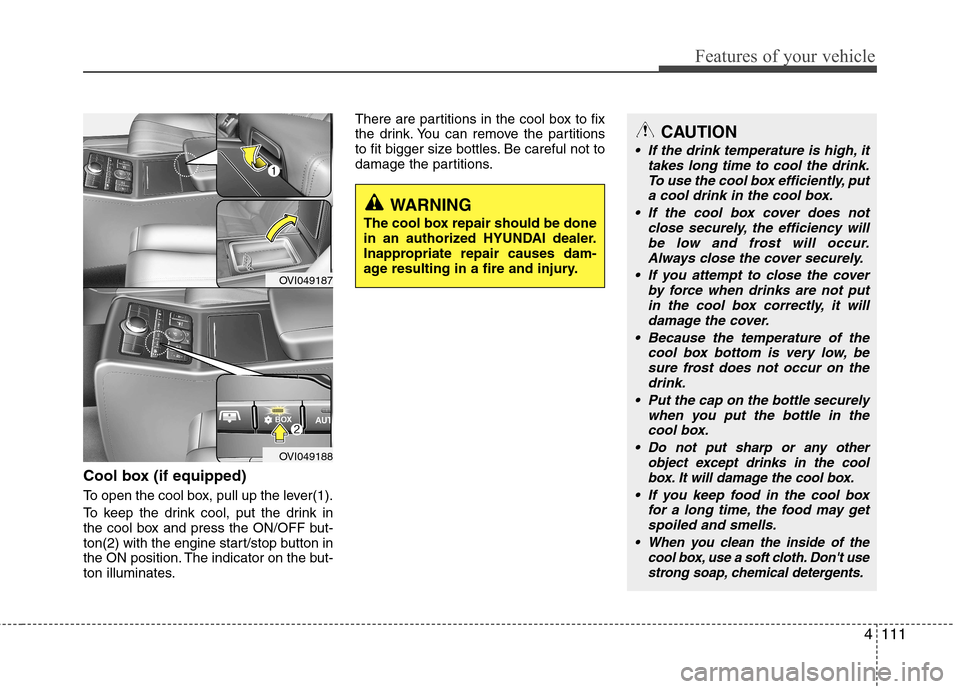

Cool box (if equipped)
To open the cool box, pull up the lever(1).
To keep the drink cool, put the drink in
the cool box and press the ON/OFF but-
ton(2) with the engine start/stop button in
the ON position. The indicator on the but-
ton illuminates.There are partitions in the cool box to fix
the drink. You can remove the partitions
to fit bigger size bottles. Be careful not to
damage the partitions.
WARNING
The cool box repair should be done
in an authorized HYUNDAI dealer.
Inappropriate repair causes dam-
age resulting in a fire and injury.
OVI049187
OVI049188
CAUTION
If the drink temperature is high, it takes long time to cool the drink.
To use the cool box efficiently, put a cool drink in the cool box.
If the cool box cover does not close securely, the efficiency will
be low and frost will occur. Always close the cover securely.
If you attempt to close the cover by force when drinks are not putin the cool box correctly, it will
damage the cover.
Because the temperature of the cool box bottom is very low, besure frost does not occur on thedrink.
Put the cap on the bottle securely when you put the bottle in thecool box.

Do not put sharp or any other object except drinks in the cool
box. It will damage the cool box.
If you keep food in the cool box
for a long time, the food may getspoiled and smells.
When you clean the inside of the cool box, use a soft cloth. Don't usestrong soap, chemical detergents.

Features of your vehicle
112
4
OVI049189
OVI049190

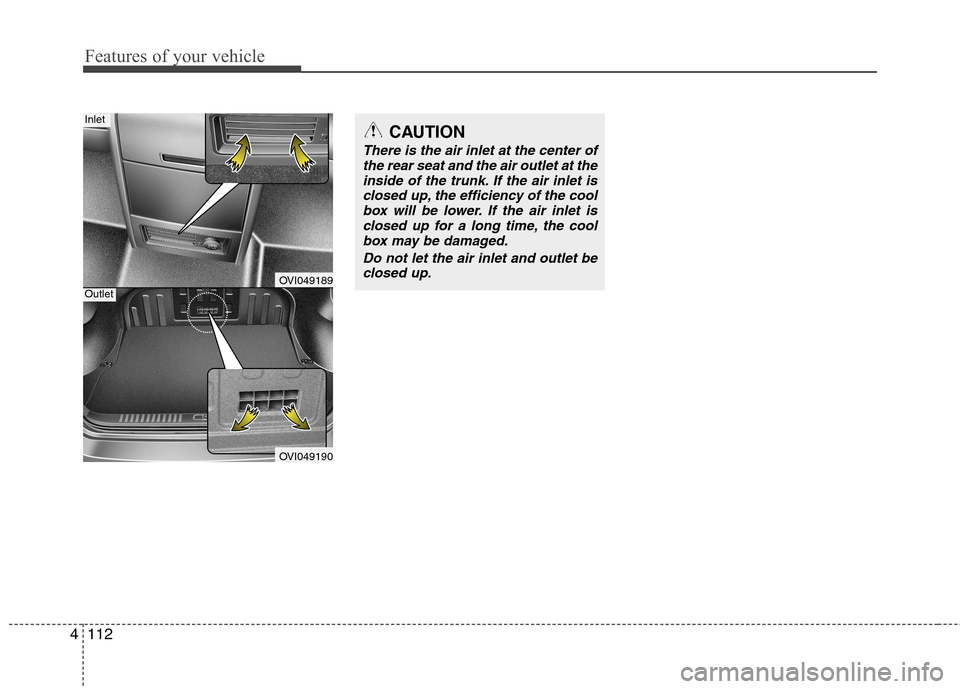

CAUTION
There is the air inlet at the center of
the rear seat and the air outlet at the
inside of the trunk. If the air inlet isclosed up, the efficiency of the coolbox will be lower. If the air inlet is closed up for a long time, the cool
box may be damaged.
Do not let the air inlet and outlet beclosed up.
Inlet
