Hyundai Genesis 2016 - RHD (UK, Australia) Owner's Guide

2-13
Safety system of your vehicle
2

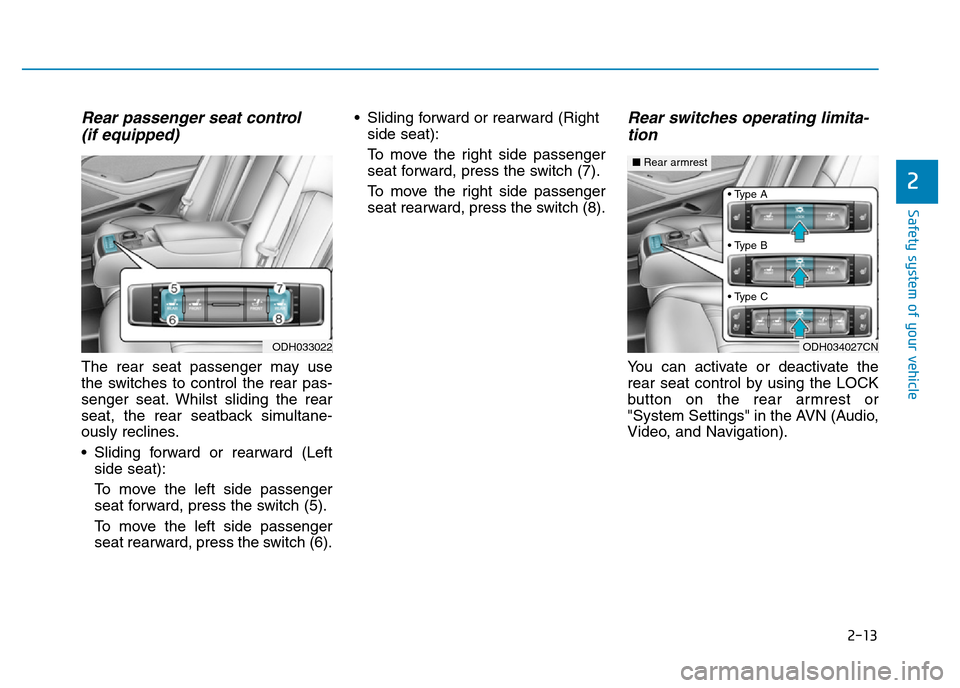

Rear passenger seat control
(if equipped)
The rear seat passenger may use
the switches to control the rear pas-
senger seat. Whilst sliding the rear
seat, the rear seatback simultane-
ously reclines.
• Sliding forward or rearward (Left
side seat):
To move the left side passenger
seat forward, press the switch (5).
To move the left side passenger
seat rearward, press the switch (6).• Sliding forward or rearward (Right
side seat):
To move the right side passenger
seat forward, press the switch (7).
To move the right side passenger
seat rearward, press the switch (8).
Rear switches operating limita-
tion
You can activate or deactivate the
rear seat control by using the LOCK
button on the rear armrest or
"System Settings" in the AVN (Audio,
Video, and Navigation).
ODH034027CN • Type A
• Type B
• Type CODH033022
■Rear armrest

2-14
Safety system of your vehicle

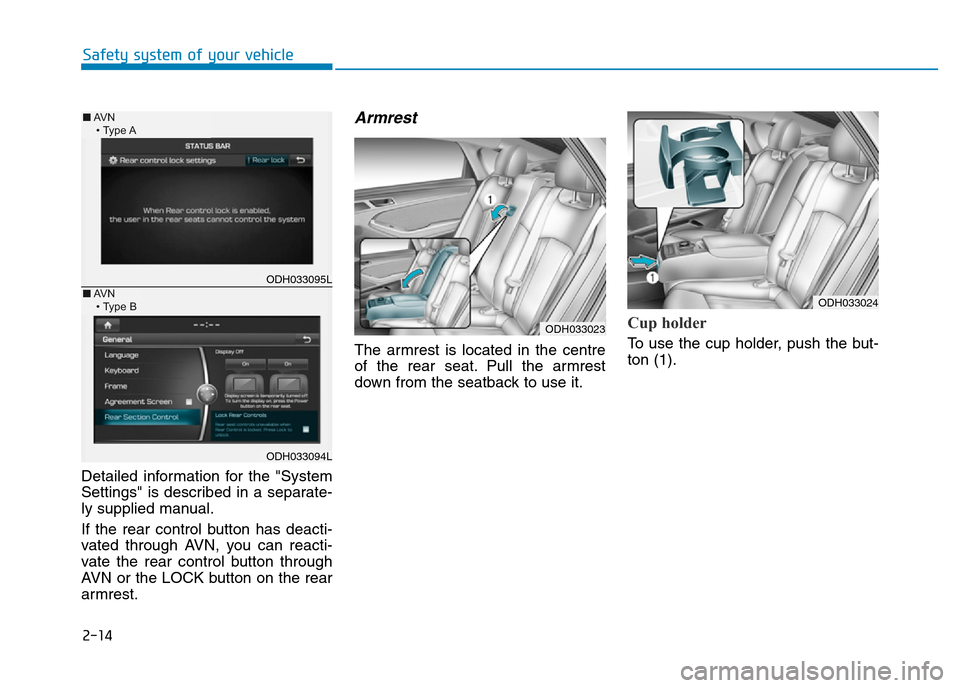

Detailed information for the "System
Settings" is described in a separate-
ly supplied manual.
If the rear control button has deacti-
vated through AVN, you can reacti-
vate the rear control button through
AVN or the LOCK button on the rear
armrest.
Armrest
The armrest is located in the centre
of the rear seat. Pull the armrest
down from the seatback to use it.
Cup holder
To use the cup holder, push the but-
ton (1).
ODH033095L
ODH033094L
■AV N
• Type A
■AV N
• Type B
ODH033023
ODH033024

2-15
Safety system of your vehicle
2

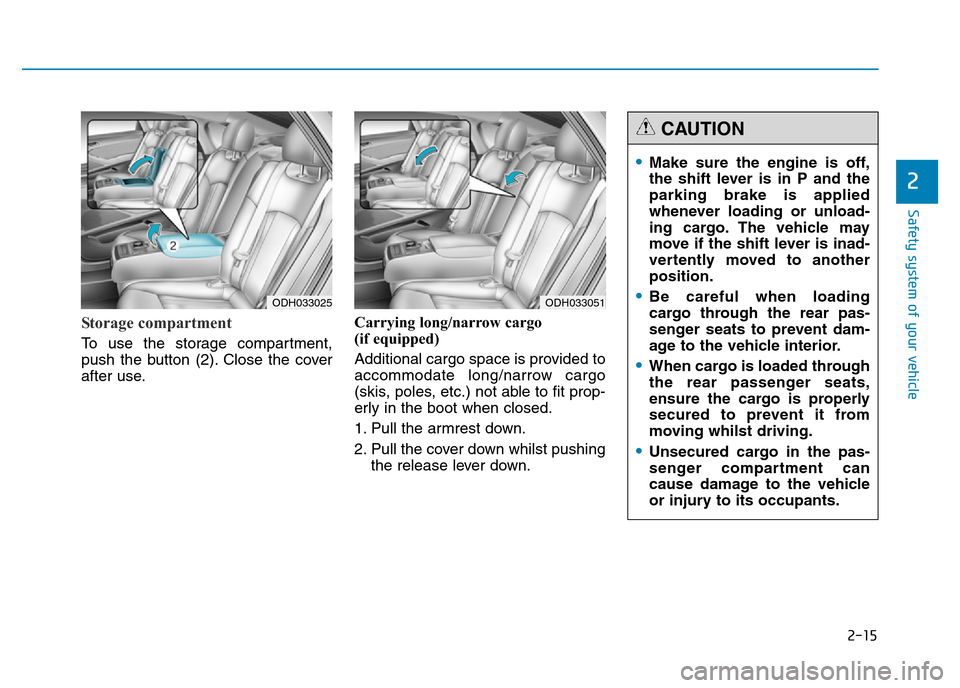

Storage compartment
To use the storage compartment,
push the button (2). Close the cover
after use.Carrying long/narrow cargo
(if equipped)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the boot when closed.
1. Pull the armrest down.
2. Pull the cover down whilst pushing
the release lever down.
ODH033051ODH033025
•Make sure the engine is off,
the shift lever is in P and the
parking brake is applied
whenever loading or unload-
ing cargo. The vehicle may
move if the shift lever is inad-
vertently moved to another
position.
•Be careful when loading
cargo through the rear pas-
senger seats to prevent dam-
age to the vehicle interior.
•When cargo is loaded through
the rear passenger seats,
ensure the cargo is properly
secured to prevent it from
moving whilst driving.
•Unsecured cargo in the pas-
senger compartment can
cause damage to the vehicle
or injury to its occupants.
CAUTION

2-16
Head restraint
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly
they are designed to help protect
passengers from whiplash and other
neck and spinal injuries during an
accident, especially in a rear impact
collision.
Safety system of your vehicle
To reduce the risk of serious
injury or death in an accident,
take the following precautions
when adjusting your head
restraints:
•Always properly adjust the head
restraints for all passengers
BEFORE starting the vehicle.
•NEVER let anyone ride in a seat
with the head restraint
removed.
•Adjust the head restraints so
the middle of the head
restraints is at the same height
as the height of the top of the
eyes.
(Continued)
WARNING
(Continued)
•NEVER adjust the head
restraint position of the dri-
ver’s seat when the vehicle is
in motion.
•Adjust the head restraint as
close to the passenger’s head
as possible. Do not use a seat
cushion that holds the body
away from the seatback.
•Make sure the head restraint
locks into position after
adjusting it.
To prevent damage, NEVER hit
or pull on the head restraints.
CAUTION
When there is no occupant in
the rear seats, adjust the height
of the head restraint to the low-
est position. The rear seat head
restraint can reduce the visibili-
ty of the rear area.
CAUTION
Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects in the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.
WARNING
Cargo loading
Make sure the engine is off, the
automatic transmission is in P
(Park) and the parking brake is
securely applied whenever load-
ing or unloading cargo.
Failure to take these steps may
allow the vehicle to move if the
shift lever is inadvertently moved
to another position.
WARNING

2-17
Safety system of your vehicle
2

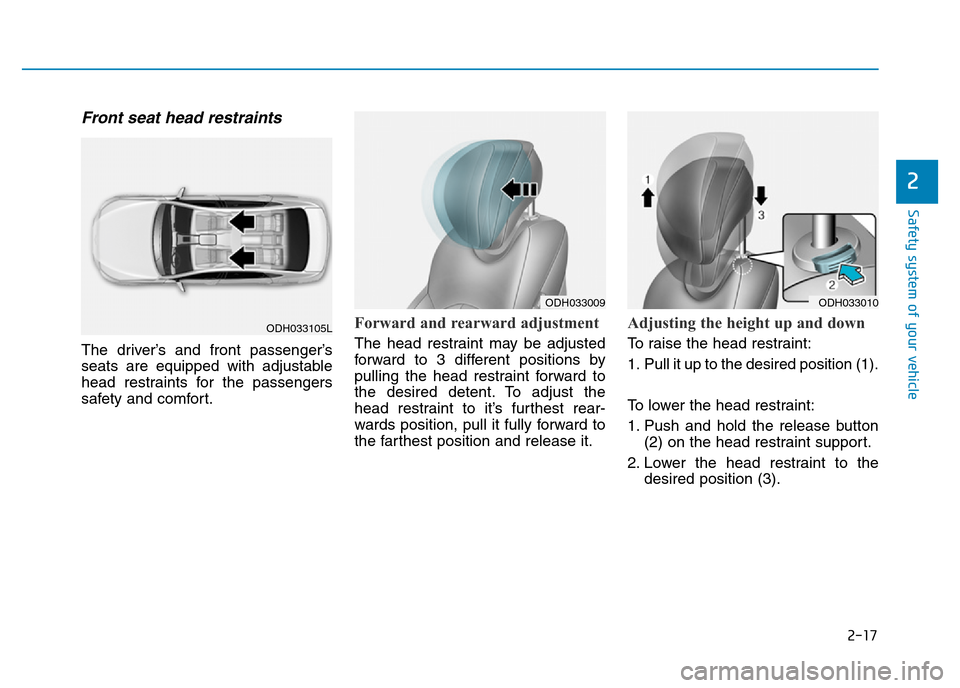

Front seat head restraints
The driver’s and front passenger’s
seats are equipped with adjustable
head restraints for the passengers
safety and comfort.
Forward and rearward adjustment
The head restraint may be adjusted
forward to 3 different positions by
pulling the head restraint forward to
the desired detent. To adjust the
head restraint to it’s furthest rear-
wards position, pull it fully forward to
the farthest position and release it.
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button
(2) on the head restraint support.
2. Lower the head restraint to the
desired position (3).
ODH033105L
ODH033009ODH033010

2-18
Safety system of your vehicle

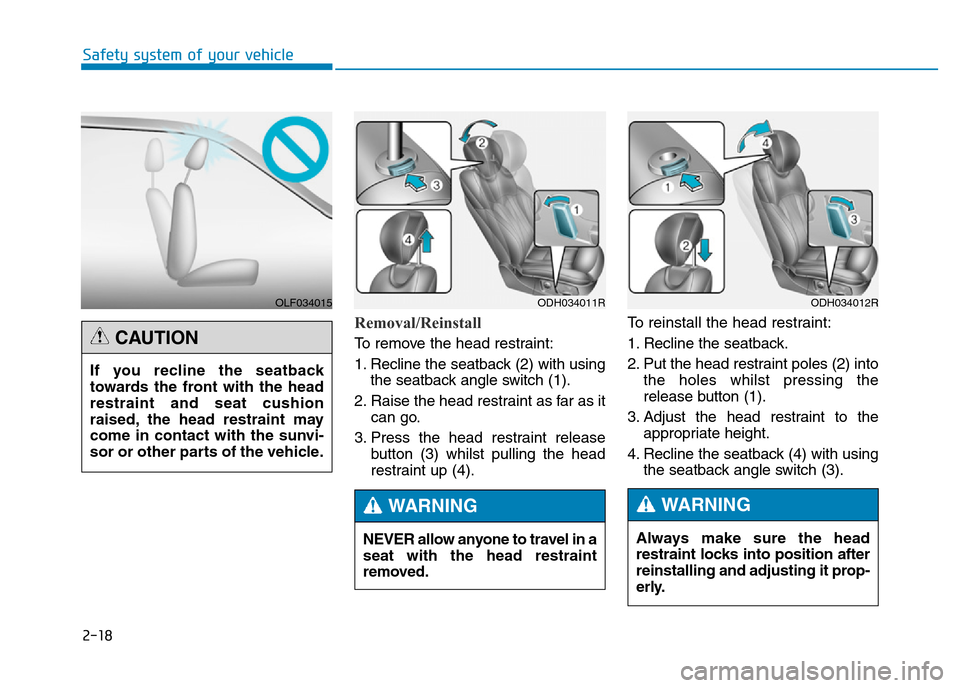

Removal/Reinstall
To remove the head restraint:
1. Recline the seatback (2) with using
the seatback angle switch (1).
2. Raise the head restraint as far as it
can go.
3. Press the head restraint release
button (3) whilst pulling the head
restraint up (4).To reinstall the head restraint:
1. Recline the seatback.
2. Put the head restraint poles (2) into
the holes whilst pressing the
release button (1).
3. Adjust the head restraint to the
appropriate height.
4. Recline the seatback (4) with using
the seatback angle switch (3).
NEVER allow anyone to travel in a
seat with the head restraint
removed.
WARNING
Always make sure the head
restraint locks into position after
reinstalling and adjusting it prop-
erly.
WARNING
ODH034011RODH034012ROLF034015
If you recline the seatback
towards the front with the head
restraint and seat cushion
raised, the head restraint may
come in contact with the sunvi-
sor or other parts of the vehicle.
CAUTION

2-19
Safety system of your vehicle
2

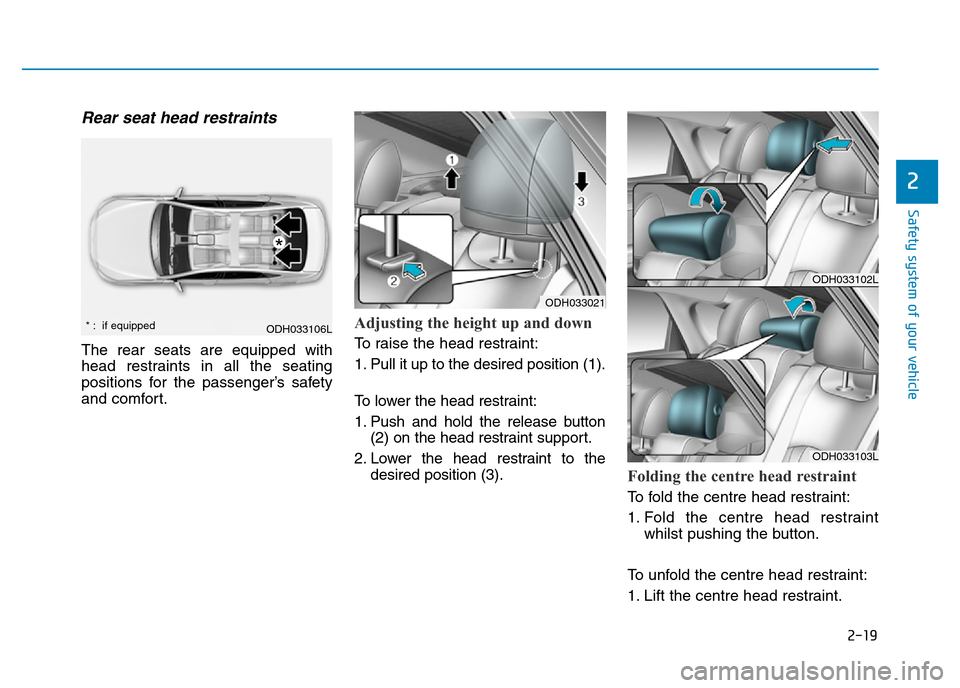

Rear seat head restraints
The rear seats are equipped with
head restraints in all the seating
positions for the passenger’s safety
and comfort.
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button
(2) on the head restraint support.
2. Lower the head restraint to the
desired position (3).
Folding the centre head restraint
To fold the centre head restraint:
1. Fold the centre head restraint
whilst pushing the button.
To unfold the centre head restraint:
1. Lift the centre head restraint.
ODH033021
ODH033102L
ODH033103L
ODH033106L* : if equipped
*

2-20
Safety system of your vehicle

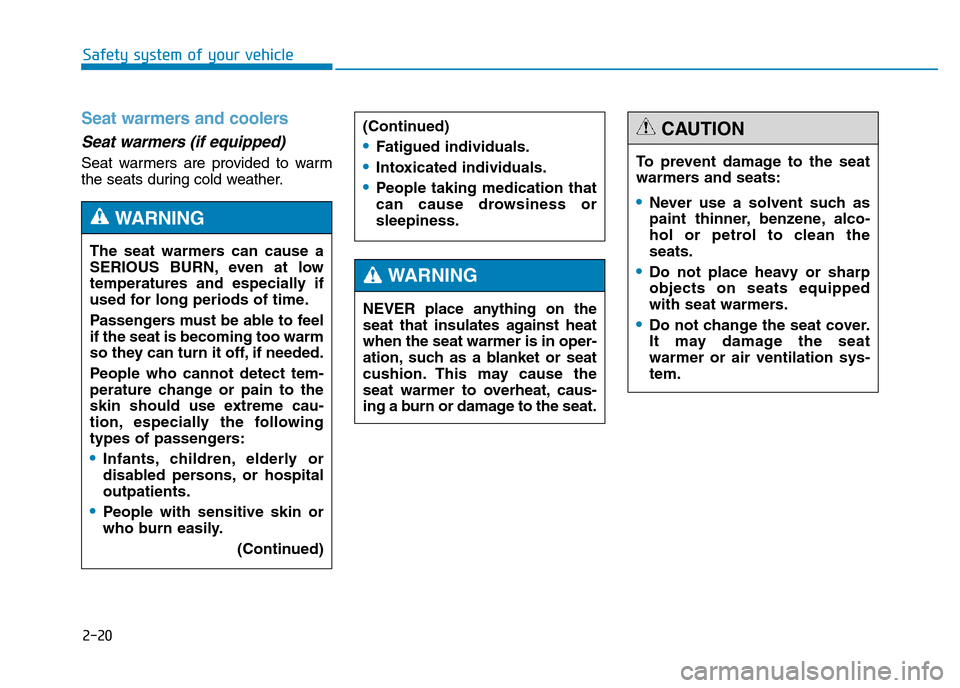

Seat warmers and coolers
Seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time.
Passengers must be able to feel
if the seat is becoming too warm
so they can turn it off, if needed.
People who cannot detect tem-
perature change or pain to the
skin should use extreme cau-
tion, especially the following
types of passengers:
•Infants, children, elderly or
disabled persons, or hospital
outpatients.
•People with sensitive skin or
who burn easily.
(Continued)
(Continued)
•Fatigued individuals.
•Intoxicated individuals.
•People taking medication that
can cause drowsiness or
sleepiness.
WARNING
NEVER place anything on the
seat that insulates against heat
when the seat warmer is in oper-
ation, such as a blanket or seat
cushion. This may cause the
seat warmer to overheat, caus-
ing a burn or damage to the seat.
WARNING
To prevent damage to the seat
warmers and seats:
•Never use a solvent such as
paint thinner, benzene, alco-
hol or petrol to clean the
seats.
•Do not place heavy or sharp
objects on seats equipped
with seat warmers.
•Do not change the seat cover.
It may damage the seat
warmer or air ventilation sys-
tem.
CAUTION

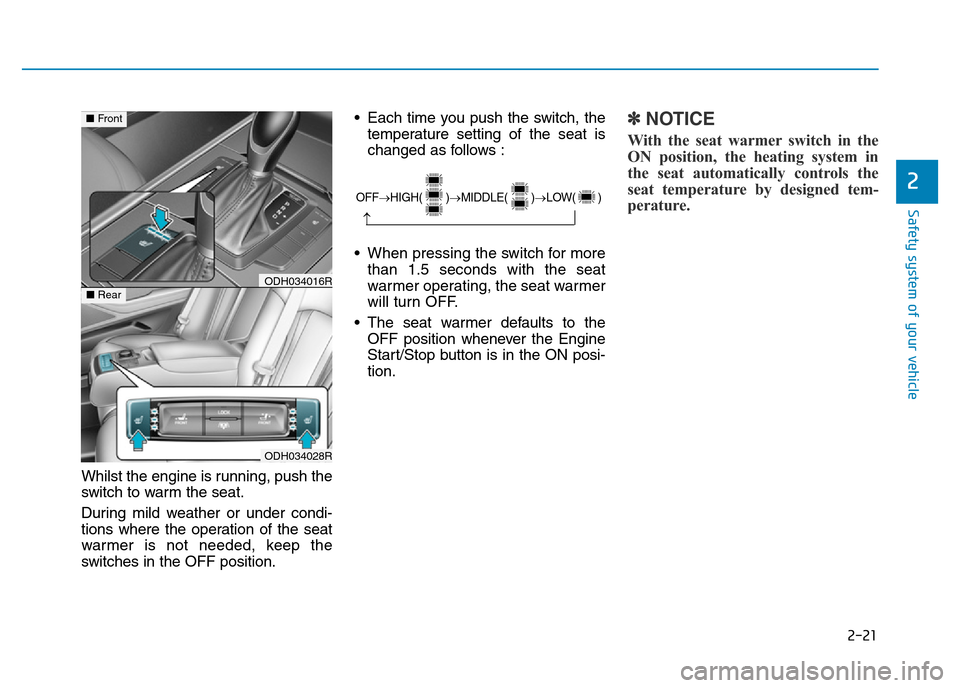

2-21
Safety system of your vehicle
2
Whilst the engine is running, push the
switch to warm the seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.• Each time you push the switch, the
temperature setting of the seat is
changed as follows :
• When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
• The seat warmer defaults to the
OFF position whenever the Engine
Start/Stop button is in the ON posi-
tion.
✽NOTICE
With the seat warmer switch in the
ON position, the heating system in
the seat automatically controls the
seat temperature by designed tem-
perature.
OFF→HIGH( )→MIDDLE( )→LOW( )
→
ODH034028R
ODH034016R
■Front
■Rear

2-22
Safety system of your vehicle

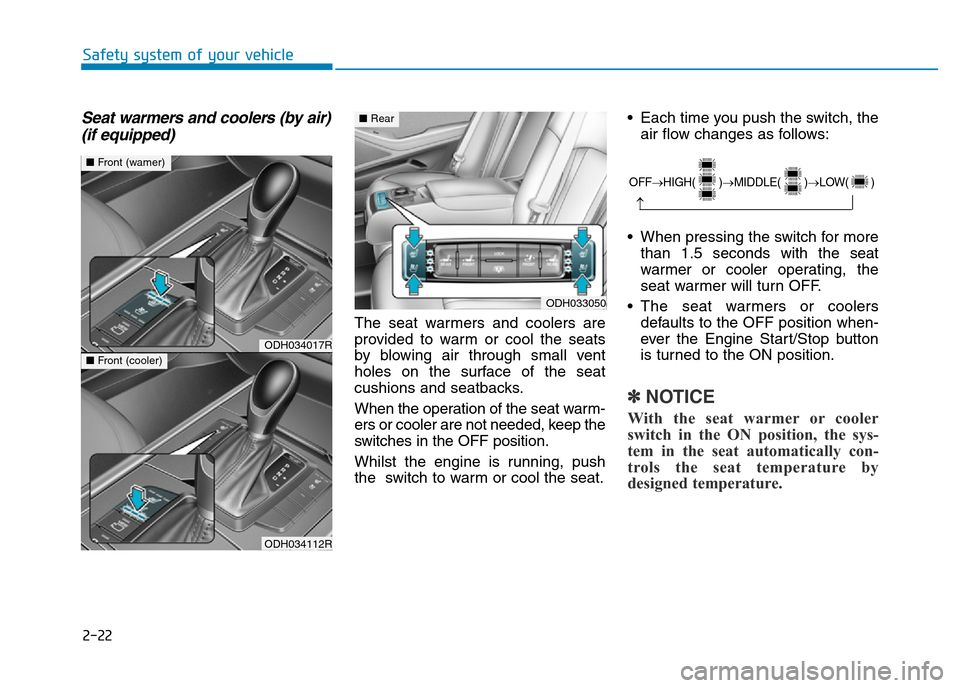

Seat warmers and coolers (by air)
(if equipped)
The seat warmers and coolers are
provided to warm or cool the seats
by blowing air through small vent
holes on the surface of the seat
cushions and seatbacks.
When the operation of the seat warm-
ers or cooler are not needed, keep the
switches in the OFF position.
Whilst the engine is running, push
the switch to warm or cool the seat.• Each time you push the switch, the
air flow changes as follows:
• When pressing the switch for more
than 1.5 seconds with the seat
warmer or cooler operating, the
seat warmer will turn OFF.
• The seat warmers or coolers
defaults to the OFF position when-
ever the Engine Start/Stop button
is turned to the ON position.
✽NOTICE
With the seat warmer or cooler
switch in the ON position, the sys-
tem in the seat automatically con-
trols the seat temperature by
designed temperature.
OFF→HIGH( )→MIDDLE( )→LOW( )
→
ODH033050
ODH034017R
ODH034112R
■Front (wamer)
■Rear
■Front (cooler)
