Hyundai Genesis Coupe 2013 Owner's Manual

Maintenance
64
7

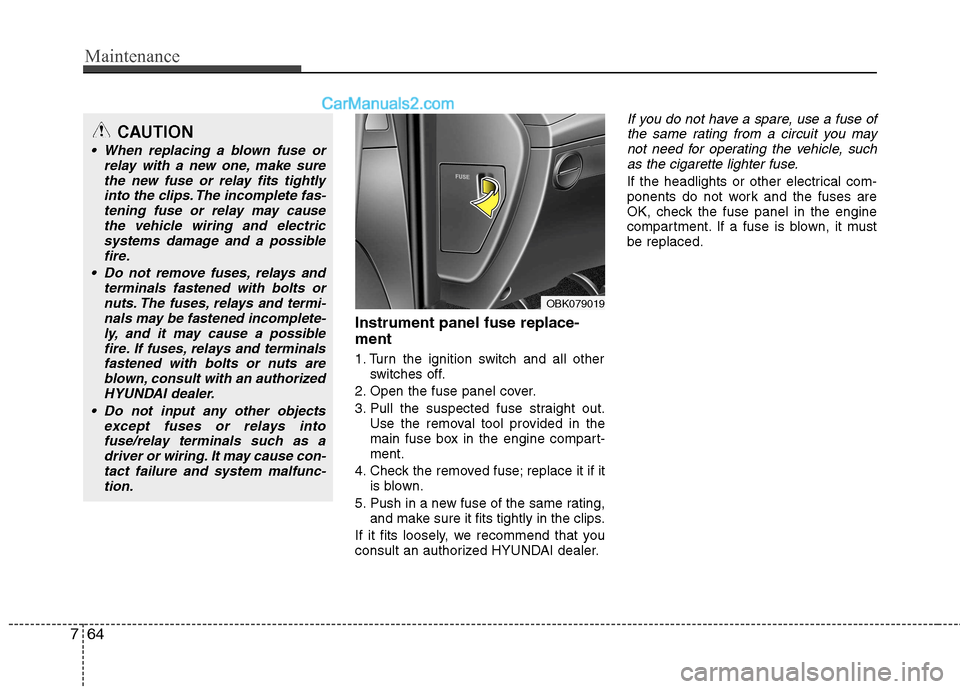

Instrument panel fuse replace- ment
1. Turn the ignition switch and all other
switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the removal tool provided in the
main fuse box in the engine compart-ment.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you
consult an authorized HYUNDAI dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, suchas the cigarette lighter fuse.
If the headlights or other electrical com-
ponents do not work and the fuses are
OK, check the fuse panel in the engine
compartment. If a fuse is blown, it mustbe replaced.
OBK079019
CAUTION
When replacing a blown fuse or relay with a new one, make sure
the new fuse or relay fits tightlyinto the clips. The incomplete fas-tening fuse or relay may cause the vehicle wiring and electric
systems damage and a possiblefire.
Do not remove fuses, relays and terminals fastened with bolts or
nuts. The fuses, relays and termi-nals may be fastened incomplete-ly, and it may cause a possiblefire. If fuses, relays and terminals
fastened with bolts or nuts are blown, consult with an authorizedHYUNDAI dealer.
Do not input any other objects except fuses or relays into
fuse/relay terminals such as adriver or wiring. It may cause con-tact failure and system malfunc-tion.

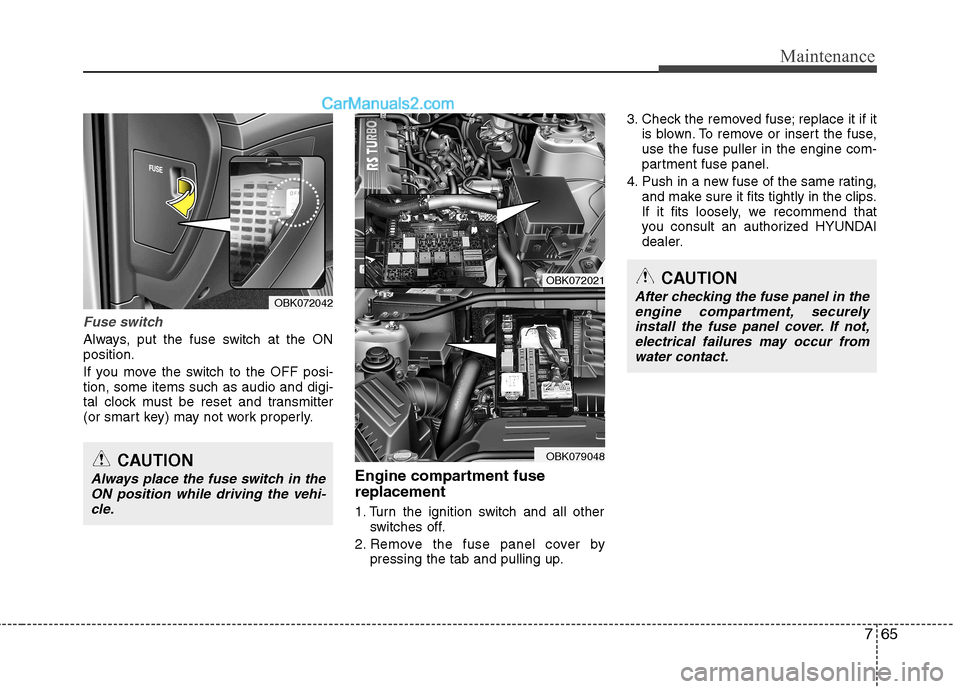

765
Maintenance
Fuse switch
Always, put the fuse switch at the ON position.
If you move the switch to the OFF posi- tion, some items such as audio and digi-
tal clock must be reset and transmitter
(or smart key) may not work properly.Engine compartment fuse replacement
1. Turn the ignition switch and all otherswitches off.
2. Remove the fuse panel cover by pressing the tab and pulling up. 3. Check the removed fuse; replace it if it
is blown. To remove or insert the fuse, use the fuse puller in the engine com-
partment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that
you consult an authorized HYUNDAI
dealer.
OBK072042
OBK072021
OBK079048CAUTION
Always place the fuse switch in the
ON position while driving the vehi-cle.
CAUTION
After checking the fuse panel in theengine compartment, securely
install the fuse panel cover. If not,electrical failures may occur from water contact.

Maintenance
66
7

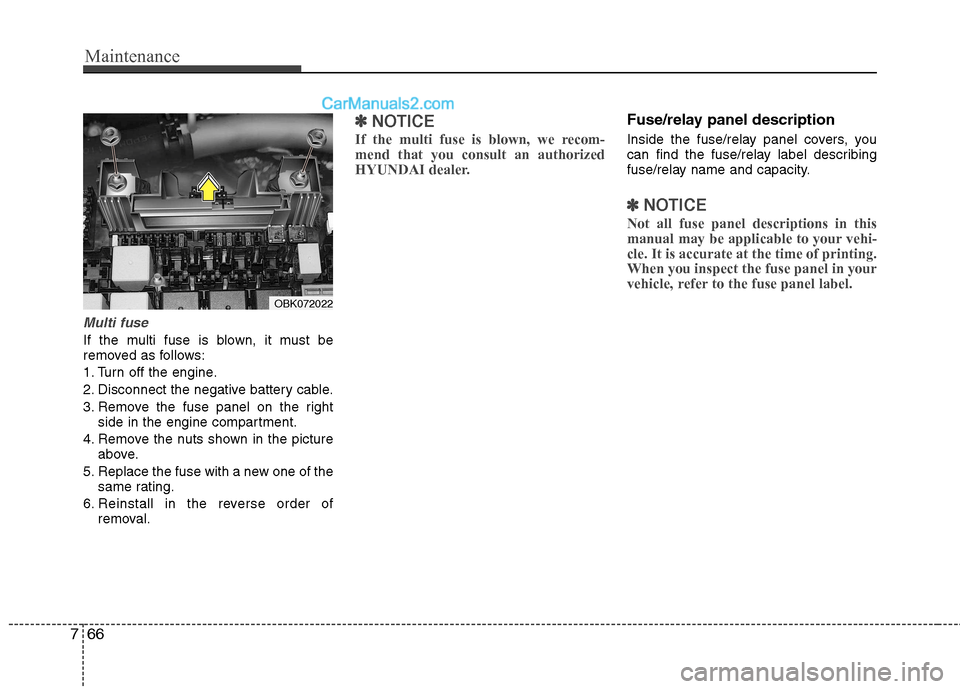

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel on the right
side in the engine compartment.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the multi fuse is blown, we recom- mend that you consult an authorized
HYUNDAI dealer.Fuse/relay panel description
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
✽✽ NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-cle. It is accurate at the time of printing.When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
OBK072022

767
Maintenance

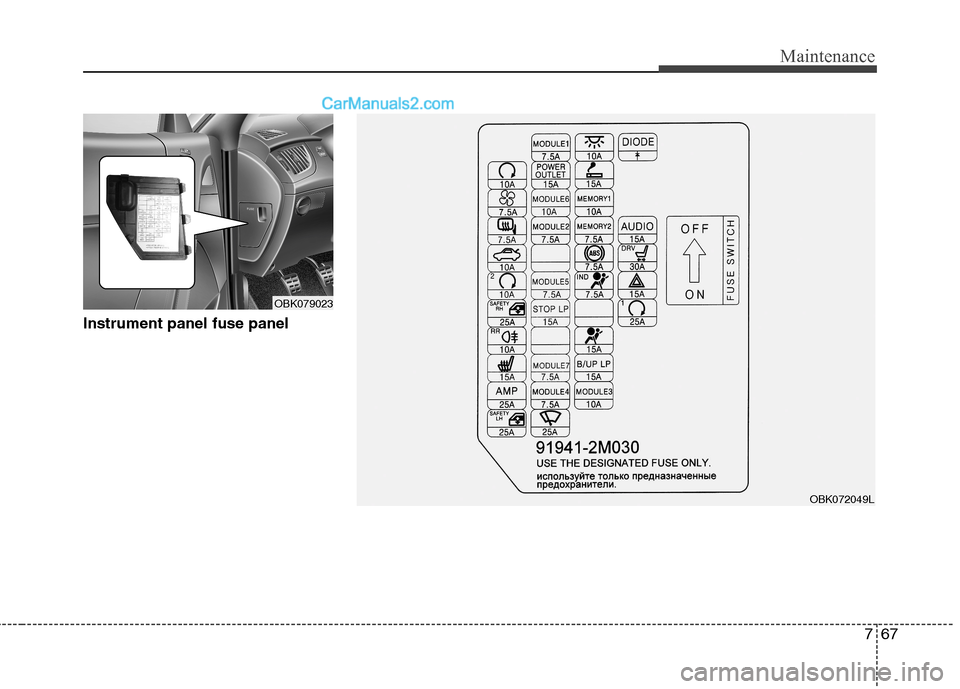

Instrument panel fuse panel
OBK072049L
OBK079023

Maintenance
68
7

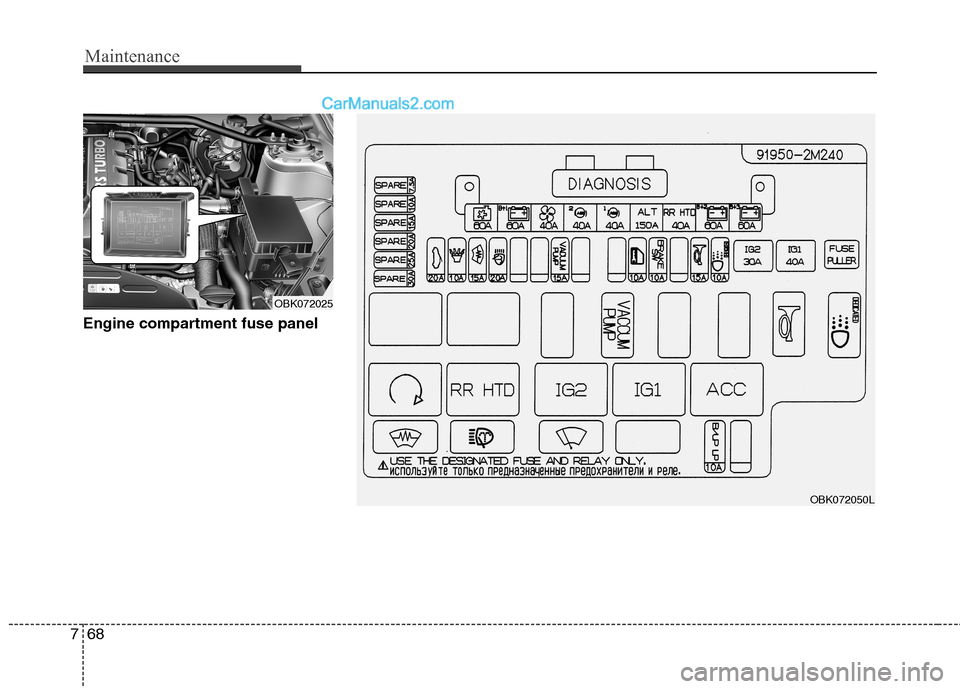

Engine compartment fuse panel
OBK072050L
OBK072025

769
Maintenance

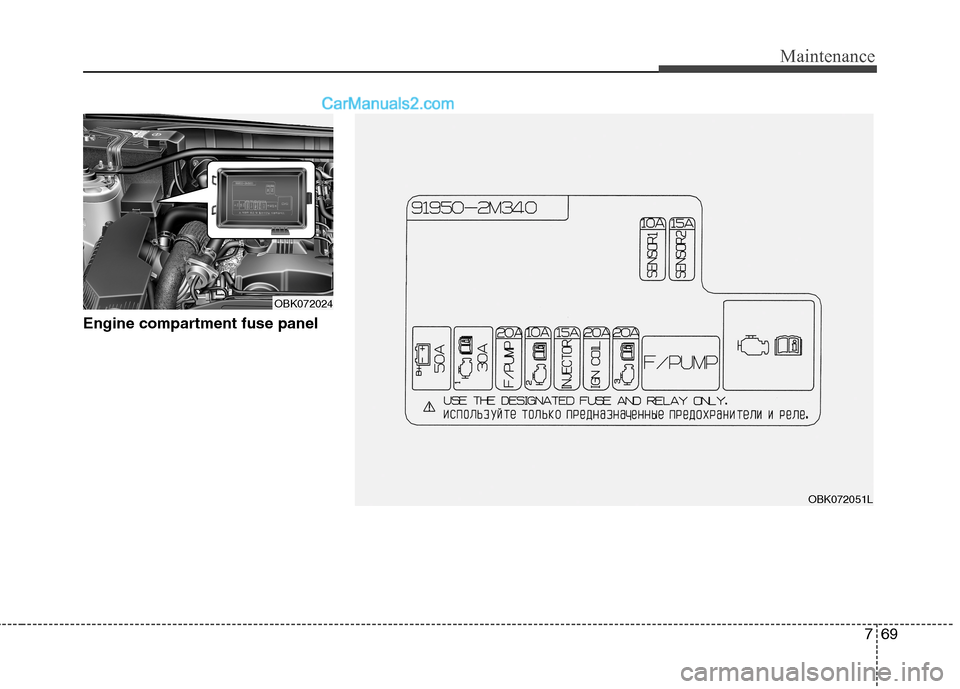

Engine compartment fuse panel
OBK072051L
OBK072024

Maintenance
70
7

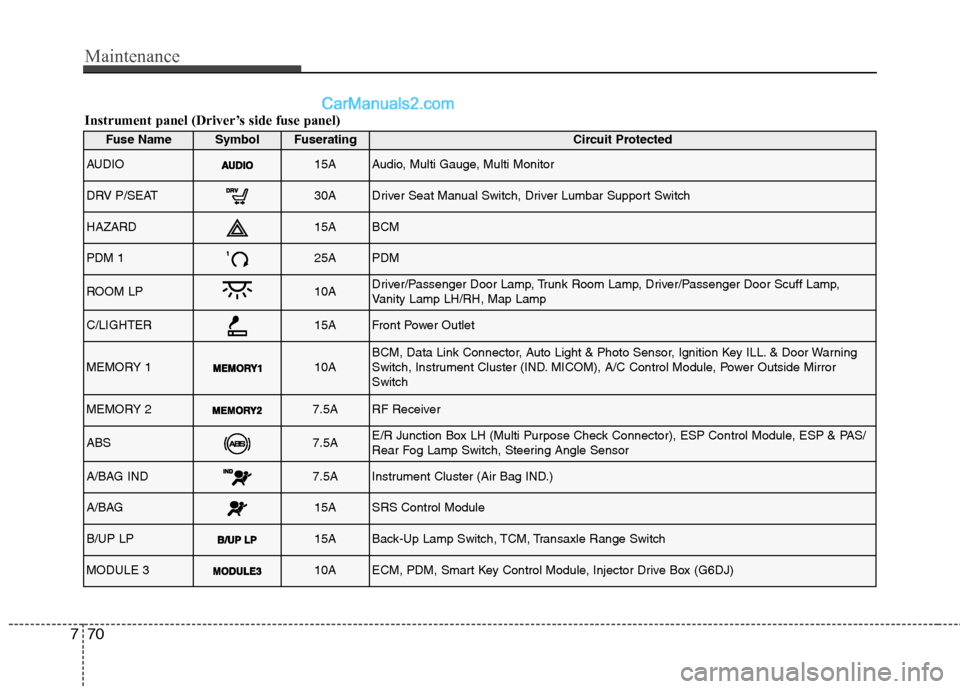

Instrument panel (Driver’s side fuse panel)
Fuse NameSymbolFuseratingCircuit Protected
AUDIO15AAudio, Multi Gauge, Multi Monitor
DRV P/SEAT30ADriver Seat Manual Switch, Driver Lumbar Support Switch
HAZARD15ABCM
PDM 125APDM
ROOM LP10ADriver/Passenger Door Lamp, Trunk Room Lamp, Driver/Passenger Door Scuff Lamp,
Vanity Lamp LH/RH, Map Lamp
C/LIGHTER15AFront Power Outlet
MEMORY 110ABCM, Data Link Connector, Auto Light & Photo Sensor, Ignition Key ILL. & Door Warning
Switch, Instrument Cluster (IND. MICOM), A/C Control Module, Power Outside MirrorSwitch
MEMORY 27.5ARF Receiver
ABS7.5AE/R Junction Box LH (Multi Purpose Check Connector), ESP Control Module, ESP & PAS/
Rear Fog Lamp Switch, Steering Angle Sensor
A/BAG IND7.5AInstrument Cluster (Air Bag IND.)
A/BAG15ASRS Control Module
B/UP LP15ABack-Up Lamp Switch, TCM, Transaxle Range Switch
MODULE 310AECM, PDM, Smart Key Control Module, Injector Drive Box (G6DJ)

771
Maintenance

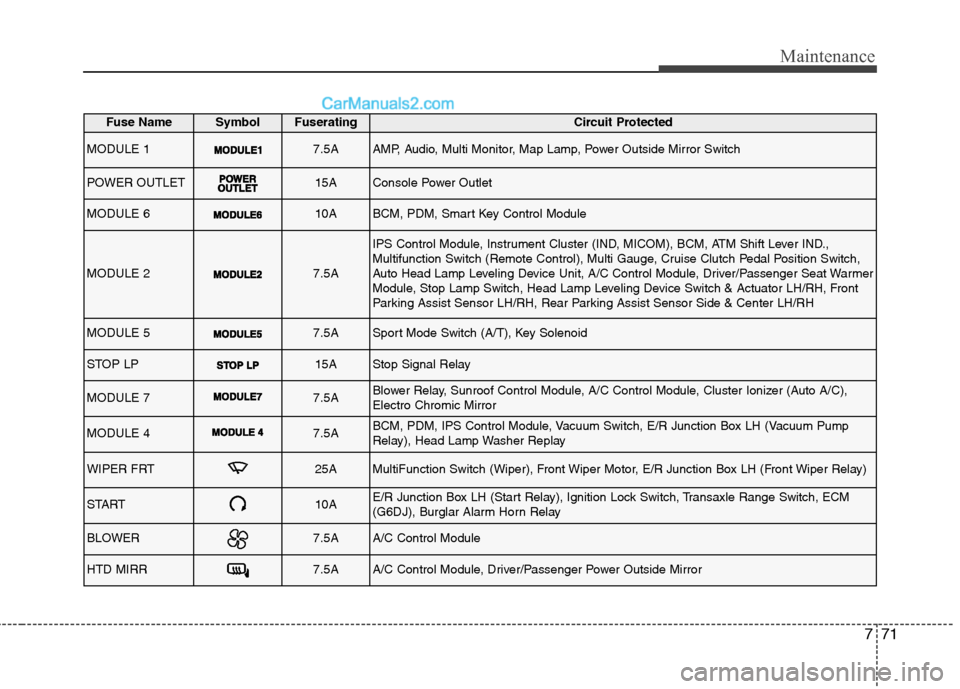

Fuse NameSymbolFuseratingCircuit Protected
MODULE 17.5AAMP, Audio, Multi Monitor, Map Lamp, Power Outside Mirror Switch
POWER OUTLET15AConsole Power Outlet
MODULE 610ABCM, PDM, Smart Key Control Module
MODULE 27.5A
IPS Control Module, Instrument Cluster (IND, MICOM), BCM, ATM Shift Lever IND.,
Multifunction Switch (Remote Control), Multi Gauge, Cruise Clutch Pedal Position Switch,
Auto Head Lamp Leveling Device Unit, A/C Control Module, Driver/Passenger Seat Warmer
Module, Stop Lamp Switch, Head Lamp Leveling Device Switch & Actuator LH/RH, Front
Parking Assist Sensor LH/RH, Rear Parking Assist Sensor Side & Center LH/RH
MODULE 57.5ASport Mode Switch (A/T), Key Solenoid
STOP LP15AStop Signal Relay
MODULE 77.5ABlower Relay, Sunroof Control Module, A/C Control Module, Cluster Ionizer (Auto A/C), Electro Chromic Mirror
MODULE 47.5ABCM, PDM, IPS Control Module, Vacuum Switch, E/R Junction Box LH (Vacuum Pump
Relay), Head Lamp Washer Replay
WIPER FRT25AMultiFunction Switch (Wiper), Front Wiper Motor, E/R Junction Box LH (Front Wiper Relay)
START10AE/R Junction Box LH (Start Relay), Ignition Lock Switch, Transaxle Range Switch, ECM
(G6DJ), Burglar Alarm Horn Relay
BLOWER7.5AA/C Control Module
HTD MIRR7.5AA/C Control Module, Driver/Passenger Power Outside Mirror

Maintenance
72
7

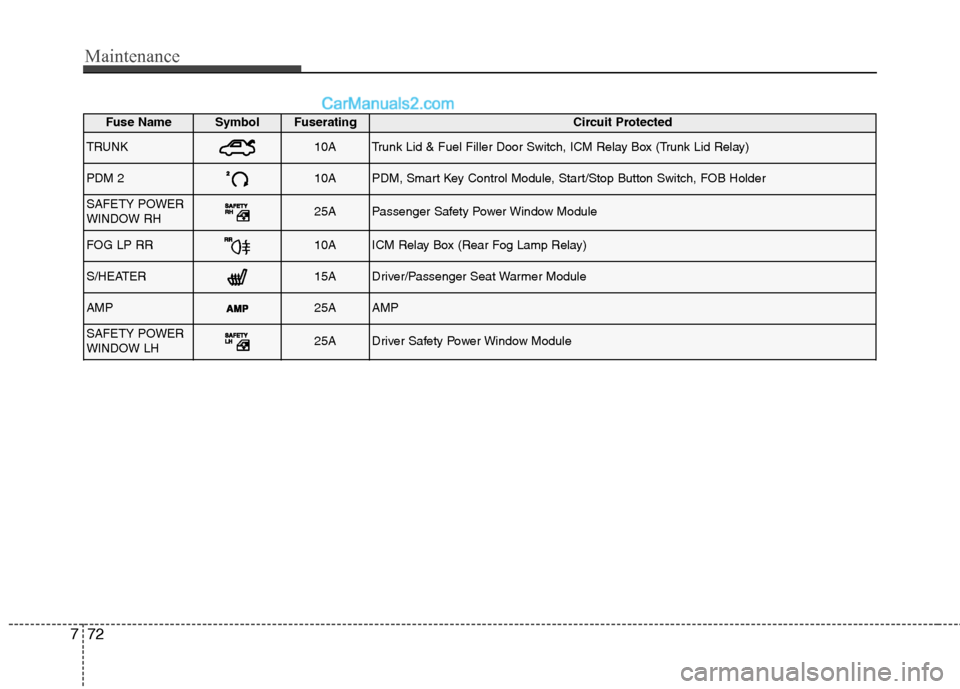

Fuse NameSymbolFuseratingCircuit Protected
TRUNK10ATrunk Lid & Fuel Filler Door Switch, ICM Relay Box (Trunk Lid Relay)
PDM 210APDM, Smart Key Control Module, Start/Stop Button Switch, FOB Holder
SAFETY POWER
WINDOW RH25APassenger Safety Power Window Module
FOG LP RR10AICM Relay Box (Rear Fog Lamp Relay)
S/HEATER15ADriver/Passenger Seat Warmer Module
AMP25AAMP
SAFETY POWER
WINDOW LH25ADriver Safety Power Window Module

773
Maintenance

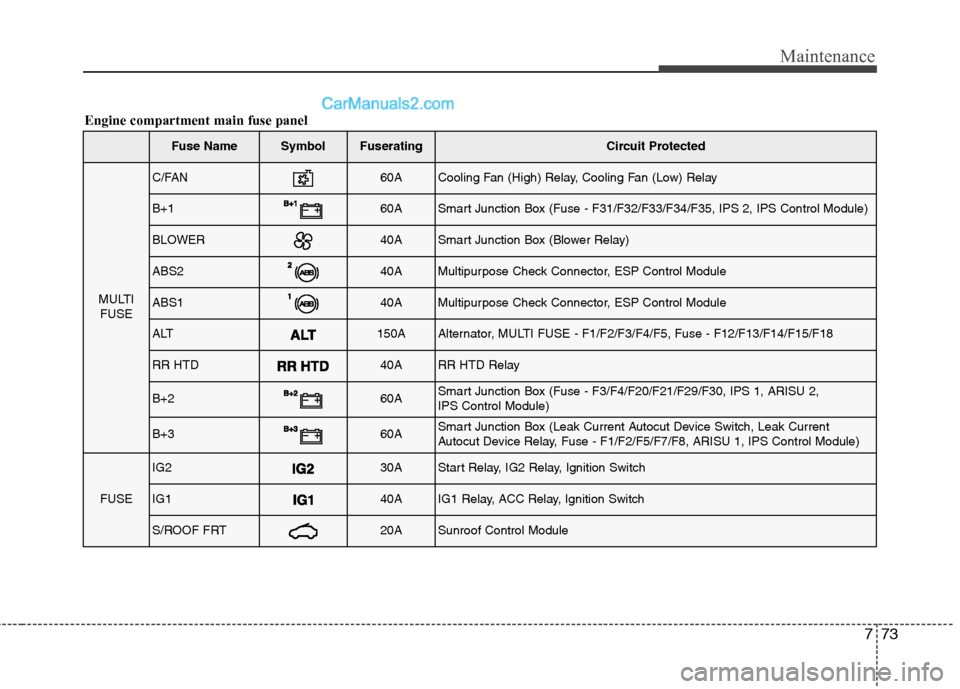

Engine compartment main fuse panel
Fuse NameSymbolFuseratingCircuit Protected
MULTIFUSE
C/FAN60ACooling Fan (High) Relay, Cooling Fan (Low) Relay
B+160ASmart Junction Box (Fuse - F31/F32/F33/F34/F35, IPS 2, IPS Control Module)
BLOWER40ASmart Junction Box (Blower Relay)
ABS240AMultipurpose Check Connector, ESP Control Module
ABS140AMultipurpose Check Connector, ESP Control Module
ALT150AAlternator, MULTI FUSE - F1/F2/F3/F4/F5, Fuse - F12/F13/F14/F15/F18
RR HTD40ARR HTD Relay
B+260ASmart Junction Box (Fuse - F3/F4/F20/F21/F29/F30, IPS 1, ARISU 2, IPS Control Module)
B+360ASmart Junction Box (Leak Current Autocut Device Switch, Leak Current
Autocut Device Relay, Fuse - F1/F2/F5/F7/F8, ARISU 1, IPS Control Module)
FUSE
IG230AStart Relay, IG2 Relay, Ignition Switch
IG140AIG1 Relay, ACC Relay, Ignition Switch
S/ROOF FRT20ASunroof Control Module
