HYUNDAI GENESIS G70 2022 Owners Manual

Convenient Features
5-62
Sunroof Open Warning
OIK040018
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.

05
5-63
Hood
Opening the hood
OIK050020
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
OIK050021
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the hood
1. Before closing the hood, check in and
around the engine compartment to
ensure the following:
- Any tools or other loose objects
are removed from the engine room
area or hood opening area
- All glove, rags, or other
combustible materials is removed
from the engine compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
EXTERIOR FEATURES

Convenient Features
5-64

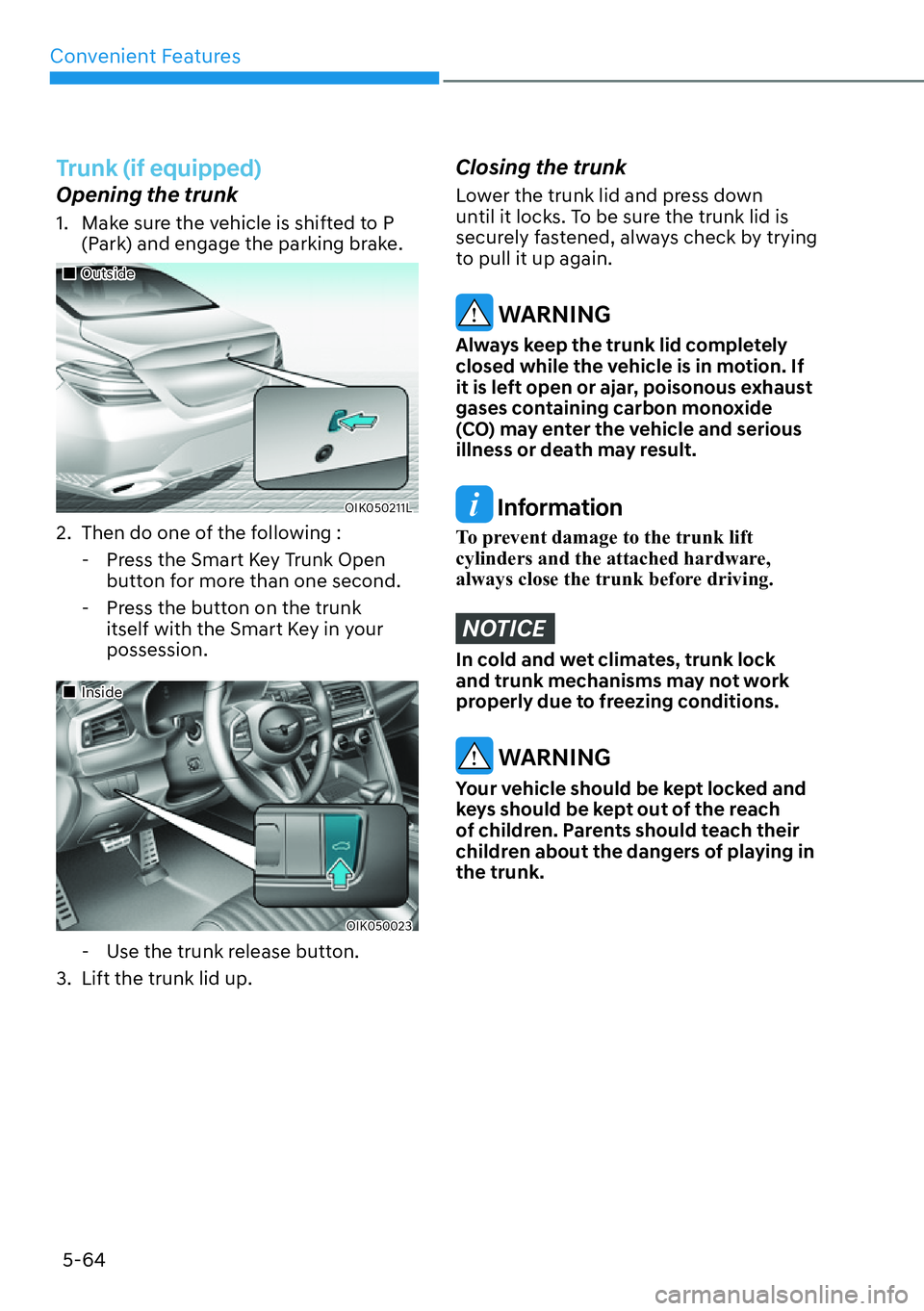

Trunk (if equipped)
Opening the trunk
1. Make sure the vehicle is shifted to P
(Park) and engage the parking brake.
„Outside
OIK050211L
2. Then do one of the following :
- Press the Smart Key Trunk Open
button for more than one second.
- Press the button on the trunk
itself with the Smart Key in your
possession.
„Inside
OIK050023
- Use the trunk release button.
3. Lift the trunk lid up.
Closing the trunk
Lower the trunk lid and press down
until it locks. To be sure the trunk lid is
securely fastened, always check by trying
to pull it up again.
WARNING
Always keep the trunk lid completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
Information
To prevent damage to the trunk lift
cylinders and the attached hardware,
always close the trunk before driving.
NOTICE
In cold and wet climates, trunk lock
and trunk mechanisms may not work
properly due to freezing conditions.
WARNINGYour vehicle should be kept locked and
keys should be kept out of the reach
of children. Parents should teach their
children about the dangers of playing in
the trunk.

05
5-65

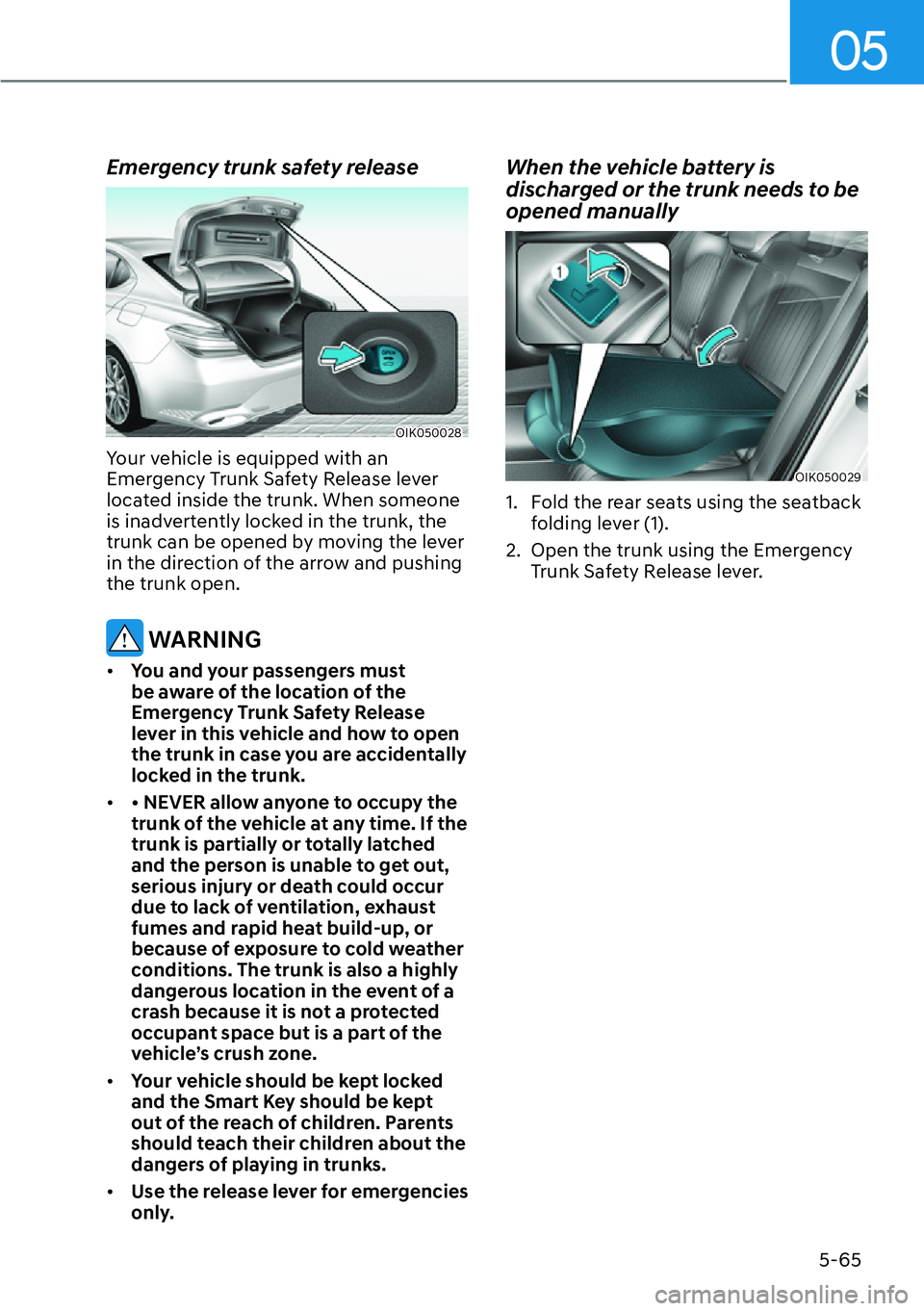

Emergency trunk safety release
OIK050028
Your vehicle is equipped with an
Emergency Trunk Safety Release lever
located inside the trunk. When someone
is inadvertently locked in the trunk, the
trunk can be opened by moving the lever
in the direction of the arrow and pushing
the trunk open.
WARNING
[You and your passengers must
be aware of the location of the
Emergency Trunk Safety Release
lever in this vehicle and how to open
the trunk in case you are accidentally
locked in the trunk.

[
[1(9(5DOORZDQ\RQHWRRFFXS\WKH
trunk of the vehicle at any time. If the
trunk is partially or totally latched
and the person is unable to get out,
serious injury or death could occur
due to lack of ventilation, exhaust
fumes and rapid heat build-up, or
because of exposure to cold weather
conditions. The trunk is also a highly
dangerous location in the event of a
crash because it is not a protected
occupant space but is a part of the
vehicle’s crush zone.

[Your vehicle should be kept locked
and the Smart Key should be kept
out of the reach of children. Parents
should teach their children about the
dangers of playing in trunks.

[Use the release lever for emergencies
only.
When the vehicle battery is
discharged or the trunk needs to be
opened manually
OIK050029
1. Fold the rear seats using the seatback
folding lever (1).
2. Open the trunk using the Emergency
Trunk Safety Release lever.

Convenient Features
5-66

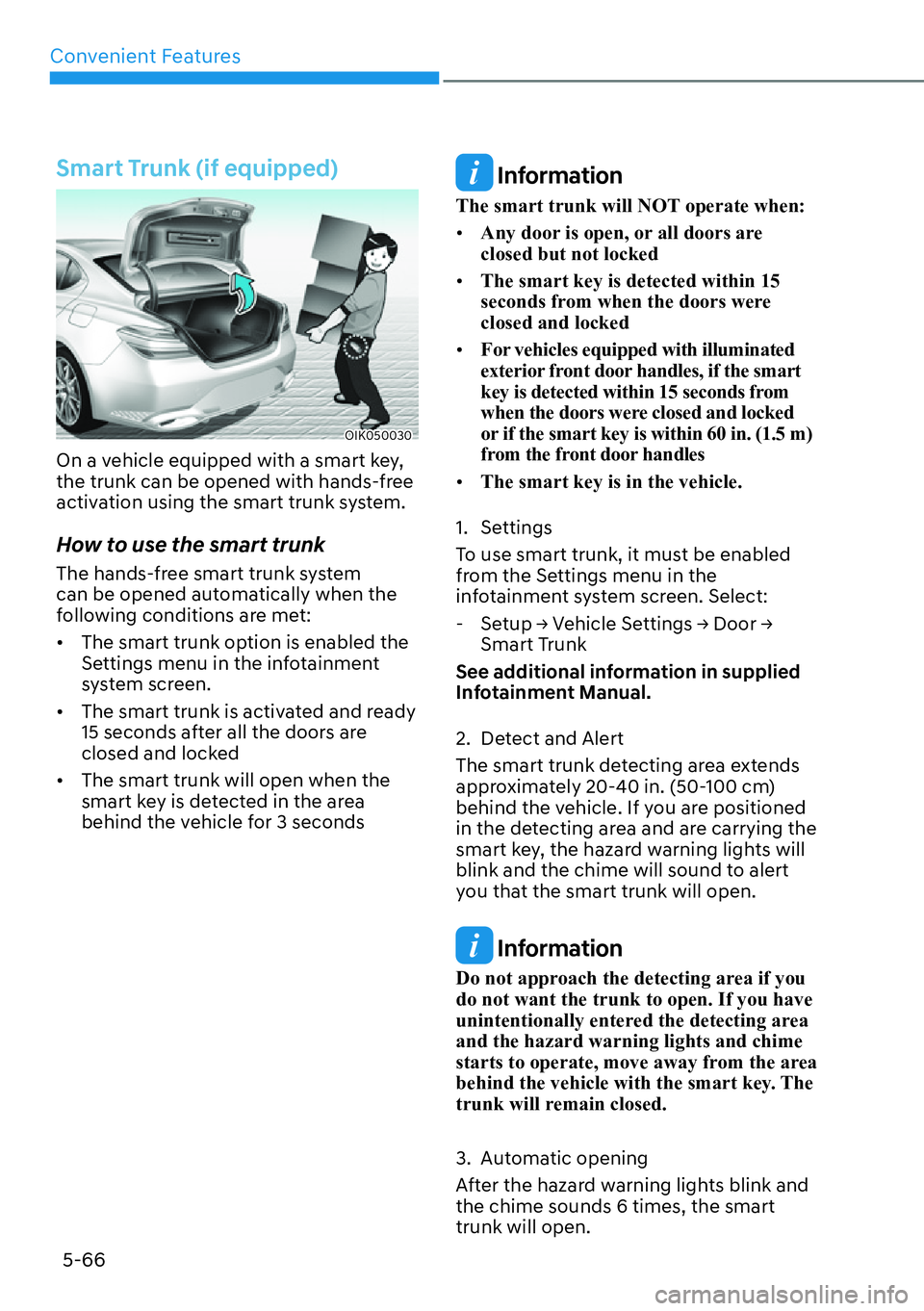

Smart Trunk (if equipped)
OIK050030
On a vehicle equipped with a smart key,
the trunk can be opened with hands-free
activation using the smart trunk system.
How to use the smart trunk
The hands-free smart trunk system
can be opened automatically when the
following conditions are met:

[The smart trunk option is enabled the
Settings menu in the infotainment
system screen.

[The smart trunk is activated and ready
15 seconds after all the doors are
closed and locked

[The smart trunk will open when the
smart key is detected in the area
behind the vehicle for 3 seconds
Information
The smart trunk will NOT operate when:

[Any door is open, or all doors are
closed but not locked

[The smart key is detected within 15
seconds from when the doors were
closed and locked

[For vehicles equipped with illuminated
exterior front door handles, if the smart
key is detected within 15 seconds from
when the doors were closed and locked
or if the smart key is within 60 in. (1.5 m)
from the front door handles

[The smart key is in the vehicle.
1. Settings
To use smart trunk, it must be enabled
from the Settings menu in the
infotainment system screen. Select:
-6HWXS

05
5-67

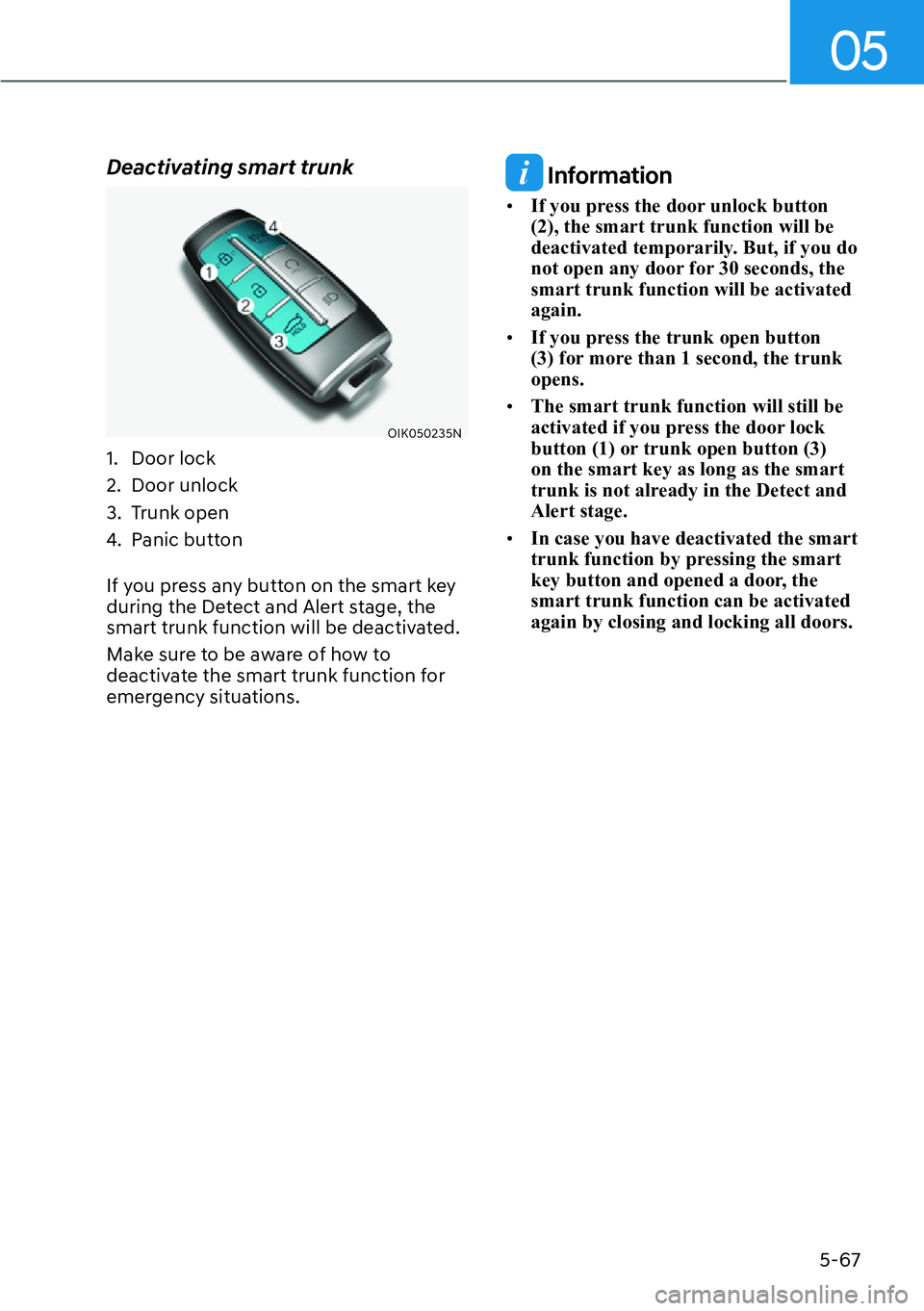

Deactivating smart trunk
OIK050235N
1. Door lock
2. Door unlock
3. Trunk open
4. Panic button
If you press any button on the smart key
during the Detect and Alert stage, the
smart trunk function will be deactivated.
Make sure to be aware of how to
deactivate the smart trunk function for
emergency situations.
Information

[If you press the door unlock button
(2), the smart trunk function will be
deactivated temporarily. But, if you do
not open any door for 30 seconds, the
smart trunk function will be activated
again.

[If you press the trunk open button
(3) for more than 1 second, the trunk
opens.

[The smart trunk function will still be
activated if you press the door lock
button (1) or trunk open button (3)
on the smart key as long as the smart
trunk is not already in the Detect and
Alert stage.

[In case you have deactivated the smart
trunk function by pressing the smart
key button and opened a door, the
smart trunk function can be activated
again by closing and locking all doors.

Convenient Features
5-68
Detecting area
OIK050032

[The smart trunk detecting area
extends approximately 20-40 in. (50-
100 cm) behind the vehicle. If you are
positioned in the detecting area and
are carrying the smart key, the hazard
warning lights will blink and the chime
will sound for about 3 seconds to alert
you that the smart trunk will open.

[The alert stops once the smart key is
moved outside of the detecting area
within the 3 second period.
Information

[The smart trunk function may not
operate properly if any of the following
instances occur:
-The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
-The smart key is near a mobile two
way radio system or a cellular phone.
-Another vehicle’s smart key is being
operated close to your vehicle.

[The smart trunk detecting area may
change when:
-The vehicle is parked on an incline
or slope.
-One side of the vehicle is raised or
lowered relative to the opposite side.
Fuel Filler Door
Opening the fuel filler door
OIK050033
1. Turn the engine off.
2. Push the fuel filler door opener
button.
OIK050077
3. Pull the fuel filler door (1) outward to
access the fuel tank cap.
4. To remove the fuel tank cap (2), turn
it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.

05
5-69
Closing the fuel filler door
1. To install the fuel tank cap, turn it
FORFNZLVHXQWLOLW
UFOLFNV
VRQHWLPH
2. Close the fuel filler door until it is
latched securely.
Information
The fuel filler door will not close if the
driver’s door is locked. If you lock the
driver’s door while fueling, unlock it
before closing the fuel filler door.
WARNING
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:

[Read and follow all warnings posted
at the gas station.

[Before refueling, note the location of
the Emergency Gasoline Shut-Off, if
available, at the gas station.

[Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[Do not use mobile phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.
[Do not go back into the vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other Gasoline source, with your
bare hand.

[When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[Use only approved portable plastic
fuel containers designed to carry and
store Gasoline.

[When refueling, always shift the
vehicle to P(Park), apply the parking
brake, and press the Engine Start/
Stop button to the OFF position.
Sparks produced by electrical
components related to the engine
can ignite fuel vapors causing a fire.

[Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.

[Do not over-fill or top-off your
vehicle tank, which can cause
Gasoline spillage.

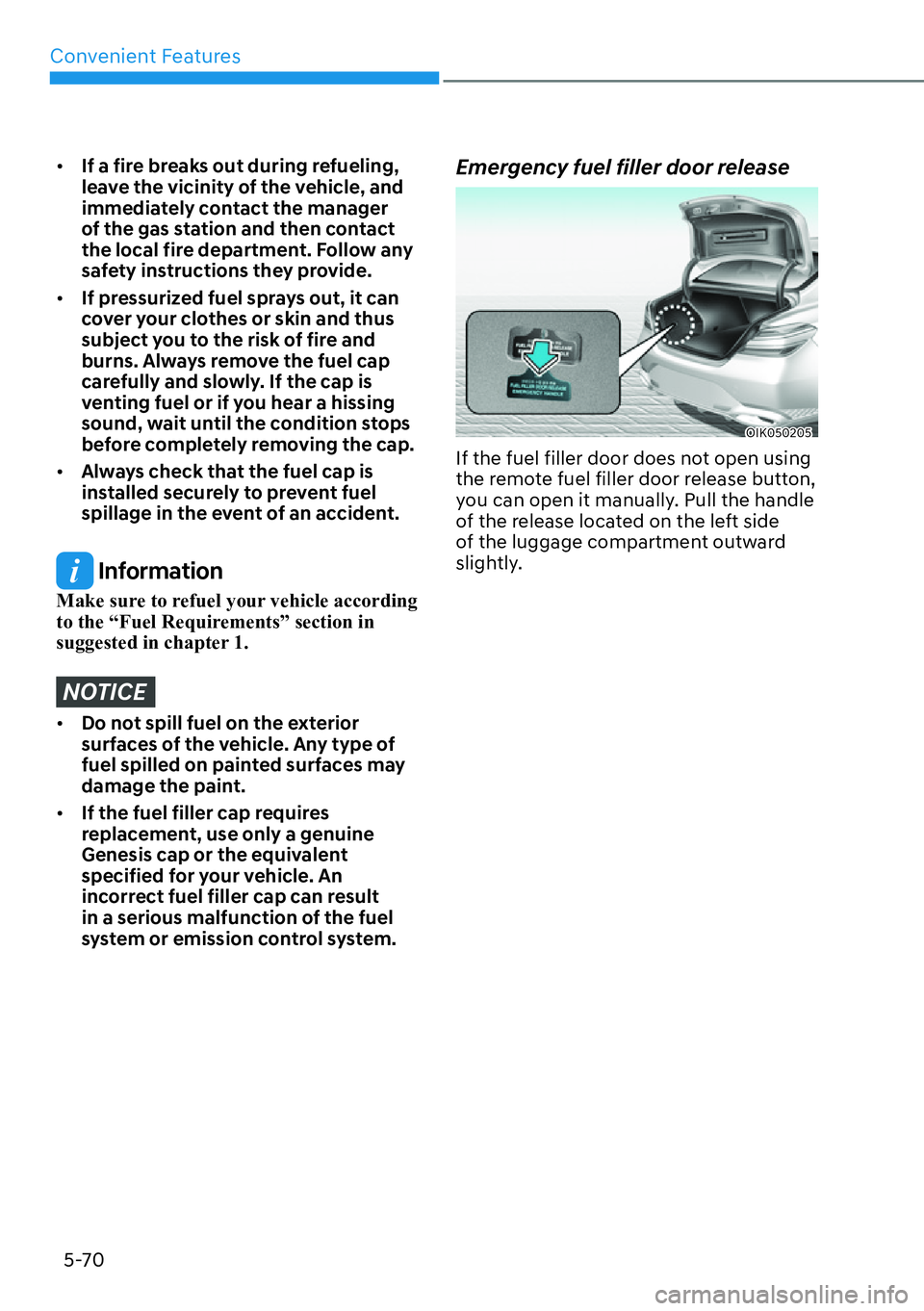

Convenient Features
5-70

[If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
0DNHVXUHWRUHIXHO\RXUYHKLFOHDFFRUGLQJ
to the “Fuel Requirements” section in
suggested in chapter 1.
NOTICE

[Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.

[If the fuel filler cap requires
replacement, use only a genuine
Genesis cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.
Emergency fuel filler door release
OIK050205
If the fuel filler door does not open using
the remote fuel filler door release button,
you can open it manually. Pull the handle
of the release located on the left side
of the luggage compartment outward
slightly.

05
5-71
OIK050034N
The Head-Up Display is a feature that
allows the driver to view information
projected onto a transparent screen
while still keeping their eyes on the road
ahead while driving.
Head-Up Display Settings
OIK050215L

[Head-up display can be enabled from
the Settings menu in the infotainment
system screen. Select:
-6HWXS
