Convenient Features
5-72
Precautions While Using the
Head-Up Display
[ It may sometimes be difficult to read
information on the head-up display in
the following situations.
- The driver is improperly positioned
in the driver’s seat.
- The driver wears polarizing-filter
sunglasses.
- An object is located above the
head-up display cover
- The vehicle is driven on a wet road.
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle.
- The driver wears glasses.
- The driver wears contact lenses.
When it is difficult to read the head up
display information, adjust the image
height or brightness level from the
Settings menu in the infotainment
system screen.
See additional information in
supplied Infotainment Manual. [ For your safety, make sure to stop the
vehicle before adjusting the settings.
[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the head-up display image
may be invisible.
[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
[ When replacing the front windshield
glass, replace it with a windshield
glass designed for head-up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING
The warning information of Blind-Spot
Collision Warning on the head-up
display are supplemental. Do not solely
depend on them to change lanes.
Always take a look around before
changing lanes.
Information
Head-up Display includes GPL, LGPL,
0 3 / D Q G R W K H U R S H Q V R X U F H O L F H Q V H
software. All license notices including
U H O D W H G V R X U F H F R G H D U H S U R Y L G H G D W K W W S
Z Z Z P R E L V F R N U R S H Q V R X U F H O L V W G R
If the driver requests on-board
V R I W Z D U H R S H Q V R X U F H F R G H Y L D 0 2 % , 6 B
[email protected] within 3 years
D I W H U E X \ L Q J W K L V S U R G X F W D & ' 5 2 0 R U
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.
Page 202 of 530
05
5-73
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OHI048528
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :
[ The headlamps are ON.
[ The parking brake is applied.
[ The vehicle is turned off.
Auto headlamp (OFF position)
OIK050246N
The lights turn on or off depending on
the amount of daylight detected by the
sensor when the parking brake is not
activated or vehicle speed is above 3
mph (5 km/h).
Activating the parking brake when the
vehicle speed less than 3 mph (5 km/h)
can turn off automatically lit headlamp
by the amount of daylight.
OIK047053
AUTO headlamp position
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
LIGHTING
Page 203 of 530
Convenient Features
5-74
NOTICE
[ Even with the AUTO headlamp
feature in operation, it is
recommended to manually turn ON
the headlamps when driving at night
or in a fog, driving in the rain, or
when you enter dark areas, such as
tunnels and parking facilities.
[ Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.
[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
[ If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
OHI048530
Parking lamp position ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
OHI048529
Headlamp position ()
The headlamp, parking lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
7 K H ( Q J L Q H 6 W D U W 6 W R S E X W W R Q P X V W E H L Q
the ON position to turn on the headlamp.
Page 204 of 530
05
5-75

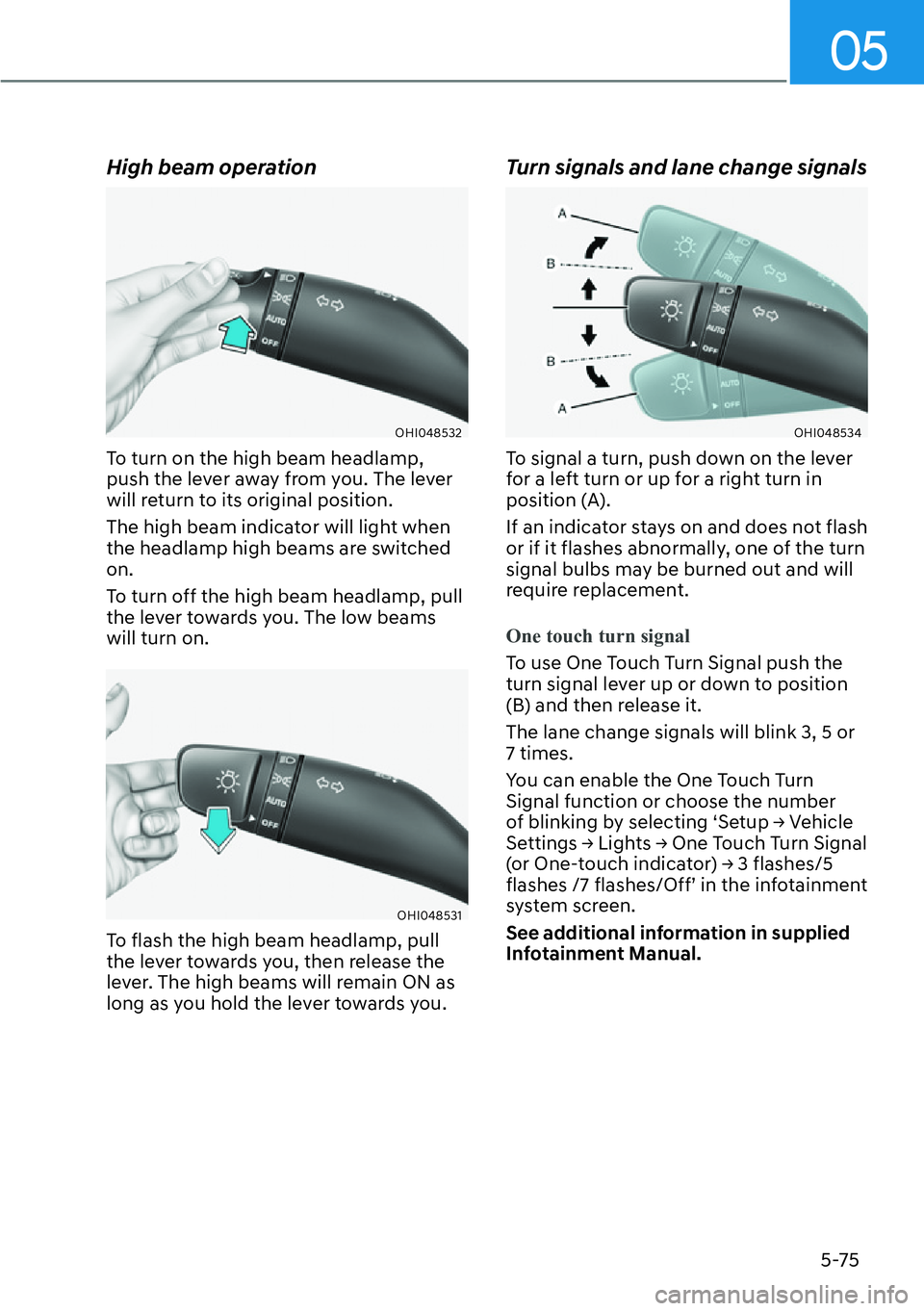

High beam operation
OHI048532
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
OHI048531
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change signals
OHI048534
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
R I E O L Q N L Q J E \ V H O H F W L Q J S 6 H W X S
Page 205 of 530
Convenient Features
5-76
Battery saver function
The purpose of this feature is to
help prevent the battery from being
discharged. The system automatically
turns off the parking lamp when the
driver turns the vehicle off and opens the
driver-side door.
With this feature, the parking lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the vehicle is turned off, perform the
following:
(1) Open the driver-side door.
(2) Turn the parking lamps OFF and ON
again using the headlamp switch on
the steering column.
Headlamp delay function
If the Engine Start/Stop button is in the
ACC parking or the OFF position with
the headlamps ON, the headlamps (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlamps
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlamps (and/
or parking lamps) are turned off after 15
seconds.
The headlamps (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlamp switch to the OFF or AUTO
position.
You can enable the headlamp delay
I X Q F W L R Q E \ V H O H F W L Q J S 6 H W X S
Page 206 of 530
05
5-77
Headlamp moisture removal
function
When moisture fogs up inside of the
headlamp with the headlamp on for a
certain period of time, the fan circulates
air inside the headlamp to remove
moisture. If moisture is not removed,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Puddle Lamp (if equipped)
OIK050045
Welcome light
When all doors (and trunk) are closed
and locked, the puddle lamp will turn on
for 15 seconds if the door is unlocked by
the smart key or when you put your hand
in the outside door handle with the smart
key in possession.
For more details, refer to “Welcome
System” in this chapter.
Escort light
When the Engine Start/Stop button is in
the OFF position and the driver’s door is
opened, the puddle lamp will turn on for
30 seconds. If the driver’s door is closed
within the 30 second period, the puddle
lamp will turn off after 15 seconds. If the
driver’s door is closed and locked, the
puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn
on only the first time the driver’s door is
opened after the engine is turned off.
Page 207 of 530
Convenient Features
5-78

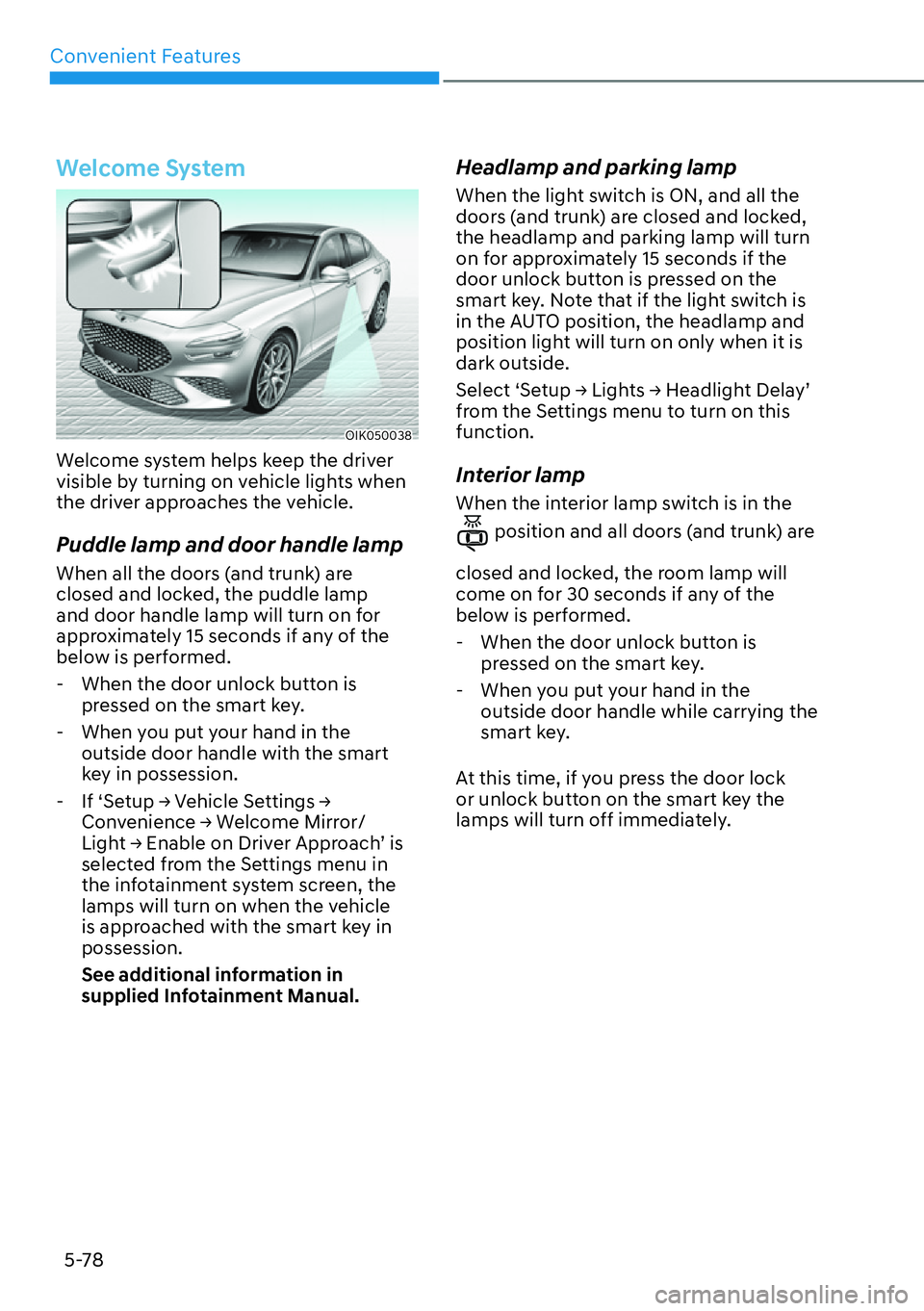

Welcome System
OIK050038
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Puddle lamp and door handle lamp
When all the doors (and trunk) are
closed and locked, the puddle lamp
and door handle lamp will turn on for
approximately 15 seconds if any of the
below is performed.
- When the door unlock button is
pressed on the smart key.
- When you put your hand in the
outside door handle with the smart
key in possession.
- , I S 6 H W X S
Page 208 of 530
05
5-79

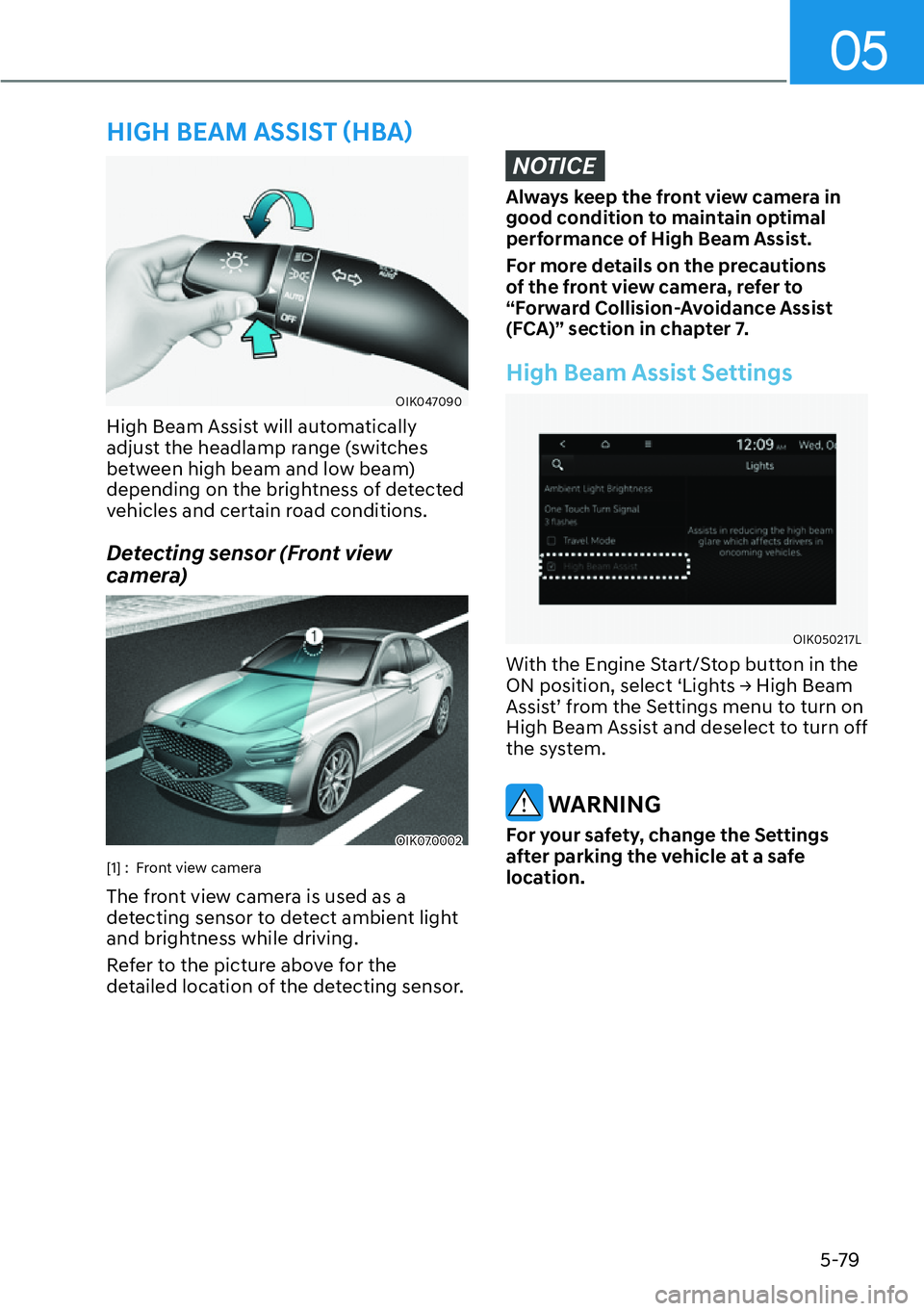

+ , * + % ( $ 0 $ 6 6 , 6 7
Page 209 of 530
Convenient Features
5-80
High Beam Assist Operation
Display and control
[ After selecting ‘High Beam Assist’
in the Settings menu, High Beam
Assist will operate by following the
procedure below.
- Place the headlamp switch in
the AUTO position and push the
headlamp switch towards the
instrument cluster. The High Beam
Assist (
) indicator light will
illuminate on the cluster and HBA
will be enabled.
- When High Beam Assist is enabled,
high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 20
mph (30 km/h), high beam will not
turn on.
- The High Beam (
) indicator light
will illuminate on the cluster when
high beam is on.
[ When High Beam Assist is operating,
if the headlamp switch or switch is
HBA operates as follow:
- If the headlamp switch is pulled
towards you when the high beam
is off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlamp
switch, the switch will move to the
middle and the high beam will turn
off.
- If the headlamp switch is pulled
towards you when the high beam is
on by High Beam Assist, low beam
will be on and the system will turn
off.
- If the headlamp switch is placed
from AUTO to another position
(headlamp/position/off), High
Beam Assist will turn off and the
corresponding lamp will turn on.[ When High Beam Assist is operating,
high beam switches to low beam if
any of the following conditions occur:
- When the headlamp of an
oncoming vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light
is bright enough that high beams
are not required.
- When streetlights or other lights are
detected.
High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OIK050227L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
(HBA) system’ warning message will
appear and
light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Page 210 of 530
05
5-81

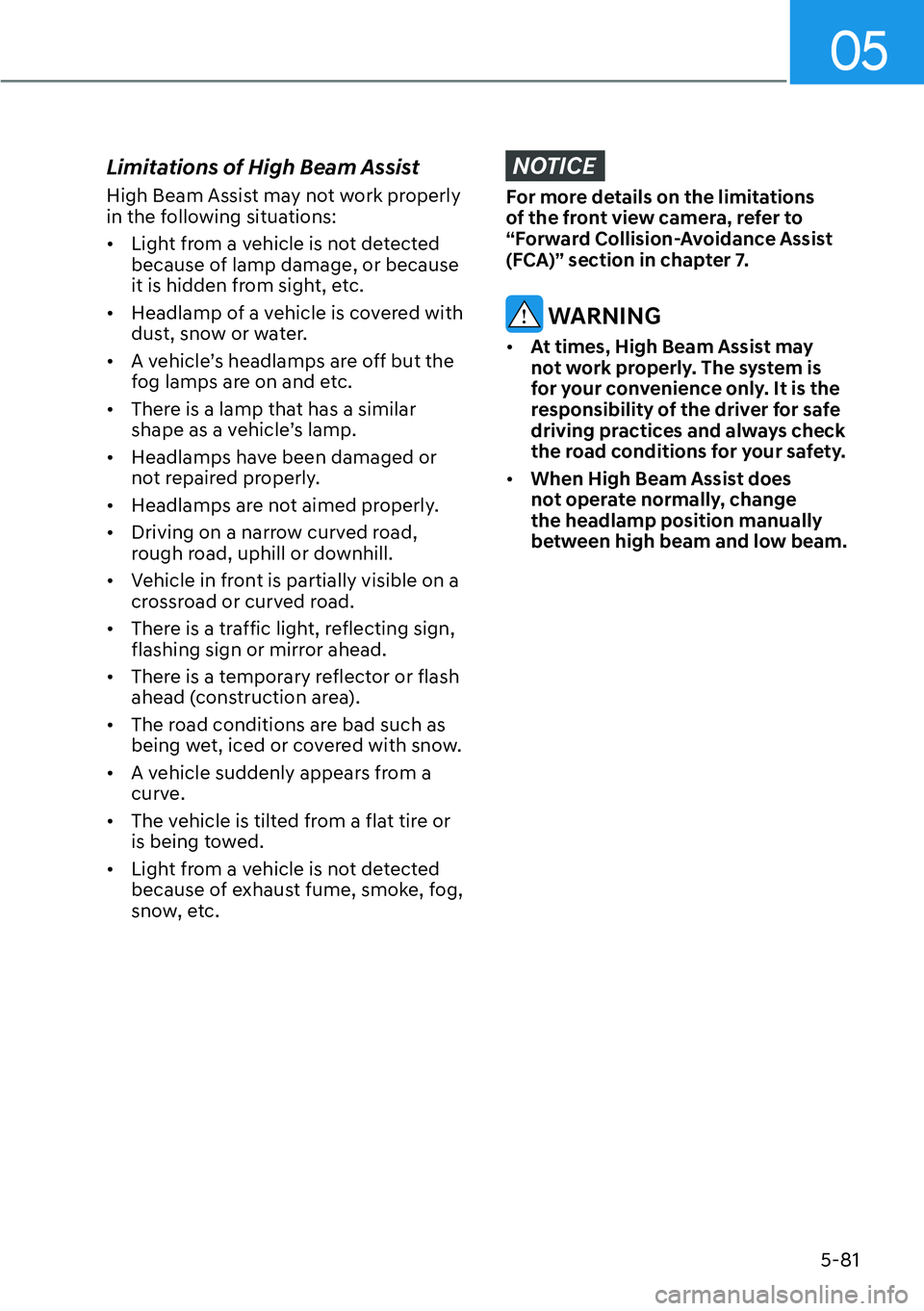

Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:
[ Light from a vehicle is not detected
because of lamp damage, or because
it is hidden from sight, etc.
[ Headlamp of a vehicle is covered with
dust, snow or water.
[ A vehicle’s headlamps are off but the
fog lamps are on and etc.
[ There is a lamp that has a similar
shape as a vehicle’s lamp.
[ Headlamps have been damaged or
not repaired properly.
[ Headlamps are not aimed properly.
[ Driving on a narrow curved road,
rough road, uphill or downhill.
[ Vehicle in front is partially visible on a
crossroad or curved road.
[ There is a traffic light, reflecting sign,
flashing sign or mirror ahead.
[ There is a temporary reflector or flash
ahead (construction area).
[ The road conditions are bad such as
being wet, iced or covered with snow.
[ A vehicle suddenly appears from a
curve.
[ The vehicle is tilted from a flat tire or
is being towed.
[ Light from a vehicle is not detected
because of exhaust fume, smoke, fog,
snow, etc.
NOTICE
For more details on the limitations
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
WARNING
[ At times, High Beam Assist may
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.
[ When High Beam Assist does
not operate normally, change
the headlamp position manually
between high beam and low beam.
