HYUNDAI GENESIS G70 2022 Owners Manual

Convenient Features
5-82
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
Front Lamps
OIK050239N
Front map lamp ():
Touch either icons to turn the map lamp
on or off. This light produces a spot
beam for convenient use as a map lamp
at night or as a personal lamp for the
driver and the front passenger.
Door lamp ()
The front or rear room lamps come on
when the front or rear doors are opened.
When doors are unlocked by the smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Engine
Start/Stop button is in the ON position
or all doors are locked, the front and rear
lamps will turn off. If a door is opened
with the Engine Start/Stop button in
the ACC position or the OFF position,
the front and rear lamps will stay on for
about 20 minutes.
Room lamp ()
Press the button to turn ON the room
lamp for the front/rear seats.
INTERIOR LIGHTS

05
5-83
Rear Lamps
„Room lamp
OIK050081
Rear room lamp ( )
Press this button to turn the room lamp
on or off.
Rear map lamp ( )
Press either of these buttons to turn
either side of the rear lamp on or off.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
Vanity Mirror Lamp
OHI048428
Opening the lid of the vanity mirror will
automatically turn on the mirror lamp.

Convenient Features
5-84

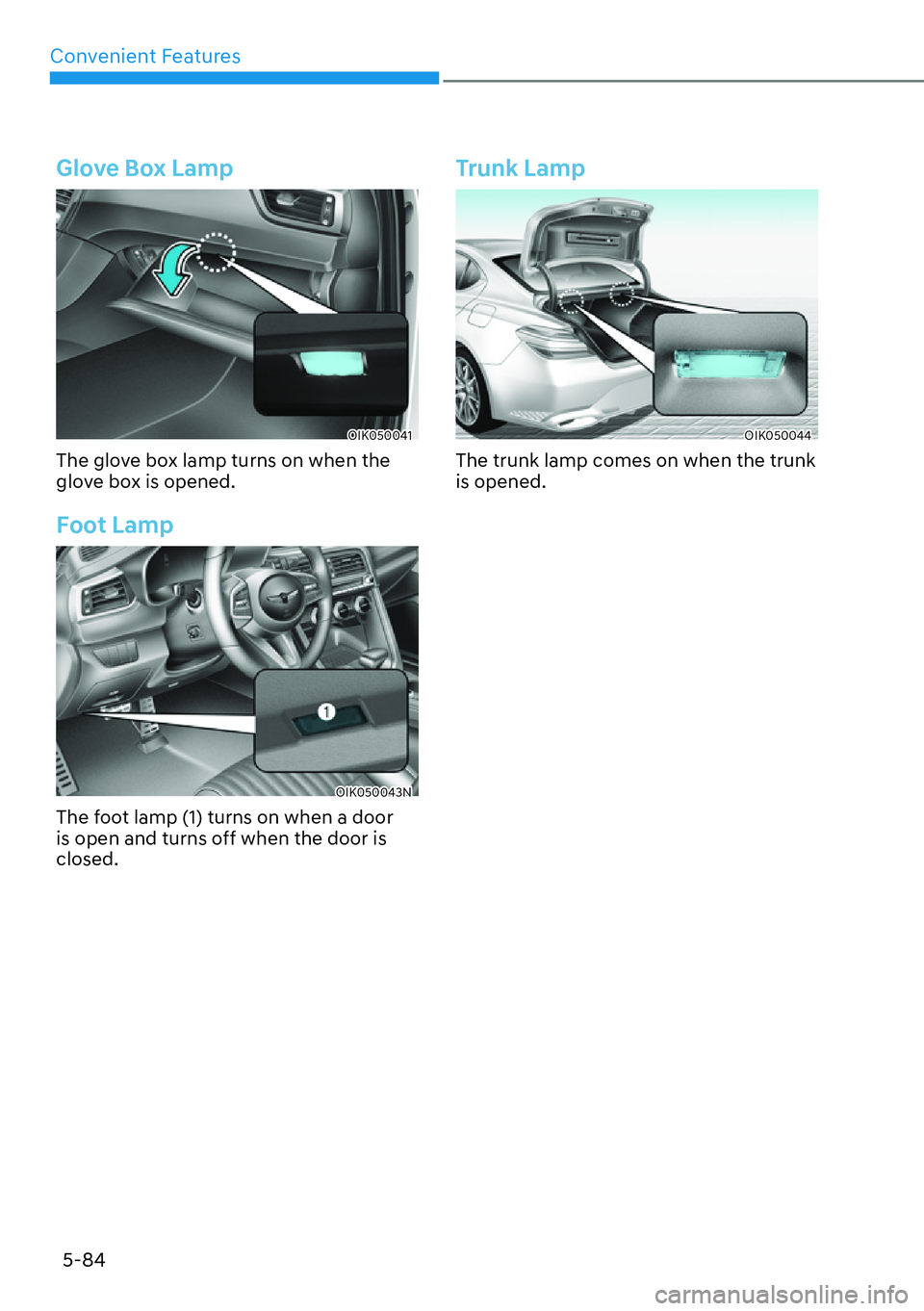

Glove Box Lamp
OIK050041
The glove box lamp turns on when the
glove box is opened.
Foot Lamp
OIK050043N
The foot lamp (1) turns on when a door
is open and turns off when the door is
closed.
Trunk Lamp
OIK050044
The trunk lamp comes on when the trunk
is opened.

05
5-85
WIPERS AND WASHERS
„Type A
OIG046468
„Type B
OHI048575L
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· AUTO – Automatic control wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Auto control wipe time adjust-ment
C : Wash with brief wipes
Front Windshield Wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST : For a single wiping cycle,
push the lever upward and
release. The wipers will operate
continuously if the lever is held
in this position.
OFF : Wiper is not in operation.
INT : Wiper operates intermittently
at the same wiping intervals. To
vary the speed setting, move
the speed control lever. The top
most setting will run the wipers
most frequently (for more rain).
The bottom setting will run the
wipers the least frequently (for
less rain).
AUTO : The rain sensor located on the
upper end of the windshield
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.

Convenient Features
5-86
AUTO (Automatic) control
OIK050046
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled, depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Engine Start/Stop button is in
the ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to the OFF position
when the wiper is not in use.
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.

05
5-87
Windshield Washers
OHI048536
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
help prevent the scent from entering
the cabin, recirculation mode and air
conditioning are automatically activated
depending on the outside temperature. If
you select fresh mode while the function
is operating, the function will resume
after a certain amount of time. It may not
work in some conditions such as cold
weather or engine OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

Convenient Features
5-88

ôType A

ôType B
The switch arrangements may vary depending on which functions are applicable to your
vehicle.
OIK047300/OIK047301

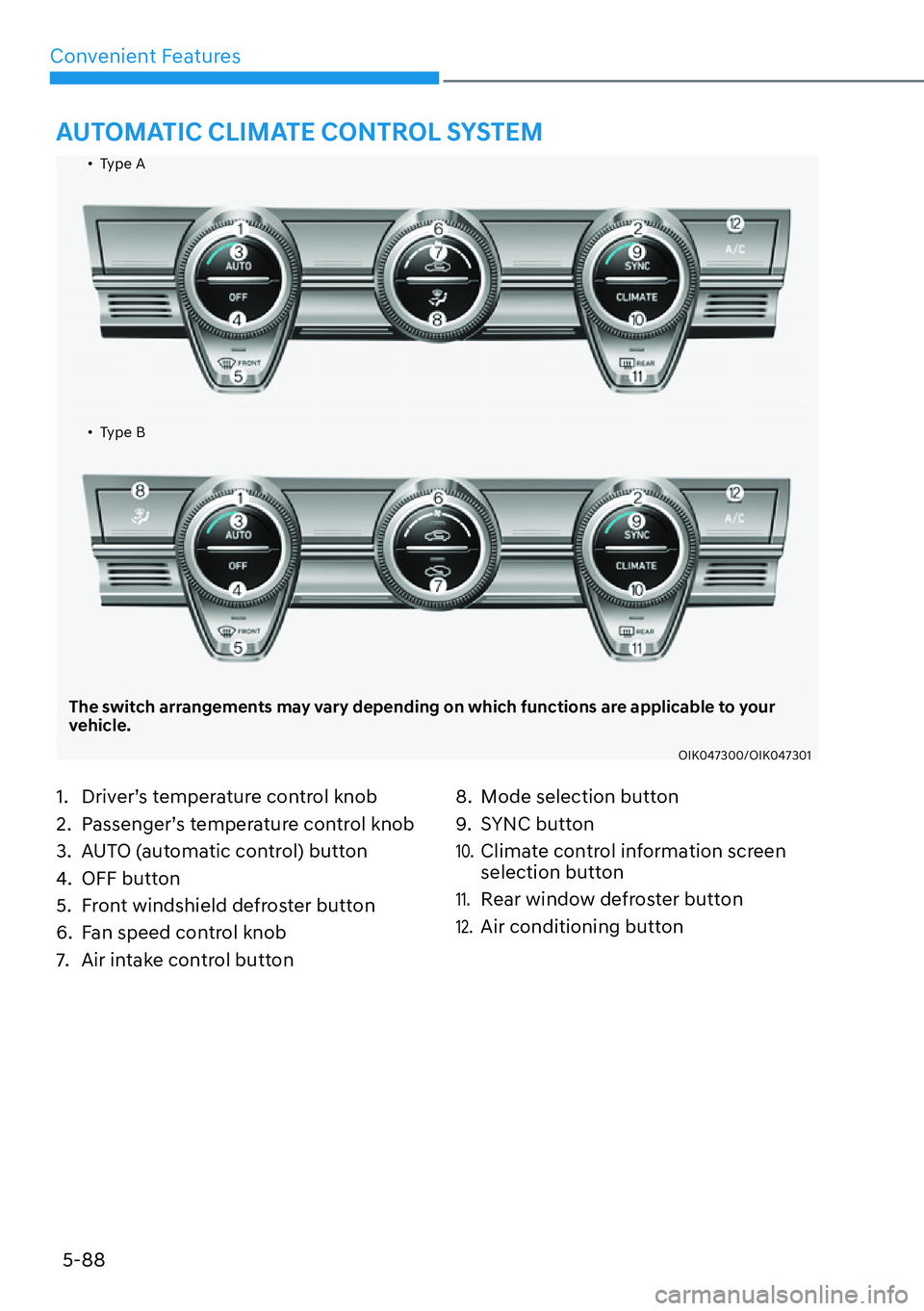

AUTOMATIC CLIMATE CONTROL SYSTEM
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defroster button
6. Fan speed control knob
7. Air intake control button8. Mode selection button
9. SYNC button
10. Climate control information screen
selection button
11. Rear window defroster button
12. Air conditioning button

05
5-89

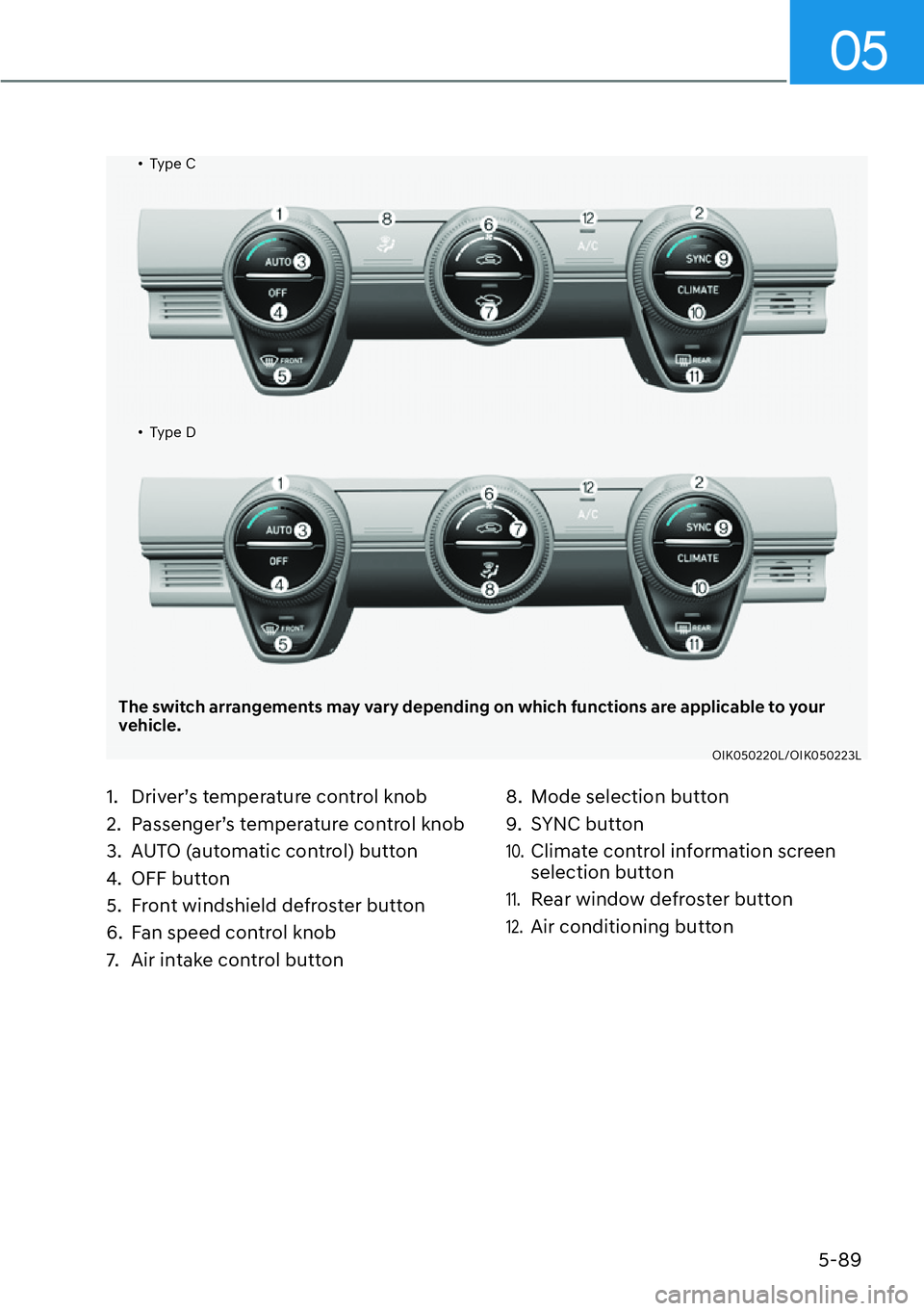

ôType C

ôType D
The switch arrangements may vary depending on which functions are applicable to your
vehicle.
OIK050220L/OIK050223L
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Front windshield defroster button
6. Fan speed control knob
7. Air intake control button8. Mode selection button
9. SYNC button
10. Climate control information screen
selection button
11. Rear window defroster button
12. Air conditioning button

5-90
Convenient Features
Automatic Heating and Air
Conditioning
The Automatic Climate Control System
is controlled by setting the desired
temperature.
OIK050082
1. Press the AUTO button.
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by the temperature setting
you select.
„Driver side
OIK050083
2. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)
- Air intake control button
- Fan speed control button
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve
the effectiveness of the climate control,
use the AUTO button and set the
temperature to 72°F (22°C).
OIK050047
Information
Never place anything near the sensor to
ensure better control of the heating and
cooling system.

05
5-91
Manual Heating and Air
Conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to convert to
full automatic control of the system.
Mode selection
„Type A
OIK047305
„Type B
OIK047306
„Type C
OIK050222L
The mode selection button controls
the direction of the air flow through the
ventilation system.
