1- 38 FEATURES OF YOUR HYUNDAI

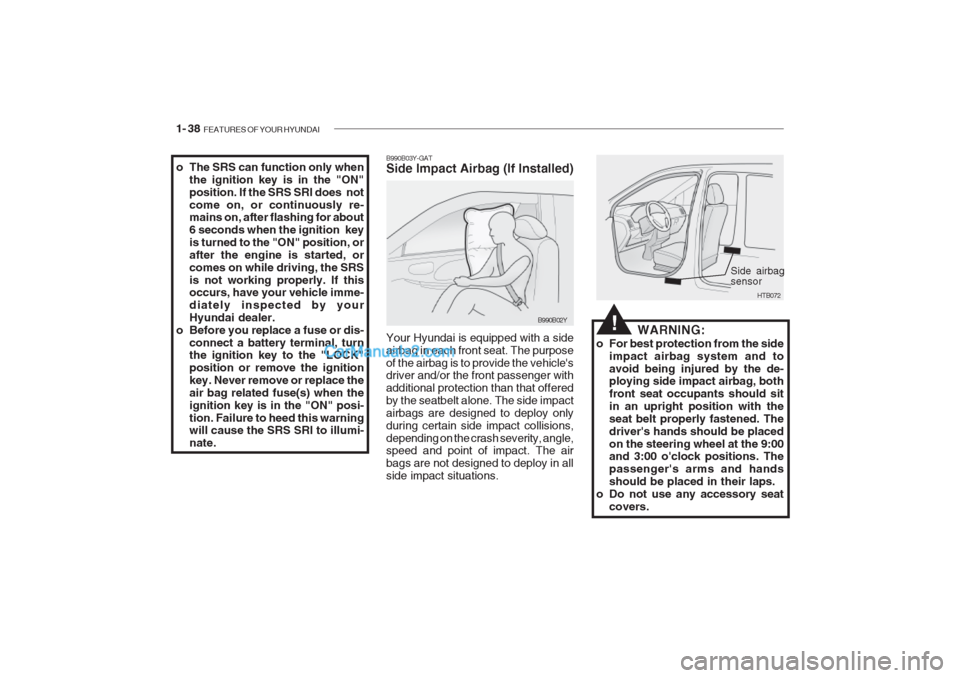

B990B03Y-GAT Side Impact Airbag (If Installed) Your Hyundai is equipped with a side airbag in each front seat. The purposeof the airbag is to provide the vehicle's driver and/or the front passenger with additional protection than that offeredby the seatbelt alone. The side impactairbags are designed to deploy onlyduring certain side impact collisions,depending on the crash severity, angle, speed and point of impact. The air bags are not designed to deploy in allside impact situations.o The SRS can function only when
the ignition key is in the "ON" position. If the SRS SRI does notcome on, or continuously re- mains on, after flashing for about 6 seconds when the ignition keyis turned to the "ON" position, orafter the engine is started, orcomes on while driving, the SRSis not working properly. If this occurs, have your vehicle imme- diately inspected by yourHyundai dealer.
o Before you replace a fuse or dis- connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace theair bag related fuse(s) when theignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate.
B990B02Y
HTB072
Side airbag sensor
!WARNING:
o For best protection from the side impact airbag system and to avoid being injured by the de- ploying side impact airbag, both front seat occupants should sitin an upright position with theseat belt properly fastened. Thedriver's hands should be placedon the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's arms and handsshould be placed in their laps.
o Do not use any accessory seat covers.

FEATURES OF YOUR HYUNDAI 1- 39
o Use of seat covers could reduce or
prevent the effectiveness of the system.
o Do not install any accessories on the side or near the side impactairbag.
o Do not use excessive force on the side of the seat.
o Do not place any objects over the
airbag or between the airbag andyourself.
o Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dan-gerous projectiles and cause in-jury if the supplemental side im-pact air bag inflates.
o To prevent unexpected deploy- ment of the side impact air bagthat may result in personal in-jury, avoid impact to the sideairbag sensor when the ignitionkey is on.
B240C02L
WARNING:
o Do not install a child restraint system in the front passenger seat position. A child restraint system must
never be placed in the front seat.The infant or child could be se-verely injured by an airbag de-ployment in case of an accident.
o Extreme Hazard! Do not use a reward facing restraint on a seatprotected by an airbag in front ofit!
!

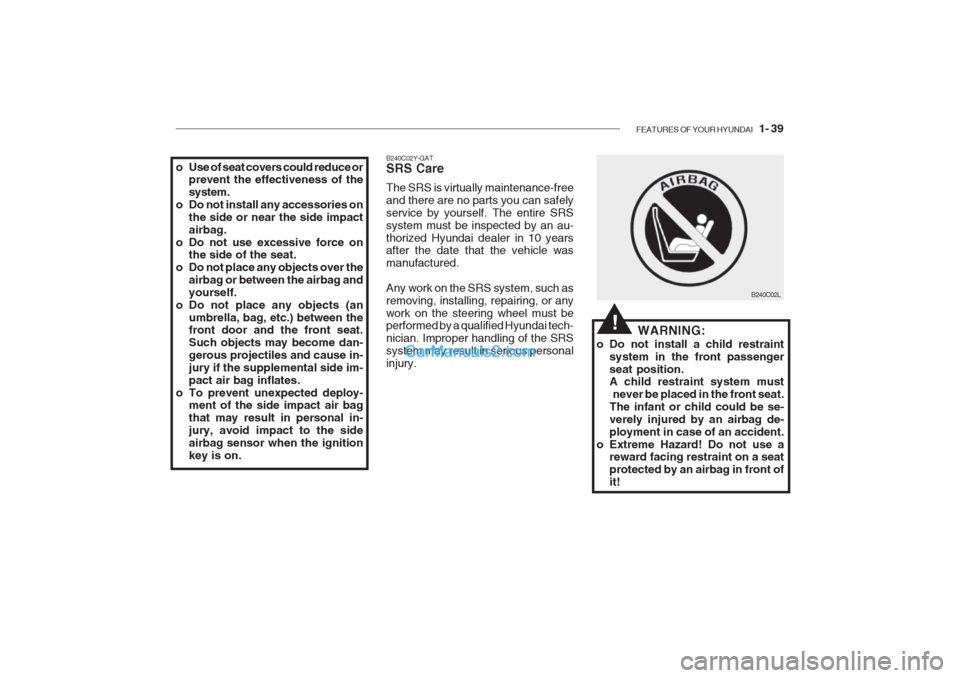

B240C02Y-GAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safelyservice by yourself. The entire SRSsystem must be inspected by an au-thorized Hyundai dealer in 10 years after the date that the vehicle was manufactured. Any work on the SRS system, such as removing, installing, repairing, or anywork on the steering wheel must be performed by a qualified Hyundai tech- nician. Improper handling of the SRSsystem may result in serious personalinjury.

1- 40 FEATURES OF YOUR HYUNDAI

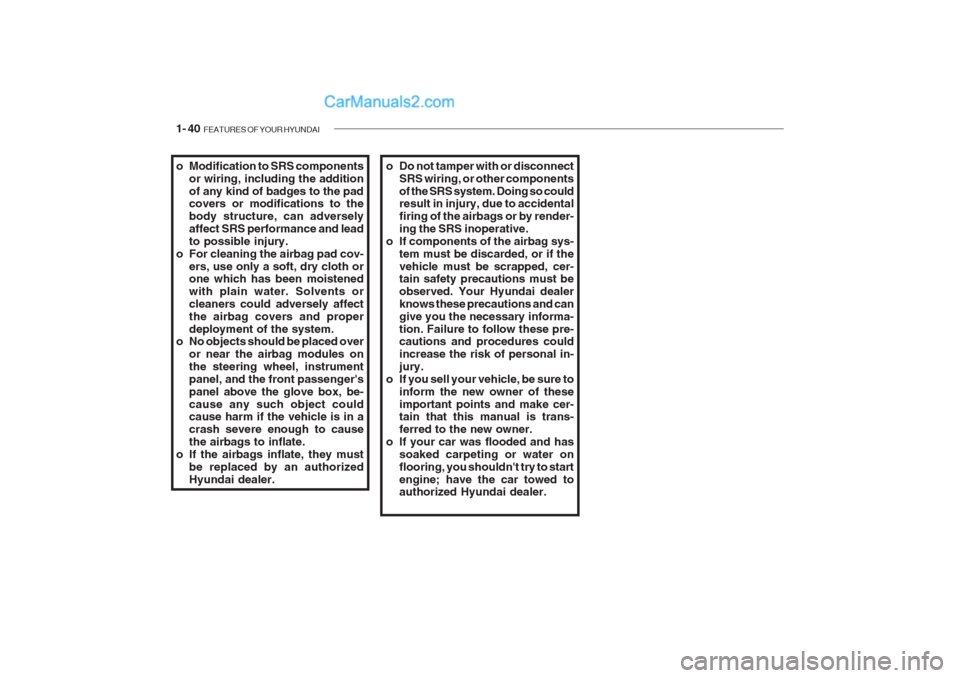

o Modification to SRS components
or wiring, including the addition of any kind of badges to the pad covers or modifications to the body structure, can adverselyaffect SRS performance and leadto possible injury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth or one which has been moistened with plain water. Solvents orcleaners could adversely affectthe airbag covers and properdeployment of the system.
o No objects should be placed over
or near the airbag modules onthe steering wheel, instrumentpanel, and the front passenger'spanel above the glove box, be-cause any such object could cause harm if the vehicle is in a crash severe enough to causethe airbags to inflate.
o If the airbags inflate, they must be replaced by an authorizedHyundai dealer. o Do not tamper with or disconnect
SRS wiring, or other componentsof the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by render-ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if thevehicle must be scrapped, cer- tain safety precautions must be observed. Your Hyundai dealerknows these precautions and cangive you the necessary informa-tion. Failure to follow these pre- cautions and procedures could increase the risk of personal in-jury.
o If you sell your vehicle, be sure to
inform the new owner of theseimportant points and make cer- tain that this manual is trans- ferred to the new owner.
o If your car was flooded and has soaked carpeting or water onflooring, you shouldn't try to startengine; have the car towed to authorized Hyundai dealer.

FEATURES OF YOUR HYUNDAI 1- 41
B260A02TB-GAT INSTRUMENT CLUSTER AND INDICATOR A Type (Without Tachometer)
1. Temperature Gauge
2. Tail Gate Open Warning Light
3. Door Ajar Warning Light
4. Overdrive off Indicator Light (Auto T/A only)
5. Immobilizer Warning Indicator Light
(If installed)
6. Fuel Gauge
7. High Beam Indicator Light
8. Turn Signal Indicator Light HTB003B
9. SRS (Airbag) Warning Light (If installed)
10. Malfunction Indicator Light (MIL)
(If installed)
11. ABS Warning Light (If installed)
12. Speedometer
13. Fuel Filter Warning Light (Diesel only)
14. Diesel Pre-heat Indicator Light
(Diesel only) 15. Electric Power Steering Warning
Light (If installed)
16. Low Fuel Warning Light
17. Odometer/Trip Odometer
18. Seat Belt Warning Light
19. Charging System Warning Light
20. Oil Pressure Warning Light
21. Parking Brake/Brake Fluid Level
Warning Light
22. Digital Clock
23. Trip Odometer Reset Switch
24. Clock Reset Switch
1 2
34 5
6 78
910
11
8 12
13 14 15 16 17 18 19 20 21 22 23 24

1- 42 FEATURES OF YOUR HYUNDAI
B260B02TB-GAT B Type (Without Trip Computer)
1. Electric Power Steering Warning
Light (If installed)
2. Tail Gate Open Warning Light
3. Door Ajar Warning Light
4. Tachometer
5. Immobilizer Warning Indicator Light
(If installed)
6. Turn Signal Indicator Light
7. Temperature Gauge
8. High Beam Indicator Light
9. Speedometer HTB001B
10. Parking Brake/Brake Fluid Level Warning Light
11. Oil Pressure Warning Light
12. Charging System Warning Light
13. Overdrive off Indicator Light (Auto T/A only)
14. Fuel Filter Warning Light (Diesel only)
15. Diesel Pre-heat Indicator Light
(Diesel only)
16. Digital Clock 17. Low Fuel Warning Light
18. Fuel Gauge
19. Odometer/Trip Odometer
20. Trip odometer Reset Switch
21. Clock Reset Switch
22. ABS Warning Light (If installed)
23. SRS (Airbag) Warning Light
(If installed)
24. Malfunction Indicator Light (MIL)
(If installed)
25. Seat Belt Warning Light
1
2
4
53 6
78 9 1011
12
13 14 15 16
17 18
19 20 21 22
2324
6
25

FEATURES OF YOUR HYUNDAI 1- 43
B260C02TB-GAT C Type (With Trip Computer)
1. Electric Power Steering Warning Light (If installed)
2. Tail Gate Open Warning Light
3. Door Ajar Warning Light
4. Tachometer
5. Turn Signal Indicator Light
6. Temperature Gauge
7. Speedometer
8. Parking Brake/Brake Fluid Level Warning Light
9. Oil Pressure Warning Light
10. Charging System Warning Light HTB002B
11. Overdrive Off Indcator Light (Auto T/A only)
12. Fuel Filter Warning Light (Diesel only)
13. Diesel Pre-heat Indicator Light
(Diesel only)
14. Immobilizer Warning Indicator Light
(If installed)
15. High Beam Indicator Light
16. Low Fuel Warning Light
17. Trip Computer (If installed)
18. Odometer/Trip Odometer 19. Fuel Gauge
20. Trip Computer mode Convert Switch
21. Digital Clock
22. Clock Reset Switch
23. ABS Warning Light (If installed)
24. SRS (Airbag) Warning Light
(If installed)
25. Malfunction Indicator Light (MIL) (If installed)
26. Seat Belt Warning Light
12 3 4
5
5
67 8
910
11 12 13 14 15 16 17 18 19 20 2 3 2 4
252221 26

1- 44 FEATURES OF YOUR HYUNDAI
B260B01S-GAT
SRS (Airbag) Service Reminder Indicator (SRI) (If Installed)
The SRS service reminder indicator (SRI) comes on and flashes for about6 seconds after the ignition key isturned to the "ON" position or after theengine is started, after which it will goout. This light also comes on when the SRS is not working properly. If the SRI doesnot come on, or continuously remainson after flashing for about 6 secondswhen you turned the ignition key to the "ON" position or started the engine, or if it comes on while driving, have theSRS inspected by an authorizedHyundai Dealer. B260P02Y-GAT
ABS Service Reminder Indicator (SRI)
(If Installed)
When the key is turned to the "ON" position, the Anti-Lock Brake Systemwill come on and then go off in a fewseconds. If the ABS SRI remains on,comes on while driving, or does notcome on when the key is turned to the "ON" position, this indicates that there may be a problem with the ABS.If this occurs, have your vehiclechecked by your Hyundai dealer assoon as possible. The normal brakingsystem will still be operational, but without the assistance of the anti-lock brake system. B260C01A-AAT
O/D OFF Indicator (Automatic transaxle
only) (If Installed)
When the overdrive switch is turned on, the overdrive off indicator will goout. This amber indicator will be illumi-nated when the overdrive switch isturned off.
B260D01A-AAT Turn Signal Indicator Lights
The blinking green arrows on the in- strument panel show the direction indi- cated by the turn signals. If the arrow comes on but does not blink, blinksmore rapidly than normal, or does notilluminate at all, a malfunction in theturn signal system is indicated. Yourdealer should be consulted for repairs.
! CAUTION:
If both ABS SRI and Parking Brake/ Brake fluid level warning lights re- main "ON" or come on while driv-ing, there may be a problem withE.B.D (Electronic Brake Force Dis-tribution).If this occurs, avoid sudden stops and have your vehicle checked by your Hyundai dealer as soon aspossible.

FEATURES OF YOUR HYUNDAI 1- 45
B260F01A-AAT
High Beam Indicator Light
The high beam indicator light comes on whenever the headlights areswitched to the high beam or flashposition.
B260H03A-AATParking Brake/Brake
Fluid Level Warning Light
B260G01A-AAT
Oil Pressure Warning Light
!CAUTION:
If the oil pressure warning light stays on while the engine is run-ning, serious engine damage may result. The oil pressure warning light comes on whenever there isinsufficient oil pressure. In normaloperation, it should come on whenthe ignition switch is turned on,then go out when the engine is started. If the oil pressure warning light stays on while the engine isrunning, there may be a seriousmalfunction. If this happens, stop the car as soon as it is safe to do so, turn off the engine and check the oil level. Ifthe oil level is low, fill the engine oilto the proper level and start theengine again. If the light stays onwith the engine running, turn the engine off immediately. In any in- stance where the oil light stays onwhen the engine is running, theengine should be checked by anauthorized Hyundai dealer beforethe car is driven again.
Warning Light Operation The parking brake/brake fluid level warning light should come on when theparking brake is applied and the igni-tion switch is turned to "ON" or"START". After the engine is started, the light should go out when the park- ing brake is released.If the parking brake is not applied, thewarning light should come on when theignition switch is turned to "ON" or"START", then go out when the engine starts. If the light comes on at any other time, you should slow the vehicleand bring it to a complete stop in a safelocation off the roadway.The brake warning light indicates thatthe brake fluid level in the brake mas- ter cylinder is low and hydraulic brake fluid conforming to DOT 3 or DOT 4specifications should be added. Afteradding fluid, if no other trouble is found,the car should be immediately andcarefully driven to a Hyundai dealer for inspection. If further trouble is experi- enced, the vehicle should not be drivenat all but taken to a dealer by aprofessional towing service or someother safe method.
WARNING:
If you suspect brake trouble, haveyour brakes checked by a Hyundaidealer as soon as possible. Drivingyour car with a problem in either the brake electrical system or brake hydraulic system is dangerous, andcould result in a serious injury ordeath.
!

1- 46 FEATURES OF YOUR HYUNDAI
B260J01S-GAT
Charging System Warning Light
The charging system warning light should come on when the ignition is turned on, then go out when the engine is running. If the light stays on while theengine is running, there is a malfunc-tion in the electrical charging system. Ifthe light comes on while you are driv-ing, stop, turn off the engine and check under the hood. First, make certain the generator drive belt is in place. If it is,check the tension of the belt. B260L01A-GAT
Door Ajar Warning Light
The door ajar warning light warns youthat a door is not completely closed.
B260K01B-GAT
Tail Gate Open Warning Light
This light remains on unless the tail gate is completely closed. B260M01A-AAT
Low Fuel Level Warning Light
The low fuel level warning light comes on when the fuel tank is approachingempty. When it comes on, you shouldadd fuel as soon as possible. Drivingwith the fuel level warning light on or with the fuel level below "E" can cause the engine to misfire and damage thecatalytic converter.
Your Hyundai is equipped with dual-diagonal braking systems. This meansyou still have braking on two wheelseven if one of the dual systems shouldfail. With only one of the dual systems working, more than normal pedal travel and greater pedal pressure are re-quired to stop the car. Also, the car willnot stop in as short a distance with onlyhalf of the brake system working. If thebrakes fail while you are driving, shift to a lower gear for additional engine braking and stop the car as soon as itis safe to do so.
And then, have the system checked by your Hyundai dealer.
CAUTION:
If the drive belt (generator belt) isloosen, broken, or mission whilethe vehicle is driving, there may bea serious malfunction, engine could overheat because this belt also drives the water pump.
!
B260N02FC-GAT Malfunction Indicator Light (If installed)
This light illuminates when there is a malfunction of an exhaust gas relatedcomponent, and the system is notfunctioning properly so thatthe exhaust gas regulation values arenot satisfied. This light will illuminate when the ignition key is tuned to the "ON" position, and will go out after theengine start. If it illuminates while driv-ing, or does not illuminate when theignition key is turned to the "ON" posi-tion, take your car to your nearest authorized Hyundai dealer and have the system checked.

FEATURES OF YOUR HYUNDAI 1- 47
B260S01B-GAT
Diesel Pre-heat Indicator Light-Amber (Diesel Engine)
The indicator light illuminates amber when the ignition switch is placed atthe "ON" position. The engine can bestarted after the pre-heat indicator lightgoes off. The illuminating time varieswith the water temperature, air tem- perature and battery condition. NOTE: If the engine were not started 10 seconds after the preheating is com-pleted, turn the ignition key oncemore to the "LOCK" position, and then to the "ON" position, in order to preheat again.
B260T01TB-GAT
Electric Power SteeringSystem (EPS)Warning Light(If installed)
This indicator light comes on about 4 seconds after the ignition key is turnedto the "ON" position or after the engine is started, it will go out. This light also comes on when the EPShas some troubles. If it comes on whiledriving, have your vehicle inspected byan authorized Hyundai Dealer.
B260E01HP-GAT
Seat Belt Warning Light
The seat belt warning light blinks forabout 6 seconds when the ignition keyis turned from the "OFF" position to"ON" or "START".
CAUTION:
When you move the electric power steering back-end and forth-endcontinuously in stop position, steer- ing wheel plays heavily to operate anti-overload system. It is normalcondition. It returns to be normalgetting time.!
B260U01TB-GAT Immobilizer Indicator Light (If installed)
This indicator light comes on for some seconds after the ignition key is turned to the "ON" position. At this time, you can start the engine. The light goes outafter the engine is running. In case thislight goes out before you start the en-gine, you must turn to the "LOCK"position and restart the engine. In case this light blinks for five seconds when the ignition key is turned to "ON" posi-tion, this indicates that the immobilizersystem is out of order. At this time,refer to the explanation of the Limphome procedure(See page 1-6) or con- sult to the Hyundai dealer.
