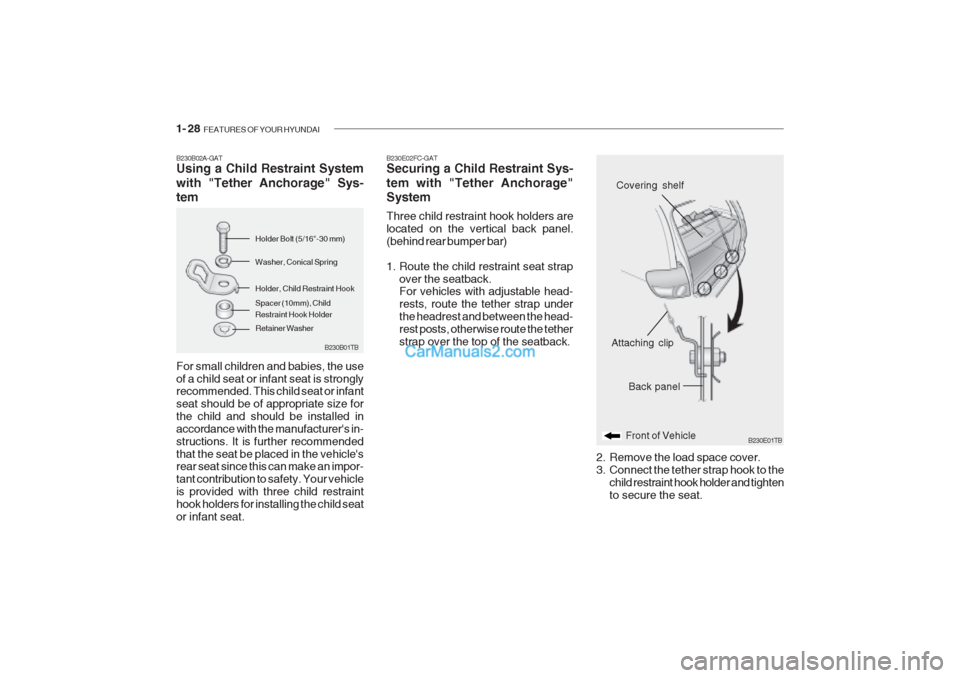

1- 28 FEATURES OF YOUR HYUNDAI
B230B01TB
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys- tem For small children and babies, the use of a child seat or infant seat is strongly recommended. This child seat or infant seat should be of appropriate size forthe child and should be installed inaccordance with the manufacturer's in-structions. It is further recommendedthat the seat be placed in the vehicle's rear seat since this can make an impor- tant contribution to safety. Your vehicleis provided with three child restrainthook holders for installing the child seator infant seat. Spacer (10mm), Child Restraint Hook Holder
Holder Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
Retainer Washer
B230E01TB
Back panel
Front of Vehicle
Attaching clip
Covering shelf
2. Remove the load space cover.
3. Connect the tether strap hook to the child restraint hook holder and tightento secure the seat.
B230E02FC-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage" System Three child restraint hook holders are located on the vertical back panel.(behind rear bumper bar)
1. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap underthe headrest and between the head-rest posts, otherwise route the tetherstrap over the top of the seatback.

FEATURES OF YOUR HYUNDAI 1- 29
!WARNING:
To install the Child Restraint Seat, for safety reasons the Seat shouldbe positioned rearmost with theseatback in a vertical position, notreclined. cording to the requirement ECE-R44.This seat has been tested extensivelyby Hyundai and is recommended foryour Hyundai. NOTE: At present, this seat is the only one complying with that provision. Incase that other manufacturers willfurnish proof of a respective certifi-cation, Hyundai is going to evaluatethis seat carefully and will give a recommendation provided that seat complies to the law. Please ask yourHyundai dealer in this respect.
B230D03E-GAT Using a Child Restraint System with "ISOFIX" System and "Tether Anchorage" System
ISOFIX is a standardised method of fitting child seats that eliminates theneed to use the standard adult seat beltto secure the seat in the vehicle. Thisenables a much more secure and posi- tive location with the added benefit of easier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac-cordance with the requirements of ECE- R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo / RömerISOFIX GR1 and the Römer Duo ISOFIX/ Britax Duo ISOFIX is approved ac-
HTB193 HTB189
ISOFIX Anchor

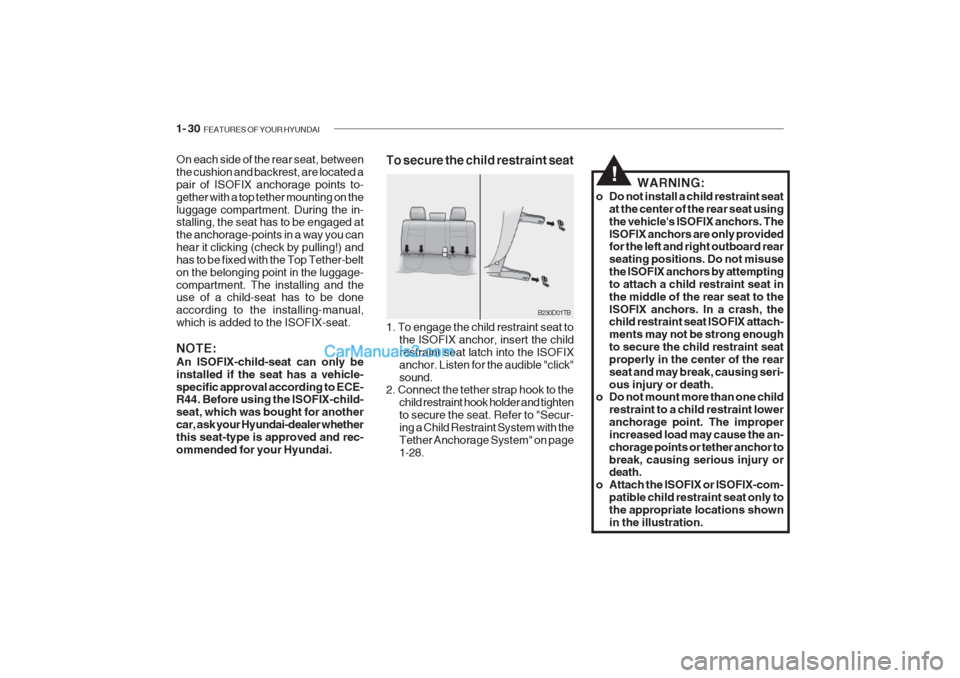

1- 30 FEATURES OF YOUR HYUNDAI
On each side of the rear seat, between the cushion and backrest, are located apair of ISOFIX anchorage points to-gether with a top tether mounting on theluggage compartment. During the in- stalling, the seat has to be engaged at the anchorage-points in a way you canhear it clicking (check by pulling!) andhas to be fixed with the Top Tether-belton the belonging point in the luggage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual,which is added to the ISOFIX-seat. NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle-specific approval according to ECE- R44. Before using the ISOFIX-child- seat, which was bought for anothercar, ask your Hyundai-dealer whetherthis seat-type is approved and rec-ommended for your Hyundai. B230D01TB
1. To engage the child restraint seat to the ISOFIX anchor, insert the childrestraint seat latch into the ISOFIXanchor. Listen for the audible "click"sound.
2. Connect the tether strap hook to the
child restraint hook holder and tightento secure the seat. Refer to "Secur-ing a Child Restraint System with theTether Anchorage System" on page1-28.
To secure the child restraint seat
WARNING:
o Do not install a child restraint seat at the center of the rear seat usingthe vehicle's ISOFIX anchors. TheISOFIX anchors are only provided for the left and right outboard rear seating positions. Do not misusethe ISOFIX anchors by attemptingto attach a child restraint seat inthe middle of the rear seat to theISOFIX anchors. In a crash, the child restraint seat ISOFIX attach- ments may not be strong enoughto secure the child restraint seatproperly in the center of the rearseat and may break, causing seri-ous injury or death.
o Do not mount more than one child
restraint to a child restraint loweranchorage point. The improperincreased load may cause the an-chorage points or tether anchor tobreak, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com- patible child restraint seat only to the appropriate locations shownin the illustration.
!

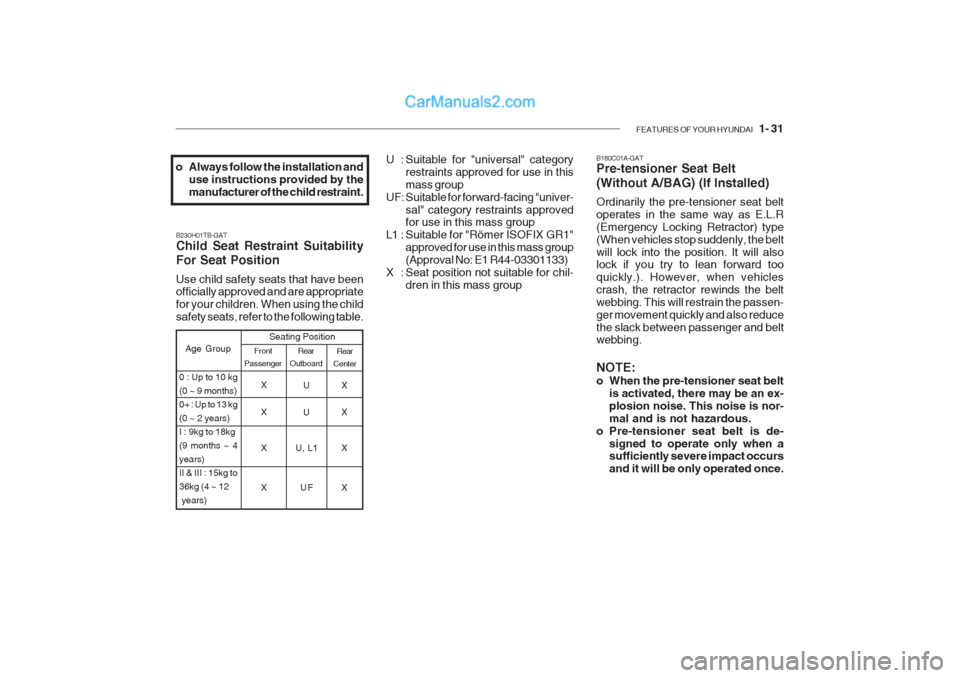

FEATURES OF YOUR HYUNDAI 1- 31
B230H01TB-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriate for your children. When using the childsafety seats, refer to the following table.
Rear
Center
Age Group Seating Position
UX
X UX
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg (4 ~ 12 years) X
o Always follow the installation and
use instructions provided by the manufacturer of the child restraint.
X U, L1 X XUFXB180C01A-GAT Pre-tensioner Seat Belt (Without A/BAG) (If Installed) Ordinarily the pre-tensioner seat belt operates in the same way as E.L.R(Emergency Locking Retractor) type(When vehicles stop suddenly, the beltwill lock into the position. It will also lock if you try to lean forward too quickly.). However, when vehiclescrash, the retractor rewinds the beltwebbing. This will restrain the passen-ger movement quickly and also reducethe slack between passenger and belt webbing. NOTE:
o When the pre-tensioner seat belt
is activated, there may be an ex- plosion noise. This noise is nor-mal and is not hazardous.
o Pre-tensioner seat belt is de- signed to operate only when a sufficiently severe impact occurs and it will be only operated once.
U : Suitable for "universal" category
restraints approved for use in thismass group
UF: Suitable for forward-facing "univer- sal" category restraints approved for use in this mass group
L1 : Suitable for "Römer ISOFIX GR1" approved for use in this mass group (Approval No: E1 R44-03301133)
X : Seat position not suitable for chil- dren in this mass group

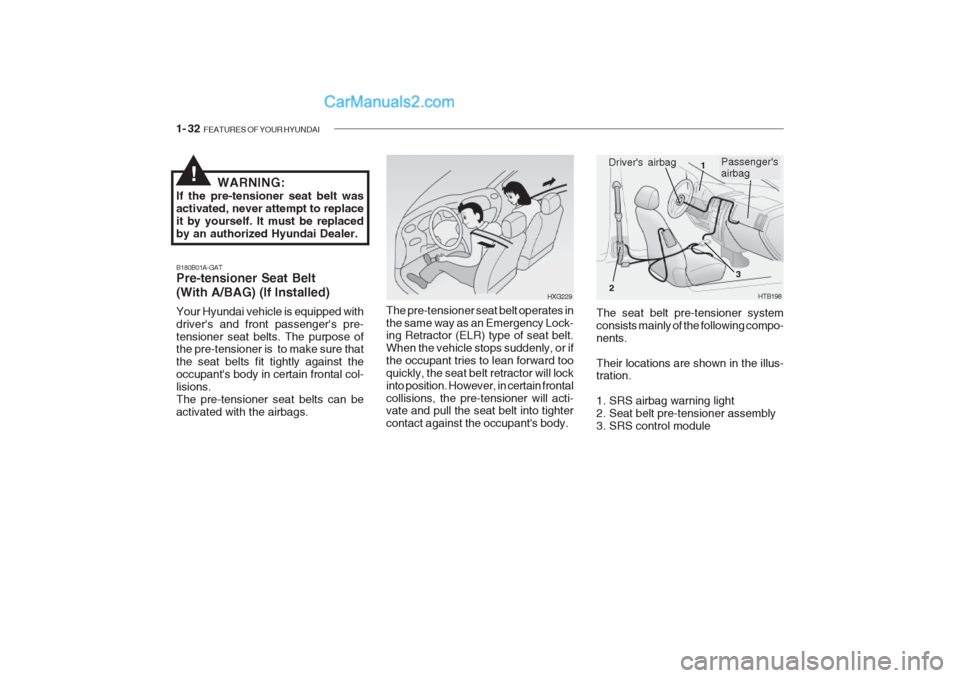

1- 32 FEATURES OF YOUR HYUNDAI
B180B01A-GAT Pre-tensioner Seat Belt (With A/BAG) (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against theoccupant's body in certain frontal col-lisions.The pre-tensioner seat belts can beactivated with the airbags. The pre-tensioner seat belt operates inthe same way as an Emergency Lock- ing Retractor (ELR) type of seat belt. When the vehicle stops suddenly, or ifthe occupant tries to lean forward tooquickly, the seat belt retractor will lockinto position. However, in certain frontalcollisions, the pre-tensioner will acti- vate and pull the seat belt into tighter contact against the occupant's body.
WARNING:
If the pre-tensioner seat belt wasactivated, never attempt to replaceit by yourself. It must be replacedby an authorized Hyundai Dealer.
!
HXG229
The seat belt pre-tensioner system consists mainly of the following compo-nents. Their locations are shown in the illus- tration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module HTB198
Driver's airbag1
2 3Passenger's airbag

FEATURES OF YOUR HYUNDAI 1- 33
WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to
the correct position.!
NOTE:
o Both the driver's and frontpassenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags. The pre-tensioners will be activated un-der these conditions even if theseat belts are not being worn atthe time of the collision.
o When the pre-tensioner seat belts
are activated, a loud noise maybe heard and fine dust, whichmay appear to be smoke, may bevisible in the passenger com-partment. These are normal op- erating conditions and are not hazardous. illuminates while the vehicle isbeing driven, please have an au-thorized Hyundai dealer inspectthe pre-tensioner seat belt or SRSairbag system as soon as pos-sible.
WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat belts must be replaced. All seat belts,of any type, should always bereplaced after they have beenworn during a collision.
o The pre-tensioner seat belt as- sembly mechanisms become hotduring activation. Do not touchthe pre-tensioner seat belt as-semblies for several minutes af-ter they have been activated.
o Do not attempt to inspect or re- place the pre-tensioner seat beltsyourself. This must be done byan authorized Hyundai dealer.
o Do not strike the pre-tensioner seat belt assemblies.!
o Although it is harmless, the finedust may cause skin irritation and should not be breathed for pro-longed periods. Wash your handsand face thoroughly after an acci- dent in which the pre-tensioner seat belts were activated.
! CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will blink for ap-proximately 6 seconds after theignition key has been turned to the"ON" position, and then it should turn off.
o If the pre-tensioner seat belt is
not working properly, this warn- ing light will illuminate even ifthere is no malfunction of theSRS airbag system . If the SRS airbag warning light does not illuminate when the ignition keyis turned to "ON", or if it remainsilluminated after blinking for ap-proximately 6 seconds, or if it

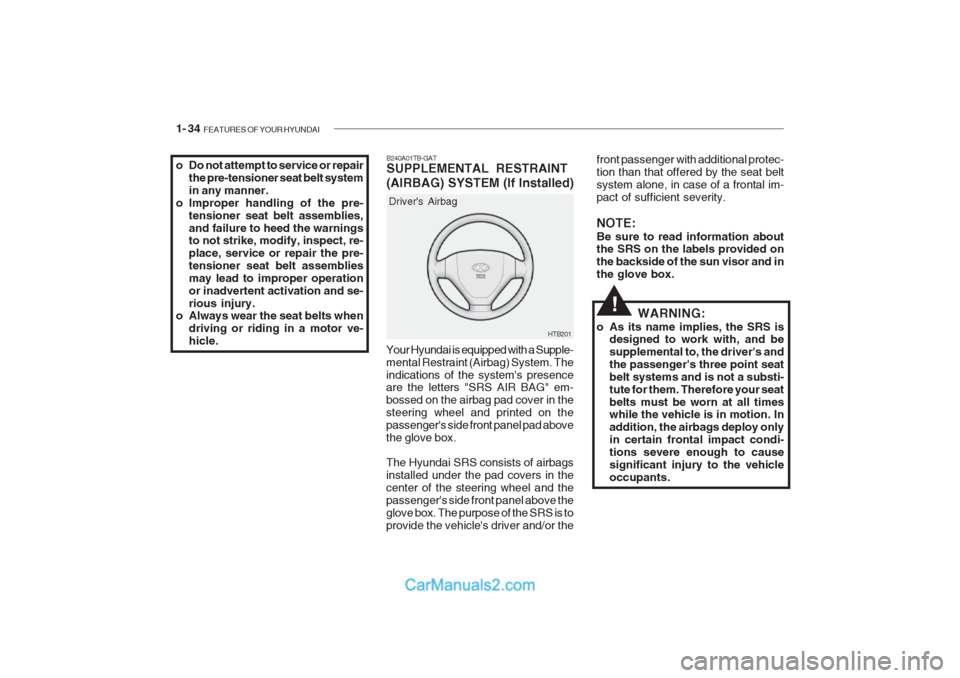

1- 34 FEATURES OF YOUR HYUNDAI
HTB201
Driver's Airbag
Your Hyundai is equipped with a Supple- mental Restraint (Airbag) System. Theindications of the system's presence are the letters "SRS AIR BAG" em- bossed on the airbag pad cover in thesteering wheel and printed on thepassenger's side front panel pad abovethe glove box. The Hyundai SRS consists of airbags installed under the pad covers in thecenter of the steering wheel and thepassenger's side front panel above theglove box. The purpose of the SRS is toprovide the vehicle's driver and/or the B240A01TB-GAT SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM (If Installed)
o Do not attempt to service or repair
the pre-tensioner seat belt system in any manner.
o Improper handling of the pre-
tensioner seat belt assemblies,and failure to heed the warnings to not strike, modify, inspect, re- place, service or repair the pre-tensioner seat belt assembliesmay lead to improper operationor inadvertent activation and se-rious injury.
o Always wear the seat belts when
driving or riding in a motor ve-hicle.
front passenger with additional protec- tion than that offered by the seat beltsystem alone, in case of a frontal im-pact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the backside of the sun visor and inthe glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and besupplemental to, the driver's andthe passenger's three point seatbelt systems and is not a substi-tute for them. Therefore your seatbelts must be worn at all times while the vehicle is in motion. In addition, the airbags deploy onlyin certain frontal impact condi-tions severe enough to causesignificant injury to the vehicleoccupants.
!

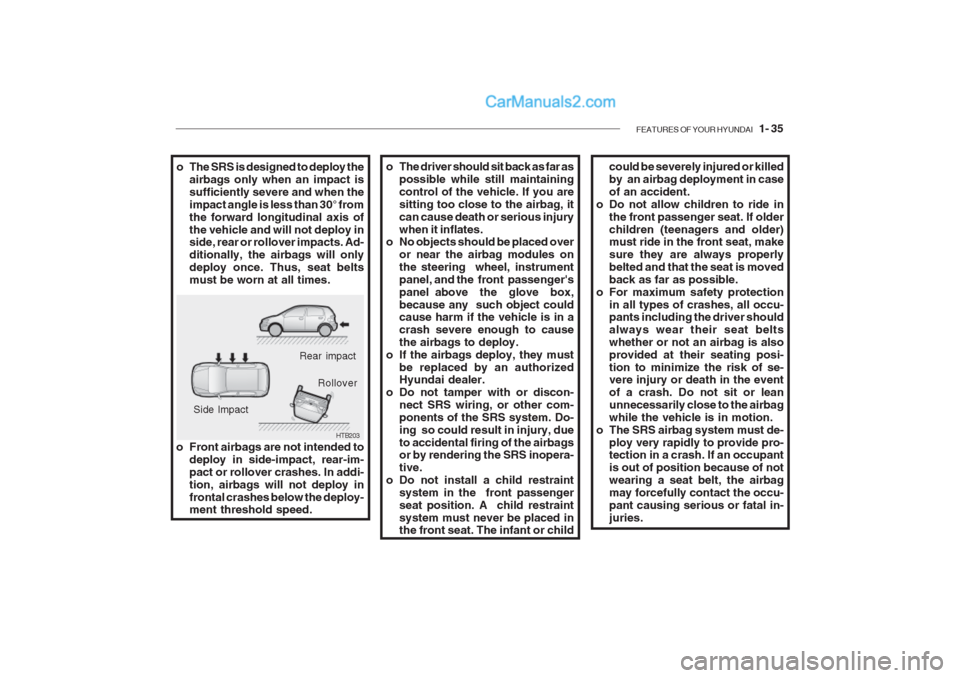

FEATURES OF YOUR HYUNDAI 1- 35
HTB203
Rear impact
Side Impact Rollover
o Front airbags are not intended to deploy in side-impact, rear-im- pact or rollover crashes. In addi-tion, airbags will not deploy infrontal crashes below the deploy- ment threshold speed.
o The SRS is designed to deploy the
airbags only when an impact is sufficiently severe and when theimpact angle is less than 30° fromthe forward longitudinal axis ofthe vehicle and will not deploy in side, rear or rollover impacts. Ad- ditionally, the airbags will onlydeploy once. Thus, seat beltsmust be worn at all times.
o The driver should sit back as far as
possible while still maintaining control of the vehicle. If you aresitting too close to the airbag, itcan cause death or serious injurywhen it inflates.
o No objects should be placed over
or near the airbag modules onthe steering wheel, instrumentpanel, and the front passenger'spanel above the glove box,because any such object could cause harm if the vehicle is in a crash severe enough to causethe airbags to deploy.
o If the airbags deploy, they must be replaced by an authorized Hyundai dealer.
o Do not tamper with or discon-
nect SRS wiring, or other com- ponents of the SRS system. Do-ing so could result in injury, dueto accidental firing of the airbags or by rendering the SRS inopera- tive.
o Do not install a child restraint system in the front passengerseat position. A child restraintsystem must never be placed in the front seat. The infant or childcould be severely injured or killed by an airbag deployment in caseof an accident.
o Do not allow children to ride in
the front passenger seat. If olderchildren (teenagers and older) must ride in the front seat, make sure they are always properlybelted and that the seat is movedback as far as possible.
o For maximum safety protection in all types of crashes, all occu- pants including the driver should always wear their seat beltswhether or not an airbag is alsoprovided at their seating posi-tion to minimize the risk of se- vere injury or death in the event of a crash. Do not sit or leanunnecessarily close to the airbagwhile the vehicle is in motion.
o The SRS airbag system must de- ploy very rapidly to provide pro- tection in a crash. If an occupant is out of position because of notwearing a seat belt, the airbagmay forcefully contact the occu-pant causing serious or fatal in-juries.

1- 36 FEATURES OF YOUR HYUNDAI
The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors allelements while the ignition is "ON" todetermine if a frontal or near-frontalimpact is severe enough to requireairbag deployment.
B240B01FC-GAT SRS Components and Functions
B240B01L
B240B02L
The SRS service reminder indicator (SRI) on the instrument panel will blinkfor about 6 seconds after the ignitionkey is turned to the "ON" position orafter the engine is started, after which the SRI should go out. The airbag modules are located both in the center of the steering wheel and inthe front passenger's panel above theglove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags.
B240B03L

FEATURES OF YOUR HYUNDAI 1- 37
Upon deployment, tear seams molded directly into the pad covers will sepa-rate under pressure from the expan- sion of the airbags. Further opening of the covers then allows full inflation ofthe airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward motion, thus reducing therisk of head or chest injury. HTB204
Passenger's Airbag
After complete inflation, the airbag im- mediately starts deflating, enabling the driver to maintain forward visibility. Passenger's Airbag
B240B05L
!CAUTION:
Do not install or place any accesso- ries (drink holder, cassette holder, sticker, etc) on the front passenger'spanel above the glove box in a ve-hicle with passenger's air bag. Suchobjects may become dangerousprojectiles and cause injury if the passenger's air bag inflates. CAUTION:
When installing a container of liq- uid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panelpad surface. If there is any leakagefrom the air freshener onto theseareas (instrument cluster, instru-ment panel pad or air ventilator), it may damage these parts. If the liq- uid from the air freshener does leakonto these areas, wash them withwater immediately.
!
!
WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout thevehicle. These conditions arenormal and are not hazardous. However, the fine dust generated during airbag deployment maycause skin irritation. Be sure towash your hands and face thor-oughly with lukewarm water anda mild soap after an accident in which the airbags were deployed.
