1- 68 FEATURES OF YOUR HYUNDAI
B560A01HP-AAT REMOTE FUEL-FILLER LID RE- LEASE
The fuel-filler lid may be opened from inside the vehicle by pulling up on thefuel-filler lid opener located on the front floor area on the left side of the car. NOTE: If the fuel-filler lid will not open because ice has formed around it,tap lightly or push on the lid to
WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is notlatched, the hood could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an acci-dent.
o The support rod must be inserted completely into the hole providedin the hood whenever you in- spect the engine compartment. This will prevent the hood fromfalling and possibly injuring you.
Before closing the hood, return thesupport rod to its clip to prevent it fromrattling. Lower the hood until it is about30 cm (1 ft.) above the closed positionand let it drop. Make sure that it locks into place.
HTB288
!
!
3. Pull the support rod from the hood. HTB308
4. Hold the hood open with the support rod. CAUTION:
Make sure that the support rod has been released prior to closing thehood. o Do not move the vehicle with the
hood in the raised position, asvision is obstructed and the hood could fall or be damaged.
HTB115

FEATURES OF YOUR HYUNDAI 1- 69
break the ice and release the lid. Do not pry on the lid. If necessary,spray around the lid with an ap-proved de-icer fluid (do not useradiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
B540A01FC-GAT TAIL GATE
HTB067WARNING:
The tail gate should always be kept completely closed while the vehicleis in motion. If it is left open or ajar,poisonous exhaust gases may en-ter the car resulting in serious ill- ness or death to the occupants. See additional warnings concerning ex-haust gases on page 2-2.
o The tail gate can be locked or un- locked with a key.
o The tail gate is opened by pulling the
outside handle up, raising the tail gate manually.
o To close, lower the tail gate, then press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.
HTB068
!!WARNING:
Fuel vapors are dangerous. Before refueling, always stop the engineand never allow sparks or open flames near the filler area. If you need to replace the filler cap, use agenuine Hyundai replacement part.If you open the fuel filler cap duringhigh ambient temperatures, a slight"pressure sound" may be heard. This is normal and not a cause for concern. Whenever you open the
fuel filler cap, turn it slowly.

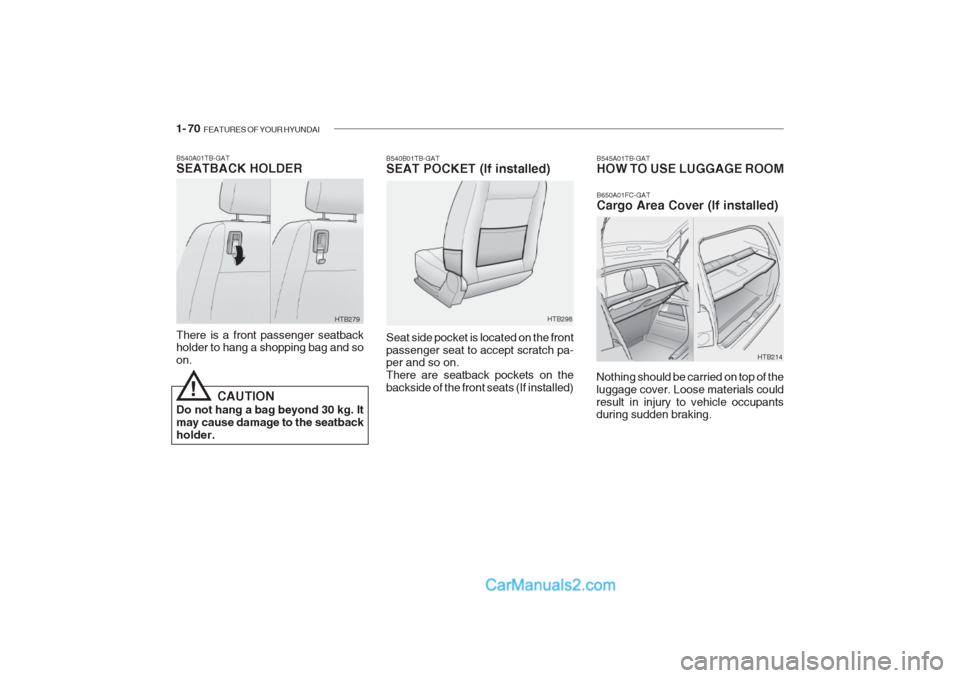

1- 70 FEATURES OF YOUR HYUNDAI
B540B01TB-GAT
SEAT POCKET (If installed)
HTB214
Seat side pocket is located on the front passenger seat to accept scratch pa- per and so on. There are seatback pockets on thebackside of the front seats (If installed) HTB298B545A01TB-GAT HOW TO USE LUGGAGE ROOM B650A01FC-GAT Cargo Area Cover (If installed)
Nothing should be carried on top of the luggage cover. Loose materials couldresult in injury to vehicle occupants during sudden braking.
There is a front passenger seatback holder to hang a shopping bag and so on. HTB279
B540A01TB-GAT SEATBACK HOLDER
!
CAUTION
Do not hang a bag beyond 30 kg. It may cause damage to the seatbackholder.

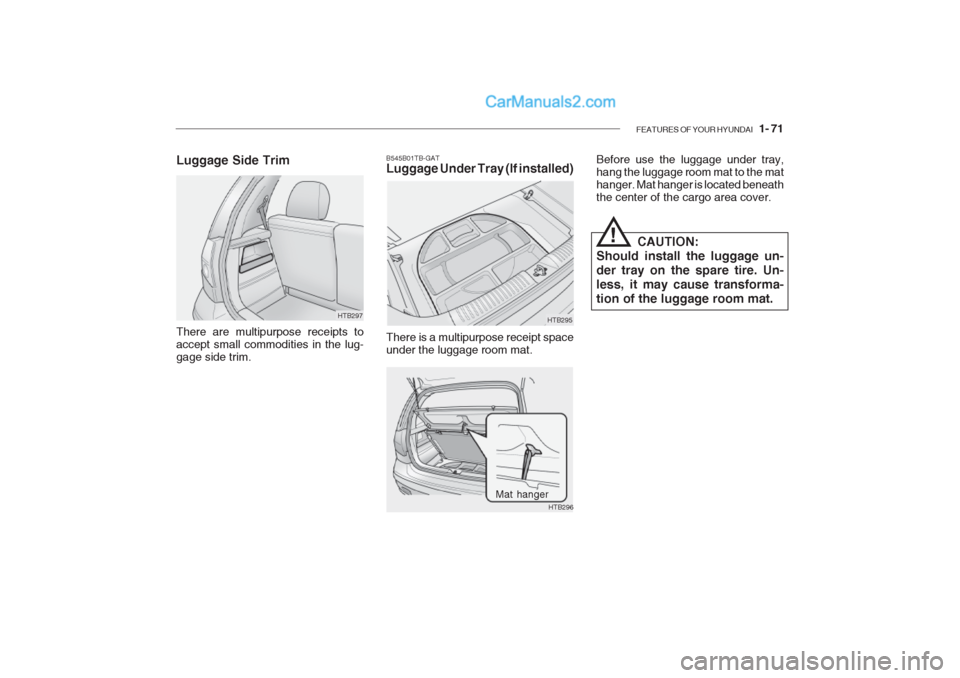

FEATURES OF YOUR HYUNDAI 1- 71
B545B01TB-GAT Luggage Under Tray (If installed) There is a multipurpose receipt space under the luggage room mat. HTB295Before use the luggage under tray,hang the luggage room mat to the mathanger. Mat hanger is located beneaththe center of the cargo area cover.
HTB296
Mat hanger CAUTION:
Should install the luggage un- der tray on the spare tire. Un-less, it may cause transforma-tion of the luggage room mat.
!
Luggage Side Trim
HTB297
There are multipurpose receipts to accept small commodities in the lug-gage side trim.

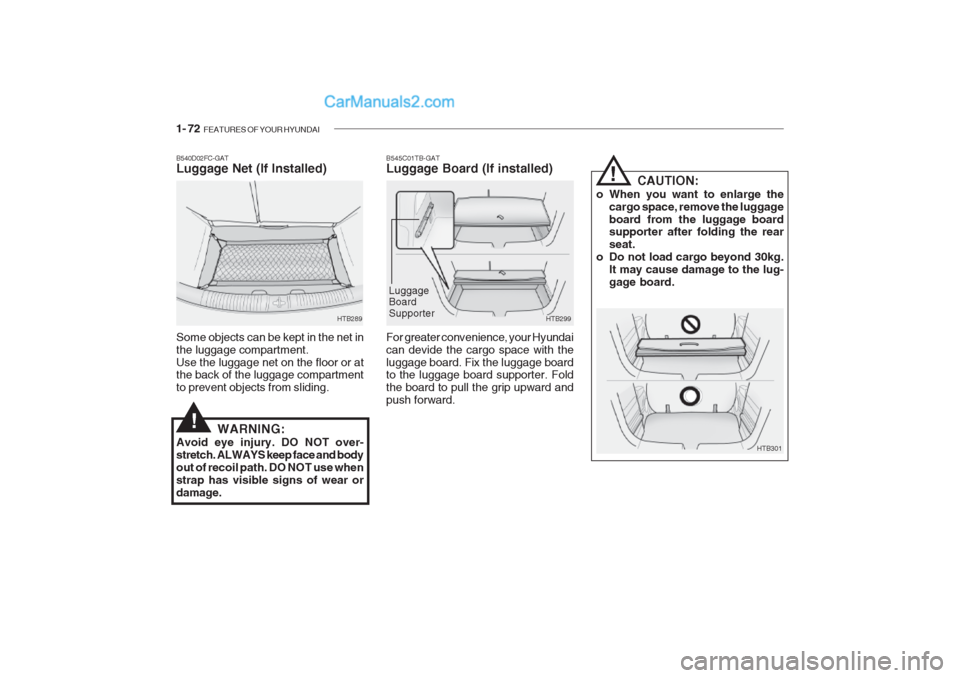

1- 72 FEATURES OF YOUR HYUNDAI
B545C01TB-GAT Luggage Board (If installed)
HTB299
For greater convenience, your Hyundai can devide the cargo space with theluggage board. Fix the luggage board to the luggage board supporter. Fold the board to pull the grip upward andpush forward. CAUTION:
o When you want to enlarge the cargo space, remove the luggageboard from the luggage board supporter after folding the rear seat.
o Do not load cargo beyond 30kg.
It may cause damage to the lug-gage board.
HTB301
!
Luggage Board Supporter
B540D02FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment.Use the luggage net on the floor or at the back of the luggage compartment to prevent objects from sliding.
HTB289
!WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and bodyout of recoil path. DO NOT use whenstrap has visible signs of wear ordamage.

FEATURES OF YOUR HYUNDAI 1- 73
B560B01O-GAT AUTO FUEL CUT SWITCH (Gasoline Engine) (If installed) The auto fuel cut switch is located on the driver's side of the engine compart-ment. In the event of a collision or sudden impact, the auto fuel cut device cuts offthe fuel supply. If this device is acti-vated, it must be reset by pressing inon the top of the switch before theengine can be restarted. HTB304
!WARNING:
Before resetting the auto fuel cut switch, the fuel line should bechecked for fuel leaks.
HTB098
B580A01TB-GAT SUN VISOR
HTB148
A Type
B Type
o To use the luggage board with
unfolding, fix it in the luggage board supporter. There will be an audible "Click" when the luggageboard fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stopor an accident. Unfold the lug- gage board stablely to prevent cargo damage.
HTB302

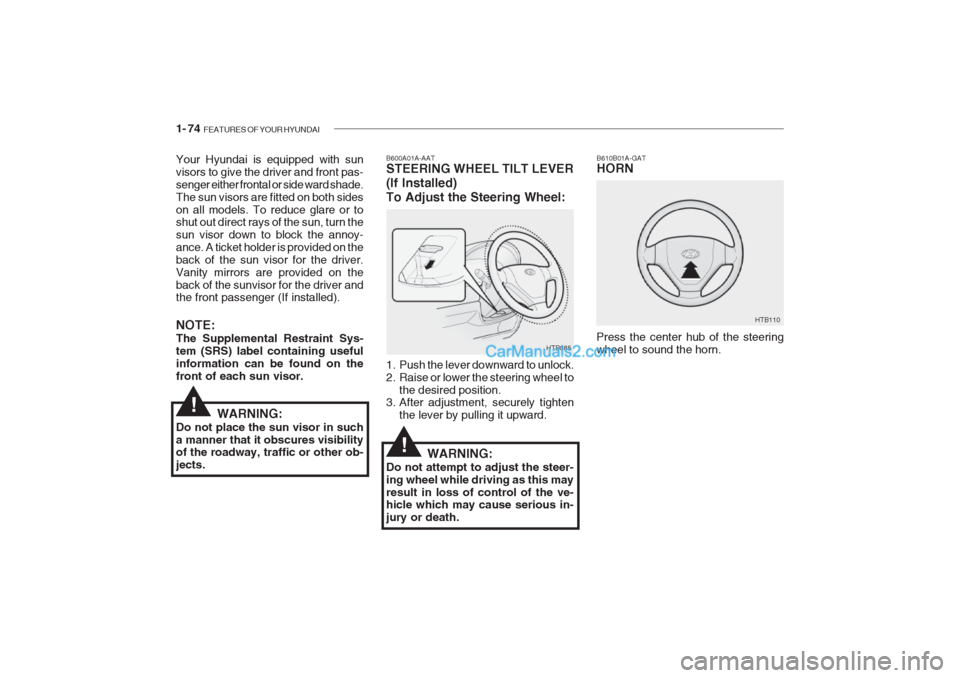

1- 74 FEATURES OF YOUR HYUNDAI
B610B01A-GAT HORN
Press the center hub of the steering wheel to sound the horn. HTB110B600A01A-AAT STEERING WHEEL TILT LEVER (If Installed)To Adjust the Steering Wheel:
HTB085
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten
the lever by pulling it upward.
!WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this mayresult in loss of control of the ve- hicle which may cause serious in- jury or death.
Your Hyundai is equipped with sunvisors to give the driver and front pas-senger either frontal or side ward shade.The sun visors are fitted on both sideson all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoy-ance. A ticket holder is provided on theback of the sun visor for the driver.Vanity mirrors are provided on theback of the sunvisor for the driver and the front passenger (If installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on thefront of each sun visor.
WARNING:
Do not place the sun visor in sucha manner that it obscures visibility of the roadway, traffic or other ob- jects.
!

FEATURES OF YOUR HYUNDAI 1- 75
B710A01TB-GAT
HEATING AND COOLING CONTROL (If Installed)
HTB032A
1. Side defrost nozzle
2. Side Ventilator
3. Windshield Defrost Ventilator
4. Center Ventilator B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard. To change the direction of the air flow, turn the control knob on the middle ofthe ventilator as desired.
B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh"
mode
( ).
o To direct all intake air to the dash- board vents, set the air flow controlto "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
1 2 3 4
12

1- 76 FEATURES OF YOUR HYUNDAI
HTB033
1
2 3
4 HTB034
B670A01TB-GAT HEATING AND VENTILATION
(If Installed)
1. Temperature control switch
2. Fan speed control switch
3. Air flow control switch
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions.
B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehiclethrough the side vents. These vents can also be closed, so no air enters through the side vents. To change thedirection of the air flow, turn the control knobs as desired.
56

FEATURES OF YOUR HYUNDAI 1- 77
B670C02A-AAT Air Intake Control
This is used to select fresh outside air or recirculation inside air. FreshRecirculation
With the " " mode selected, airenters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the " " mode selected, air from within the passenger compartment isdrawn through the heating system and heated or cooled according to the other functions selected. HTB036
NOTE: It should be noted that prolonged operation of the heating system in " " mode will give rise to mistingof the windshield and side win- dows and the air within the passen- ger compartment will become stale.In addition prolonged use of the air conditioning with the " " mode selected may result in the air withinthe passenger compartment becom- ing excessively dry.B670D01TB-AAT Air Flow Control
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. HTB038
