1- 48 FEATURES OF YOUR HYUNDAI

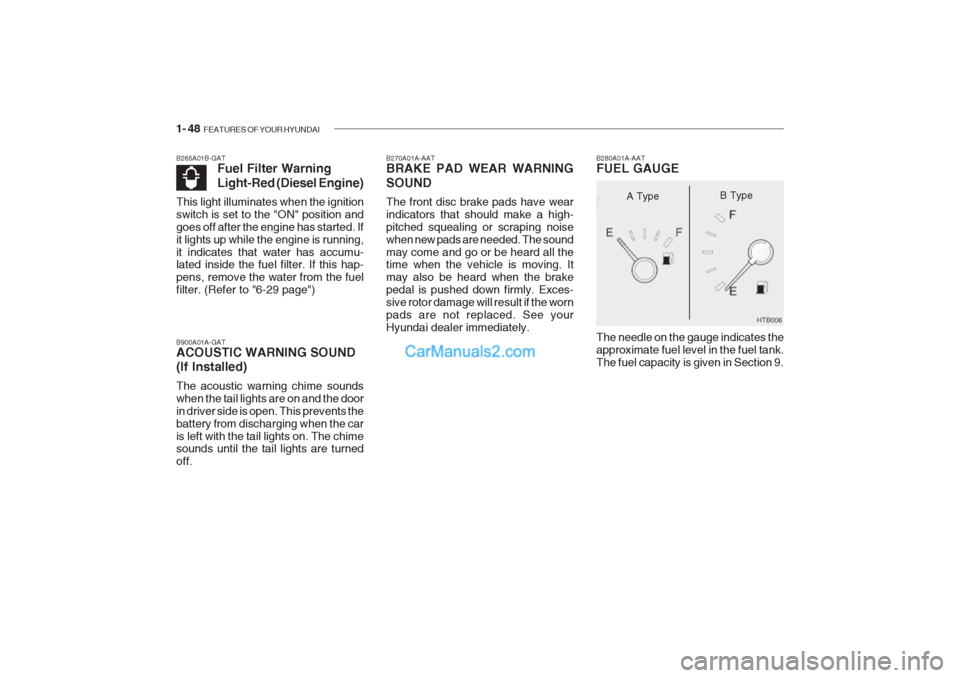

B270A01A-AAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noisewhen new pads are needed. The soundmay come and go or be heard all the time when the vehicle is moving. It may also be heard when the brakepedal is pushed down firmly. Exces-sive rotor damage will result if the wornpads are not replaced. See yourHyundai dealer immediately.
B900A01A-GAT ACOUSTIC WARNING SOUND (If Installed) The acoustic warning chime sounds when the tail lights are on and the doorin driver side is open. This prevents thebattery from discharging when the caris left with the tail lights on. The chime sounds until the tail lights are turned off. HTB006
The needle on the gauge indicates theapproximate fuel level in the fuel tank.The fuel capacity is given in Section 9.
B280A01A-AAT FUEL GAUGE
A Type
B Type
B265A01B-GAT
Fuel Filter Warning Light-Red (Diesel Engine)
This light illuminates when the ignition switch is set to the "ON" position andgoes off after the engine has started. Ifit lights up while the engine is running,it indicates that water has accumu- lated inside the fuel filter. If this hap- pens, remove the water from the fuelfilter. (Refer to "6-29 page")

FEATURES OF YOUR HYUNDAI 1- 49
The tachometer registers the speed of your engine in revolutions per minute(rpm). It is useful to help you shift at the appropriate engine speed to avoid lug- ging or over-revving the engine.
B290A02A-AAT ENGINE COOLANT TEMPERA- TURE GAUGE
WARNING:
Never remove the radiator cap when the engine is hot. The engine cool-ant is under pressure and coulderupt and cause severe burns. Waituntil the engine is cool before re-moving the radiator cap. The needle on the engine coolant tem- perature gauge should stay in the nor-mal range. If it moves across the dial to"H" (Hot), pull over and stop as soon aspossible and turn off the engine. Then B330A01A-AAT TACHOMETER
B300A01A-GAT SPEEDOMETERHTB007
A Type B Typeopen the hood and check the coolant level and the water pump drive belt. Ifyou suspect cooling system trouble,have your cooling system checked bya Hyundai dealer as soon as possible.
!
HTB004A
A Type
B Type
Your Hyundai's speedometer is cali- brated in kilometers per hour or miles per hour.
HTB005A
A Type B Type
!
CAUTION:
The engine should not be raced to such a speed that the needle entersthe red zone on the tachometer face. This can cause severe engine dam- age and may void your warranty.

1- 50 FEATURES OF YOUR HYUNDAI
B310B01TB-GAT ODOMETER/TRIP ODOMETER A TYPE (WITH TRIP COMPUTER)1. Odometer The odometer records the total driving distance in kilometers or miles, and isuseful for keeping a record for mainte- nance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. HTB008A
A Type
B Type 2. Trip odometer
o This mode indicates the drive dis-
tance travelled since the last drive time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1 second, when the drive distance is being displayed, clears the drivedistance to zero.
o Refer to the explanation of the trip computer (see page 1-52, Drive Dis-tance).
B TYPE (WITHOUT TRIP COMPUTER) Function of digital odometer/trip odometer
Pushing in the reset switch when the ignition switch is turned "ON" will dis- play the following sequence: 1. Odometer
HTB010
1 2 3
The odometer records the total driving distance in kilometers or miles, and isuseful for keeping a record for mainte- nance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. 2,3 Trip odometer Records the distance of 2 trips in kilo- meters or miles.

FEATURES OF YOUR HYUNDAI 1- 51
HTB009A The trip computer is the microcom- puter-controlled driver informationgauge that displays information re-lated to driving, such as outside tem-perature distance to empty, drive dis- tance and average consumption on the LCD. Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch built in left side of speedmeter changes the display as follows;
B400B01TB-GAT TRIP COMPUTER (If Installed)
HTB012A
1. Outside temperature
OUTSIDE TEMPERATURE DISTANCE TO EMPTY DRIVE DISTANCE
AVERAGE CONSUMPTION
This mode indicates the outside tem- perature between -40 C (-40 F) and
75 C (167 F) .
2. Distance to empty HTB011A
TRIP A:
First distance you have trav-
eled from your origination point to a first destination.TRIP B: Second distance from the first
destination to the final destination. To shift from TRIP A to TRIP B, press the reset switch. When pressed for 1second, it will reset to 0.

1- 52 FEATURES OF YOUR HYUNDAI
Total Fuel Consumption(L) x 100 Total Cruise Distance (km)
3. Drive Distance
HTB013A HTB014A
MPG =
L/100km = Total Cruise Distance(Miles) Total Fuel Consumption (G)o This mode indicates the estimated
distance to empty from the current fuel in the fuel tank and distance toempty symbol.
o When refueling with more than 6 liters, the trip computer will recog-nize refueling.
o When the battery has been rein-
stalled after being discharged ordisconnected, drive more than 32kmfor an accurate distance to empty.
NOTE:
o If the distance to empty is indi- cated "---", have the trip com- puter system checked by yourauthorized Hyundai dealer.
o The distance to empty can differ
from the actual tripmeter accord- ing to driving conditions.
o The distance to empty can vary according to the driving condi- tions, driving pattern or vehiclespeed. o This mode indicates the drive dis-
tance travelled since the last drivetime reset.
o Pressing the reset switch built in left side of speedmeter for more than 1 second, when the drive distance is being displayed, clears the drivedistance to zero. 4. Average Consumption
o This mode indicates the average
consumption since the data reset.
o It displays per 10 seconds after you drive over 50m and 10 seconds.
o Calculation Method

FEATURES OF YOUR HYUNDAI 1- 53
HTB018A
HTB015
B340B01A-AAT Lane Change Signal
B340C01FC-GATHeadlight Switch

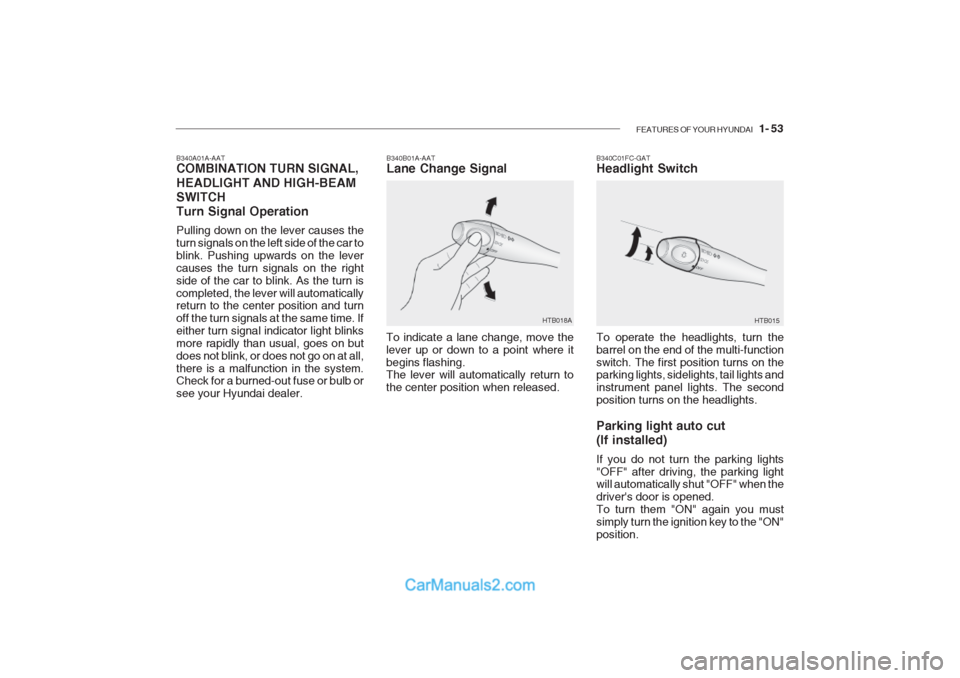

To indicate a lane change, move the lever up or down to a point where itbegins flashing. The lever will automatically return to the center position when released. To operate the headlights, turn thebarrel on the end of the multi-functionswitch. The first position turns on the parking lights, sidelights, tail lights and instrument panel lights. The secondposition turns on the headlights. Parking light auto cut (If installed) If you do not turn the parking lights "OFF" after driving, the parking light will automatically shut "OFF" when the driver's door is opened.To turn them "ON" again you mustsimply turn the ignition key to the "ON"position.
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAM SWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car toblink. Pushing upwards on the levercauses the turn signals on the rightside of the car to blink. As the turn iscompleted, the lever will automatically return to the center position and turn off the turn signals at the same time. Ifeither turn signal indicator light blinksmore rapidly than usual, goes on butdoes not blink, or does not go on at all,there is a malfunction in the system. Check for a burned-out fuse or bulb or see your Hyundai dealer.

1- 54 FEATURES OF YOUR HYUNDAI

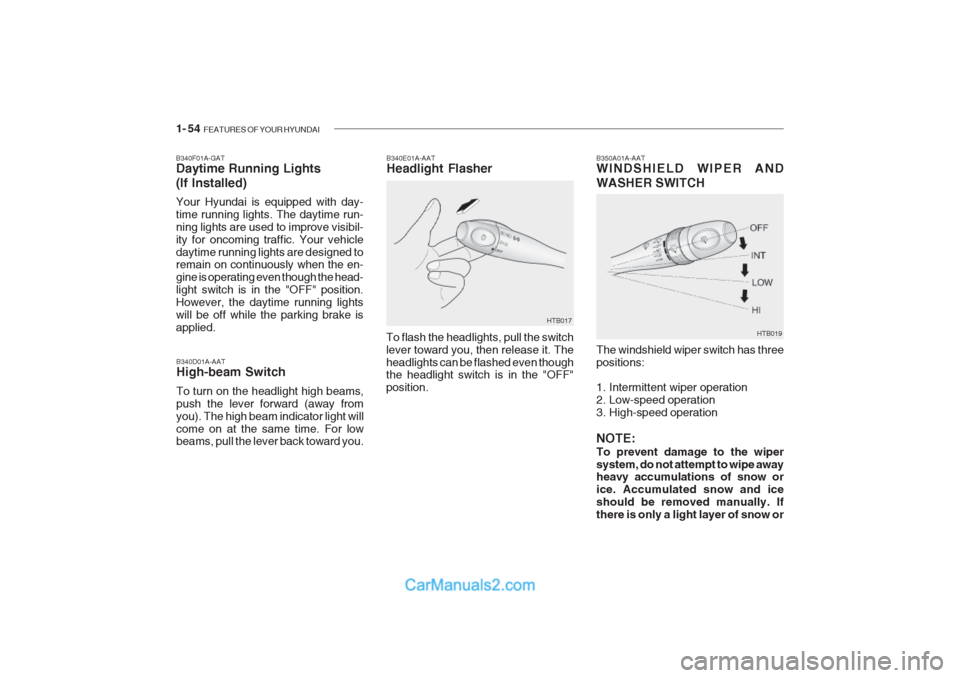

HTB017 B350A01A-AAT WINDSHIELD WIPER AND WASHER SWITCH
B340E01A-AAT Headlight Flasher
To flash the headlights, pull the switch lever toward you, then release it. Theheadlights can be flashed even though the headlight switch is in the "OFF" position. The windshield wiper switch has threepositions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and iceshould be removed manually. Ifthere is only a light layer of snow orHTB019
B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away fromyou). The high beam indicator light willcome on at the same time. For low beams, pull the lever back toward you.
B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run-ning lights are used to improve visibil-ity for oncoming traffic. Your vehicledaytime running lights are designed to remain on continuously when the en- gine is operating even though the head-light switch is in the "OFF" position.However, the daytime running lightswill be off while the parking brake isapplied.

FEATURES OF YOUR HYUNDAI 1- 55
B350C01FC-GAT Adjustable Intermittent Wiper
Operation (If Installed) To use the intermittent wiper feature, place the wiper switch in the "INT"position. With the switch in this posi- tion, the interval between wipes can be varied from approximately 1 to 18 sec-onds by turning the interval adjusterbarrel.
Mist Wiper Operation
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reser- voir isempty.
o In icy or freezing weather, be
sure the wiper blades are not frozen to the glass prior to oper- ating the wipers.
o In areas where water freezes in
winter, use windshield washerantifreeze.
If a single wipe is desired in mist, pushthe windshield wiper and washer con- trol lever upwards. HTB022 HTB020
To use the windshield washer, pull the wiper/washer lever toward the steer-ing wheel. When the washer lever isoperated, the wipers automaticallymake two passes across the wind- shield. The washer continues to oper- ate until the lever is released.
B350B01O-GAT Windshield Washer Operation
ice, operate the heater in the de- frost mode to melt the snow or icebefore using the wiper.
HTB021

1- 56 FEATURES OF YOUR HYUNDAI
B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessaryto stop the car in a hazardous location. When you must make such an emer- gency stop, always pull off the road asfar as possible.The hazard warning lights are turnedon by pushing in on the hazard switch.This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not inthe ignition.To turn the hazard warning lights off,push in on the switch a second time. HTB093
B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH The rear window defroster is turned on by pushing in on the switch. To turn thedefroster off, push in on the switch a second time. The rear window de- froster automatically turns itself off af-ter about 20 minutes. To restart thedefroster cycle, push in on the switchagain after it has turned itself off.
HTB039B350A01TB-AAT Tail Gate Wiper And Washer Switch (If installed)
HTB023
1. : The washer fluid will be sprayed onto the rear window and the wiper operates while the rear win- dow wiper barrel is placed in this position.
2.ON : When the point indicates "ON",
the rear window wiper oper-ates continuously.
3.OFF

FEATURES OF YOUR HYUNDAI 1- 57

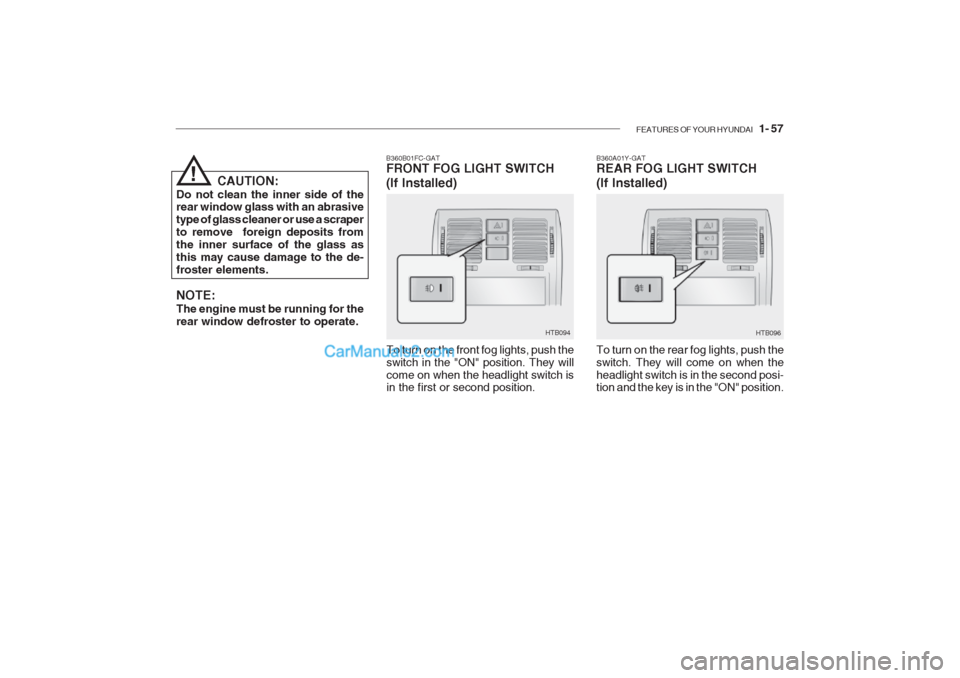

B360A01Y-GAT REAR FOG LIGHT SWITCH (If Installed) To turn on the rear fog lights, push the switch. They will come on when theheadlight switch is in the second posi- tion and the key is in the "ON" position. HTB096
HTB094
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed)
To turn on the front fog lights, push the switch in the "ON" position. They willcome on when the headlight switch is in the first or second position.
CAUTION:
Do not clean the inner side of therear window glass with an abrasive type of glass cleaner or use a scraperto remove foreign deposits fromthe inner surface of the glass asthis may cause damage to the de-froster elements. NOTE: The engine must be running for the rear window defroster to operate.
!
