Hyundai Getz 2003 Owner's Guide

1- 6 FEATURES OF YOUR HYUNDAI
password, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start.
HTB197
B880D02A-GAT Limp home procedures In case the immobilizer warning indi- cator blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have the NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
! CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait forabout one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer.

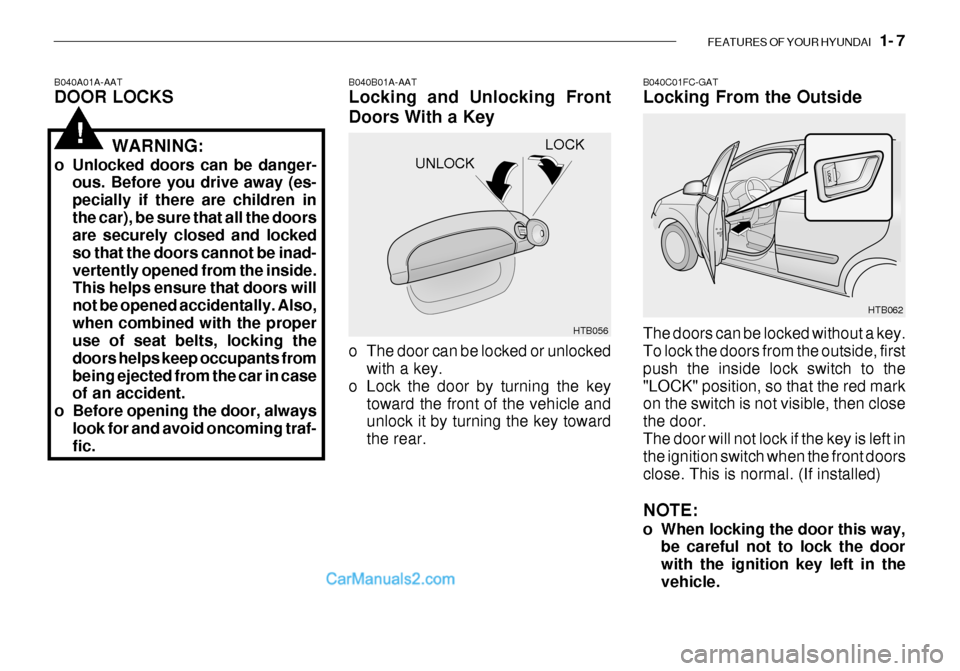

FEATURES OF YOUR HYUNDAI 1- 7
UNLOCK
B040A01A-AAT DOOR LOCKS
B040B01A-AATLocking and Unlocking Front Doors With a Key
HTB056
LOCK
!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children inthe car), be sure that all the doors are securely closed and locked so that the doors cannot be inad-vertently opened from the inside. This helps ensure that doors will not be opened accidentally. Also,when combined with the proper use of seat belts, locking the doors helps keep occupants frombeing ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic. o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle andunlock it by turning the key toward the rear. B040C01FC-GAT Locking From the Outside
The doors can be locked without a key. To lock the doors from the outside, first push the inside lock switch to the"LOCK" position, so that the red mark on the switch is not visible, then close the door.The door will not lock if the key is left in the ignition switch when the front doors close. This is normal. (If installed) NOTE:
o When locking the door this way, be careful not to lock the door with the ignition key left in thevehicle. HTB062

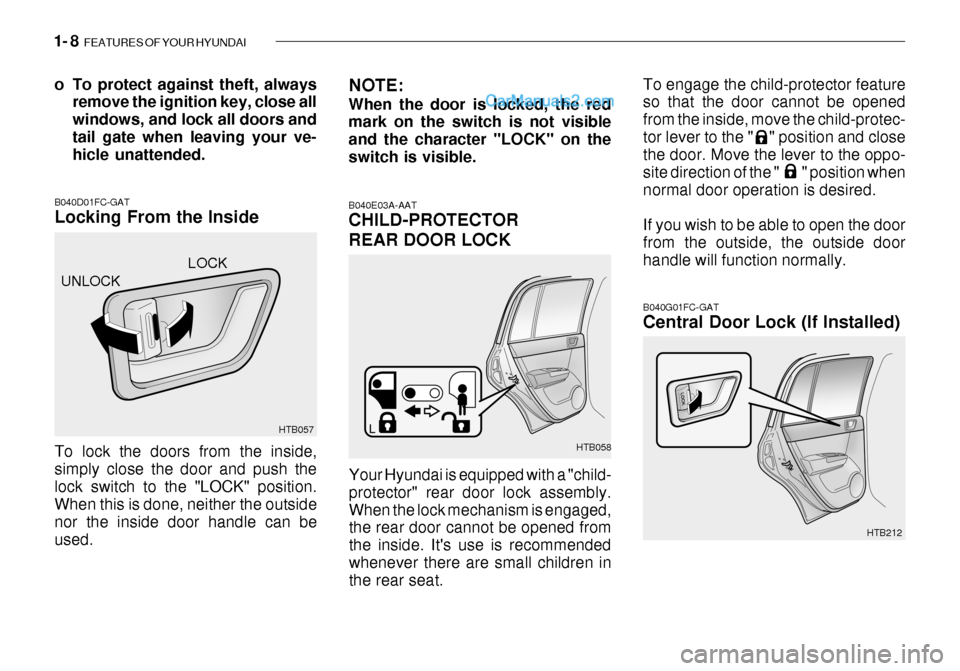

1- 8 FEATURES OF YOUR HYUNDAI
To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protec-tor lever to the " " position and close the door. Move the lever to the oppo- site direction of the " " position whennormal door operation is desired. If you wish to be able to open the door from the outside, the outside door handle will function normally.
HTB212
B040G01FC-GAT Central Door Lock (If Installed)
HTB057
UNLOCK
LOCK
B040D01FC-GAT Locking From the Inside To lock the doors from the inside, simply close the door and push thelock switch to the "LOCK" position. When this is done, neither the outside nor the inside door handle can beused. B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCK
Your Hyundai is equipped with a "child- protector" rear door lock assembly.When the lock mechanism is engaged, the rear door cannot be opened from the inside. It's use is recommendedwhenever there are small children in the rear seat.
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andtail gate when leaving your ve- hicle unattended. NOTE: When the door is locked, the red mark on the switch is not visible and the character "LOCK" on theswitch is visible.
HTB058

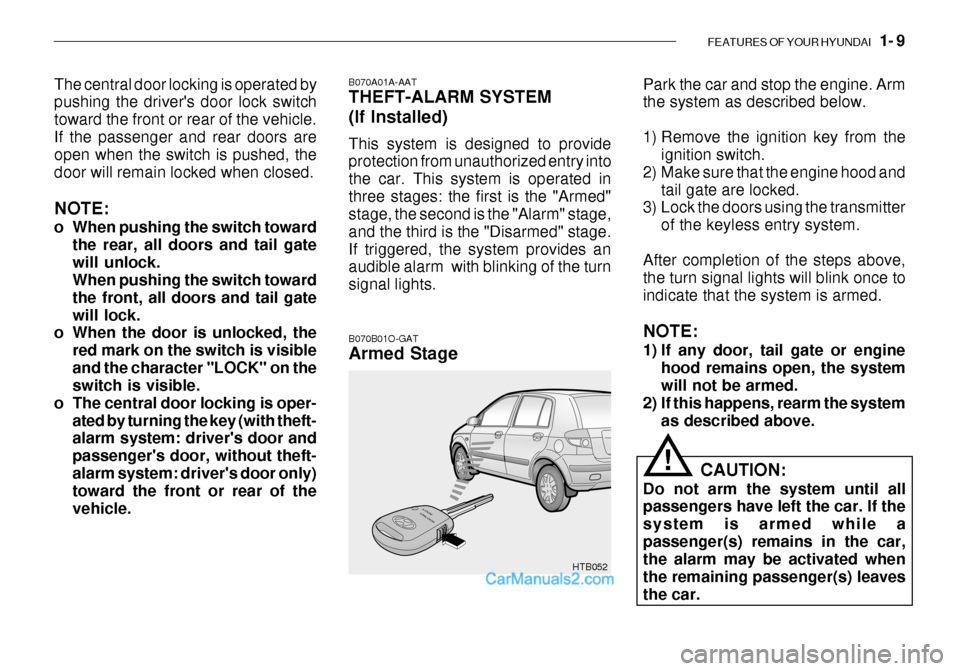

FEATURES OF YOUR HYUNDAI 1- 9
HTB052 Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once toindicate that the system is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not be armed.
2) If this happens, rearm the system
as described above.
The central door locking is operated bypushing the driver's door lock switch toward the front or rear of the vehicle.If the passenger and rear doors are open when the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock. When pushing the switch toward the front, all doors and tail gatewill lock.
o When the door is unlocked, the
red mark on the switch is visibleand the character "LOCK" on the switch is visible.
o The central door locking is oper-
ated by turning the key (with theft-alarm system: driver's door and passenger's door, without theft-alarm system: driver's door only) toward the front or rear of the vehicle. B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry into the car. This system is operated inthree stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage.If triggered, the system provides an audible alarm with blinking of the turn signal lights. B070B01O-GAT Armed Stage
CAUTION:
Do not arm the system until all passengers have left the car. If the system is armed while apassenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leavesthe car.
!

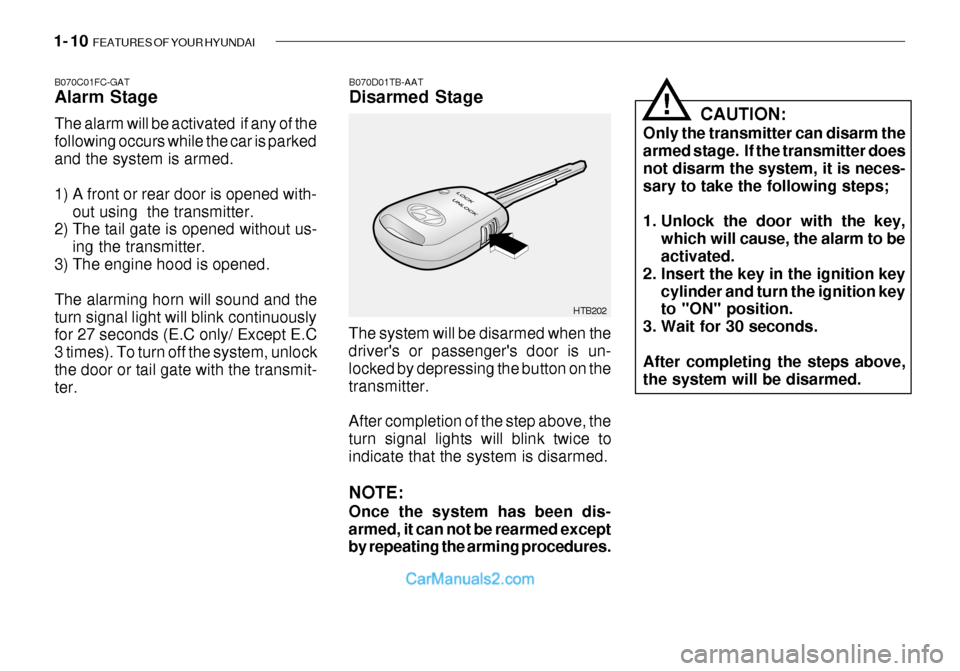

1- 10 FEATURES OF YOUR HYUNDAI
HTB202
B070D01TB-AAT Disarmed Stage
B070C01FC-GATAlarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The tail gate is opened without us-
ing the transmitter.
3) The engine hood is opened.The alarming horn will sound and the turn signal light will blink continuously for 27 seconds (E.C only/ Except E.C 3 times). To turn off the system, unlockthe door or tail gate with the transmit- ter. The system will be disarmed when thedriver's or passenger's door is un- locked by depressing the button on thetransmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed except by repeating the arming procedures. CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

FEATURES OF YOUR HYUNDAI 1- 11
HTB053
B070F01TB-GAT Keyless Entry System (If Installed)Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed. B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock thedoors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw- driver as shown in the illustration. 3. Remove four screws back side of
the built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), then insert it in the transmitter.

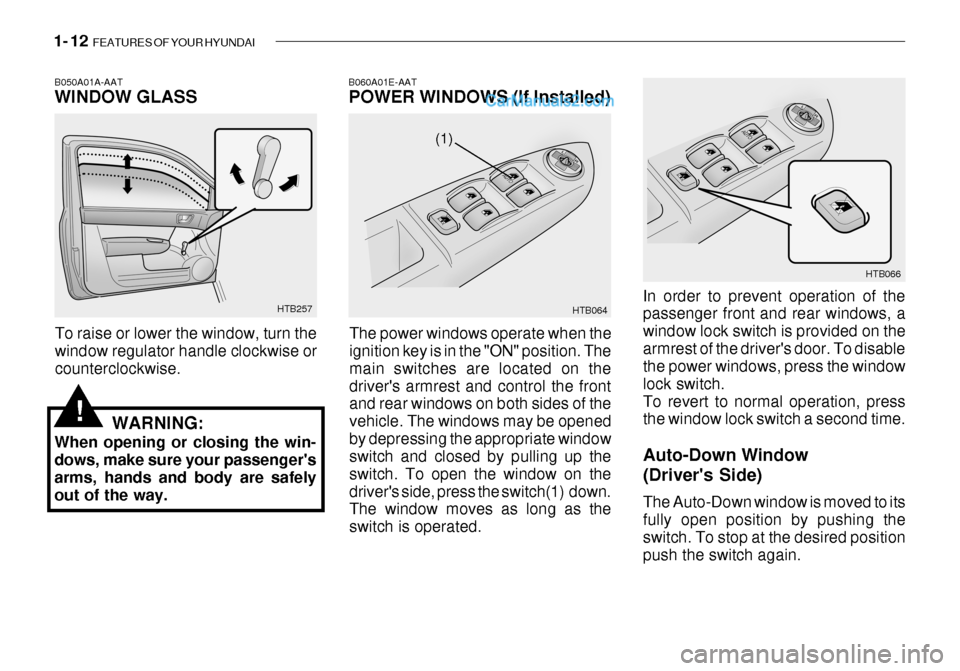

1- 12 FEATURES OF YOUR HYUNDAI
HTB257
B050A01A-AAT WINDOW GLASS
To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.HTB064
(1) HTB066
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on thearmrest of the driver's door. To disable the power windows, press the window lock switch.To revert to normal operation, press the window lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired positionpush the switch again.
B060A01E-AAT POWER WINDOWS (If Installed)
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated.
WARNING:
When opening or closing the win-dows, make sure your passenger's arms, hands and body are safely out of the way.
!

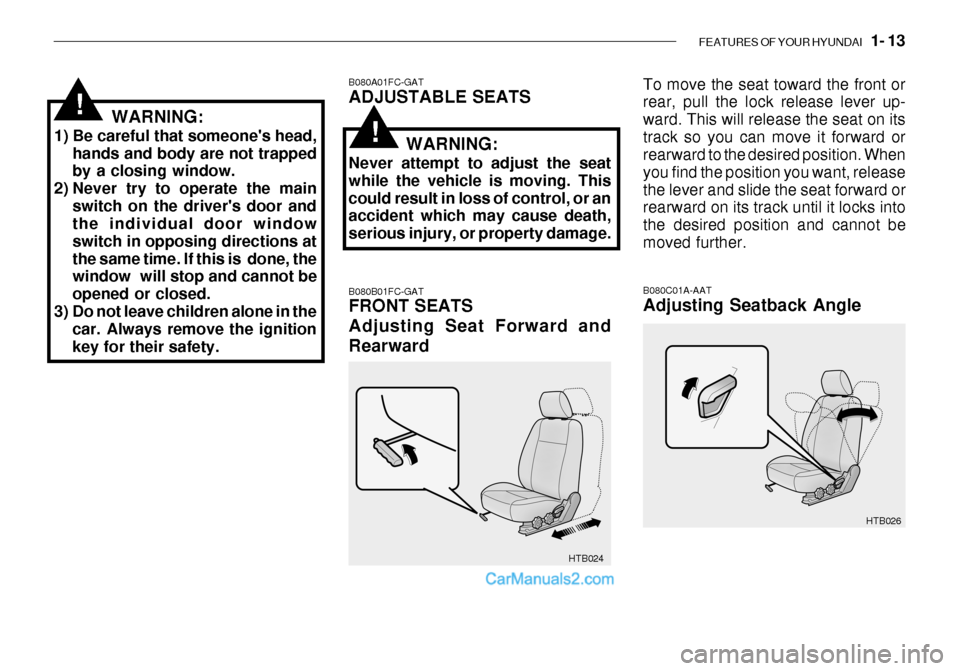

FEATURES OF YOUR HYUNDAI 1- 13
HTB026
HTB024
B080A01FC-GAT ADJUSTABLE SEATS B080B01FC-GAT FRONT SEATS Adjusting Seat Forward andRearward
To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further.
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
!
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control, or an accident which may cause death, serious injury, or property damage.
B080C01A-AAT Adjusting Seatback Angle

1- 14 FEATURES OF YOUR HYUNDAI
HTB027
B080E01O-AAT Lumbar Support Control
(Driver's Seat Only) (If Installed)
HFC2028
Lock knob
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at theoutside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback intoposition, release the recliner control lever. B080D02A-AAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob.
WARNING:
To minimize risk of severe injury inthe event of a collision or a sudden stop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protection provided by the seat belts and airbags may be reduced significant-ly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under theseat belt which may result in seri- ous injury if a crash occurs when the seatbacks are reclined. The seatbelt cannot provide full protection to an occupant if the seat back is reclined.
!
o Do not operate the vehicle with the headrests removed as severe injury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted.
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top ofthe headrest is at the same height as the top of the occupant's ears. The use of a cushion that holdsthe body away from the seatback is not recommended.
To adjust the lumbar support, turn the handle on the outboard or left side ofthe seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever towardthe rear.

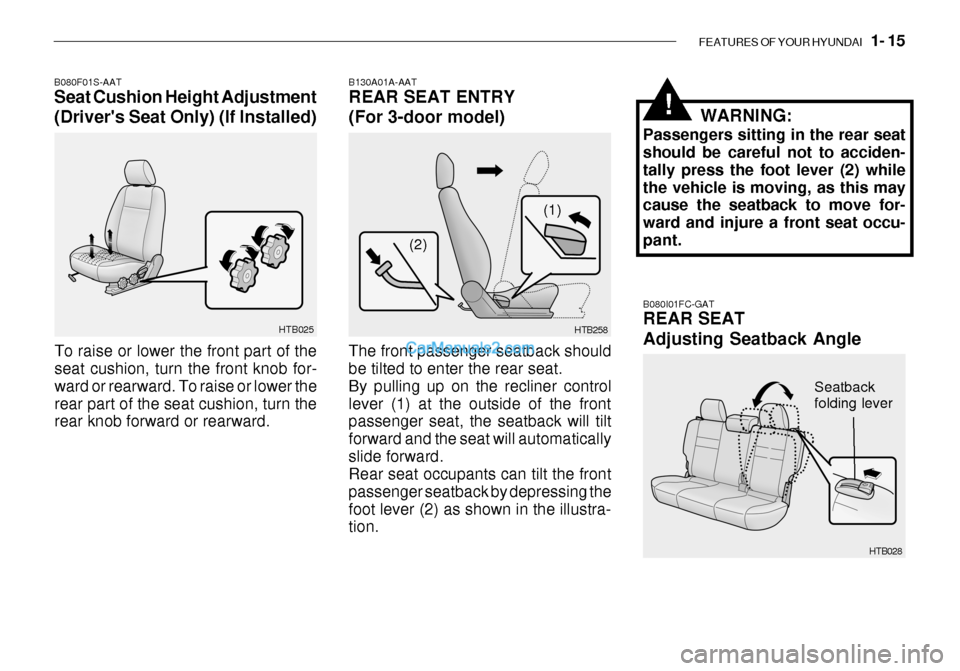

FEATURES OF YOUR HYUNDAI 1- 15
HTB025
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward. B130A01A-AAT REAR SEAT ENTRY (For 3-door model) The front passenger seatback should be tilted to enter the rear seat. By pulling up on the recliner controllever (1) at the outside of the front passenger seat, the seatback will tilt forward and the seat will automaticallyslide forward. Rear seat occupants can tilt the front passenger seatback by depressing thefoot lever (2) as shown in the illustra- tion. WARNING:
Passengers sitting in the rear seatshould be careful not to acciden- tally press the foot lever (2) whilethe vehicle is moving, as this may cause the seatback to move for- ward and injure a front seat occu-pant.
HTB258
!
HTB028
Seatback folding lever
B080I01FC-GAT REAR SEAT Adjusting Seatback Angle
(1)
(2)
