Hyundai Getz 2007 Owner's Guide

FEATURES OF YOUR HYUNDAI 1- 9
To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protectorlever to the "
" position and close the
door. Move the lever to the "
" posi-
tion when normal door operation is de- sired. If you wish to be able to open the door from the outside, the outside door handle will function normally.
HTB212
B040G02FC-GAT Central Door Lock (If Installed)
B070B01TB
The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle.If the passenger and rear doors are open when the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock. When pushing the switch toward the front, all doors and tail gatewill lock.
o When the door is unlocked, the
red mark on the switch is visibleand the character "LOCK" on the switch is visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door and passenger's door, without theft-alarm system: driver's door only) toward the front or rear of the vehicle.
o If the door is locked/unlocked mul- tiple times in rapid successionwith either the vehicle key or doorlock switch, the system may stop operating temporarily in order to protect the circuit and preventdamage to system components. B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry into the car. This system is operated inthree stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage.If triggered, the system provides an audible alarm with blinking of the turn signal lights. B070B01O-GAT Armed Stage

1- 10 FEATURES OF YOUR HYUNDAI
HTB202
B070D01TB-AAT Disarmed Stage
B070C01FC-GATAlarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The tail gate is opened without us-
ing the transmitter.
3) The engine hood is opened.The alarming horn will sound and the turn signal light will blink continuously for 27 seconds (E.C only/ Except E.C 3 times). To turn off the system, unlockthe door or tail gate with the transmit- ter. The system will be disarmed when thedriver's or passenger's door is un- locked by depressing the button on thetransmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed except by repeating the arming procedures.
Park the car and stop the engine. Armthe system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once toindicate that the system is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not be armed.
2) If this happens, rearm the system
as described above.
CAUTION:
Do not arm the system until allpassengers have left the car. If the system is armed while apassenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leavesthe car.
!

FEATURES OF YOUR HYUNDAI 1- 11
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.! B070F02TB-GAT Keyless Entry System (If Installed)Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed.
NOTE: The transmitter will not work if any of following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance limit (10 m).
- The battery in the transmitter is
weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold. - The transmitter is close to a radio
transmitter such as a radio station or an airport which can interferewith normal operation of the trans- mitter.
When the transmitter does not work correctly, open and close the door with the ignition key. If you have a problem with the transmitter, con-tact an authorized Hyundai Dealer. NOTE: Keep the transmitter away from wa- ter or any liquid. If the keyless entry system is inoperative due to expo- sure to water or liquids, it will not becovered by your manufacturer ve- hicle warranty.

1- 12 FEATURES OF YOUR HYUNDAI
HTB257
B050A01A-AAT WINDOW GLASS
To raise or lower the window, turn the window regulator handle clockwise or counterclockwise. WARNING:
When opening or closing the win-dows, make sure your passenger's arms, hands and body are safely out of the way.
!
3. Remove four screws back side of the built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), then insert it in the transmitter.
HTB053
B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock thedoors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a phillips
screwdriver.
2. Carefully separate the case with a flat-head screwdriver as shown in the illustration.

FEATURES OF YOUR HYUNDAI 1- 13
HTB064
(1)

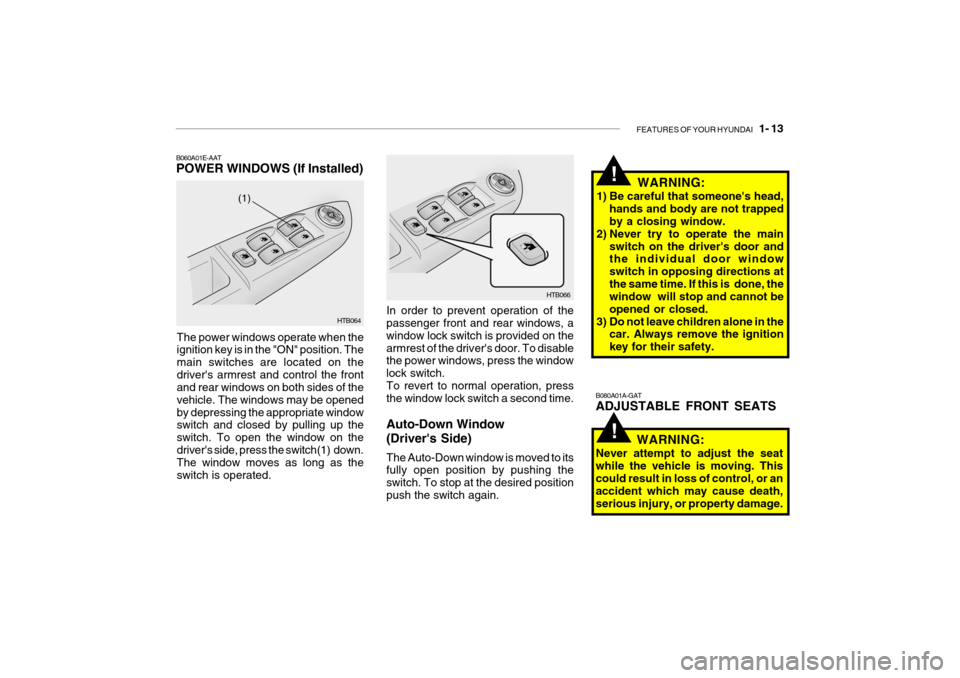

B060A01E-AAT POWER WINDOWS (If Installed)
The power windows operate when the ignition key is in the "ON" position. The main switches are located on thedriver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be openedby depressing the appropriate window switch and closed by pulling up the switch. To open the window on thedriver's side, press the switch(1) down. The window moves as long as the switch is operated.
HTB066
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on thearmrest of the driver's door. To disable the power windows, press the window lock switch.To revert to normal operation, press the window lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired positionpush the switch again. B080A01A-GAT ADJUSTABLE FRONT SEATSWARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
!
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage.

1- 14 FEATURES OF YOUR HYUNDAI

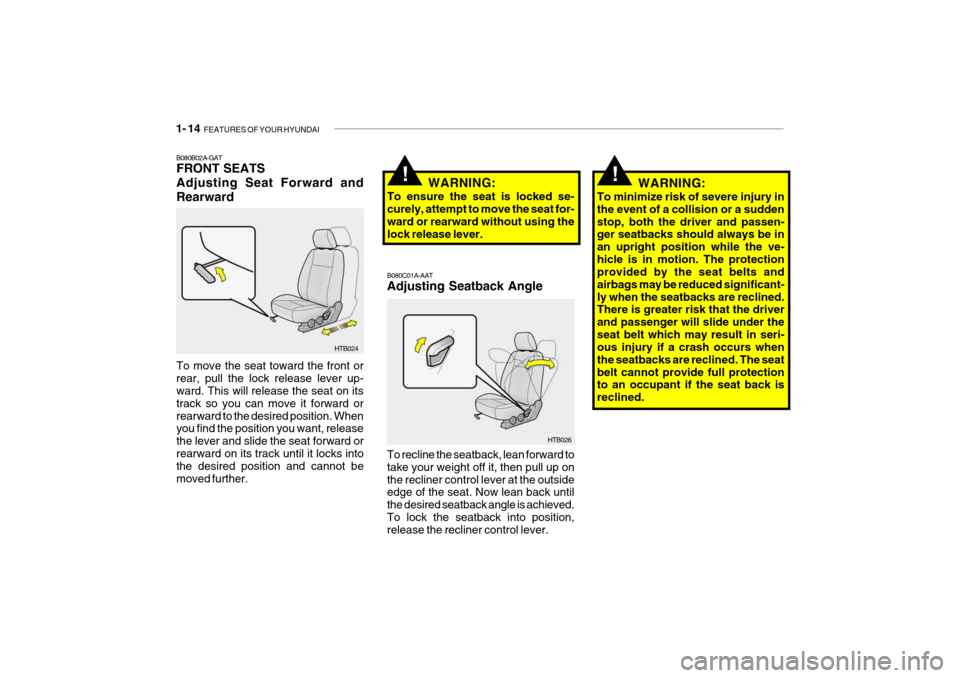

WARNING:
To minimize risk of severe injury in the event of a collision or a suddenstop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protection provided by the seat belts and airbags may be reduced significant-ly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under theseat belt which may result in seri- ous injury if a crash occurs when the seatbacks are reclined. The seatbelt cannot provide full protection to an occupant if the seat back is reclined.!WARNING:
To ensure the seat is locked se- curely, attempt to move the seat for- ward or rearward without using thelock release lever.!
To recline the seatback, lean forward to take your weight off it, then pull up onthe recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved.To lock the seatback into position, release the recliner control lever.
HTB026
B080C01A-AAT Adjusting Seatback Angle
HTB024
B080B02A-GAT FRONT SEATS Adjusting Seat Forward andRearward To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on its track so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.

FEATURES OF YOUR HYUNDAI 1- 15
HFC2028
Lock knob

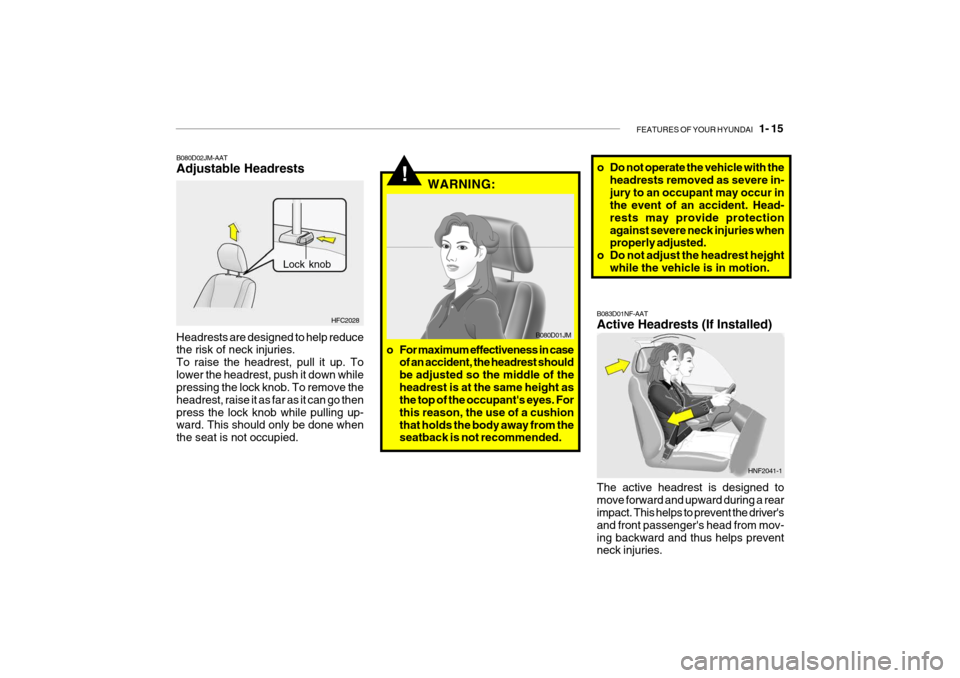

B080D02JM-AAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. Tolower the headrest, push it down while pressing the lock knob. To remove the headrest, raise it as far as it can go thenpress the lock knob while pulling up- ward. This should only be done when the seat is not occupied.
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of theheadrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushionthat holds the body away from the seatback is not recommended.
o Do not operate the vehicle with the
headrests removed as severe in- jury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted.
o Do not adjust the headrest hejght
while the vehicle is in motion.
B080D01JM
B083D01NF-AAT Active Headrests (If Installed) The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver's and front passenger's head from mov-ing backward and thus helps prevent neck injuries. HNF2041-1

1- 16 FEATURES OF YOUR HYUNDAI
HTB025

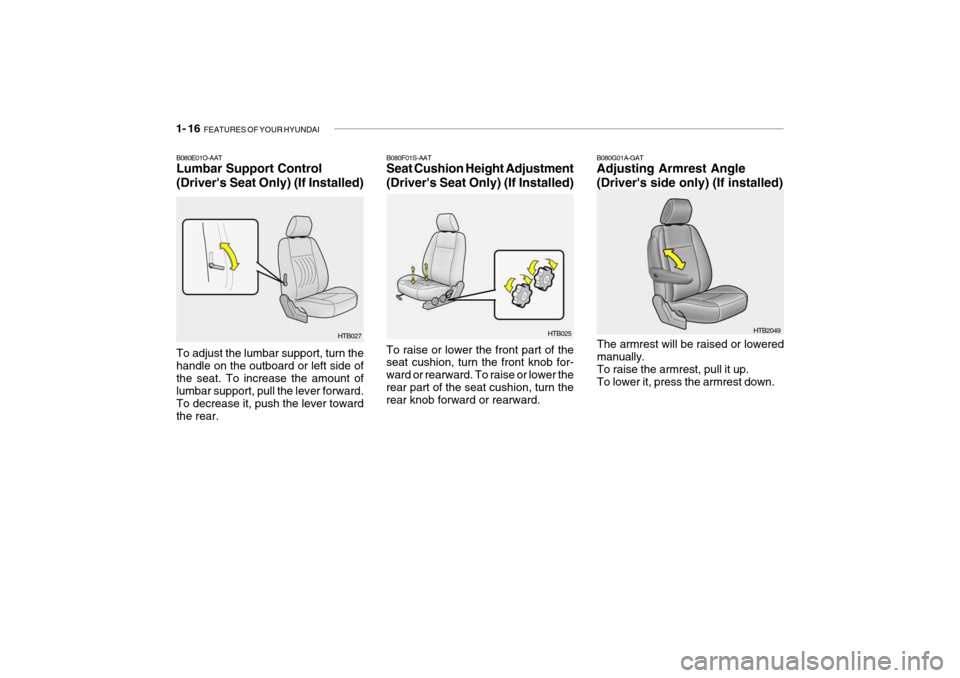

B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward.
B080G01A-GAT Adjusting Armrest Angle (Driver's side only) (If installed)
The armrest will be raised or lowered manually. To raise the armrest, pull it up.To lower it, press the armrest down. HTB2049
HTB027
B080E01O-AAT Lumbar Support Control
(Driver's Seat Only) (If Installed) To adjust the lumbar support, turn the handle on the outboard or left side ofthe seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever towardthe rear.

FEATURES OF YOUR HYUNDAI 1- 17

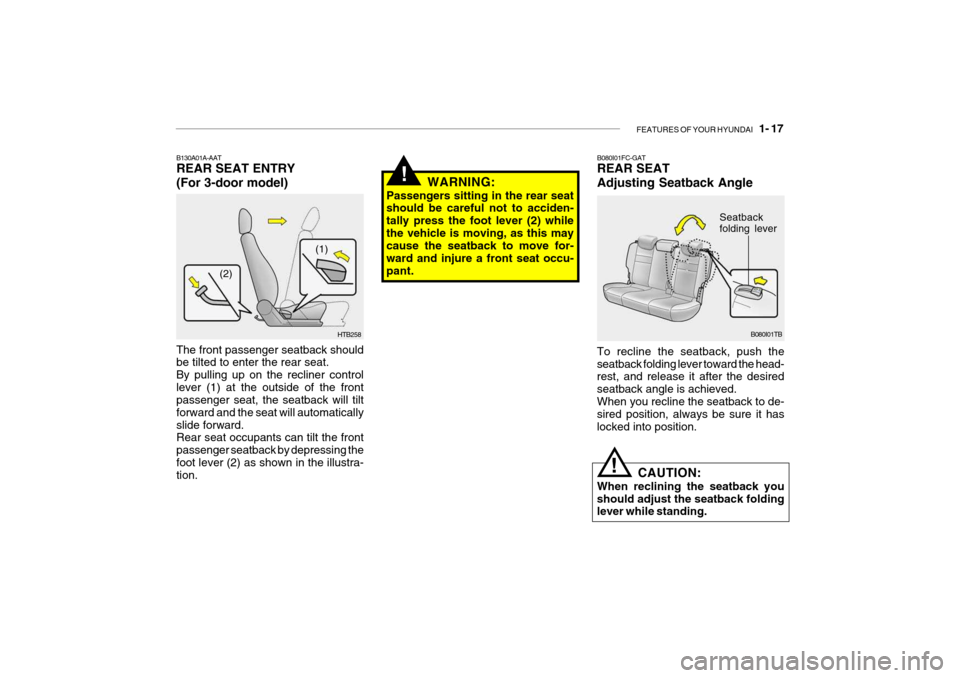

B130A01A-AAT REAR SEAT ENTRY (For 3-door model) The front passenger seatback should be tilted to enter the rear seat. By pulling up on the recliner controllever (1) at the outside of the front passenger seat, the seatback will tilt forward and the seat will automaticallyslide forward. Rear seat occupants can tilt the front passenger seatback by depressing thefoot lever (2) as shown in the illustra- tion. HTB258
(1)
(2)
To recline the seatback, push the seatback folding lever toward the head- rest, and release it after the desired seatback angle is achieved.When you recline the seatback to de- sired position, always be sure it has locked into position.
CAUTION:
When reclining the seatback youshould adjust the seatback folding lever while standing.
!
WARNING:
Passengers sitting in the rear seat should be careful not to acciden- tally press the foot lever (2) whilethe vehicle is moving, as this may cause the seatback to move for- ward and injure a front seat occu-pant.!
B080I01TB
Seatback folding lever
B080I01FC-GAT REAR SEAT Adjusting Seatback Angle

1- 18 FEATURES OF YOUR HYUNDAI
HTB2006Seatback folding lever
B090B01TB-GAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may be folded down and up.
1. Push the headrest down to the low-
est position.
2. To fold down the seatback , push and hold the seatback folding lever toward the headrest, then push down the seatback.
HTB294
B099A02F-AAT BEFORE FOLDING THE REAR SEATS Outboard Rear Seat Belt
OTB038146
!
Rear Seat Center's 3 Point Type Seat Belt (If installed) In order to prevent the shoulder belt from being damaged while folding the rear seat, the shoulder belt must bepassed through the hanger to keep it out of the way.
CAUTION:
Seat belts must be removed from thehanger when in use.
