Hyundai Getz 2007 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 55
1. Odometer
HTB010
1 2 3
The odometer records the total driving distance in miles and is useful for keep- ing a record for maintenance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. 2,3 Trip odometer Records the distance of 2 trips in miles.
HTB009B The trip computer is the microcom- puter-controlled driver information gauge that displays information related to driv-ing, such as outside temperature dis- tance to empty, drive distance and average consumption on the LCD. Trip Computer switch
o The trip computer switch is used to
zero the multi-functional display mode.
o Pushing in the trip computer switch
changes the display as follows;
B400B03TB-EAT TRIP COMPUTER (Not all models)
OUTSIDE TEMPERATURE
DISTANCE TO EMPTY
AVERAGE CONSUMPTION DRIVE DISTANCE
TRIP A: First distance you have trav-
eled from your origination point to a first destination.TRIP B: Second distance from the first
destination to the final destination. To shift from TRIP A to TRIP B, press the reset switch. When pressed for 1 second, it will reset to 0.

1- 56 FEATURES OF YOUR HYUNDAI
B400B05TB-E
3. Average Fuel Consumption
o This mode indicates the estimated
distance to empty from the current fuel in the fuel tank and distance toempty symbol.
o When refueling with more than 6
liters, the trip computer will recog-nize refueling.
o When the battery has been rein-
stalled after being discharged ordisconnected, drive more than 28 mile for an accurate distance to empty.
NOTE:
o When the distance to empty is less than 50 km, the symbol will al- ways come on and the distance to empty digits will indicate "---" with flash until more fuel is added.
o The distance to empty can differ from the actual tripmeter accord-ing to driving conditions.
o The distance to empty can vary according to the driving condi-tions, driving pattern or vehiclespeed. o This mode indicates the average fuel
consumption since the data reset.
o The consumption meter refreshes every 10 seconds once a distance of0.03 miles and a 10 second durationis reached.
o Calculation Method
B400B03TB-E
1. Outside temperature This mode indicates the outside tem- perature between -40°F and 167°F .
2. Distance to empty
B400B02TB-E
MPG =Total Cruise Distance(Miles) Total Fuel Consumption (G)
NOTE: The average fuel consumption is calculated by the UK gallon. A UK gallon is equal to 4.546 litres.

FEATURES OF YOUR HYUNDAI 1- 57
SB220A1-E MULTI FUNCTION SWITCH Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down. To signal an intention to turn left, theswitch lever should be pushed upwards. In both instances, the turn signal lights and the instrument cluster warning lightwill flash. Upon completion of the ma- noeuvre, the lever will, under normal circumstances, return to the "Off" posi-tion. However, if the manoeuvre in- volved only a small movement of the steering wheel, the signal may need tobe cancelled manually. If either turn signal indicator flashes more rapidly than normal or refuses to flash at all, amalfunction of the turn signal system may exist. SB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly towards the direction of the relevant turn signal willcause the turn signal lights to flash. When the lever is released, it will return to the "off" position.
HTB018-D
B400B04TB-E
4. Drive Distance
o This mode indicates the drive dis-
tance travelled since the last drive time reset.
o Pressing the trip computer switch for more than 1 second, when thedrive distance is being displayed,clears the drive distance to zero.

1- 58 FEATURES OF YOUR HYUNDAI
HTB017-DHTB015-D
B340C03FC-EAT LIGHTING SWITCH
The vehicle side lights and headlights are operated by rotating the end of the turn signal switch barrel. To operate theside lights, rotating the switch to the first detent with ignition switch at the "OFF" position will cause the lights toilluminate. To operate the headlights, the turn signal switch barrel should be rotated to the second detent. The head-lights will only operate when the ignition switch is at the "On" position. If the ignition switch is turned to the "Off"position, only the side lights will func- tion. NOTE: The ignition must be in the "ON" position to turn on the headlights. Side light auto cut (Not all models) If you do not turn the side lights "OFF" after driving, the side light will automati- cally shut "OFF" when the driver's dooris opened. To turn them "ON" again you must simply turn the ignition key to the "ON"position. SB220D1-E HIGH AND LOW BEAM To turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back (toward you). The appropriate headlightbeam indicator light will come on at the same time.
SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlights willbe extinguished when the switch is released.

FEATURES OF YOUR HYUNDAI 1- 59
HTB019A-D
SB230A1-E WINDSCREEN WIPER/ WASHER SWITCH The windscreen wiper switch, depen- dent upon model, has three operating positions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation. NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operate the heater in the defrost mode to meltthe snow or ice before using the wiper.
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating thewipers.
o In areas where water freezes in
winter, use windscreen washerantifreeze.
Single Sweep Operation
HTB022A-D
To use the windscreen washer, pull thewiper/washer lever toward the steeringwheel. When the washer lever is oper- ated, the wipers automatically make two passes across the windscreen.The washer continues to operate until the lever is released.
B350B01O-EAT Windscreen Washer Operation
HTB021A-DIf a single wipe is desired, push the windscreen wiper and washer controllever upwards.

1- 60 FEATURES OF YOUR HYUNDAI
SB240A1-E HAZARD WARNING SYSTEM The hazard warning system should be used whenever it becomes necessary to stop the car in a hazardous location.The hazard warning system is operated by depressing the switch at which time all turn signal lights will flash simulta-neously and the turn signal warning lights located within the instrument clus- ter will flash simultaneously.The hazard warning system may be turned off by depressing the switch again.B350A01TB-AAT Tail Gate Wiper And Washer Switch (Not all models)
HTB023A-D
1. : The washer fluid will be sprayed onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2.ON : When the point indicates "ON",
the rear window wiper oper-ates continuously.
3.OFF
B350C01FC-DAT Adjustable Intermittent Wiper Operation
To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi-tion, the interval between wipes can be varied from approximately 1 to 18 sec- onds by turning the interval adjusterbarrel. HTB020A-D
B370A01TB-D

FEATURES OF YOUR HYUNDAI 1- 61
SB250A1-E HEATED REAR WINDOW To operate the heated rear window de- press the switch shown. The heated rear window will automatically turn offafter 20 minutes or when the ignition is turned off. The system may be turned off manuallyby depressing the switch again. HTB039CAUTION:
The inside of the rear windscreenshould never be cleaned with a hardor sharp implement since damage to the heating element may occur. The glass should only be cleaned with asoft cloth or chamois leather with the use only of a mild detergent or pro- prietary glass cleaner where neces-sary. Only horizontal movement of the cloth should be made when clean- ing the glass and care should beexercised to ensure that the heating elements are not damaged by rings or jewellery whilst the glass is beingcleaned. NOTE: The engine must be running for the heated rear window to operate.
! B360B01FC-EAT FRONT FOG LIGHT SWITCH (Not all models) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is inthe first or second position.
HTB2030-D

1- 62 FEATURES OF YOUR HYUNDAI
SB290A02-F CIGAR LIGHTER (If installed)
For the cigar lighter to work, the key must be in the "ACC" or the "ON" position. To use the cigar lighter, push the lighterall the way into its socket. When the element is heated, the lighter will pop out into the "ready" position.
HHR2098A
B400A02TB-EAT DIGITAL CLOCK The digital clock is located in the centre of the facia panel the controls are di- rectly below the display.The clock functions are: o Reset : Push the button for more than
1 second.
o Min/Hour Adjustment: Turn to "H"
for 0.5 second to advance the hour indicated. Turn to "M" for 0.5 sec- ond to advance the minute indi- cated.
o Auto mode: Turn to the right or left
side for more than 1 second to ad-vance fastly. CAUTION:
Don't turn the switch excessively toprevent switch damage.
!
B360A01Y-GAT REAR FOG LIGHT SWITCH
To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position.
B360A01TB-DHTB2033-D

FEATURES OF YOUR HYUNDAI 1- 63
B500D01TG-GAT POWER OUTLET (If installed)
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON" or "ACC" position.
!
CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap- pliance. Using when the engine stops or remaining the electricappliance with plugged in for many hours may cause the battery to be discharged.
o Do not use the power outlet to connect electric accessories orequipment other than those de-signed to operate on 12 volts.
o Some electronic devices can cause
electronic interference whenplugged into the power outlet. These devices may cause exces- sive audio noise and malfunctionsin other electronic systems or de- vices used in your vehicle.
B500D01TB-D
!
Do not hold the cigar lighter at the depressed position which may result in damage to the vehicle wiring or anelectrical fire. If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundaireplacement part.
CAUTION:
Do not use electric accessories orequipment other than the Hyundai genuine parts in the socket.

1- 64 FEATURES OF YOUR HYUNDAI

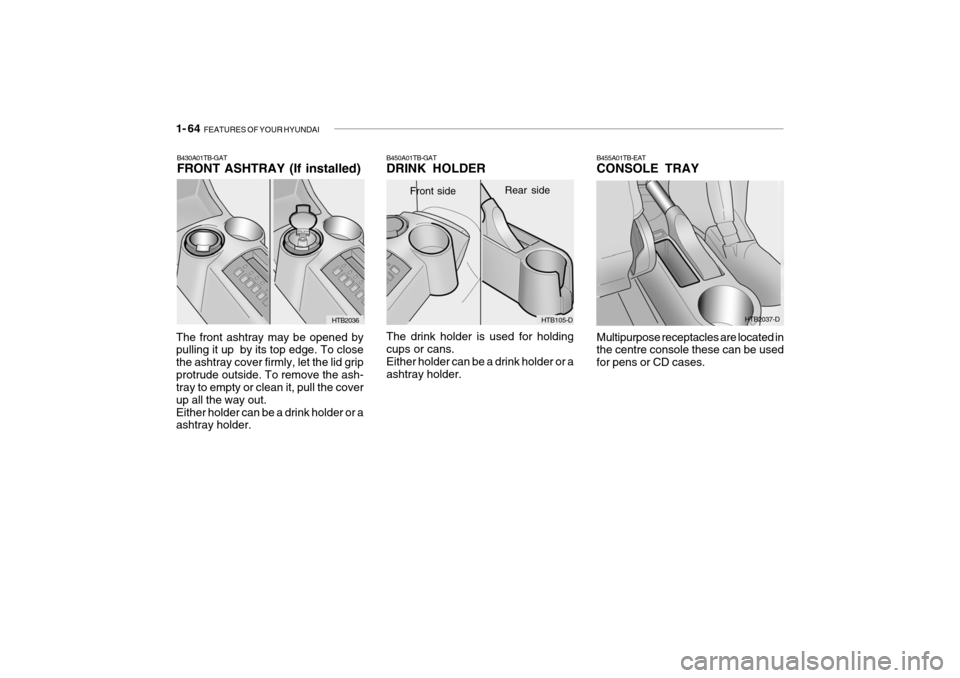

B430A01TB-GAT FRONT ASHTRAY (If installed)
HTB2036
The front ashtray may be opened by pulling it up by its top edge. To close the ashtray cover firmly, let the lid gripprotrude outside. To remove the ash- tray to empty or clean it, pull the cover up all the way out.Either holder can be a drink holder or a ashtray holder.
Front side
B450A01TB-GAT DRINK HOLDER The drink holder is used for holding cups or cans. Either holder can be a drink holder or aashtray holder. Rear side
B455A01TB-EAT CONSOLE TRAY Multipurpose receptacles are located in the centre console these can be used for pens or CD cases. HTB2037-D
HTB105-D
