5- 10 VEHICLE MAINTENANCE REQUIREMENTS
F070P01HP-AAT
o Driveshafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or damage. Replace any damaged parts and, if necessary, repack the grease.
F070Q01A-AAT
o Air conditioning refrigerant
Check the air conditioning lines and
connections for leakage and damage. Check air conditioning performance according to the relevant shop manualif necessary.
F070J01A-AAT
o Brake pads, calipers and
rotors
Check the pads for excessive wear,discs for run out and wear, and cali-pers for fluid leakage. F070K01A-AAT
o Exhaust pipe and muffler
Visually inspect the exhaust pipes, muffler and hangers for cracks, dete- rioration, or damage. Start the engine and listen carefully for any exhaust gas leakage. Tighten connections or replace parts as necessary. F070L01A-AAT o Suspension mounting bolts Check the suspension connections for looseness or damage. Retightento the specified torque. F070M01O-AAT
o Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engineoff, check for excessive freeplay inthe steering wheel.Check the linkage for bends or dam-age. Check the dust boots and ball joints for deterioration, cracks, or dam- age. Replace any damaged parts. F070N01A-AAT
o Power steering pump, belt and
hoses
Check the power steering pump and hoses for leakage and damage. Re- place any damaged or leaking partsimmediately. Inspect the power steer- ing belt for evidence of cuts, cracks, excessive wear, oiliness and propertension. Replace or adjust it if neces- sary.

6. Do-It-Yourself Maintenance
Engine compartment ........................................................................ 6-2
Daily operating checks ..................................................................... 6-5
Engine oil .......................................................................................... 6-6
Engine oil replenishment .................................................................. 6-8
Engine coolant Checking ................................................................. 6-9Changing the air cleaner filter ......................................................... 6-11
Windscreen Wiper Blades .............................................................. 6-12
Windscreen Washer Reservoir Replenishment ............................. 6-13
Manual Transaxle Lubricant........................................................... 6-14
Automatic Transaxle fluid ............................................................... 6-15
Brake System Checking ................................................................ 6-17
Air conditioning System .................................................................. 6-18
Drive belts ...................................................................................... 6-20
Individual Circuit Fuses .................................................................. 6-21
Power steering fluid level ............................................................... 6-23
Replacing Light Bulbs .................................................................... 6-26
Fuse panel description ................................................................... 6-31
6

6- 2 DO-IT-YOURSELF MAINTENANCE
HTB160A
1. Power steering fluid reservoir
2. Auto fuel cut switch
3. Engine oil filler cap
4. Brake fluid and clutch fluid reservoir 5. Air cleaner
6. Relay box
7. Windshield washer fluid reservoir
cap
8. Engine oil level dipstick 9. Radiator cap
10.Engine coolant reservoir
11.Battery
G010A02TB-EAT ENGINE COMPARTMENT (1.1 SOHC)

DO-IT-YOURSELF MAINTENANCE 6- 3
G010B02TB-EAT ENGINE COMPARTMENT (1.4L DOHC/1.6L DOHC)
HTB5001-E
1. Power steering fluid reservoir (Not all models)
2. Auto fuel cut switch
3. Engine oil filler cap
4. Brake fluid and clutch fluid reservoir 5. Air cleaner
6. Relay box
7. Windshield washer fluid reservoir
cap
8. Engine oil level dipstick 9. Radiator cap
10.Engine coolant reservoir
11.Automatic transaxle fluid level dip-
stick (Not all models)
12.Battery CAUTION:
When inspecting or servicing the engine,you should handle tools and other heavy objects carefully sothat the plastic rocker cover of the engine is not damaged.
!

6- 4 DO-IT-YOURSELF MAINTENANCE
G010C01TB-EAT ENGINE COMPARTMENT (DIESEL)
HTB159
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Engine oil filler cap
4. Fuel filter 5. Brake fluid and clutch fluid reser
voir
6. Air cleaner
7. Relay box
8. Windshield washer fluid reservoir cap 9. Engine oil level dipstick
10. Radiator cap
11. BatteryCAUTION:
When inspecting or servicing the engine,you should handle tools and other heavy objects carefully sothat the plastic rocker cover of the engine is not damaged.
!

DO-IT-YOURSELF MAINTENANCE 6- 5
!
G020D01TG-EAT MAINTENANCE PRECAUTIONS Improper or incomplete service may result in problems. This section givesinstructions only for the maintenance items that are easy to perform. Several procedures should be done byan authorised Hyundai dealer. NOTE: Improper owner maintenance dur- ing the warranty period may affectwarranty coverage. WARNING:
o Performing maintenance work on a vehicle can be dangerous. You can be seriously injured while performing some maintenanceprocedures. If you lack sufficient knowledge and experience or the proper tools and equipment to dothe work, have it done by an authorised Hyundai dealer.
o Working under the hood with the engine running is dangerous. Itbecomes even more dangerous when you wear jewelry or looseclothing. These can become en- tangled in moving parts and result in injury. Therefore, if you mustrun the engine while working un- der the hood, make certain that you remove all jewelry (especiallyrings, bracelets, watches, and necklaces) and all neckties, scarves, and similar loose cloth-ing before getting near the engine or cooling fans.
SG020B1-E DAILY OPERATING CHECKS The following items should be checked on a daily basis or whenever the vehicleis refuelled, whichever occurs sooner.
o Engine oil level.
o Engine coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light-
ing equipment.
o Windscreen wiper and washer opera- tion.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and operation.
o Fluid leakage. The vehicle must not be driven if the daily operating checks indicate that any item of equipment related to thesafety or roadworthiness of the vehicle is not functioning correctly.

6- 6 DO-IT-YOURSELF MAINTENANCE
NOTE: SAE 5W-20 (5W-30), ILSAC GF-3 en- gine oil is preferred regardless of regional option and engine varia-tion. If SAE 5W-20, ILSAC GF-3 en- gine oil is not available, secondary recommended engine oil for corre-sponding temperature range can be used.
G030B01TB-EAT Recommended Oil
1. Petrol engine The engine oil quality should meet the following classification. API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE The oil viscosity should be selected according to the operating environment of the engine by means of the table shown above. The engine oil recom-mendations are complete in themselves and the use of additives is neither required nor recommended. The use ofengine oil additives may result in invali- dation of the vehicle warranty.
G030A01FC-EAT ENGINE OIL The correct engine oil level is of para- mount importance. An excessively highor low oil level may result in irreparable damage being sustained by the engine. The engine oil level must be checkedon a daily basis, whenever the vehicle is refuelled or before starting a long trip, whichever occurs sooner.In addition, it is imperative that only an approved grade and specification of oil is used to avoid the possibility of seri-ous engine damage and premature wear. The use of "budget price" oil is a false economy that must be avoided if themaximum reliability and useful life is to be obtained from the vehicle.
G030B01JM

DO-IT-YOURSELF MAINTENANCE 6- 7
G030B01TB

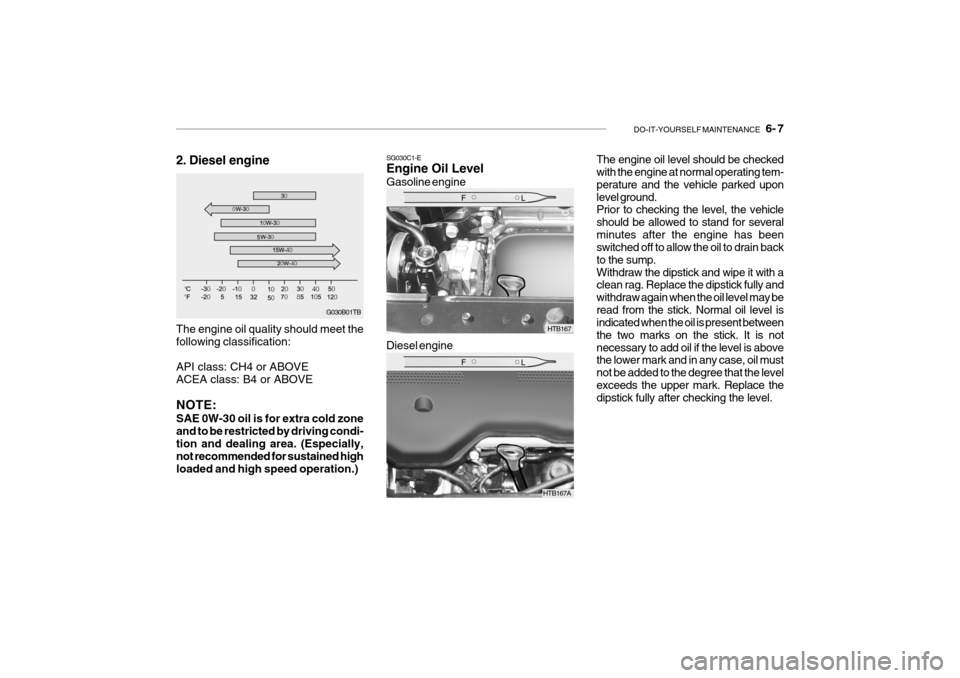

The engine oil quality should meet the following classification: API class: CH4 or ABOVE ACEA class: B4 or ABOVE NOTE: SAE 0W-30 oil is for extra cold zone and to be restricted by driving condi- tion and dealing area. (Especially, not recommended for sustained highloaded and high speed operation.) SG030C1-E Engine Oil Level Gasoline engine
Diesel engine
The engine oil level should be checked with the engine at normal operating tem- perature and the vehicle parked uponlevel ground. Prior to checking the level, the vehicle should be allowed to stand for severalminutes after the engine has been switched off to allow the oil to drain back to the sump.Withdraw the dipstick and wipe it with a clean rag. Replace the dipstick fully and withdraw again when the oil level may beread from the stick. Normal oil level is indicated when the oil is present between the two marks on the stick. It is notnecessary to add oil if the level is above the lower mark and in any case, oil must not be added to the degree that the levelexceeds the upper mark. Replace the dipstick fully after checking the level.
2. Diesel engine
HTB167
HTB167A

6- 8 DO-IT-YOURSELF MAINTENANCE
Petrol engine
HTB169
Diesel engine

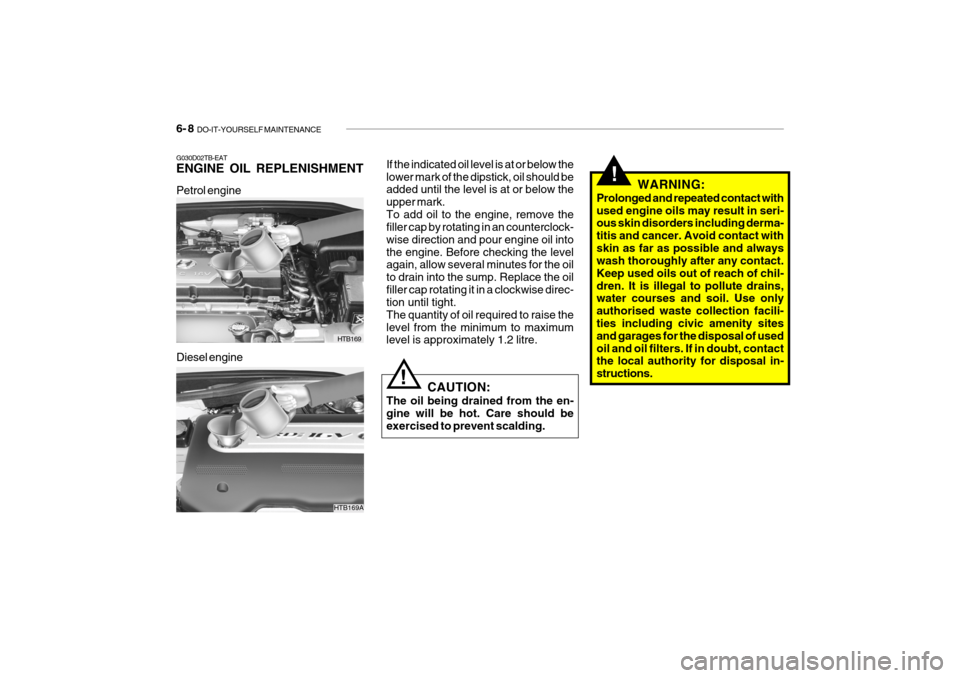

G030D02TB-EAT ENGINE OIL REPLENISHMENT
If the indicated oil level is at or below the lower mark of the dipstick, oil should be added until the level is at or below the upper mark.To add oil to the engine, remove the filler cap by rotating in an counterclock- wise direction and pour engine oil intothe engine. Before checking the level again, allow several minutes for the oil to drain into the sump. Replace the oilfiller cap rotating it in a clockwise direc- tion until tight. The quantity of oil required to raise thelevel from the minimum to maximum level is approximately 1.2 litre.
HTB169A
!
!
CAUTION:
The oil being drained from the en- gine will be hot. Care should beexercised to prevent scalding. WARNING:
Prolonged and repeated contact withused engine oils may result in seri- ous skin disorders including derma- titis and cancer. Avoid contact withskin as far as possible and always wash thoroughly after any contact. Keep used oils out of reach of chil-dren. It is illegal to pollute drains, water courses and soil. Use only authorised waste collection facili-ties including civic amenity sites and garages for the disposal of used oil and oil filters. If in doubt, contact the local authority for disposal in- structions.

DO-IT-YOURSELF MAINTENANCE 6- 9
o The engine oil consumption is strongly
effected by the viscosity and quality of oil, engine rpm and driving condi-tion etc. More engine oil may be consumed under severe driving conditions suchas high speeds, frequent accelera- tion and deceleration, compared to normal driving.
ZG030E1-E ENGINE OIL CONSUMPTION Function of engine oil Engine oil has the primary function of lubricating and cooling the inside of the engine. Engine oil consumption It is normal that an engine should con- sume some engine oil while normal driving. The cause of oil consumption in a normal engine are as follows;
o Engine oil is used to lubricate pis-
tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves down- wards in the cylinder. High negativepressure generated during engine operation sucks some of the oil into the combustion chamber.This oil with some oil of the cylinder wall is burned by the high tempera- ture combustion gases during thecombustion process.
!
SG050A2-E ENGINE COOLANT CHECKING
WARNING:
Do not remove the radiator cap when the engine is hot, since the system is pressurized and coolant may beejected from the radiator resulting in scalding. NOTE: It is recommended that the engine coolant should be changed by an authorised Hyundai dealer.
