CONSUMER INFORMATION 8- 3

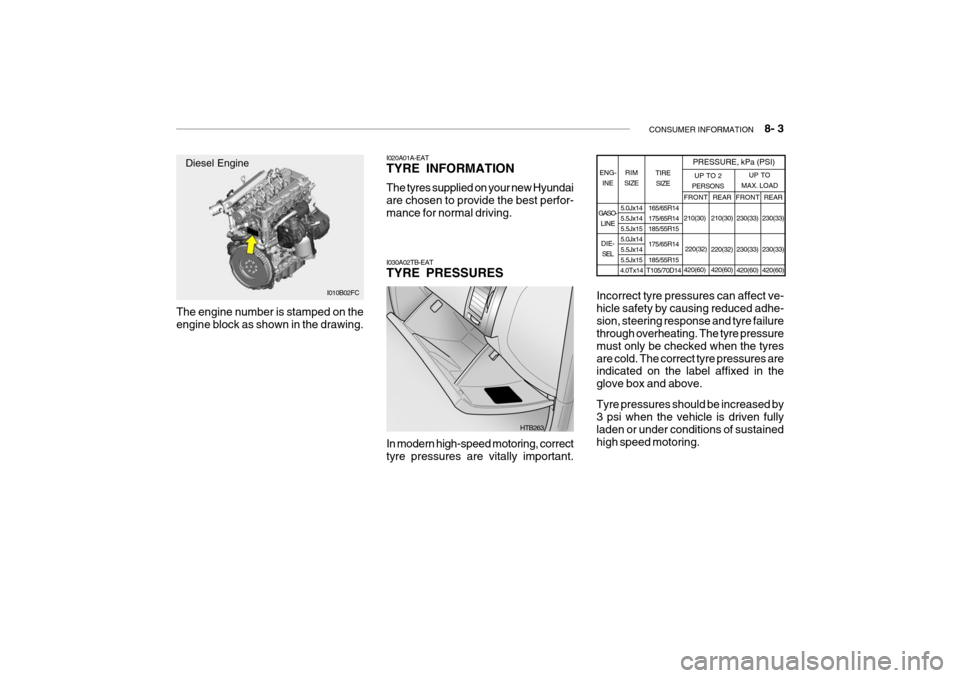

The engine number is stamped on the engine block as shown in the drawing. I030A02TB-EAT TYRE PRESSURES In modern high-speed motoring, correct tyre pressures are vitally important.
I010B02FC
HTB263
Diesel Engine
Incorrect tyre pressures can affect ve-hicle safety by causing reduced adhe-sion, steering response and tyre failure through overheating. The tyre pressure must only be checked when the tyresare cold. The correct tyre pressures are indicated on the label affixed in the glove box and above. Tyre pressures should be increased by 3 psi when the vehicle is driven fully laden or under conditions of sustainedhigh speed motoring.
I020A01A-EAT TYRE INFORMATION The tyres supplied on your new Hyundai are chosen to provide the best perfor-mance for normal driving.
5.0Jx14 5.5Jx14 5.5Jx15 5.0Jx145.5Jx145.5Jx15
4.0Tx14 TIRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
165/65R14175/65R14 185/55R15 175/65R14 185/55R15
T105/70D14 REAR
210(30) 220(32) 420(60) FRONT
230(33) 230(33) 420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
230(33) 230(33) 420(60)
FRONT210(30)
220(32)
420(60)
ENG- INE
GASO- LINE
DIE- SEL

8- 4 CONSUMER INFORMATION
!
I050A01TB-EAT TYRE CHAINS Tyre chains, if necessary, should be installed on the front wheels. Be surethat the chains are the proper size and that they are installed in accordance with the manufacturer's instructions.To minimize tyre and chain wear, do not continue to use tyre chains when they are no longer needed.
SI030A2-E SNOW TYRES If it is desired to fit snow tyres to the vehicle, it must be ascertained that theoriginal size and load carrying capacity are met by the replacement tyres. When using snow tyres, the vehicle shouldnot be driven at speeds in excess of 60 MPH.
I060A01FC-EAT TYRE ROTATION The tyre wear characteristics will vary between each tyre dependant upon the conditions of use. It is normal for the front tyres to wear more rapidly thanthose fitted to the rear of the vehicle and therefore tyre rotation will provide a means of helping to ensure an evenwear rate across the tyre set. For ve- hicles fitted with radial ply tyres, rota- tion should be confined to front to reartyre alternation. It is not recommended that radial ply tyres be rotated from side to side.
WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 20 mph (30 km/h).
o Use the SAE "S" class or wire &
plastic chains.
o Don't use the tyre chains in 185/ 55R 15 tyre to prevent body dam-age.
o If you have noise caused by chains contacting the body, retighten thechain to avoid contact with thevehicle body.
o Retighten the chains to prevent
from a body damage after driving0.3 ~ 0.6 miles (0.5 ~ 1 km) with equipping chains.

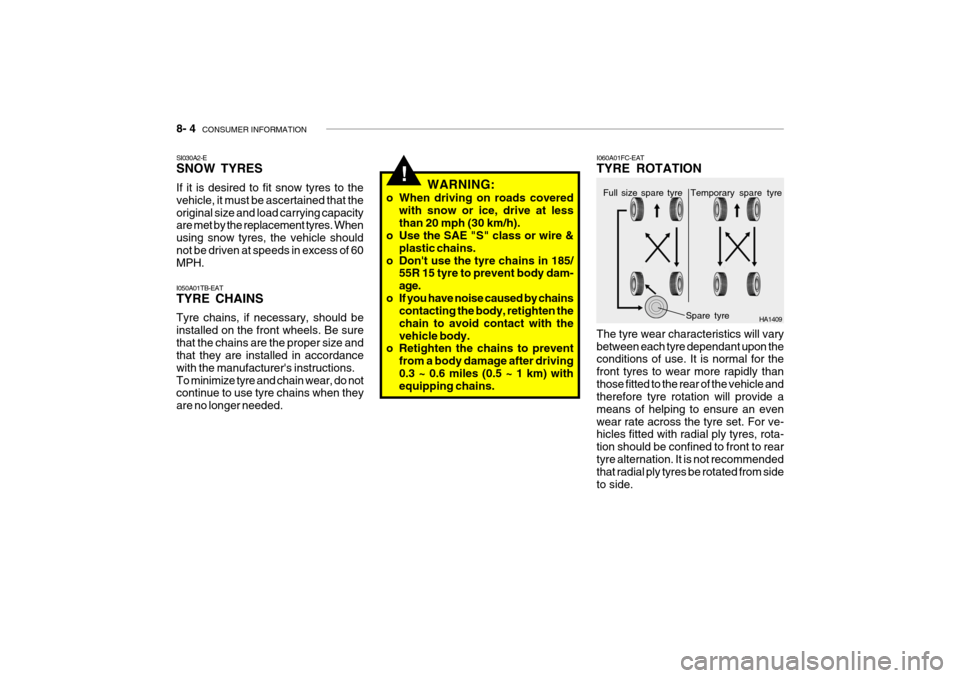

HA1409Spare tyre
Full size spare tyre Temporary spare tyre

CONSUMER INFORMATION 8- 5
SI060B2-E TYRE REPLACEMENT

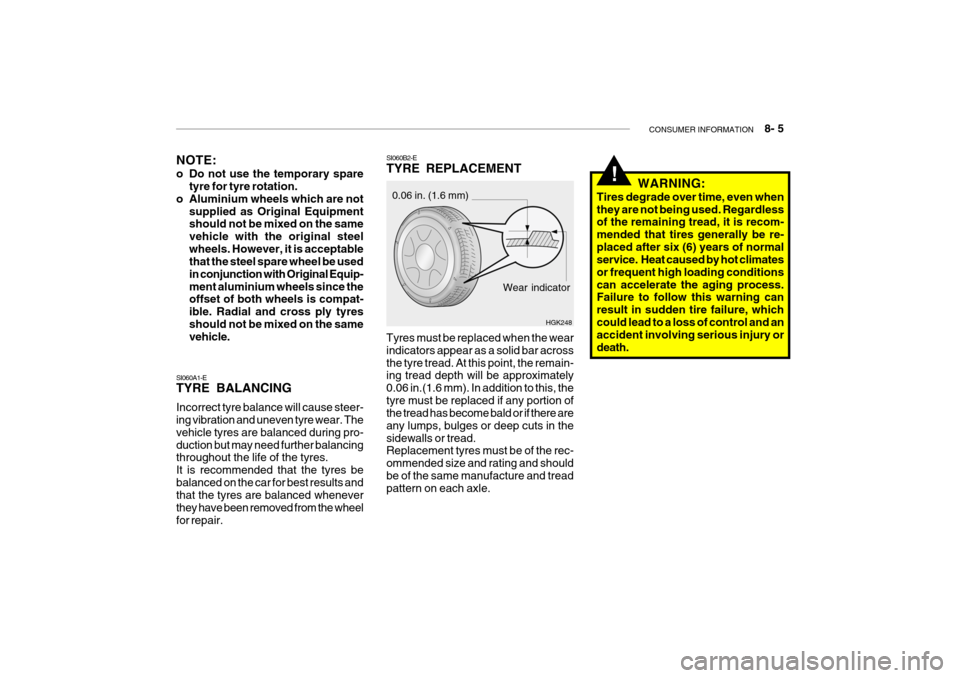

Wear indicator
0.06 in. (1.6 mm)
HGK248
NOTE:
o Do not use the temporary spare
tyre for tyre rotation.
o Aluminium wheels which are not
supplied as Original Equipment should not be mixed on the same vehicle with the original steelwheels. However, it is acceptable that the steel spare wheel be used in conjunction with Original Equip-ment aluminium wheels since the offset of both wheels is compat- ible. Radial and cross ply tyresshould not be mixed on the same vehicle.
SI060A1-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. The vehicle tyres are balanced during pro-duction but may need further balancing throughout the life of the tyres. It is recommended that the tyres bebalanced on the car for best results and that the tyres are balanced whenever they have been removed from the wheelfor repair. Tyres must be replaced when the wearindicators appear as a solid bar acrossthe tyre tread. At this point, the remain- ing tread depth will be approximately 0.06 in.(1.6 mm). In addition to this, thetyre must be replaced if any portion of the tread has become bald or if there are any lumps, bulges or deep cuts in thesidewalls or tread. Replacement tyres must be of the rec- ommended size and rating and shouldbe of the same manufacture and tread pattern on each axle.
!WARNING:
Tires degrade over time, even when they are not being used. Regardless of the remaining tread, it is recom- mended that tires generally be re-placed after six (6) years of normal service. Heat caused by hot climates or frequent high loading conditionscan accelerate the aging process. Failure to follow this warning can result in sudden tire failure, whichcould lead to a loss of control and an accident involving serious injury or death.

8- 6 CONSUMER INFORMATION
I100A01TB-EAT SPARE TYRE AND TOOLS Your Hyundai is delivered with the fol- lowing: Spare tyre and wheel Wheel nut wrench, Wrench bar, Spanner, Screw driver Jack, Towing Hook HTB224
!
SI060D2-E WHEEL REPLACEMENT The original wheels may only be re- placed with Hyundai Approved wheels.
WARNING:
Driving on worn or defective tyres isdangerous. Worn tyres may cause loss of steering control and a seri-ous deterioration of braking effi- ciency. Defective tyres may cause vibration and loss of control throughblow outs. Tyres of different size, construction or tread pattern should not be intermixedon the same axle. Radial and cross ply tyres should not be used on the same vehicle.The use of tyres and wheels of non approved sizes can be dangerous.

9. VEHICLE SPECIFICATIONS
Measurement ................................................................................... 9-2
Engine ... ....................................................................................... .... 9-3
Lubrication chart ............................................................................... 9-4
9

9- 2 VEHICLE SPECIFICATIONS
1.4 L
1.6 L
Type Wheel free playRack stroke Oil pump type 150.6 (3,825)
65.6(1,665) 58.7(1,490) 96.7(2,455)57.1(1,450) 56.7(1,440)
Overall length Overall width Overall height (unladen) Wheel baseWheel tread J030A02TB-EAT TYRE1.1 L
13.5V,70A
Dual hydraulic with brake booster Ventilated disc Drum or DiscCable
J010A02TB-EAT MEASUREMENT
J060A01TB-DAT FUEL SYSTEM
Rack and pinion 0 ~ 1.18 in. (0 ~ 30 mm) 5.5 in. (140 mm) 5.20 in. (132 mm) Vane type
165/65R14, 175/65R14, 185/55R15
Option
Front Rear
in. (mm)
J020A01TB-EAT POWER STEERING
Fuel tank Capacity Litre
45 Imp.gal
9.9
J040A03TB-EAT ELECTRICAL
Item Battery Alternator
J050A01FC-EAT BRAKE Type Front brake type Rear brake type Parking brake
J035A04TB-EAT SPARE TYRE
Temporary (space-saver) (T 105/70 D14) Full size
Option Standard
DIESEL
1.5 L
60AH
12V, 90APETROL
Manual Power 13.5V, 90A
45AH, 55AH

VEHICLE SPECIFICATIONS 9- 3
1.4 L
75.5 x 78.1 1,399
- - 700 ± 100
BTDC 5° ± 5°
1.1 L
67 x 77 1,086
0.13 mm0.17 mm
850 ± 100
BTDC 3° ± 5° 1.6 L
76.5 x 87 1,599
- -
Engine TypeBore x Stroke Displacement (cc) Firing order/Injection orderValve clearance (Cold Engine 20 ± 5°C) Idle speed (RPM)Ignition timing (Base)/Injection timing
IntakeExhaust
J070A03TB-EAT ENGINE
DIESEL
1.5L
4-Cylinder in -line DOHC
75 x 84.51,493
1-3-4-2
- --
Auto control
ITEMS
4-Cylinder in -line SOHC 4-Cylinder in -line DOHC
PETROL
1-3-4-2

9- 4 VEHICLE SPECIFICATIONS
Item
Engine Oil Petrol Diesel
Engine Oil Consumption Transaxle Power Steering
Brake Fluid Coolant
J080A05TB-EAT LUBRICATION CHARTQ'ty (litre)
Drain and refill (with oil filter) 1.1L : 3.0 liter (2.6 lmp. qts.) 1.4L/1.6L : 3.3 liter (2.9 lmp. qts.) Drain and refill (with oil filter) : 5.3 liter (4.2 Imp.qts) MAX. 1L / 1,500 Km MAX. 1L / 1,000 KmPetrol : 2.15 liter (1.86 Imp. qts) Diesel : 2.0 liter (1.75 Imp. qts) 6.1 (5.3 Imp.qts)(Petrol only) As required As requiredPetrol : 5.5 liter (4.8 Imp.qts) Diesel: 5.7 liter (5.0 lmp.qts)
Manual
Auto Oil & Grease Standard
API SJ, SL SAE 5W-20, 5W-30
or ABOVE, SAE 10W-30 (ABOVE -18°C)
ILSAC GF-3 SAE 15W-40 (ABOVE -13°C)
or ABOVE SAE 20W-50 (ABOVE -7°C)
API CH4 SAE 15W-40 (ABOVE -15°C)
or ABOVE, SAE 10W-30 (-20°C ~ 40°C)
ACEA B4 SAE 5W-30 (-25°C ~ 40°C)
or ABOVE SAE 0W-30 (BELOW 10°C) *1, *2
*1. Restricted to driving condition and vehicle destination*2. Not recommended for sustained high speed vehicle operation Normal driving condition Severe driving condition HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands approved by Hyundai Motor Co., Dextron 2 DOT 3, DOT 4 or equivalent Ethylene glycol base for aluminium radiator
