Safety system of your vehicle
Air bag inflation conditions
Front air bag
Front air bags are designed to inflate in a frontal collision depending on the intensi-
ty, speed or angles of impact of the frontcollision.Although the driver’s and front passen-
ger’s air bags are designed to inflate only
in frontal collisions, they also may inflatein other types of collisions if the frontimpact sensors detect a sufficientimpact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
OPA037041OPA037040

Safety system of your vehicle
42
3
Front air bags are not designed to inflate
in rear collisions, because occupants are
moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit. Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision, and
thus in side impacts, front air bag deploy-
ment would not provide additional occu-pant protection.In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
1VQA2089OSA038121OPA037042

343
Safety system of your vehicle
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
“ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this "under-ride" situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.Air bags may not inflate in rollover acci-
dents because air bag deployment could
not provide protection to the occupants.
However, side impact and curtain air
bags may inflate when the vehicle is
rolled over by a side impact collision, if
the vehicle is equipped with side impact
air bags and curtain air bags
Also, if the vehicle is equipped with a
rollover sensor, side impact and curtain
air bags may inflate in a rollover.Air bags may not inflate if the vehicle col-lides with objects such as utility poles or
trees, where the point of impact is con-
centrated and the collision energy is
absorbed by the vehicle structure.
OPA037043OED036104OSA038122

Safety system of your vehicle
44
3
SRS care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the ignition switch is in the ON position,
or continuously remains on, we recom-mend that the system be immediately
inspected by an authorized HYUNDAI
dealer.
We recommend any work on the SRS
system, such as removing, installing,
repairing, or any work on the steeringwheel, the front passenger's panel, front
seats and roof rails be performed by an
authorized HYUNDAI dealer. Improper
handling of the SRS system may result in
serious personal injury.
WARNING
To reduce the risk of serious injury
or death, take the following precau-tions:
Do not attempt to modify or dis- connect the SRS components or
wiring, including the addition of
any kind of badges to the pad
covers or modifications to the
body structure.
Do not place objects over or near the air bag modules on the steer-
ing wheel, instrument panel, or
the front passenger's panel
above the glove box.
Clean the air bag pad covers with a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag cov-
ers and proper deployment of thesystem.
We recommend that inflated air bags be replaced by an author-
ized HYUNDAI dealer.
(Continued)(Continued)
If components of the air bag sys-tem must be discarded, or if the
vehicle must be scrapped, certain
safety precautions must be
observed. Consult an authorized
HYUNDAI dealer for the neces-
sary information. Failure to followthese precautions could increase
the risk of personal injury.

345
Safety system of your vehicle
Additional safety precautions
Passengers should not move out of or
change seats while the vehicle is mov-ing.A passenger who is not wearing a
seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat belts. Devices claiming to improve occu-
pant comfort or reposition the seat belt
can reduce the protection provided bythe seat belt and increase the chance of
serious injury in a crash
Do not modify the front seats. Modification of the front seats could inter-
fere with the operation of the supplemen-
tal restraint system sensing components
or side air bags.
Do not place items under the front seats. Placing items under the front
seats could interfere with the operation of
the supplemental restraint system sens-
ing components and wiring harnesses.Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.
Air bag warning labels (if equipped)
Air bag warning labels are attached to
alert the driver and passengers of poten-
tial risks of the air bag system. Be sure to
read all of the information about the air
bags that are installed on your vehicle in
this Owner’s Manual.
OBA033018
OBA033019
■
Type A
■ Type B

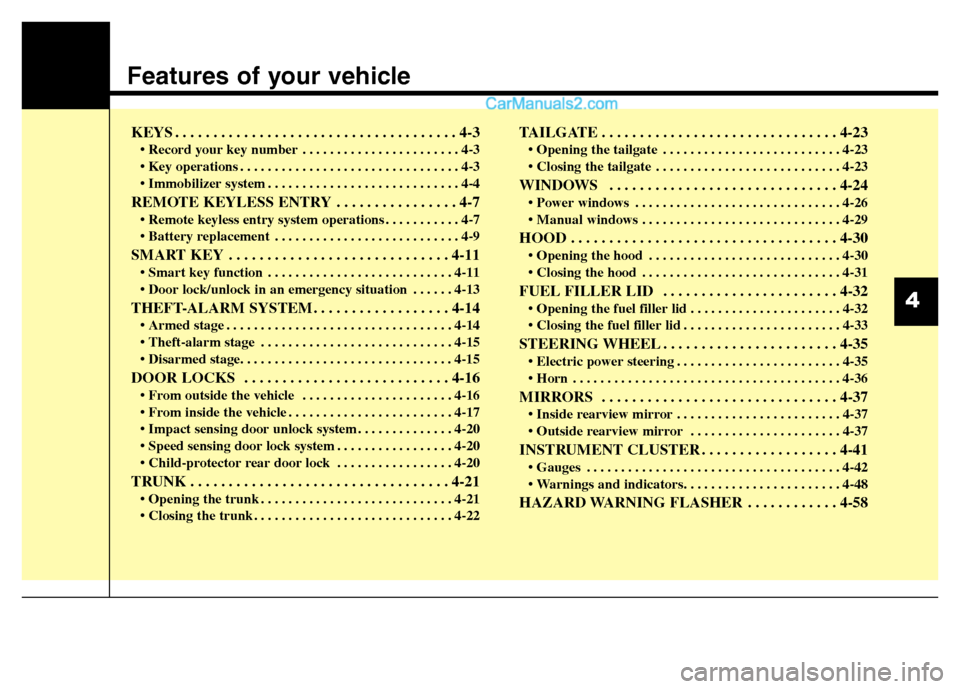

Features of your vehicle
