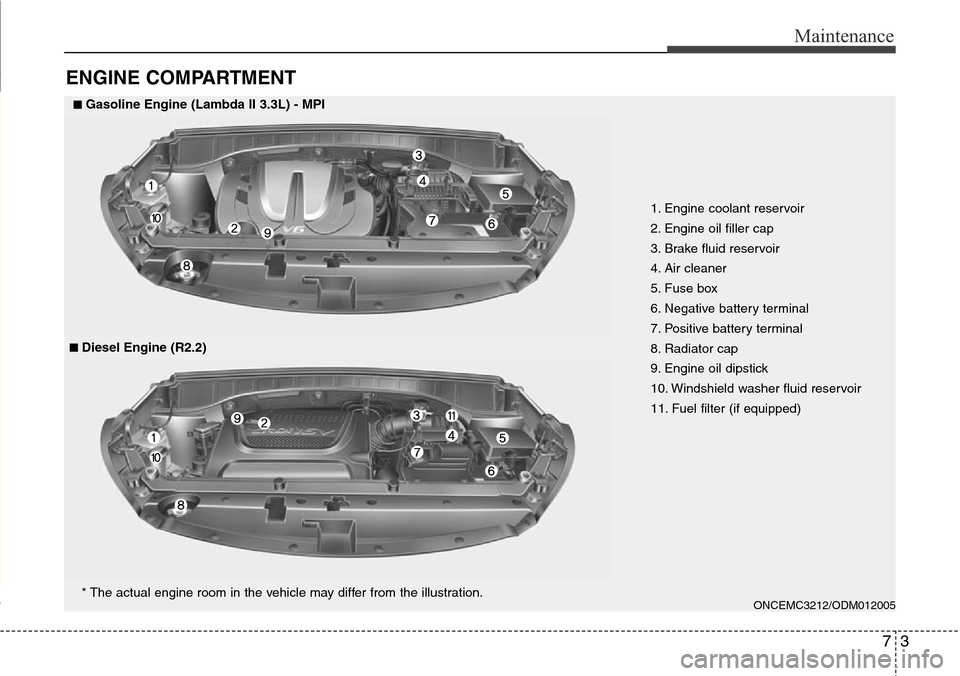

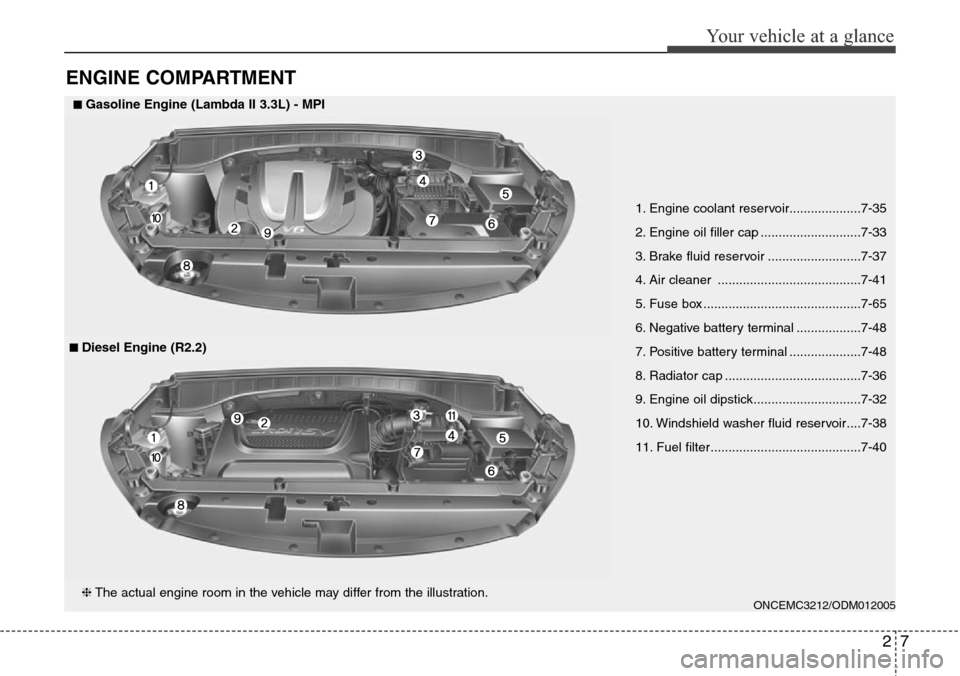

ENGINE COMPARTMENT
1. Engine coolant reservoir....................7-35
2. Engine oil filler cap ............................7-33
3. Brake fluid reservoir ..........................7-37
4. Air cleaner ........................................7-41
5. Fuse box ............................................7-65
6. Negative battery terminal ..................7-48
7. Positive battery terminal ....................7-48
8. Radiator cap ......................................7-36
9. Engine oil dipstick..............................7-32
10. Windshield washer fluid reservoir....7-38
11. Fuel filter..........................................7-40
ONCEMC3212/ODM012005
■Diesel Engine (R2.2)
❈The actual engine room in the vehicle may differ from the illustration.
■■Gasoline Engine (Lambda II 3.3L) - MPI

469
Features of your vehicle

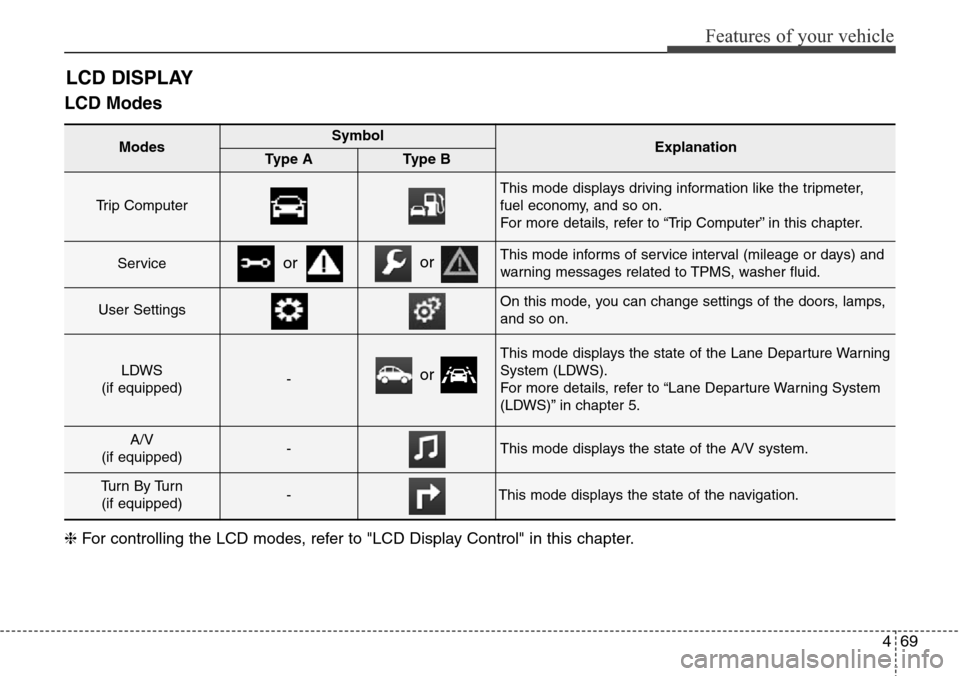

LCD Modes
LCD DISPLAY
Modes SymbolExplanationType AType B
Trip Computer
This mode displays driving information like the tripmeter,
fuel economy, and so on.
For more details, refer to “Trip Computer” in this chapter.
ServiceThis mode informs of service interval (mileage or days) and
warning messages related to TPMS, washer fluid.
User SettingsOn this mode, you can change settings of the doors, lamps,
and so on.
LDWS
(if equipped)-
This mode displays the state of the Lane Departure Warning
System (LDWS).
For more details, refer to “Lane Departure Warning System
(LDWS)” in chapter 5.
A/V
(if equipped)-This mode displays the state of the A/V system.
Tu r n B y Tu r n
(if equipped)-This mode displays the state of the navigation.
oror
❈For controlling the LCD modes, refer to "LCD Display Control" in this chapter.
or

Features of your vehicle
80 4

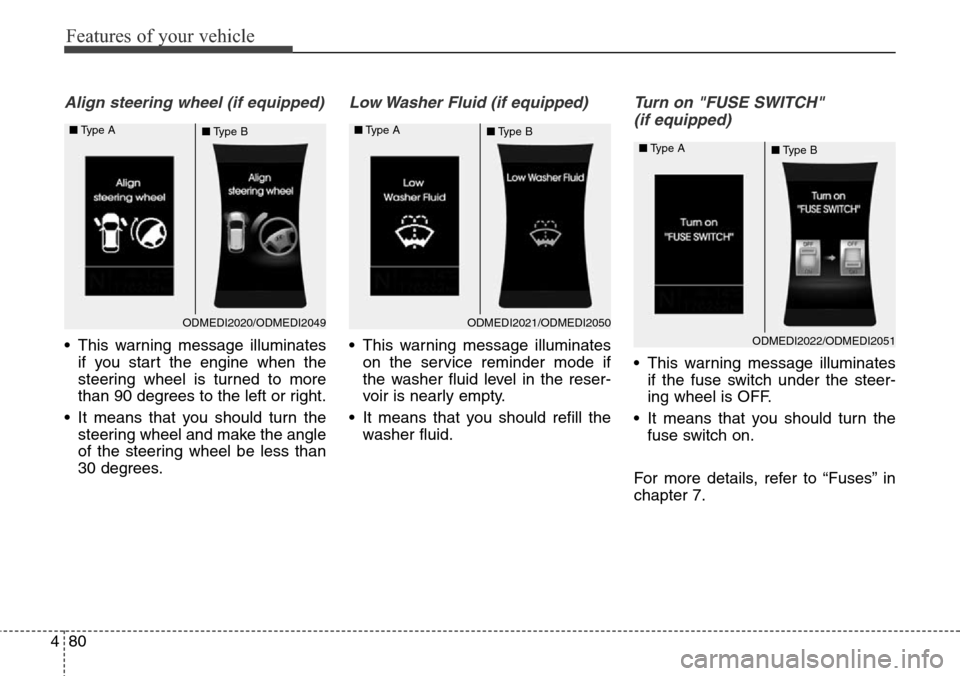

Align steering wheel (if equipped)
• This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
• It means that you should turn the
steering wheel and make the angle
of the steering wheel be less than
30 degrees.
Low Washer Fluid (if equipped)
• This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
• It means that you should refill the
washer fluid.
Turn on "FUSE SWITCH"
(if equipped)
• This warning message illuminates
if the fuse switch under the steer-
ing wheel is OFF.
• It means that you should turn the
fuse switch on.
For more details, refer to “Fuses” in
chapter 7.
ODMEDI2020/ODMEDI2049 ■Type A
■Type BODMEDI2021/ODMEDI2050 ■Type A
■Type B
ODMEDI2022/ODMEDI2051 ■Type A
■Type B

Features of your vehicle
134 4

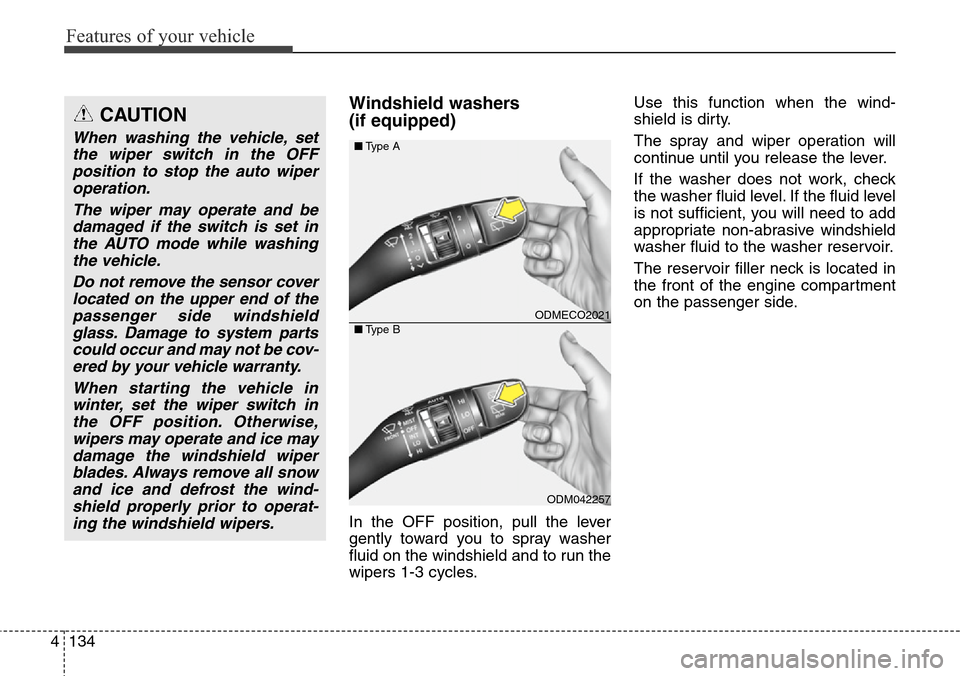

Windshield washers
(if equipped)
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles.Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir.
The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
CAUTION
When washing the vehicle, set
the wiper switch in the OFF
position to stop the auto wiper
operation.
The wiper may operate and be
damaged if the switch is set in
the AUTO mode while washing
the vehicle.
Do not remove the sensor cover
located on the upper end of the
passenger side windshield
glass. Damage to system parts
could occur and may not be cov-
ered by your vehicle warranty.
When starting the vehicle in
winter, set the wiper switch in
the OFF position. Otherwise,
wipers may operate and ice may
damage the windshield wiper
blades. Always remove all snow
and ice and defrost the wind-
shield properly prior to operat-
ing the windshield wipers.
ODMECO2021
ODM042257 ■Type A
■Type B

4135
Features of your vehicle

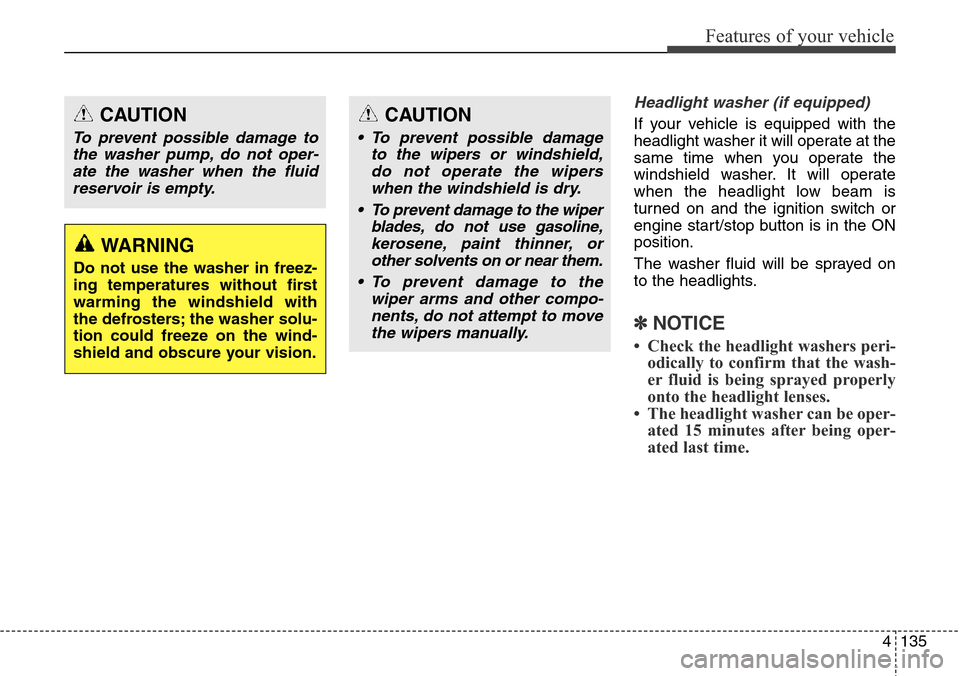

Headlight washer (if equipped)
If your vehicle is equipped with the
headlight washer it will operate at the
same time when you operate the
windshield washer. It will operate
when the headlight low beam is
turned on and the ignition switch or
engine start/stop button is in the ON
position.
The washer fluid will be sprayed on
to the headlights.
✽NOTICE
• Check the headlight washers peri-
odically to confirm that the wash-
er fluid is being sprayed properly
onto the headlight lenses.
• The headlight washer can be oper-
ated 15 minutes after being oper-
ated last time.
CAUTION
• To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
• To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or
other solvents on or near them.
• To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
CAUTION
To prevent possible damage to
the washer pump, do not oper-
ate the washer when the fluid
reservoir is empty.
WARNING
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on the wind-
shield and obscure your vision.

Features of your vehicle
136 4

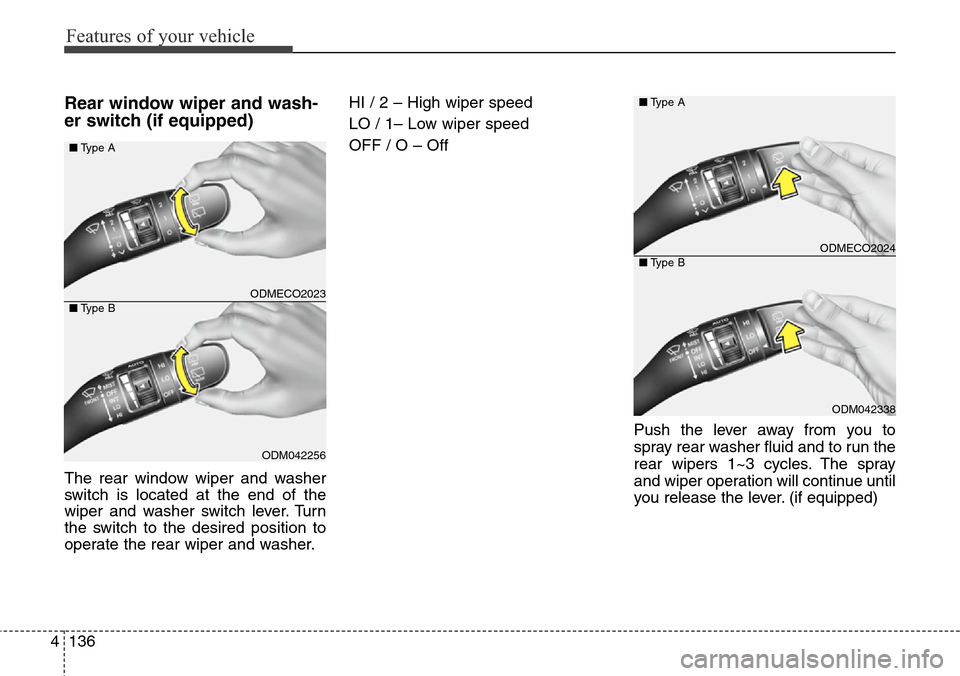

Rear window wiper and wash-
er switch (if equipped)
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever. Turn
the switch to the desired position to
operate the rear wiper and washer.HI / 2 – High wiper speed
LO / 1– Low wiper speed
OFF / O – Off
Push the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue until
you release the lever. (if equipped)
ODMECO2024
ODM042338 ■Type A
■Type B
ODMECO2023
ODM042256 ■Type A
■Type B

Driving your vehicle
4 5

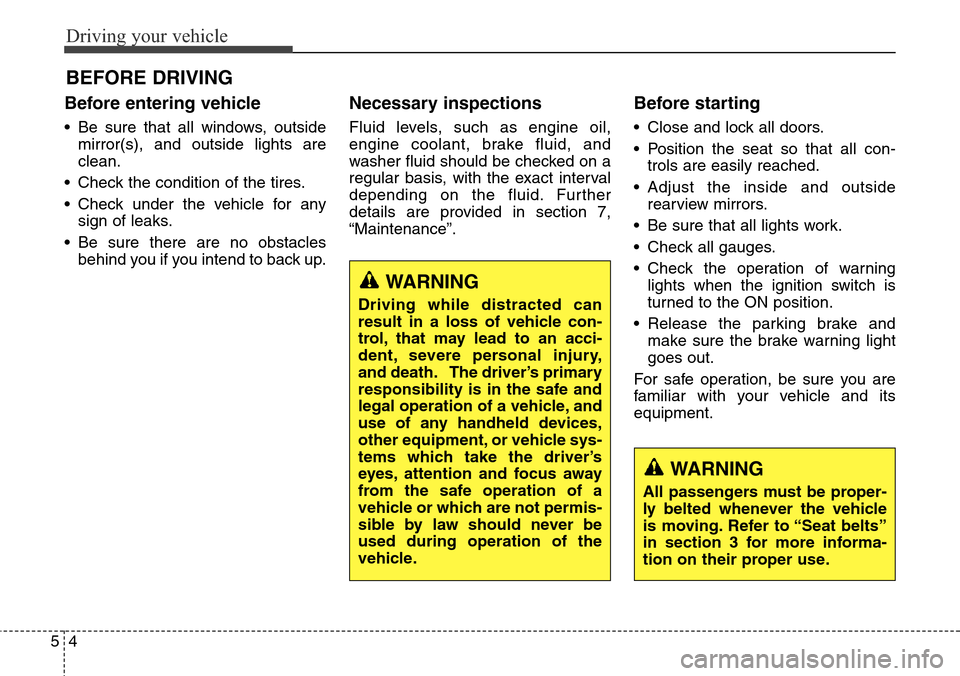

Before entering vehicle
• Be sure that all windows, outside
mirror(s), and outside lights are
clean.
• Check the condition of the tires.
• Check under the vehicle for any
sign of leaks.
• Be sure there are no obstacles
behind you if you intend to back up.
Necessary inspections
Fluid levels, such as engine oil,
engine coolant, brake fluid, and
washer fluid should be checked on a
regular basis, with the exact interval
depending on the fluid. Further
details are provided in section 7,
“Maintenance”.
Before starting
• Close and lock all doors.
• Position the seat so that all con-
trols are easily reached.
• Adjust the inside and outside
rearview mirrors.
• Be sure that all lights work.
• Check all gauges.
• Check the operation of warning
lights when the ignition switch is
turned to the ON position.
• Release the parking brake and
make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
BEFORE DRIVING
WARNING
All passengers must be proper-
ly belted whenever the vehicle
is moving. Refer to “Seat belts”
in section 3 for more informa-
tion on their proper use.
WARNING
Driving while distracted can
result in a loss of vehicle con-
trol, that may lead to an acci-
dent, severe personal injury,
and death. The driver’s primary
responsibility is in the safe and
legal operation of a vehicle, and
use of any handheld devices,
other equipment, or vehicle sys-
tems which take the driver’s
eyes, attention and focus away
from the safe operation of a
vehicle or which are not permis-
sible by law should never be
used during operation of the
vehicle.

Driving your vehicle
84 5

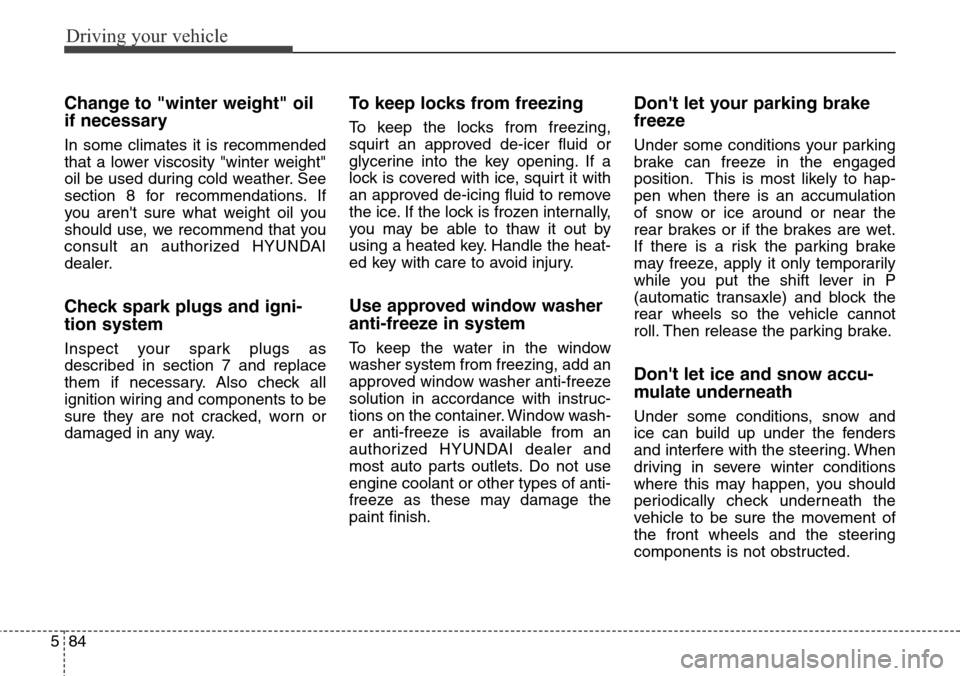

Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
section 8 for recommendations. If
you aren't sure what weight oil you
should use, we recommend that you
consult an authorized HYUNDAI
dealer.
Check spark plugs and igni-
tion system
Inspect your spark plugs as
described in section 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
To keep locks from freezing
To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.
Use approved window washer
anti-freeze in system
To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized HYUNDAI dealer and
most auto parts outlets. Do not use
engine coolant or other types of anti-
freeze as these may damage the
paint finish.
Don't let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to hap-
pen when there is an accumulation
of snow or ice around or near the
rear brakes or if the brakes are wet.
If there is a risk the parking brake
may freeze, apply it only temporarily
while you put the shift lever in P
(automatic transaxle) and block the
rear wheels so the vehicle cannot
roll. Then release the parking brake.
Don't let ice and snow accu-
mulate underneath
Under some conditions, snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen, you should
periodically check underneath the
vehicle to be sure the movement of
the front wheels and the steering
components is not obstructed.

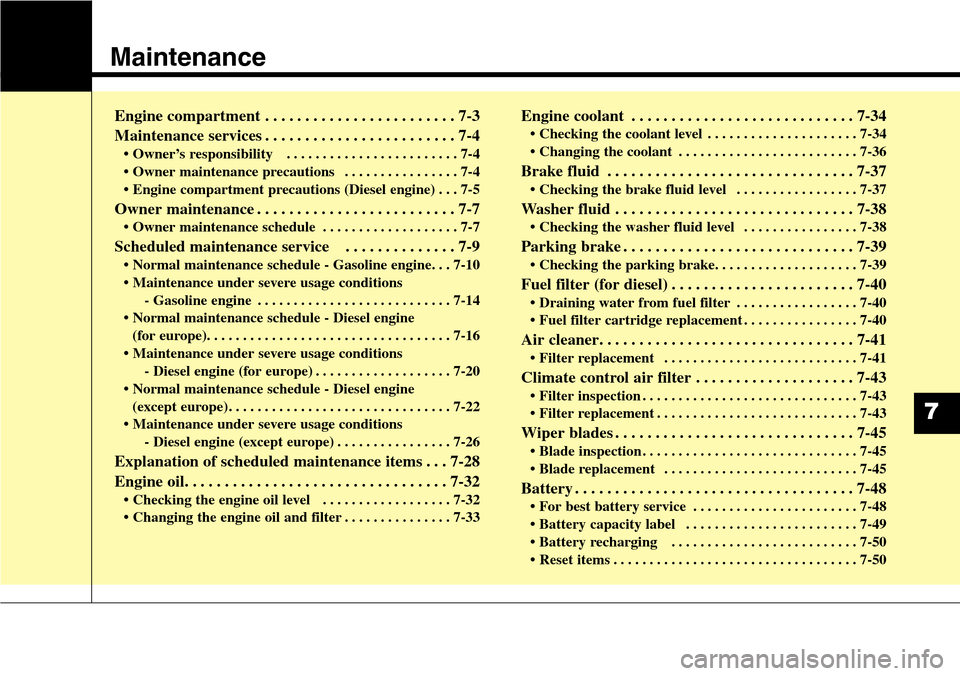

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner maintenance precautions . . . . . . . . . . . . . . . . 7-4
• Engine compartment precautions (Diesel engine) . . . 7-5
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
• Owner maintenance schedule . . . . . . . . . . . . . . . . . . . 7-7
Scheduled maintenance service . . . . . . . . . . . . . . 7-9
• Normal maintenance schedule - Gasoline engine. . . 7-10
• Maintenance under severe usage conditions
- Gasoline engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
• Normal maintenance schedule - Diesel engine
(for europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
• Maintenance under severe usage conditions
- Diesel engine (for europe) . . . . . . . . . . . . . . . . . . . 7-20
• Normal maintenance schedule - Diesel engine
(except europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
• Maintenance under severe usage conditions
- Diesel engine (except europe) . . . . . . . . . . . . . . . . 7-26
Explanation of scheduled maintenance items . . . 7-28
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
• Checking the engine oil level . . . . . . . . . . . . . . . . . . 7-32
• Changing the engine oil and filter . . . . . . . . . . . . . . . 7-33
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
• Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 7-34
• Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37
• Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-37
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Checking the washer fluid level . . . . . . . . . . . . . . . . 7-38
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
• Checking the parking brake. . . . . . . . . . . . . . . . . . . . 7-39
Fuel filter (for diesel) . . . . . . . . . . . . . . . . . . . . . . . 7-40
• Draining water from fuel filter . . . . . . . . . . . . . . . . . 7-40
• Fuel filter cartridge replacement . . . . . . . . . . . . . . . . 7-40
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-43
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Battery capacity label . . . . . . . . . . . . . . . . . . . . . . . . 7-49
• Battery recharging . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
7

73
Maintenance
ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
11. Fuel filter (if equipped)
ONCEMC3212/ODM012005
■Diesel Engine (R2.2)
* The actual engine room in the vehicle may differ from the illustration.
■■Gasoline Engine (Lambda II 3.3L) - MPI
