Hyundai Grandeur 2002 Owner's Manual

1- 108 FEATURES OF YOUR HYUNDAI
o When driving your vehicle, be sure
to keep the volume of the unit set low enough to allow you to hearsounds coming from the outside.
o Do not expose this equipment (in- cluding the speakers and tape) towater or excessive moisture.

FEATURES OF YOUR HYUNDAI 1- 109

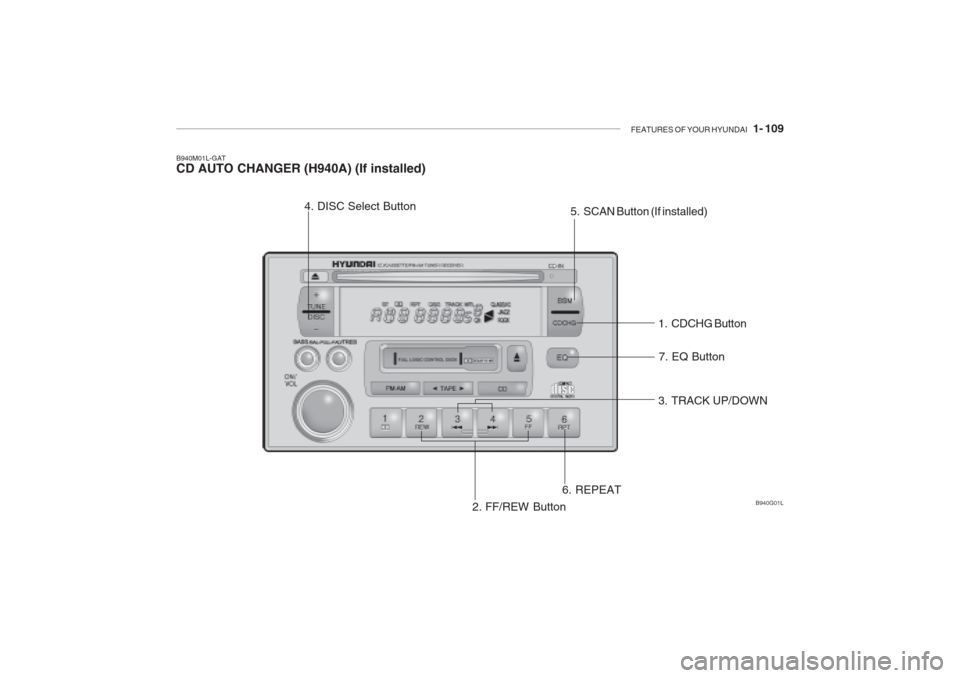

B940M01L-GAT CD AUTO CHANGER (H940A) (If installed)
1. CDCHG Button
2. FF/REW Button 3. TRACK UP/DOWN
4. DISC Select Button
5. SCAN Button (If installed)
B940G01L
6. REPEAT7. EQ Button

1- 110 FEATURES OF YOUR HYUNDAI
2. FF/REW While the disc is playing, if you hold down the FF button continuously, thetrack number is increased and viceversa.
3. TRACK UP/DOWN
o The desired track on the disc cur-
rently being played can be selected using the track number.
o Press once to skip forward to the beginning of the next track.
o Press once to skip back to the
beginning of the track.
4. DISC Select Button To select the CD you want, push "DISC +" or "DISC -" to change the discnumber
5. SCAN (If installed)
o Press the SCAN button to playback the first 10 seconds of each track.
o Press the SCAN button again within 10 sec. for the desired track. CLASSIC
JAZZ ROCK DEFEAT

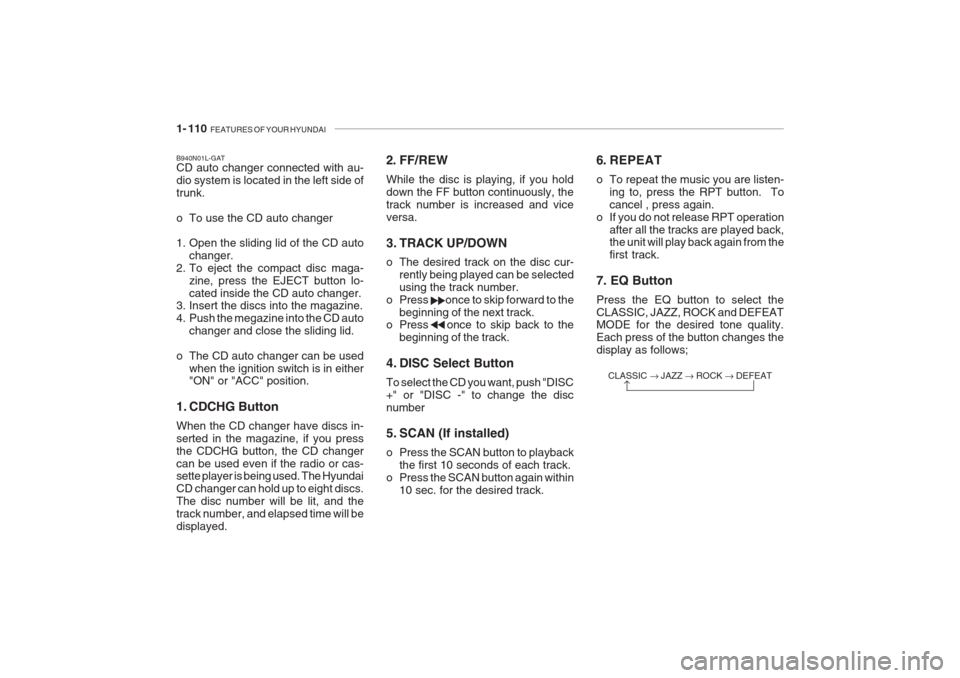

B940N01L-GAT CD auto changer connected with au- dio system is located in the left side oftrunk.
o To use the CD auto changer
1. Open the sliding lid of the CD auto
changer.
2. To eject the compact disc maga- zine, press the EJECT button lo- cated inside the CD auto changer.
3. Insert the discs into the magazine.
4. Push the megazine into the CD auto
changer and close the sliding lid.
o The CD auto changer can be used when the ignition switch is in either "ON" or "ACC" position.
1. CDCHG Button When the CD changer have discs in- serted in the magazine, if you pressthe CDCHG button, the CD changercan be used even if the radio or cas- sette player is being used. The Hyundai CD changer can hold up to eight discs.The disc number will be lit, and thetrack number, and elapsed time will bedisplayed. 6. REPEAT
o To repeat the music you are listen-
ing to, press the RPT button. To cancel , press again.
o If you do not release RPT operation
after all the tracks are played back, the unit will play back again from the first track.
7. EQ Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the desired tone quality. Each press of the button changes thedisplay as follows;

FEATURES OF YOUR HYUNDAI 1- 111
NOTE:
o To assure proper operation of the
unit, keep the vehicle interior tem- perature within a normal range byusing the vehicle's air condition-ing or heating system.
o When replacing the fuse, replace it with a fuse having the correctcapacity.
o This equipment is designed to
be used only in a 12 volt DCbattery system with negativeground.
o This unit is made of precision
parts. Do not attempt to disas-semble or adjust any parts.
o When driving your vehicle, be sure to keep the volume of theunit set low enough to allow you to hear sounds coming from the outside.

1- 112 FEATURES OF YOUR HYUNDAI

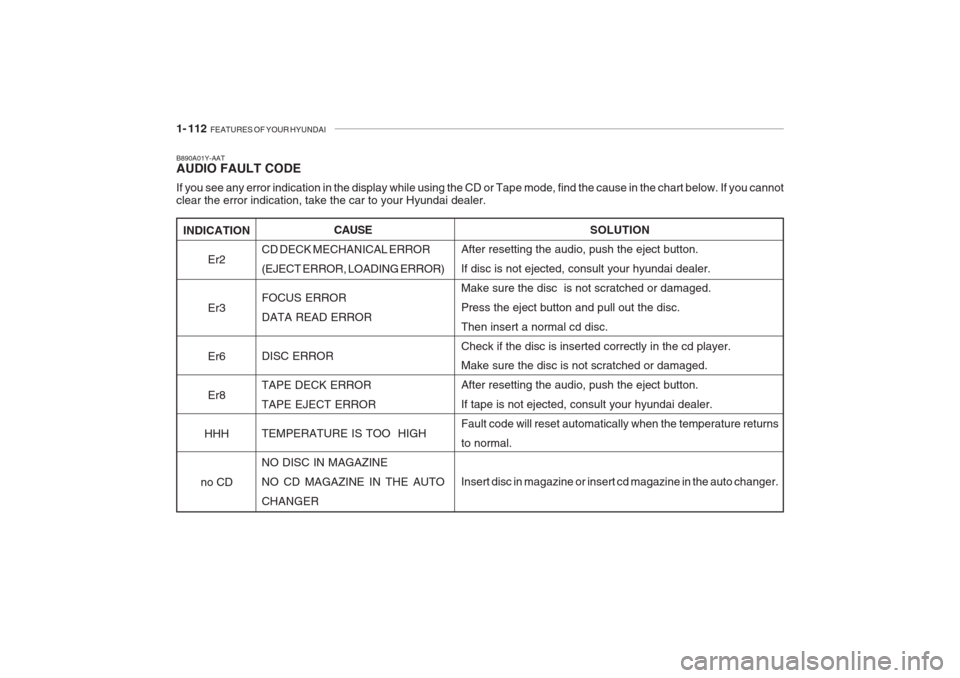

INDICATION
Er2 Er3Er6 Er8
HHH
no CD
B890A01Y-AAT AUDIO FAULT CODE If you see any error indication in the display while using the CD or Tape mode, find the cause in the chart below. If you canno t
clear the error indication, take the car to your Hyundai dealer.
SOLUTION
After resetting the audio, push the eject button. If disc is not ejected, consult your hyundai dealer.Make sure the disc is not scratched or damaged.Press the eject button and pull out the disc.Then insert a normal cd disc.Check if the disc is inserted correctly in the cd player. Make sure the disc is not scratched or damaged. After resetting the audio, push the eject button.If tape is not ejected, consult your hyundai dealer.Fault code will reset automatically when the temperature returnsto normal. Insert disc in magazine or insert cd magazine in the auto changer.
CAUSE
CD DECK MECHANICAL ERROR (EJECT ERROR, LOADING ERROR) FOCUS ERROR DATA READ ERROR DISC ERROR TAPE DECK ERROR TAPE EJECT ERROR TEMPERATURE IS TOO HIGHNO DISC IN MAGAZINE NO CD MAGAZINE IN THE AUTOCHANGER

FEATURES OF YOUR HYUNDAI 1- 113
Storage When not in use, place your discs in their individual cases and store them ina cool place away from the sun, heat, and dust. Do not grip or pull out the disc with yourhand while the disc is being pulled intothe unit by the self loading mechanism.Do not pull the unit from the dashimmediately after a disc is inserted or the eject switch has been pressed. If the unit is pulled out before an opera-tion is completed, the disc will be un-stable in the unit and may be dam-aged.Do not attempt to insert a disc into the unit when the unit is out of the dash or the power is off.

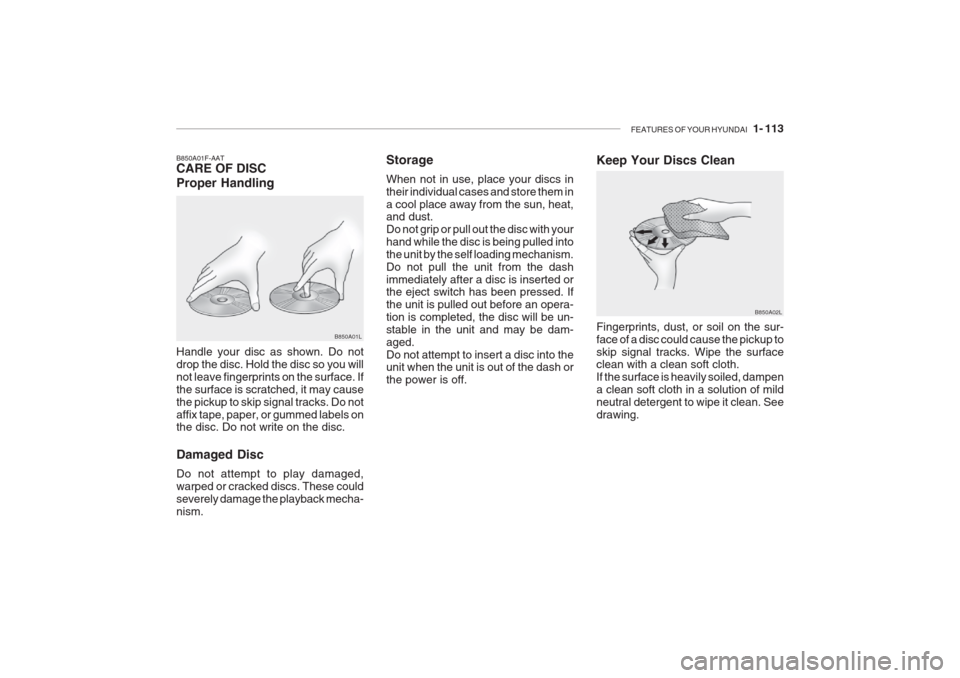

B850A01F-AAT CARE OF DISC Proper Handling Handle your disc as shown. Do not drop the disc. Hold the disc so you willnot leave fingerprints on the surface. Ifthe surface is scratched, it may causethe pickup to skip signal tracks. Do notaffix tape, paper, or gummed labels on the disc. Do not write on the disc. Damaged Disc Do not attempt to play damaged, warped or cracked discs. These couldseverely damage the playback mecha-nism.
B850A01L
B850A02L
Keep Your Discs Clean Fingerprints, dust, or soil on the sur- face of a disc could cause the pickup toskip signal tracks. Wipe the surface clean with a clean soft cloth. If the surface is heavily soiled, dampena clean soft cloth in a solution of mildneutral detergent to wipe it clean. Seedrawing.

1- 114 FEATURES OF YOUR HYUNDAI
Head
Cotton applicator
B860B02L
B860A02L
o Be sure that the cassette label is not
loose or peeling off or tape ejection may be difficult.
o Never touch or soil the actual audio
tape surfaces.
o Keep all magnetized objects, such as electric motors, speakers or trans- formers away from your cassette tapes and tape player unit.
o Store cassettes in a cool, dry place with the open side facing down toprevent dust from setting in the cas-sette body.
o We strongly recommend against the
use of tapes longer than C-60 (60minutes total). Tapes such as C-120 or C-180 are very thin and donot perform as well in the automo- tive environment. o Avoid repeated fast reverse usage to
replay one given tune or tape sec- tion. This can cause poor tape wind-ing to occur, and eventually causeexcessive internal drag and poor audio quality in the cassette. If this occurs, it can sometimes be cor-rected by fast winding the tape fromend to end several times. If this doesnot correct the problem, do not con-tinue to use the tape in your vehicle.

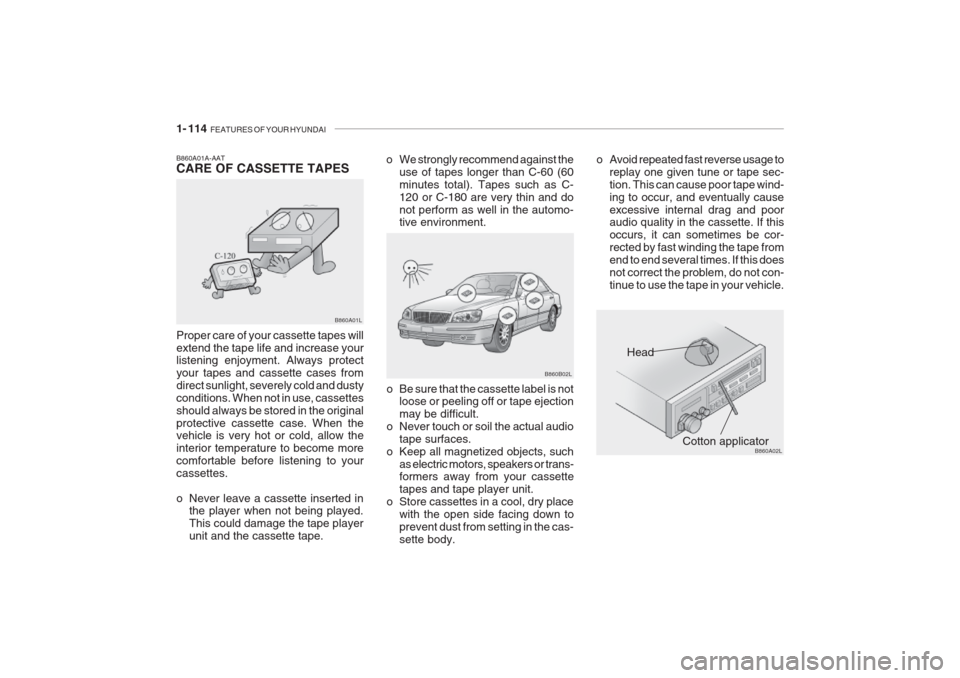

B860A01A-AAT CARE OF CASSETTE TAPES Proper care of your cassette tapes will extend the tape life and increase your listening enjoyment. Always protect your tapes and cassette cases fromdirect sunlight, severely cold and dustyconditions. When not in use, cassettesshould always be stored in the originalprotective cassette case. When the vehicle is very hot or cold, allow the interior temperature to become morecomfortable before listening to yourcassettes.
o Never leave a cassette inserted inthe player when not being played. This could damage the tape playerunit and the cassette tape. B860A01L

FEATURES OF YOUR HYUNDAI 1- 115

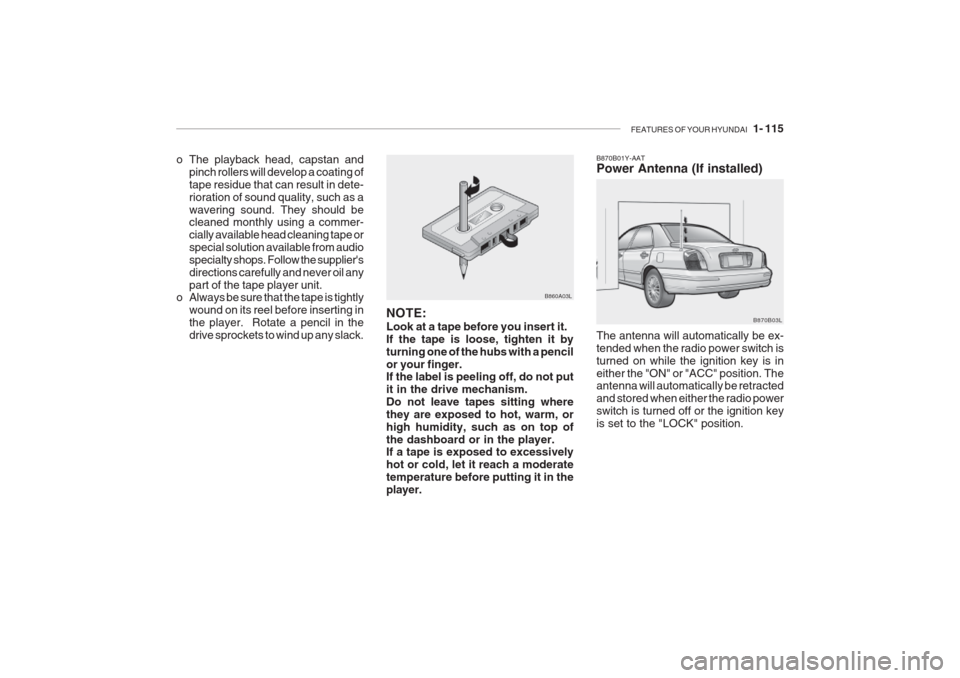

o The playback head, capstan and
pinch rollers will develop a coating of tape residue that can result in dete-rioration of sound quality, such as awavering sound. They should be cleaned monthly using a commer- cially available head cleaning tape orspecial solution available from audiospecialty shops. Follow the supplier'sdirections carefully and never oil anypart of the tape player unit.
o Always be sure that the tape is tightly
wound on its reel before inserting inthe player. Rotate a pencil in thedrive sprockets to wind up any slack. B860A03L
NOTE: Look at a tape before you insert it. If the tape is loose, tighten it byturning one of the hubs with a pencilor your finger. If the label is peeling off, do not put it in the drive mechanism.Do not leave tapes sitting wherethey are exposed to hot, warm, orhigh humidity, such as on top ofthe dashboard or in the player. If a tape is exposed to excessively hot or cold, let it reach a moderatetemperature before putting it in theplayer.B870B01Y-AAT Power Antenna (If installed) The antenna will automatically be ex- tended when the radio power switch isturned on while the ignition key is ineither the "ON" or "ACC" position. The antenna will automatically be retracted and stored when either the radio powerswitch is turned off or the ignition keyis set to the "LOCK" position. B870B03L

1- 116 FEATURES OF YOUR HYUNDAI
B870D03L

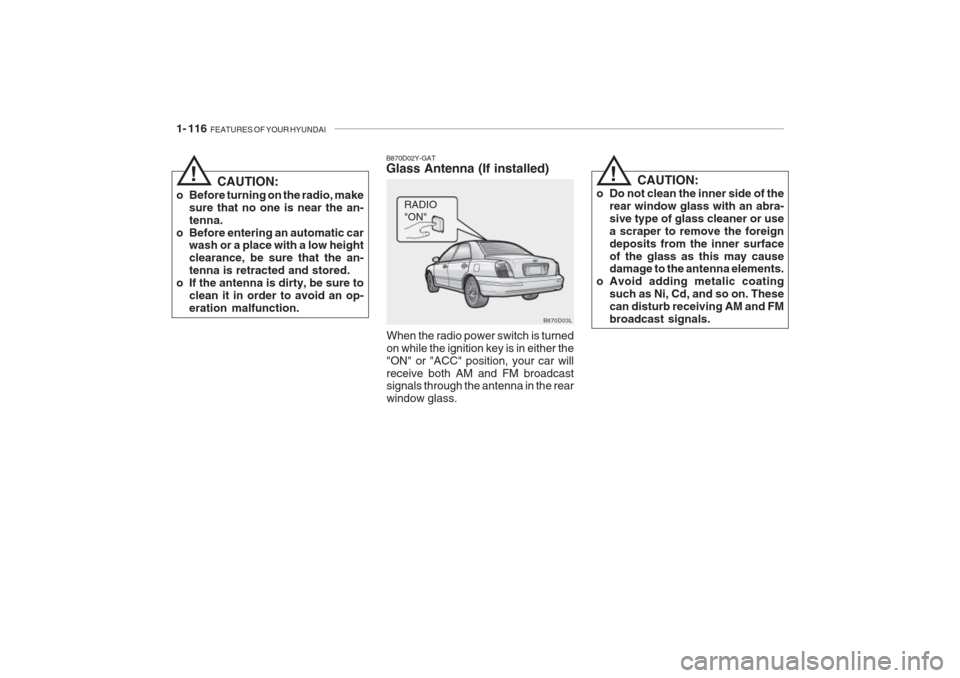

B870D02Y-GAT Glass Antenna (If installed)
When the radio power switch is turned on while the ignition key is in either the"ON" or "ACC" position, your car willreceive both AM and FM broadcast signals through the antenna in the rear window glass. RADIO "ON"
CAUTION:
o Before turning on the radio, make sure that no one is near the an- tenna.
o Before entering an automatic car wash or a place with a low heightclearance, be sure that the an-tenna is retracted and stored.
o If the antenna is dirty, be sure to
clean it in order to avoid an op-eration malfunction. CAUTION:
o Do not clean the inner side of the rear window glass with an abra-sive type of glass cleaner or usea scraper to remove the foreigndeposits from the inner surfaceof the glass as this may cause damage to the antenna elements.
o Avoid adding metalic coating such as Ni, Cd, and so on. These can disturb receiving AM and FMbroadcast signals.
!!

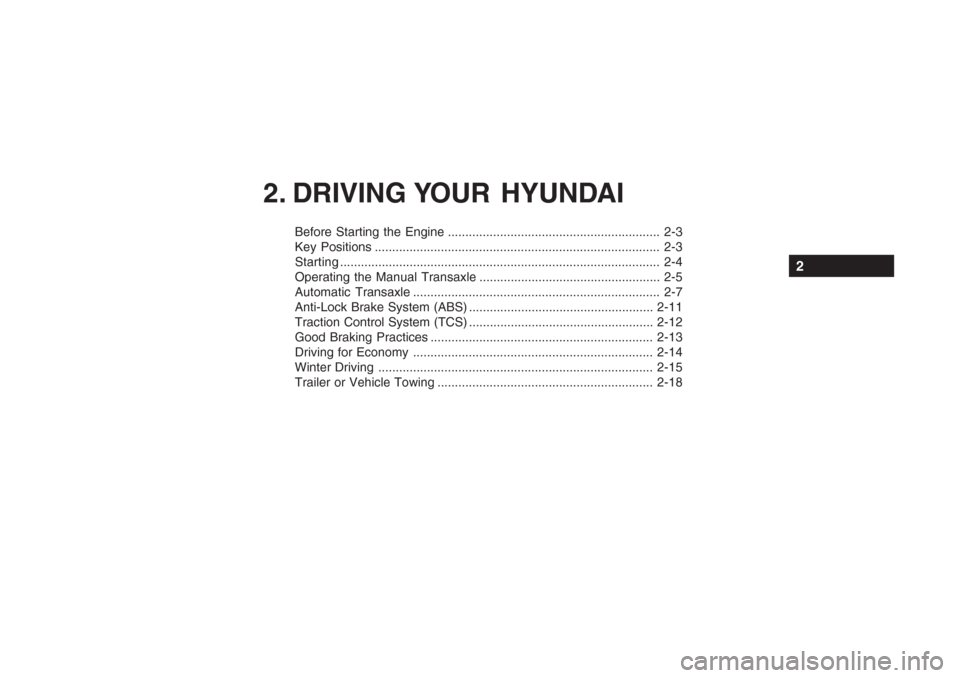

2. DRIVING YOUR HYUNDAI
